Commodore 64C (ASSY 250469) Repair (1 of 2)

Defect:

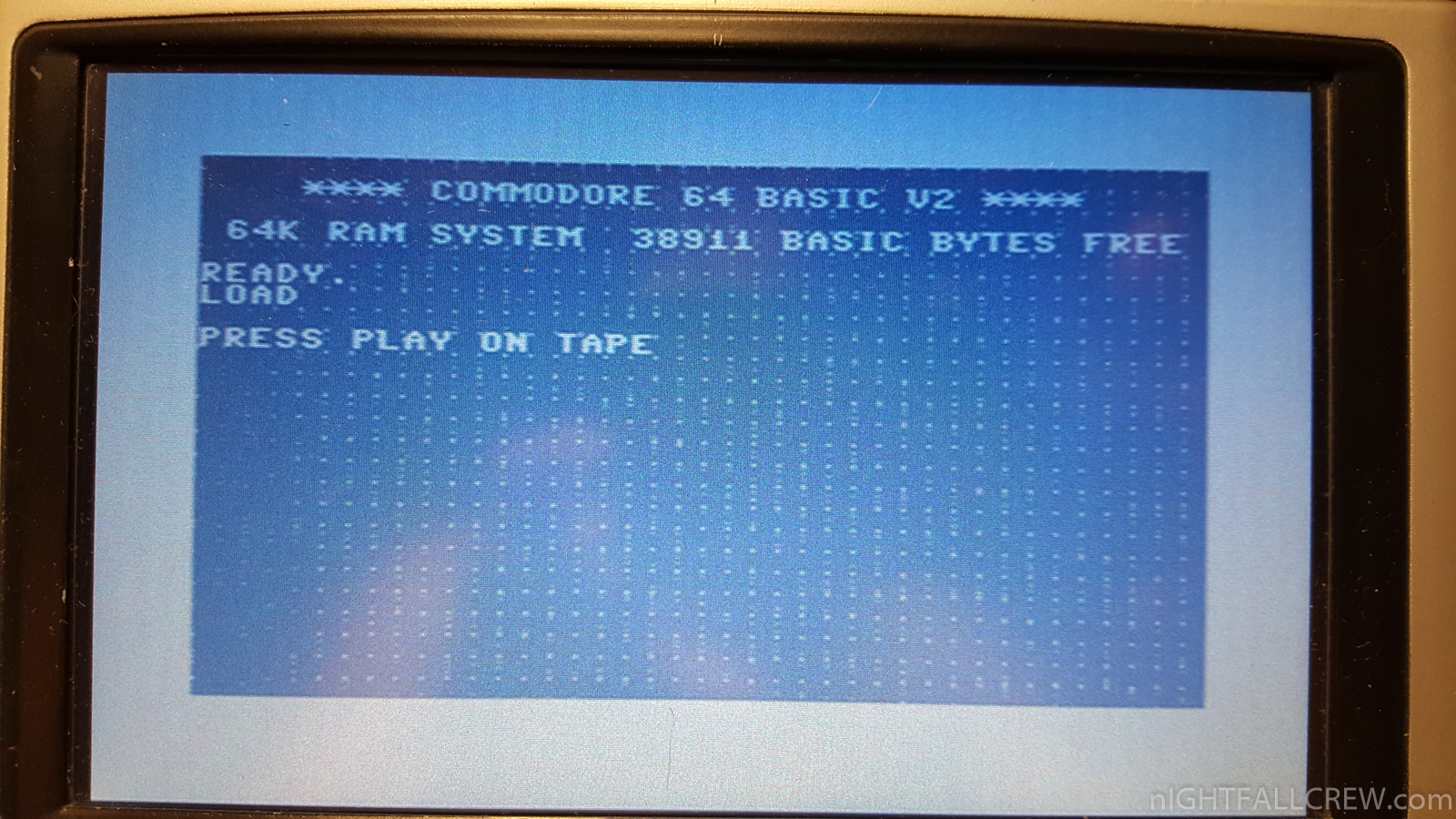

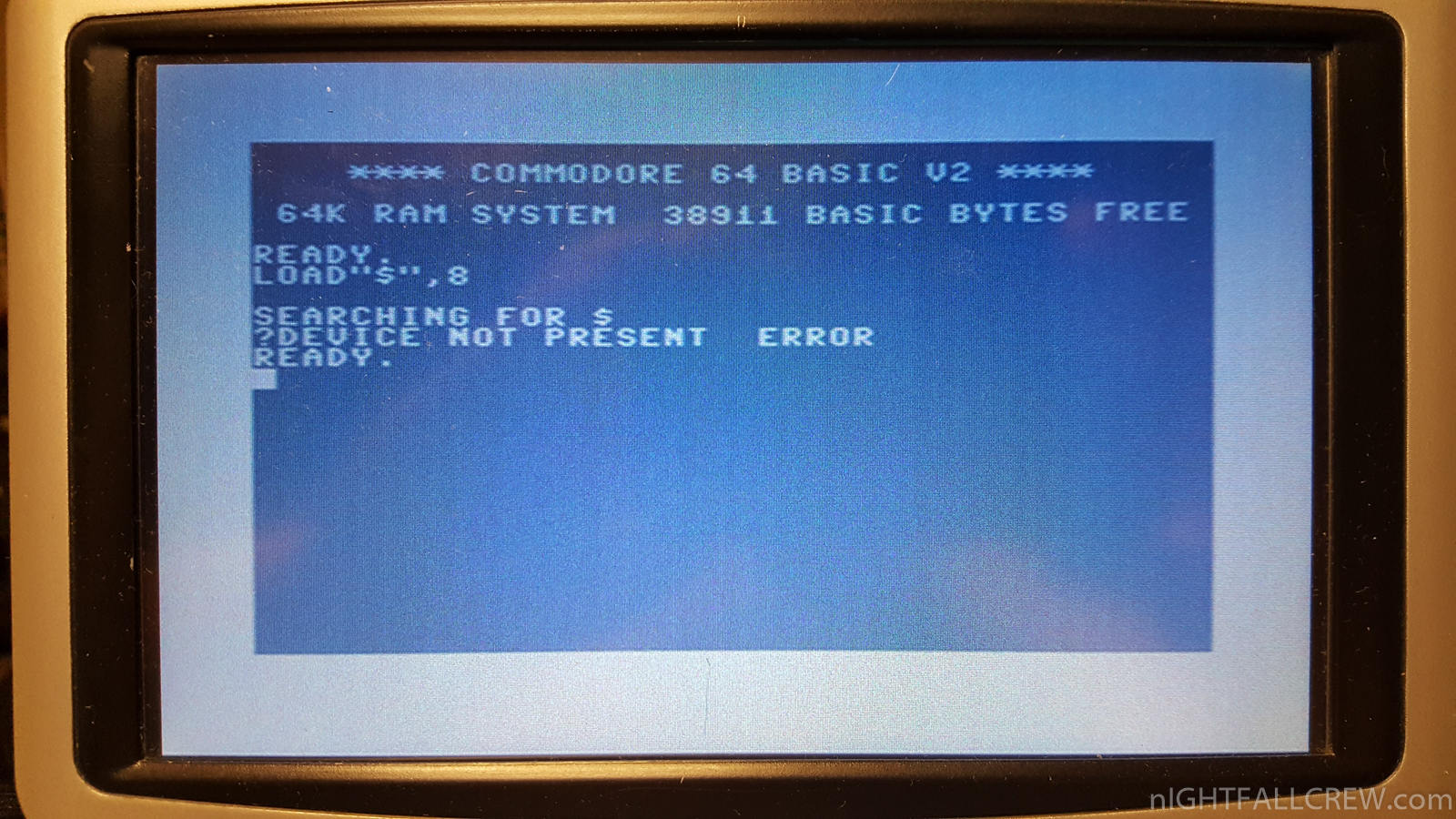

• Garbage Screen/Auto Load/Device not Present.

Replaced parts/Fixes:

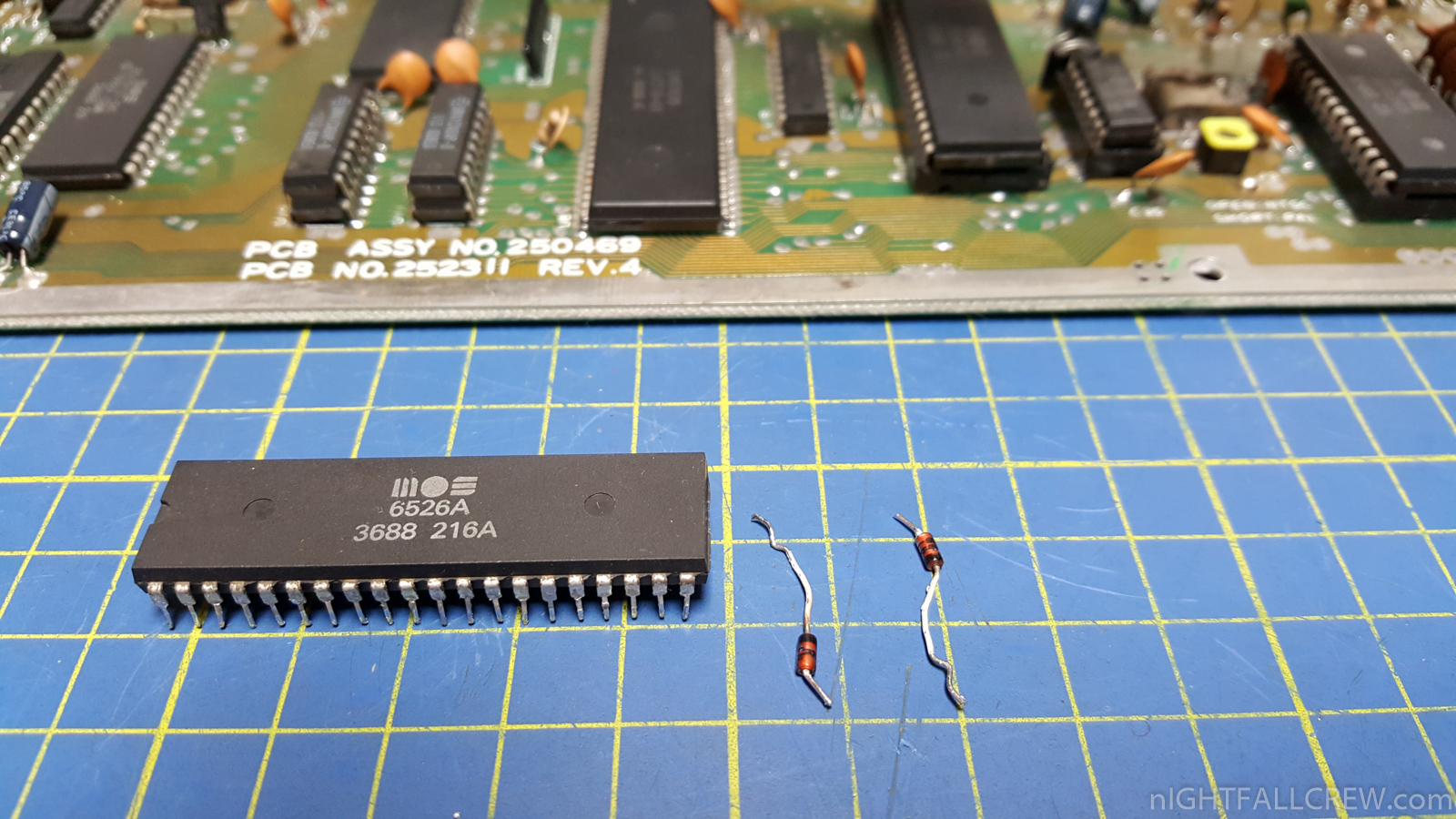

• 1 x MOS 6526 (U1)
• 2 x Diode 1n4148 (CR9/CR11)

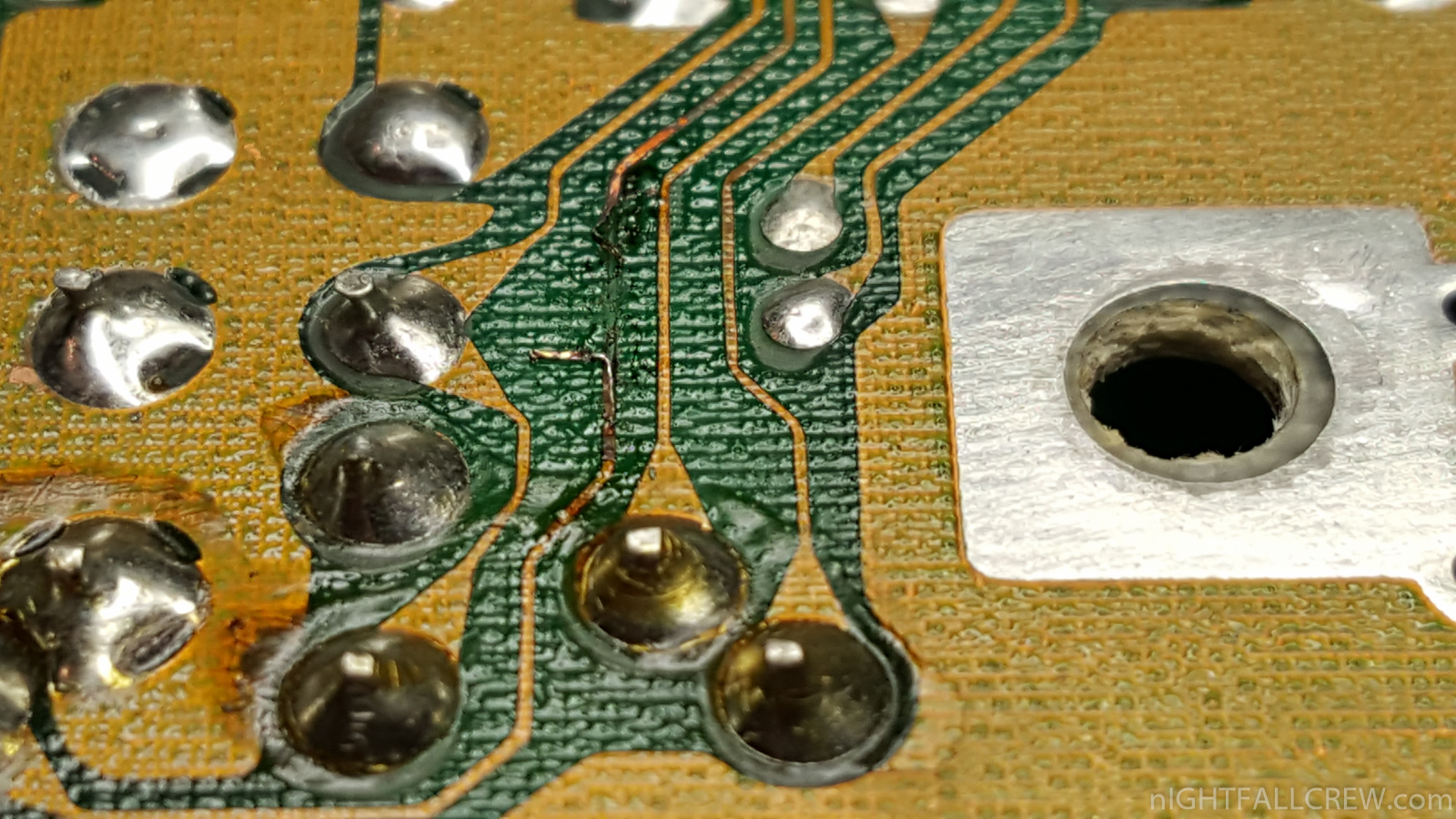

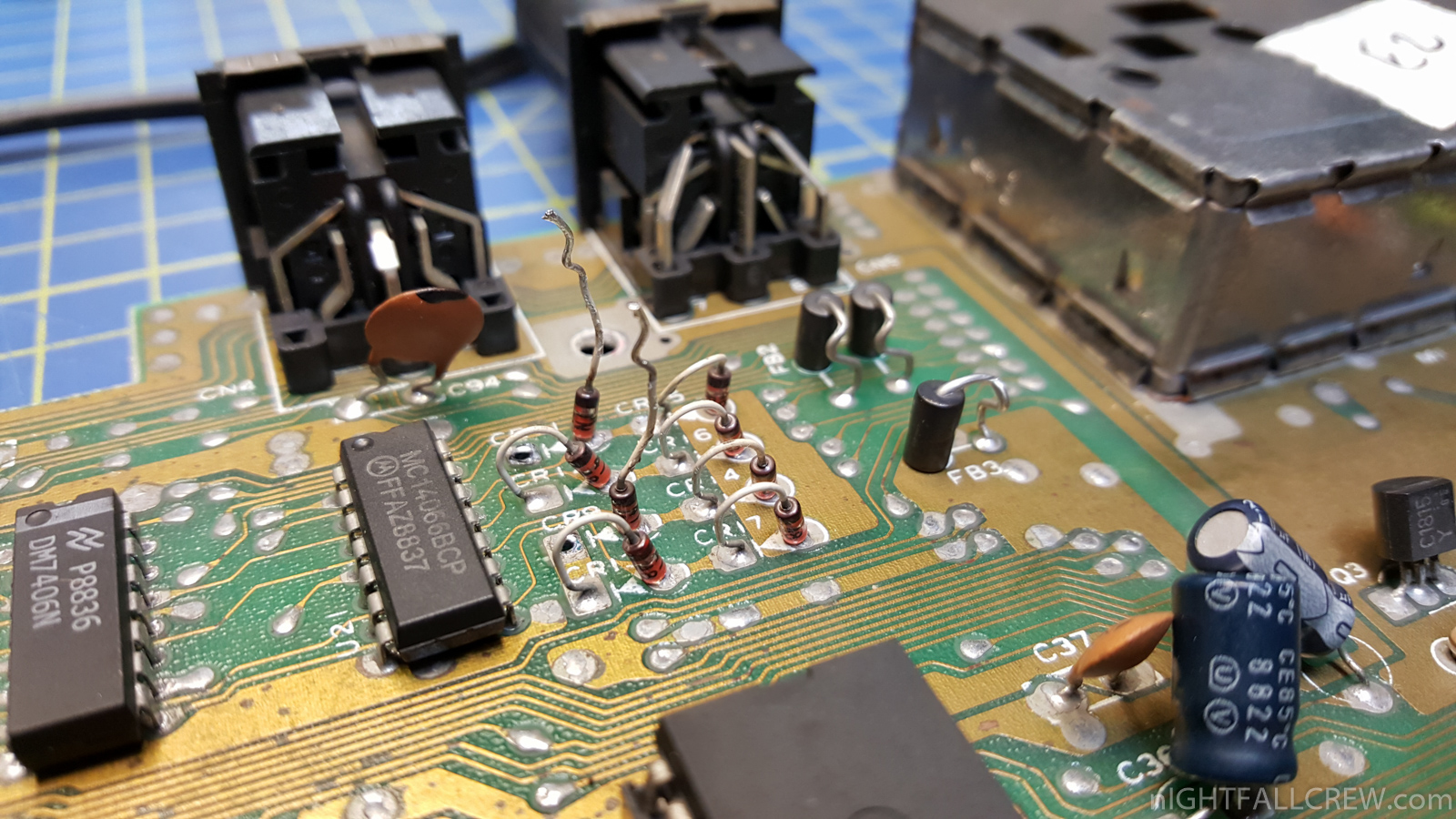

• Rebuilt a pcb track (see photo)

Note:

• As you can see from the photo of the the broken pcb track, evidently someone did a short circuit on the IEC connector on the data lines: SRQin and DATA.

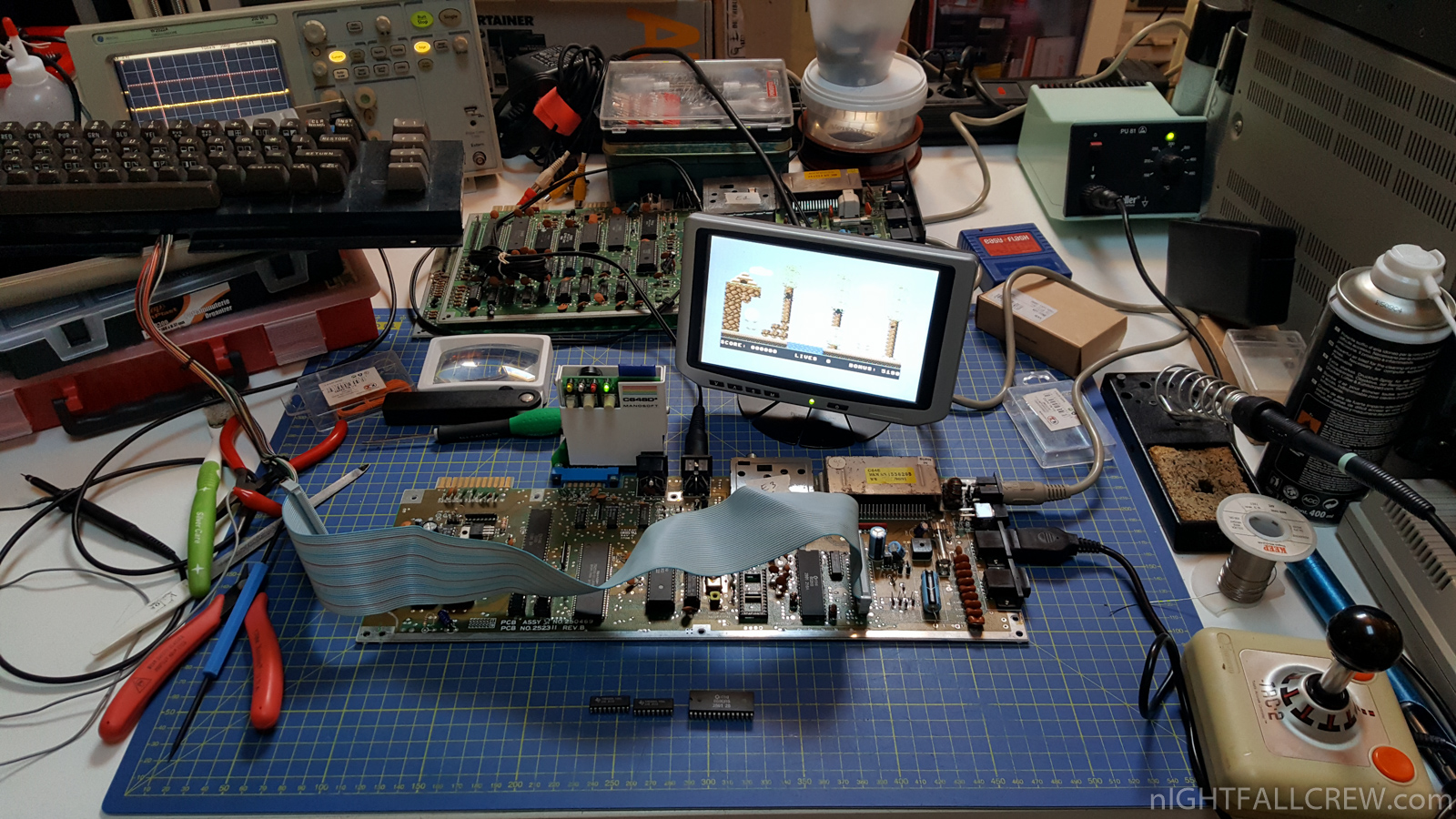

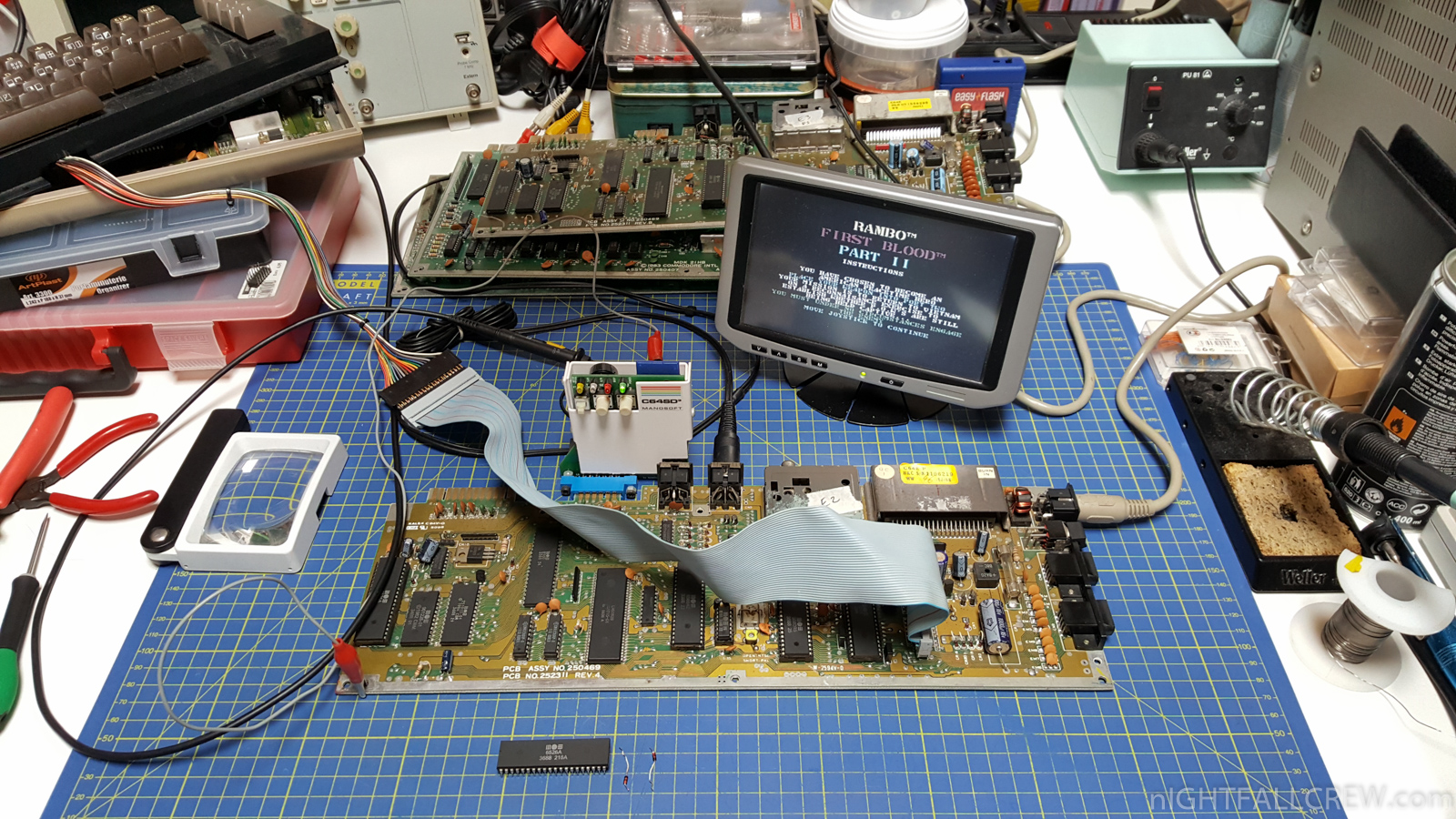

Gallery of the repair:

Commodore 64C (ASSY 250469) Repair (2 of 2)

Defect:

• Black Screen.

Replaced parts:

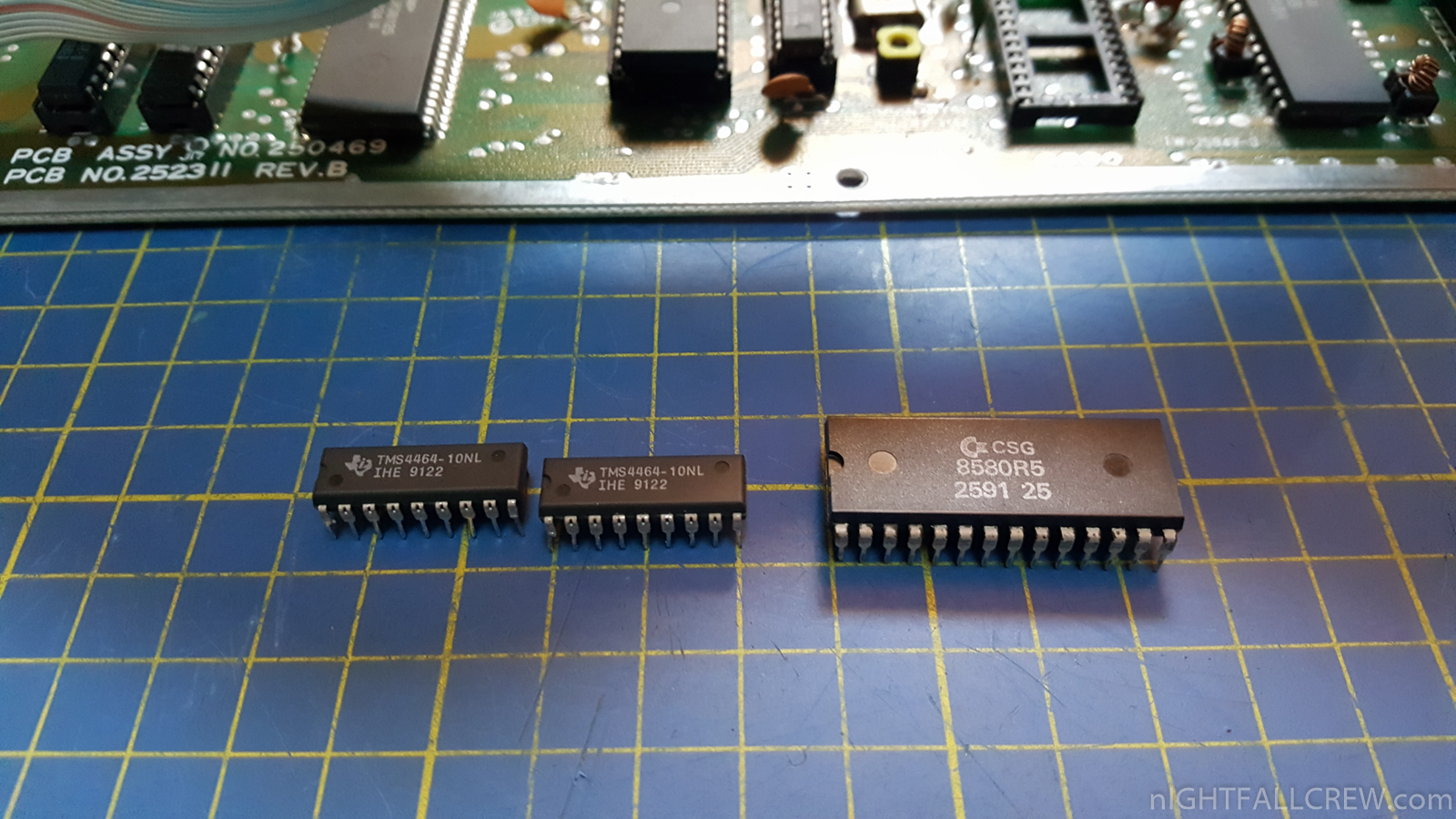

• 1 x MOS 8580R5 SID in short circuit (U9)
• 2 x TMS 4464 RAM (U10/U11)

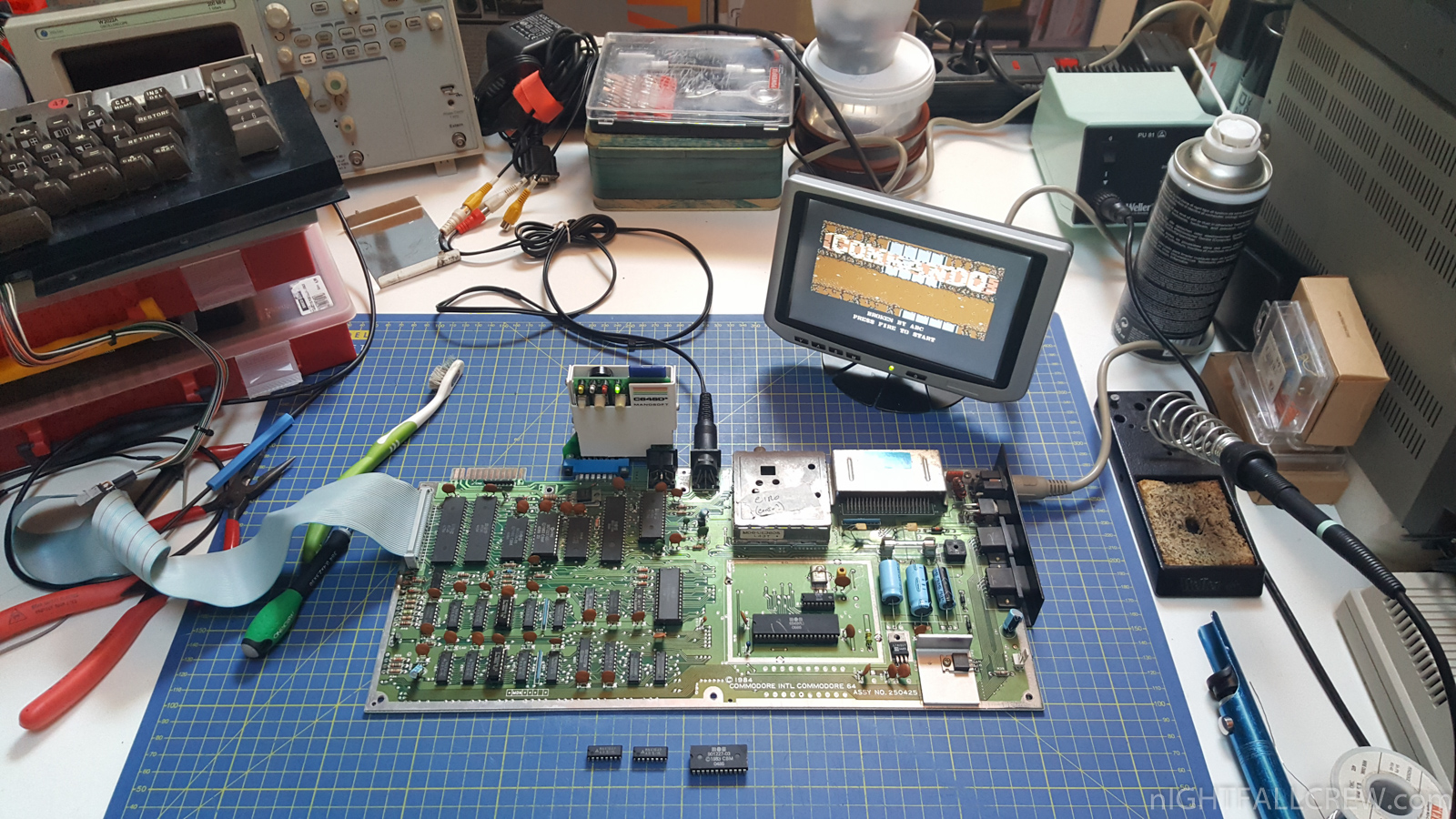

Gallery of the repair:

Commodore 64 (ASSY 250407) Repair (1 of 2)

This Commodore 64 has been already repaired in years past.

Defect:

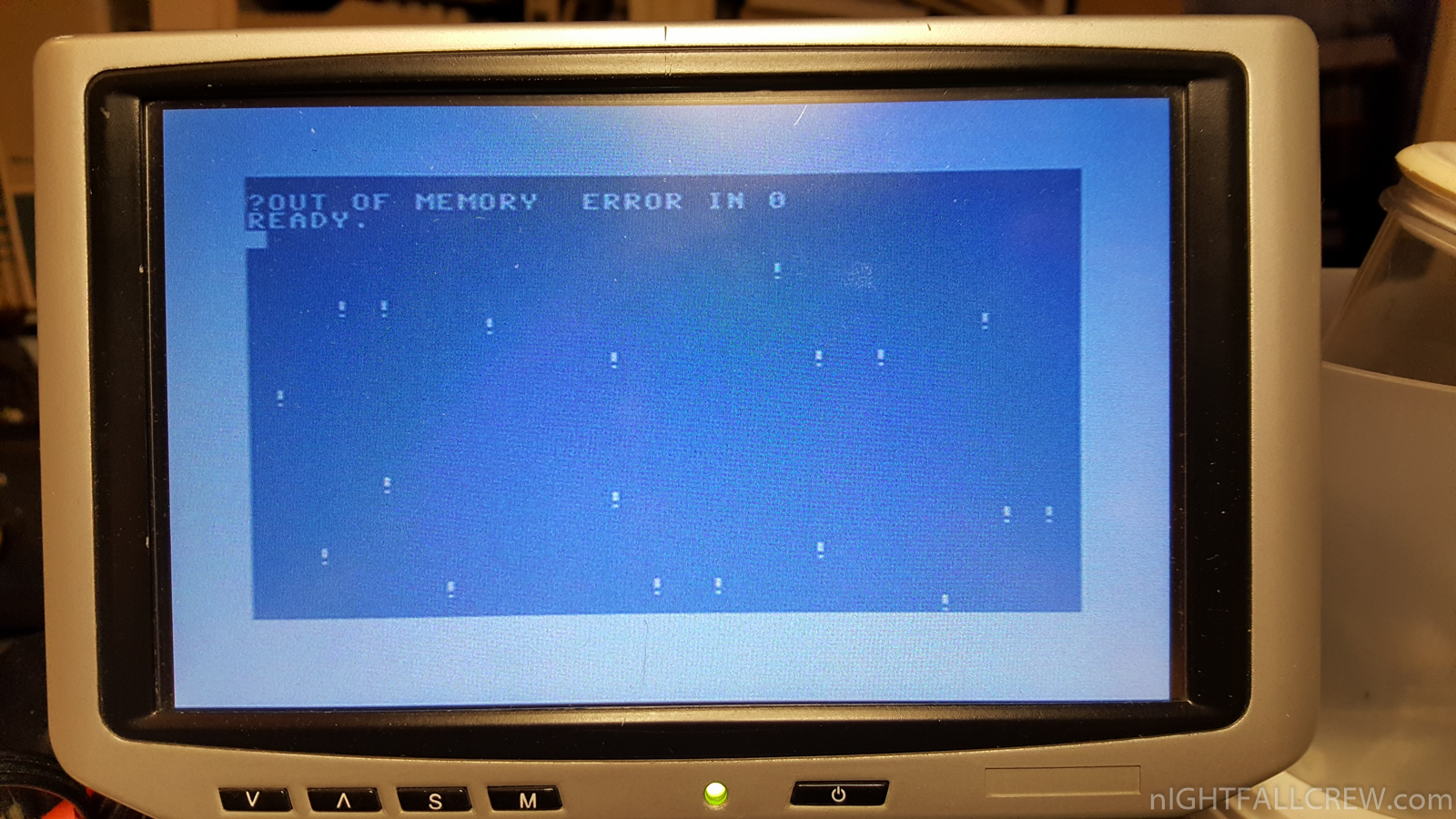

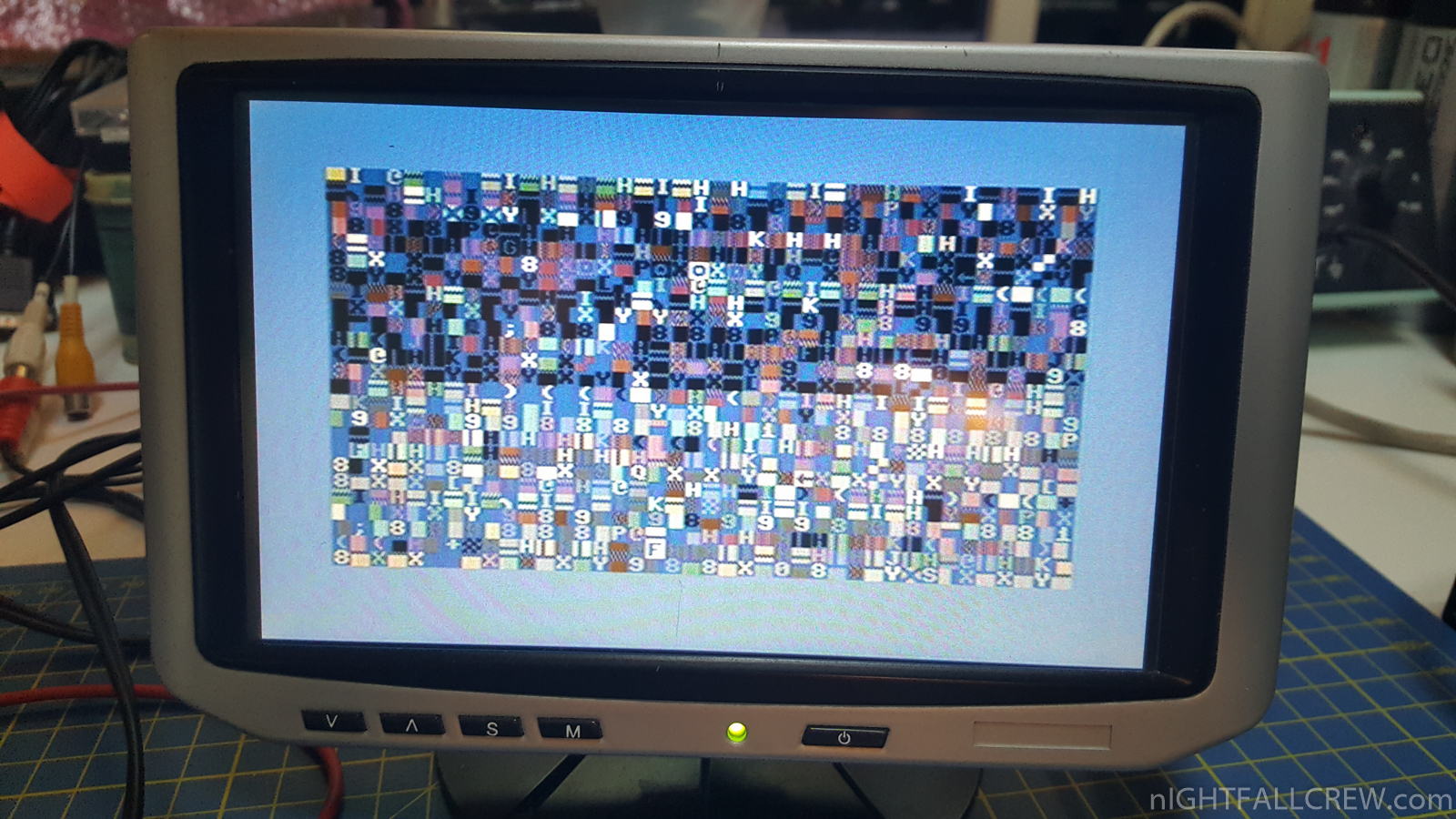

• Grabage screen/Out of Memory.

Replaced parts:

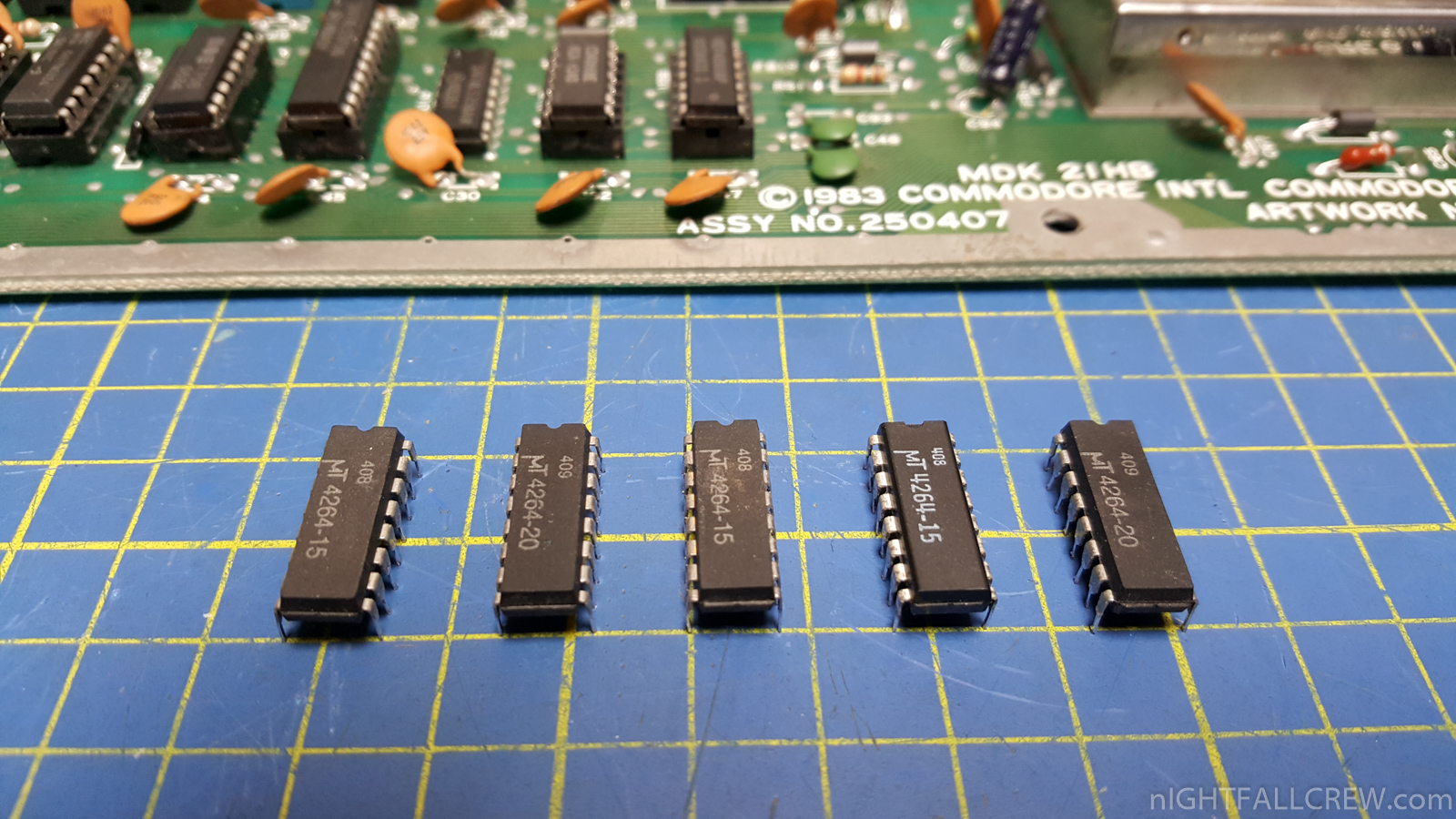

• 5 x MT 4264-15 RAM (U10/U11/U12/U21/U23)

Gallery of the repair:

Commodore 64 (ASSY 250425) Repair (2 of 2)

Defect:

• Black Screen ..then.. Grabage screen ..then (when hot).. Screen out of Sync

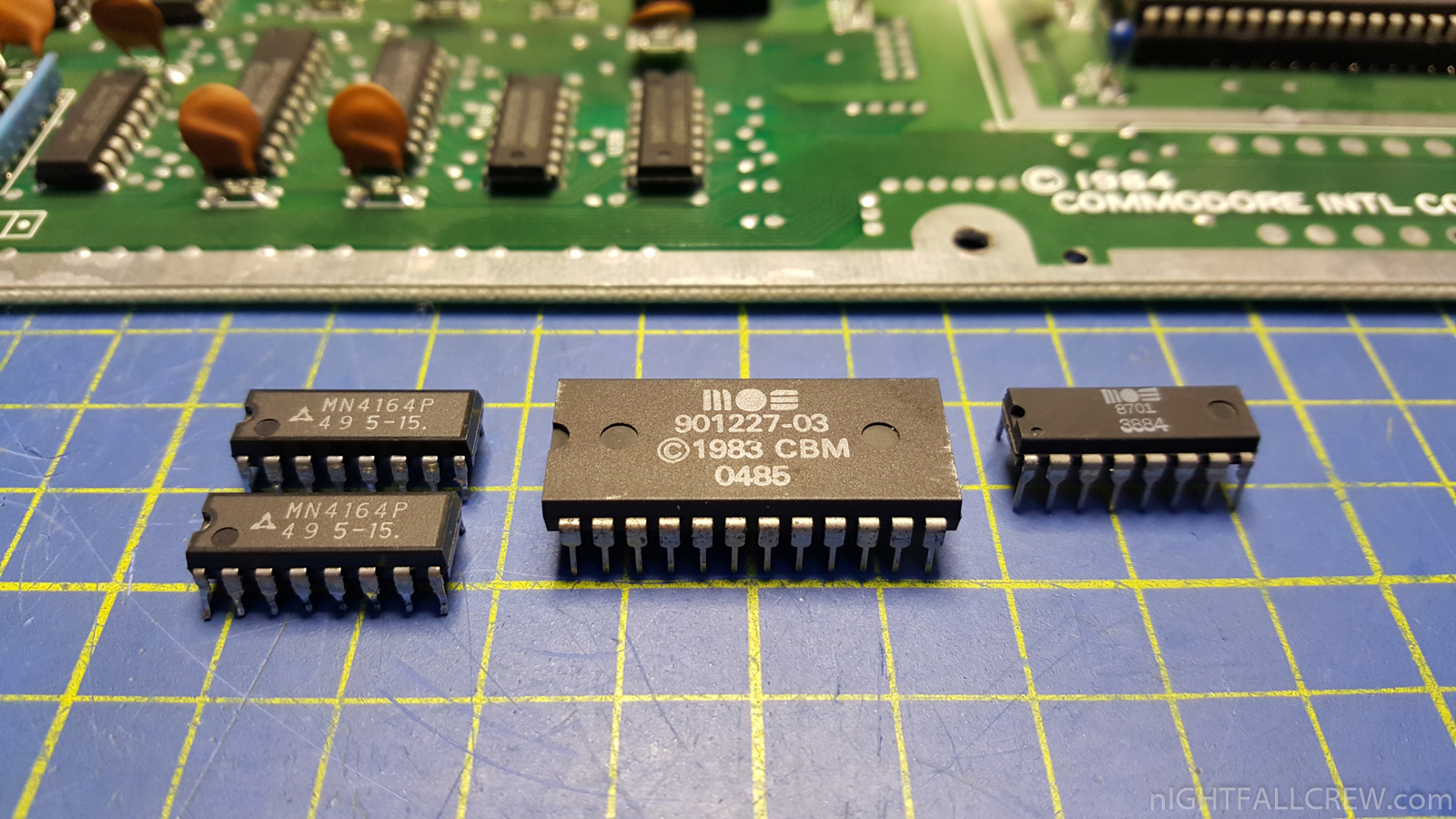

Replaced parts:

• 2 x MT 4264-15 RAM (U11/U23)
• 1 x MOS 901227-03 Kernel ROM (U4)
• 1 x MOS 8701 Clock Generator (U31)

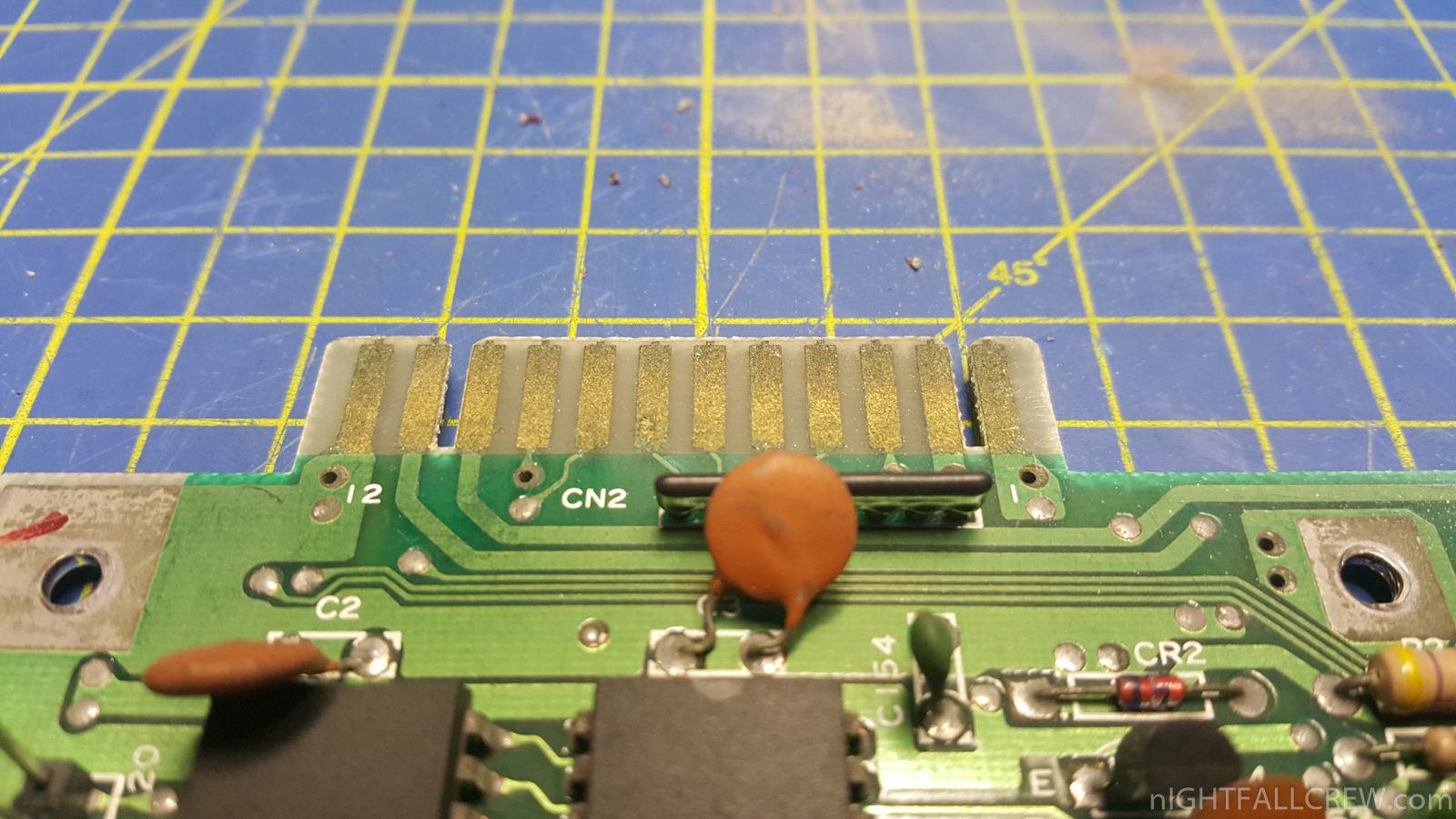

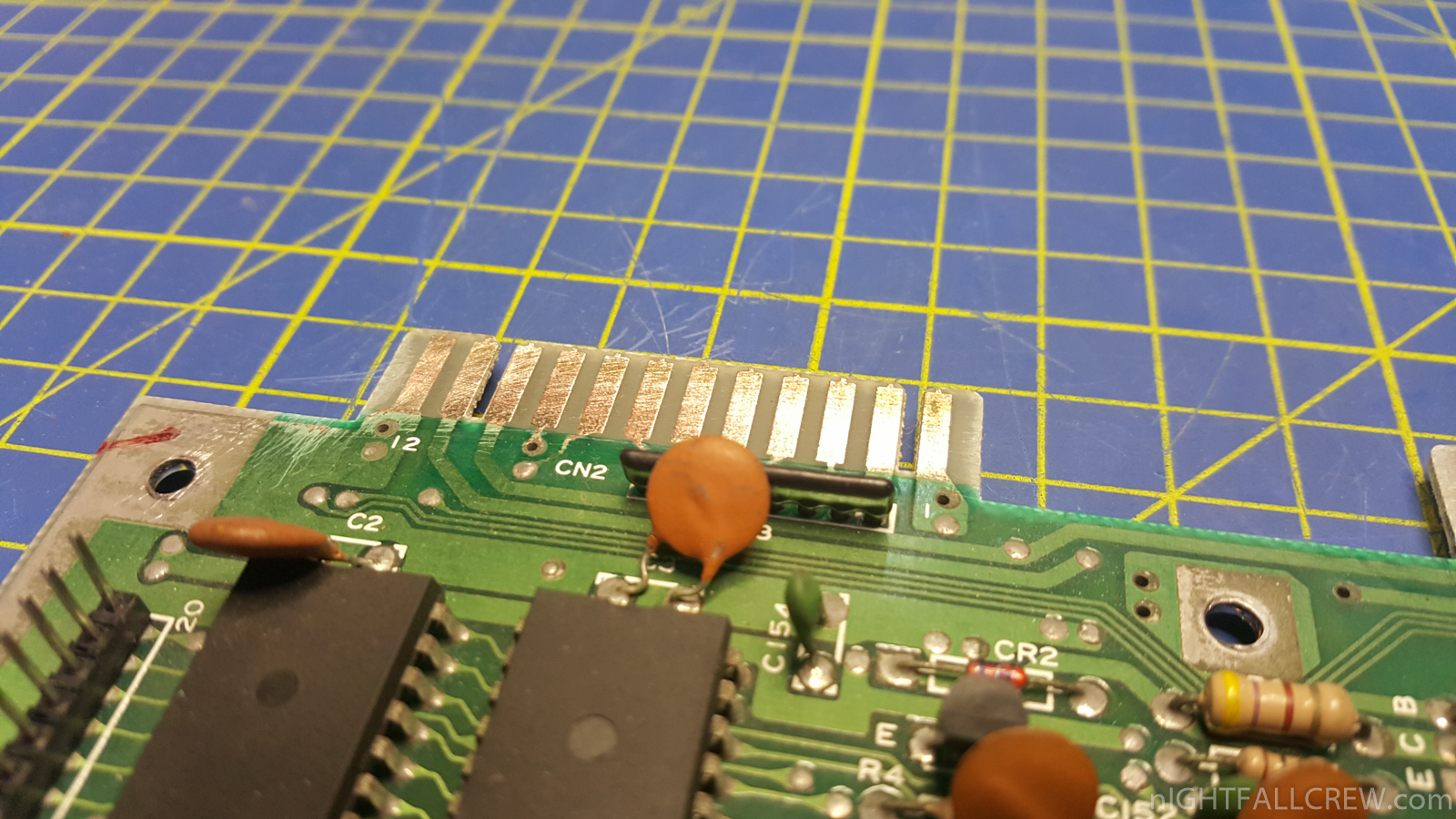

Cleaning Tape and User port connectors.

Gallery of the repair:
