Commodore Single Drive VIC 1541 (Newtronics/Mitsumi White Drive)

Commodore Single Drive VIC 1541 (front side)

Autopsy:

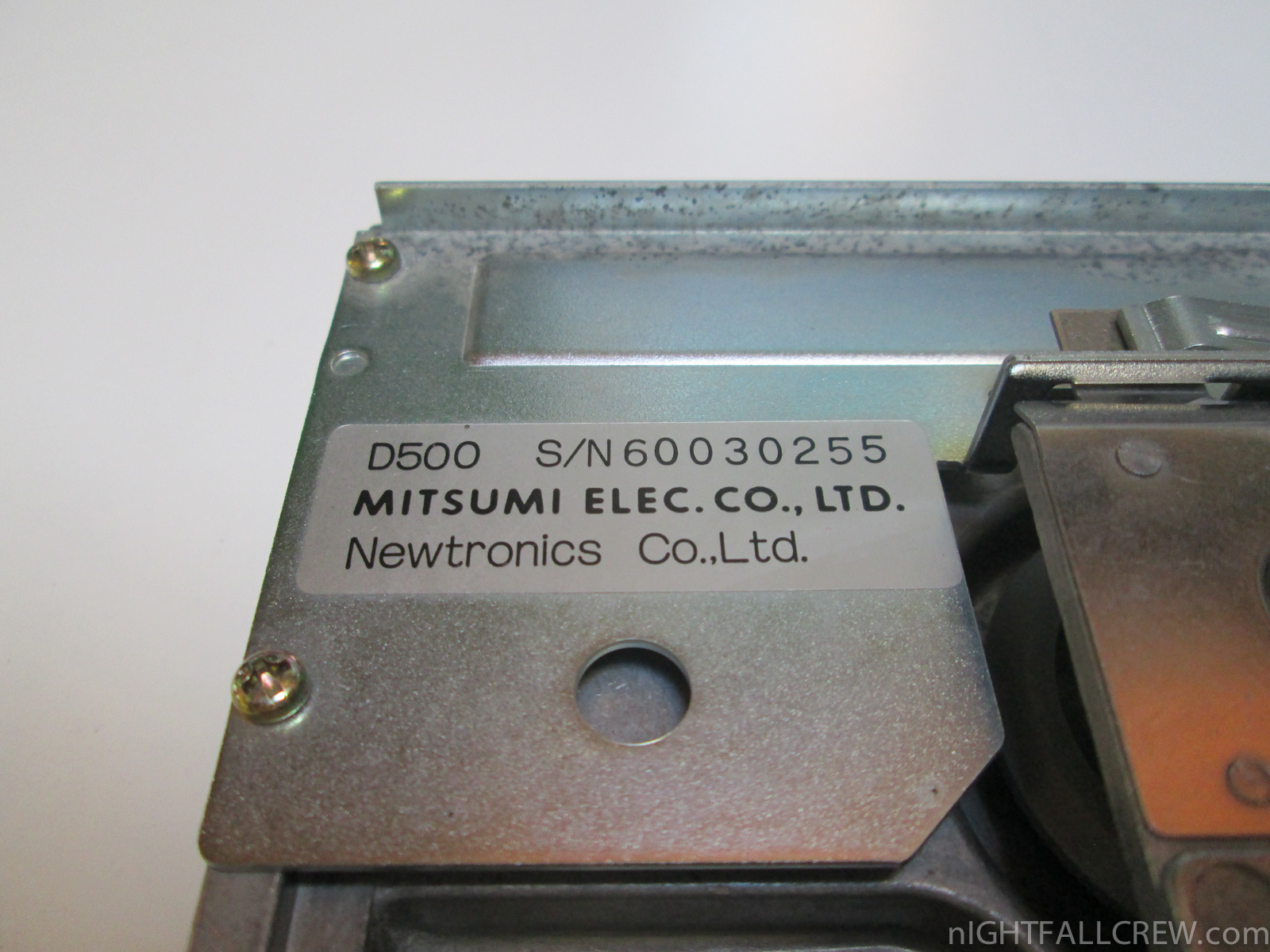

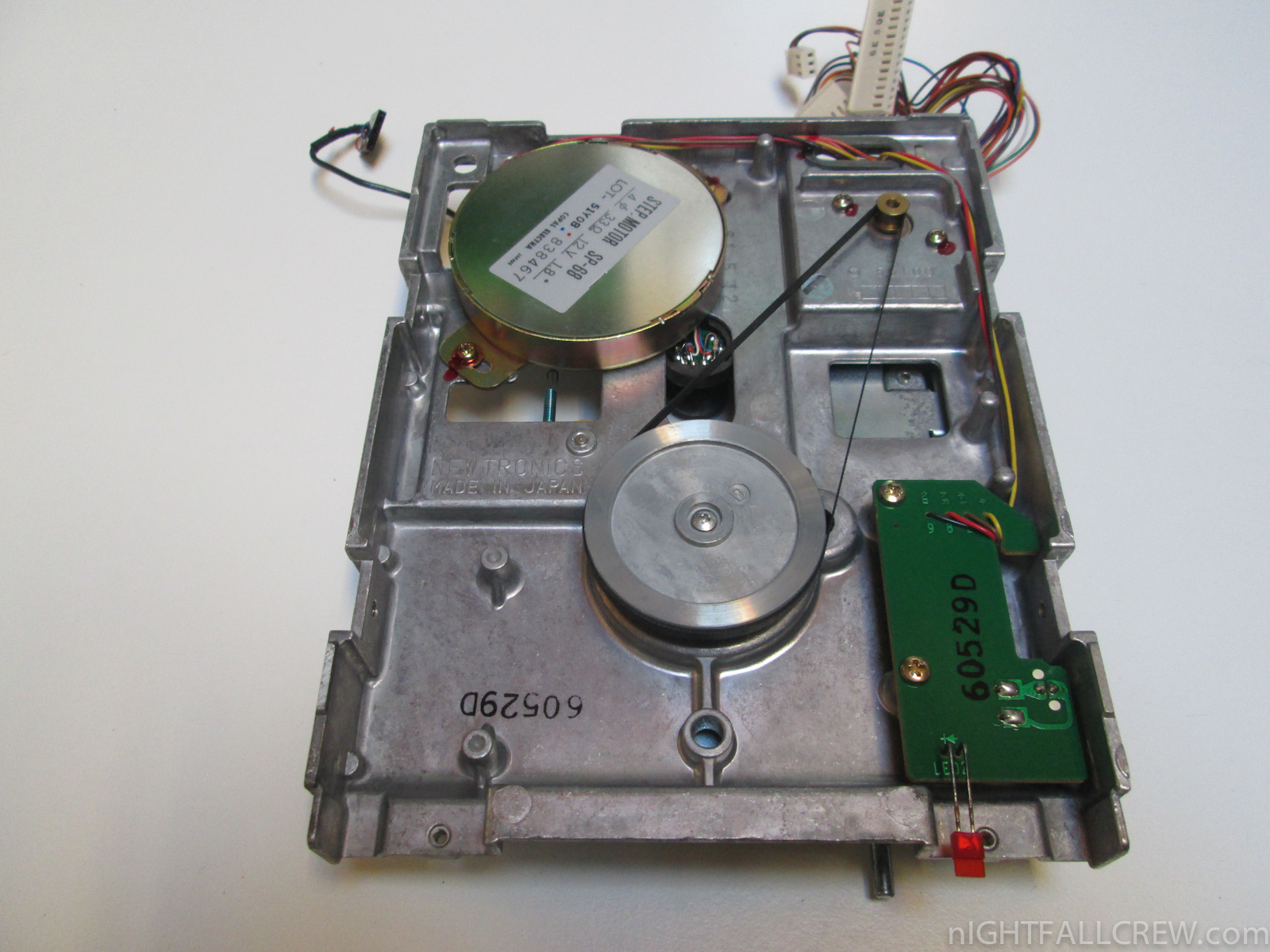

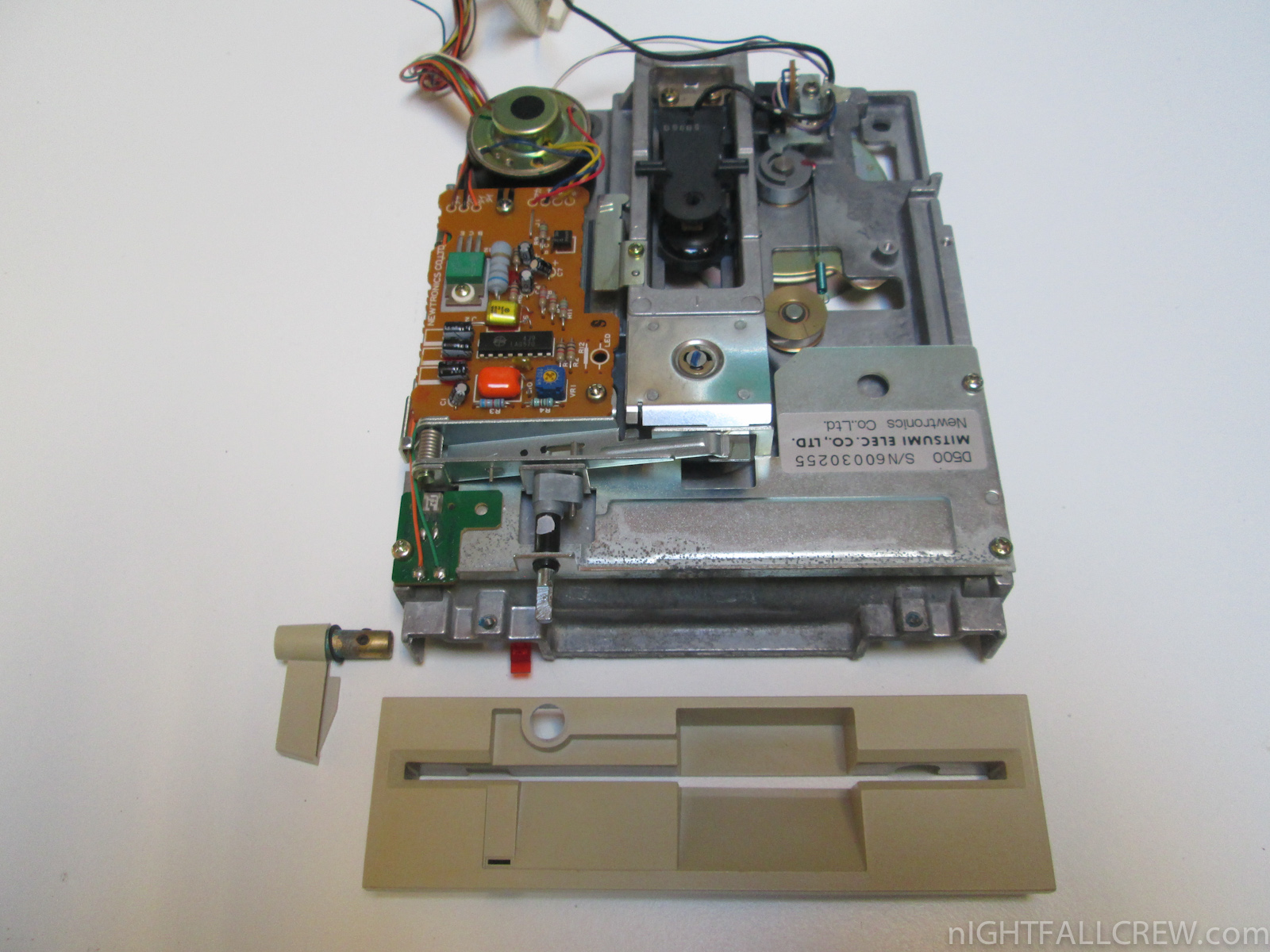

This Floppy Drive VIC-1541 (brown label with white case) unlike the known model of VIC-1541 uses a drive mechanism of Newtronics/Mitsumi White and not the usual ALPS brown.

The drive mechanism probably was replaced over the time but i have published the photos anyway.

from Wikipedia homepage:

The Commodore 1541 (also known as the CBM 1541 and VIC-1541) is a floppy disk drive (FDD) which was made by Commodore International for the Commodore 64 (C64), Commodore’s most popular home computer. The best-known FDD for the C64, the 1541 was a single-sided 170 kilobyte drive for 5¼” disks. The 1541 followed the previous Commodore 1540 (meant for the VIC-20).

The disk drive used Group Code Recording (GCR) and contained a MOS Technology 6502 microprocessor, doubling as a disk controller and on-board disk operating system processor. The number of sectors per track varied from 17 to 21 (an early implementation of Zone Bit Recording). The drive’s built-in disk operating system was CBM DOS 2.6.

source: wikipedia
