Commodore Amiga 600 which has seen better dayz

Commodore Amiga 600 which has seen better dayz

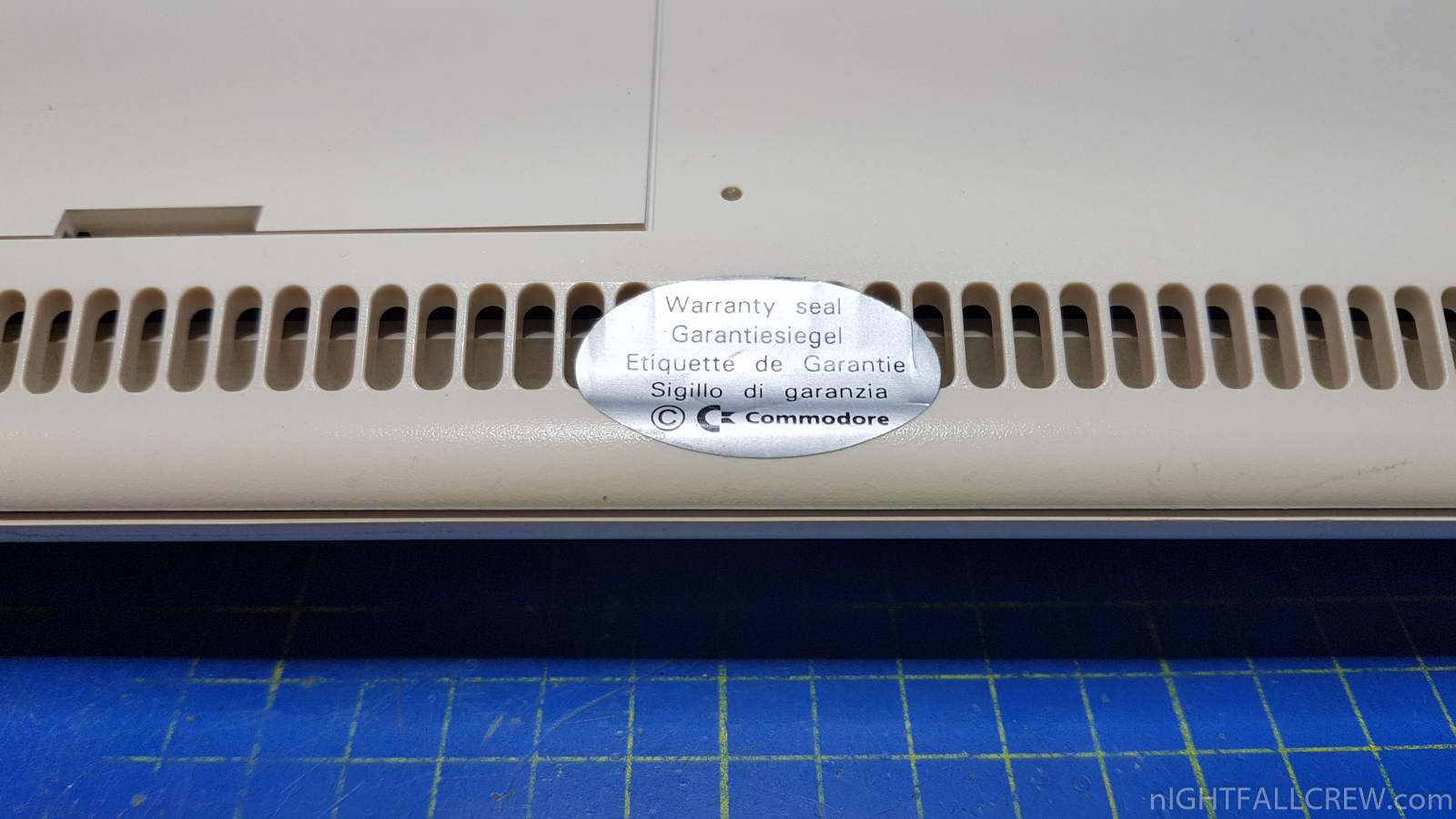

This Commodore Amiga 600 is arrived in laboratory in immaculate state still with the warranty sticker.

Immediately after the disassembly i have immediately noticed that were are several problems of acid released from the capacitors and dirty that affected this poor Amiga 600 and its Floppy Drive.

A decoupling capacitor it’s exploded with a pit on the PCB side, solved this problem i started to replace all the electrolytic capacitors and to clean the pcb with specific products.

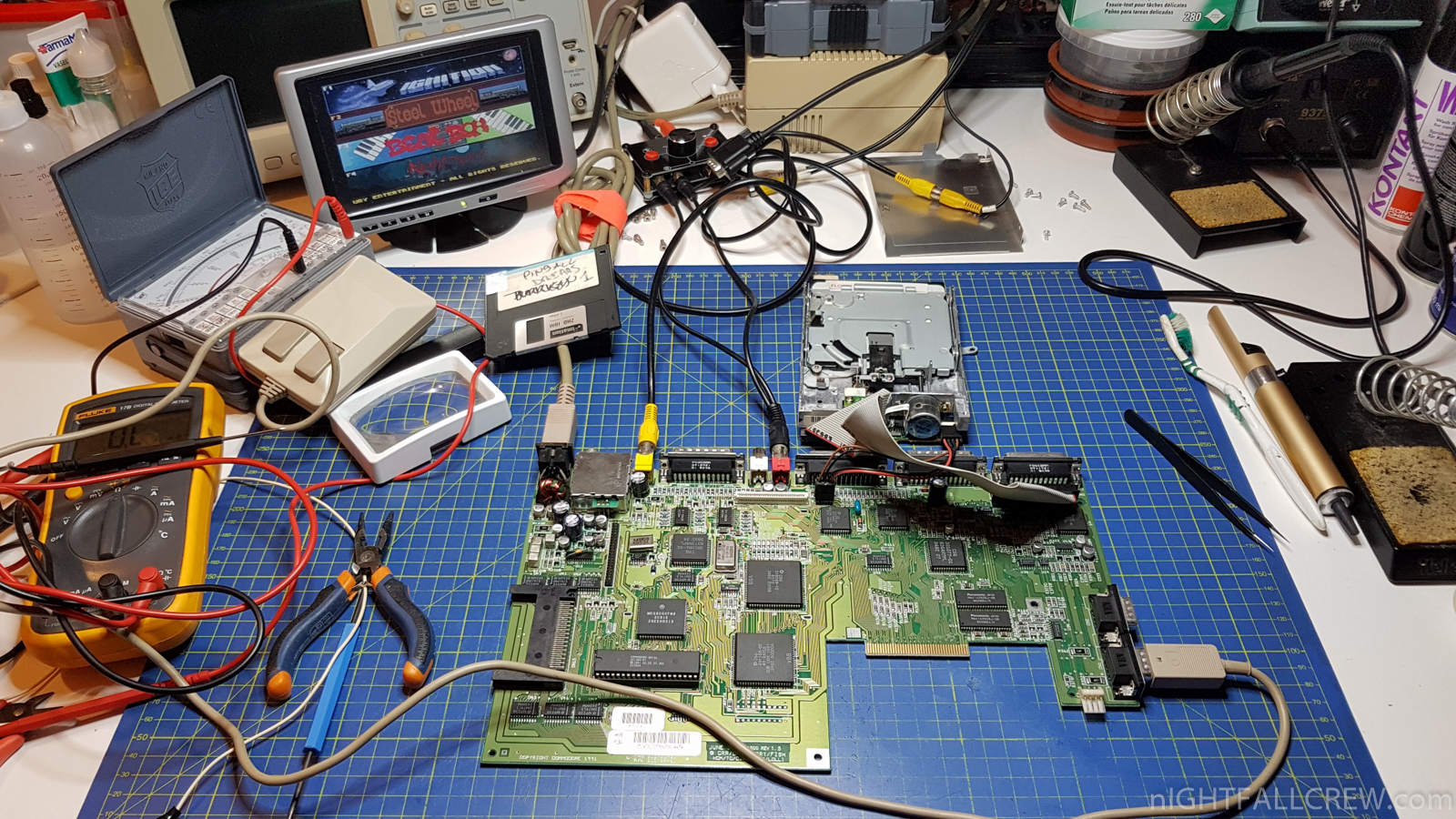

After the replacement of the electrolytic capacitors, i have tried to turn on the amiga that apparently worked, shame about the distorted sound and the floppy drive that read 1 time of 100.

I had to replace the electrolyte capacitor on the Floppy Drive and soon after i looked for the fault of the audio problem that 99% is always the usual LF374.

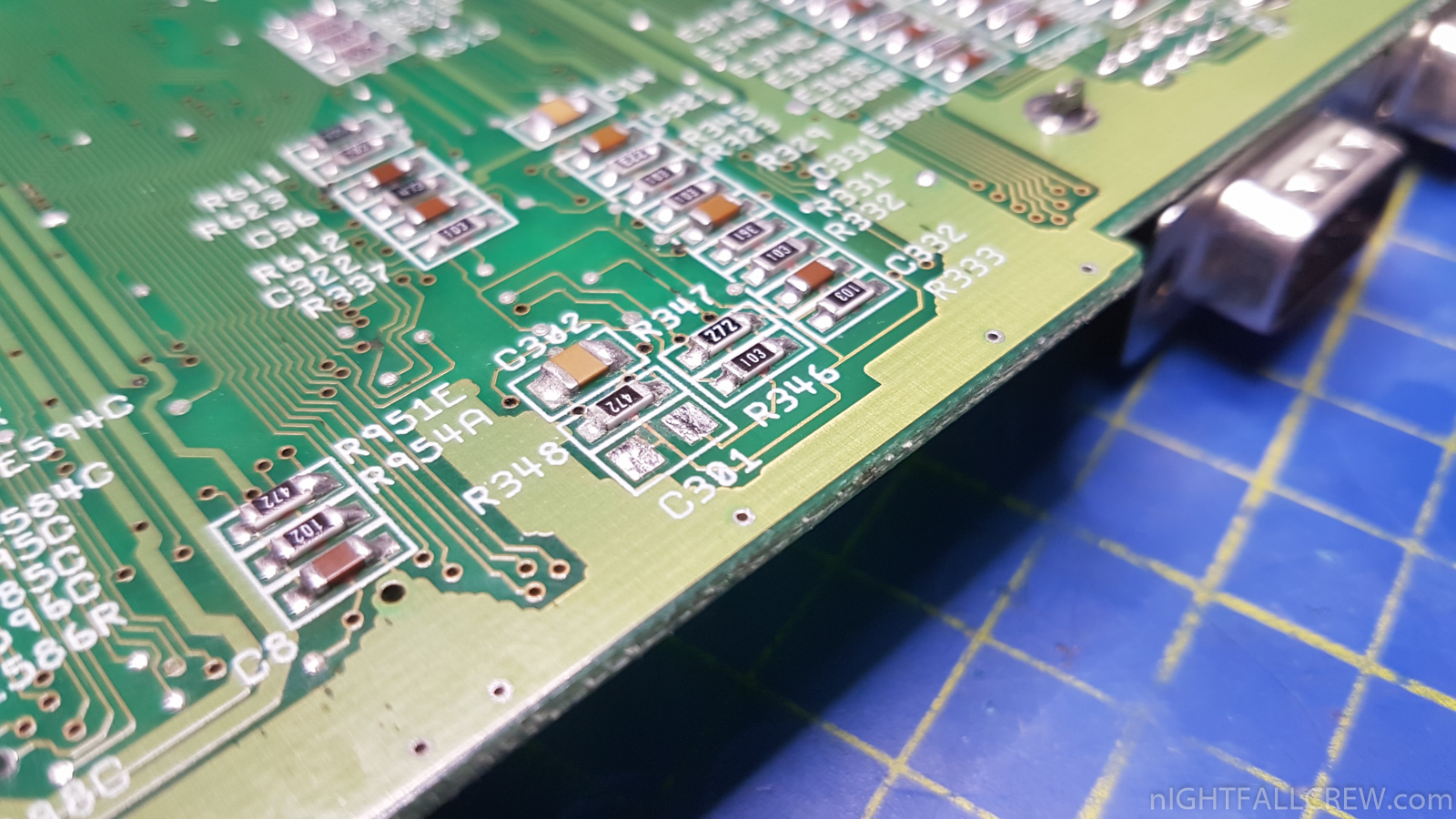

In this case it was not only LF374 but also a 10ohm resistor that did not let the +12v to the LF374 and a short-circuited ceramic decoupling capacitor.

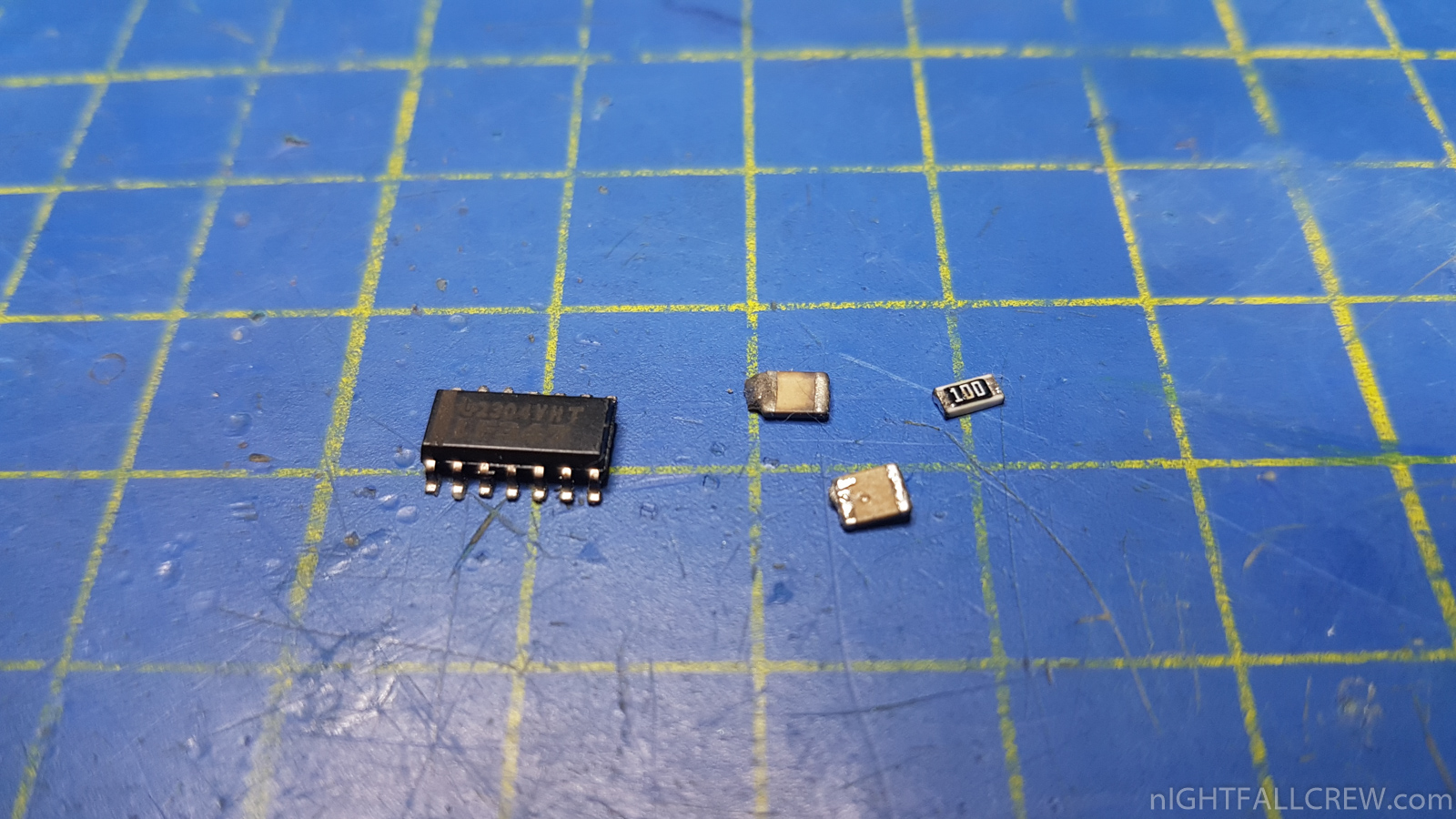

Components that have been replaced:

  • IC LF374 substituted with a fully compatible TL084C (U15)
  • 10Ohm resistor (R301)
  • 330nF capacitor (C301)
  • 330nF capacitor (C41)

Unfortunately the welding of the LF374 did not come very well how i like to do it but the pad are destroyed and corroded by the acid and they were about to detach, indeed the pad of the pin 2 of the LF374 was really detached, that’s why the pin 1 and 2 of the IC LF374 are connected together, they were connected via the pad.

I leave you to the photos and the video.
