Restoring & Repair a Commodore 8296 (TAN Case)

Commodore 8296 (TAN Case)

The conditions of this Commodore 8296 (TAN Case) are really bad. The CBM 8296 is left for over 25 years in a dovecote.

The cleaning, repairing and restoration have taken a very long time, but the result is more than acceptable.

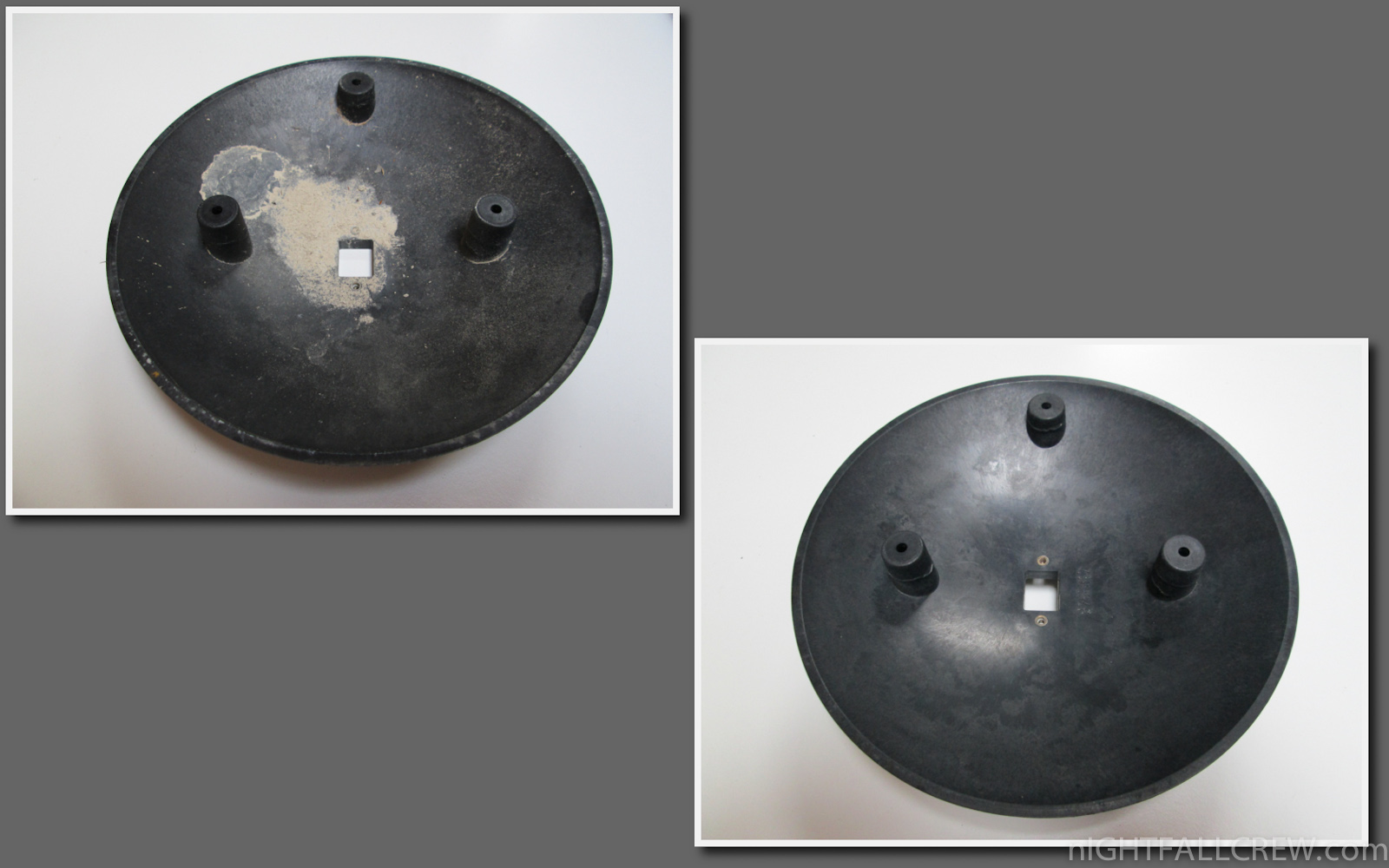

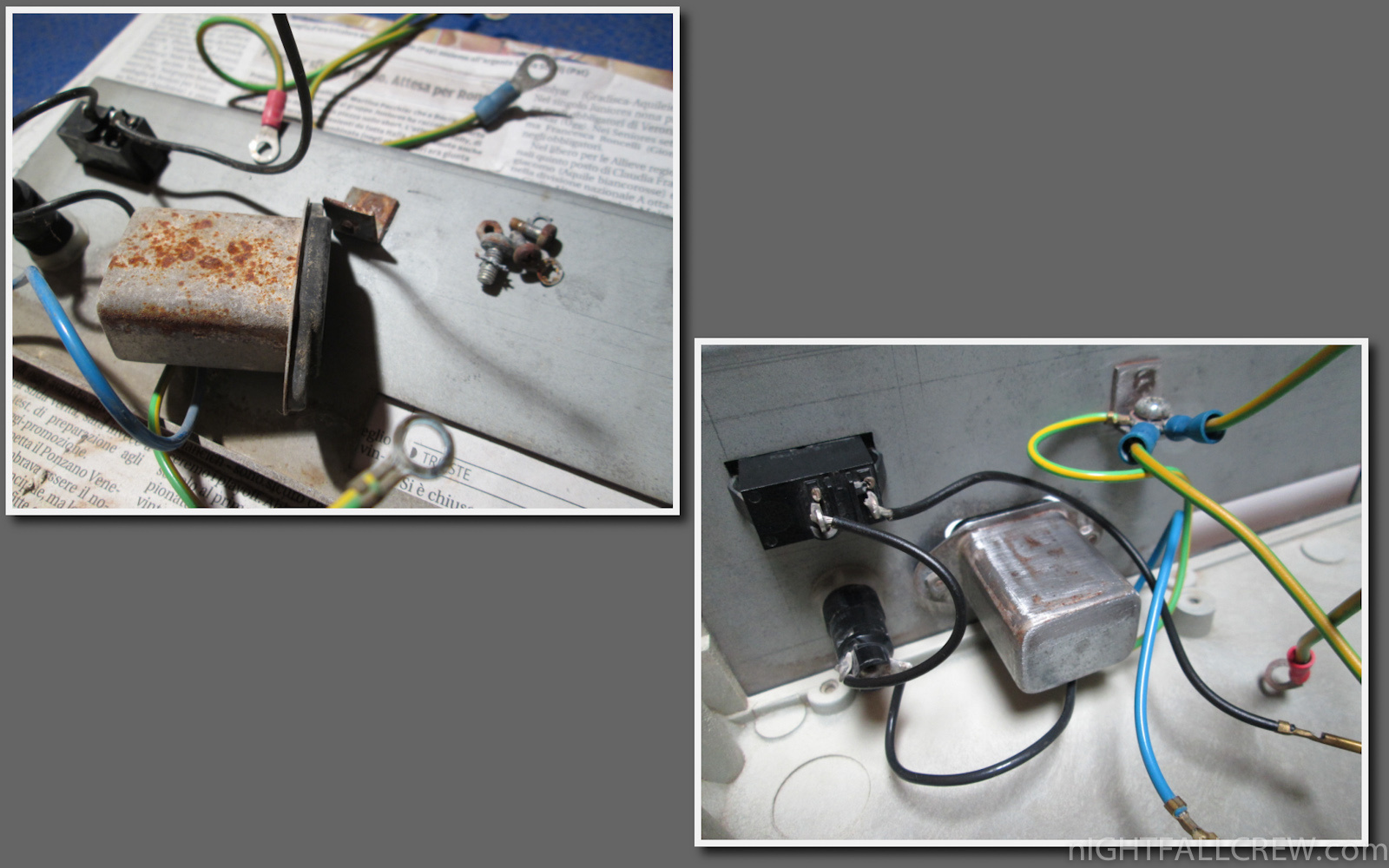

The comparison (before / after):

Defects:

  • The Commodore 8296 was completely dead (Black screen of death).

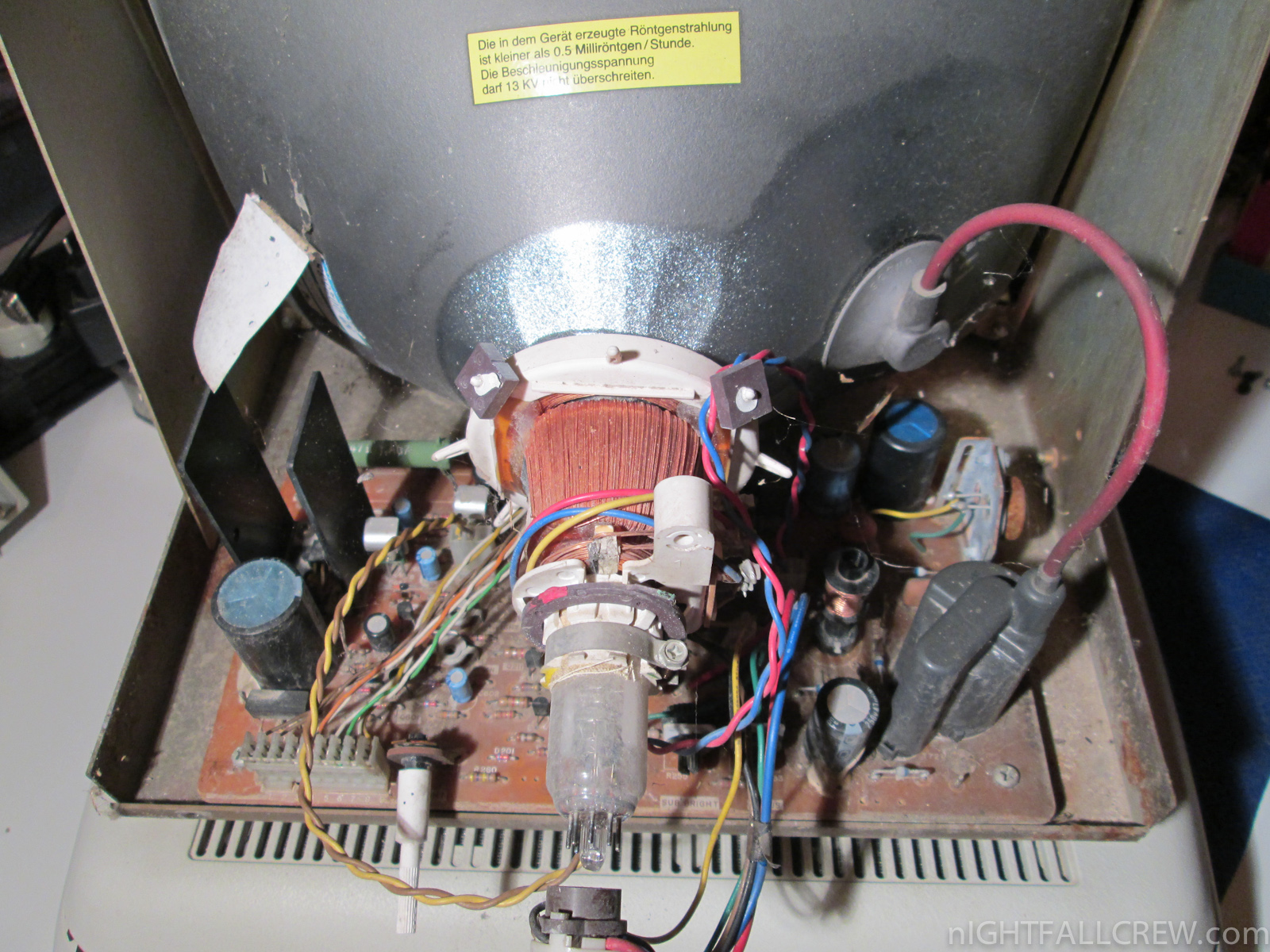

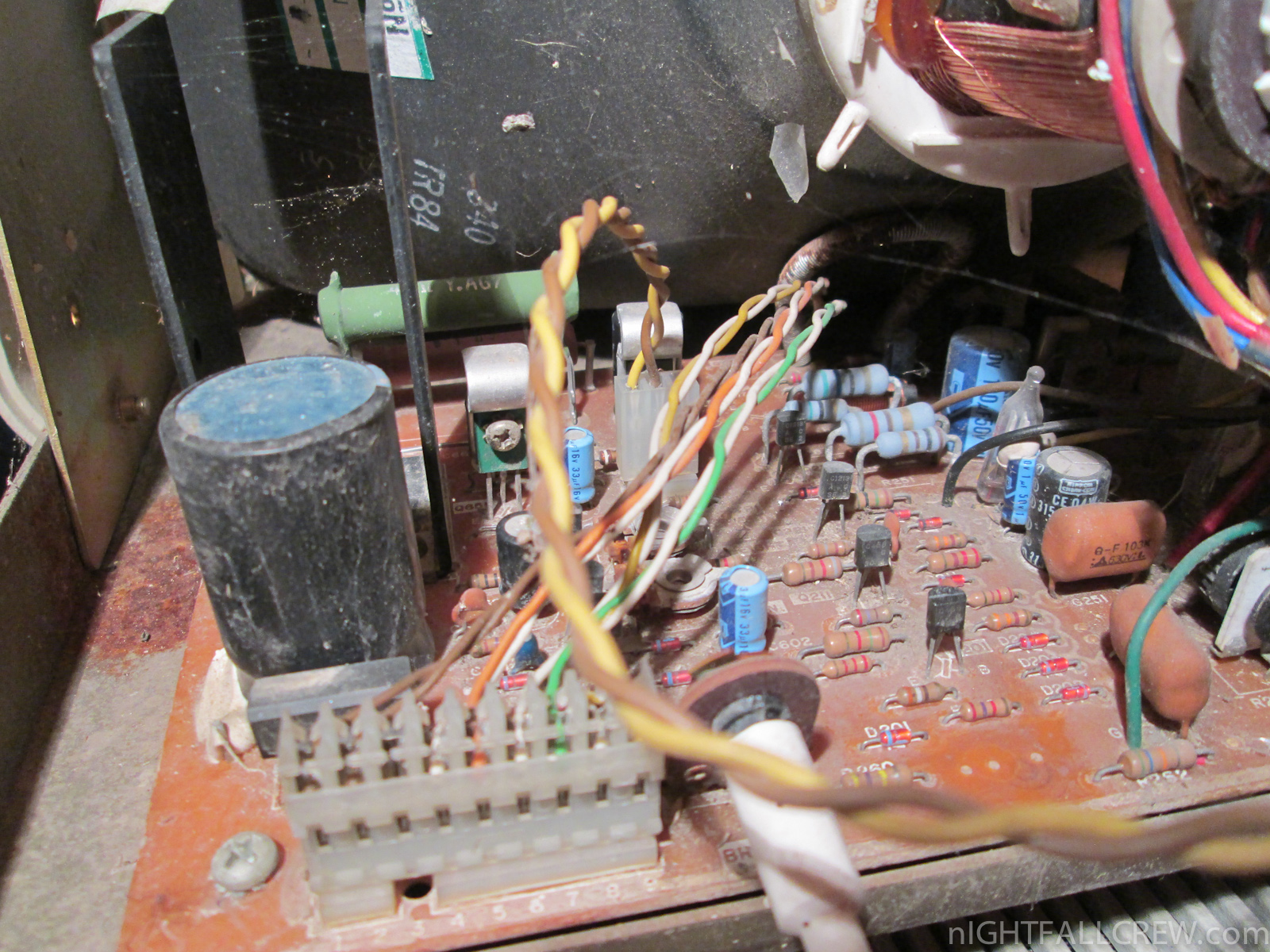

  • Little problems of CRT geometry.

Replaced parts:

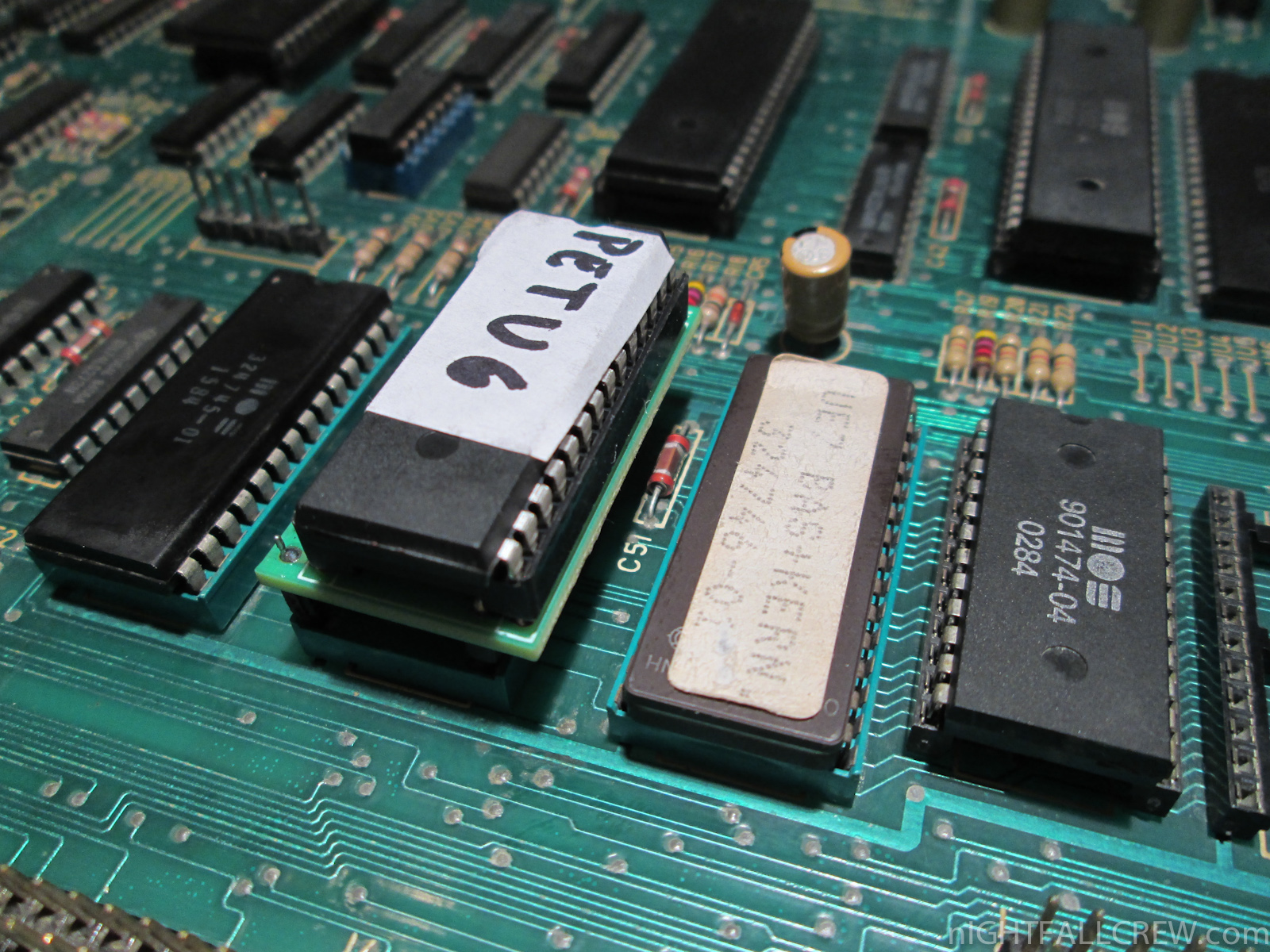

  • Replaced PLA U6 with a OTP EPROM 27C512R 70ns + Adapter

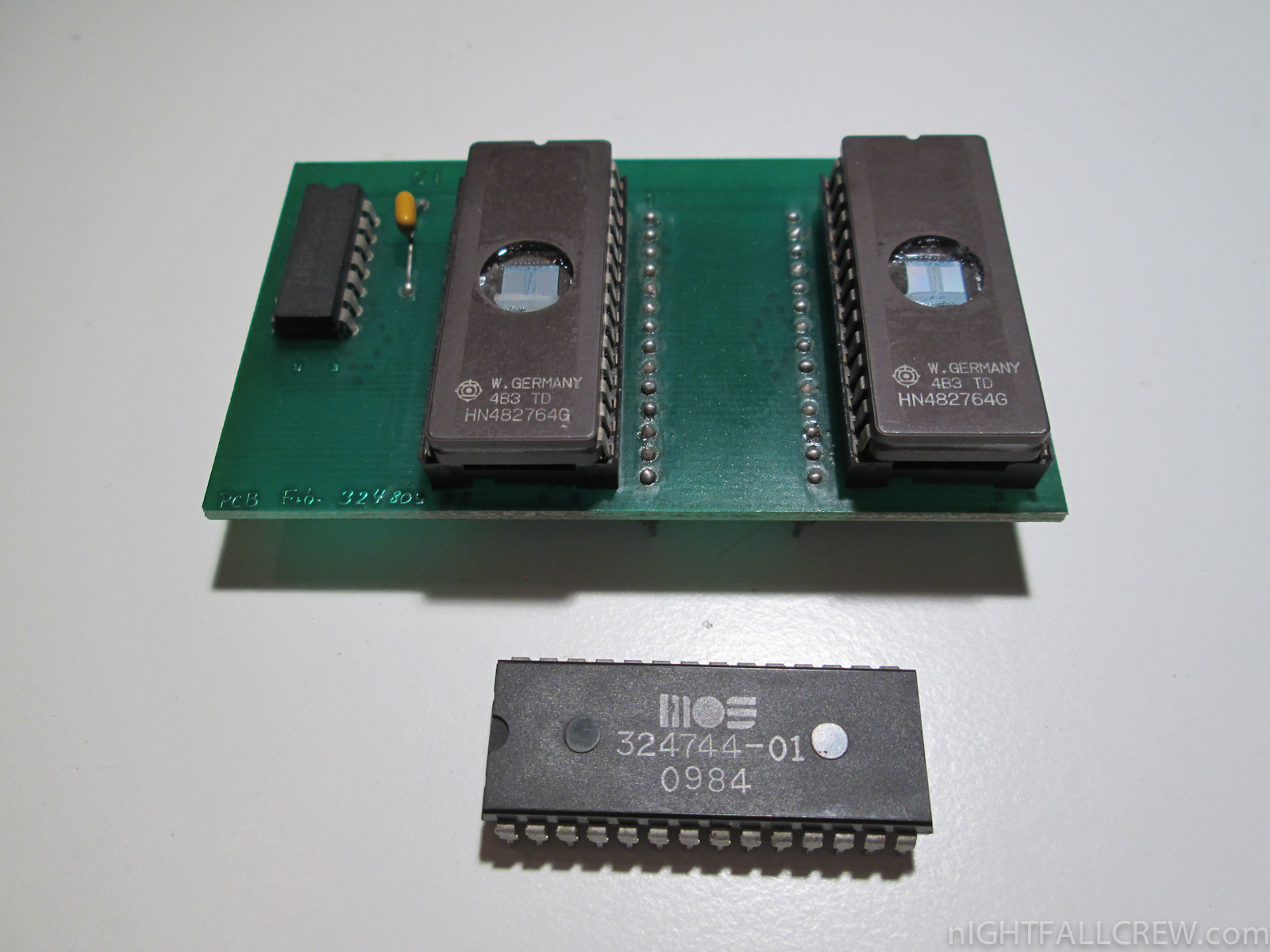

  • Replaced the ROM 2 x 2764 Eprom with 1 x 27C128 Eprom (spare parts from a original cbm pcb)

Note:

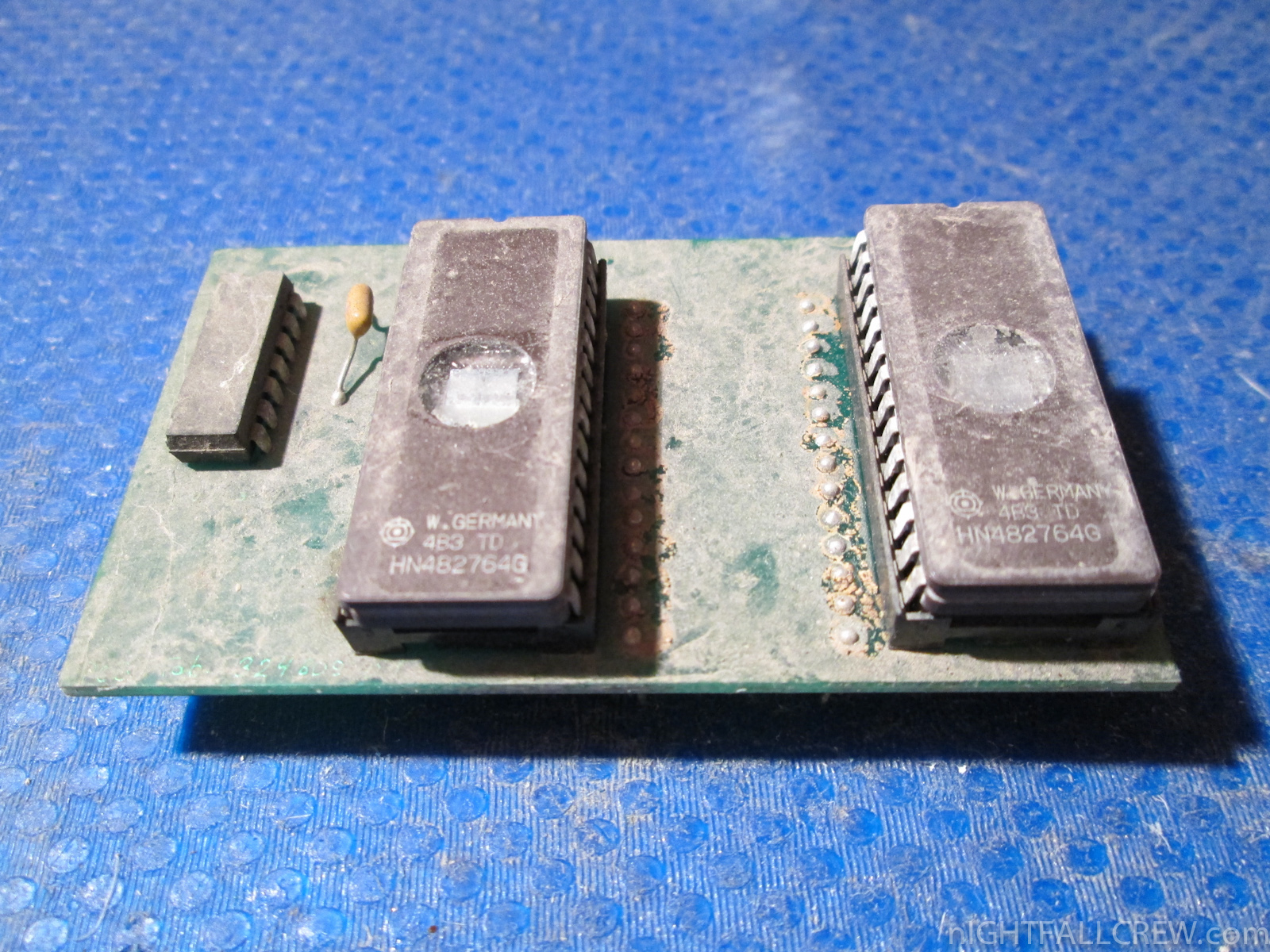

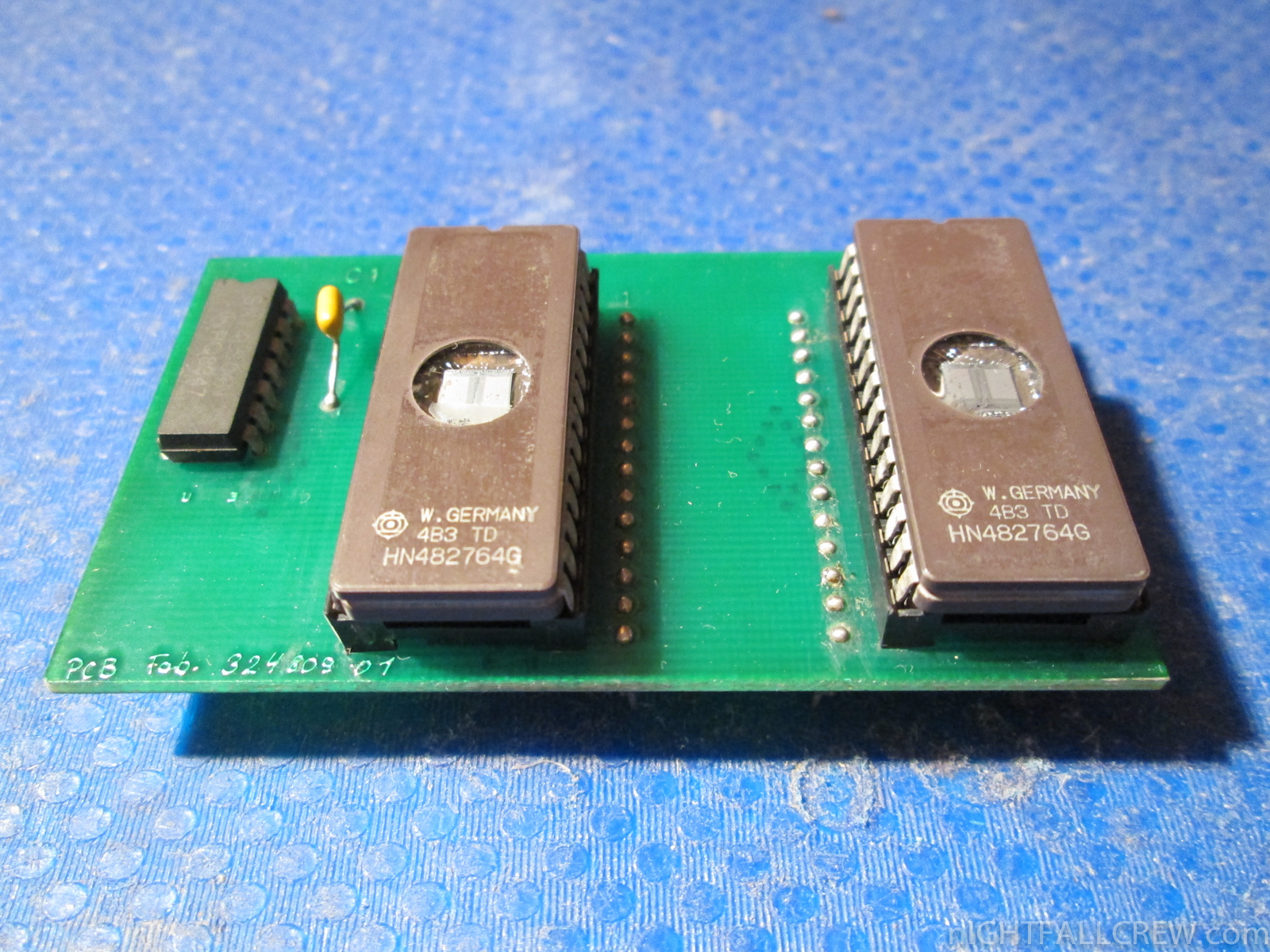

I have replaced the original ROM (2 x EPROM) pcb because the PLA adapter is fat. I could insert a small castle (photo) between the ROM pcb and the Main Motherboard but in this time i have prefered to replace with a single Eprom.

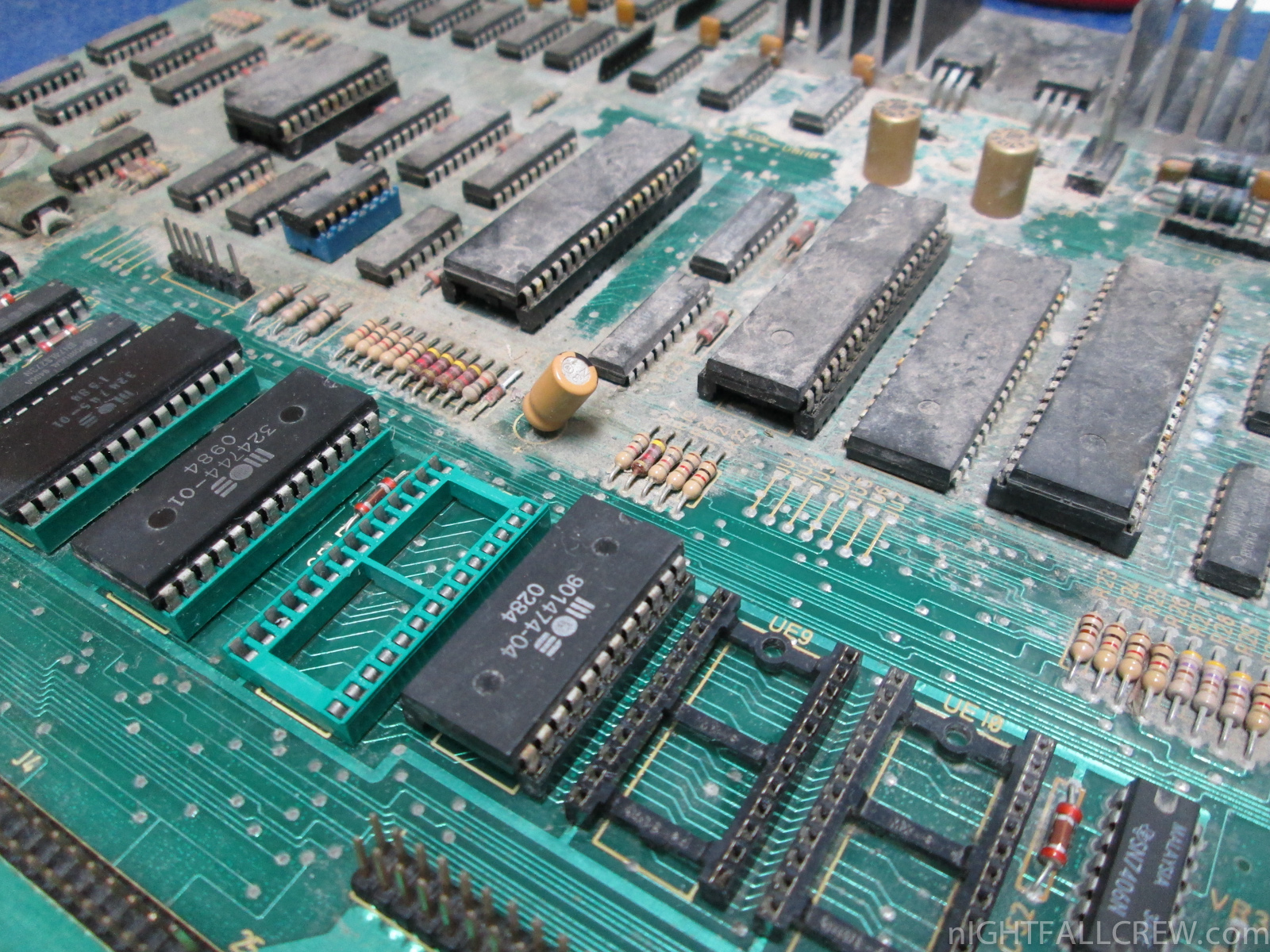

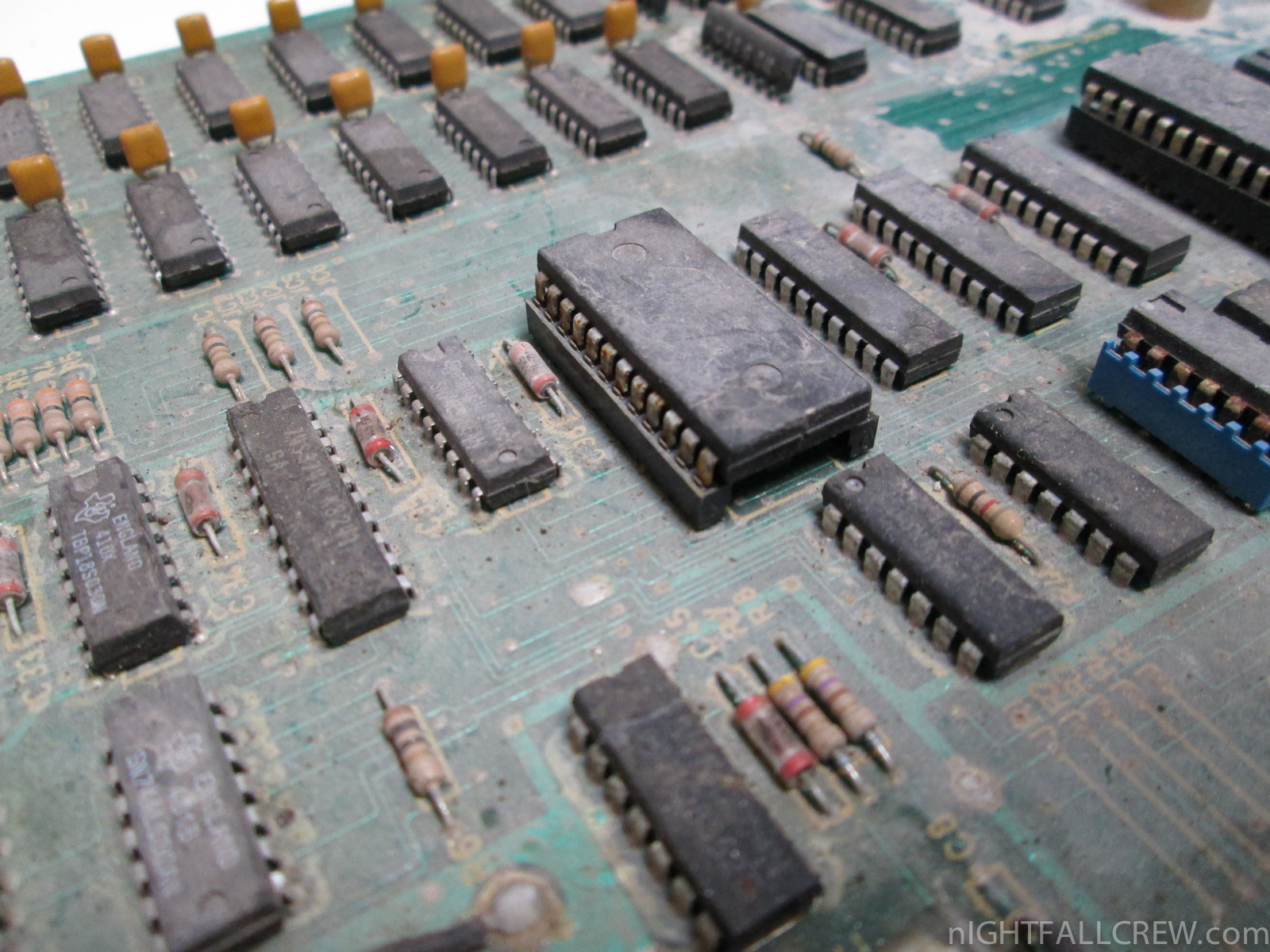

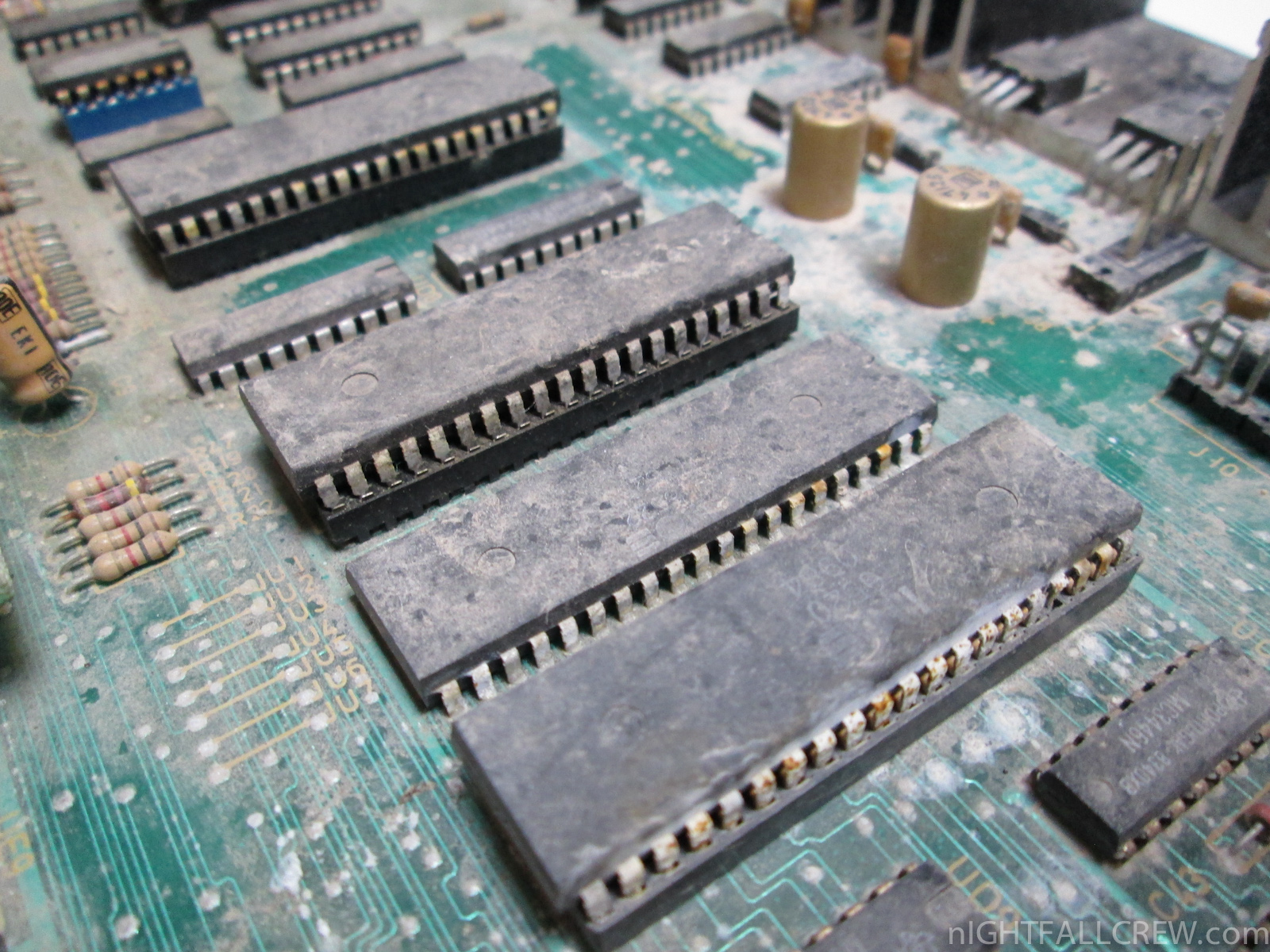

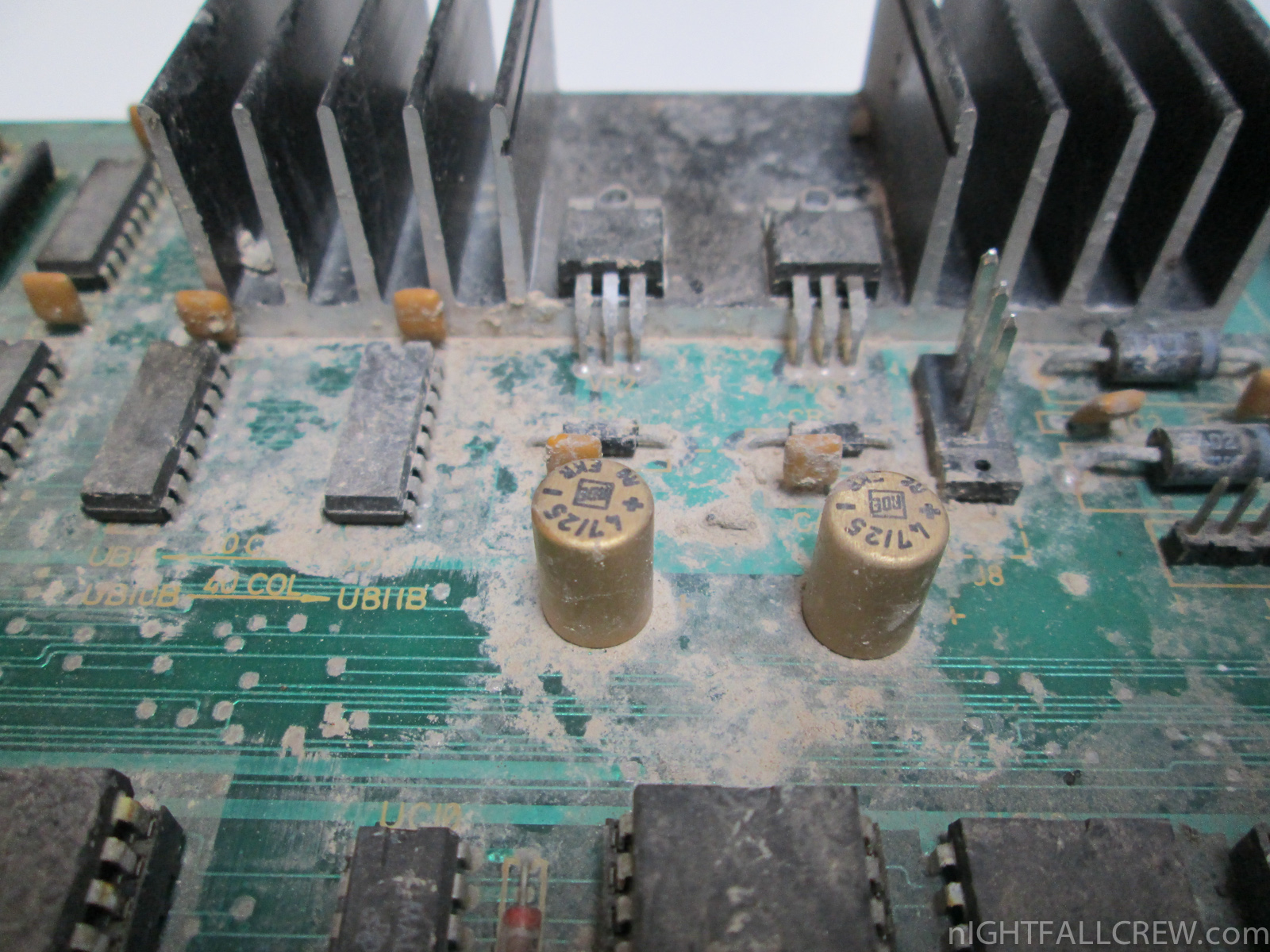

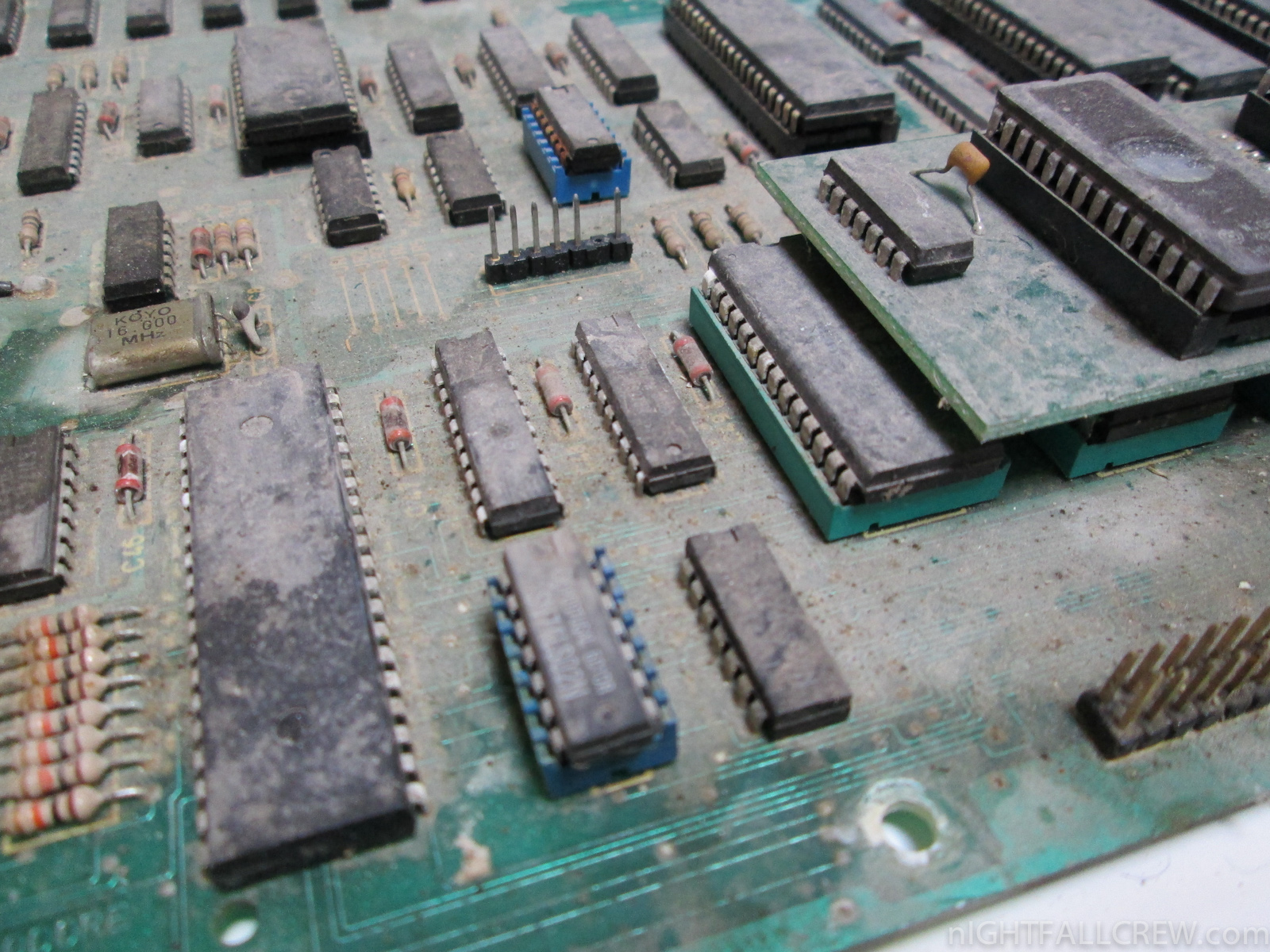

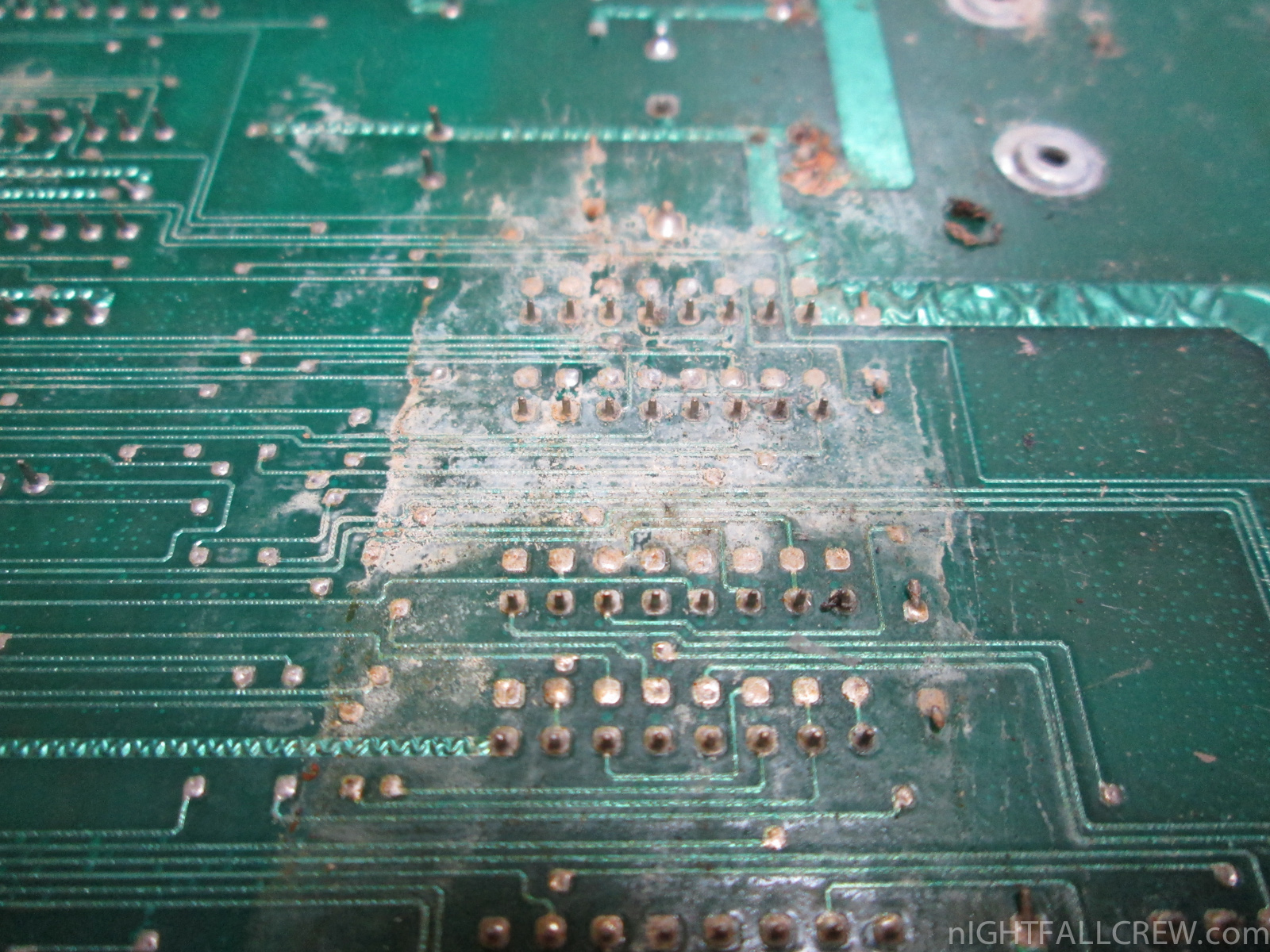

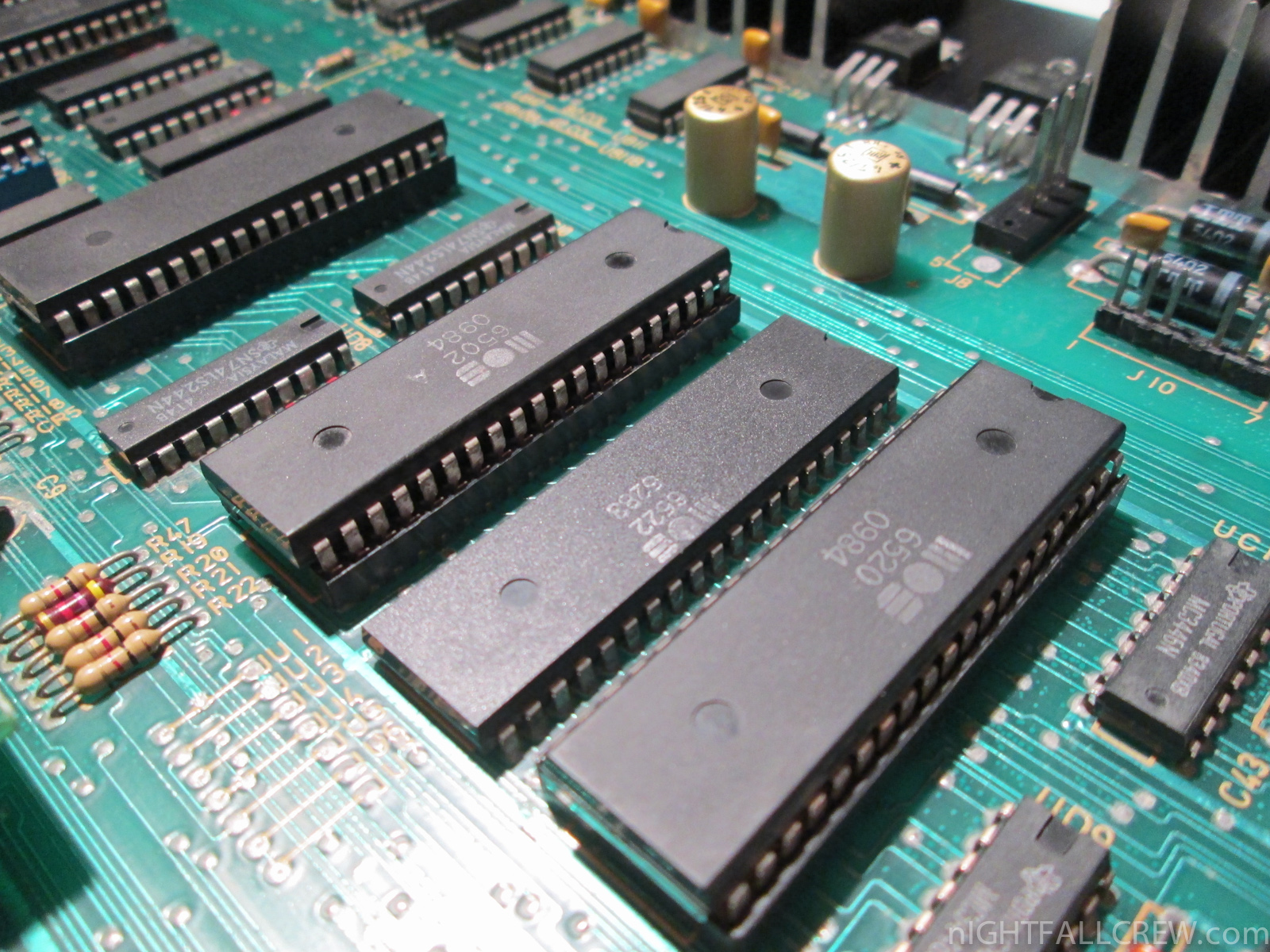

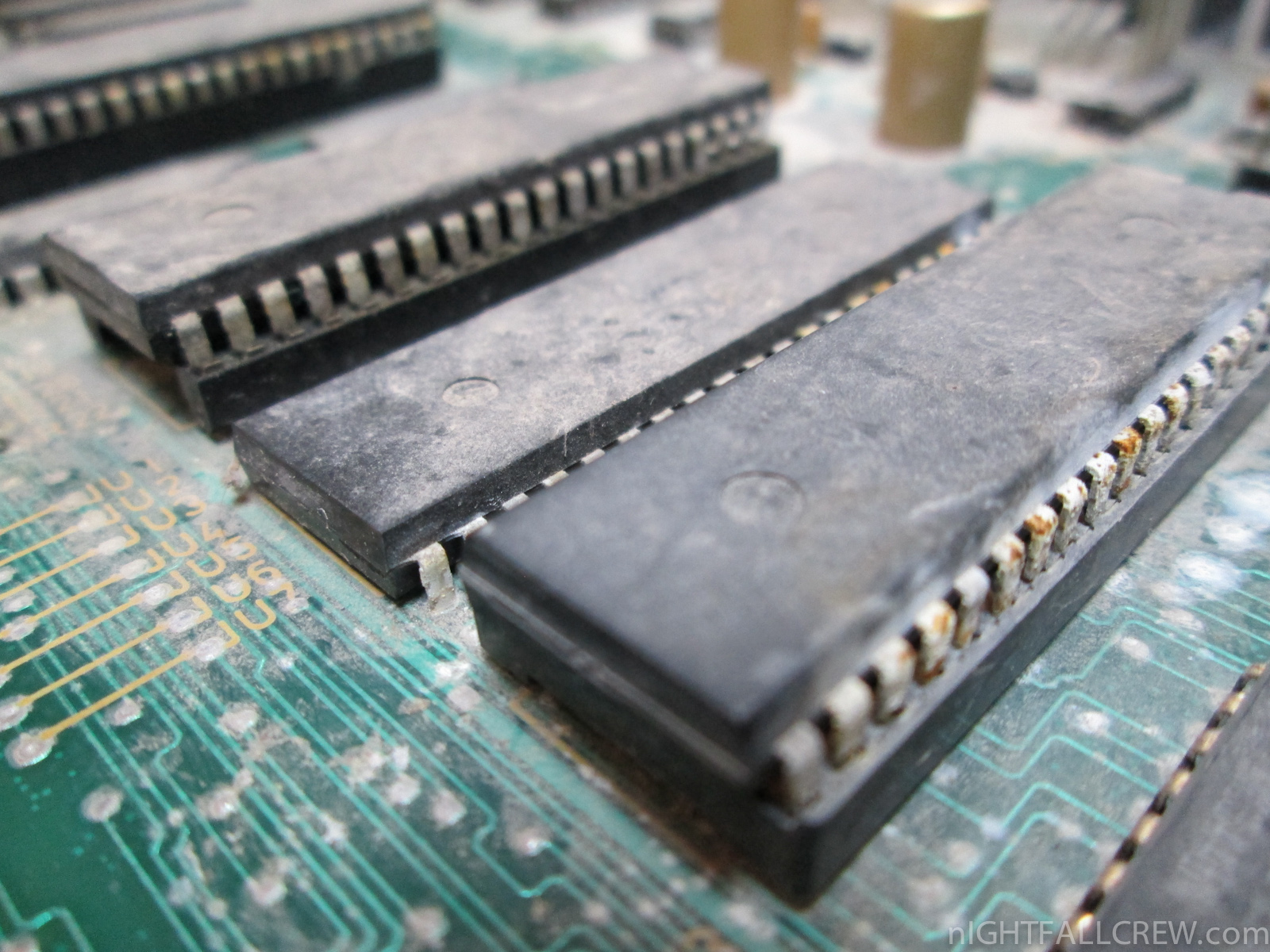

Gallery of repair and cleaning:
