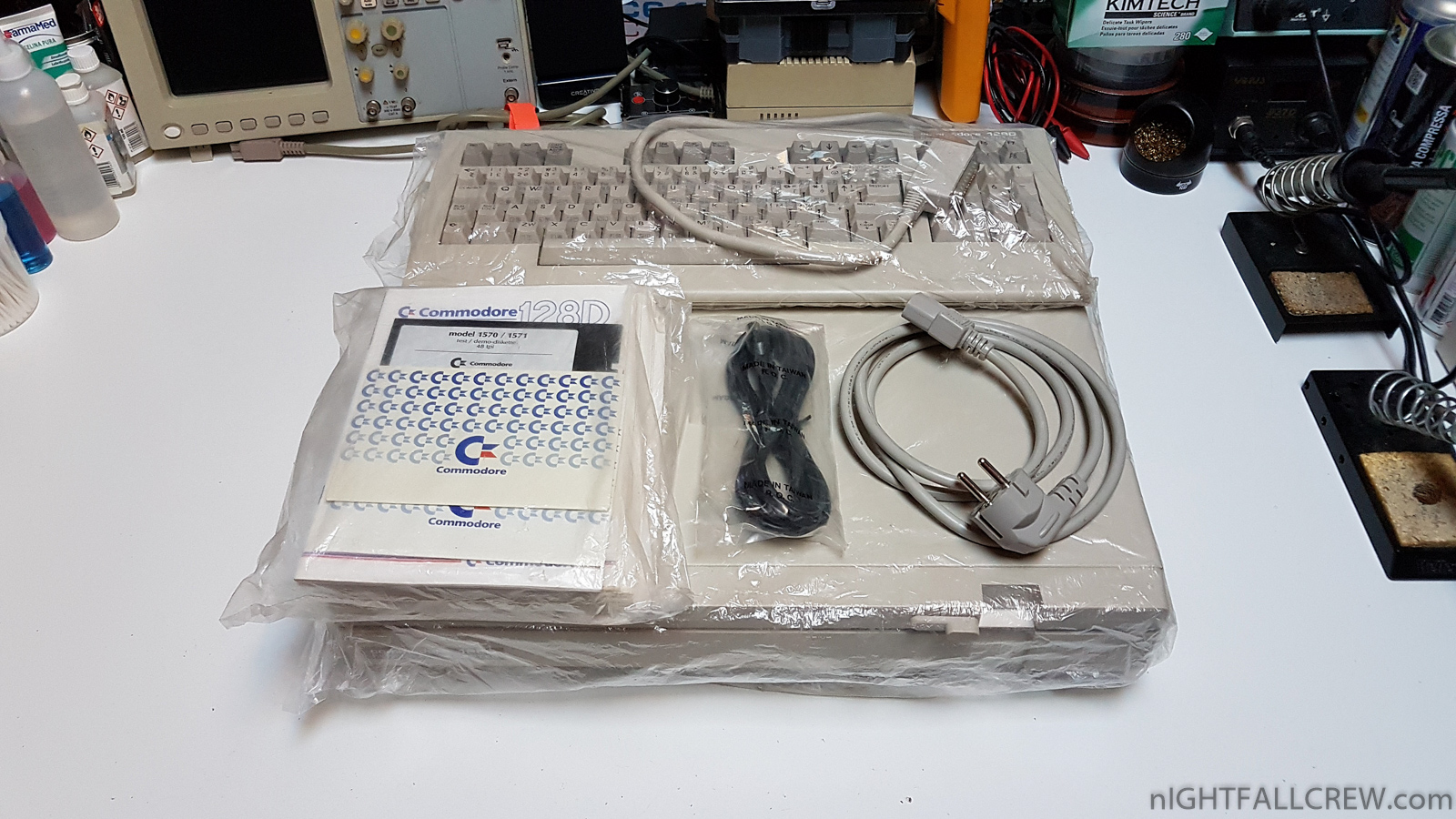

Commodore 128DCR (Boxed)

December 12th, 2019 No comments

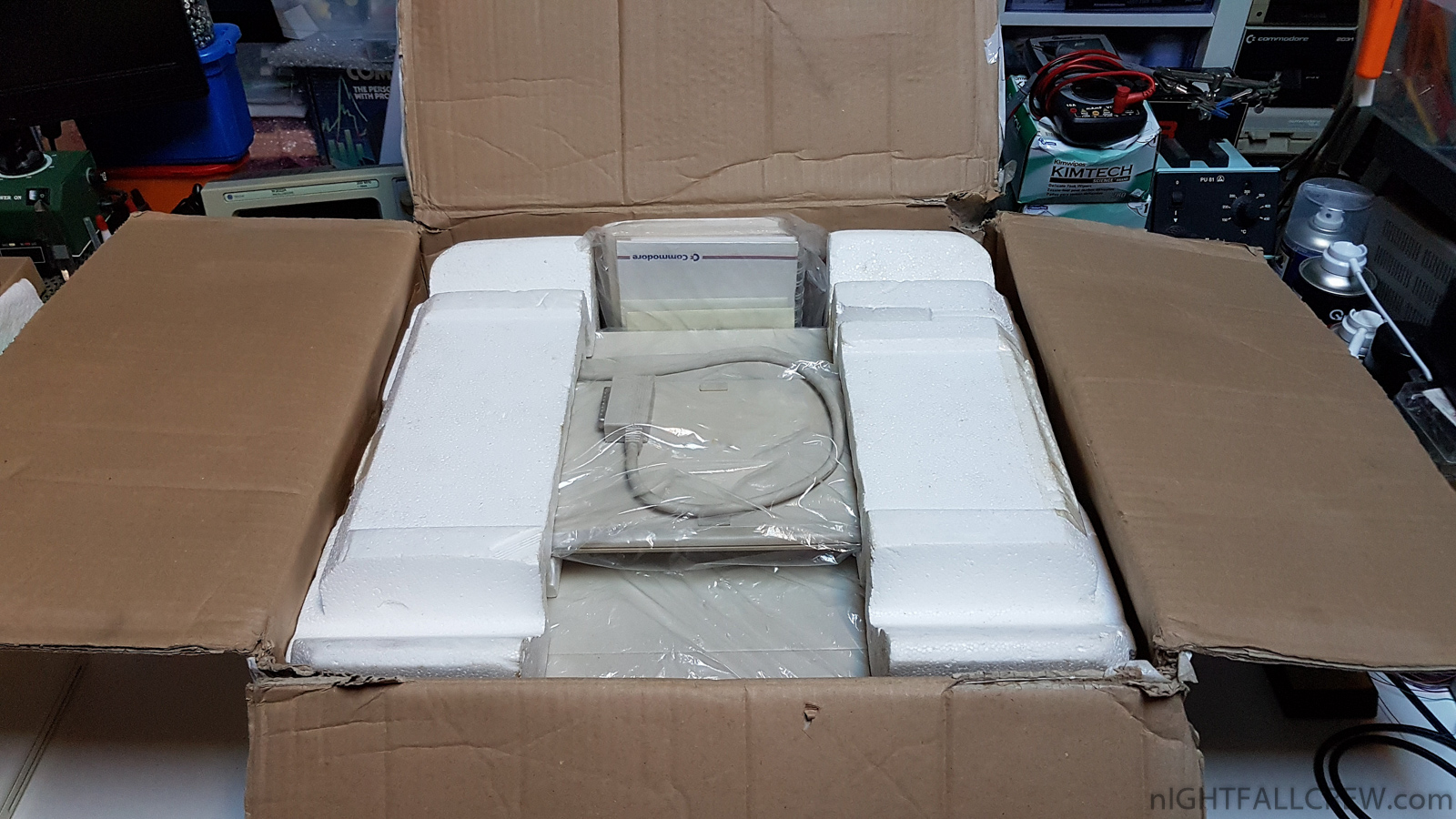

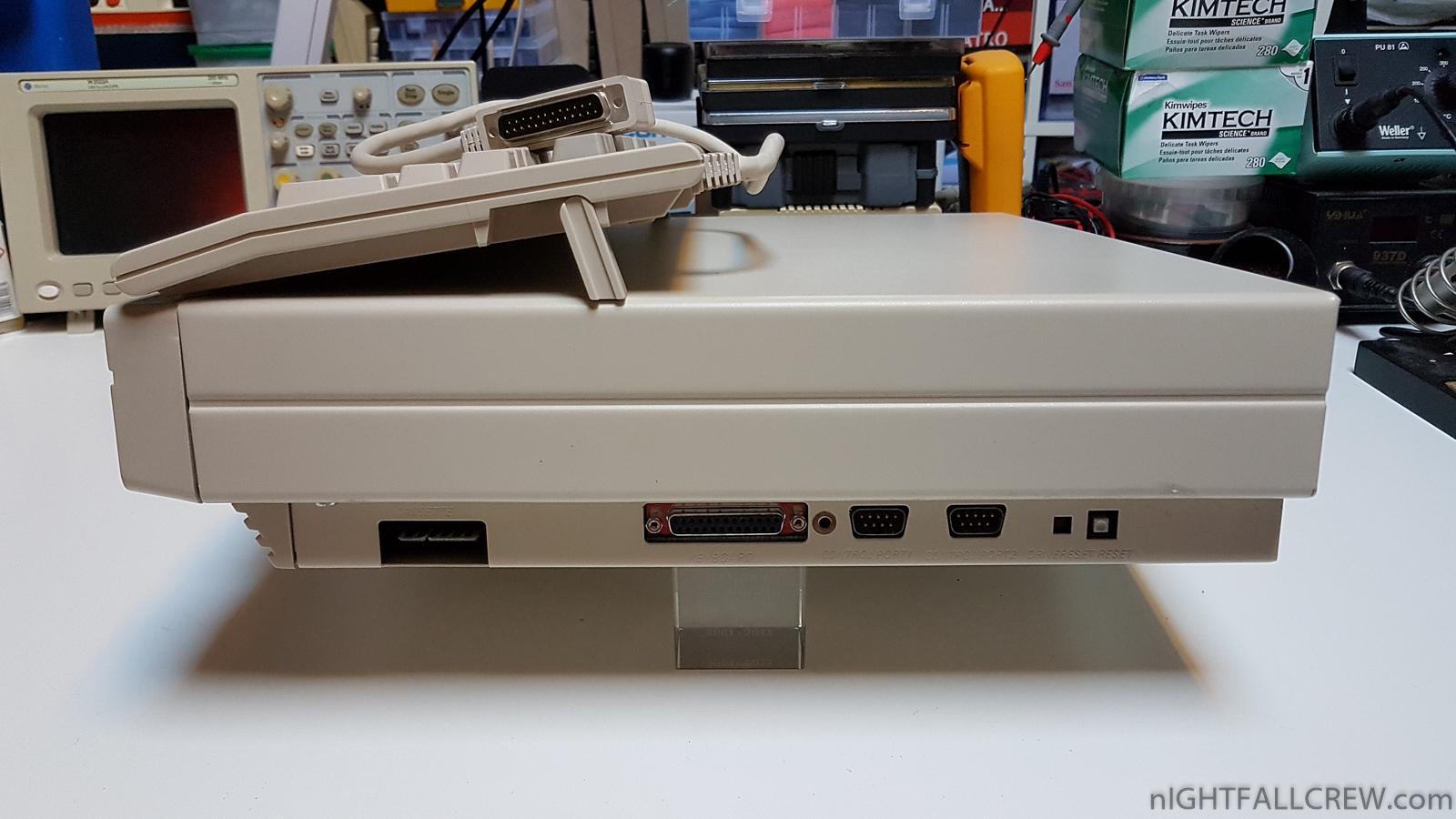

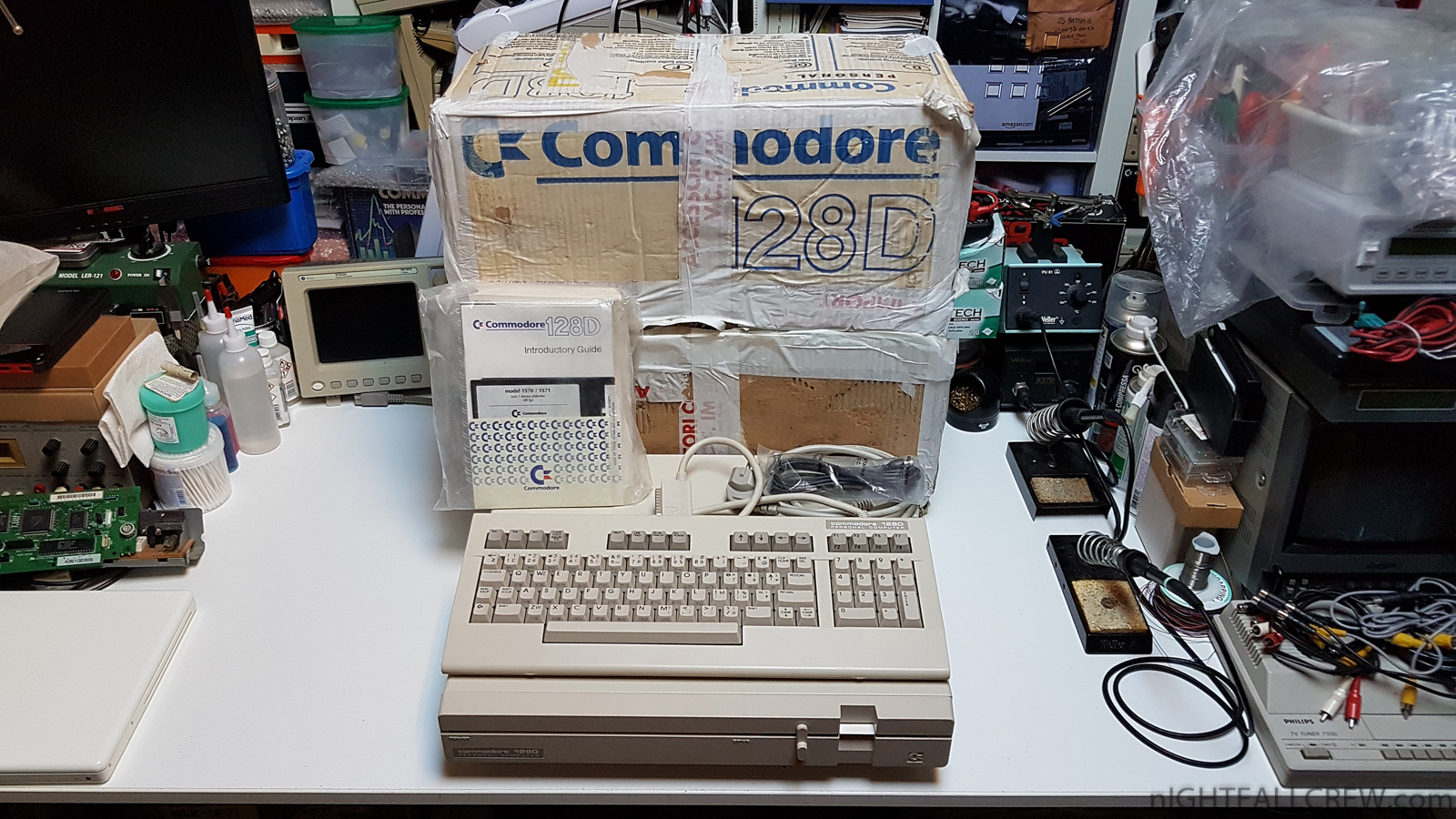

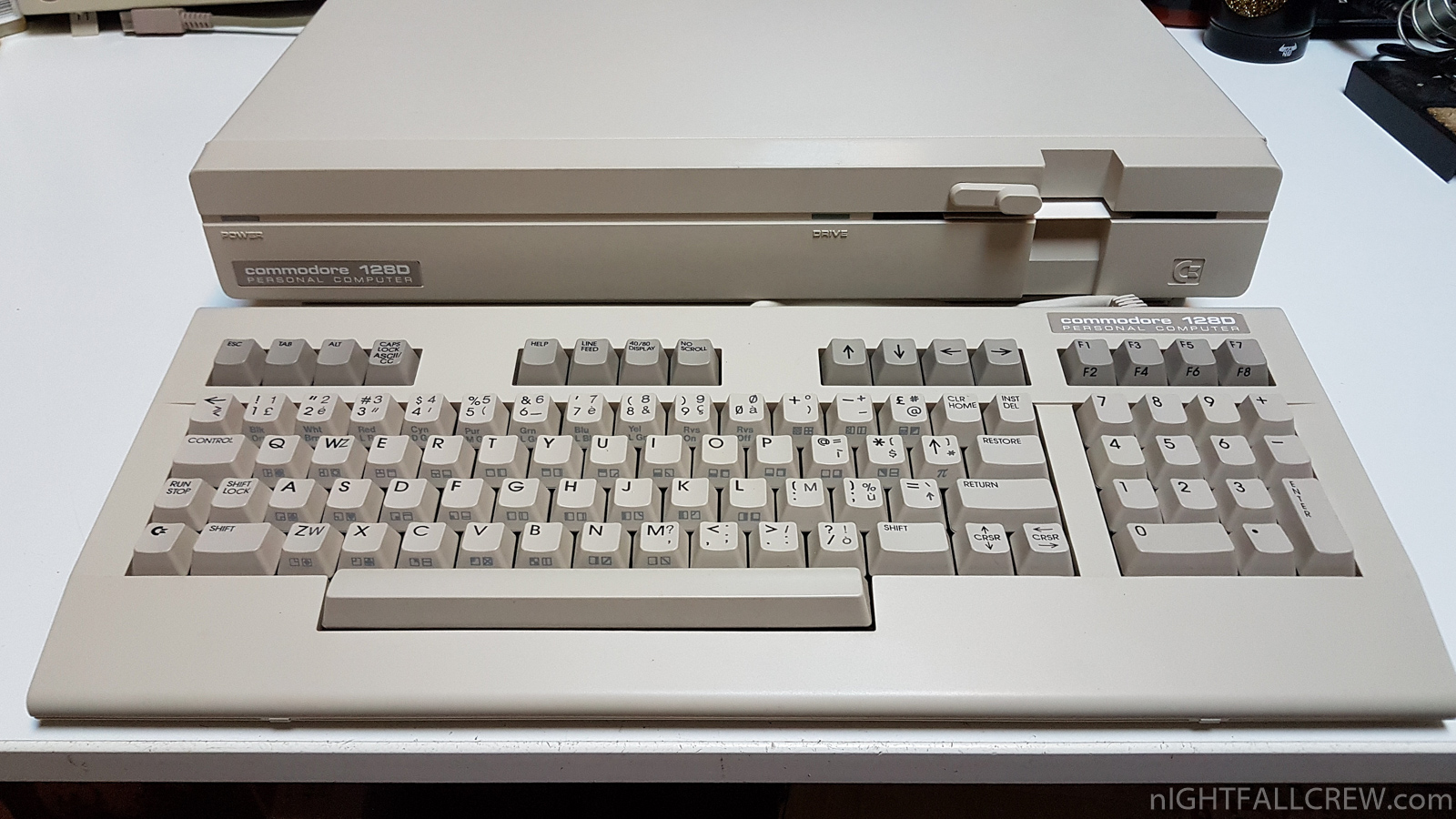

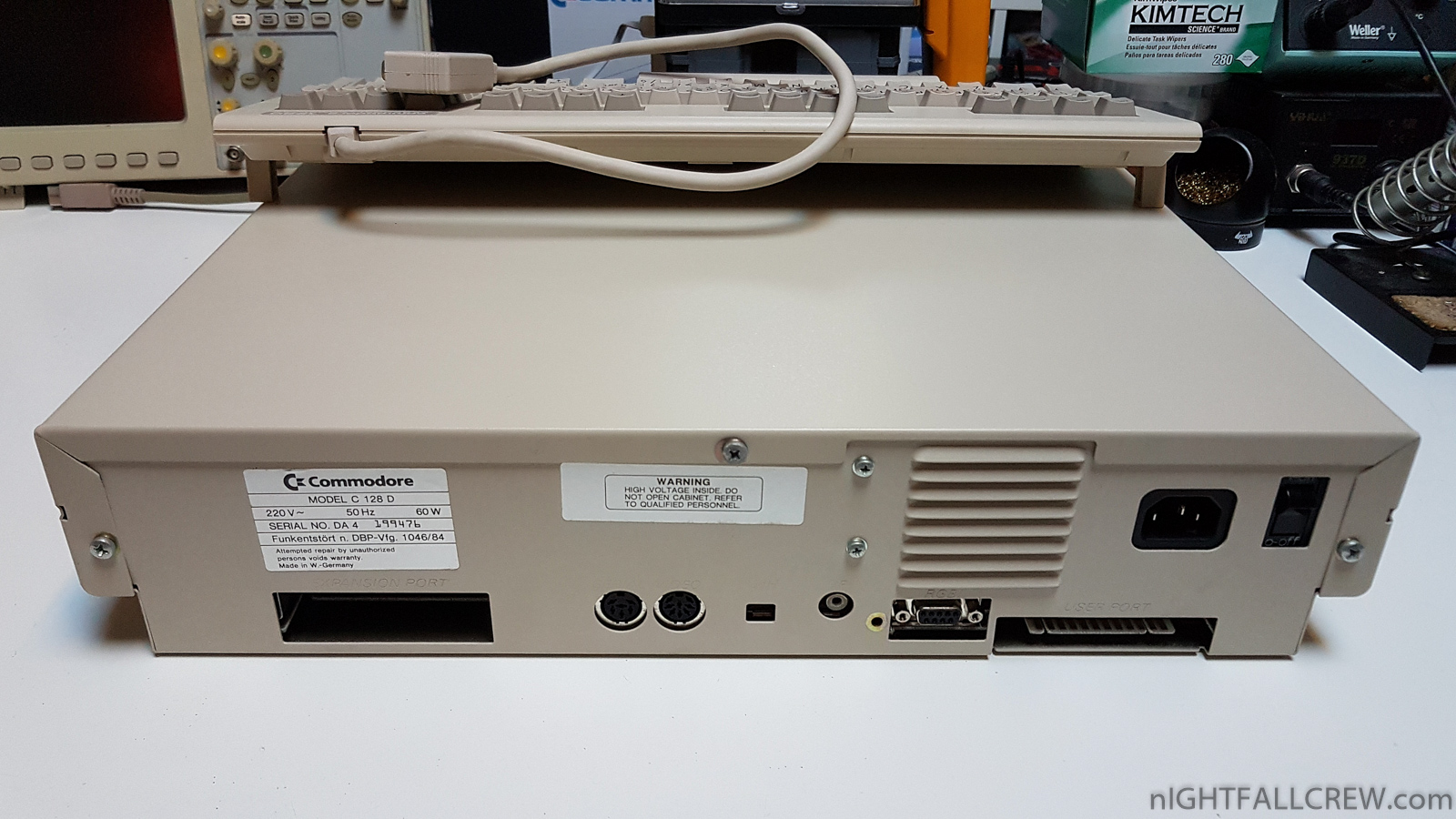

Commodore 128DCR (Boxed)

The Commodore 128, also known as the C128, C-128, C= 128 is the last 8-bit home computer that was commercially released by Commodore Business Machines (CBM). Introduced in January 1985 at the CES in Las Vegas, it appeared three years after its predecessor, the bestselling Commodore 64.

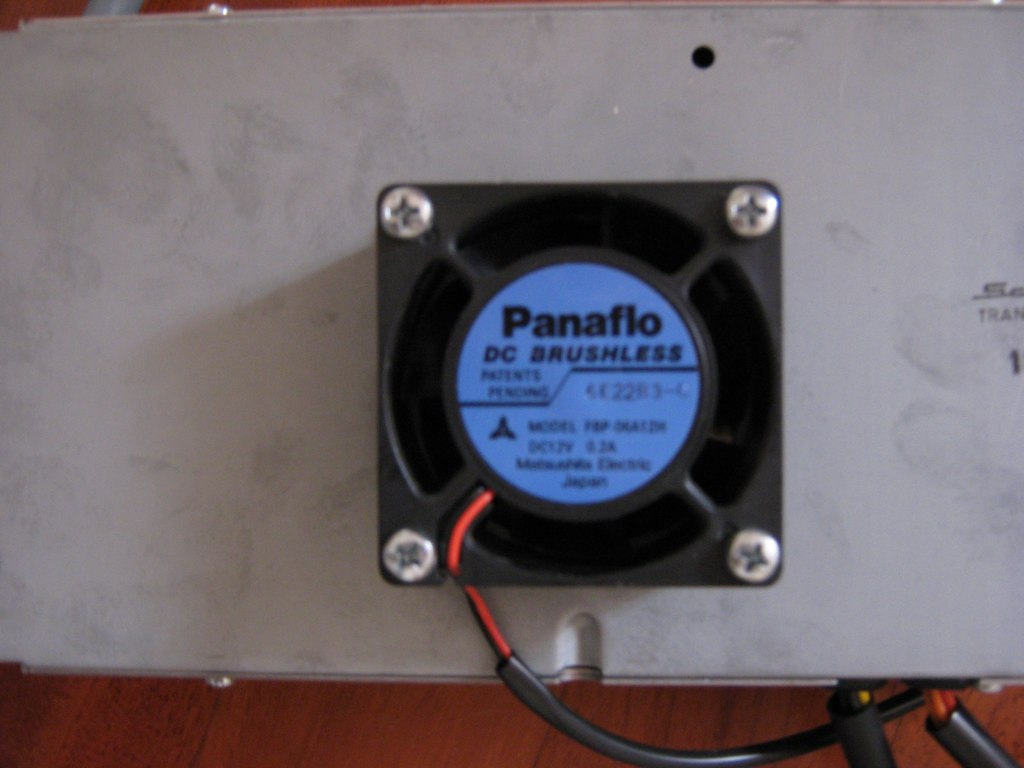

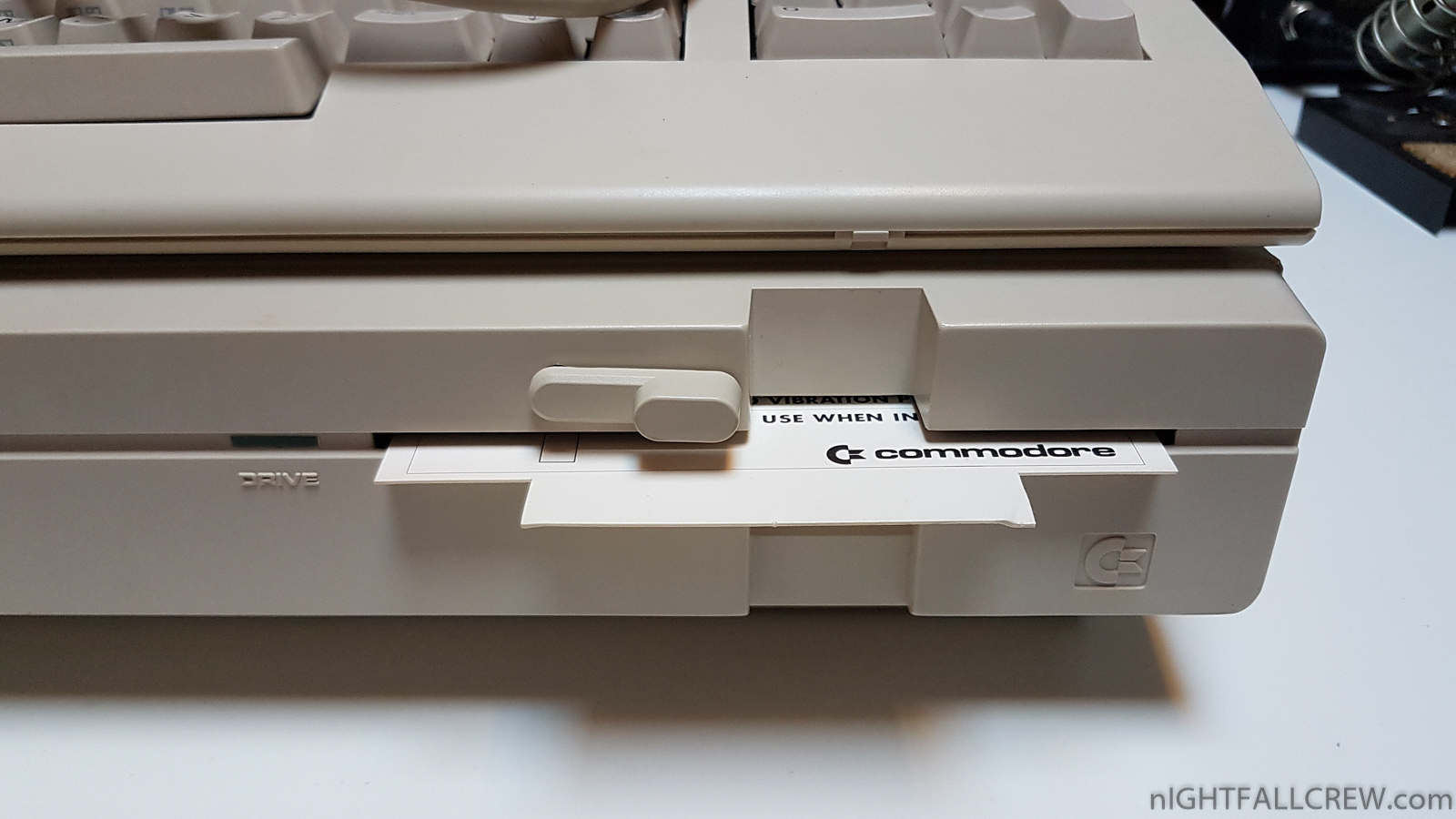

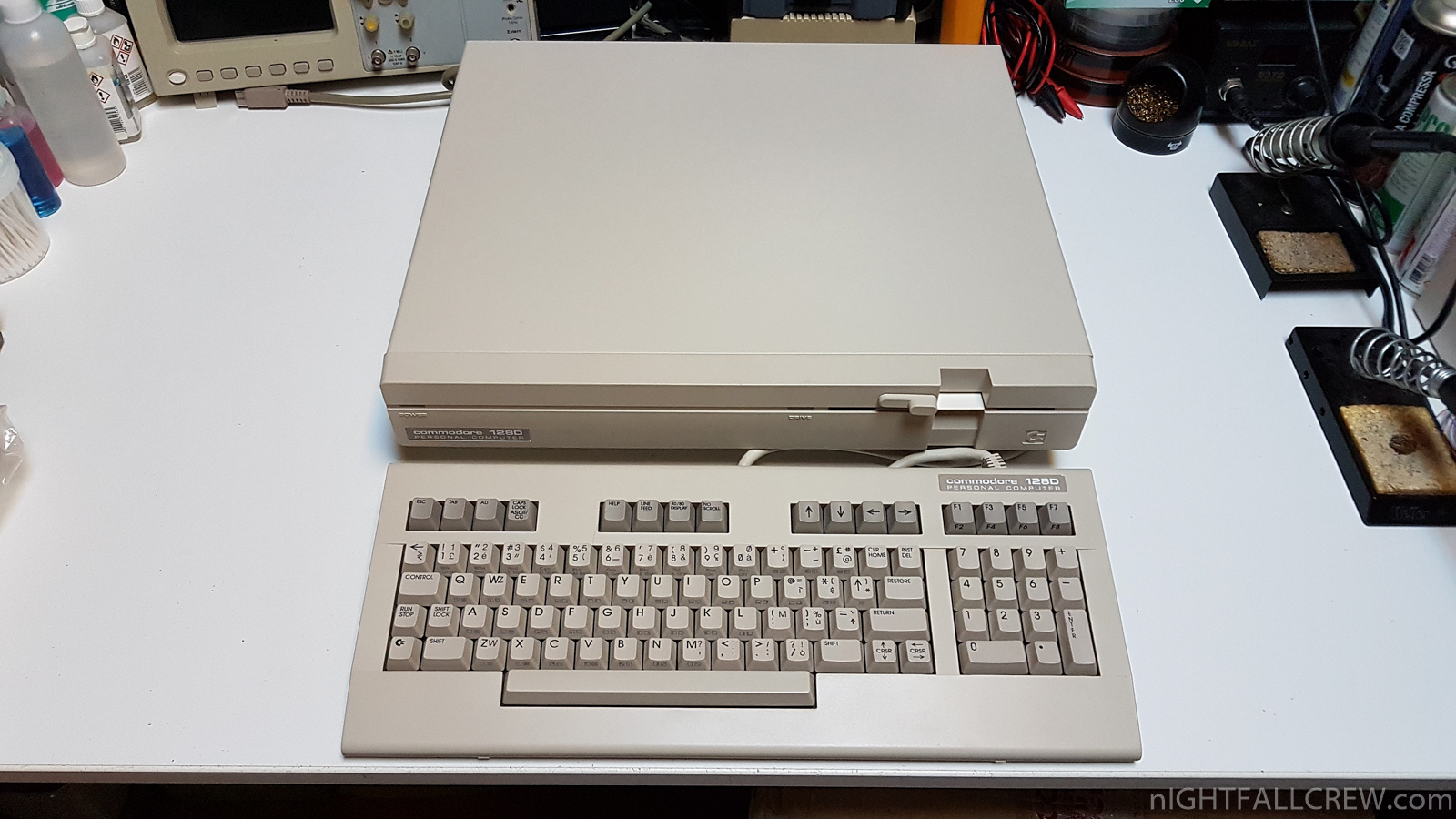

The Commodore 128DCR model features a stamped-steel chassis in place of the plastic version of the C128D (with no carrying handle), a modular switched-mode power supply similar to that of the C128D, retaining that model’s detachable keyboard and internal 1571 floppy drive. A number of components on the mainboard were consolidated to reduce production costs and, as an additional cost-reduction measure, the 40 millimeter cooling fan that was fitted to the D model’s power supply was removed. However, the mounting provisions on the power supply subchassis were retained, as well as the two 12-volt DC connection points on the power supply’s printed circuit board for powering the fan. The C128DCR mounting provision is for a 60mm fan.

A significant improvement introduced with the DCR model was the replacement of the 8563 video display controller (VDC) with the more technically advanced 8568 VDC and equipping it with 64 kilobytes of video RAM—the maximum amount addressable by the device. The four-fold increase in video RAM over that installed in the “flat” C128 made it possible, among other things, to maintain multiple text screens in support of a true windowing system, or generate higher-resolution graphics with a more flexible color palette. Little commercial software took advantage of these possibilities.

The C128DCR is equipped with new ROMs dubbed the “1986 ROMs,” so-named from the copyright date displayed on the power-on banner screen. The new ROMs address a number of bugs that are present in the original ROMs, including an infamous off-by-one error in the keyboard decoding table, in which the ‘Q’ character would remain lower case when CAPS LOCK was active. Some software will only run on the DCR, due to dependencies on the computer’s enhanced hardware features and revised ROMs.

Despite the DCR’s improved RGB video capabilities, Commodore did not enhance BASIC 7.0 with the ability to manipulate RGB graphics. Driving the VDC in graphics mode continues to require the use of calls to screen-editor ROM primitives or their assembly language equivalents or by using third-party BASIC language extensions, such as Free Spirit Software’s “BASIC 8″, which adds high-resolution VDC graphics commands to BASIC 7.0.

Gallery:

source: wikipedia

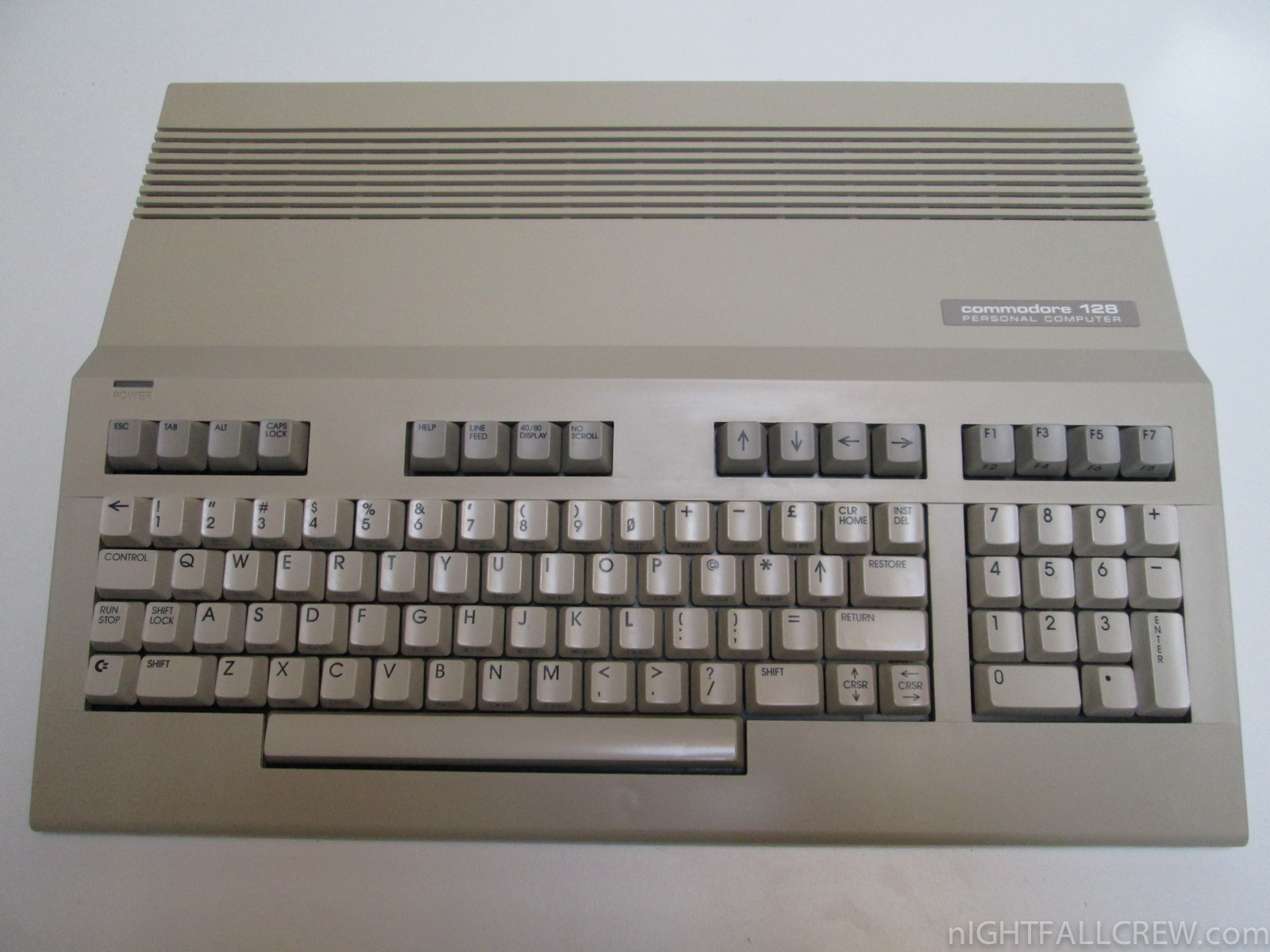

Commodore 128

April 14th, 2013 1 comment

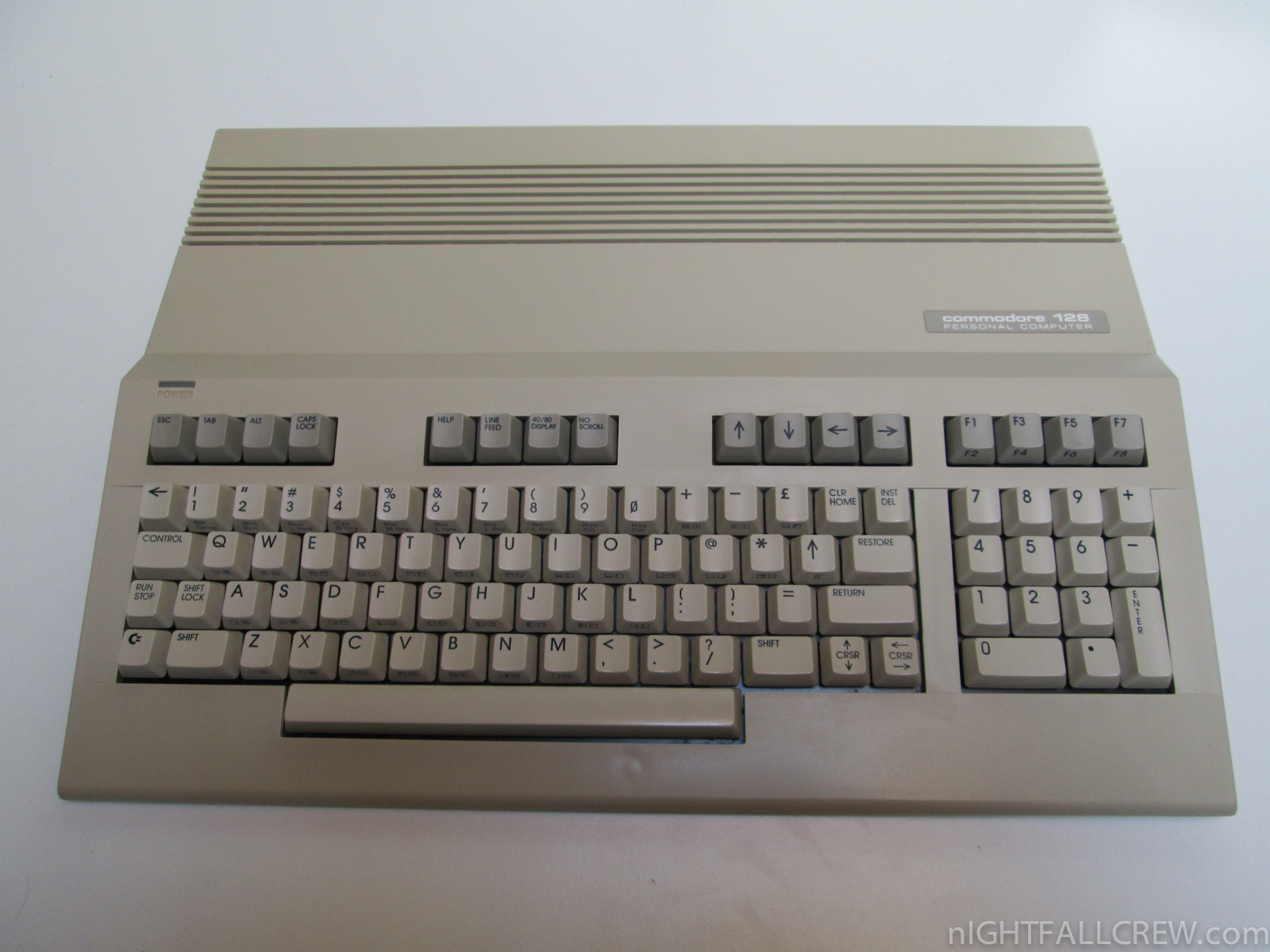

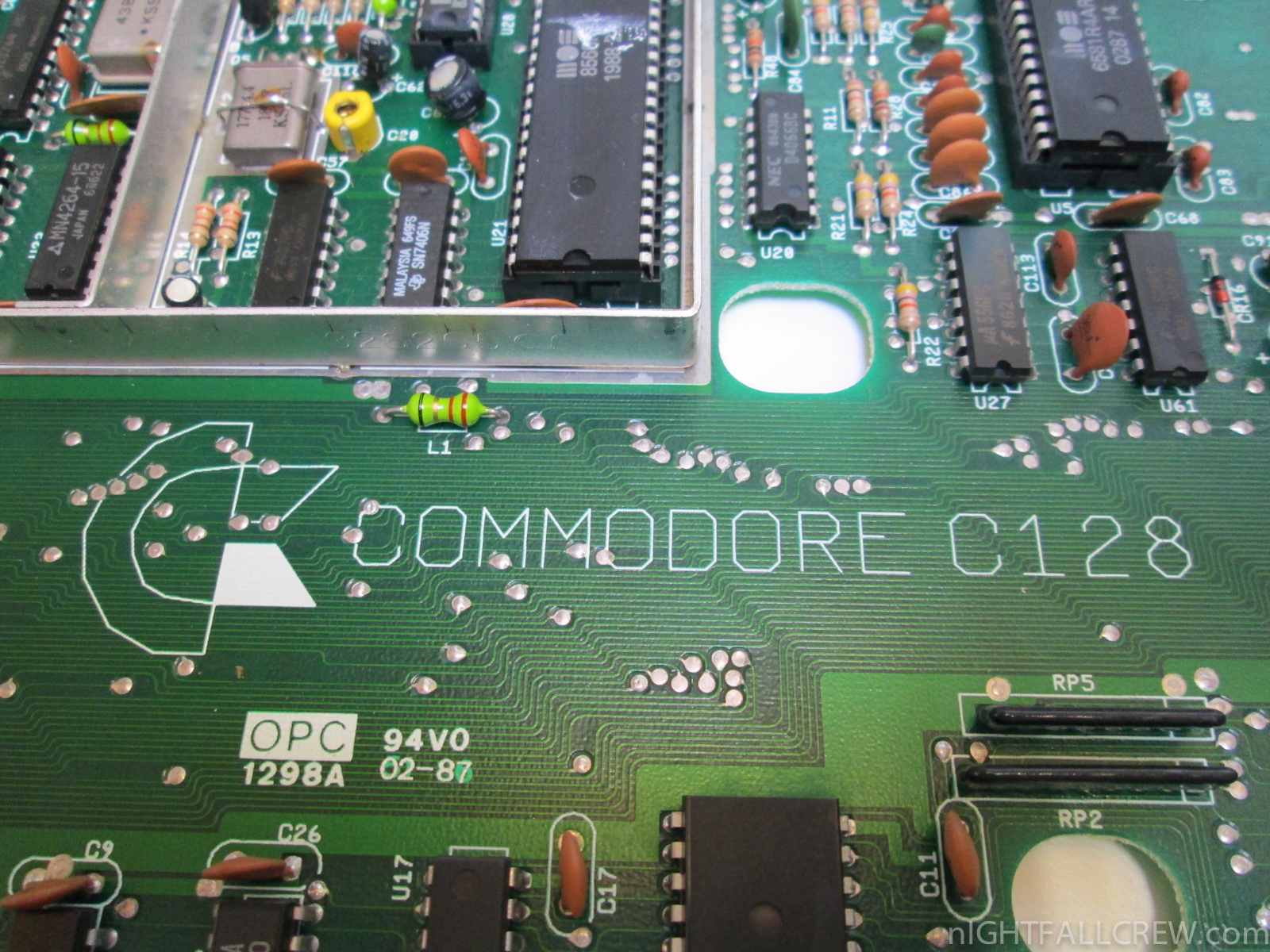

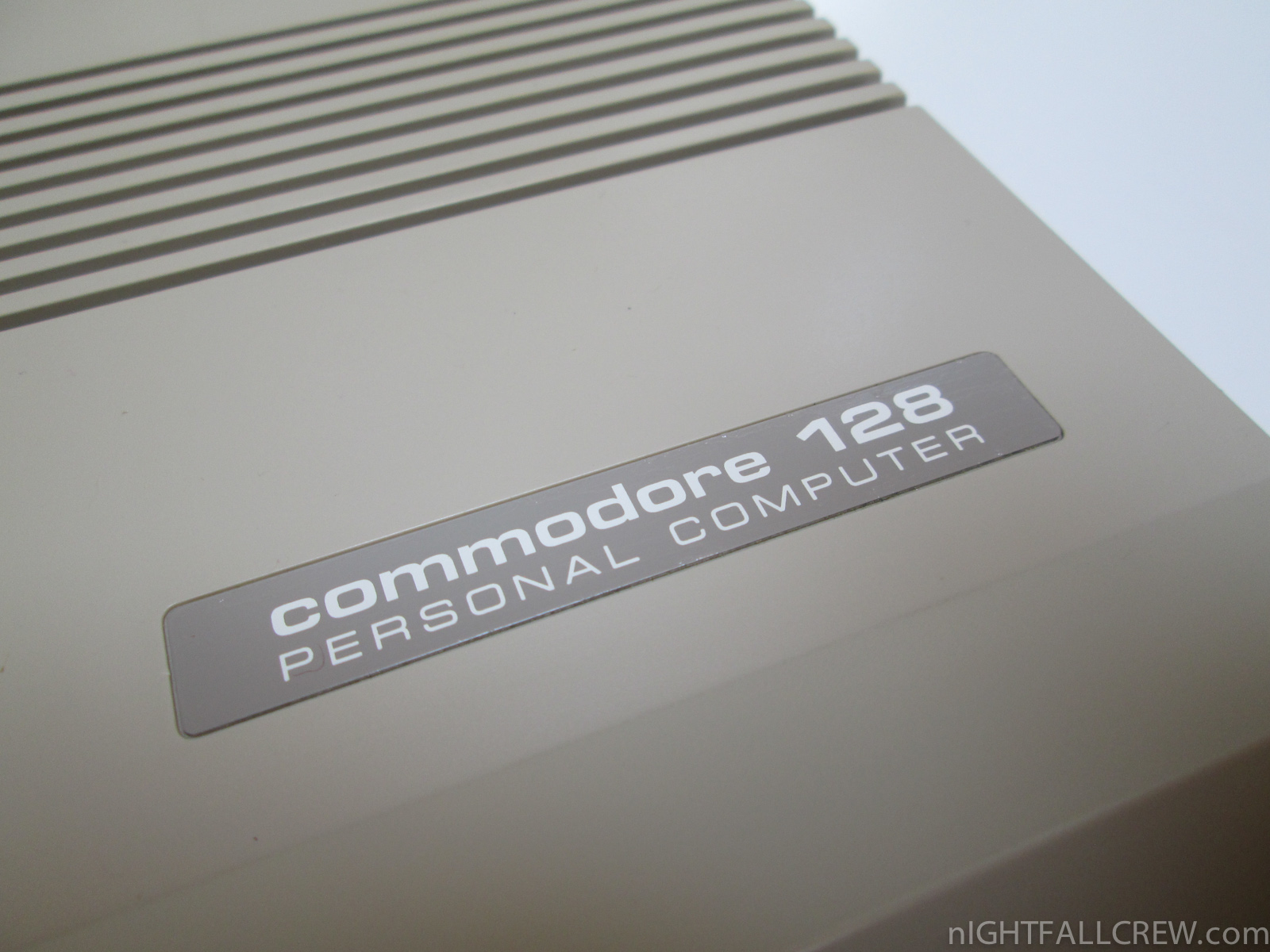

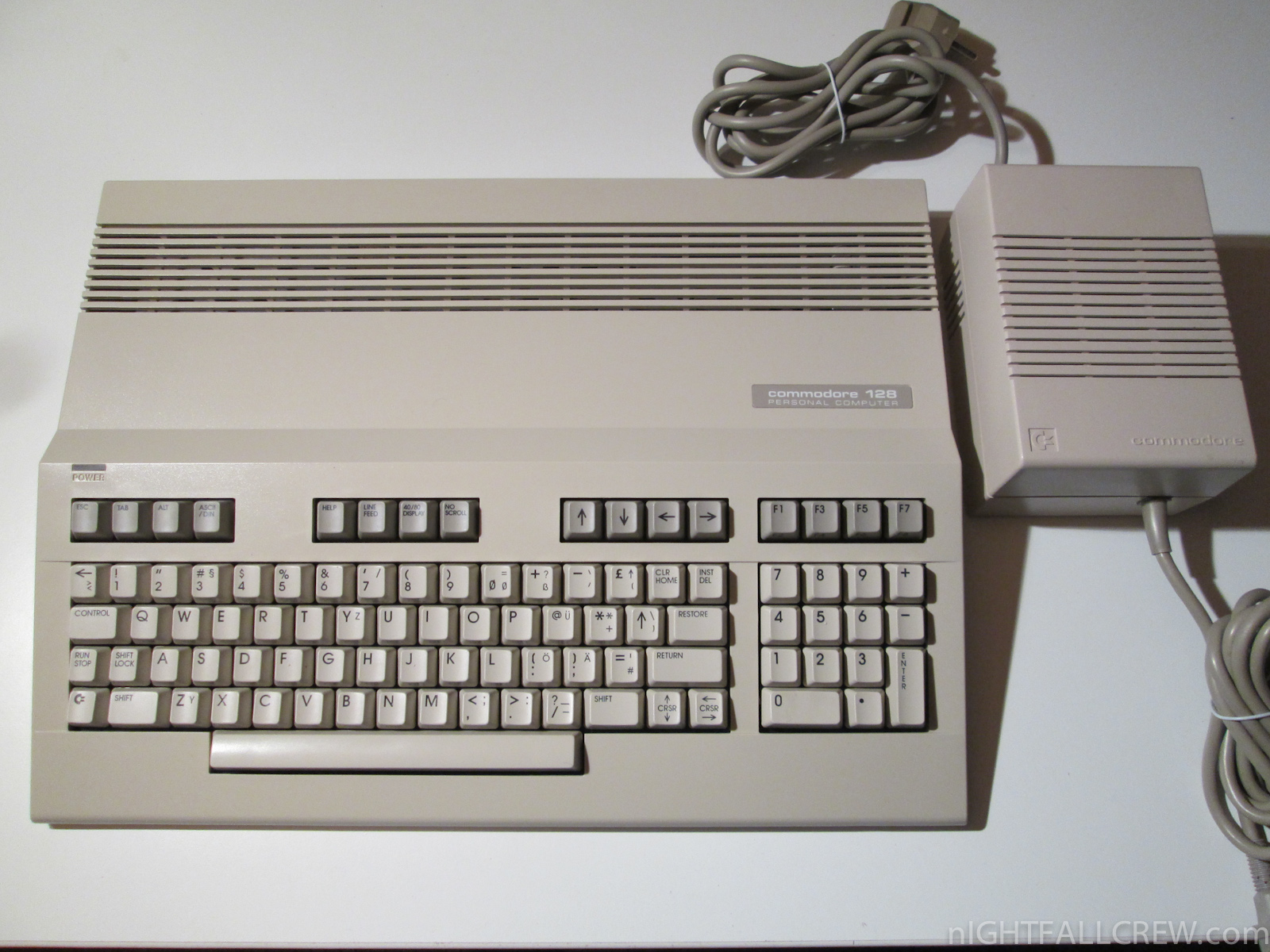

Commodore 128 (close-up)

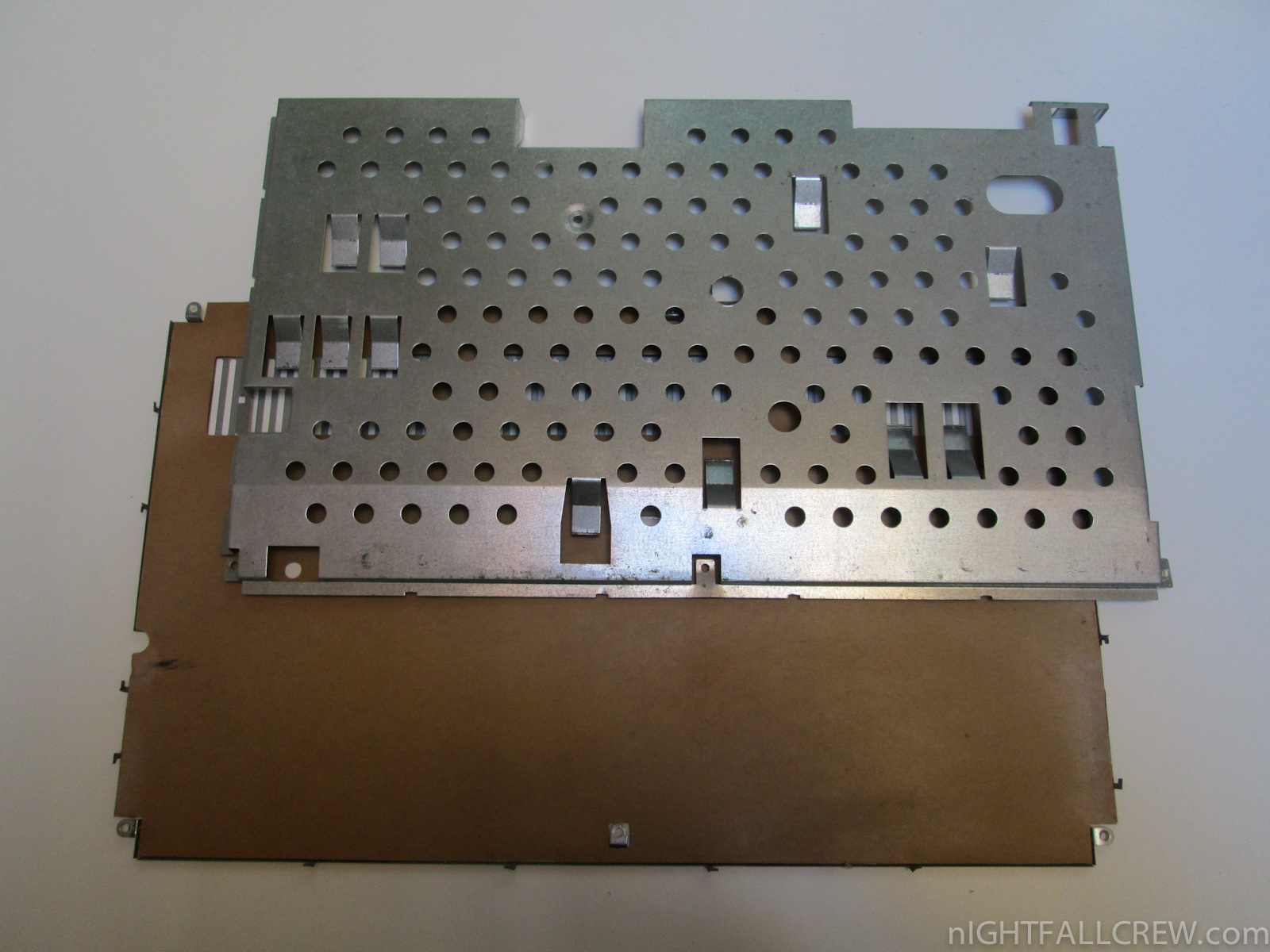

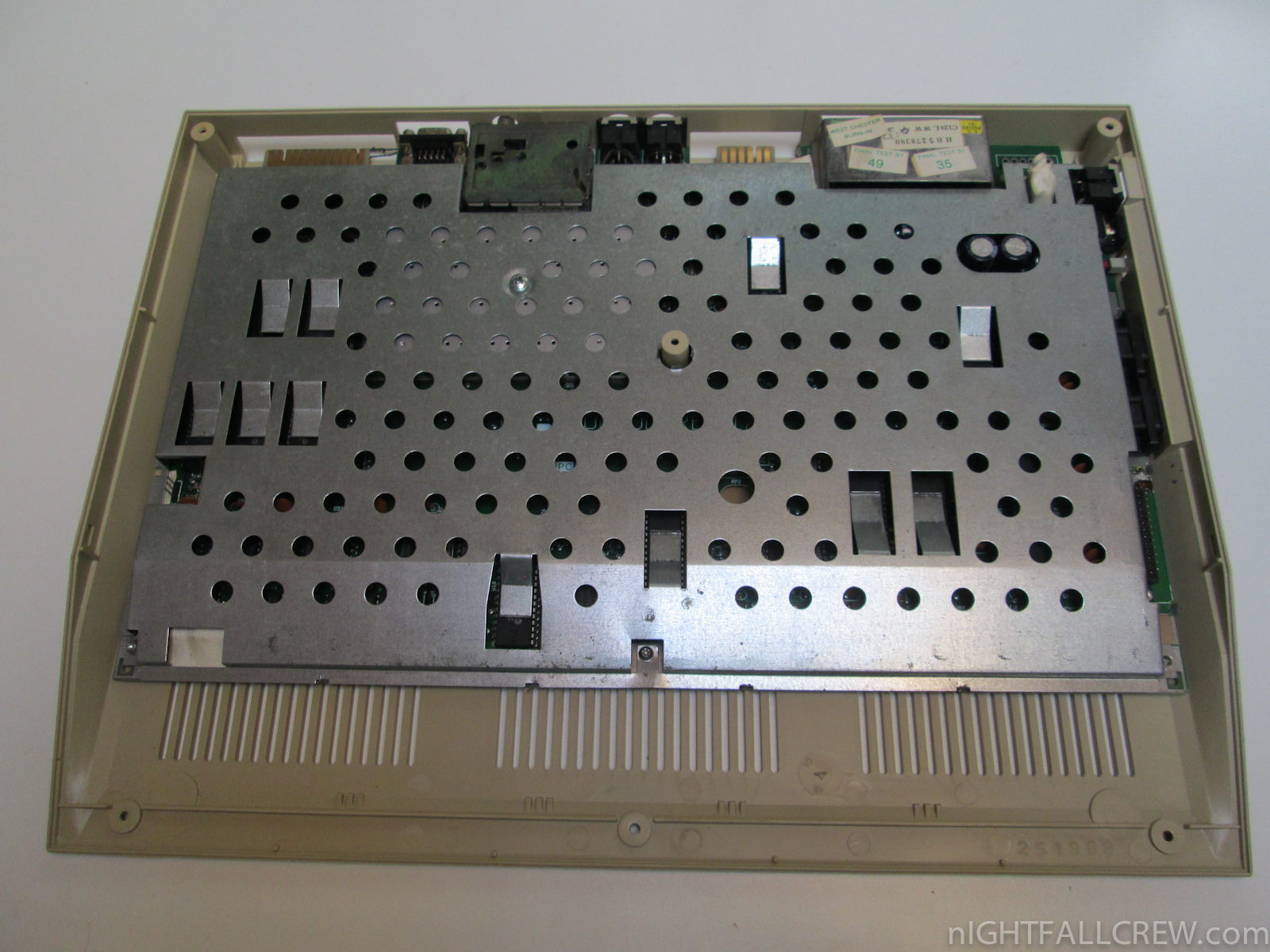

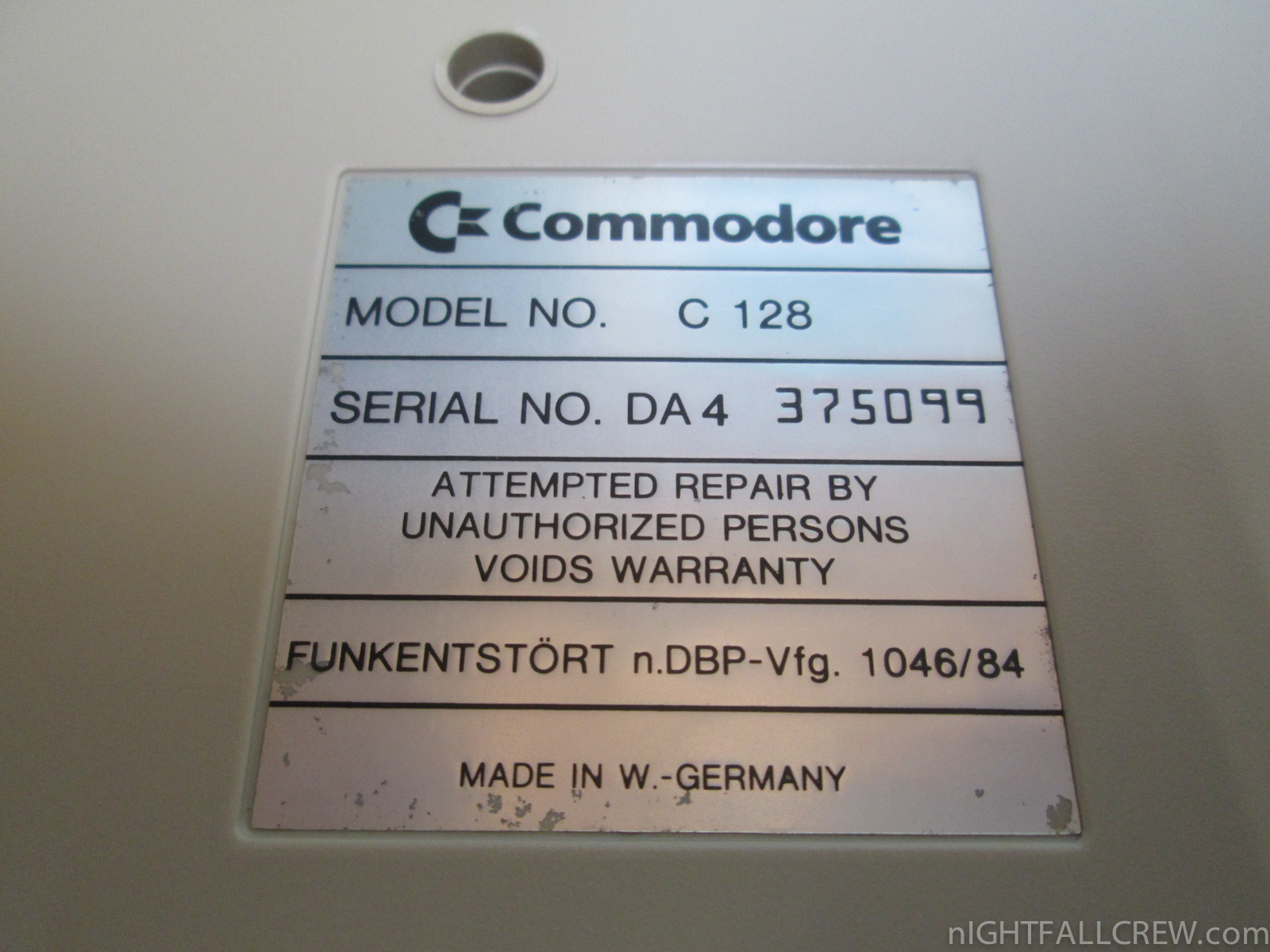

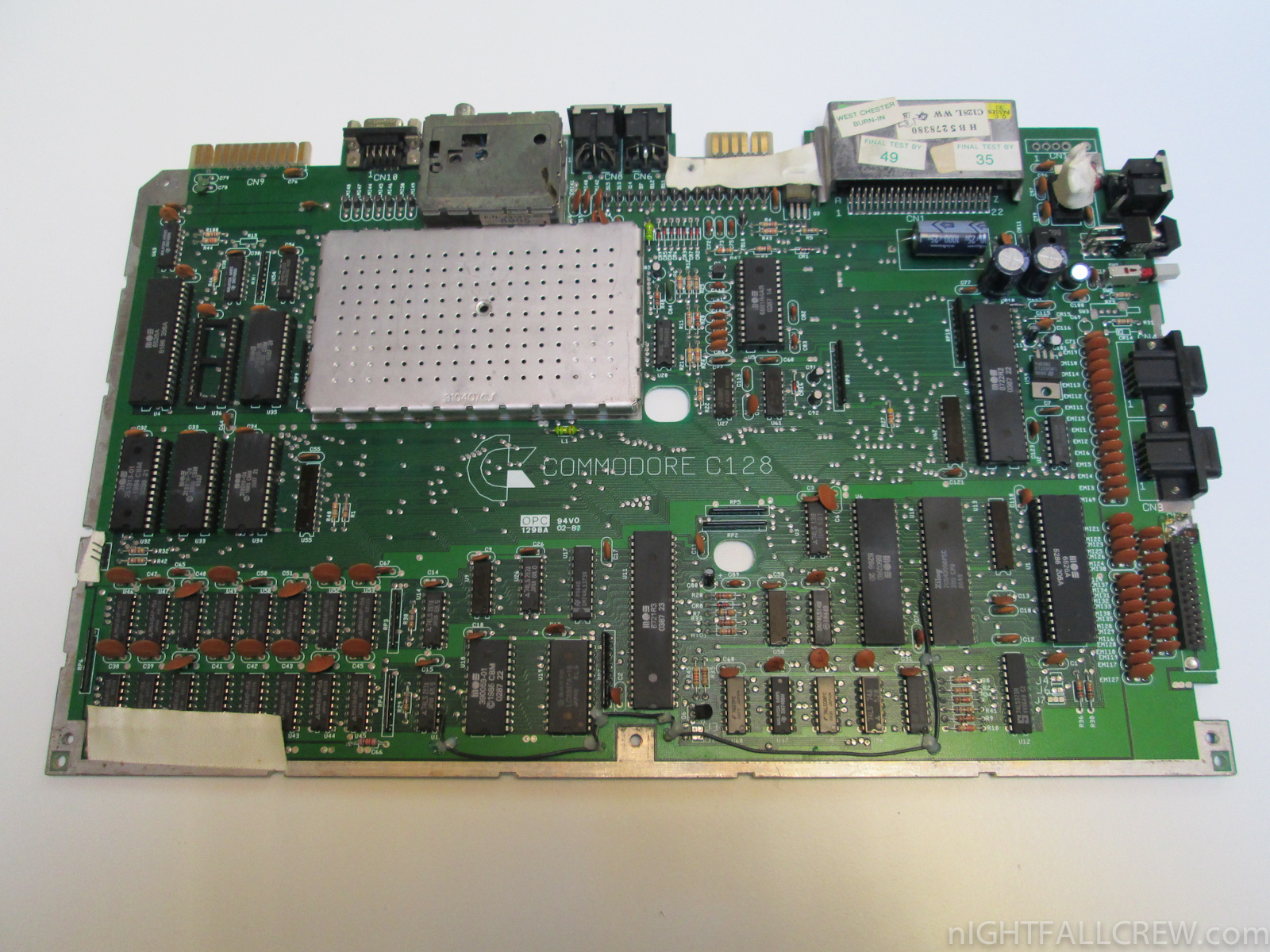

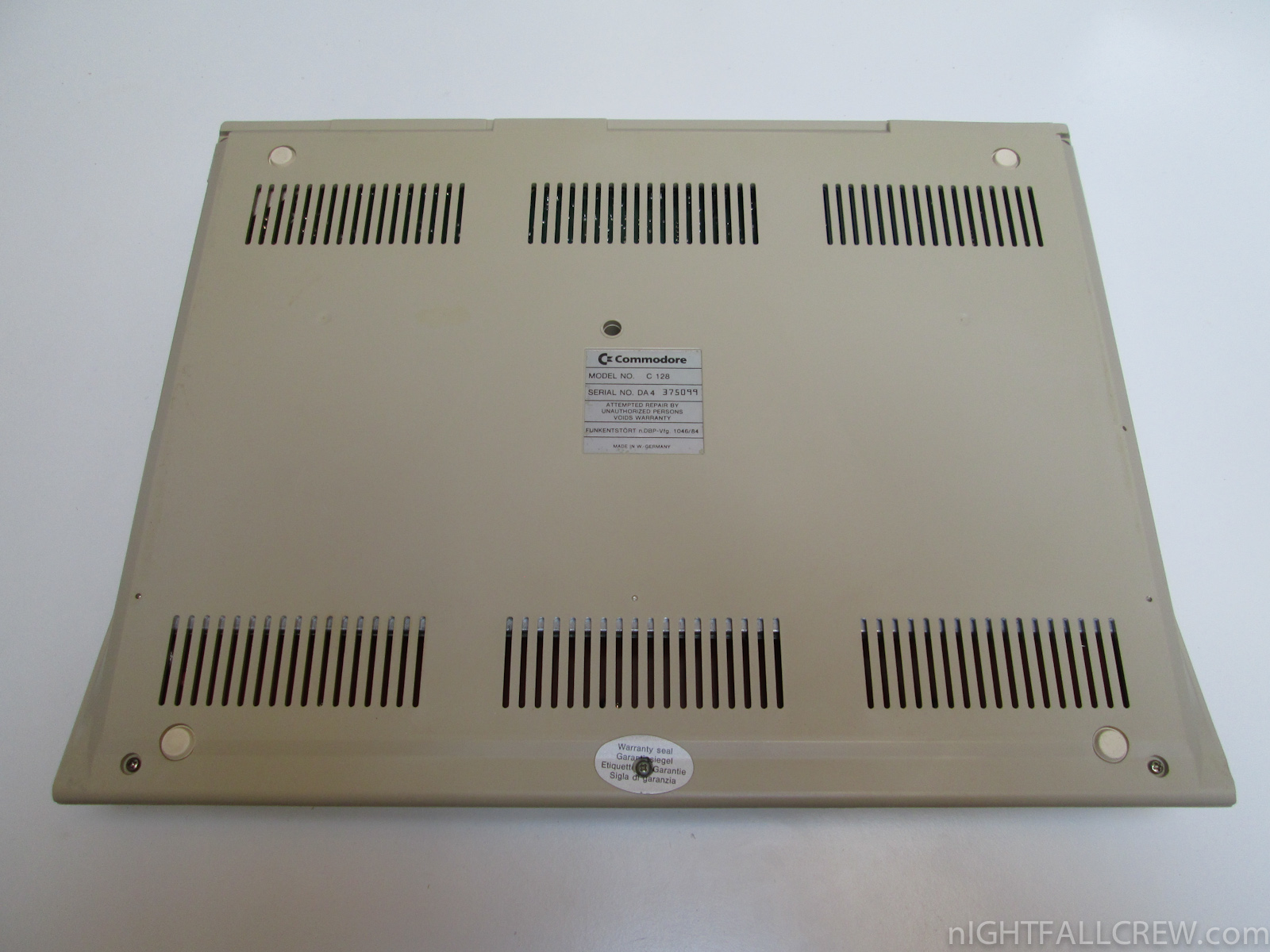

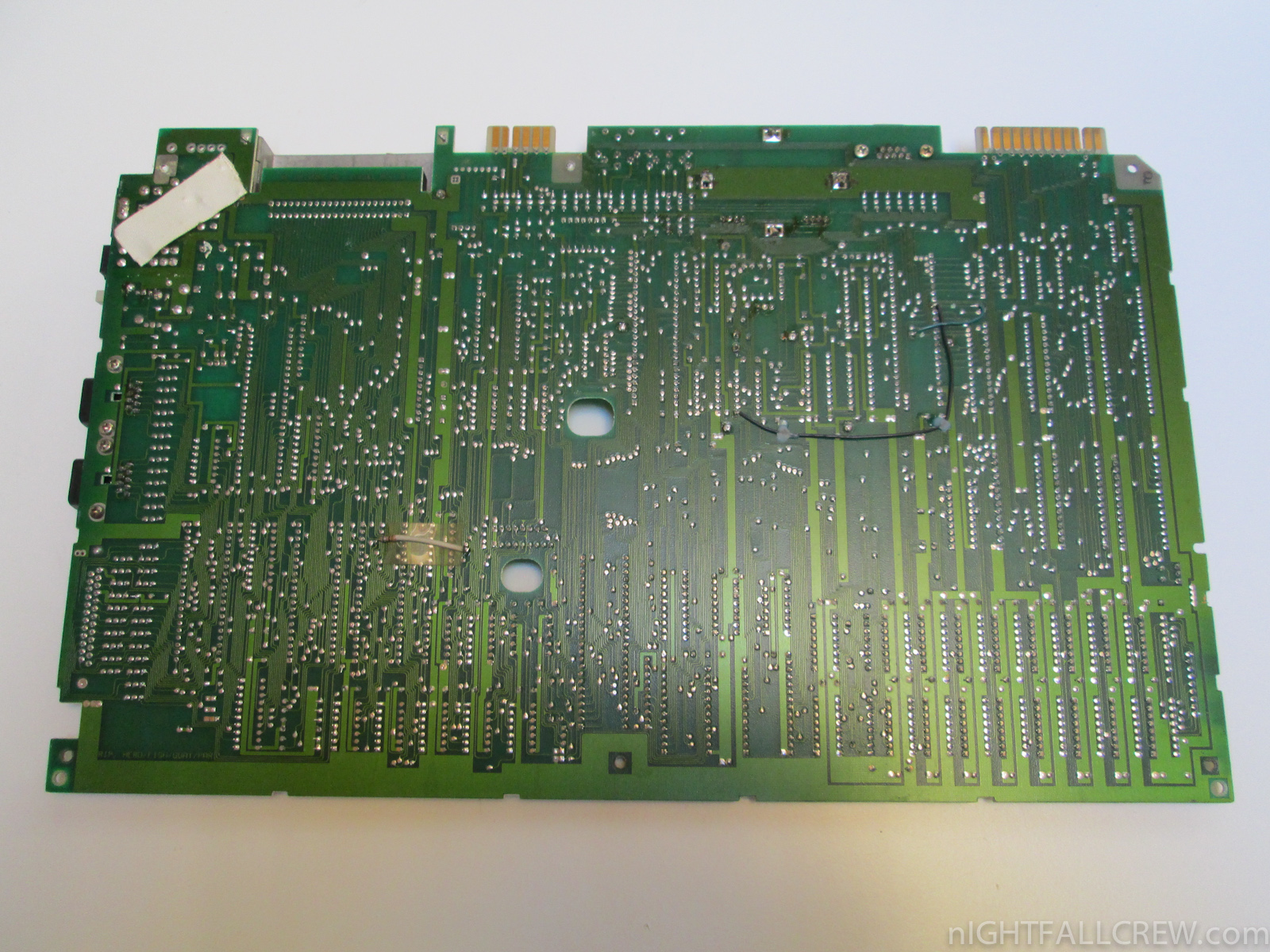

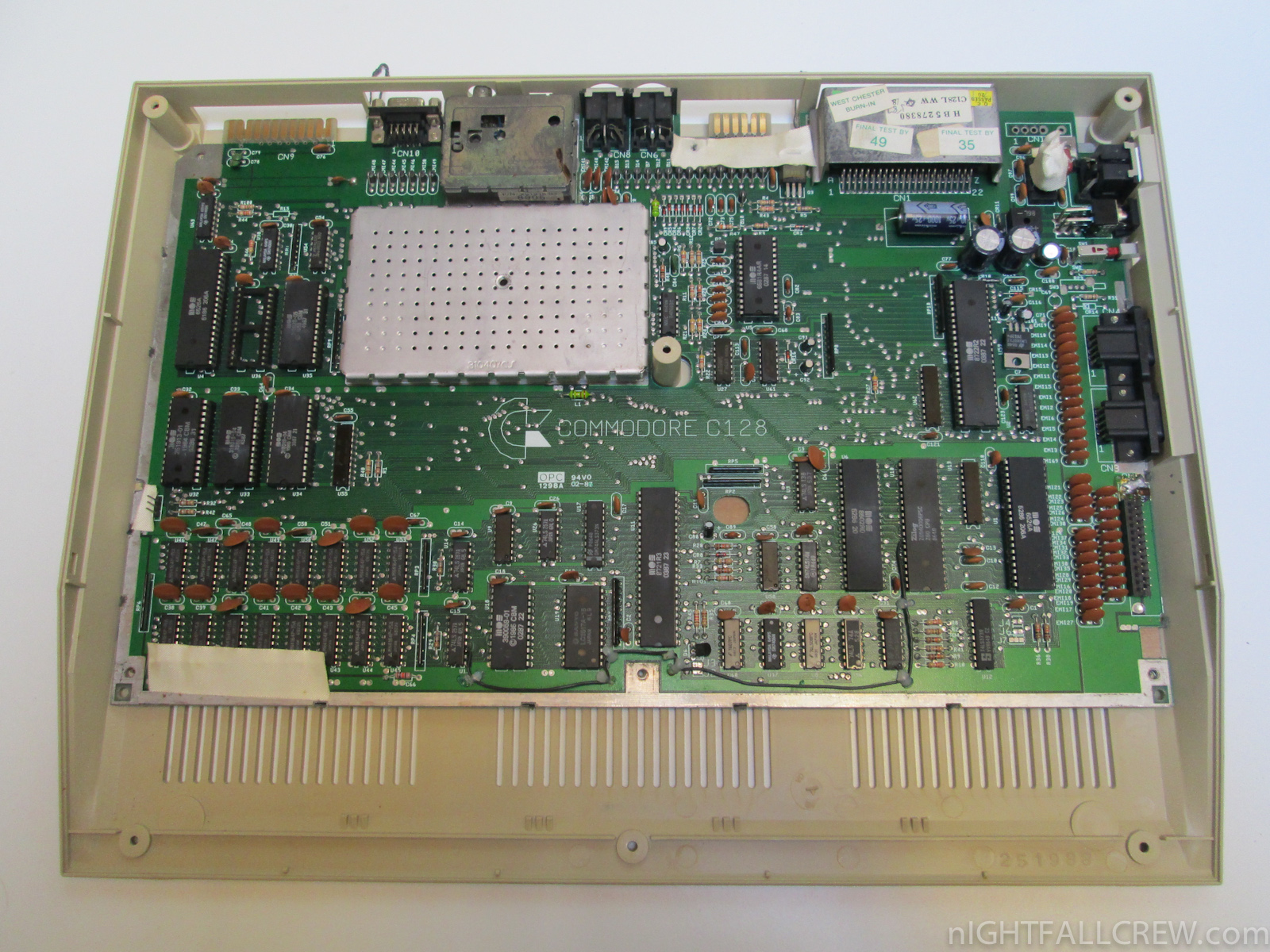

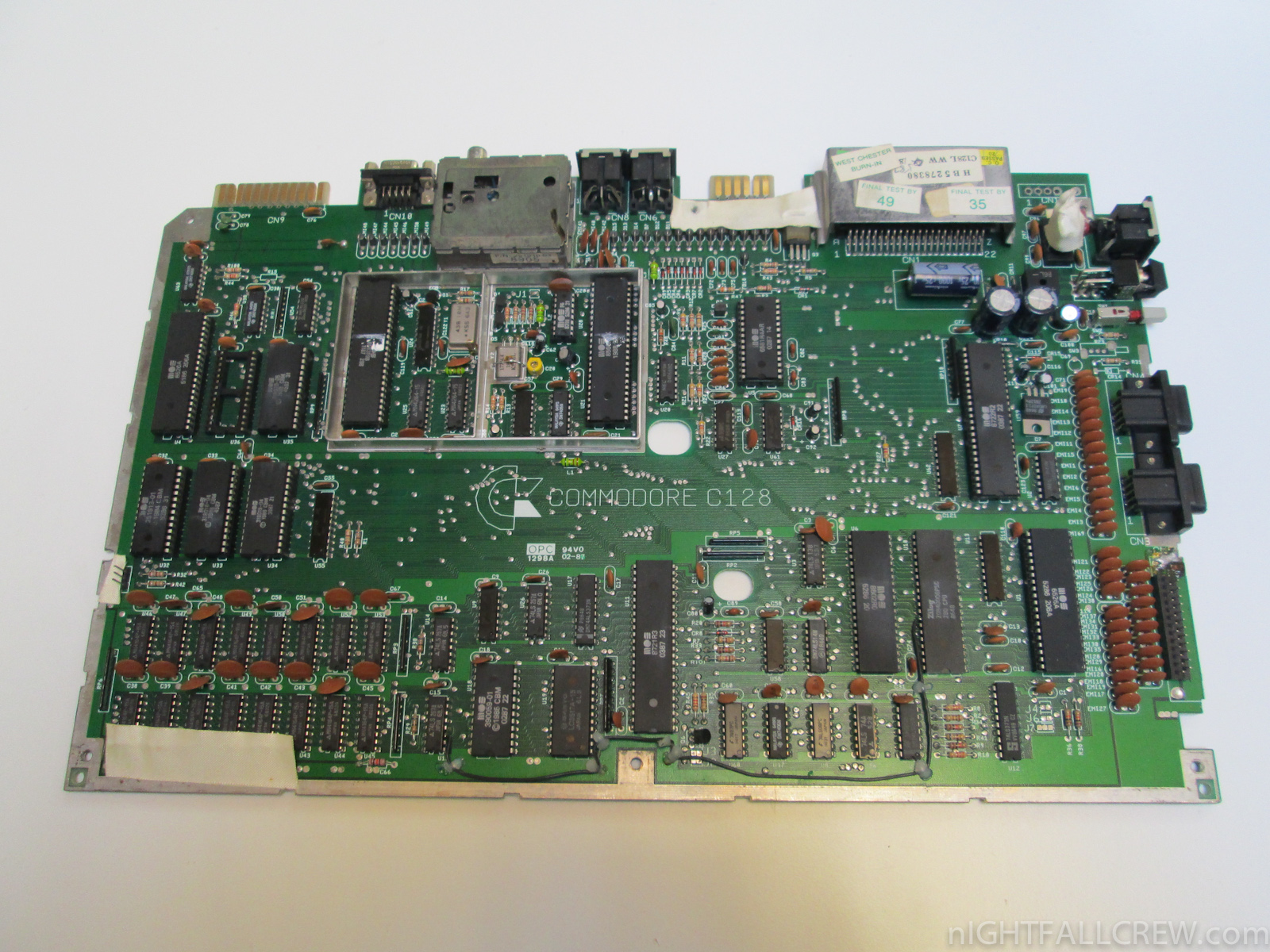

Autopsy:

This is a old article that i forgot to publish.

from Wikipedia:

The Commodore 128 (C128, CBM 128, C=128) home computer was the last 8-bit machine commercially released by Commodore Business Machines (CBM). Introduced in January 1985 at the CES in Las Vegas, it appeared three years after its predecessor, the bestselling Commodore 64.

The C128 was a significantly expanded successor to the C64, with nearly full compatiblity. The new machine had 128 kB of RAM in two 64 kB banks, and an 80-column color video output. It had a redesigned case and keyboard. Also included was a Zilog Z80 CPU which allowed the C128 to run CP/M, as an alternative to the usual Commodore BASIC environment. The presence of the Z80 and the huge CP/M software library it brought, coupled with the C64′s software library, gave the C128 one of the broadest ranges of available software among its competitors.

The primary hardware designer of the C128 was Bil Herd, who had worked on the Plus/4. Other hardware engineers were Dave Haynie and Frank Palaia, while the IC design work was done by Dave DiOrio. The main Commodore system software was developed by Fred Bowen and Terry Ryan, while the CP/M subsystem was developed by Von Ertwine.

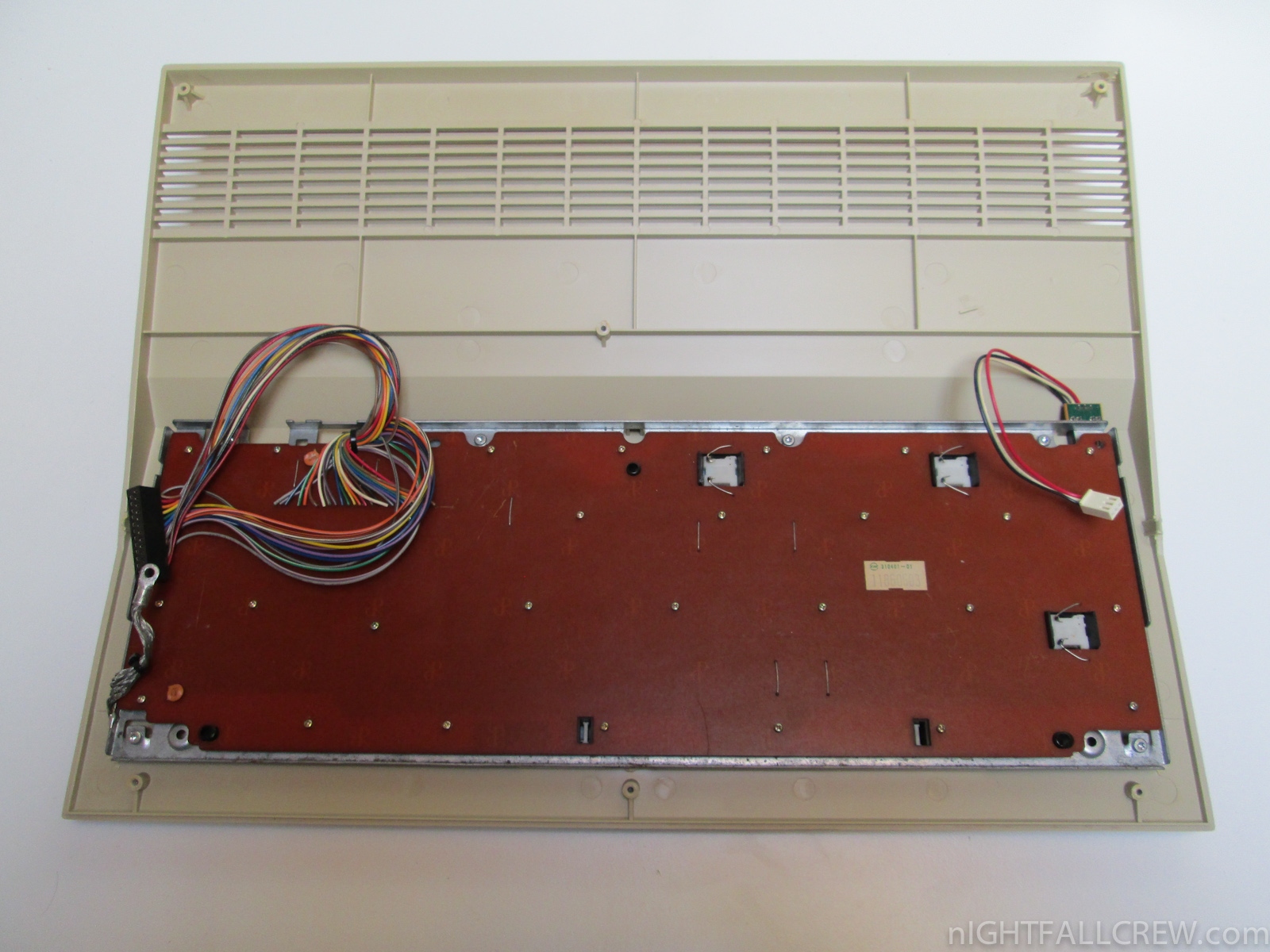

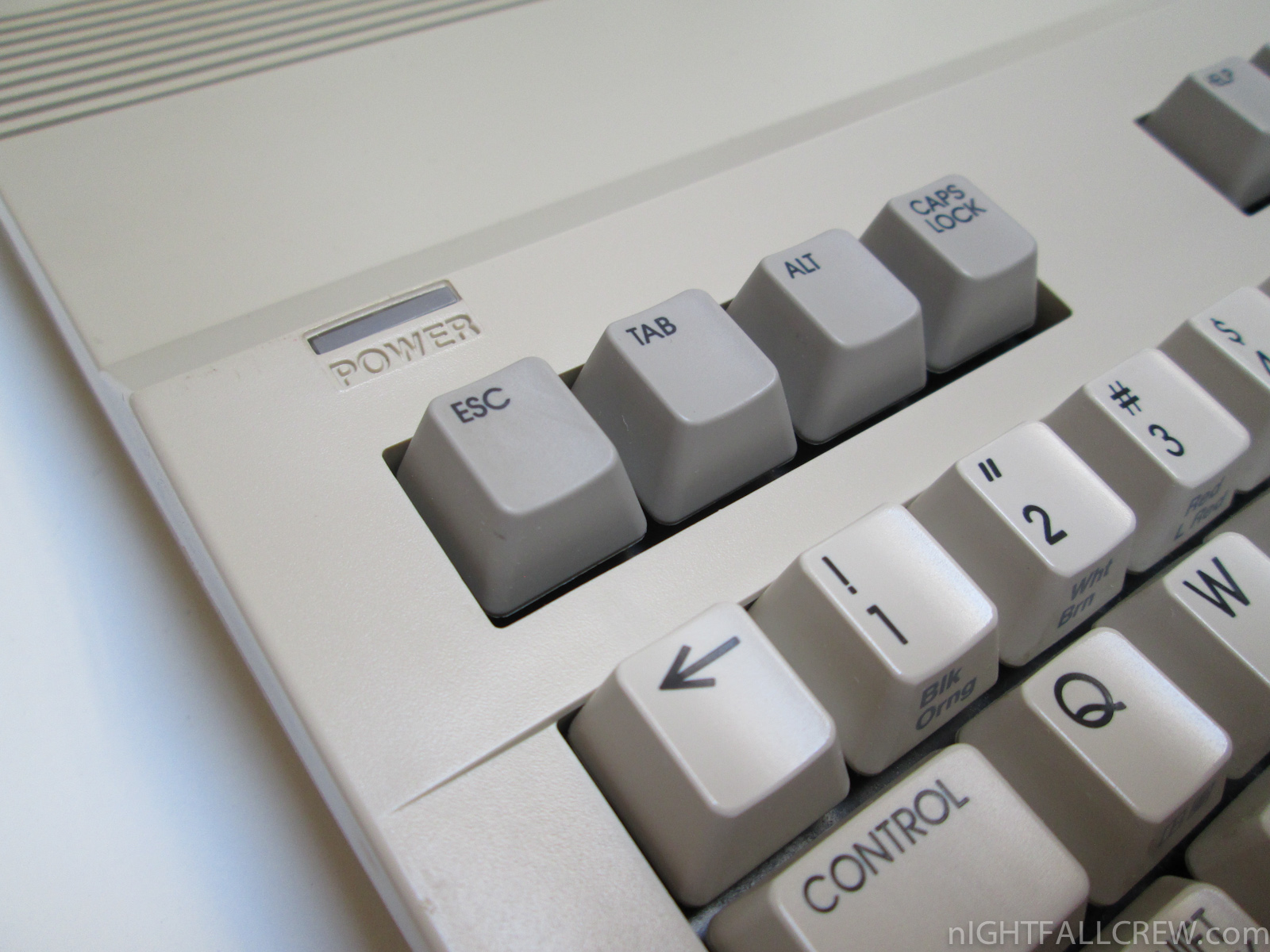

The C128′s keyboard included four cursor keys (previous Commodores had two, which required using the shift key to move the cursor up or left. These were retained on the 128, for C64 compatibility), an Alt key, Help key, Esc key, Tab key (not present on prior models) and a numeric keypad. The lack of a numeric keypad, Alt key and Esc key on the C-64 were an issue with some CP/M productivity software when used with the 64′s Z-80 cartridge.

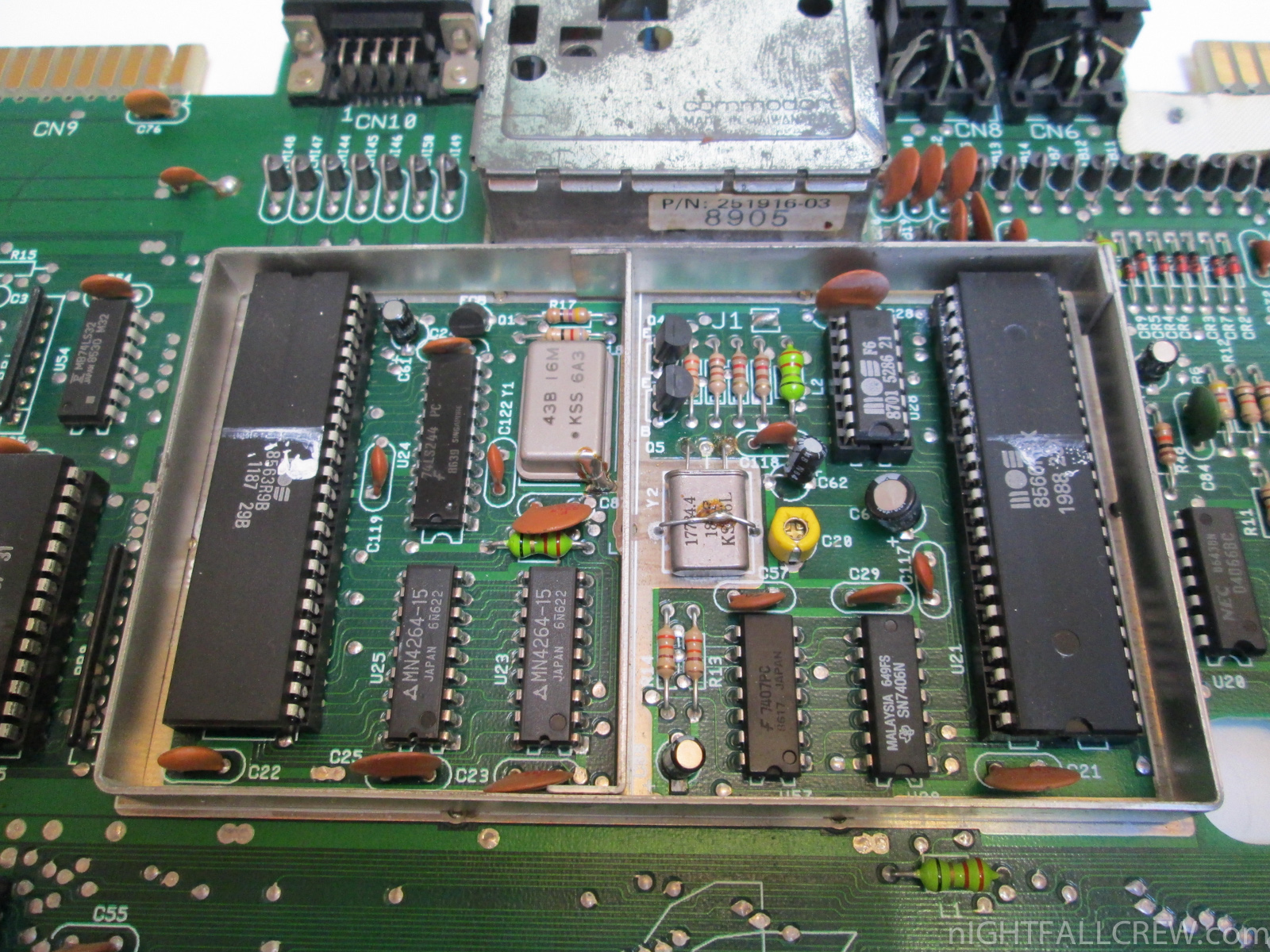

Many of the added keys matched ones present on the IBM PC’s keyboard. While the 128′s 40 column mode closely duplicated that of the C64, an extra 1K of color RAM was made available to the programmer, as it was multiplexed through memory address 1. The 128′s power supply was improved over the 64′s unreliable design, being much larger and equipped with cooling vents and a replaceable fuse. Instead of the single 6510 microprocessor of the C64, the C128 incorporated a two-CPU design. The primary CPU, the 8502, was a slightly improved version of the 6510 capable of being clocked at 2 MHz. The second CPU was a Zilog Z80 which was used to run CP/M software, as well as to initiate operating mode selection at boot time. The two processors could not run concurrently, thus the C128 was not a multiprocessing system.

source: wikipedia

Recovered a Commodore 128 with manuals and Tape Recorder

January 29th, 2013 No comments

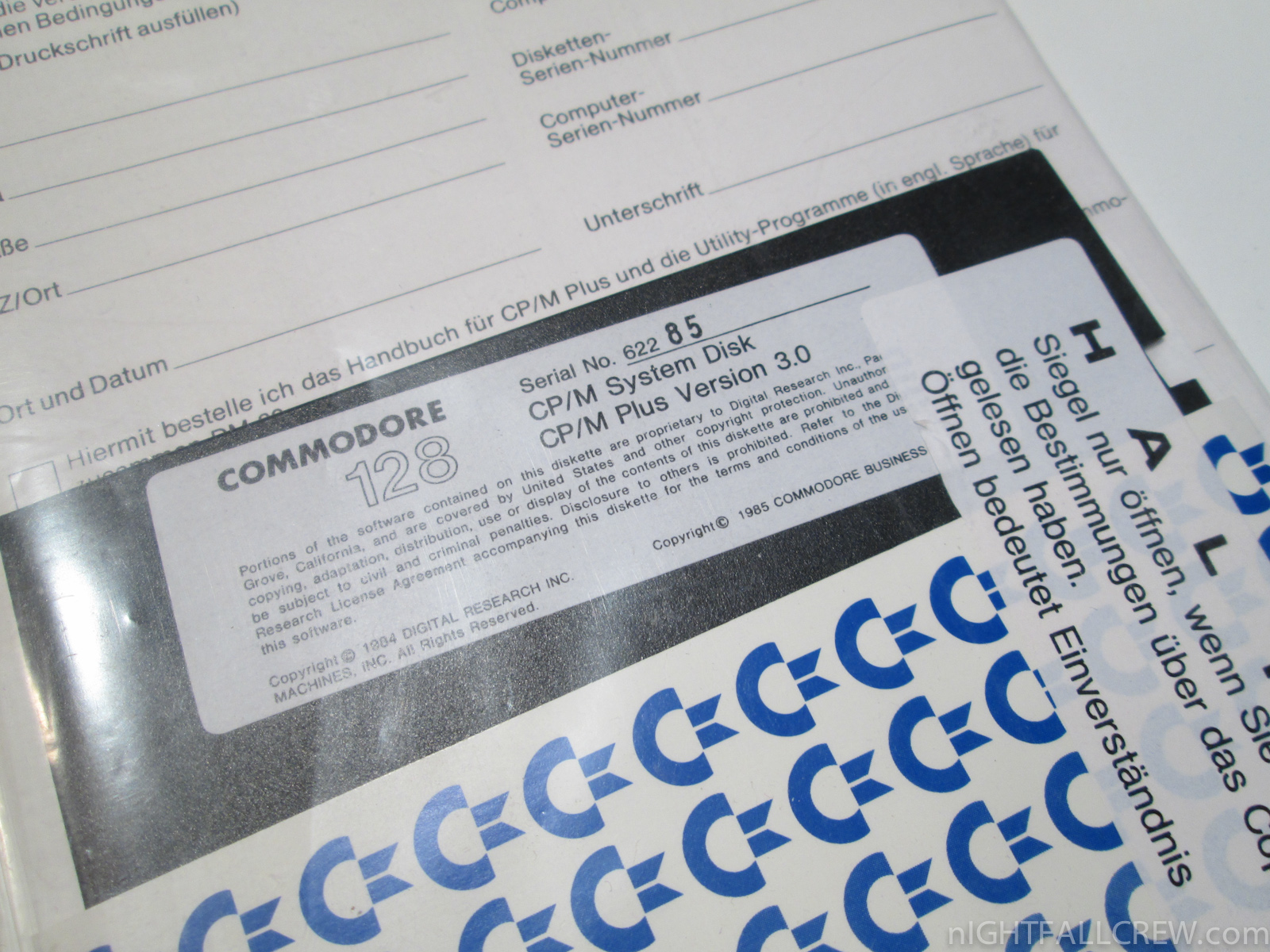

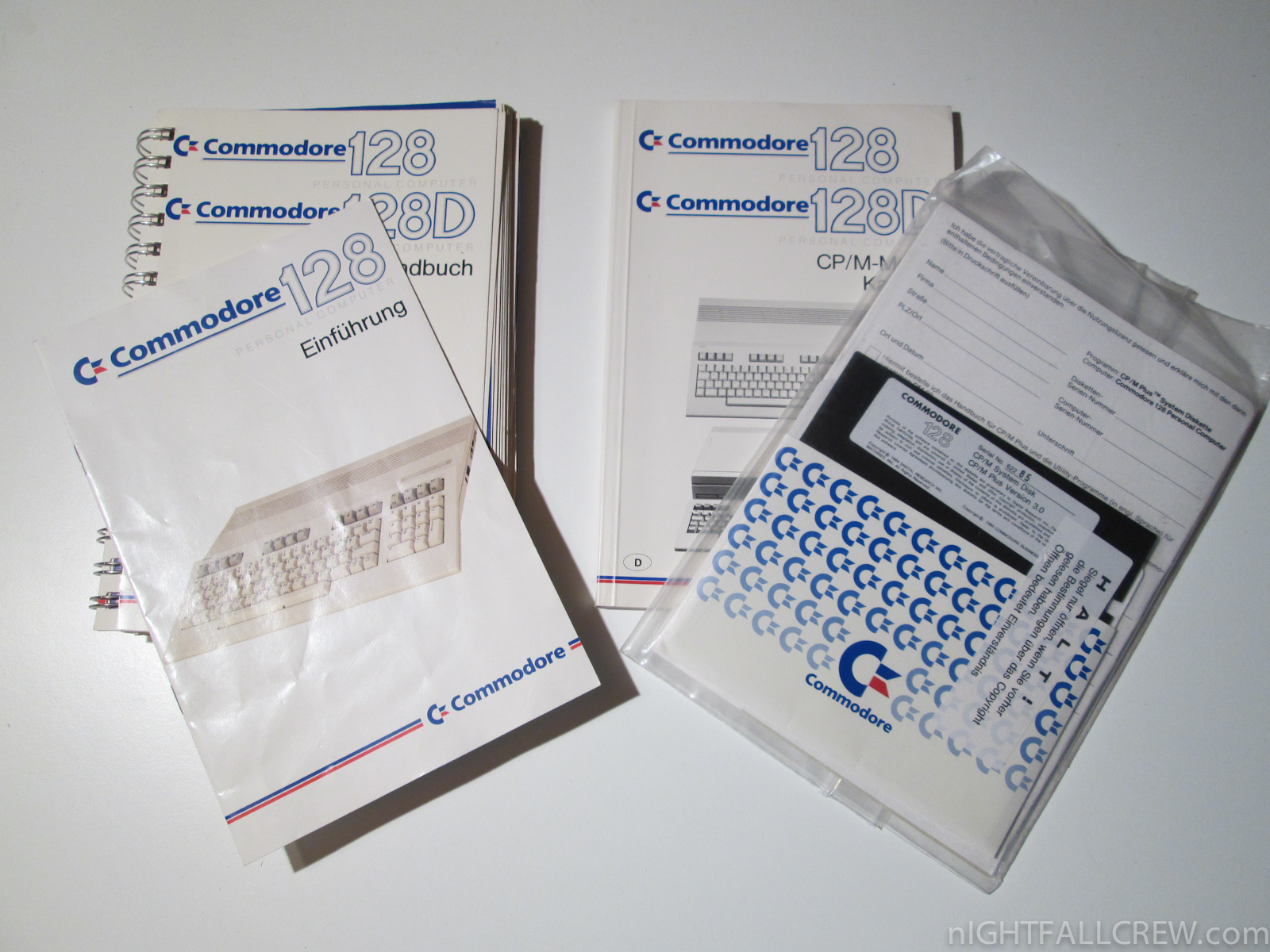

Recovered a Commodore 128 in good conditions with manuals/software and a Tape Recorder.

New donations – C128 / C1571 / CD32 Games / Snes RGB Cable

February 5th, 2012 No comments

Today a friend has donated to me some nice things. Thanks Damiano (Manosoft).

Things that have been donated:

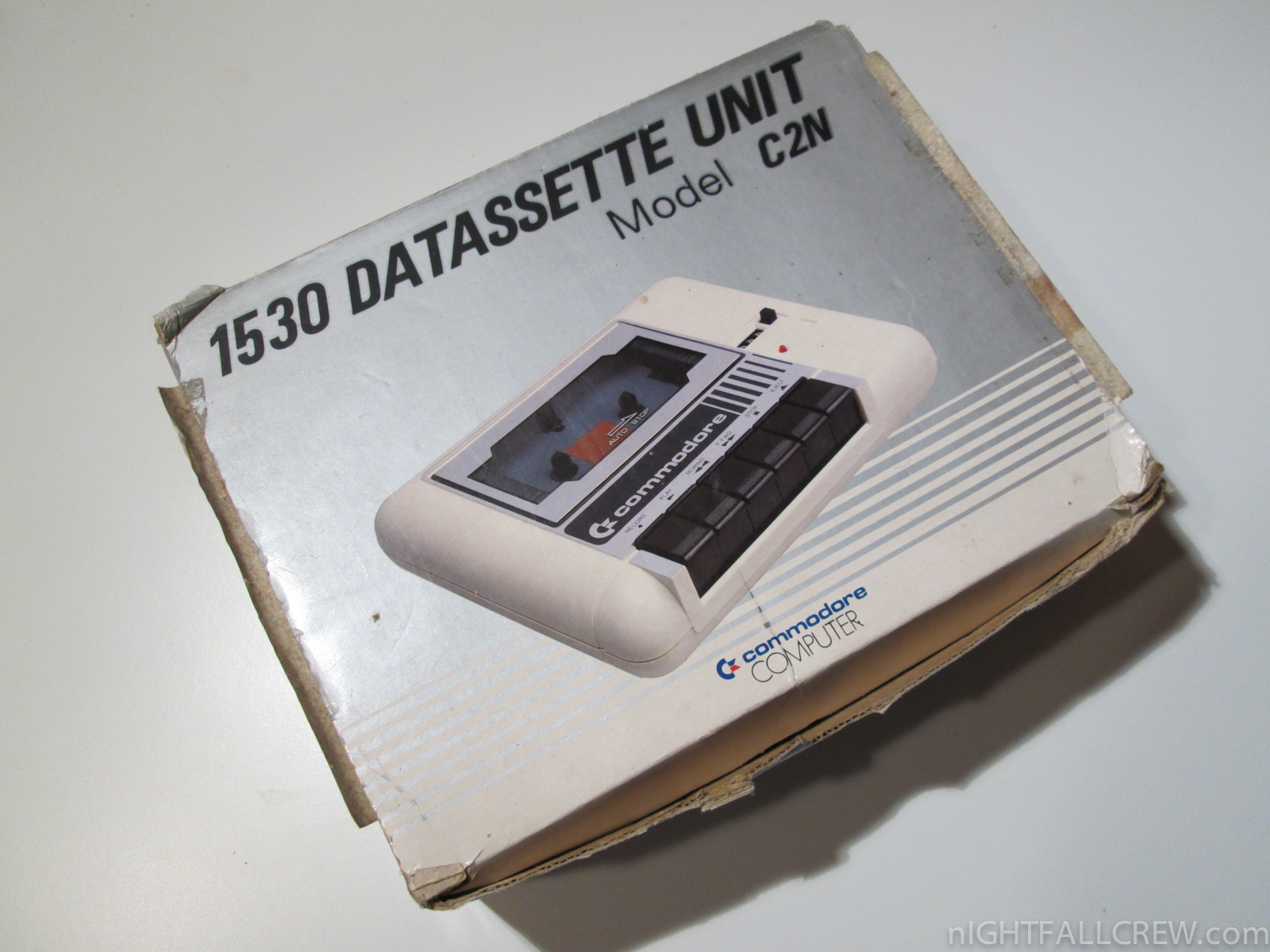

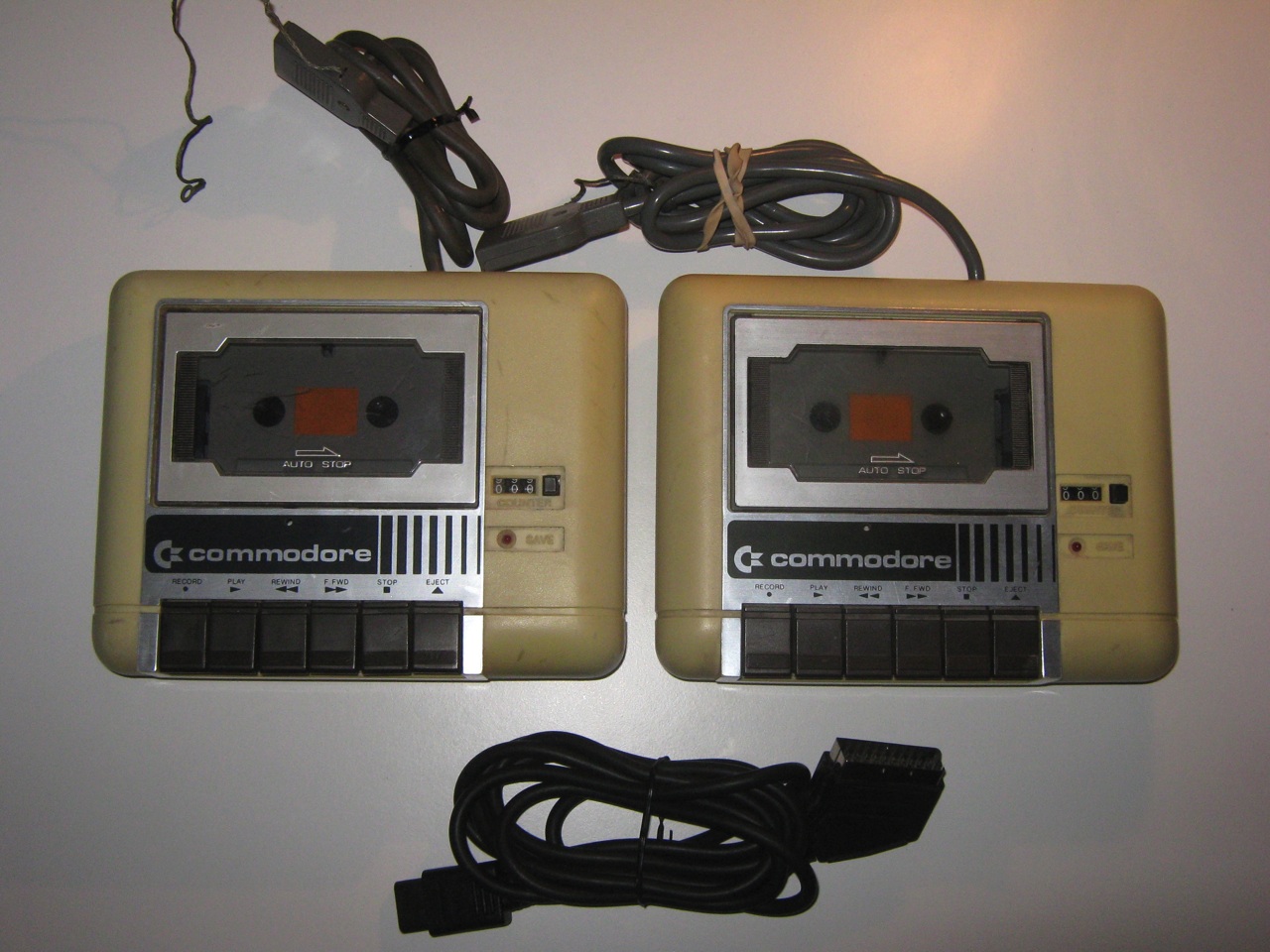

  • Commodore 2 x C2N.
  • Amiga CD32 Games (Rise of the Robots / Brutal Football)
  • Super Nintendo/Snes RGB  Cable with AV Power Switch.

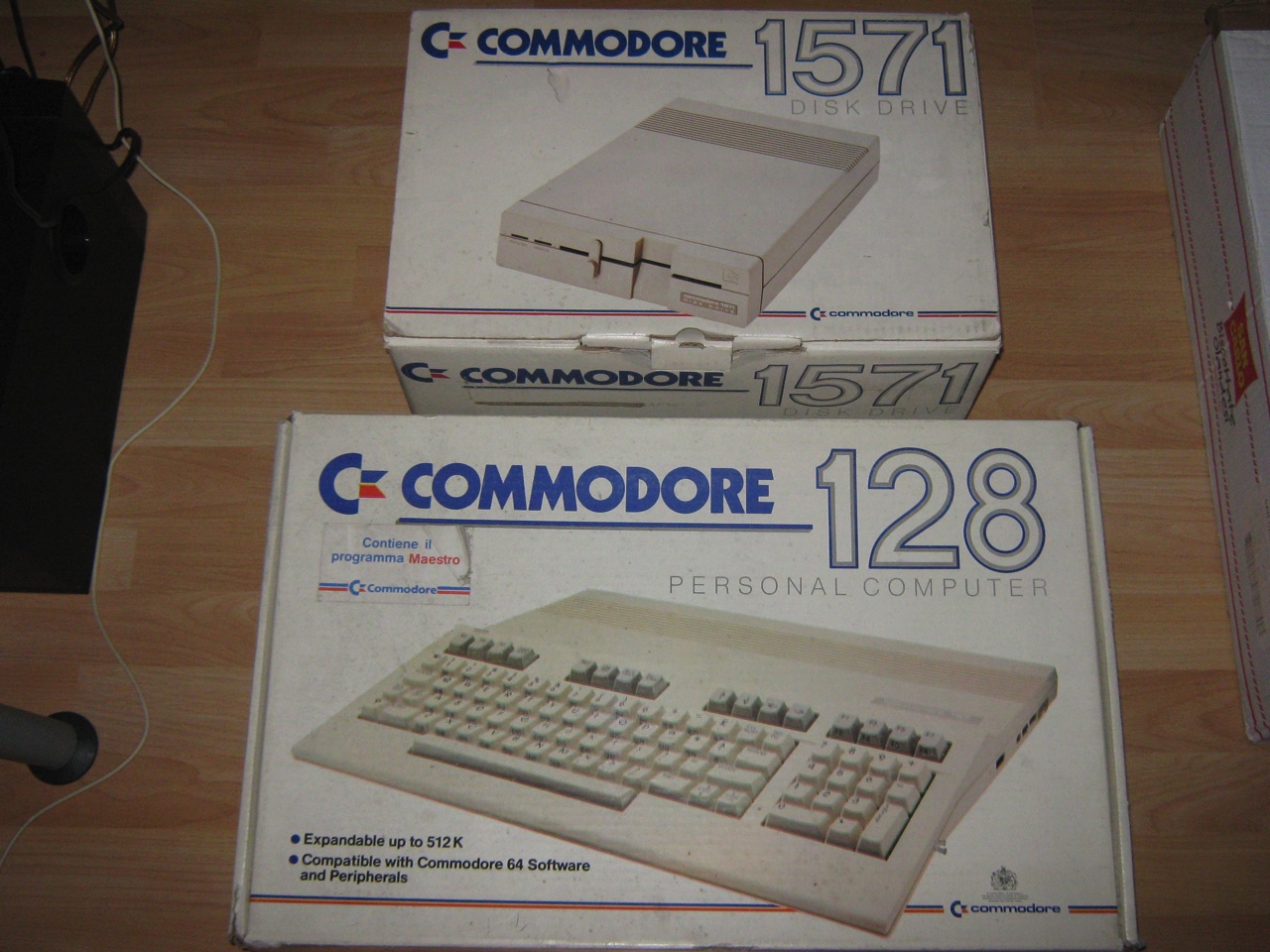

  • Commodore 128 (Only Box)
  • Commodore 1571 (Only Box)
  • A unopened box of 10 Floppy Disk FujiFilm 5″ 1/4
  • Catalog of Jackson 1987-88.

Art of Commodore Part2 *updated*

February 4th, 2009 No comments

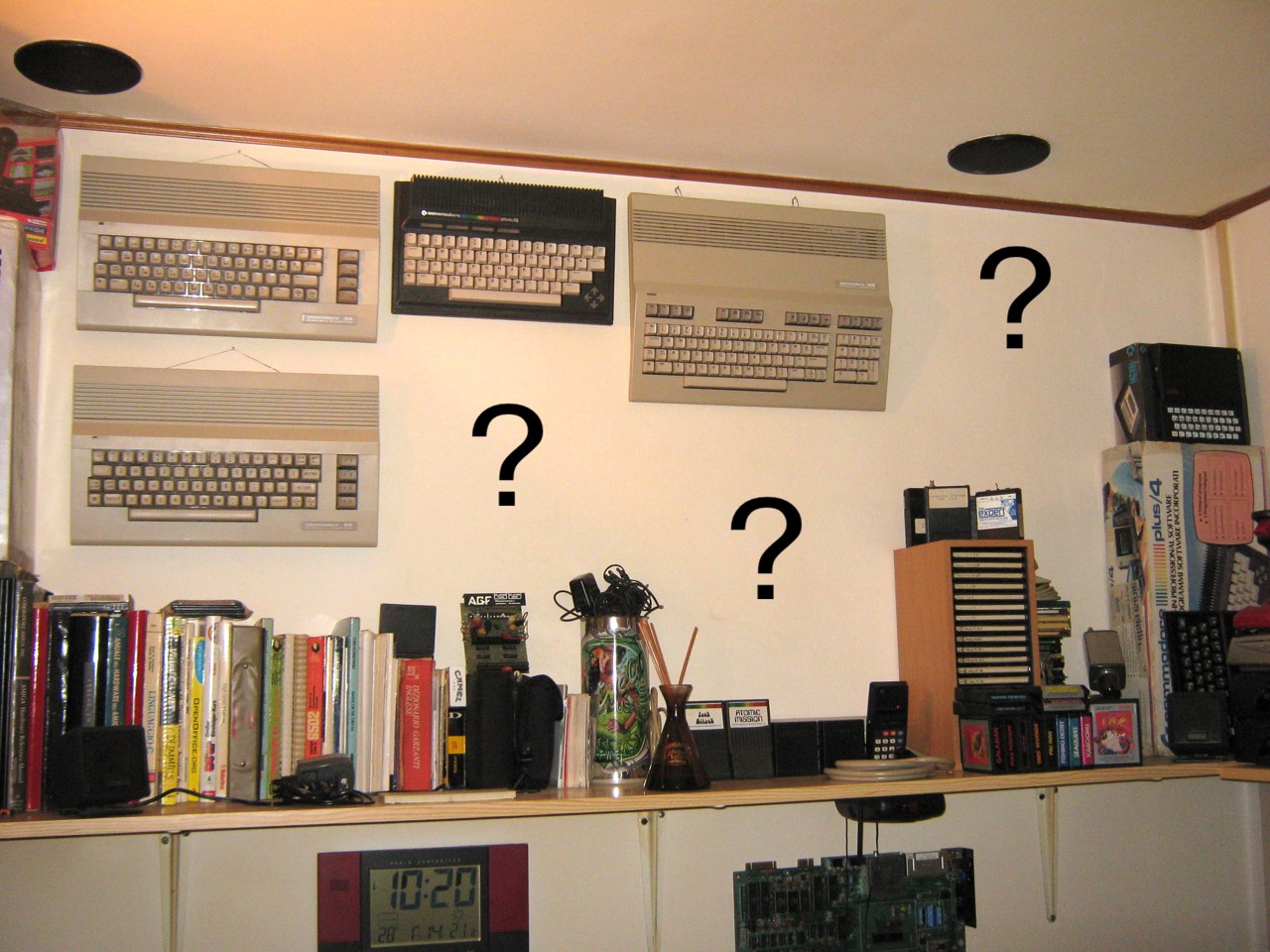

Art of Commodore Part2

Art of Commodore Part1

Description from Left to Right:

  • Commodore 64 II Generation Two (New Keyboard style/Mainboard with 8580)
  • Commodore 64 II Generation One (Old Keyboard style/Mainboard with 6581)
  • Commodore Plus 4
  • Commodore 116
  • Commodore 128
  • ZX Spectrum 48k
  • ZX 81 + 16k

* there are two lame computers in this photo! ;-D

Art of Commodore Part2 *beta*

January 28th, 2009 2 comments
Art of Commodore Part2

Art of Commodore Part1

Description from Left to Right:

  • Commodore 64 II Generation Two (New Keyboard style/Mainboard with 8580)
  • Commodore 64 II Generation One (Old Keyboard style/Mainboard with 6581)
  • Commodore Plus 4
  • Commodore 128

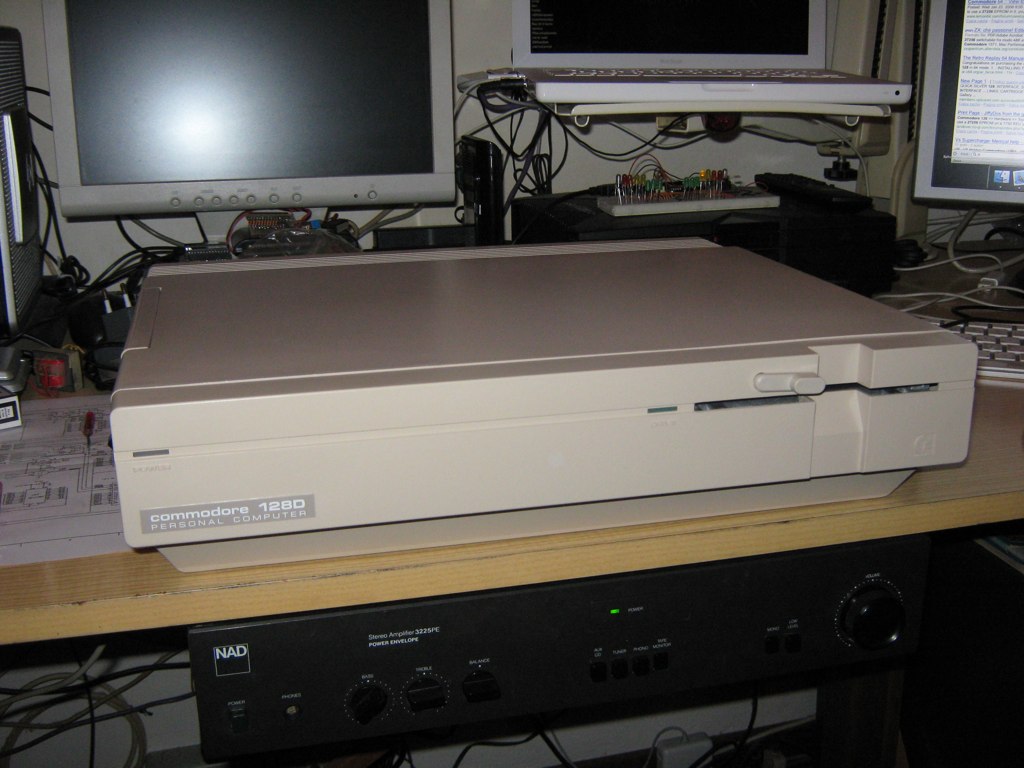

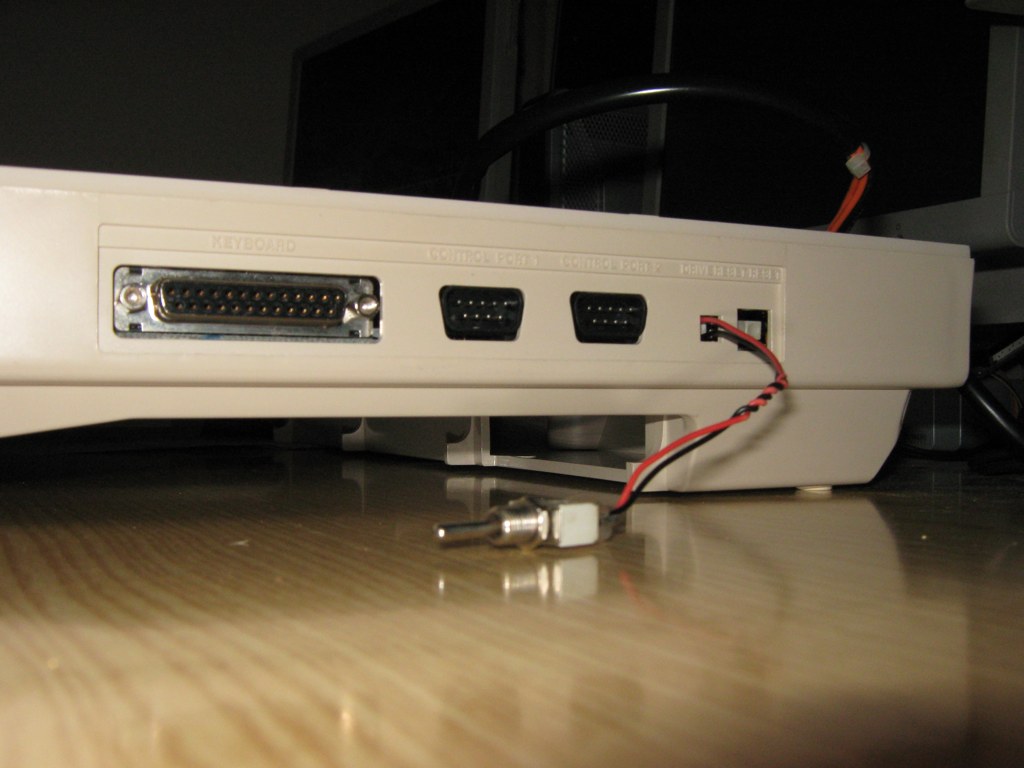

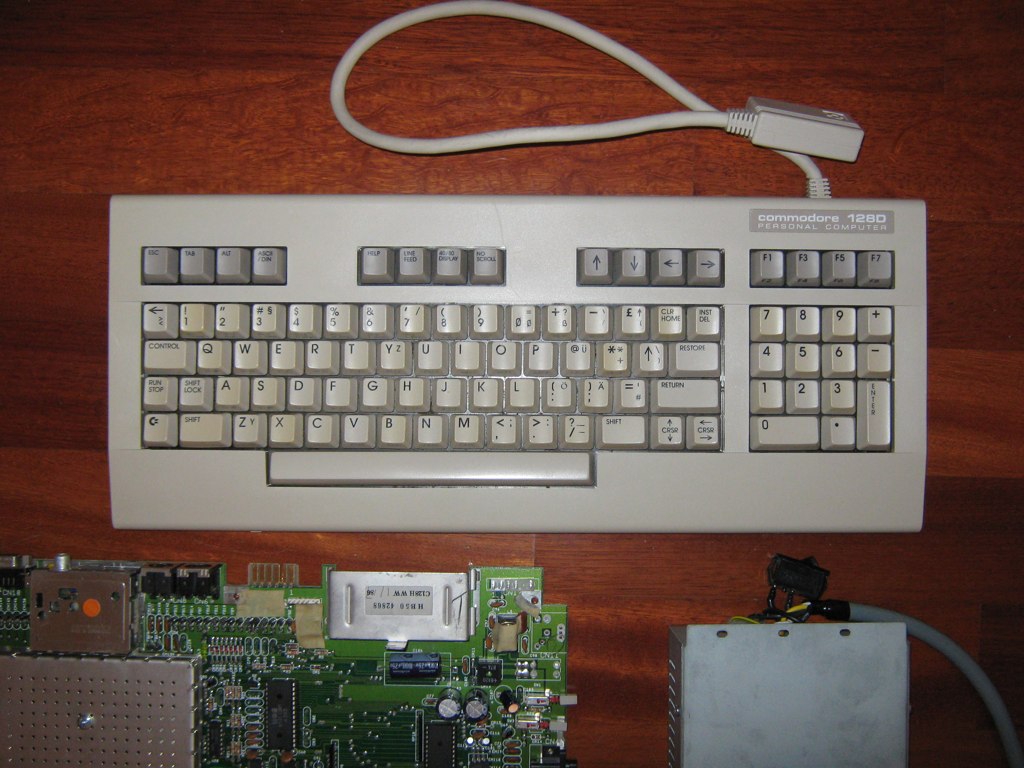

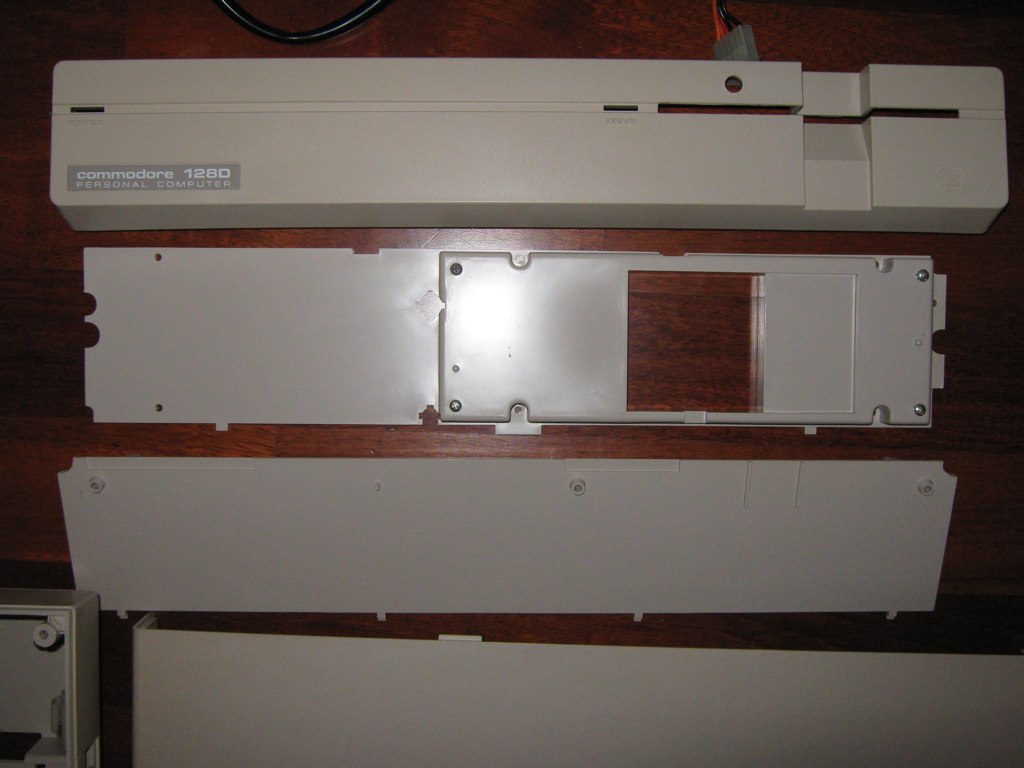

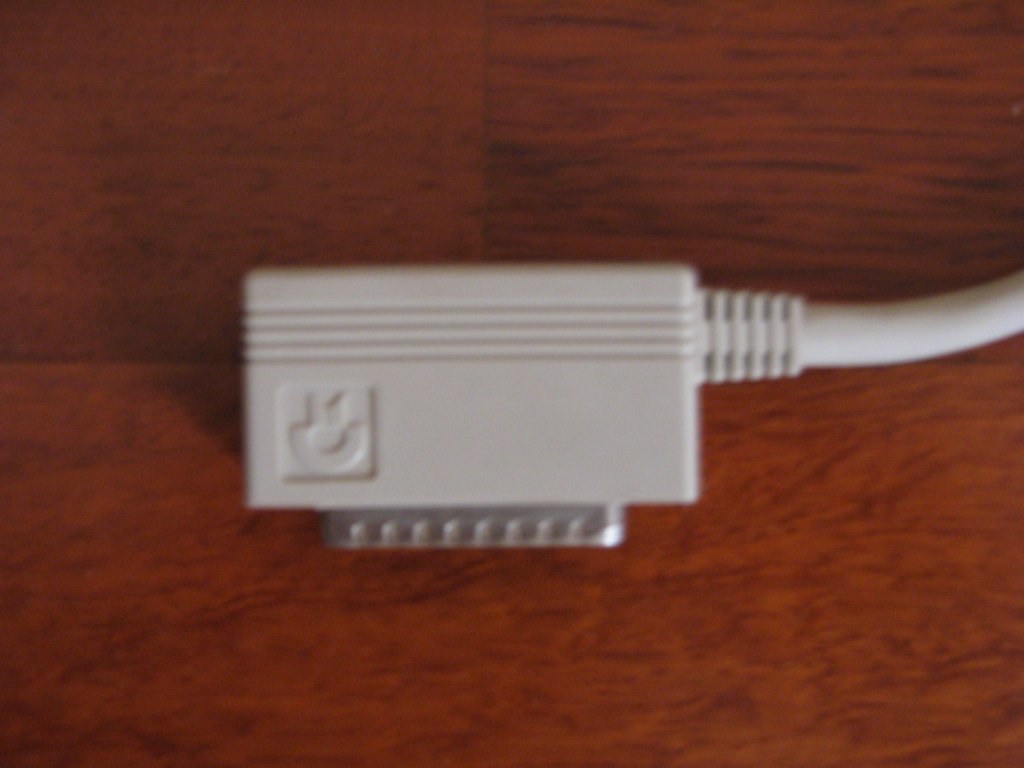

Commodore 128D MultiKernel

October 27th, 2008 No comments
Ready to play

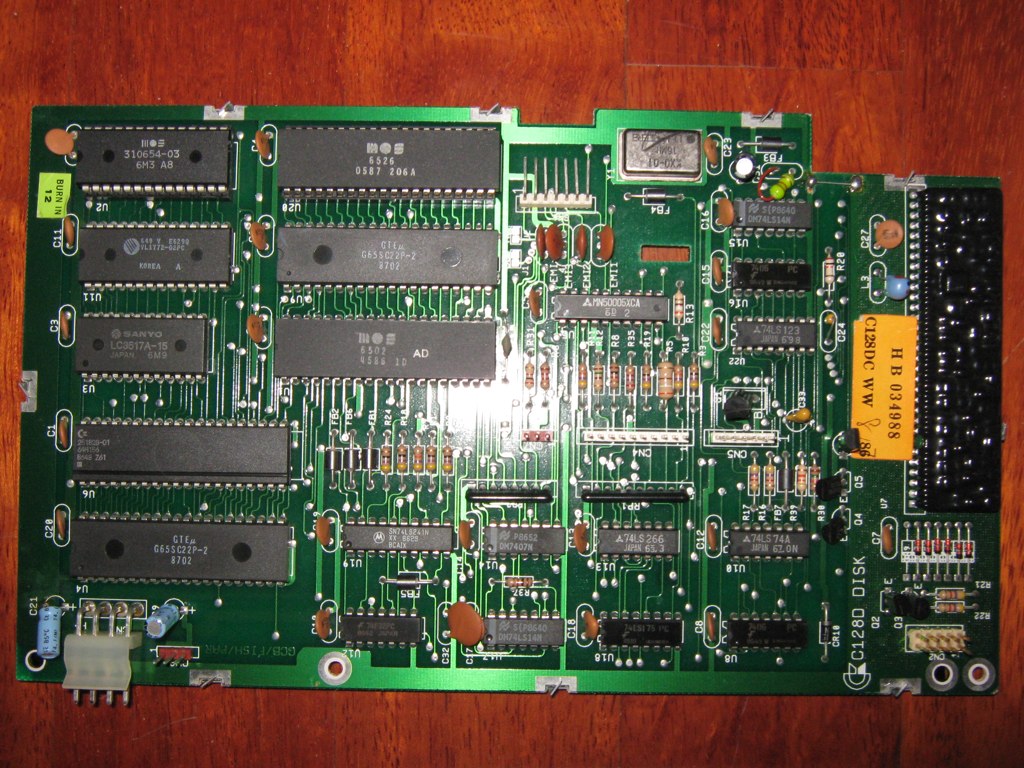

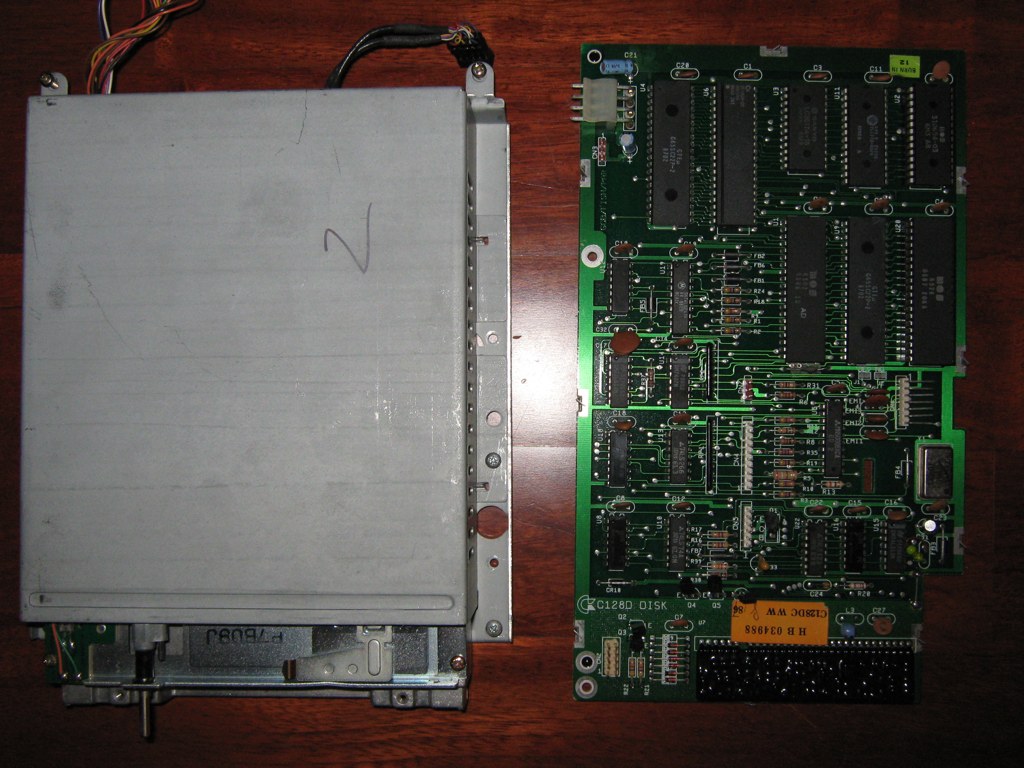

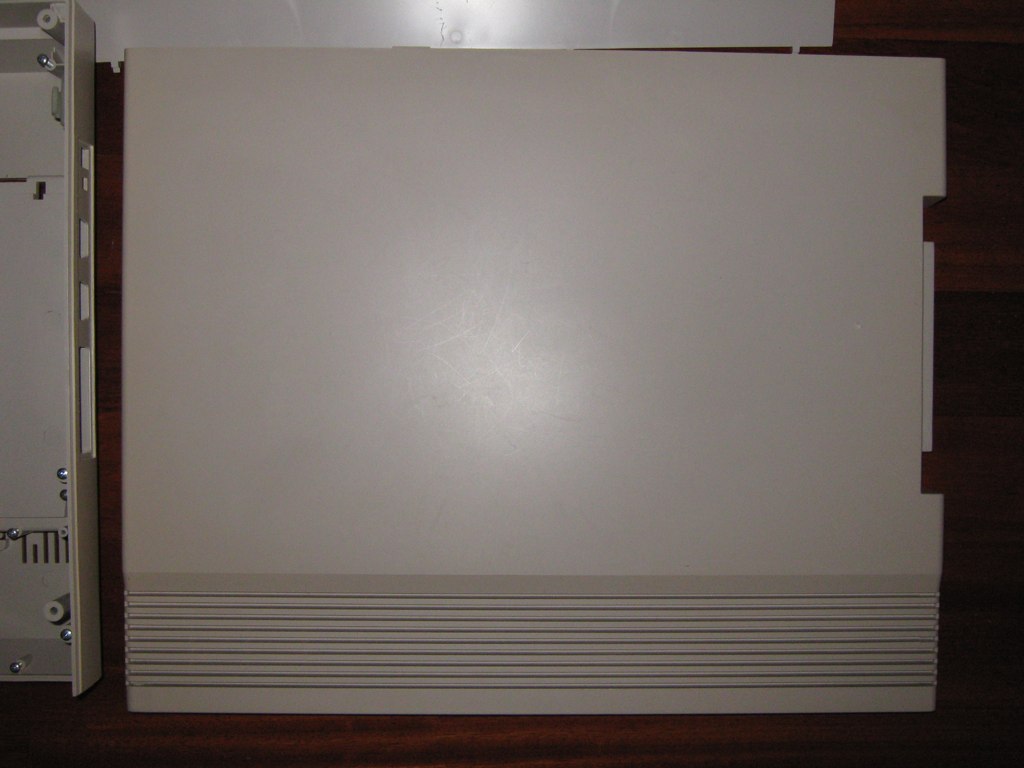

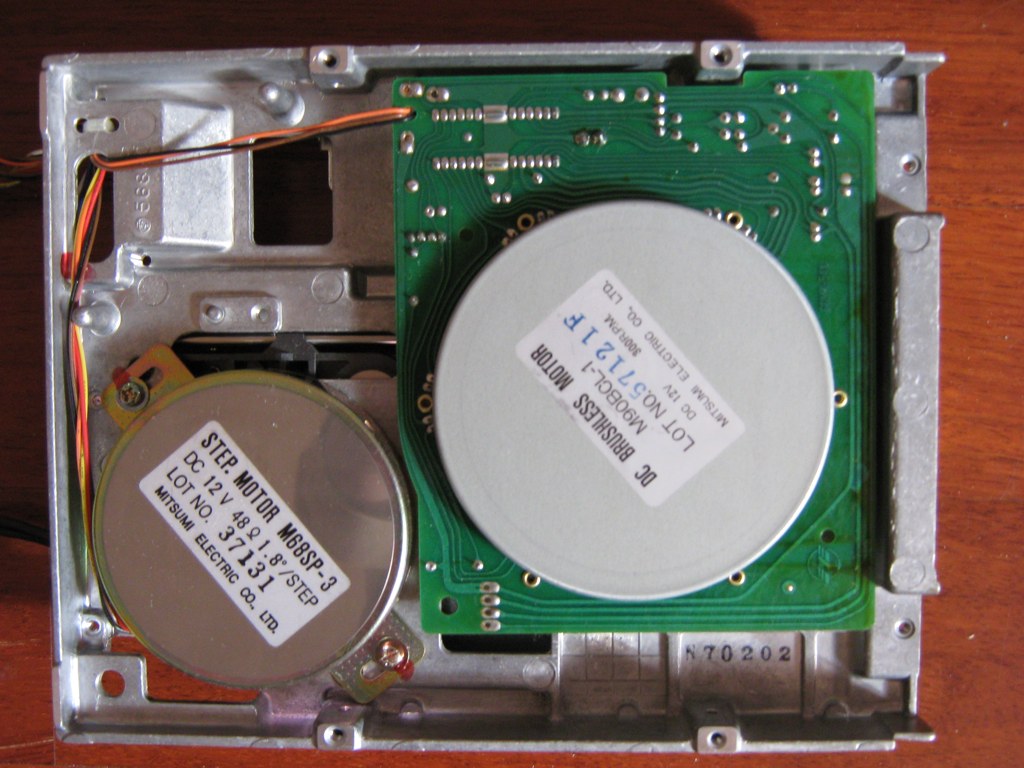

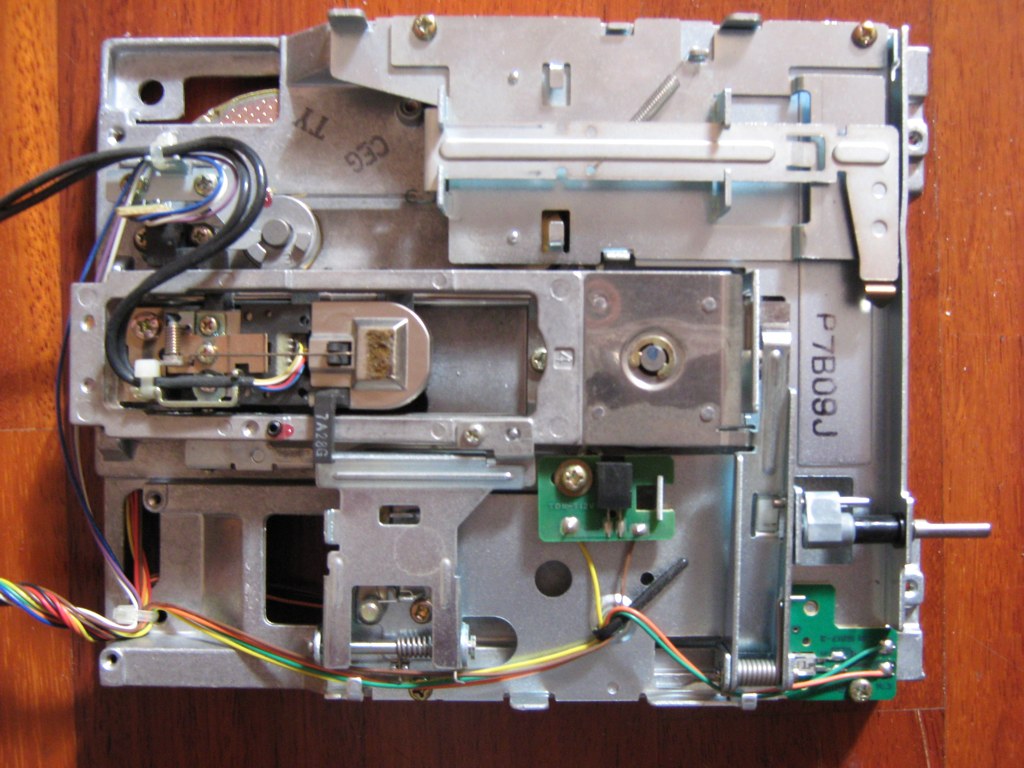

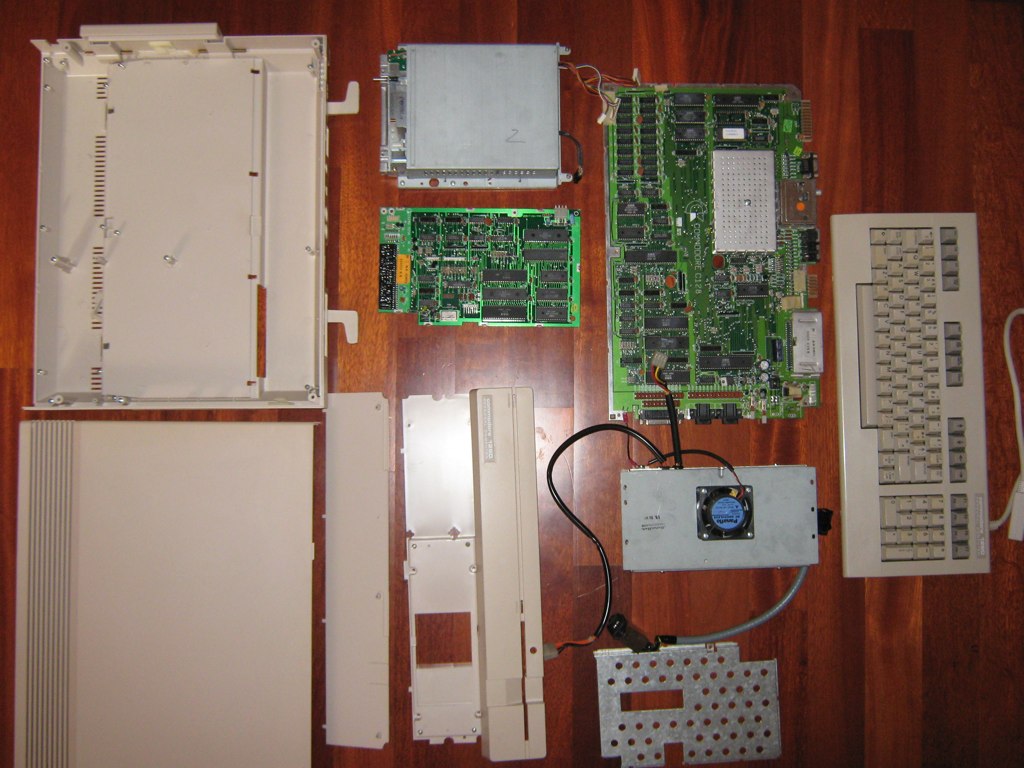

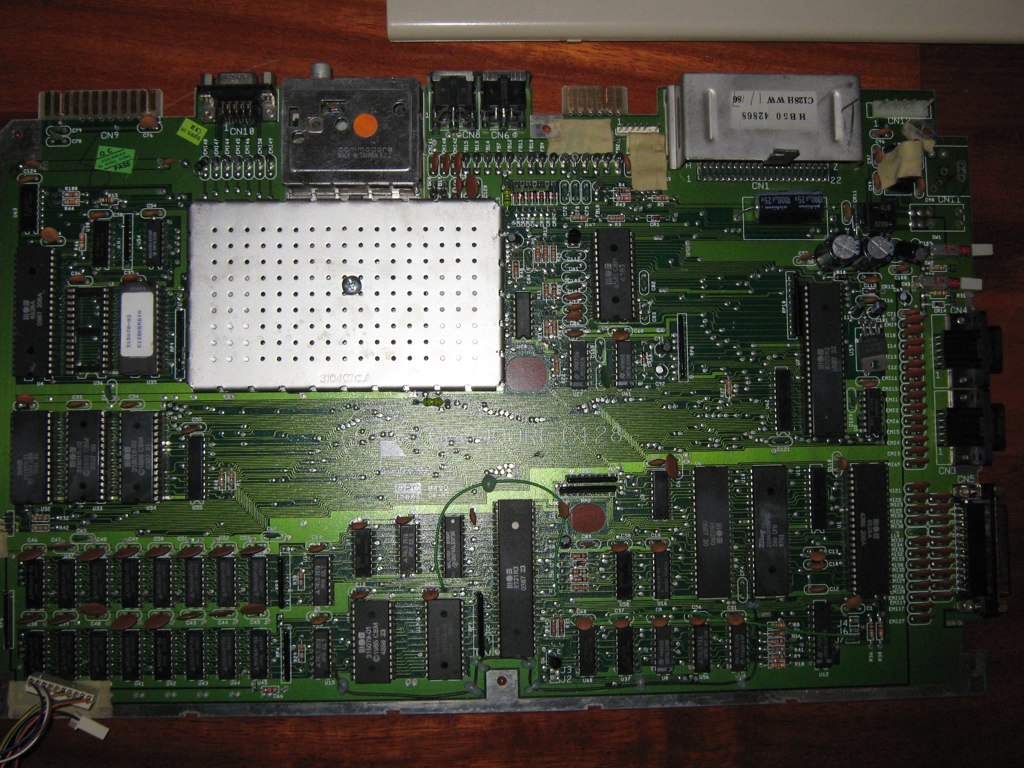

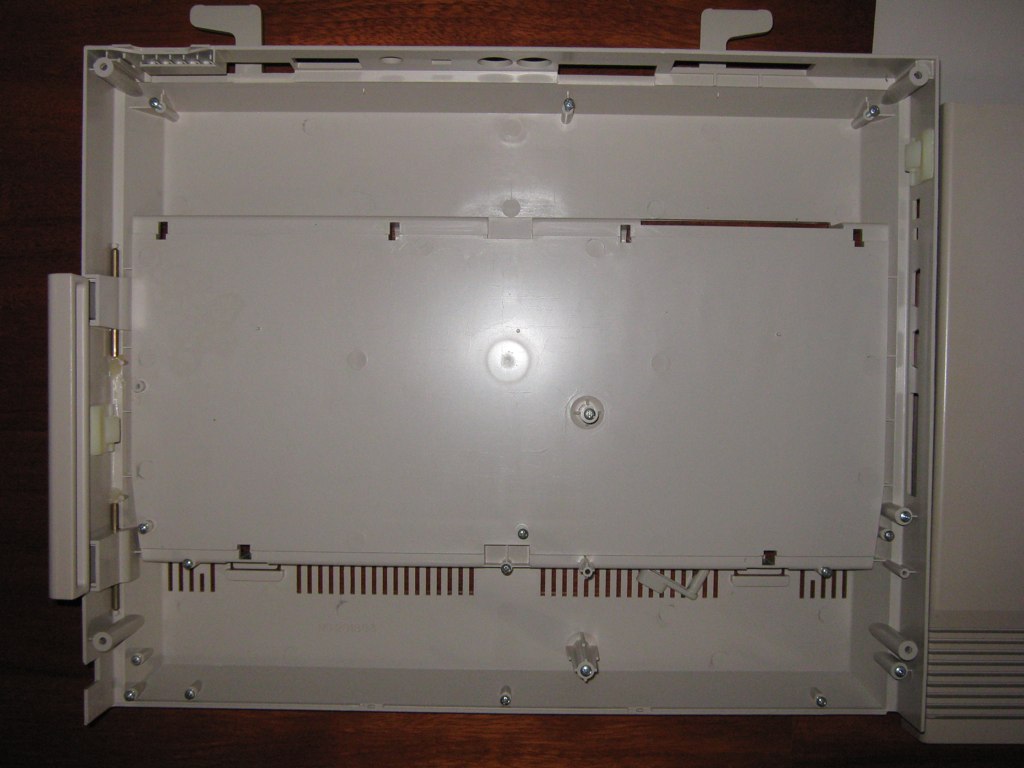

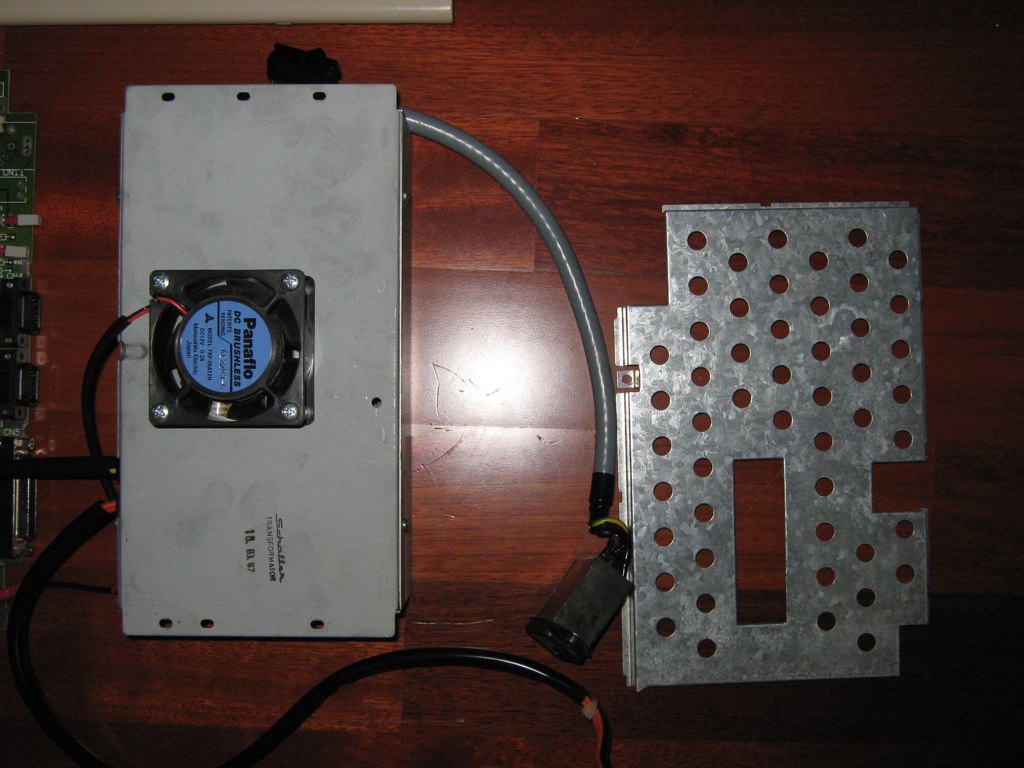

Autopsy:

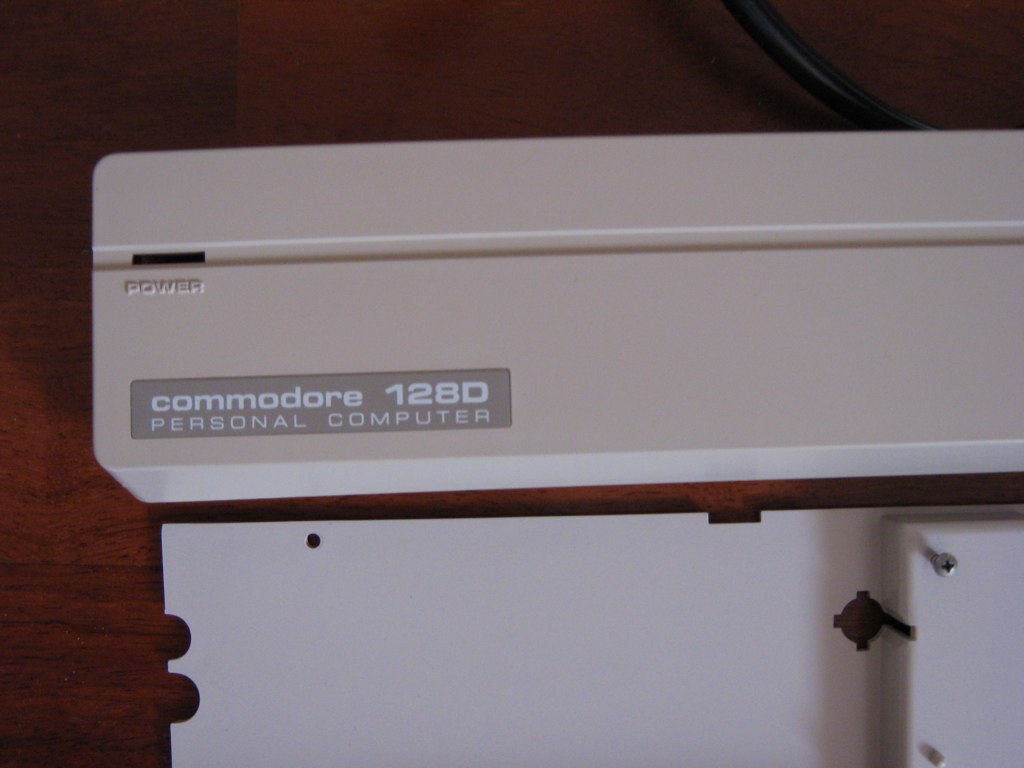

Commodore 128D:

  • Serial NO. DA 4 141980
  • Funkentstört n. DBP-Vfg 1046/84
  • Made in W.Germany

from Wikipedia:

The Commodore 128 (C128, CBM 128, C=128) home/personal computer was the last 8-bit machine commercially released by Commodore Business Machines (CBM).

Introduced in January of 1985 at the CES in Las Vegas, it appeared three years after its predecessor, the bestselling Commodore 64. The primary hardware designer of the C128 was Bil Herd.

source: wikipedia
