Commodore 4064 (PAL) & Commodore Educator 64 (NTSC)

July 27th, 2019 1 comment
Commodore 4064 (PAL) & Commodore Educator 64 (NTSC)

This is a very old article from 2016 that i never published on my blog.

Summarizes the purchase, shipping, cleaning and simple repair of a Commodore 4064 with a very low serial number.

Since i had not talked about the repair, i begin to tell that only the VIC-II 6569 Video Chip in Ceramic format was broken.

In the photos there is also a comparison between the Commodore 4064 (PAL) and the Commodore Educator 64 (NTSC)

Below the old article.

The title of this post is: I want it at all costs.

But what? a computer! which model? an old one that I missed to complete a part of my collection.

This computer is really unusable, as are all of them, but this one beats them all.

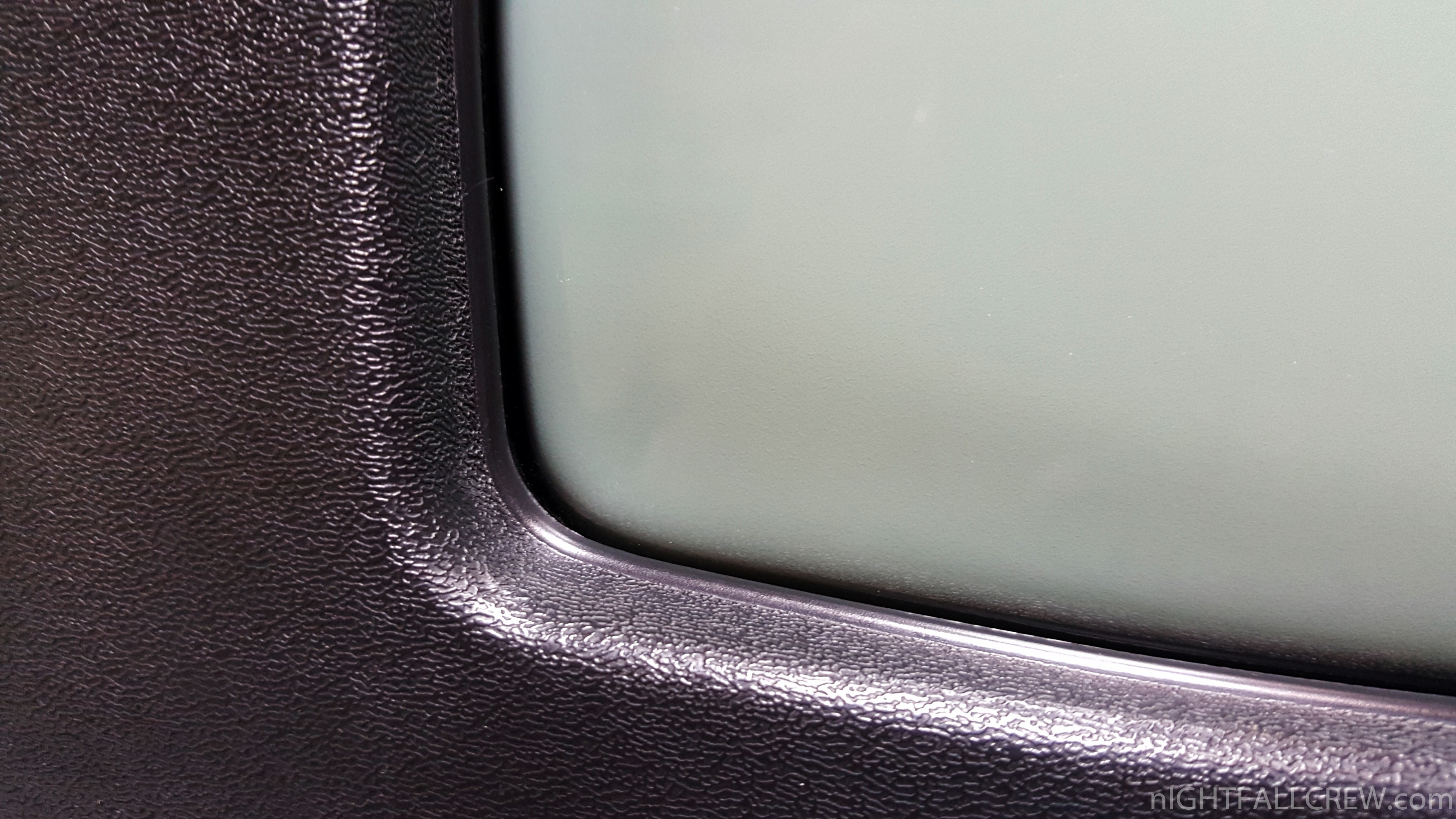

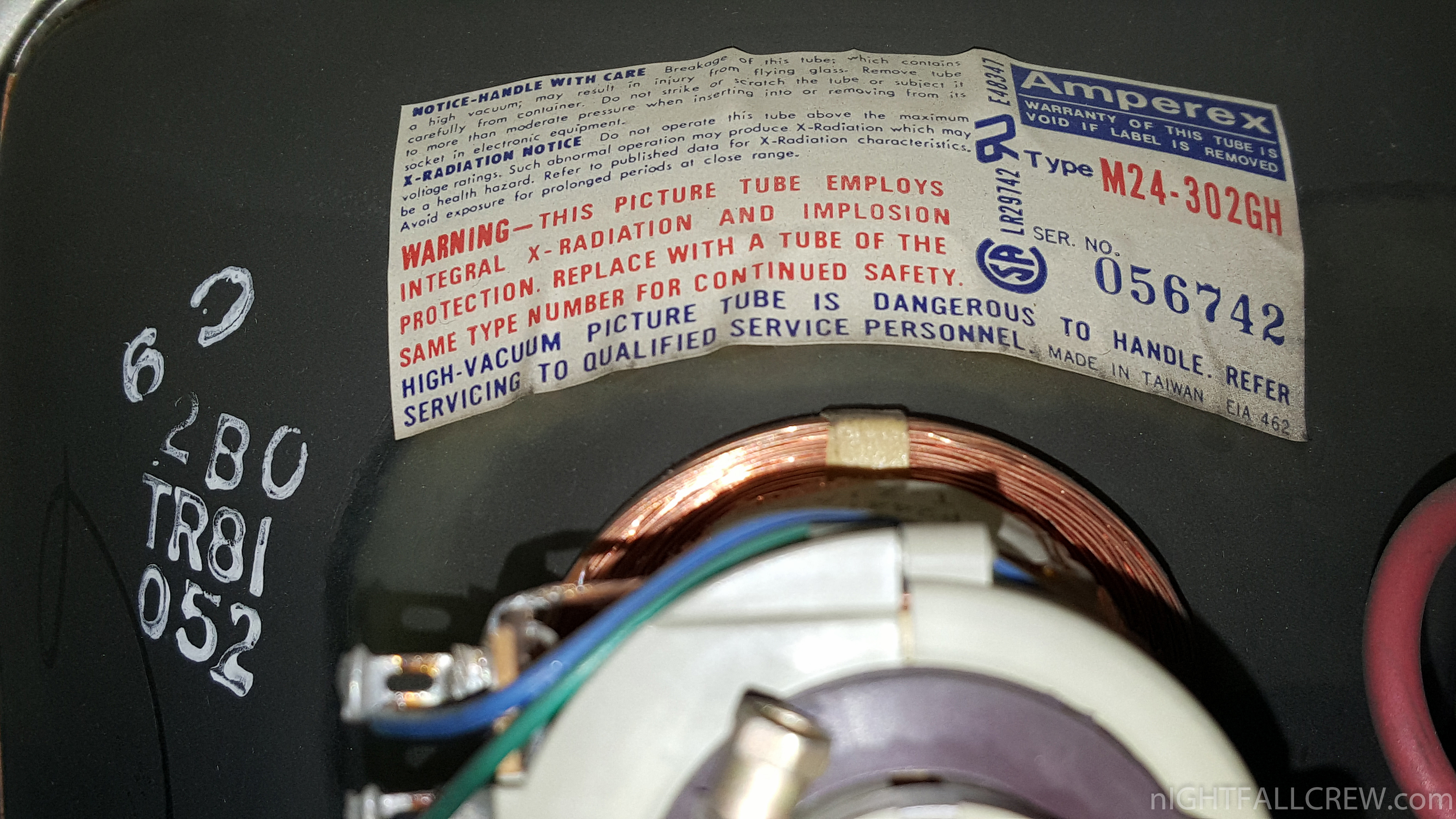

It’s a Commodore 64 in a PET case produced in 1982, with a green phosphor monitor, stripped of the sound chip (SID 6581) and colour RAM (2114), with a modified kernel that doesn’t use any colour, and a keyboard with different 1..8 keycaps (no colour code on the front).

What’s left? An useless computer with no sound and no green-scale colours; it just uses black and green, while the Commodore Educator 64 has sound and can show colours in shades of green.

After getting the Educator 64 I wanted to complete the pair with a Commodore 4064, and I started to look for it.

I saw a few 4064s that sold for bizarre prices – I can’t say that they were high, because if you want something you are willing to buy it whatever the price, but anyway…

Commodore 4064 (PAL)

Here begins my adventure :-D

At one time a 4064 pops up in a well known auction site – take note that I don’t use artificial intelligence search engines to look for items, I don’t give a shit… if I find something when I look for it, that’s fine, otherwise it’s not a big deal.

That one was located in Germany, the price was low (at least for me – someone considered it very high), but was the seller willing ship? No he wasn’t.

I wrote to him, no reply, I sent the same message translated in German (thanks google), he responded in German telling me that the item was too big and he didn’t know how to deal with it.

I wrote him again in google German, telling him that I could send him some shipping and packaging instructions – I have them ready in many languages. His reply: I don’t ship.

I was sad and discouraged, because even if the unit wasn’t working, it was in an excellent aesthetic condition and with no missing parts.

I asked for help to my friend Andrea, who asked Ciro, who told me that I could ask his German contact Ralf Schmitz if he could lend me a hand.

Meanwhile the auction was getting near the end… still at a low price.

I wrote to Ralf – a very kind person – and he explained to me that he lives 530Km far from the place where the computer was located. Things got complicated.

I asked Ralf to contact the seller, who maybe preferred to talk with a compatriot :-D

The seller didn’t reply, the auction was ending, what should I have done? I love to risk, and while in chat with Ralf I told him the maximum amount to bid.

I won the item at the right price, in the right moment.

Then what? The seller didn’t have many feedbacks but Ralf suggested to pay right away with Paypal which offers buyer’s protection without the risk of losing the money.

I sent the money to Ralf with Paypal, and he paid the seller.

Ralf wrote him. No reply. The Easter weekend went by, still no reply.

And then one day… the guy replied! Ralf could contact him by phone and they chatted for more than one hour. The man seemed good; old but fair.

The seller told Ralf that he didn’t want to ship because he didn’t know how to properly package, he didn’t have packaging material and he didn’t want to look for it… then he told that he should have to buy some tape, and petrol for the post office, and so on…

I talked with Ralf, and one of the ideas we ditched was to ask someone to go to the seller’s place to help him to pack the 4064 and have it sent to Ralf with some kind of hitch-hiking.

I was suffering.

New solution: simplify the shipping.

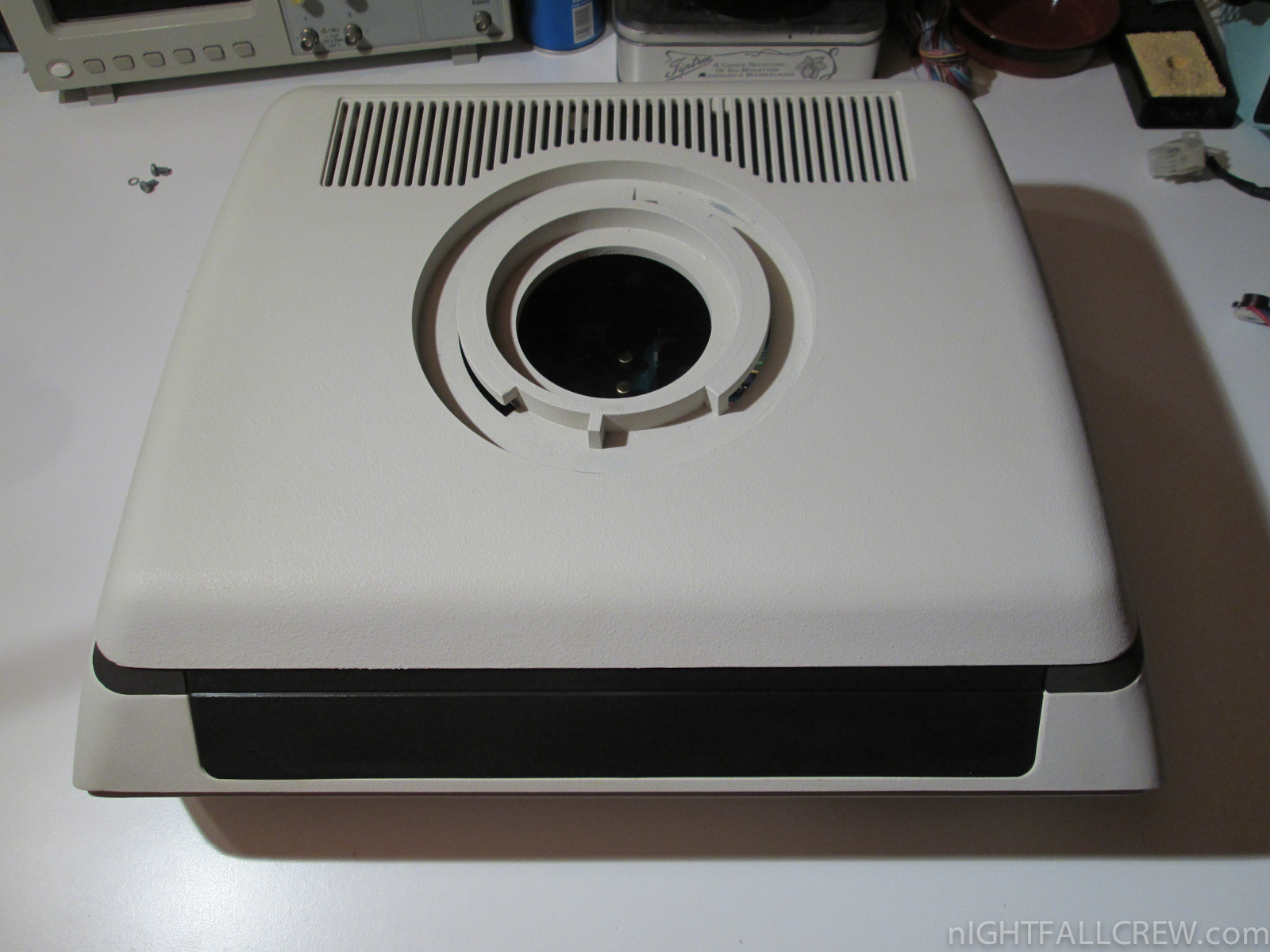

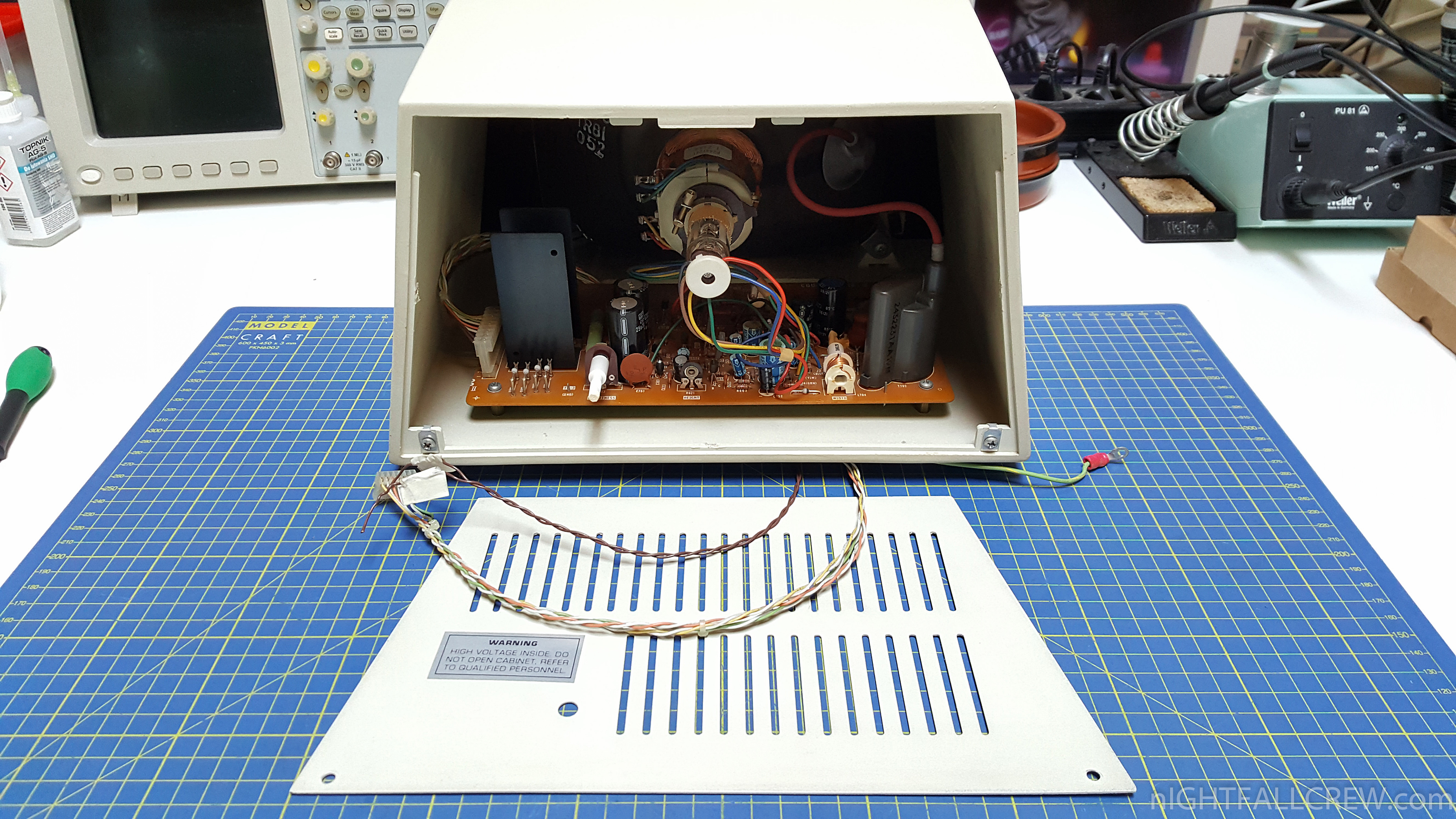

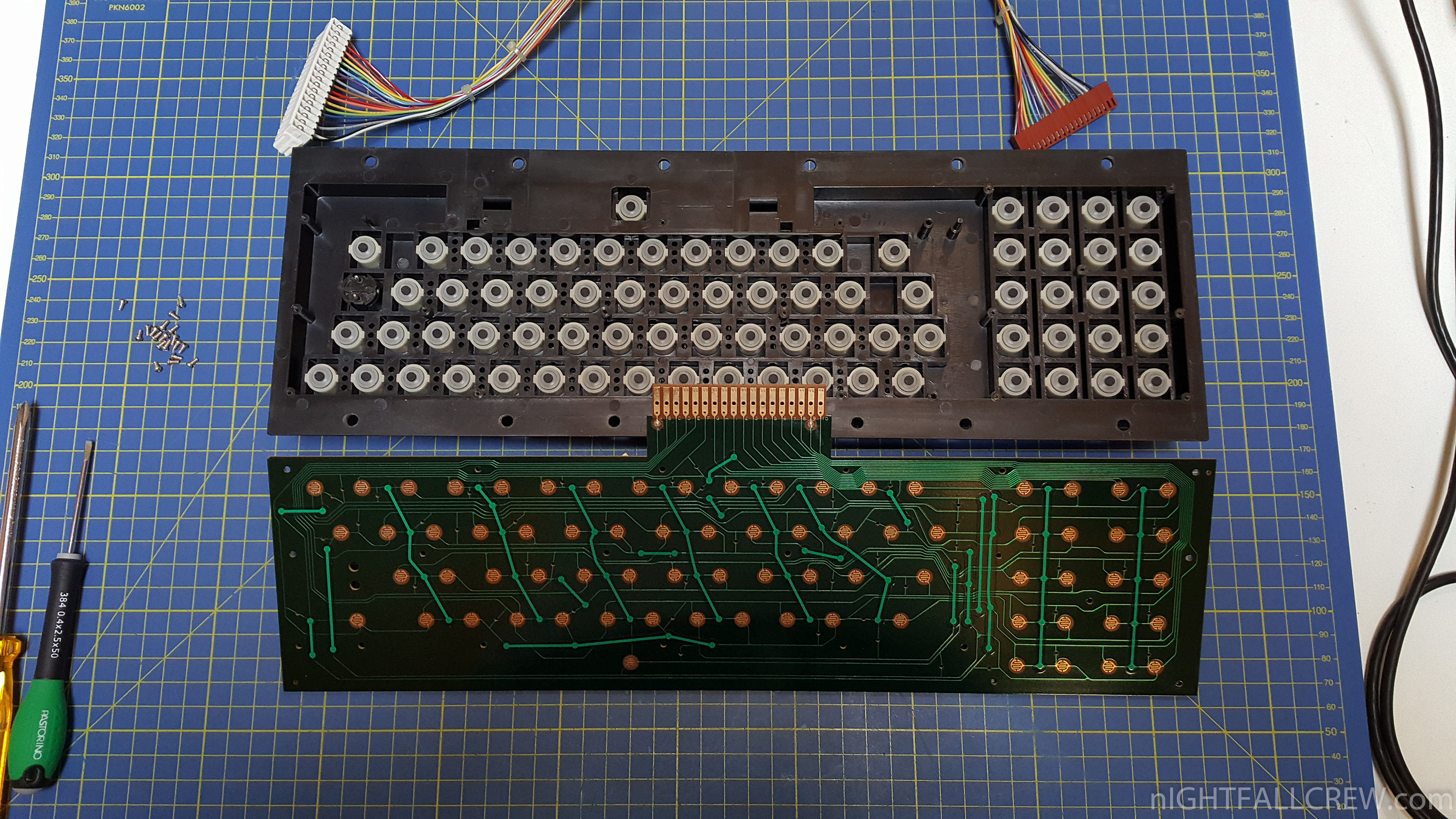

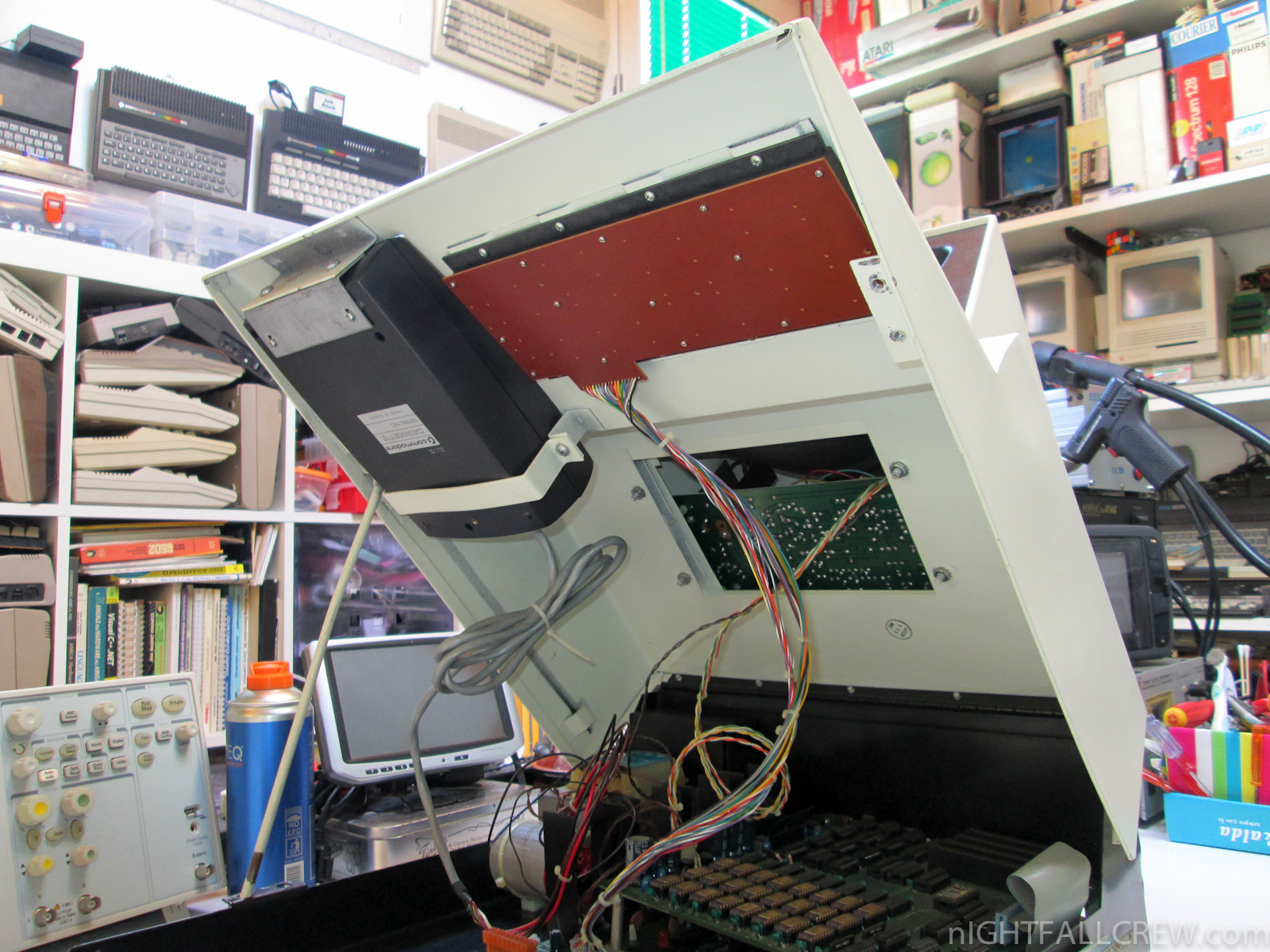

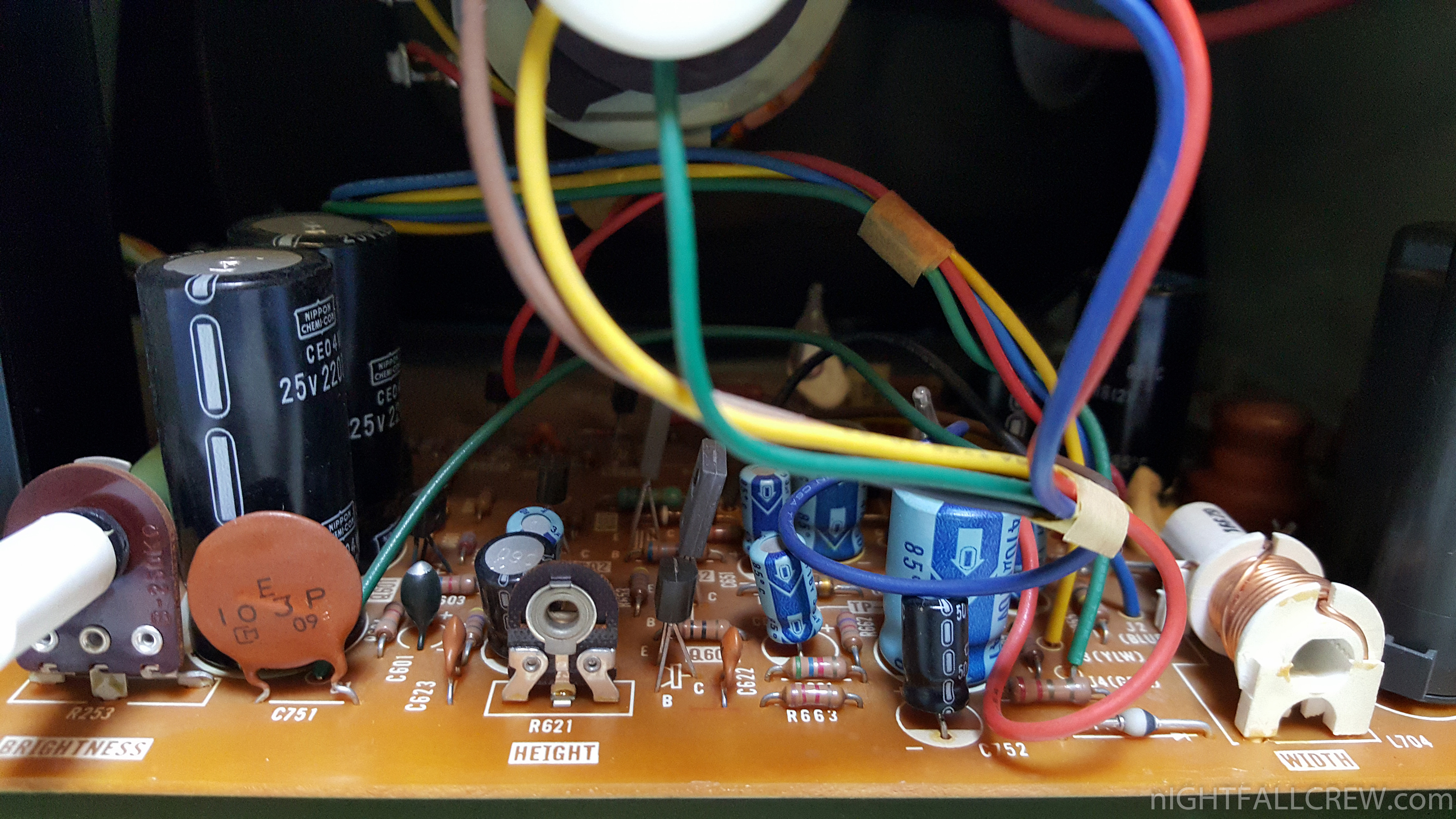

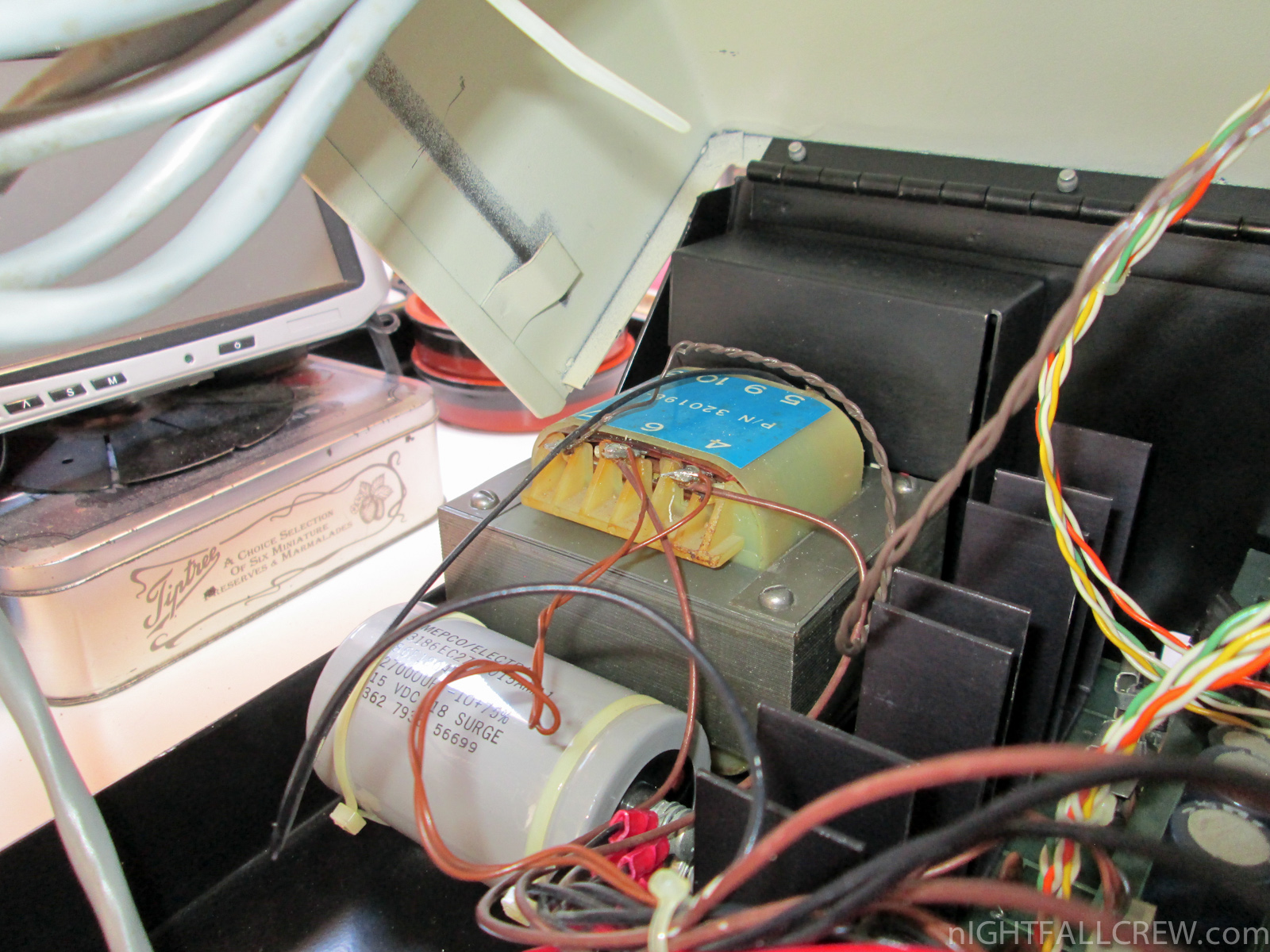

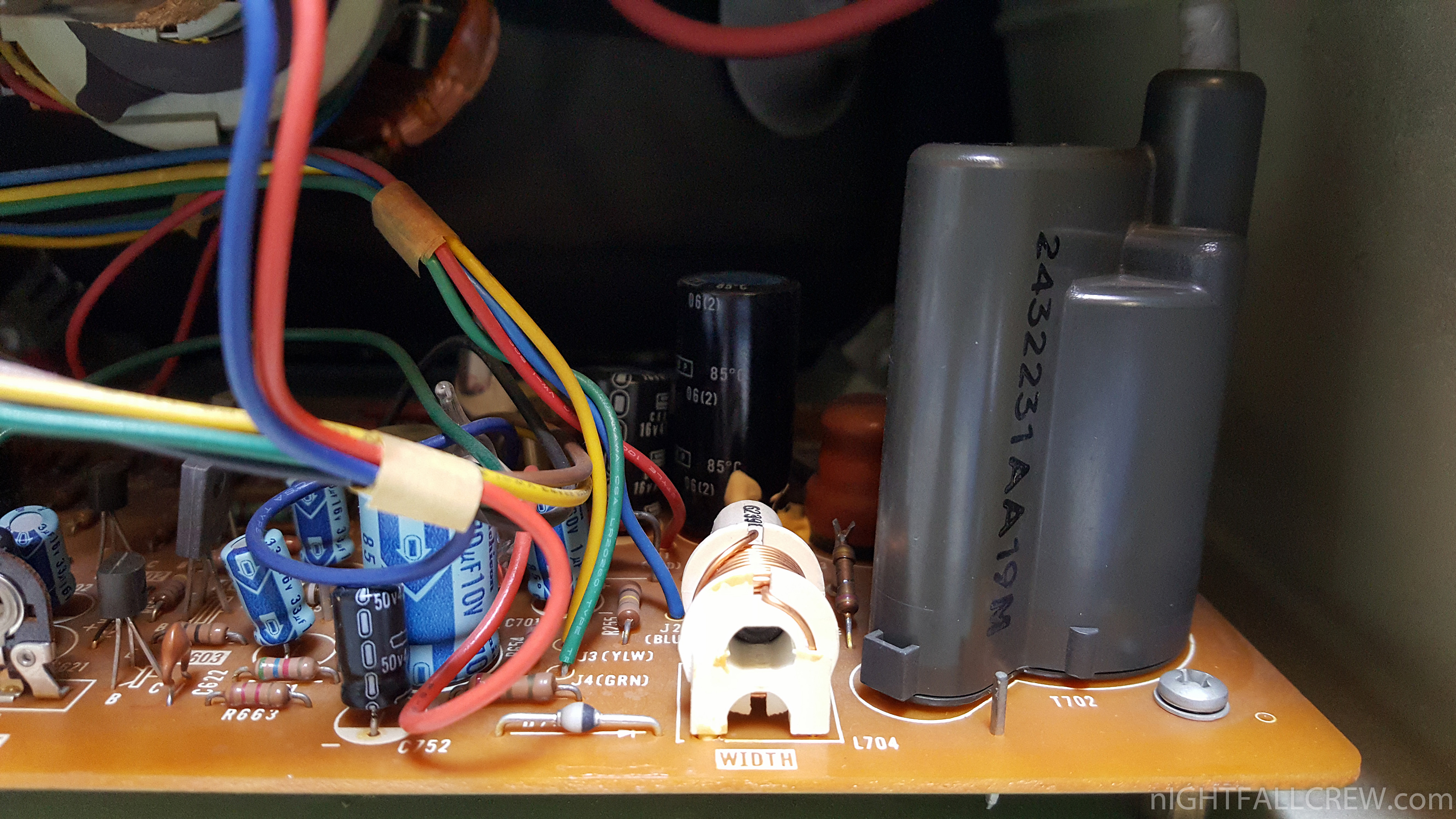

I explained Ralf how to separate the monitor from the base: it’s a matter of unscrewing 5 screws, detaching a connector from the motherboard, and cutting two wires (I didn’t even think about explaining how to unsolder them).

The seller was was fine with the idea.

Ralf had to send a huge package containing the packaging material – boxes, foam and bubblewrap – and written instructions from me and Ralf.

The seller shipped the packages with DHL, which in Italy delivers using SDA (one of the cheapest and lower quality couriers). Panic.

The seller is old so he shipped one box at a time: the monitor first, that arrived in 5 days, then the base, that took much longer and made my anxiety skyrocket – Ralf told me that DHL had a few problems in Germany but the package should have crossed the border.

While he was writing to me, the second package arrived at destination.

The computer is now complete and in excellent condition, and with a slightly low serial number :-D

Commodore 4064 (PAL)

My thanks to Ralf Schmitz because without him this wouldn’t have been possible, and to Andrea for putting up with my anxiety during the last 20 days.

And my thanks to Giacomo Vernoni for translating this report, otherwise I would have written just a paragraph of text – and that would have been a pity :-D

Gallery:

Commodore 8032 / CompuThink Disk Drive / Woltron ROM-BUS

February 14th, 2018 4 comments
Commodore CBM 8032 (HP - Early version 1980) - CompuThink Disk Drive Controller - External Dual Disk Drive - Woltron ROM-BUS Adapter

Commodore CBM 8032 (HP – Early version 1980) – CompuThink Disk Drive Controller – External Dual Disk Drive – Woltron ROM-BUS Adapter.

  • COMPU/THINK (CompuThink) Dual Disk Drive Controller with 8k RAM per commodore PET 8032 (It could be a Prototype or a Clone Board with ASSY 001-35 – DD DSK CTL COMP).
  • COMPU/THINK External Dual Disk Drive 800k DD/DS.

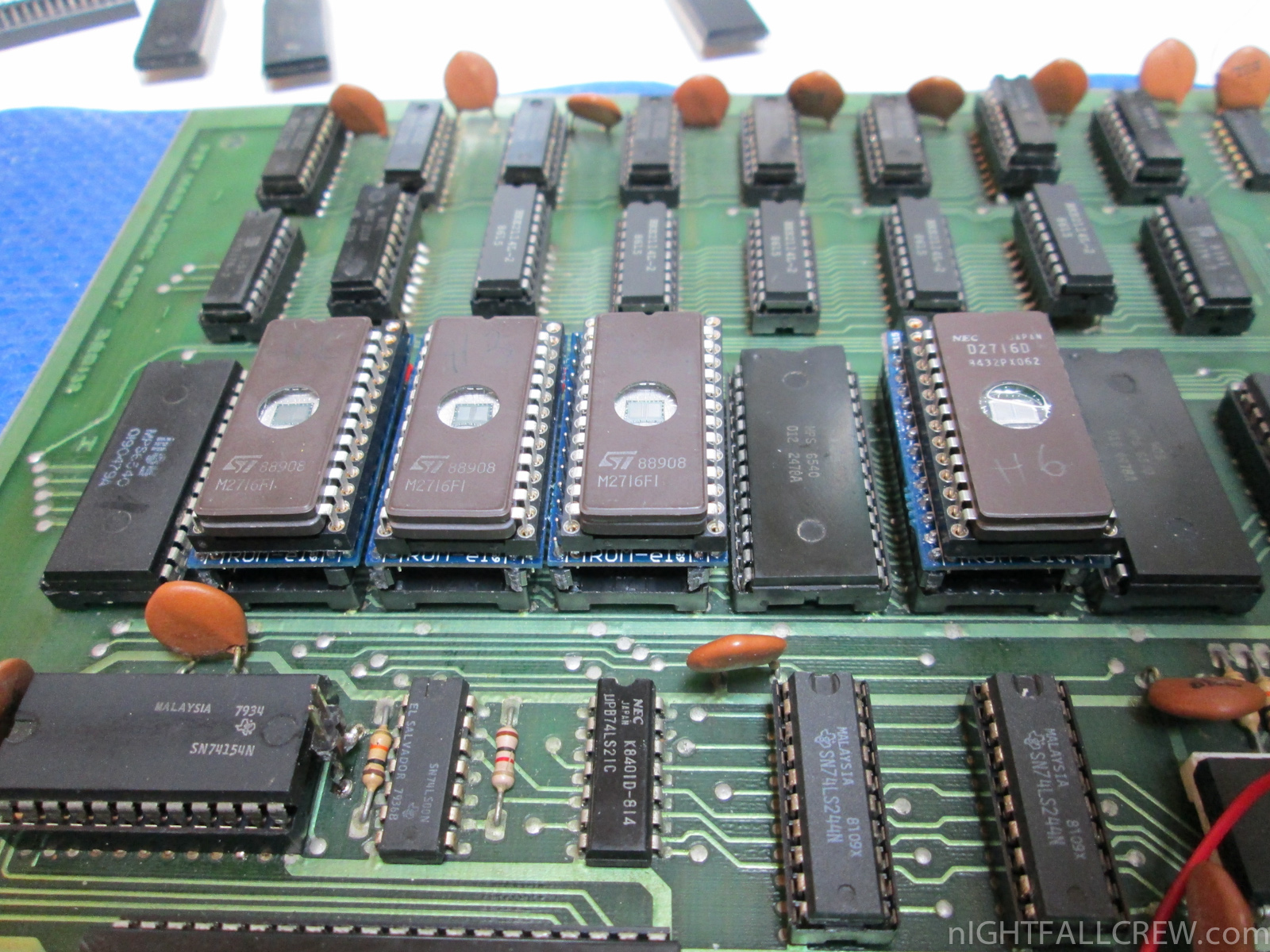

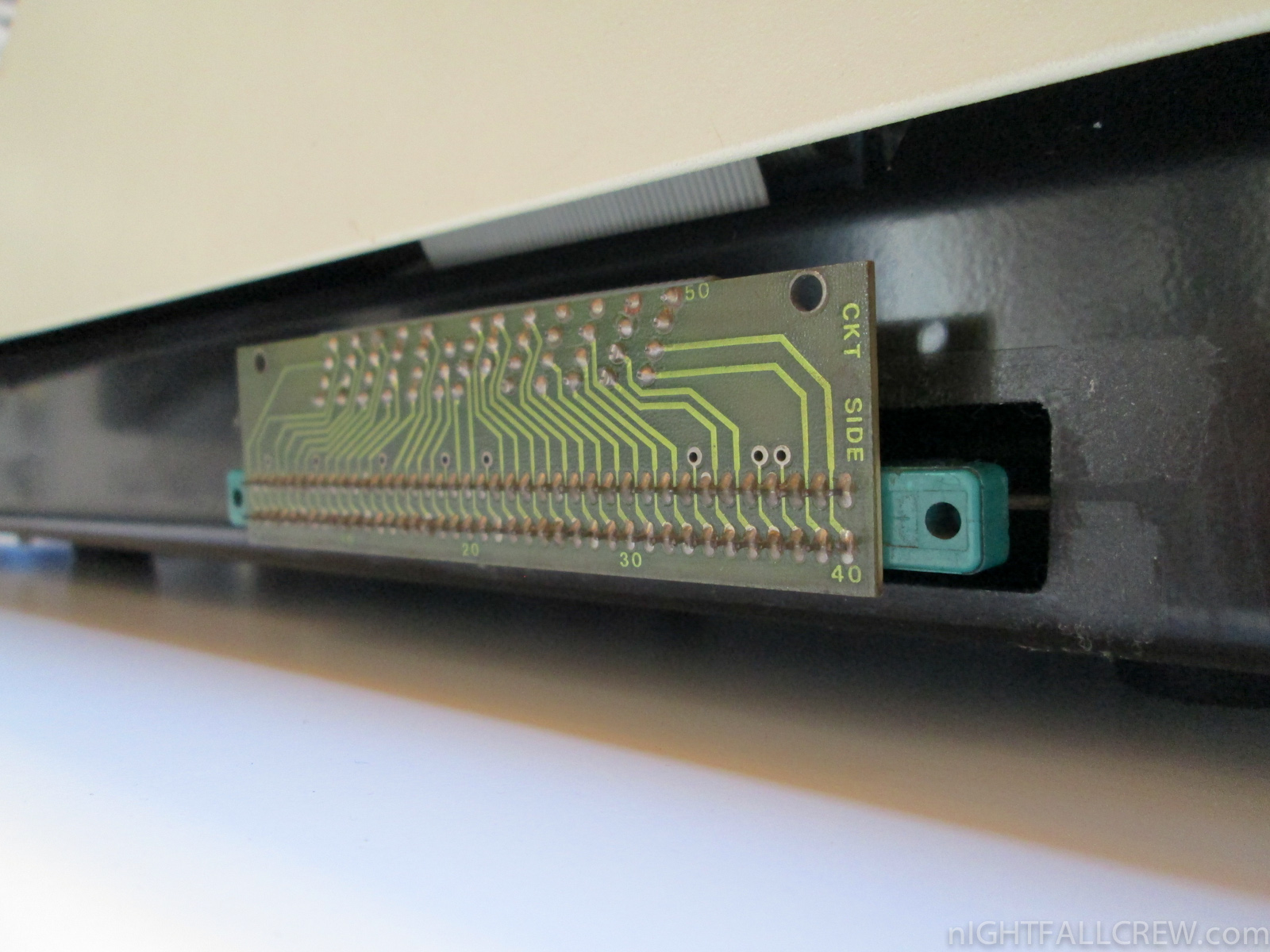

  • WOLTRON ROM (CompuThink C-DOS & TOOLKit) + PET/CBM Expansion BUS Adapter + PIA (Peripheral Interface Adapter) Motorola MC6821.

Unfortunately there is no documentation on the net of this Computhink card that seems to be a prototype or a clone, also there is no documentation or photos of the BUS/ROM Adapter by Woltron.

I spent sleepless nights looking for the starting SYS for the disk management software on the eprom, i have disassembled 24k of code (C-DOS Roms / Basic Roms Patched / Edit Roms Patched) in machine language.

I did it and found it the starting sys ($E790 – SYS 59280), although everything seems to work perfectly after the sys command is printed on the screen (*DOS-40*) and by typing the directory command ($d,1) or the format command ($f,1) the floppy starts to run correctly but the head does not move, while the exit command ($h) work correctly,
i need to say that i replaced the FDC1791 and some floppy disk logic and also one floppy disk drive, but nothing changed.

My suspicion falls on the PROM 82S123 there is no dump on the net, reading this PROM of 32 bytes, only the first 8 Bytes are filled, this is right ? we’ll never know.

All EPROM and PROM have been dumped and you can find them in the archive below.

Gallery:

Download: C-DOS 4.0 - Basic/Edit Roms Patched - PROM 82S123 (939)

Commodore MMF 9000 (SuperPET 9000) Repair & Testing

January 30th, 2018 1 comment

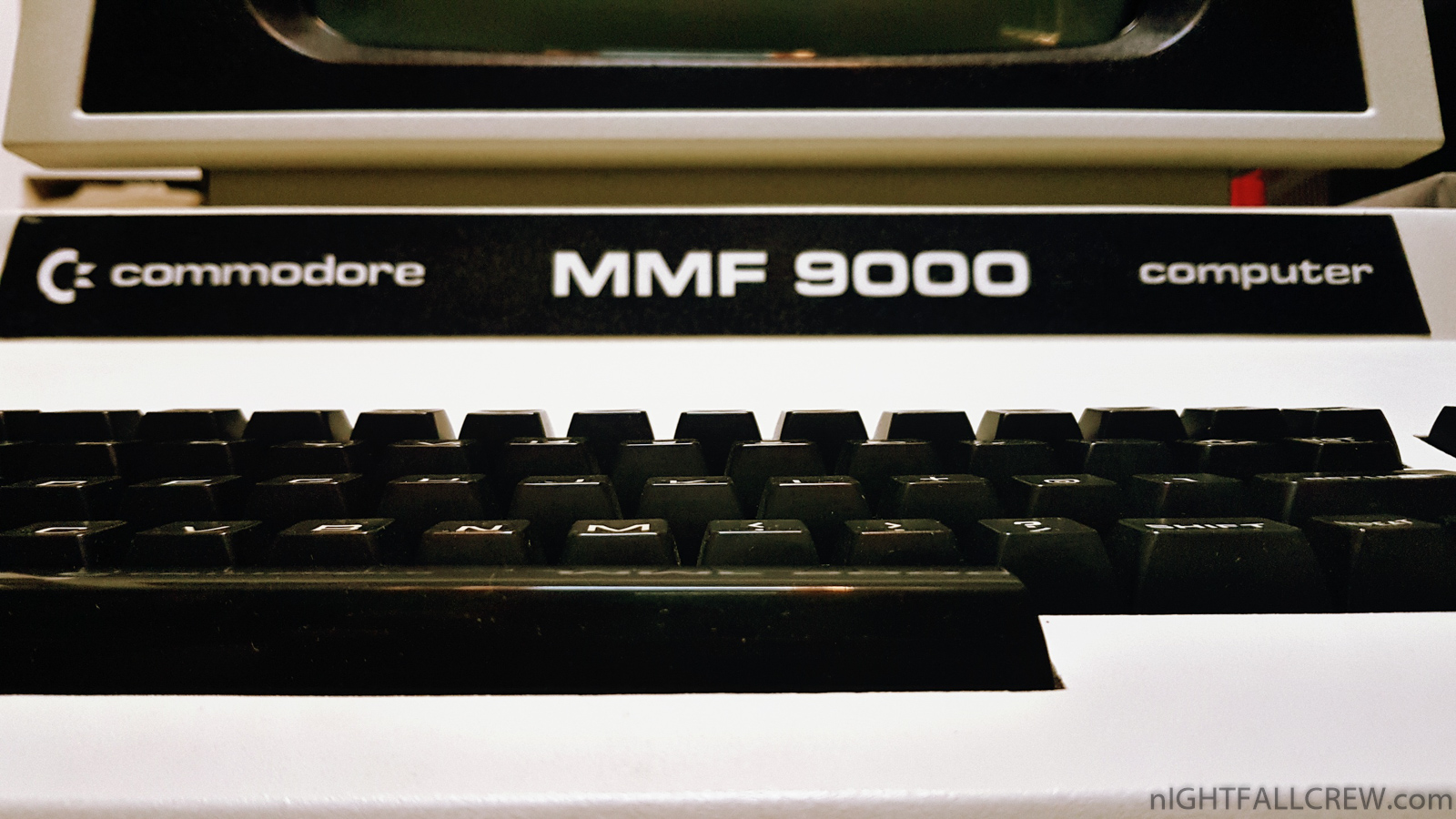

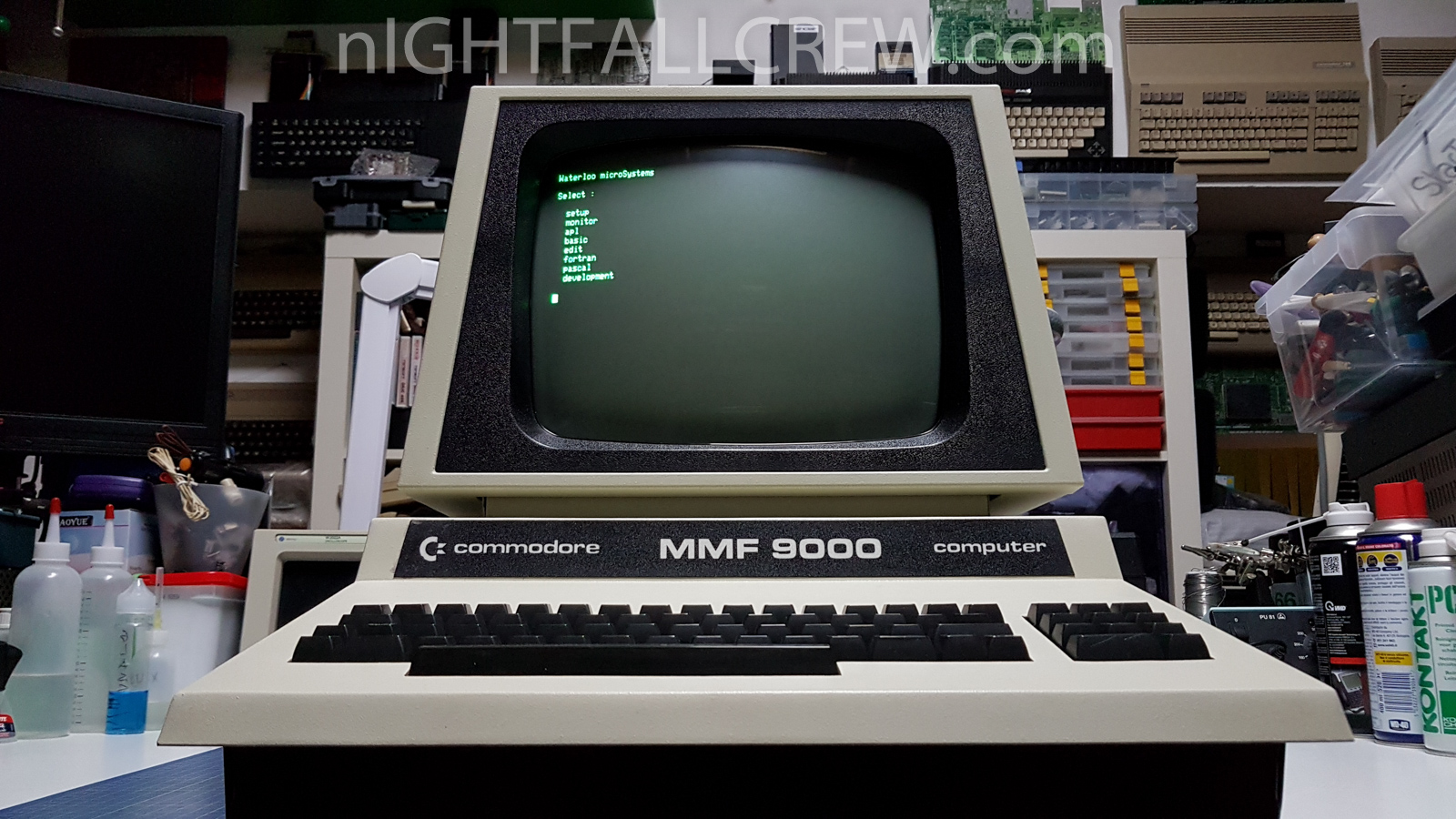

Commodore MMF 9000 (SuperPET 9000)

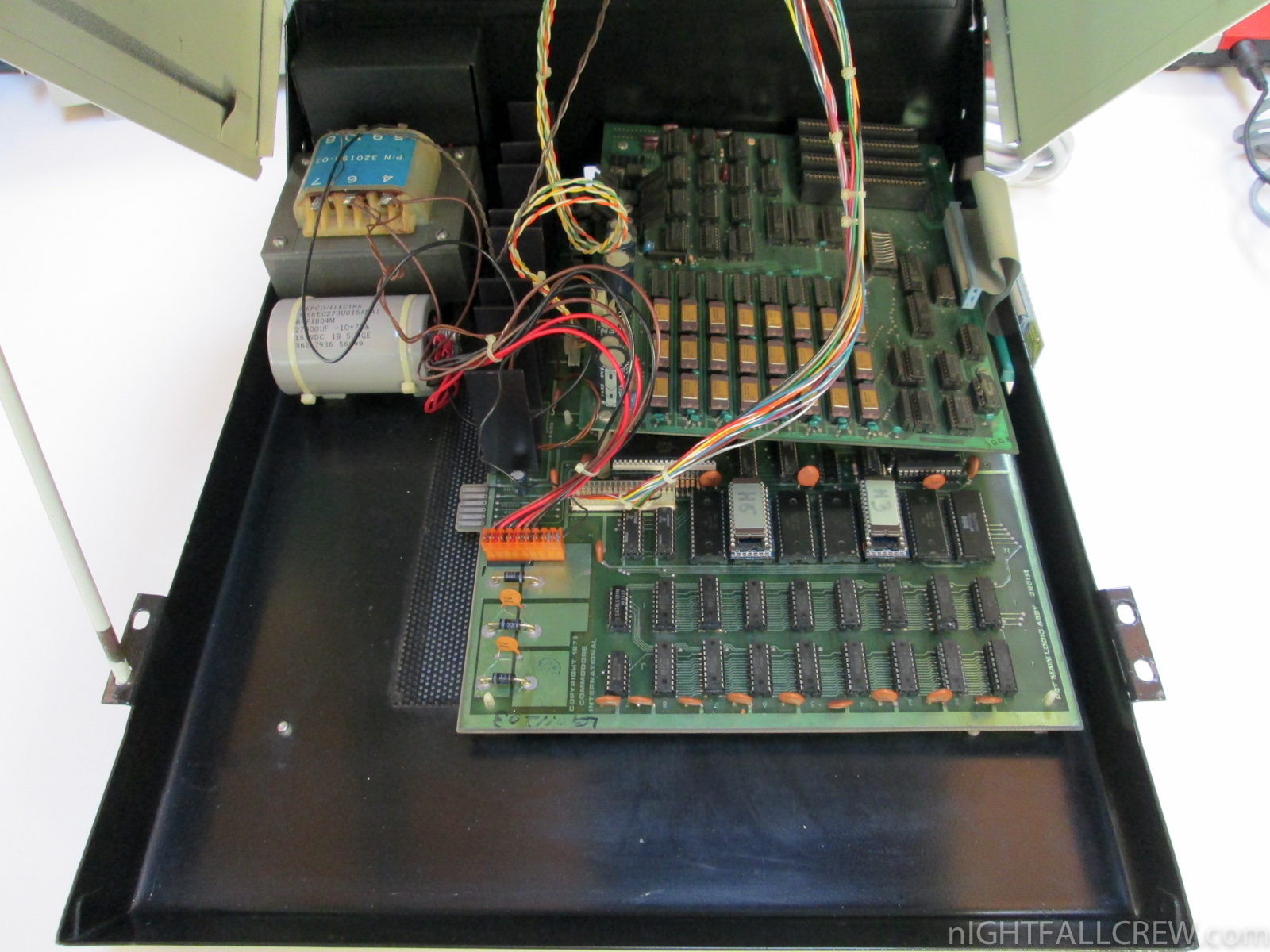

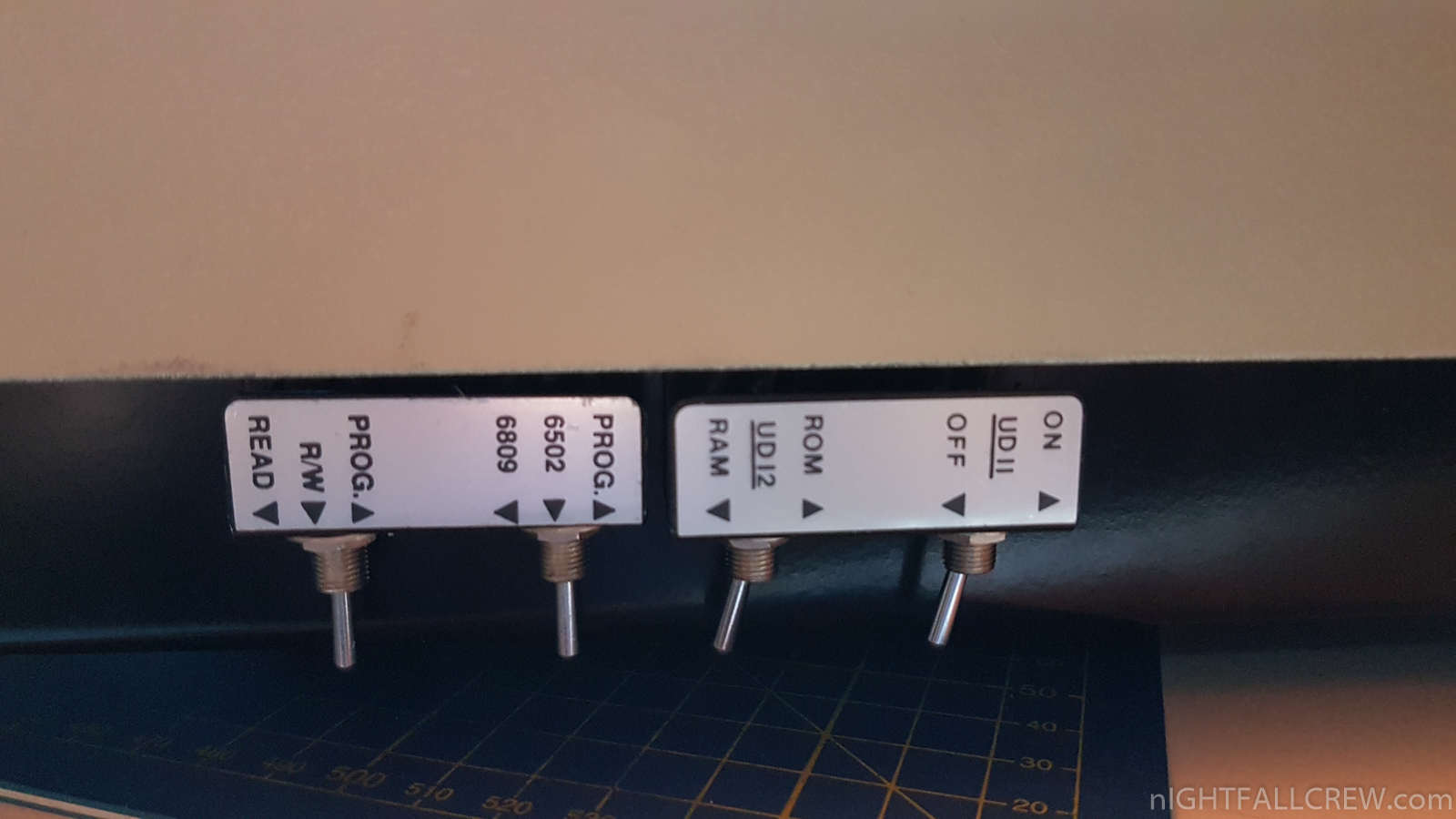

The SuperPET is a Commodore PET 8032 with one or two added boards that were designed at the University of Waterloo.

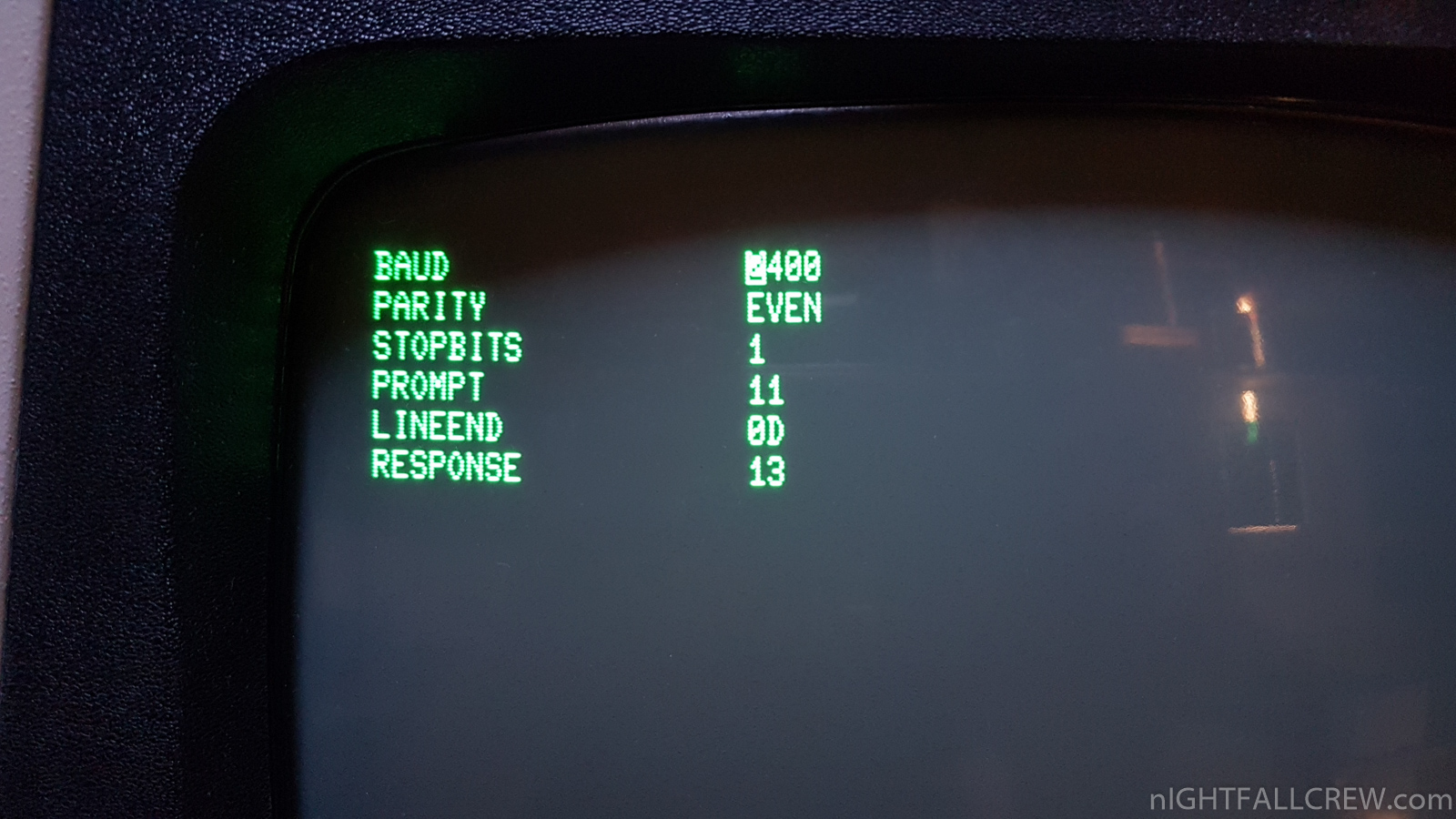

The computer has a built-in RS-232C interface and many programming languages on Floppy Disk. In Europe, this machine was called the MicroMainFrame 9000, or MMF 9000.

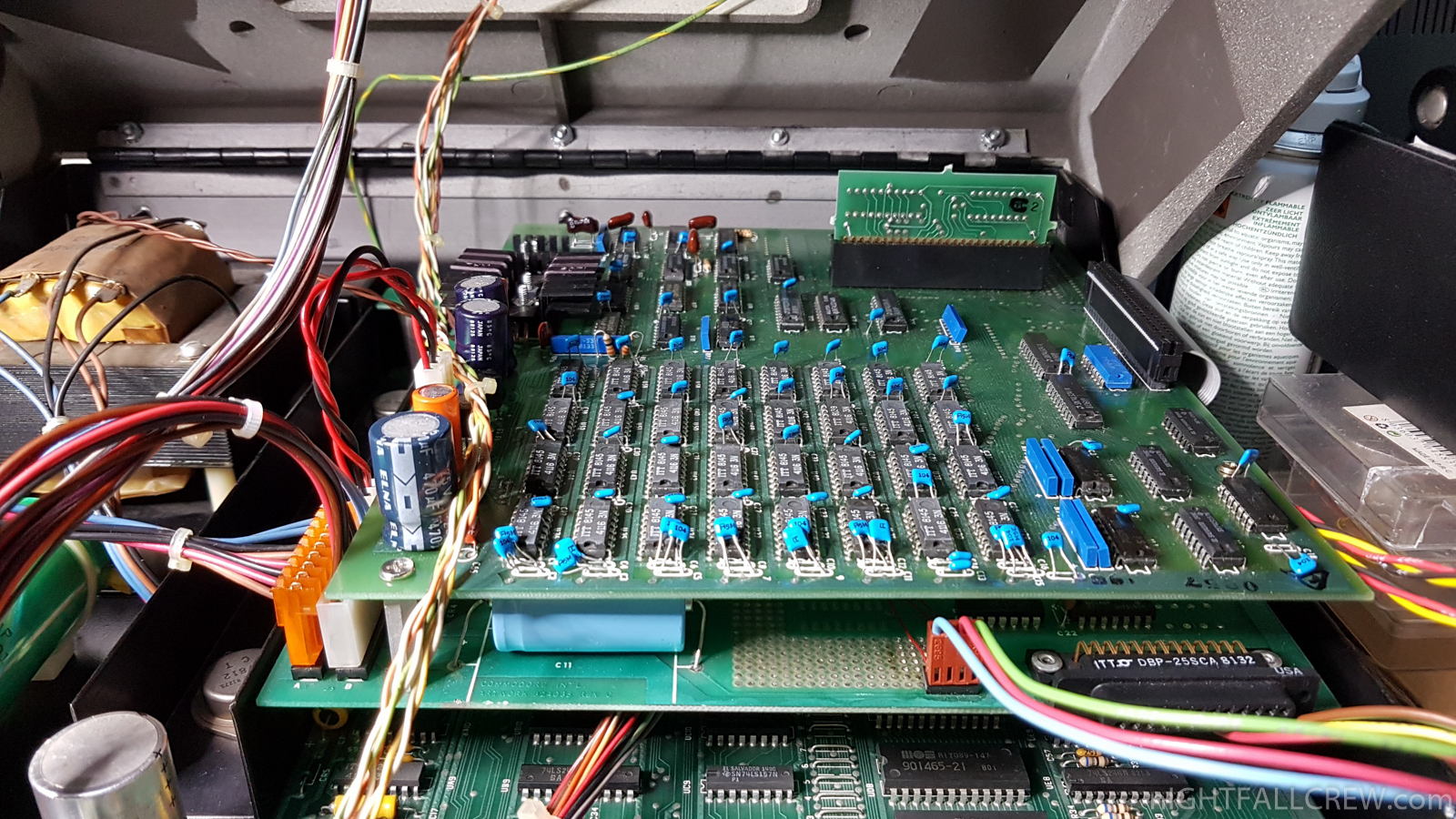

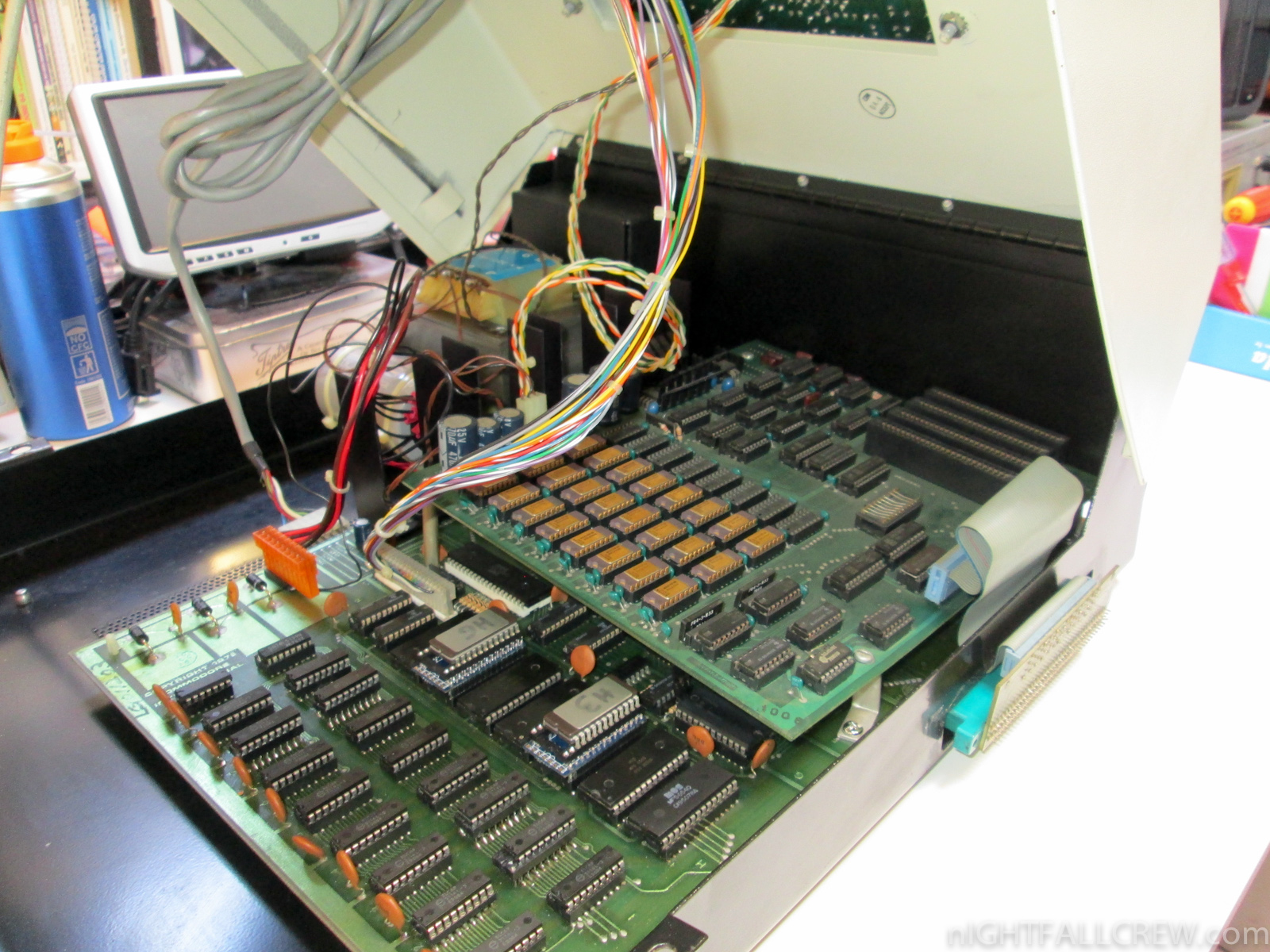

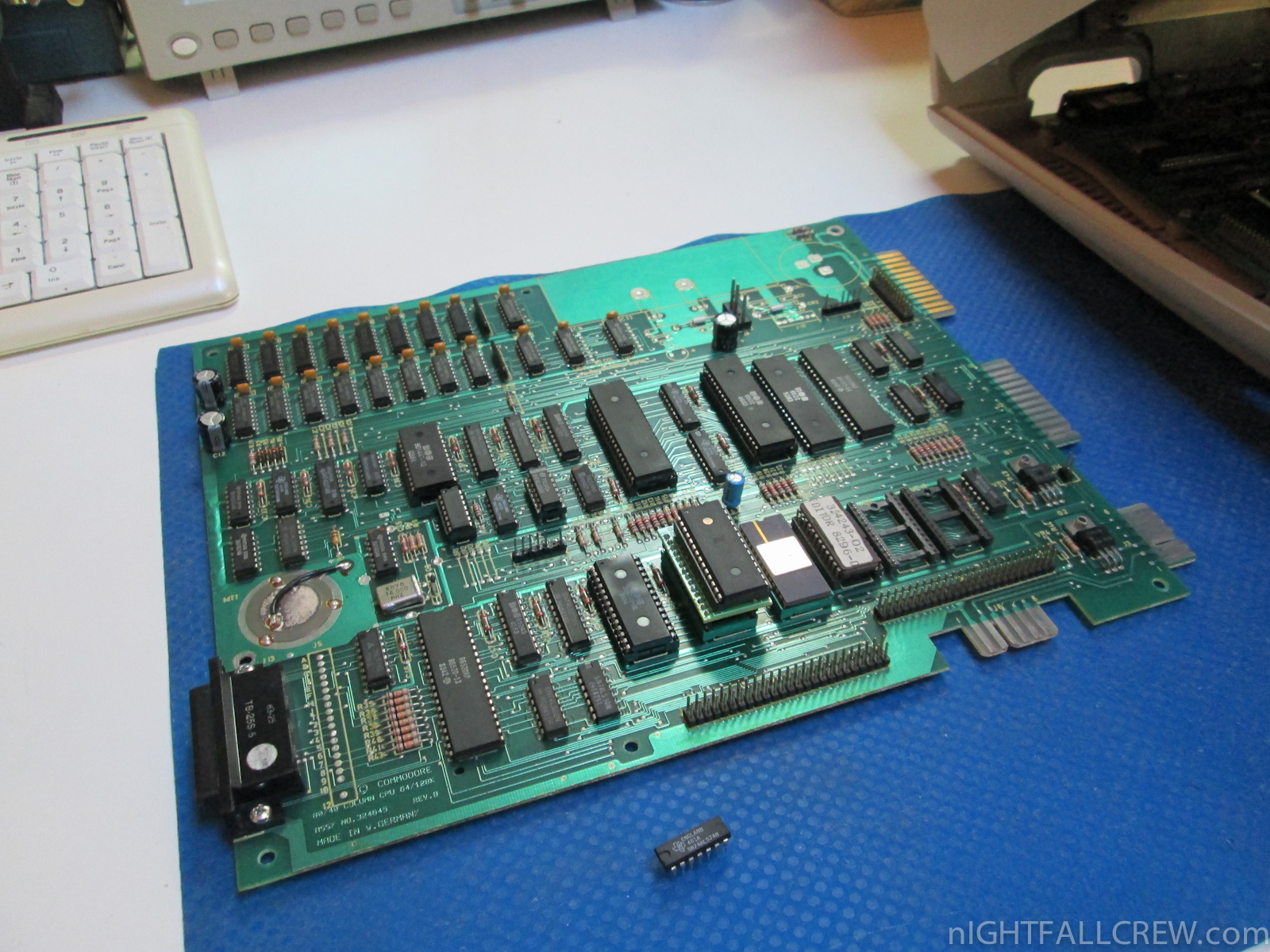

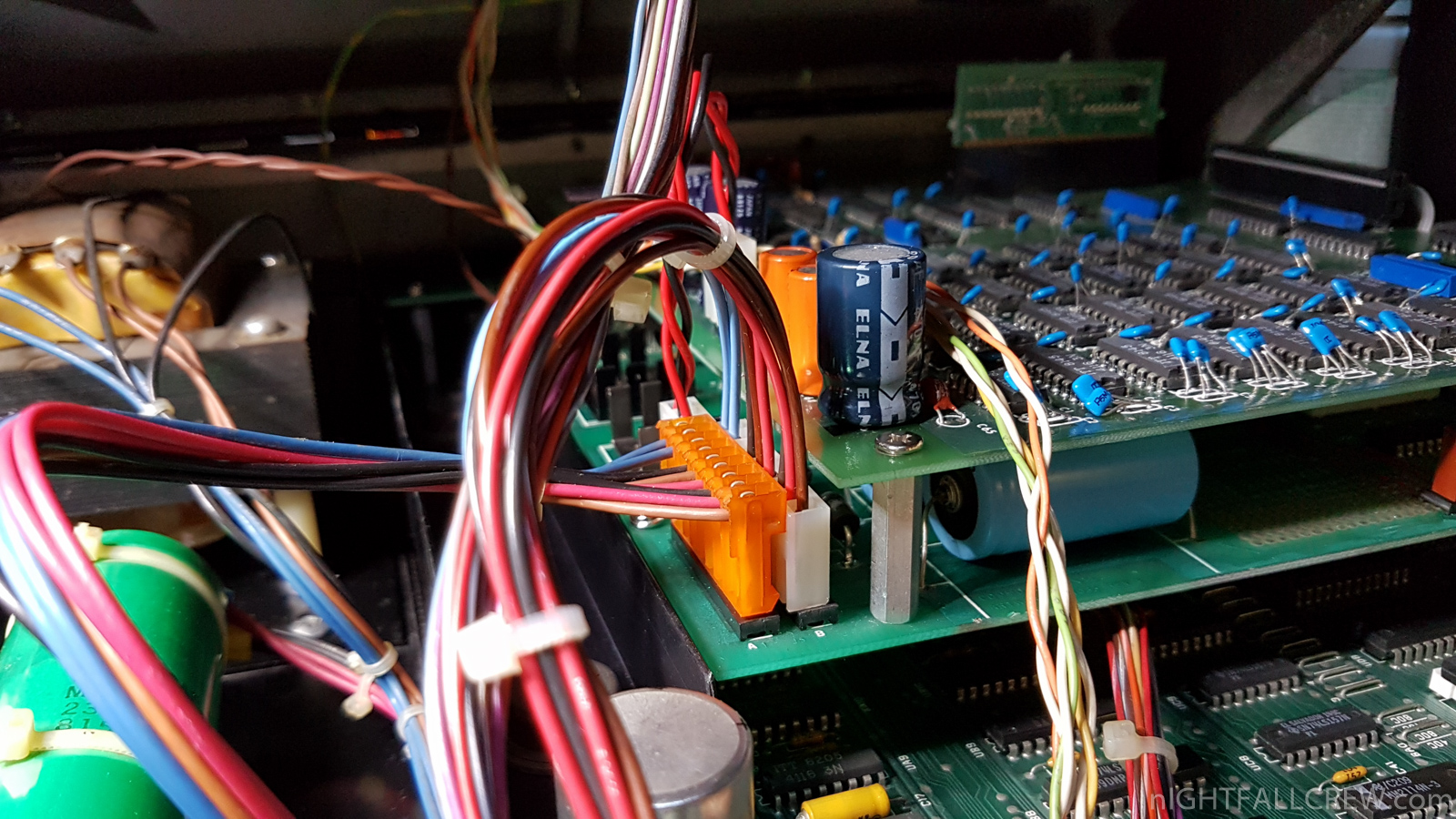

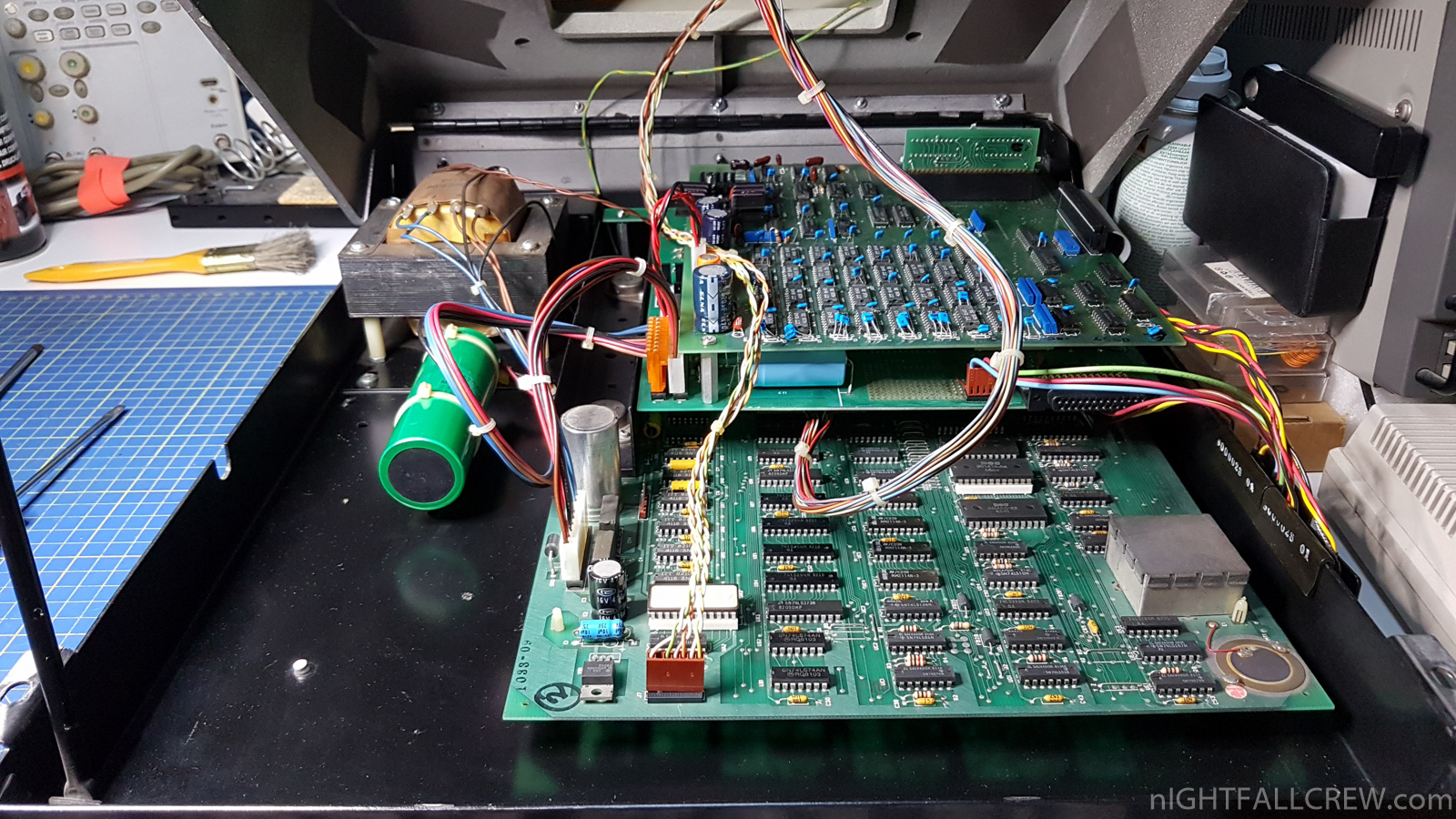

Let’s start to assembling the BMB Compuscience Ltd Board and Compu-Think 64K Memory Expansion board in the Commodore MMF 9000 (SuperPET)

I had to shorten the original standoffs installed in the computer because the length was wrong for the two boards BMB Compuscience/Compu-Think 64K. The long standoffs are used for the superPET Combo Board (the last one released).

It was not a simple job, obviously i have looked around for the identical standoffs with thickness, size, pitch and some with a long screw other with a short screw.

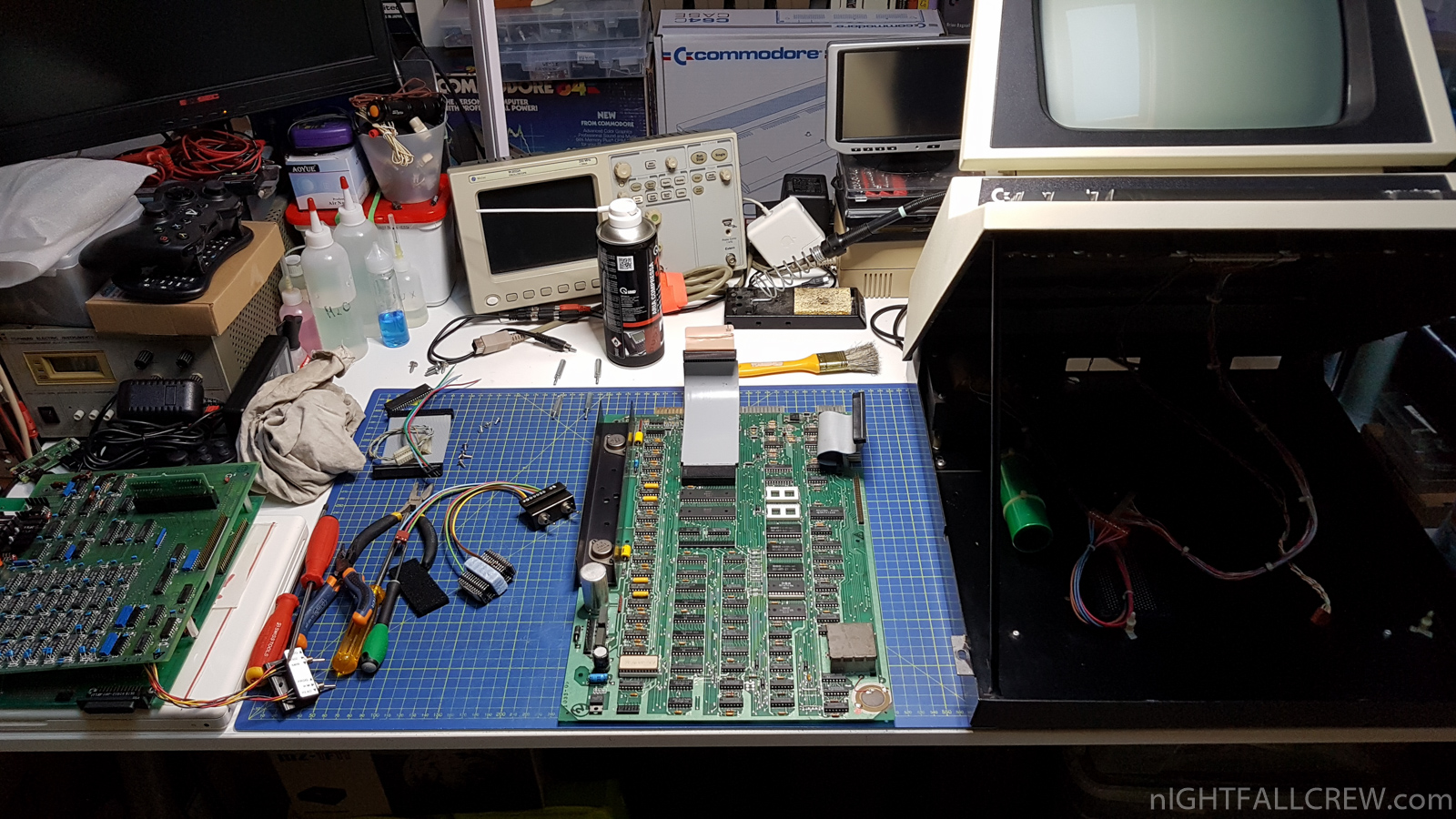

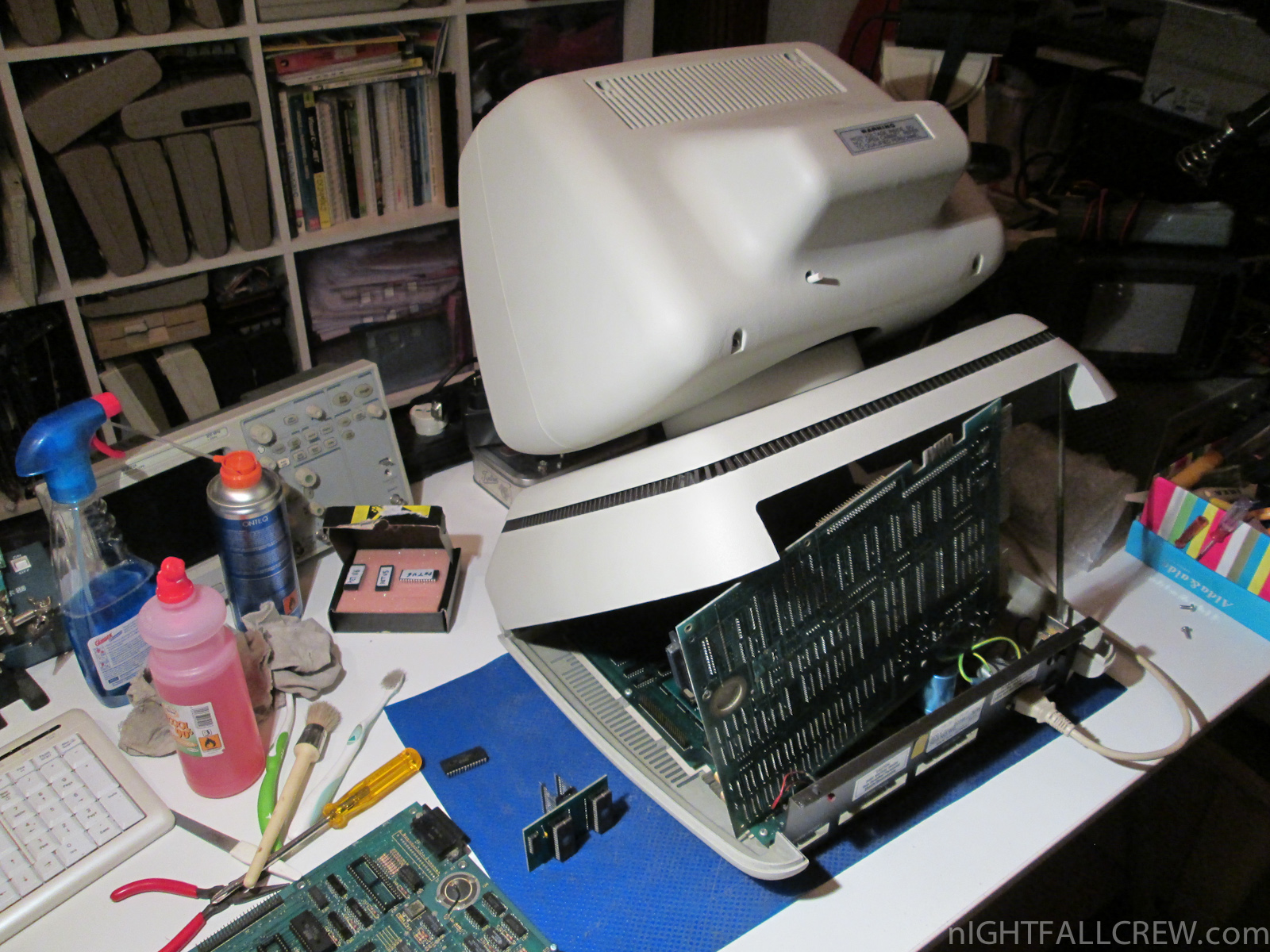

Between one phase and another i have also giving a nice clean inside and outside of the computer and of the motherboard.

Unfortunately there are a couple of problems after assembling the two boards of the MMF 9000 (SuperPET).

Defects:

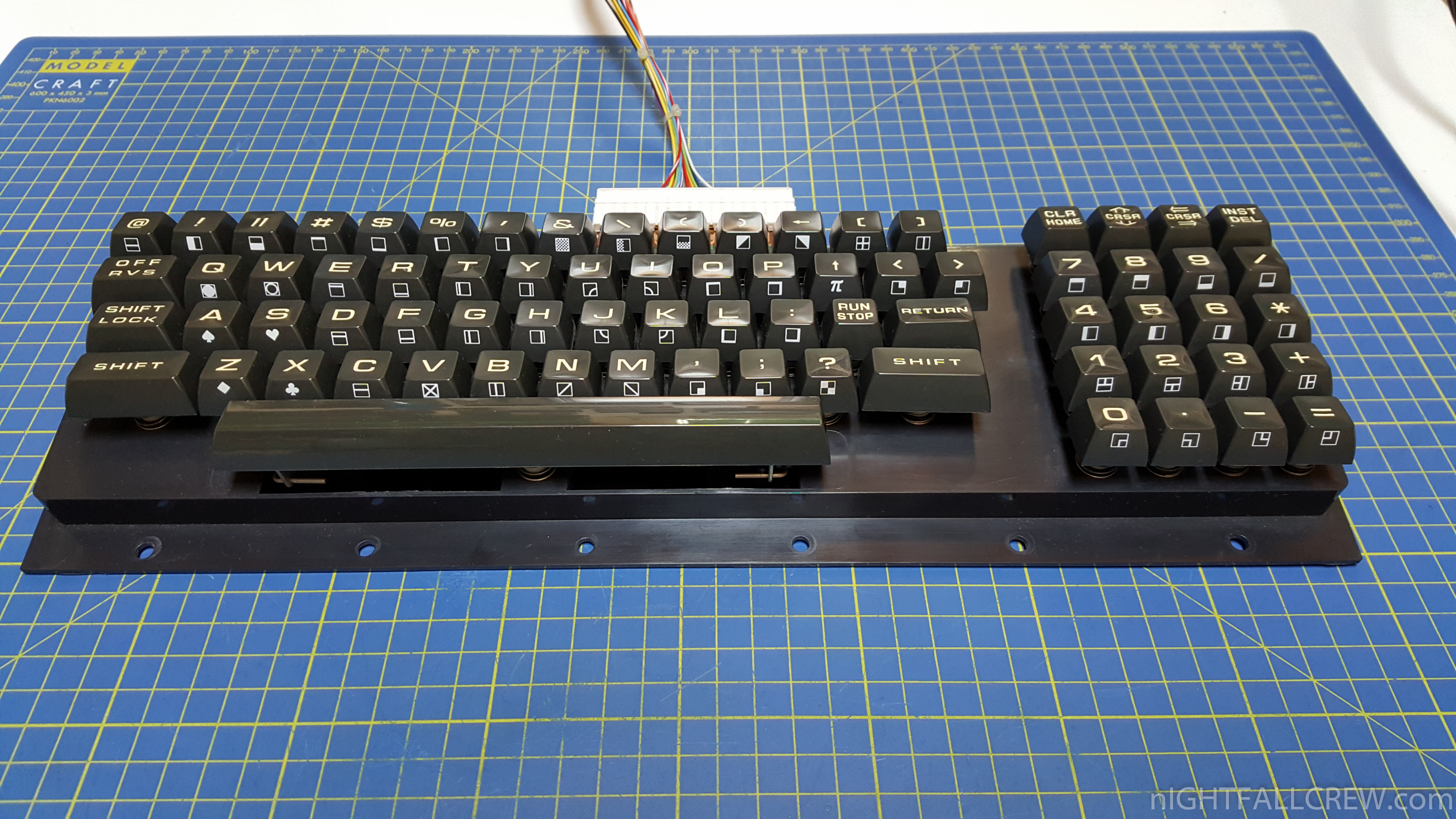

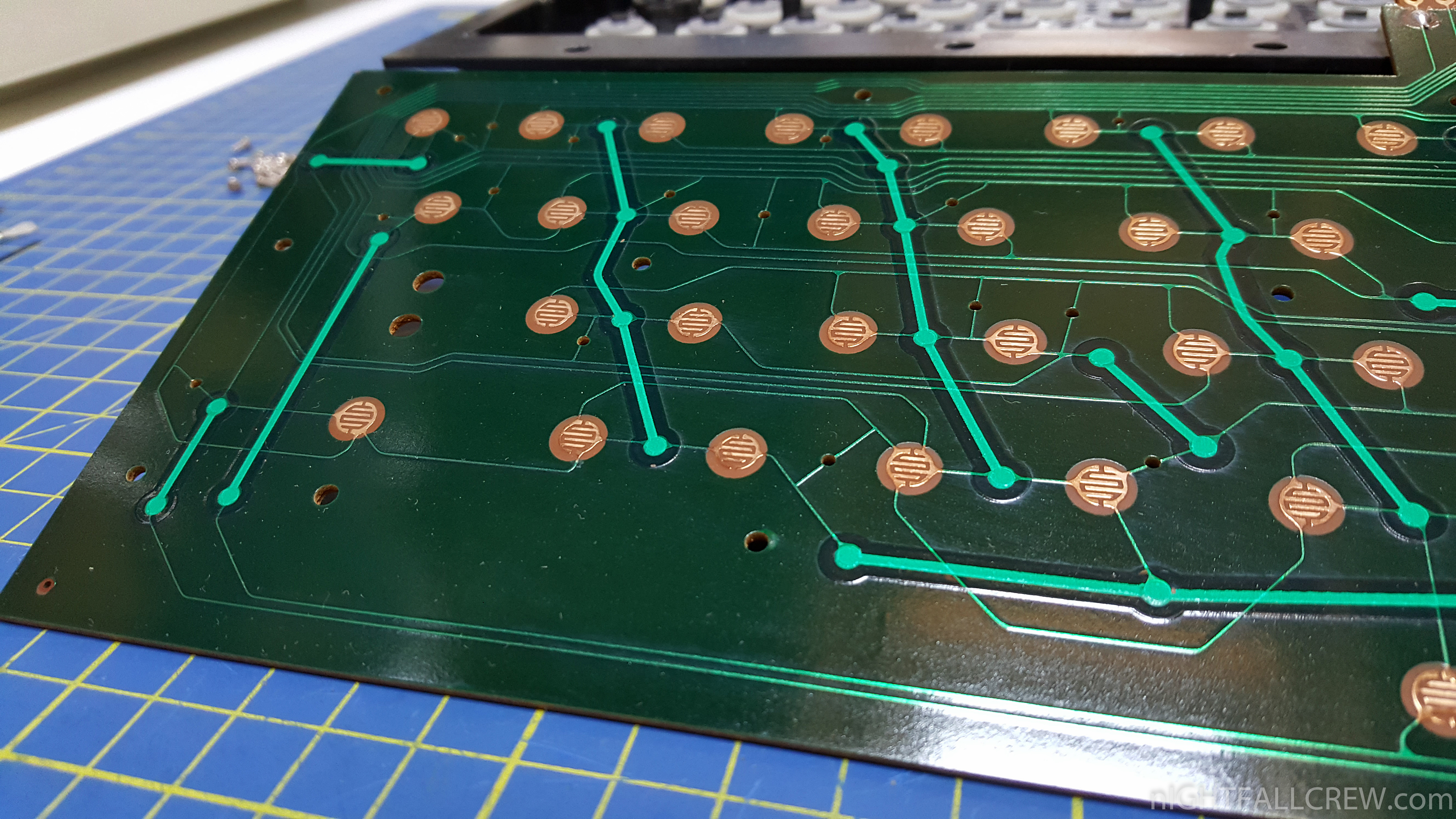

  • The keyboard space bar dead.
  • Don’t runs any Waterloo program in the 6809 environment, runs only the Bootstrap menu which allows to load the programs from Floppy Disk, the Machine Language monitor and the Setup program both are in the Eprom.
  • The protection Dongle (6702) not correctly viewed from the system.

Repair/Fix:

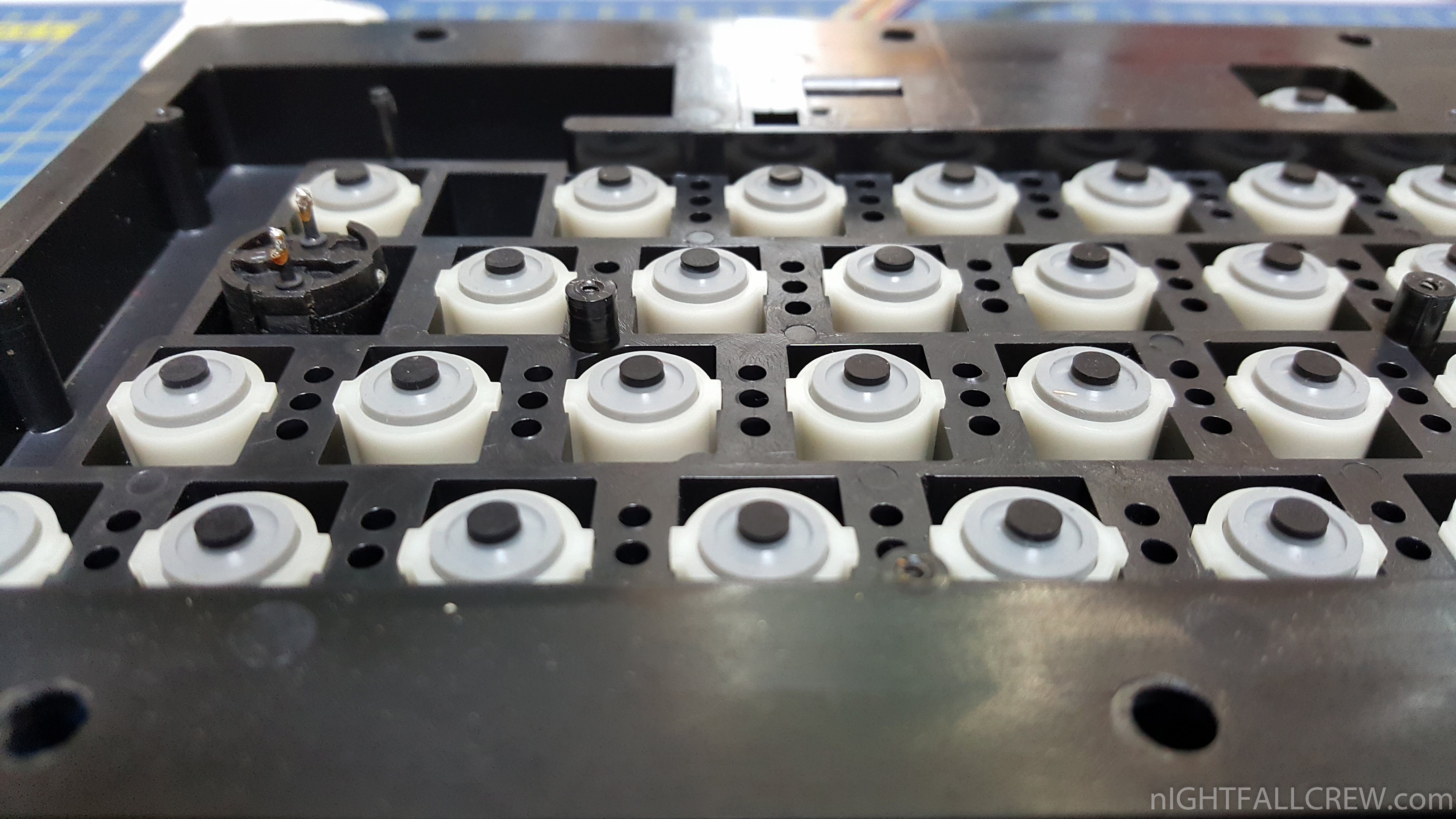

  • The keyboard after a good cleaning has started to work well.
  • The Dongle after cleaning the contacts now works.

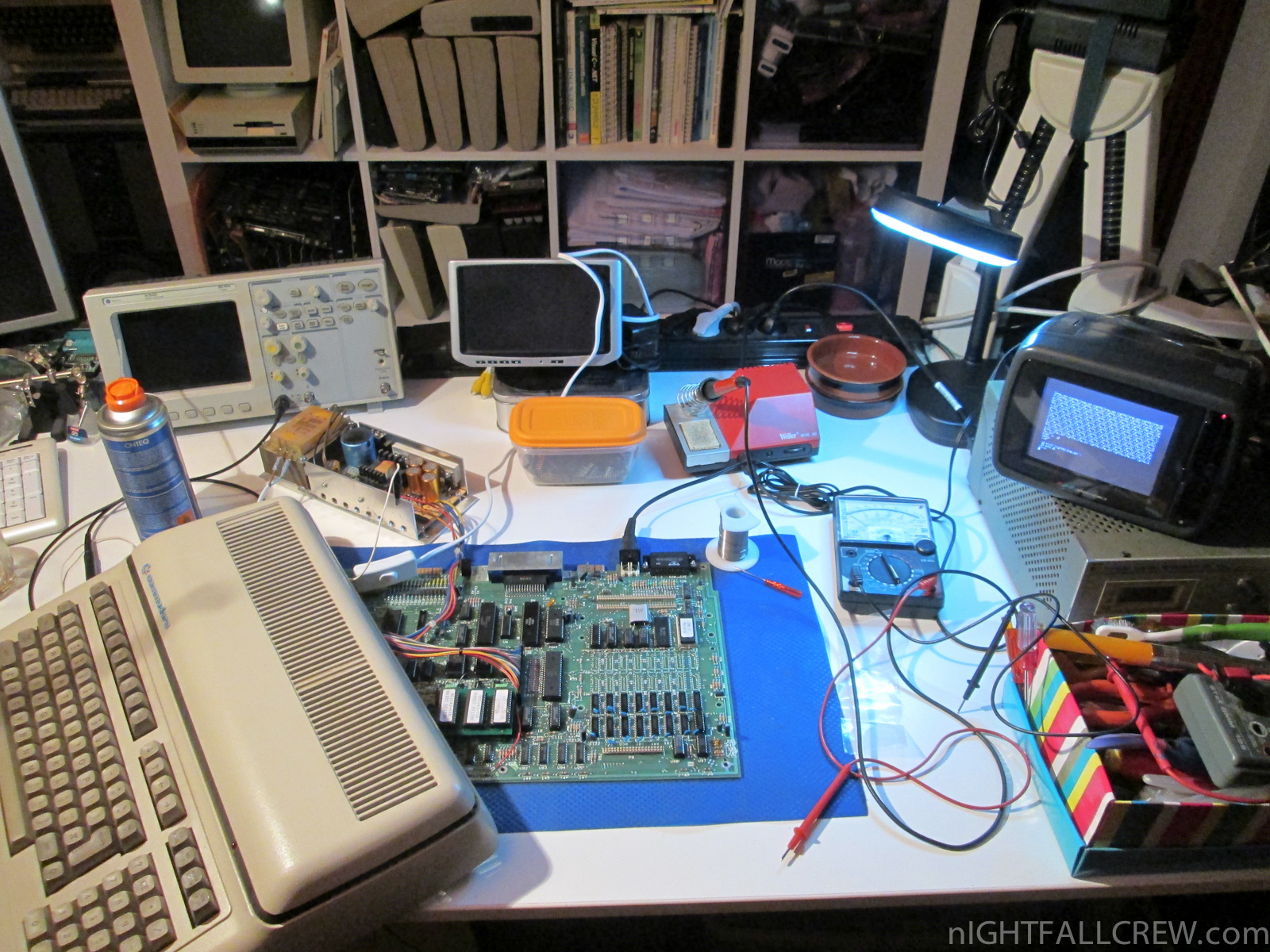

About the programs that don’t runs in the 6809 environment the repair was a bit longer. I have used the only program that worked under the 6809 environment, the Machine Language Monitor.

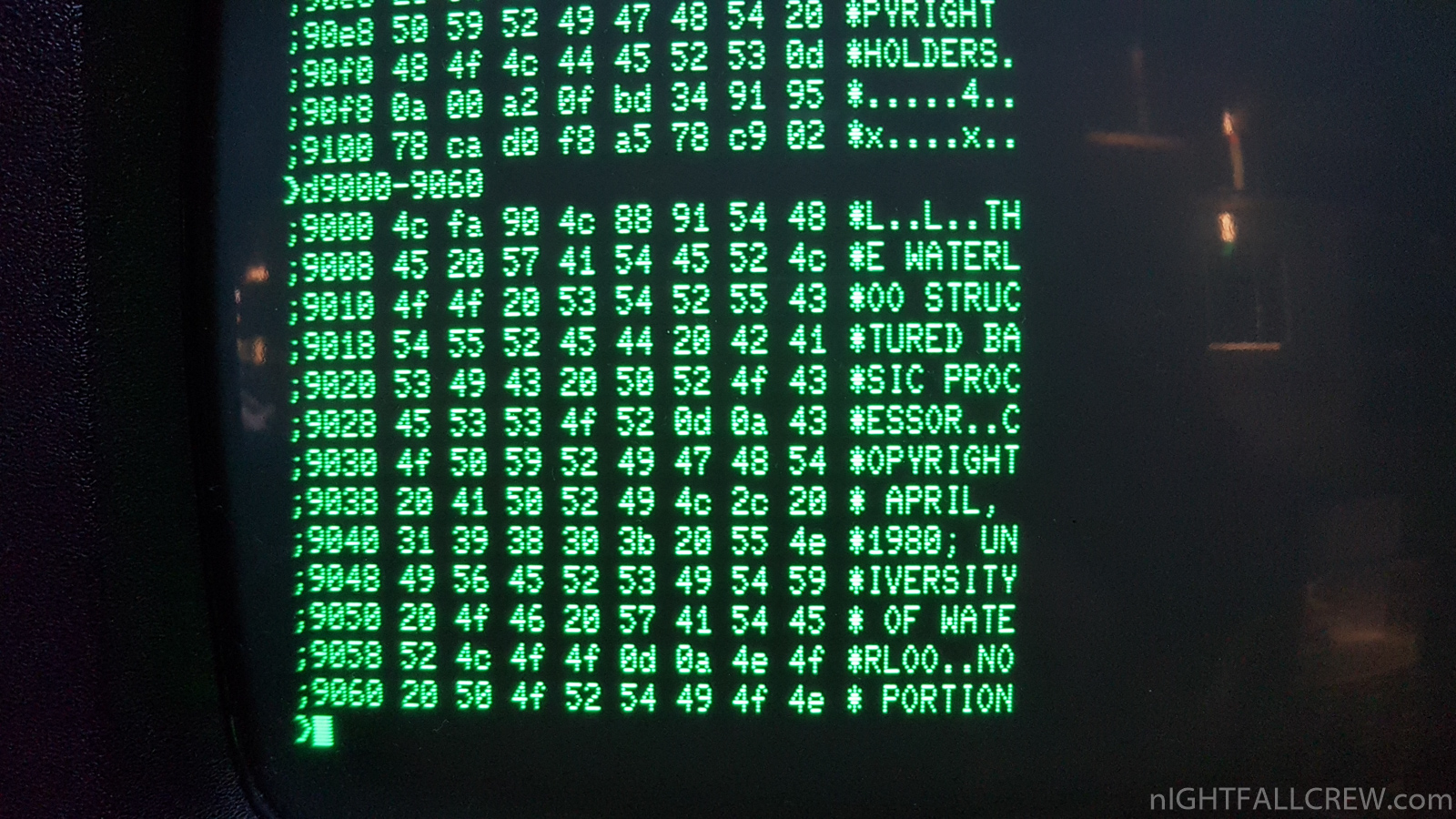

With this program i have filled the memory with the command Fill (f 9000-9fff aa) and i have changed from time to time the bytes that i was going to write in memory and  i have used the command (d 9000-) to see the results and not all memory locations are written correctly.

With the Bank Switching command (b 0, b 1 …) i have switch the memory bank, there are 16 banks of 4k each for a total of 64k.

I have found 7 x 4116 RAM failed (this card is new, never used), replaced these bad RAMs everything has started to work properly.

So my advice is to try to load the Waterloo software in the 6809 environment to make sure that the 64k memory expansion (only seen in the 6809 environment) is working properly.

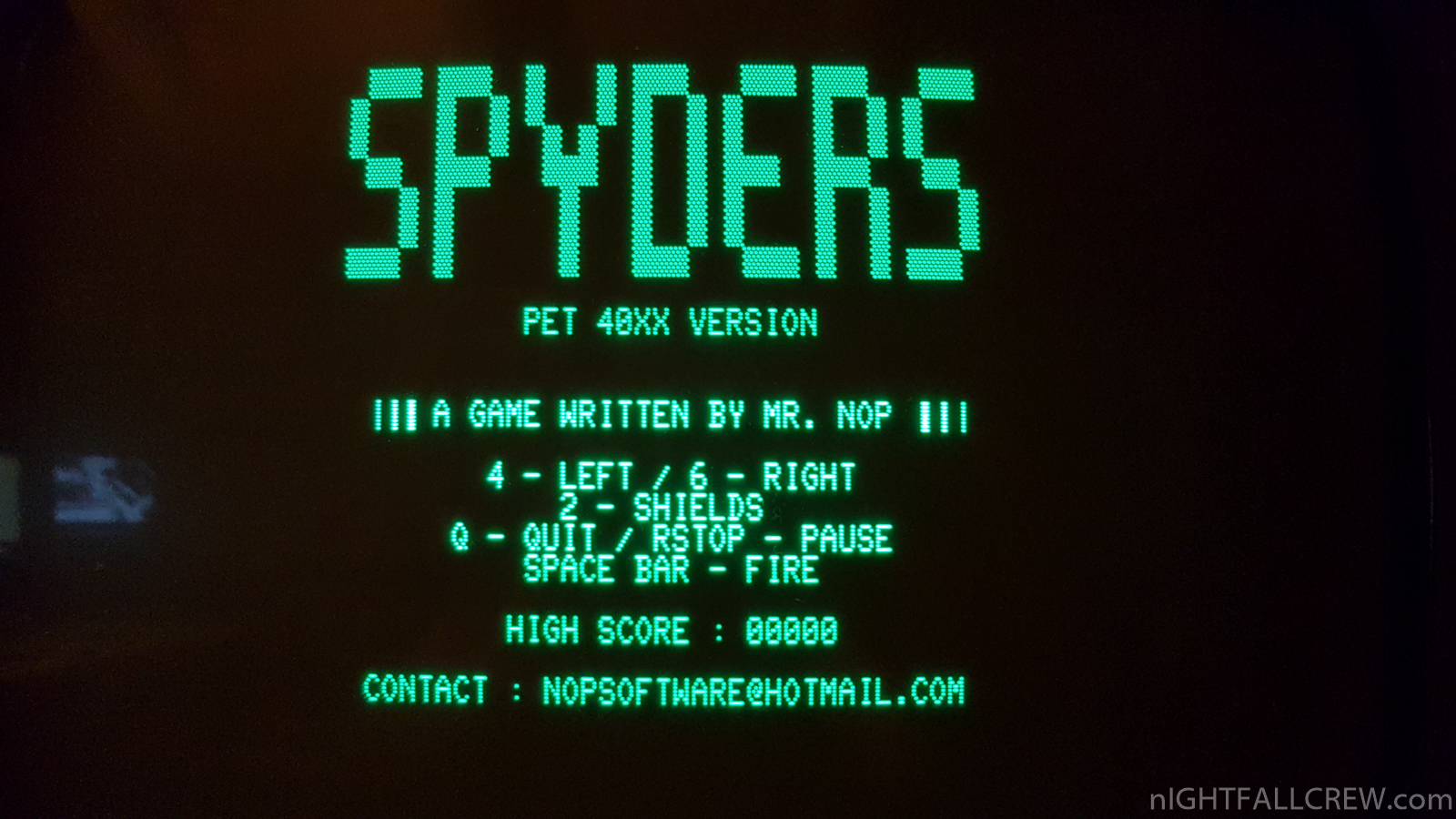

Below the photos of all the tests that i have done:

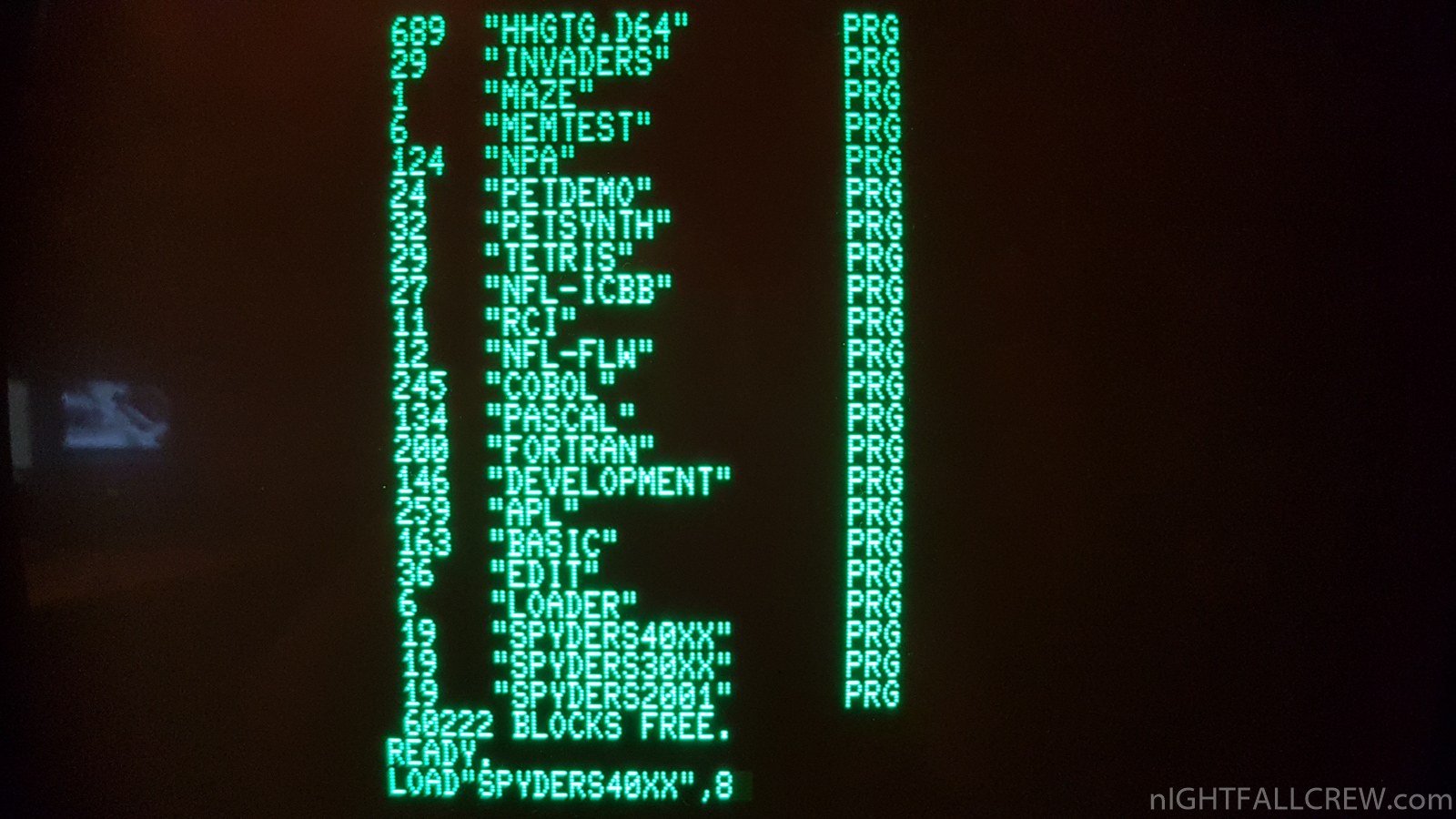

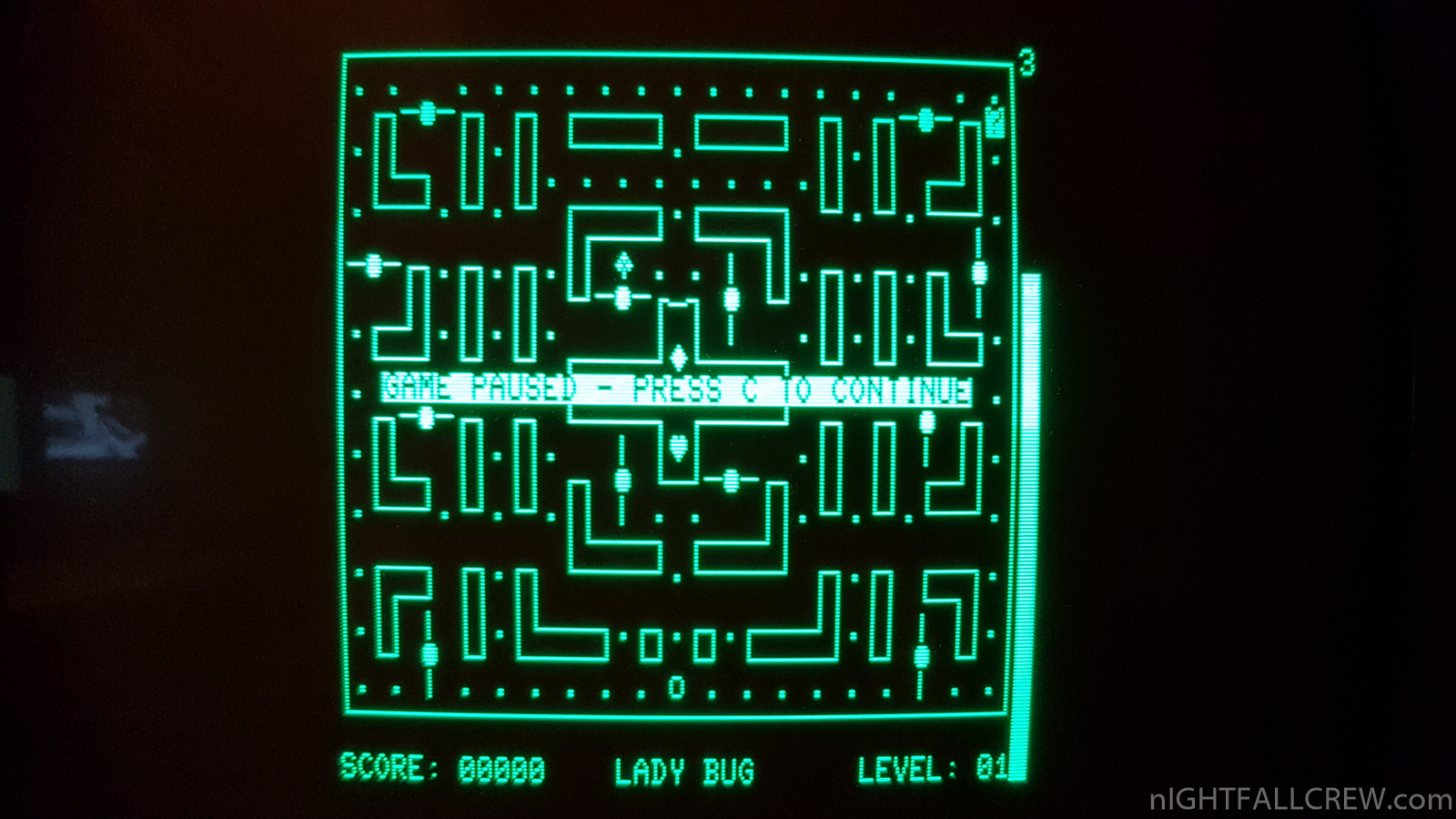

  • Test with the CPU 6502 (Standard Commodore 8032/32k) with disk access, some software running in emulation 40 columns with the program: 80240.prg

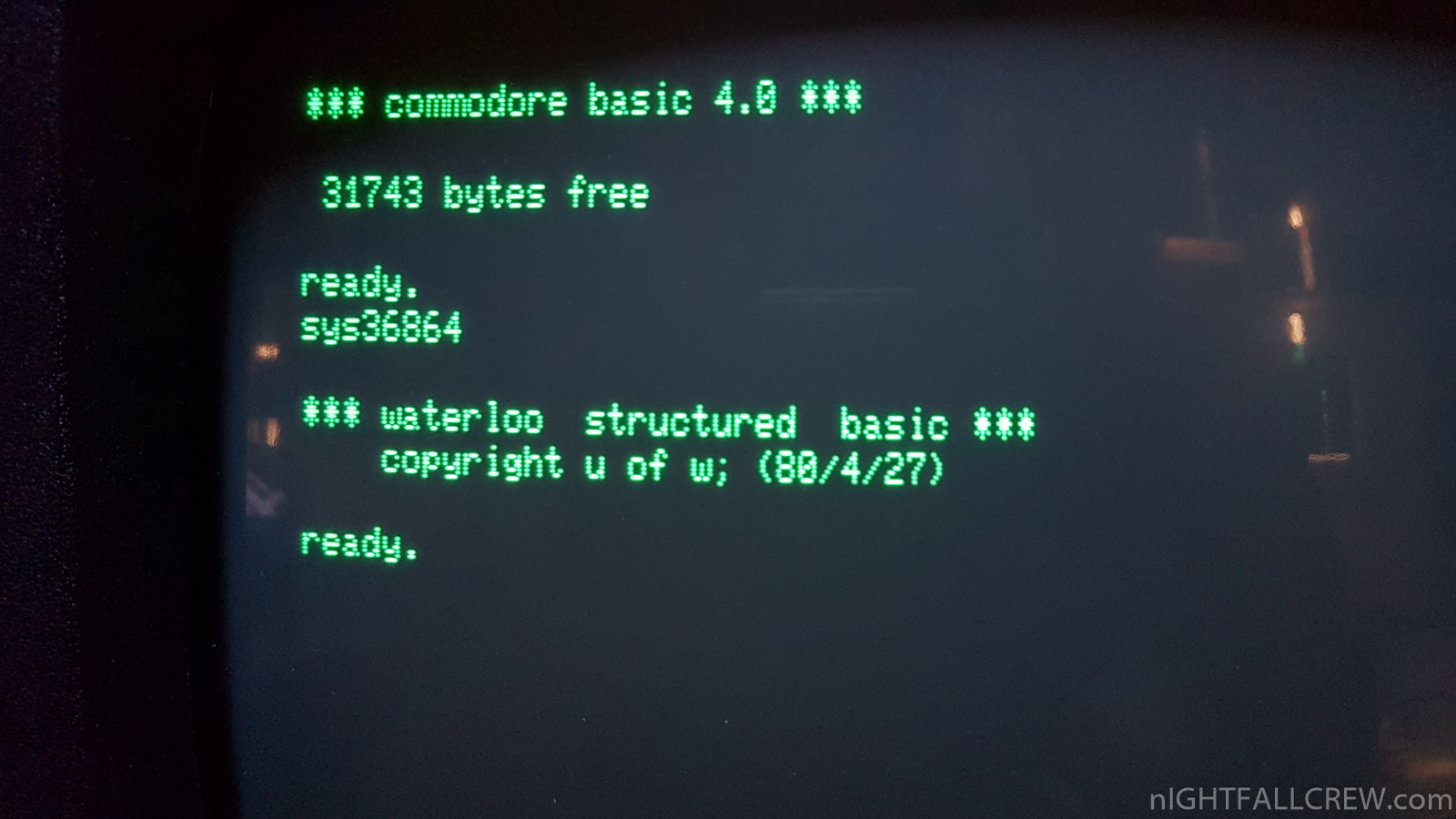

  • Test with the CPU 6809 of the entire Waterloo software package with disk access.

Gallery:

This is a archive with documents, disk images and rom files usefully to test the computer.

Download: MMF9000/SuperPET Documents,Disk images,ROM Files (1195)

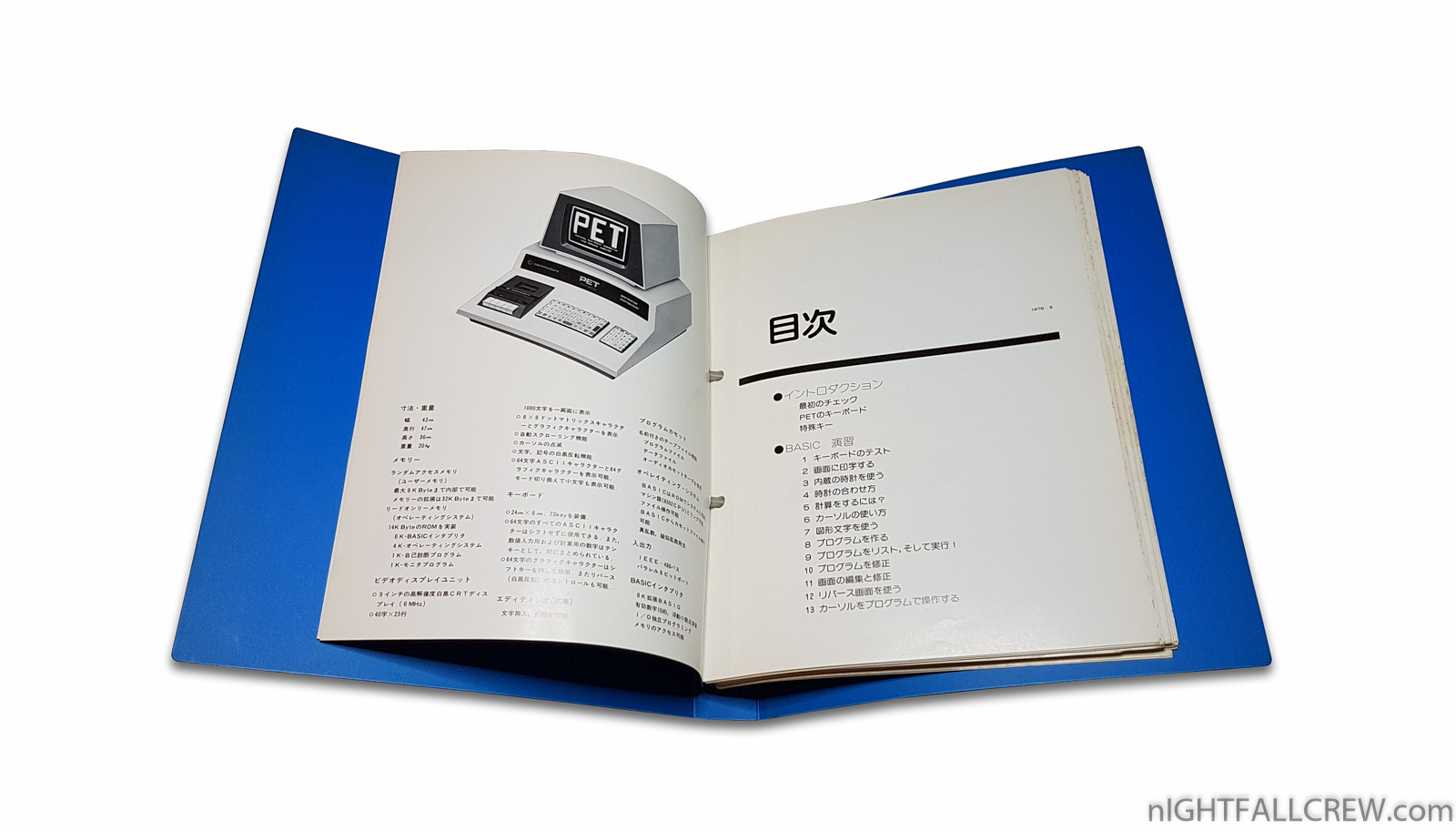

Commodore PET 2001 Japanese Instruction Manual

December 9th, 2017 No comments

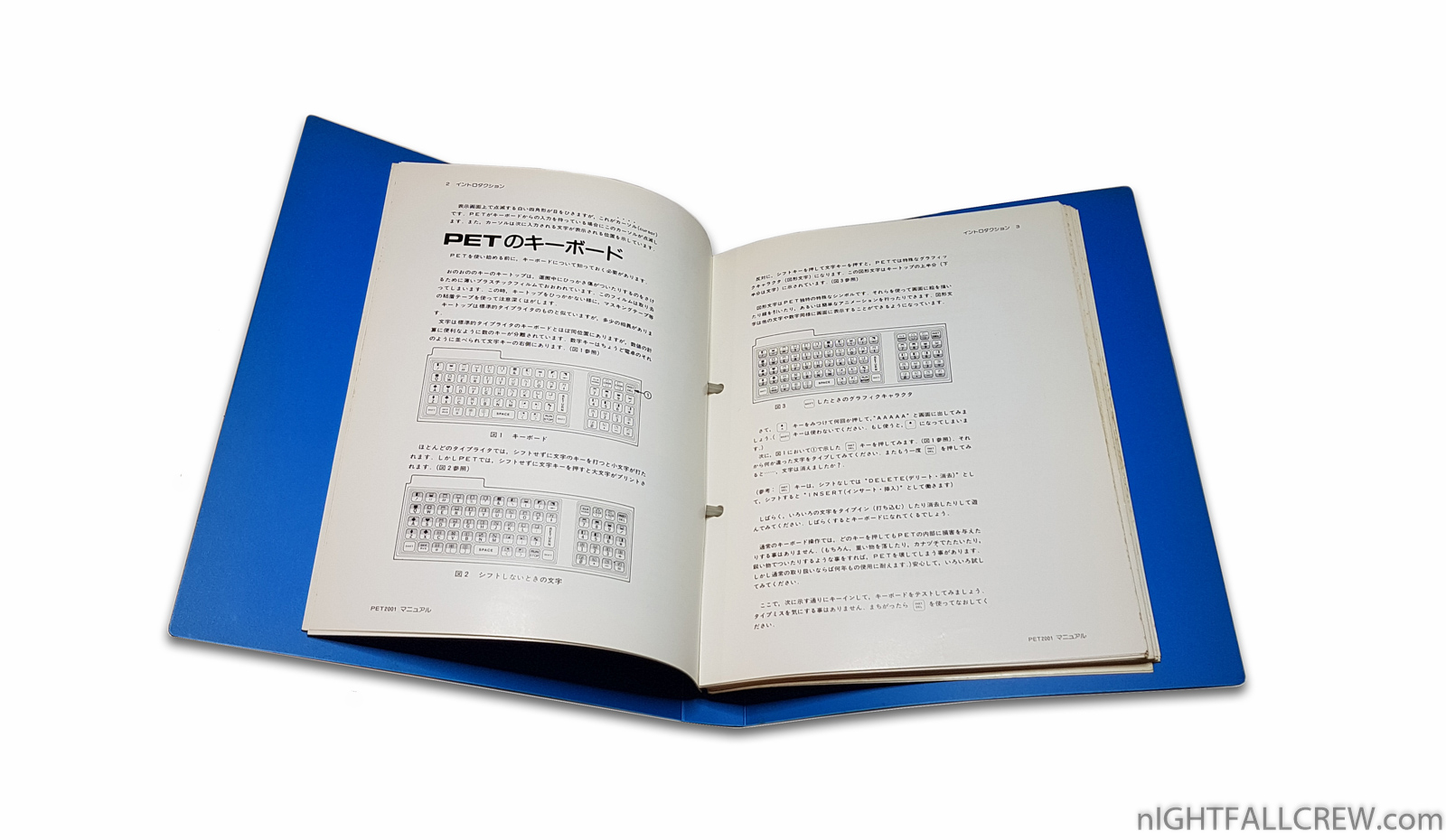

Commodore PET 2001 Japanese Instruction Manual

Commodore PET 2001 Japanese Instruction Manual.

I must thank my  friend Andry for this great gift.

Gallery:

Commodore CBM 4008

April 5th, 2016 No comments

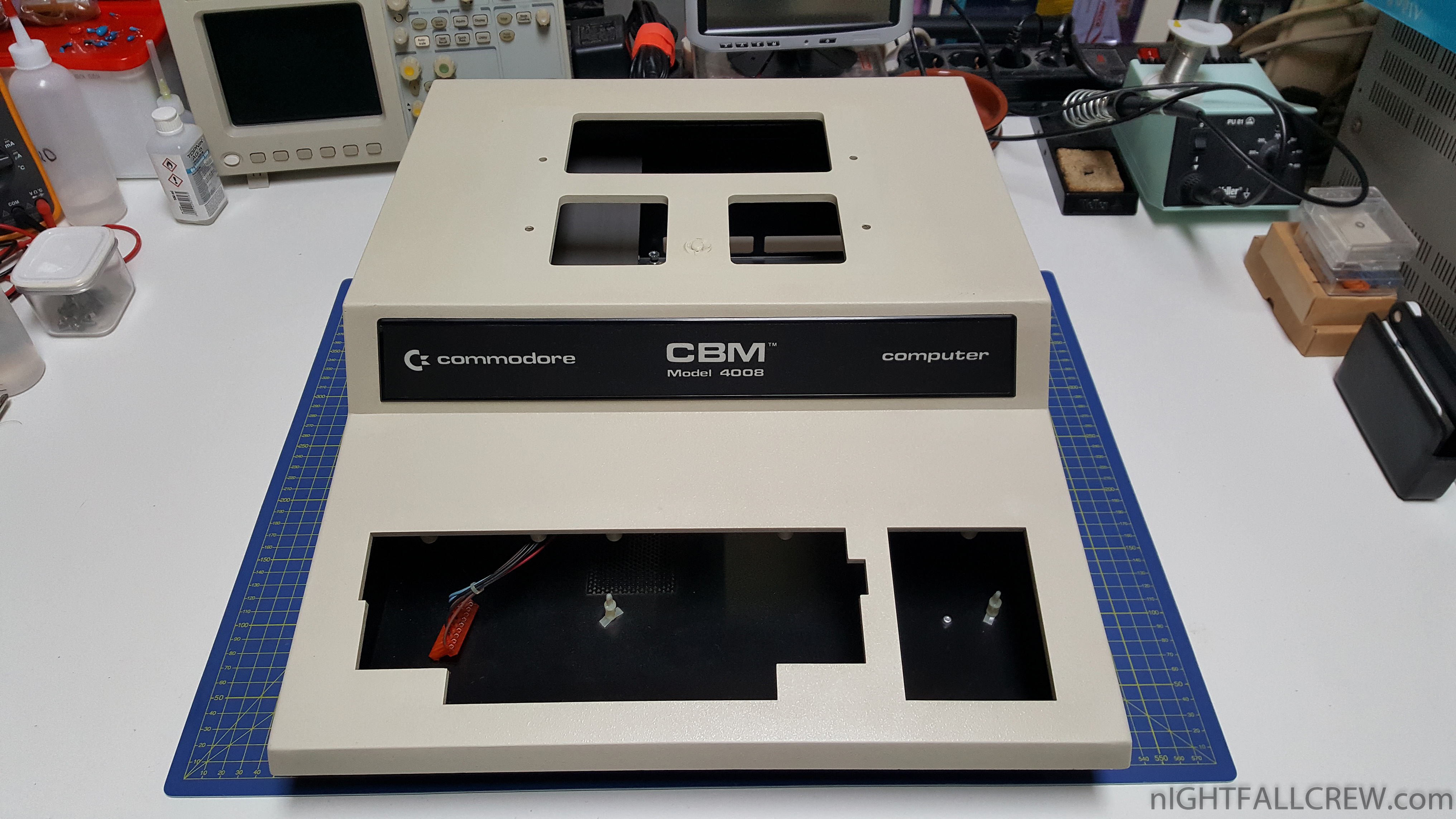

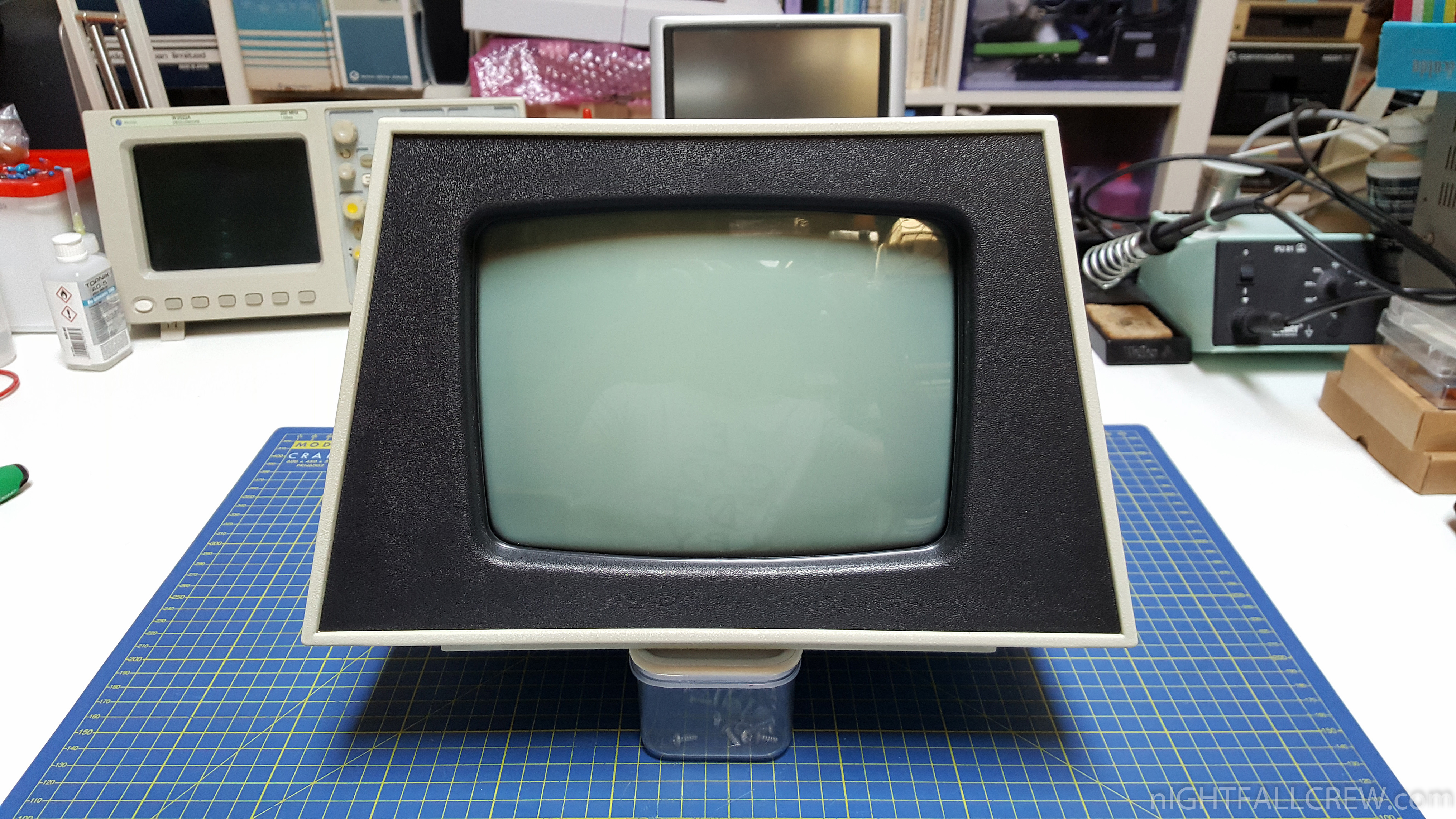

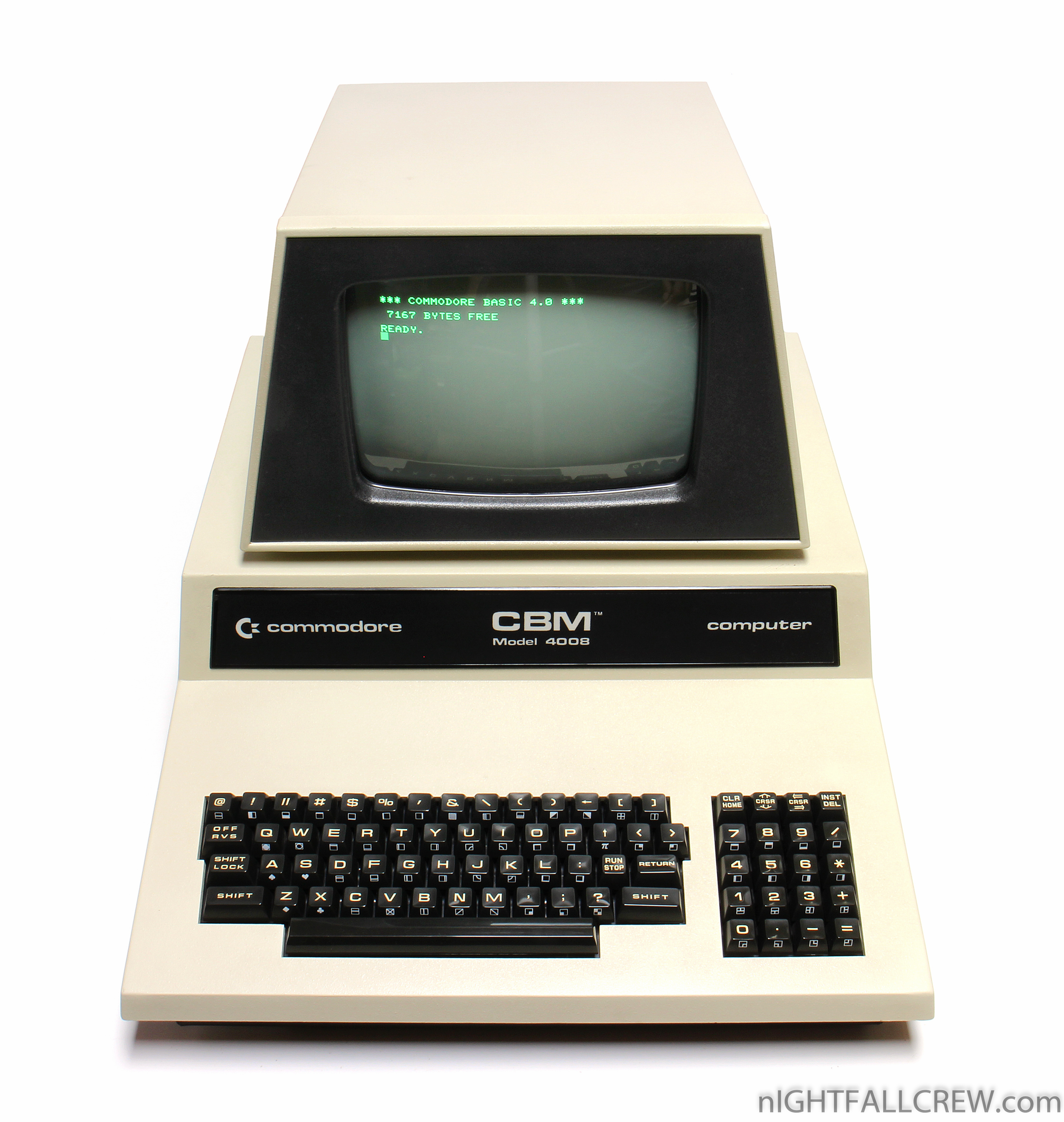

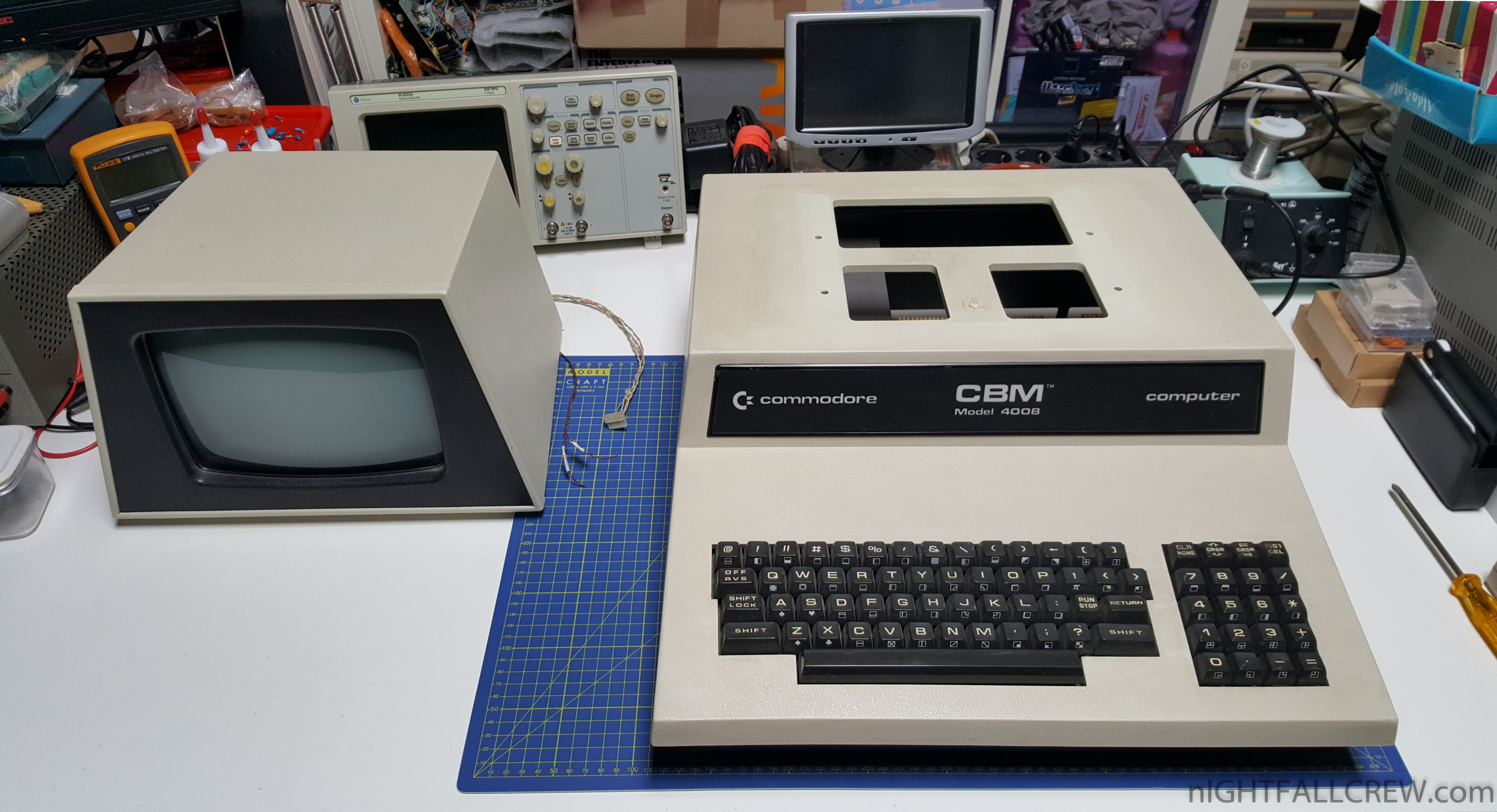

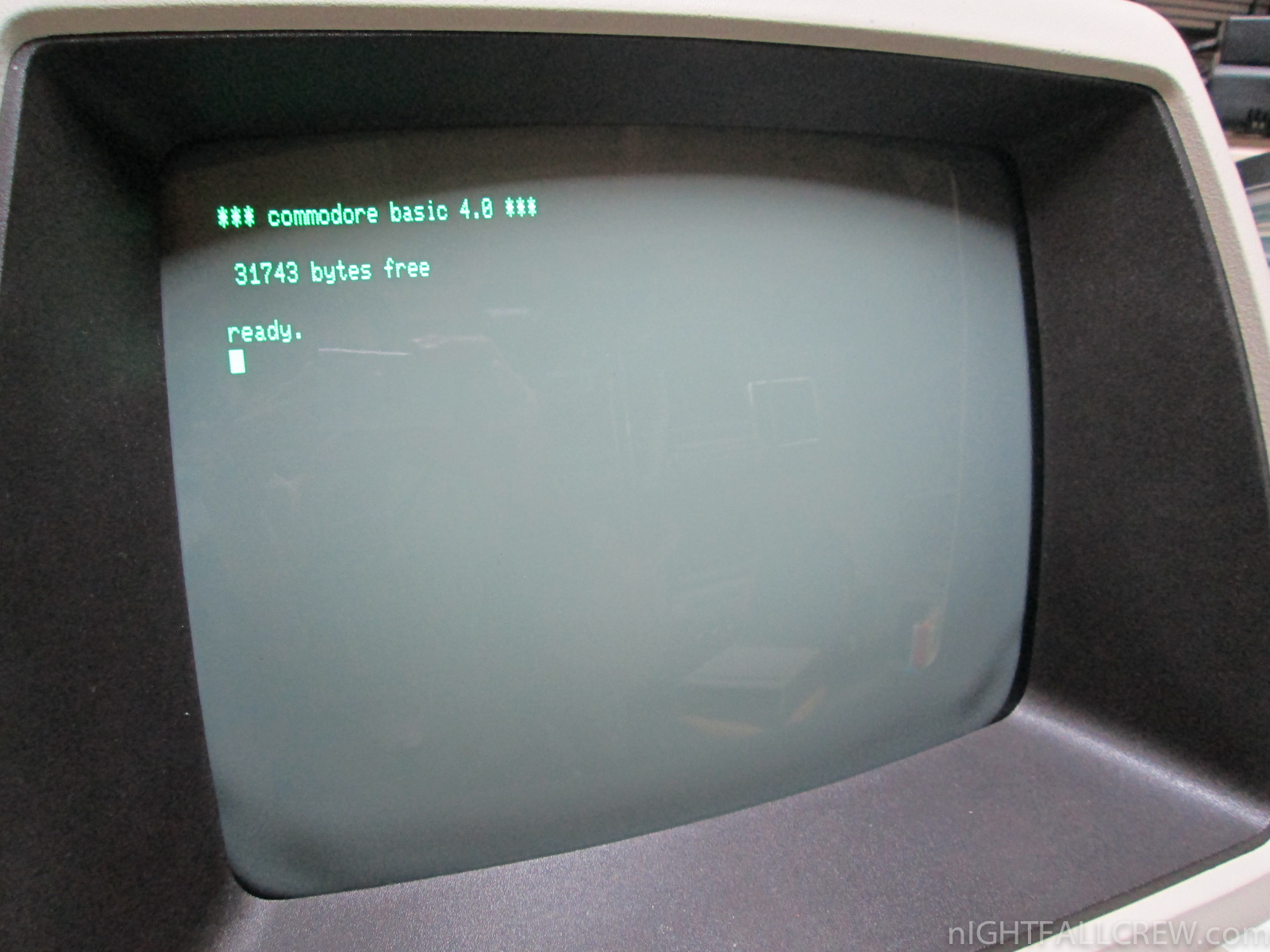

Commodore CBM 4008

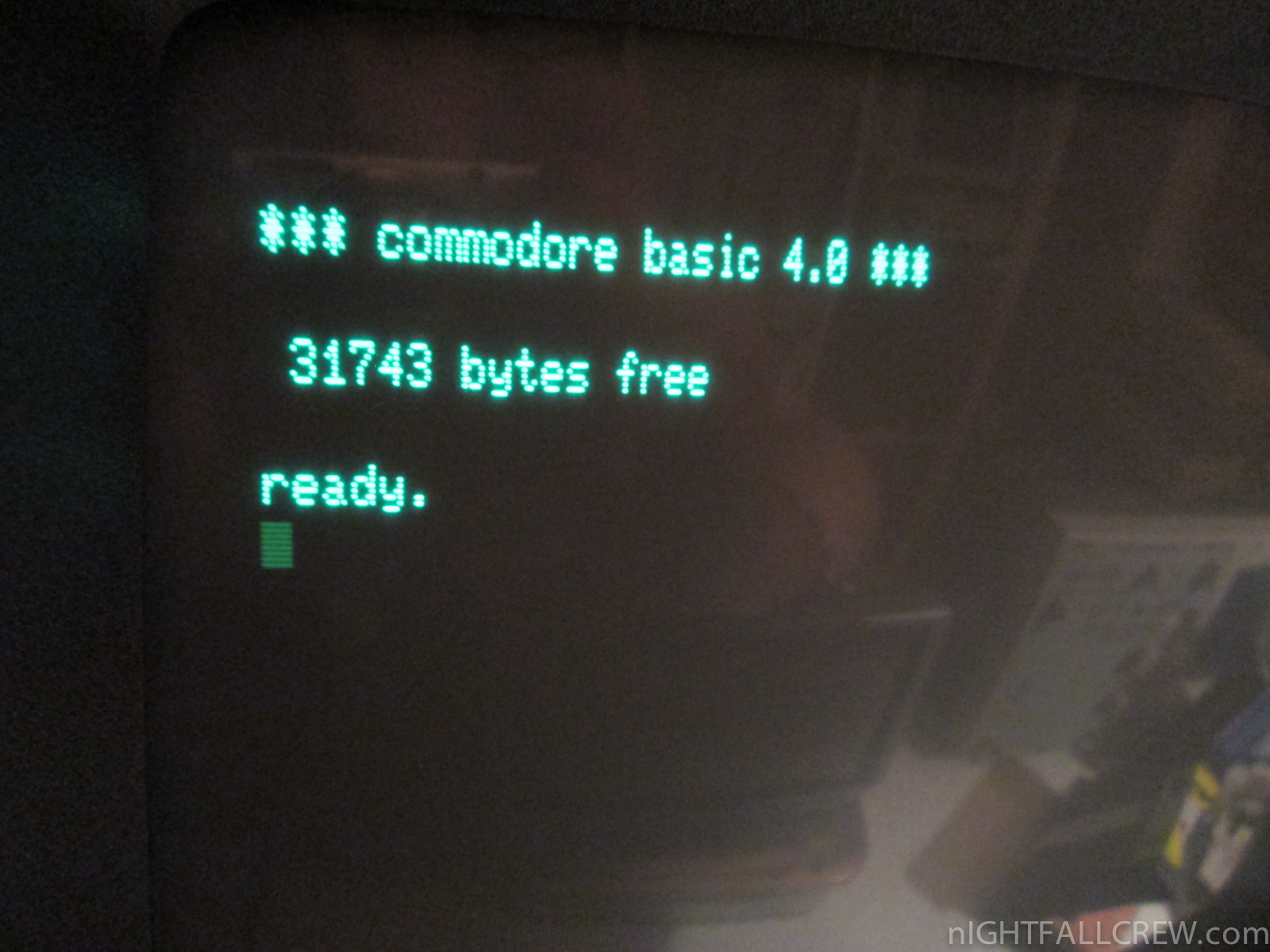

The Commodore PET 4000 series features Basic 4.0 as a standard feature, along with more memory and a lower price that made them attractive to schools.

Elementary, Middle, and High Schools all over Canada and the United States were filled with these impressive lumbering beasts. Introducing children far and wide to the wonders of BASIC programming. Another lesson taught was the importance of patience, since many schools provided only a tape datasette for loading and saving work.

Like the other models of PET, the 4000 series includes dual datasette ports, though only one is exposed to the outside of the casing. A standard IEEE-488 interface in the back allows the PET to connect to the numerous (and heavy) disk drives and printers being produced by Commodore and other manufacturers.

The PET also has a fully programmable bi-directional parallel interface called the “User” port, which allows the PET to connect and control almost any device one could dream up! The greatest feature, however, is the friendly READY prompt, and the well-laid out keyboard with graphic characters only a keypress away! Pictured here is the PET 4016.

Interestingly, although Commodore provided 8, 16, and 32k versions of their PET 2001 and 3001 series, they had a hard time getting people to purchase higher memory versions as an upgrade. It seemed that people were soldering in their own memory chips onto PET 2001 and 3001 8k and 16k models to upgrade them to 32k. To help prevent this, Commodore sold many PET 4008 and PET 4016 models with the empty memory sockets punched out and destroyed! This encouraged those who wanted more memory to upgrade to the 4032 instead of doing it themselves.

Gallery:

source: zimmers.net

Commodore PET 2001-8C (Chiclet): Brothers of the same father

August 25th, 2014 No comments

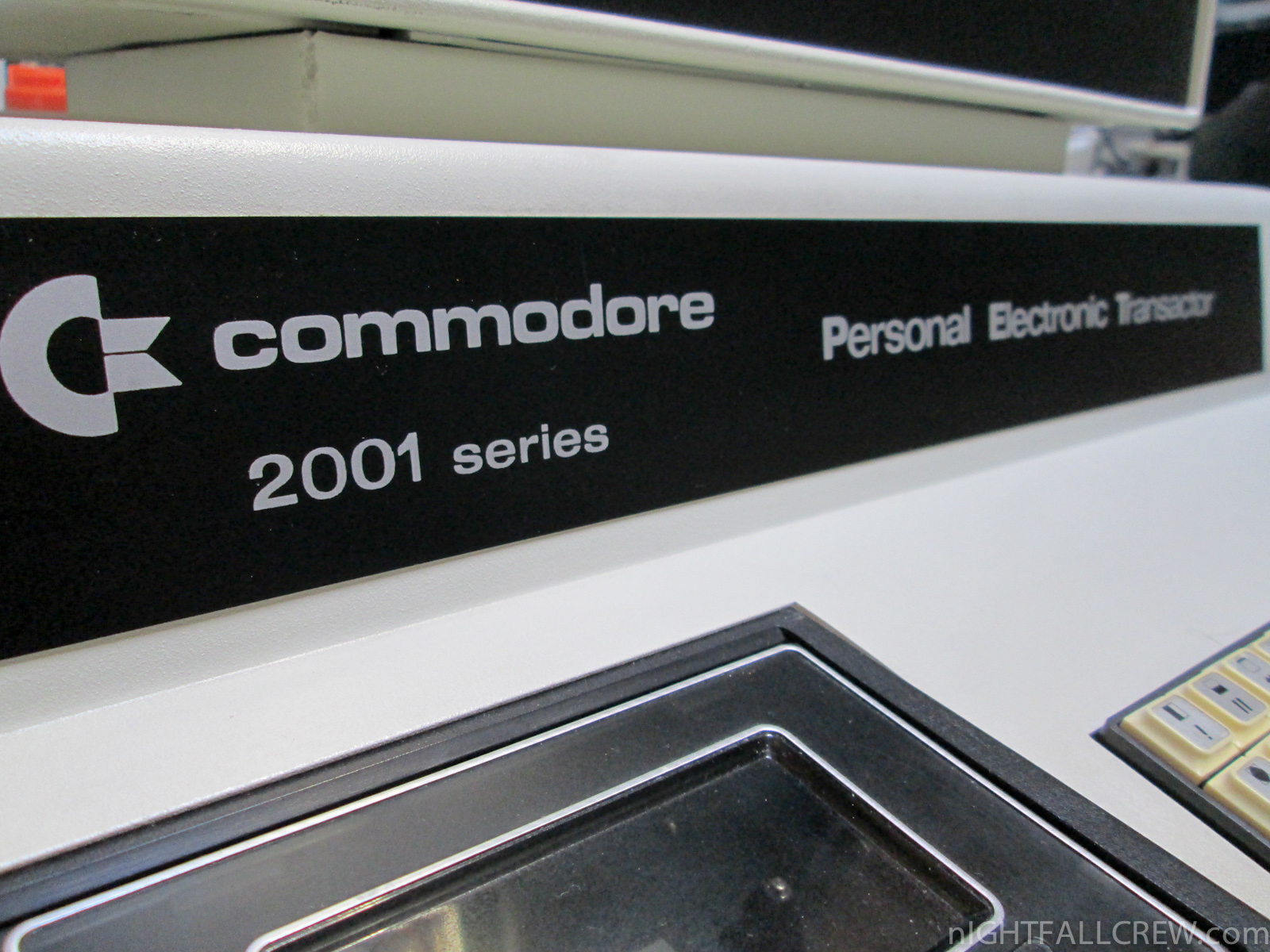

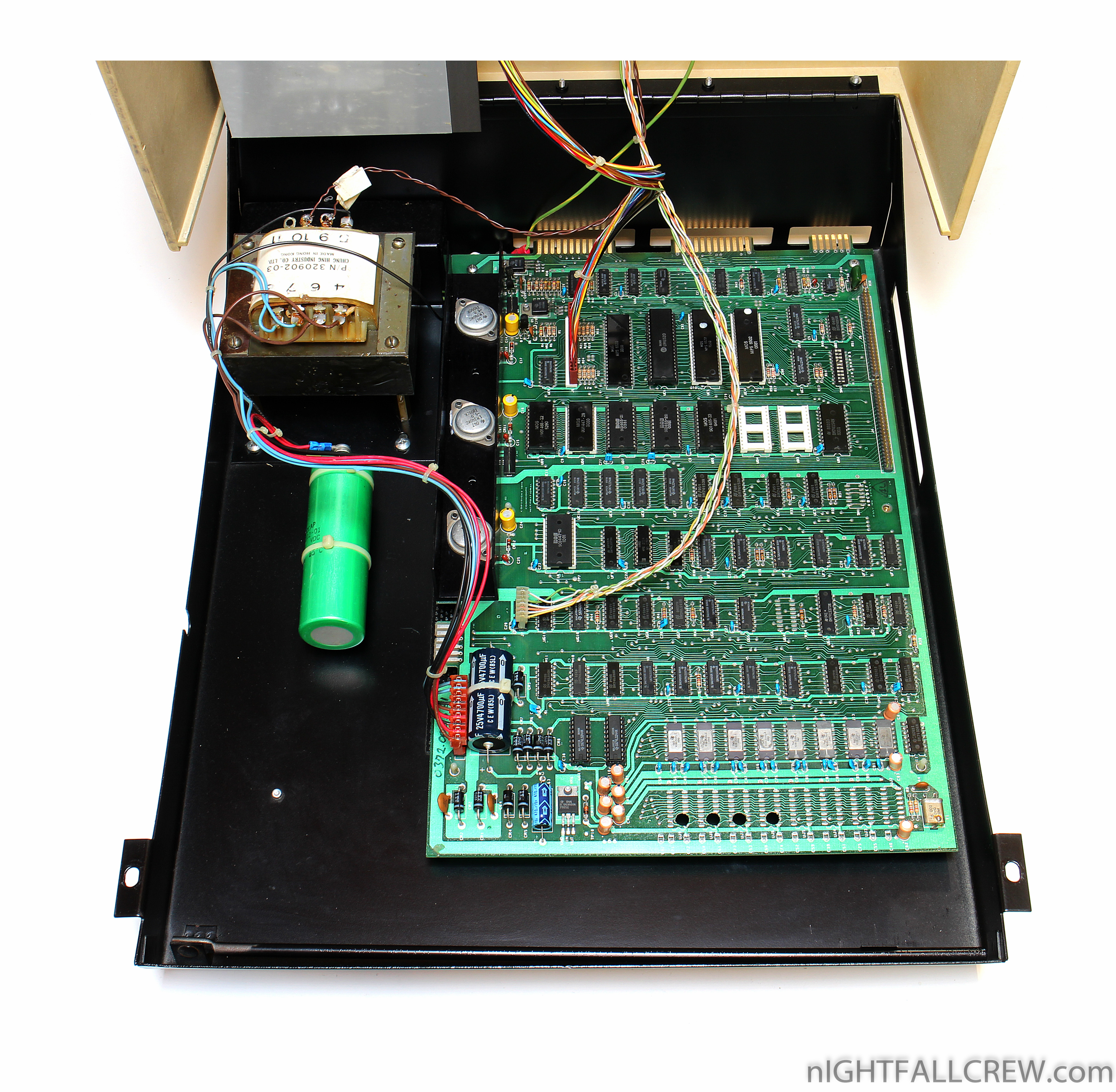

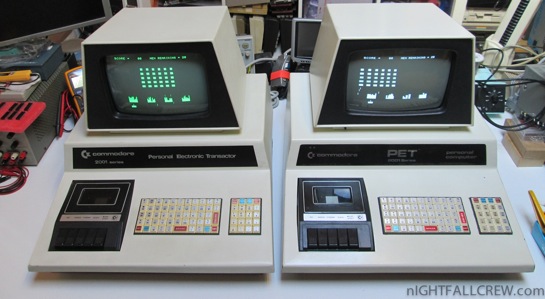

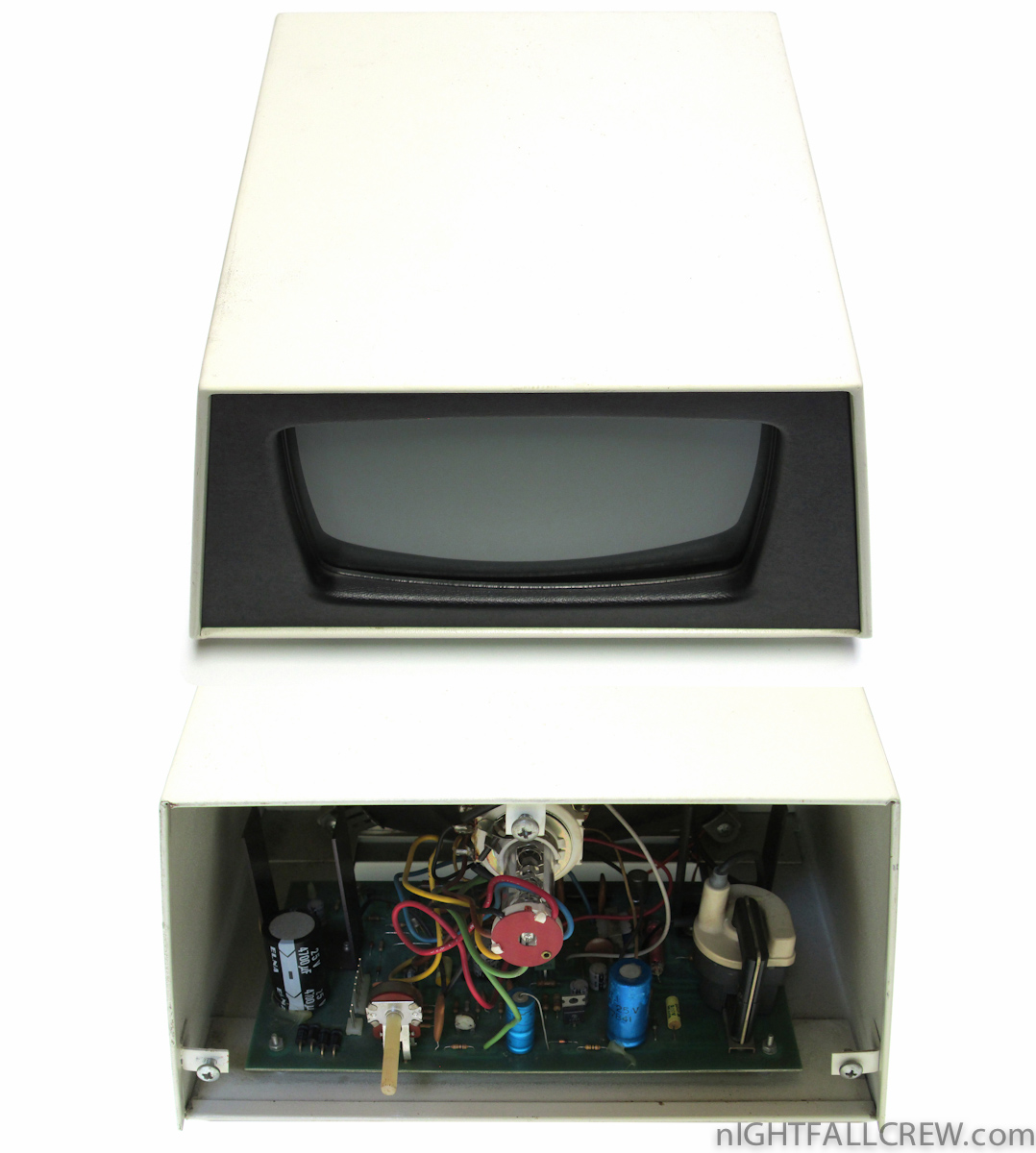

These are my two Commodore PET 2001-8C (Chiclet). They are two different models, below i will list the differences.

On the left:

  • Different front Label.
  • PET Motherboard ASSY 320132
  • Different Copyright Label on motherboard (1978)
  • Uses the 2114 ram ic for the Main memory and for the Video ram.
  • CRT tube with green phosphor.

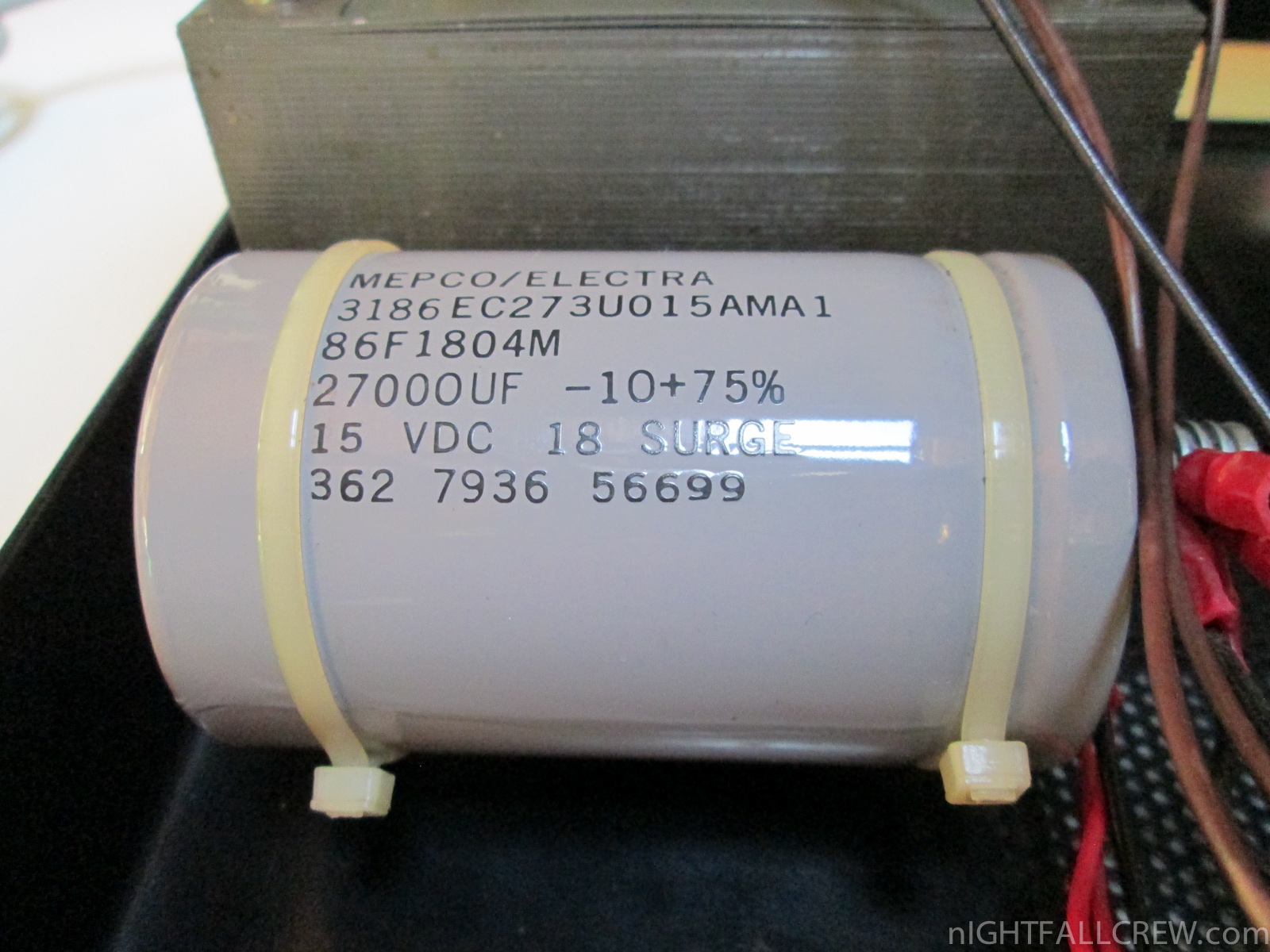

  • The transformer, the big electrolytic capacitor and the power connector are different.
  • Datassette Motherboard ASSY 320275-B (1978)

On the right:

  • Different front Label.
  • Motherboard ASSY 320008
  • Different Copyright Label on motherboard (1977)
  • Uses the MOS 6550 ram ic for the Main memory and for the Video ram.
  • CRT tube with white phosphor.
  • The transformer, the big electrolytic capacitor and the power connector are different.
  • Datassette Motherboard ASSY 320109.E (1977)

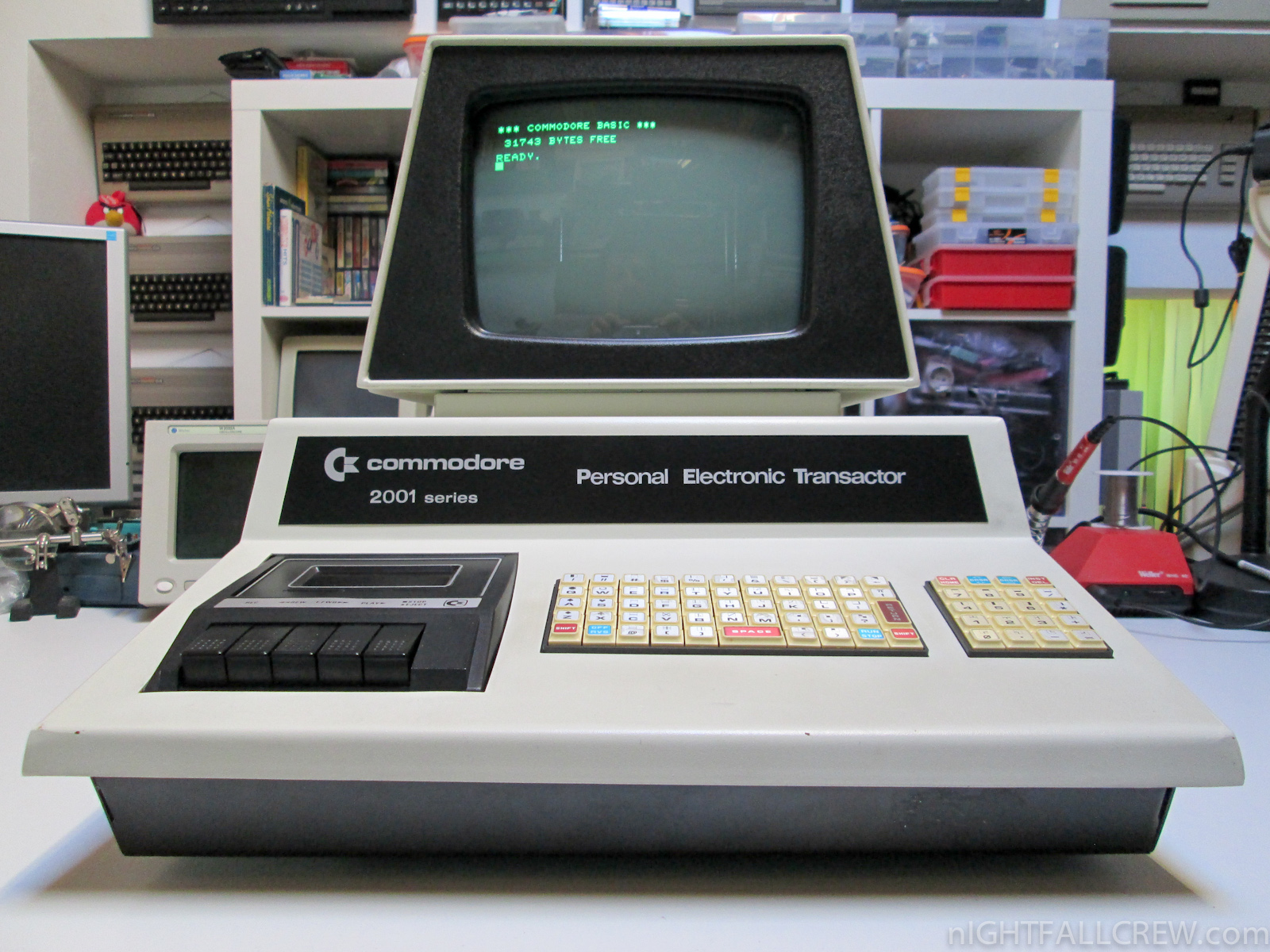

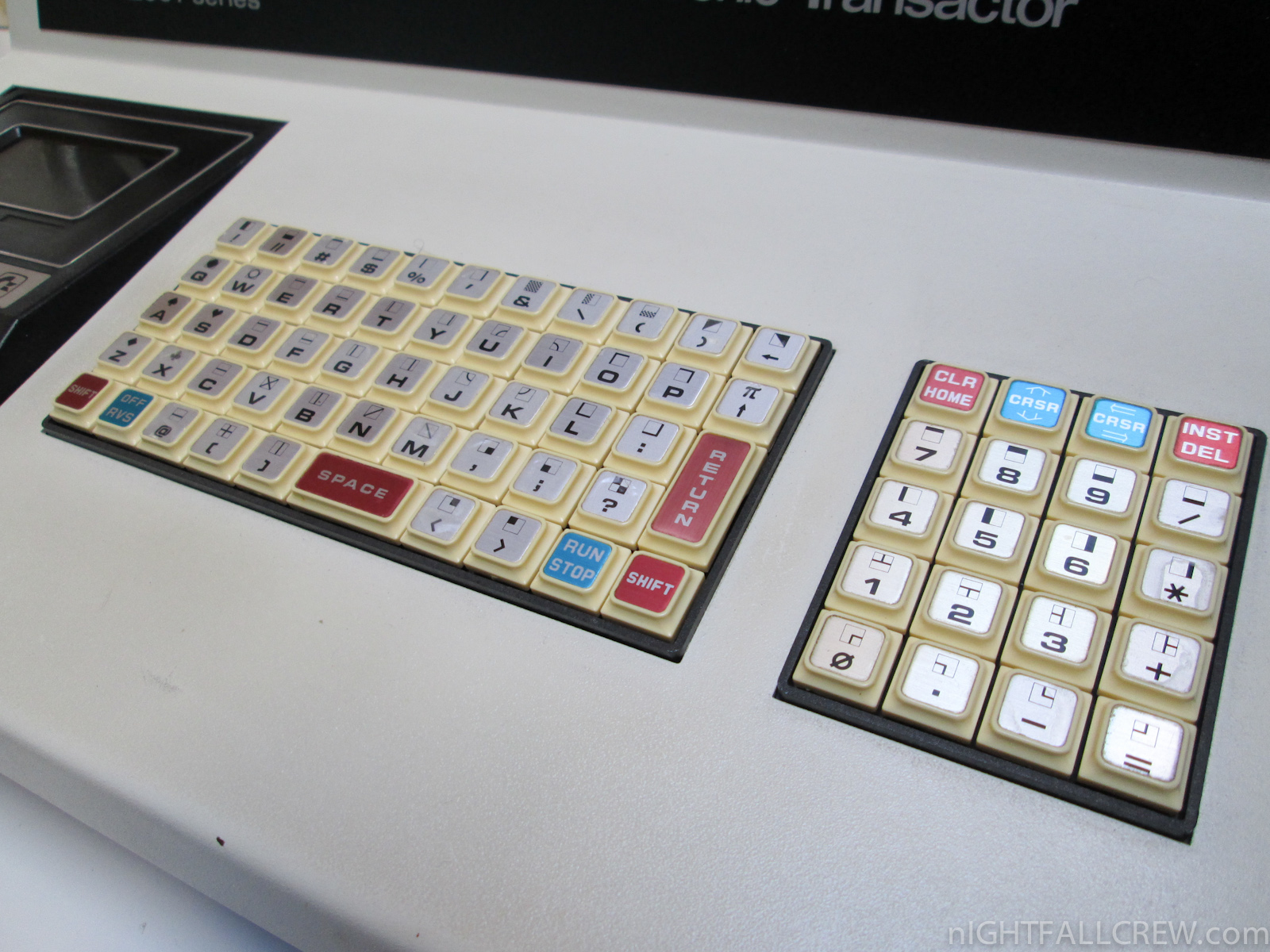

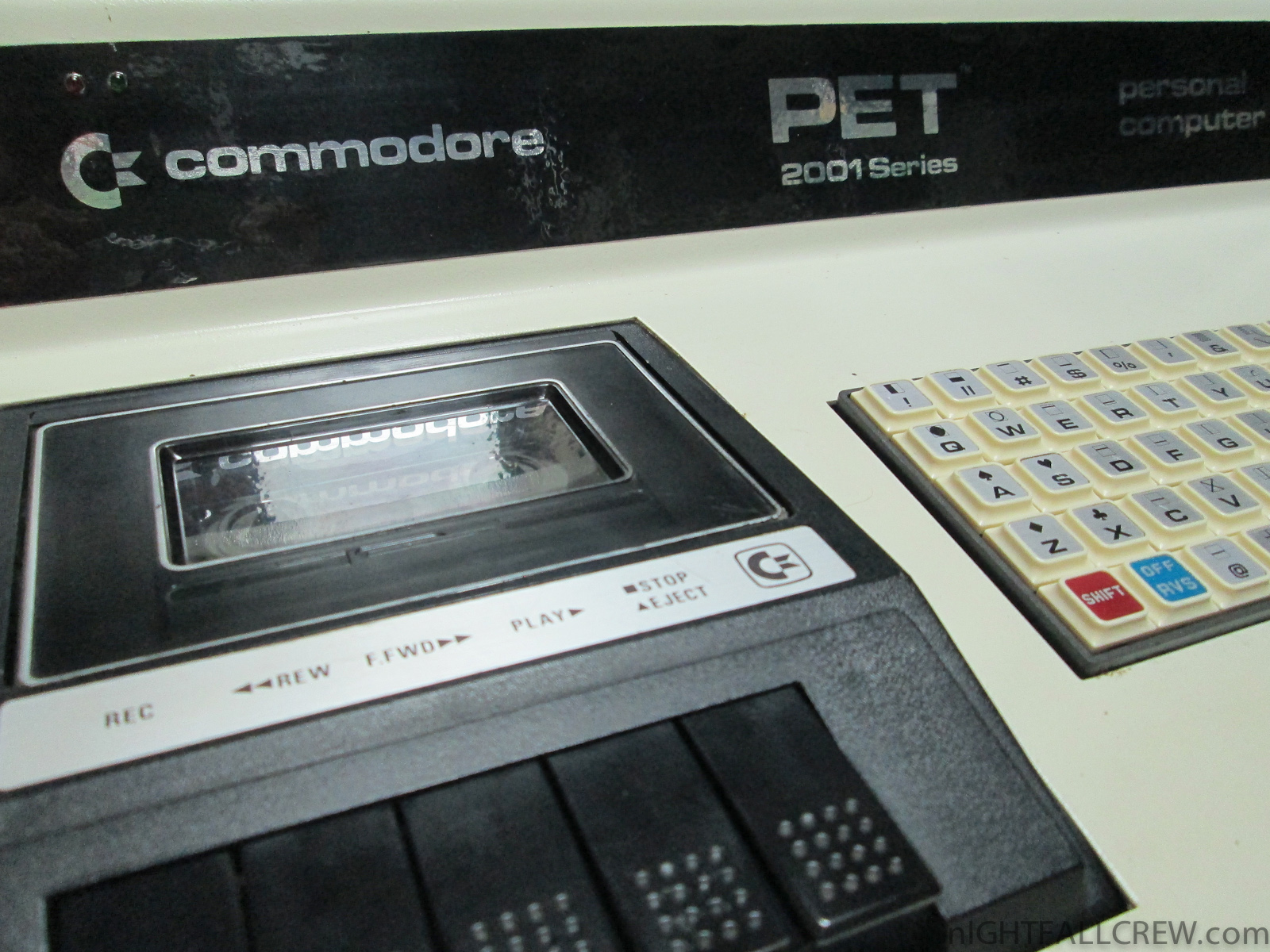

Commodore PET 2001-8C (Chiclet Keyboard) MOS 6550 Ram version

August 24th, 2014 No comments

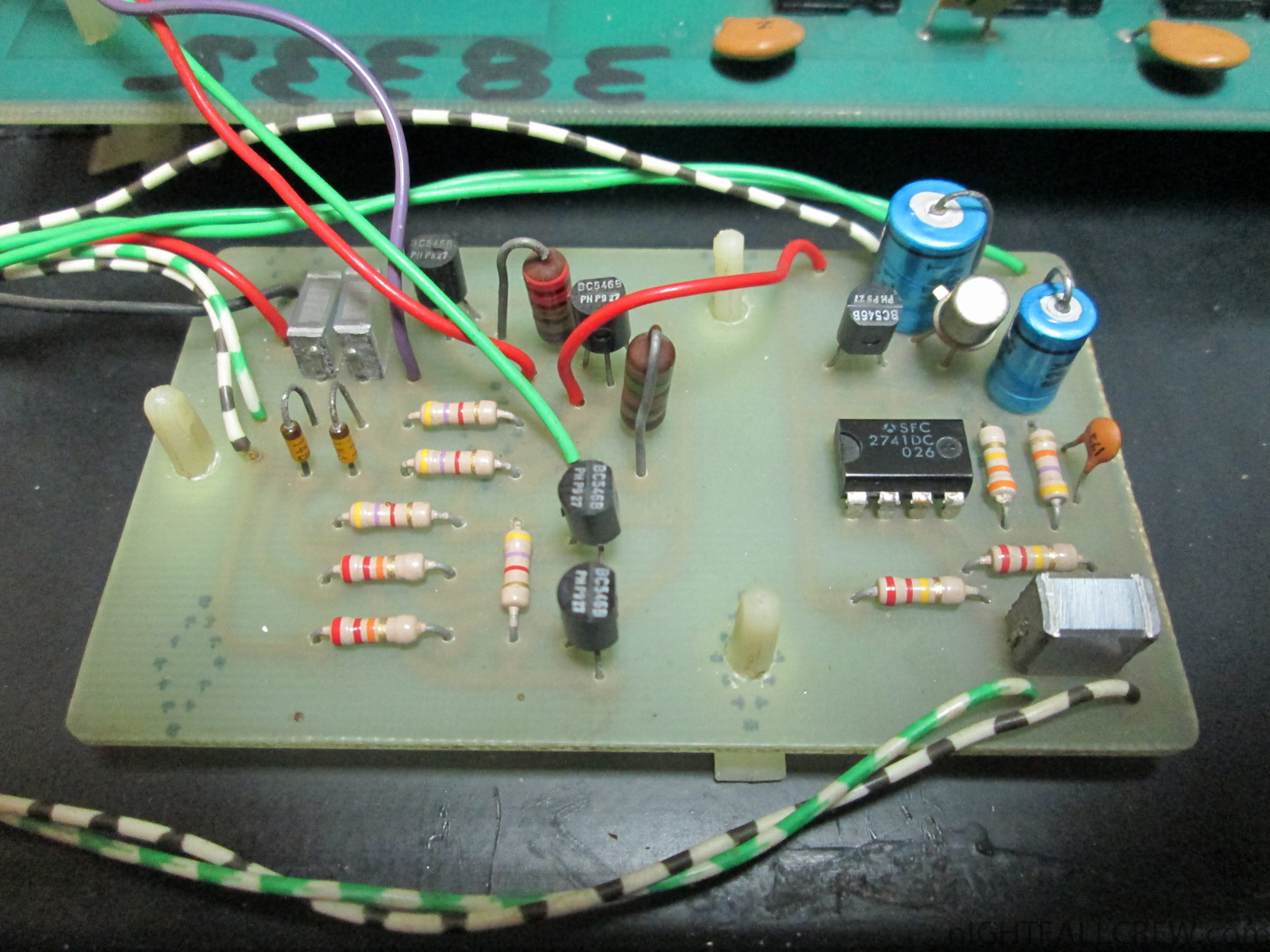

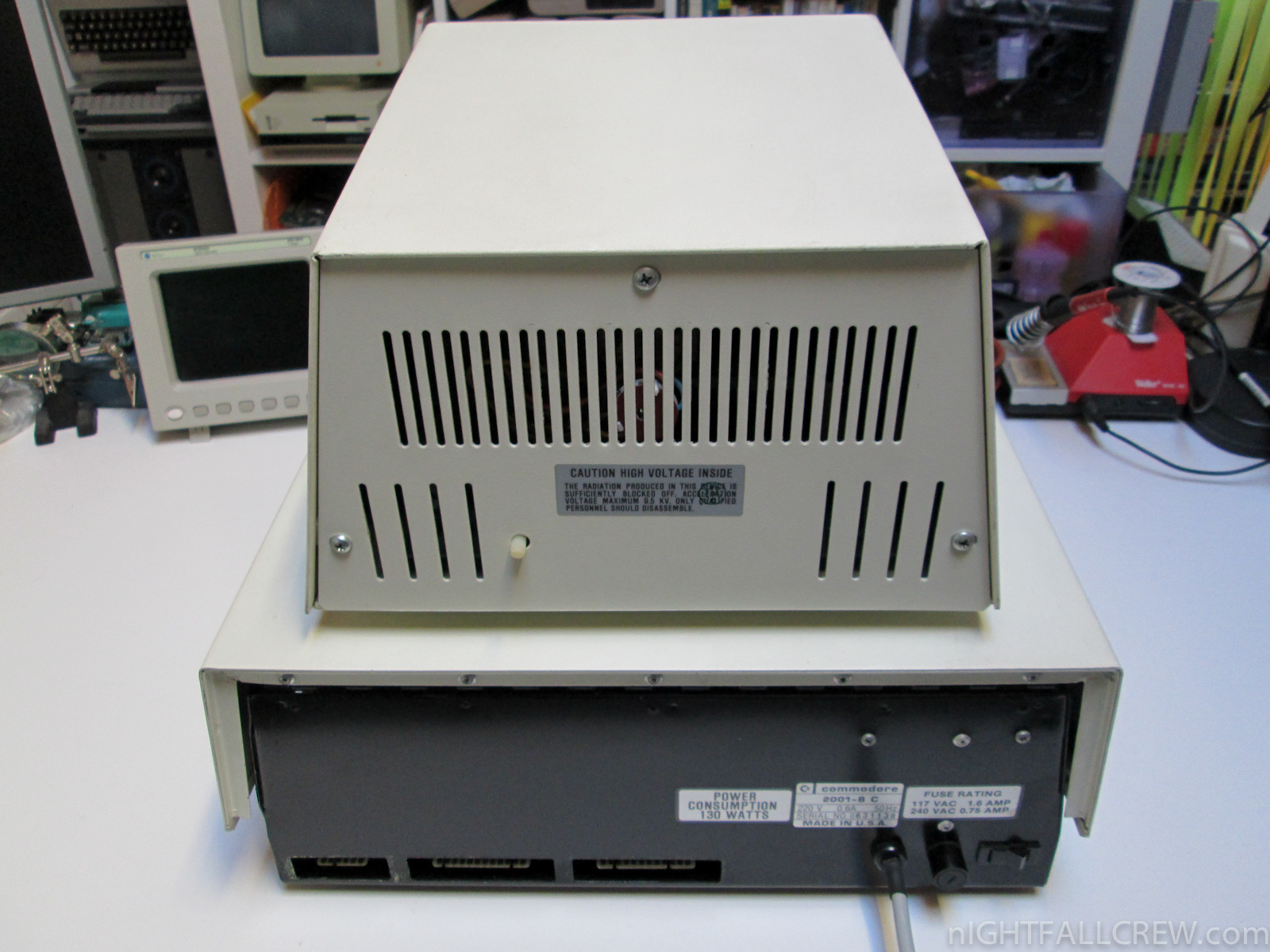

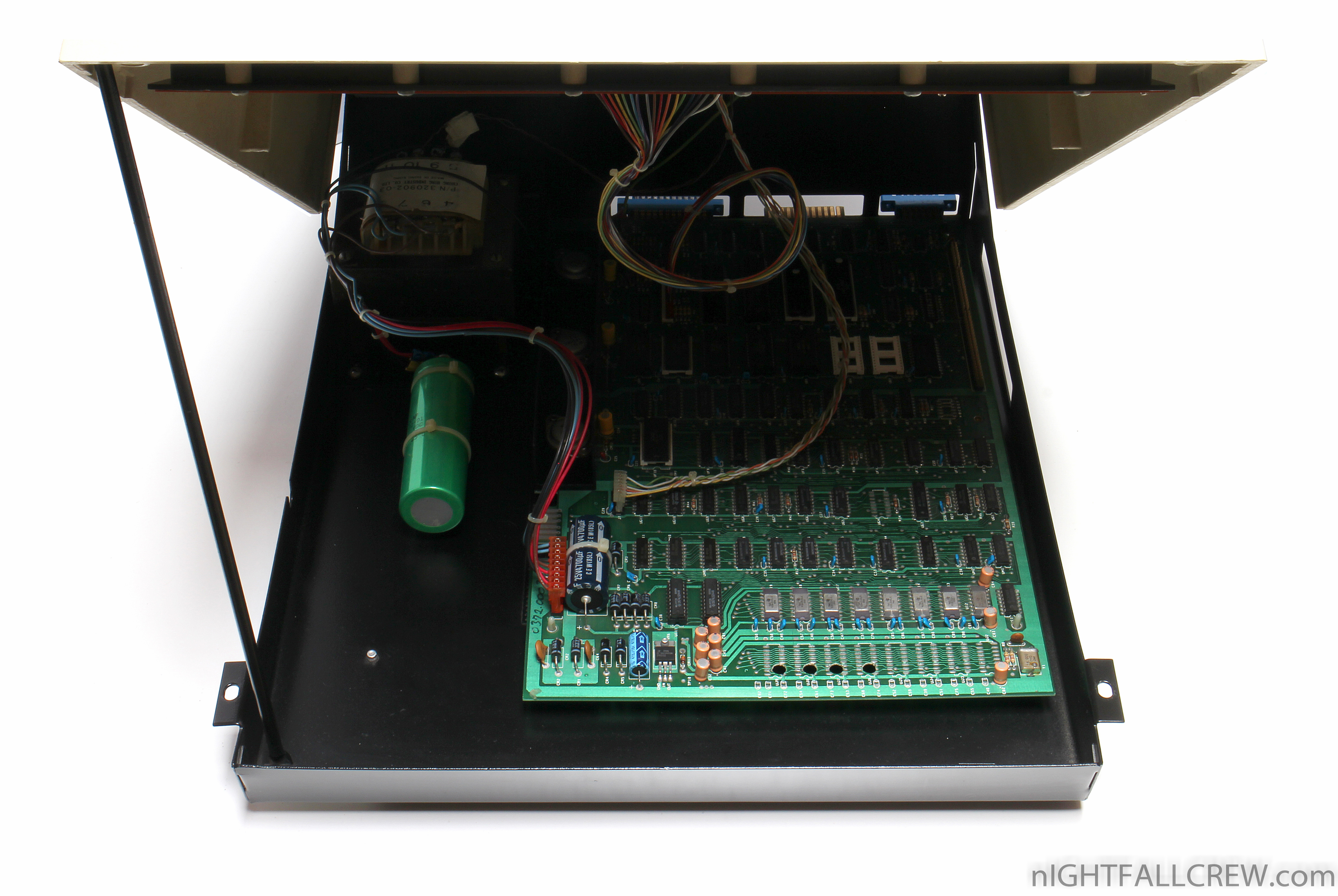

This Commodore PET 2001-8C also includes a homemade Power Amplifier to hear the sound of some games that use the pin CB2 of the User Port as audio output.

Also is included a reset button and two mini-led (Red / Green) that display the data (Save / Load) when using the tape recorder.

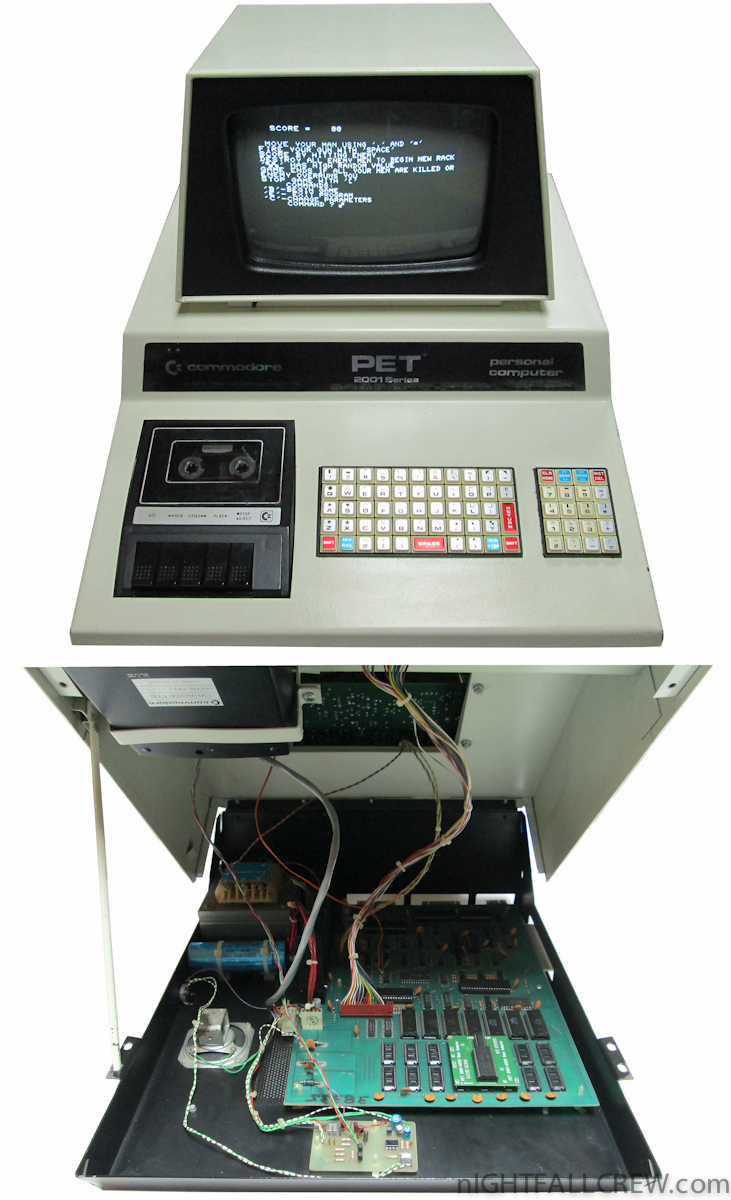

Some photos of the Commodore PET 2001-8C:

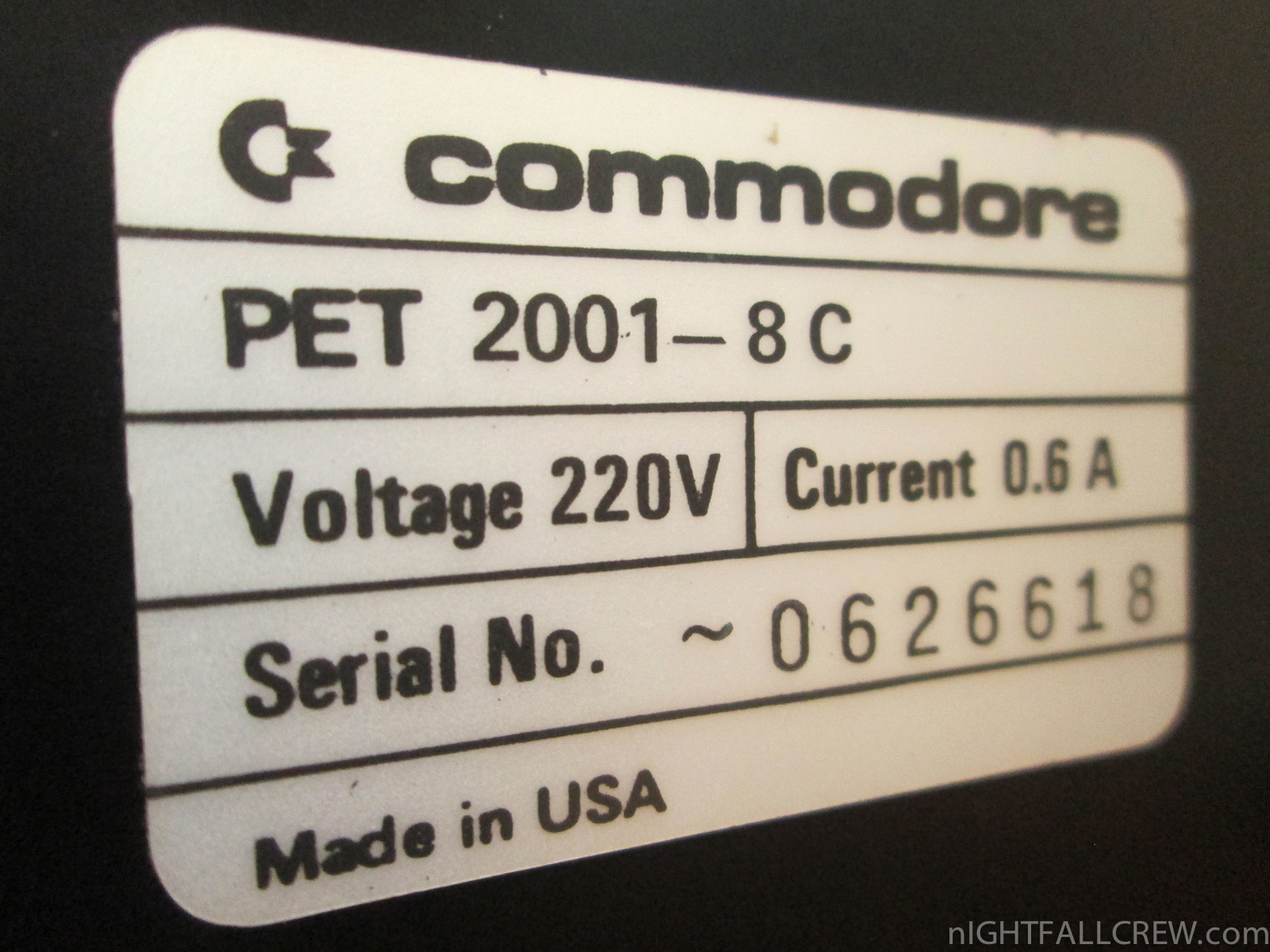

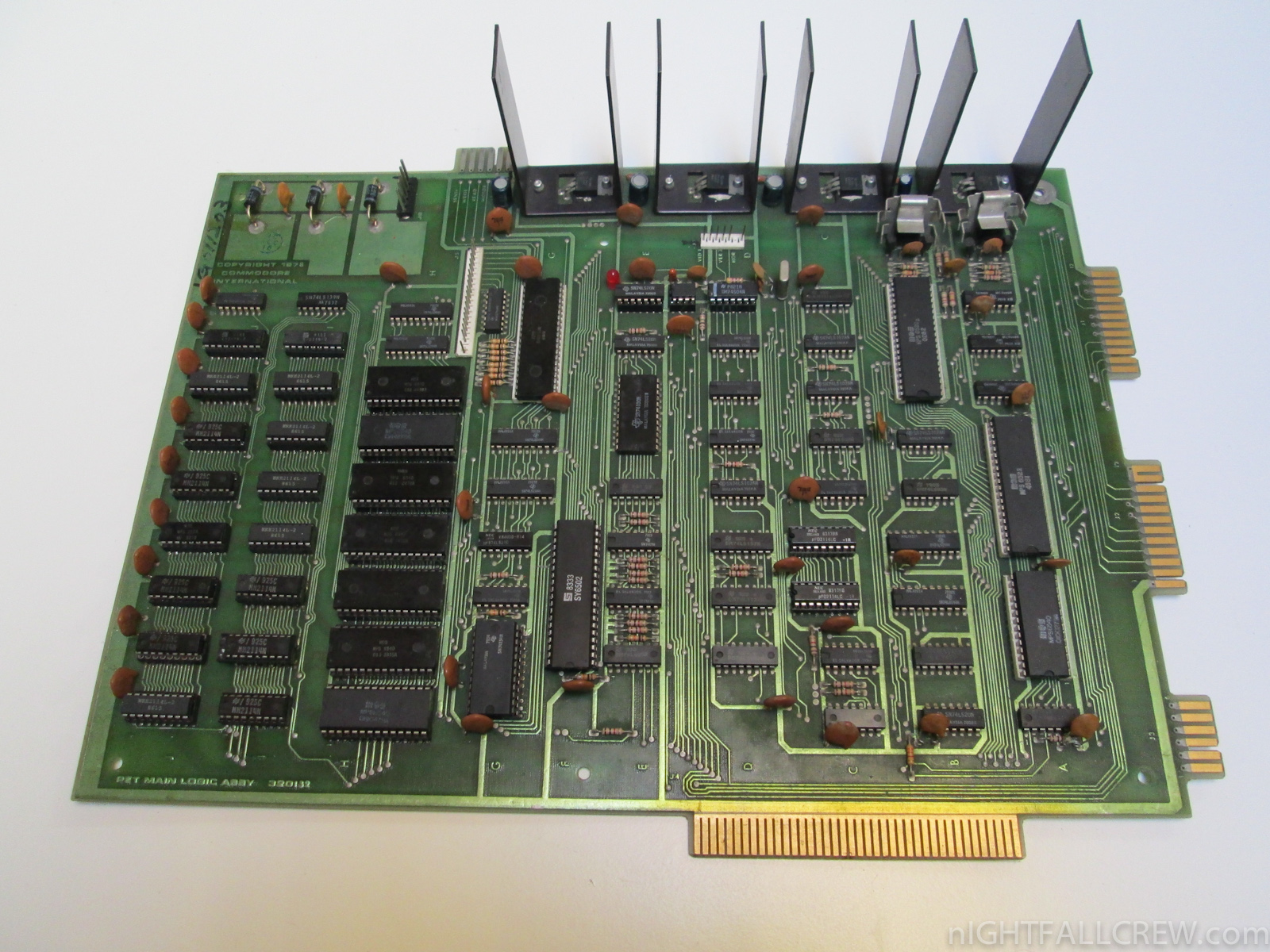

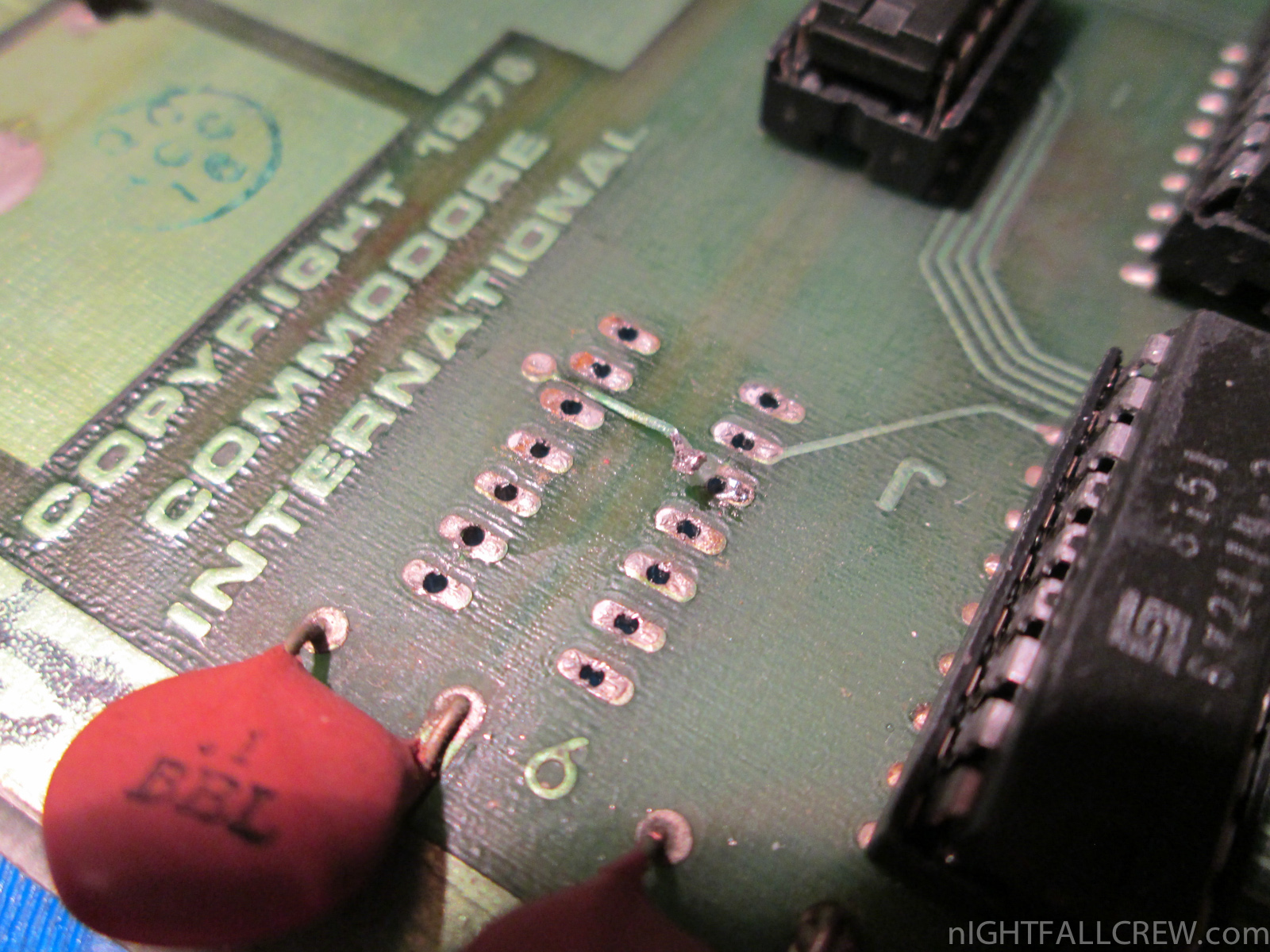

Copyright label on the motherboard:

Some photos of the repairing and cleaning:

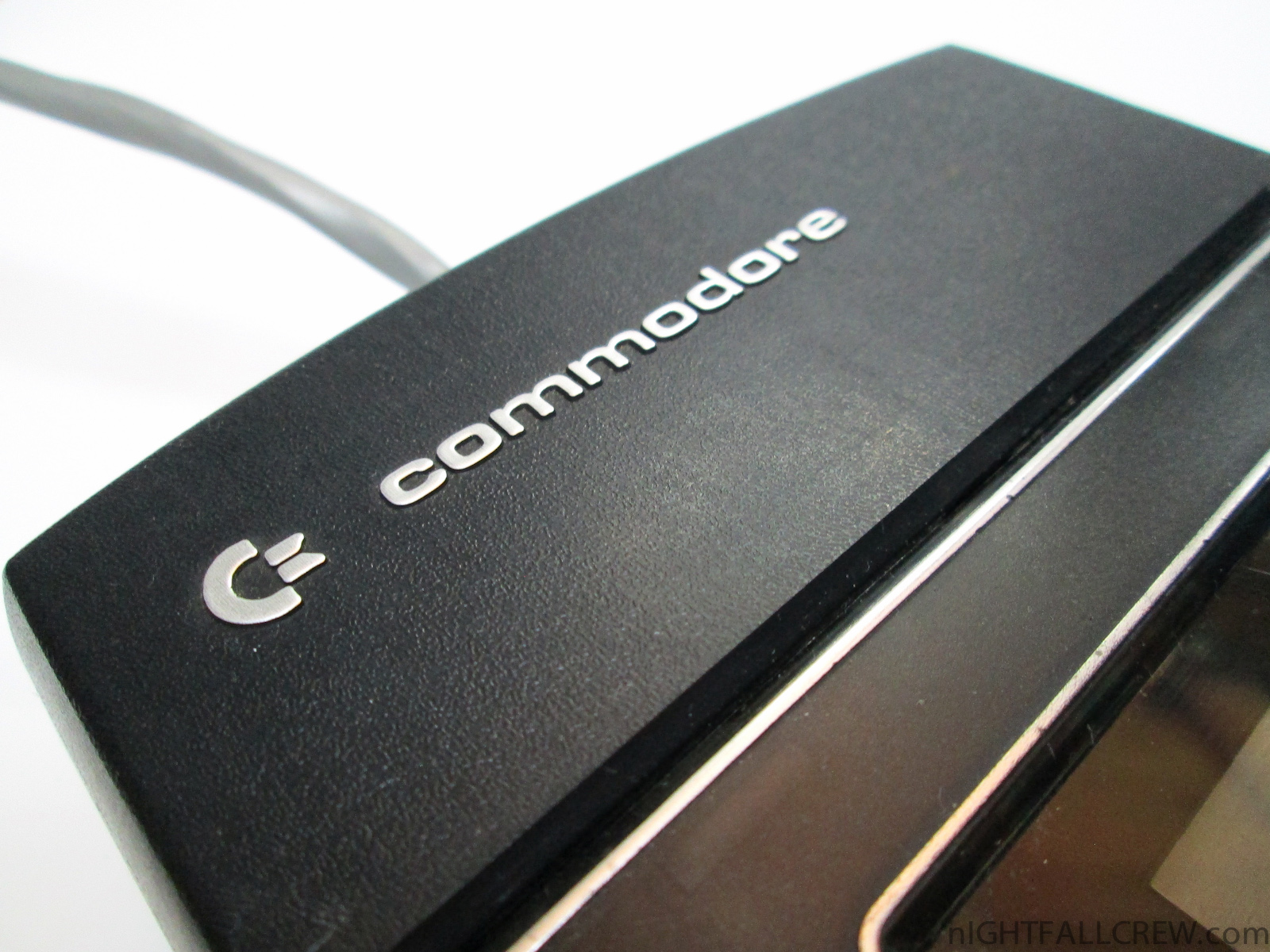

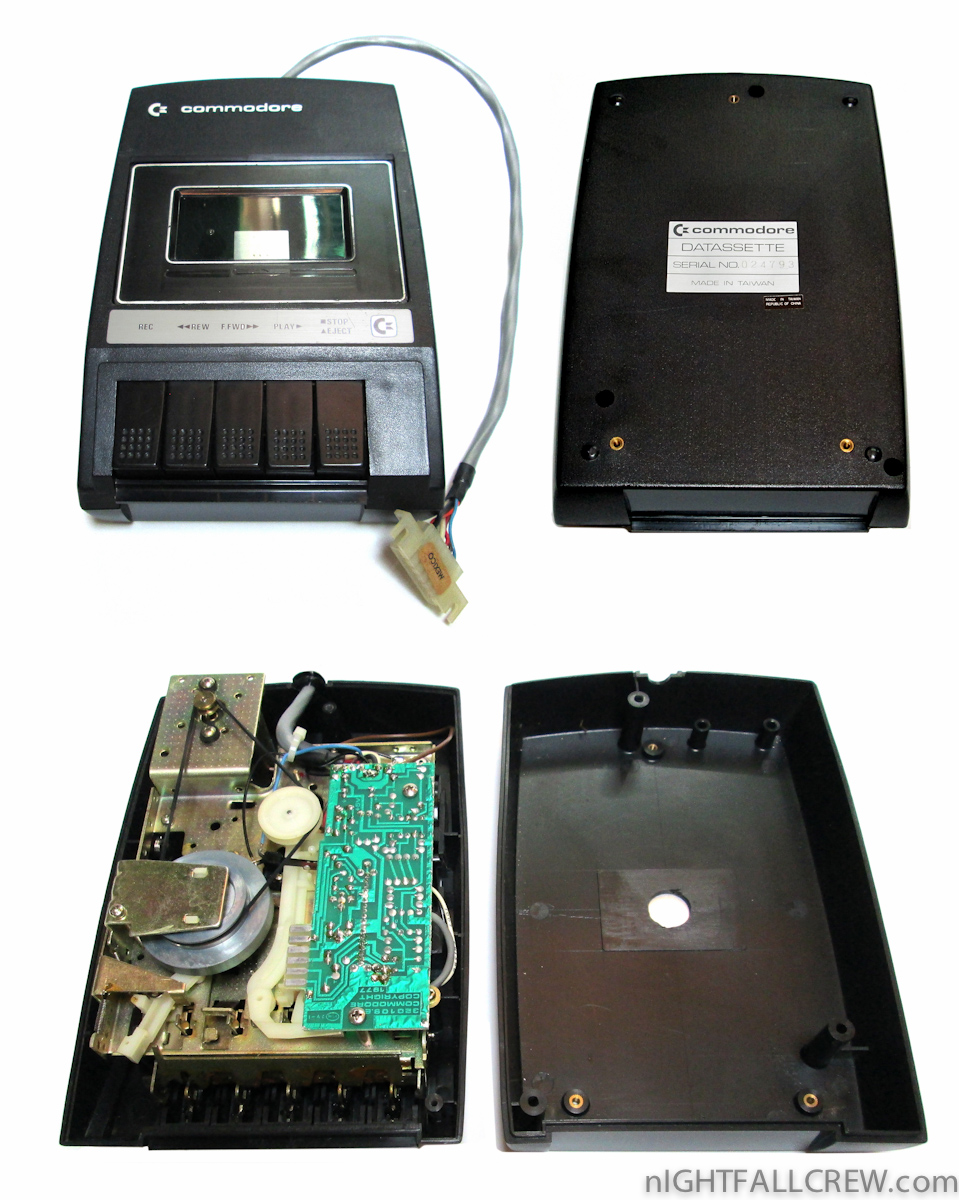

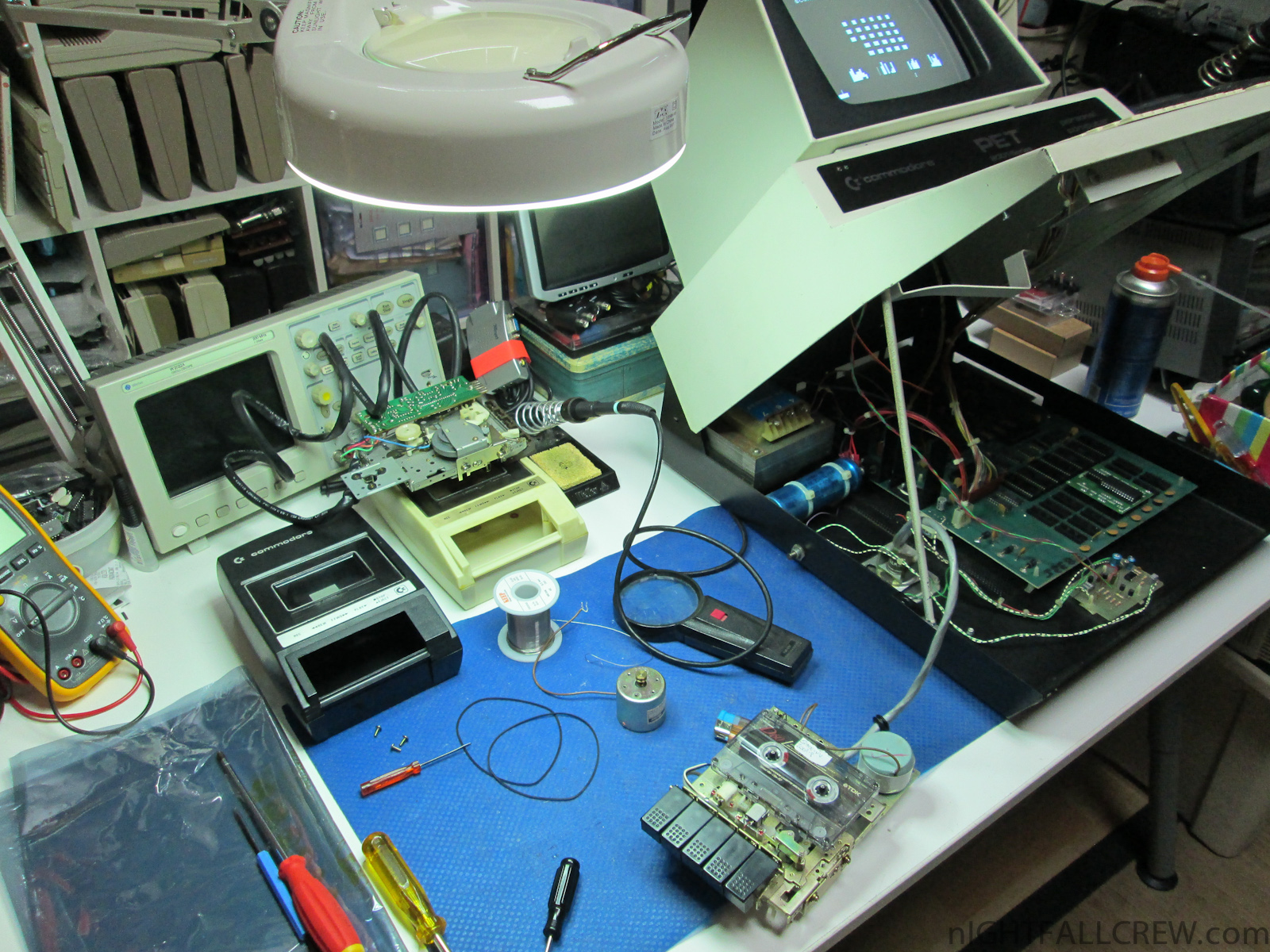

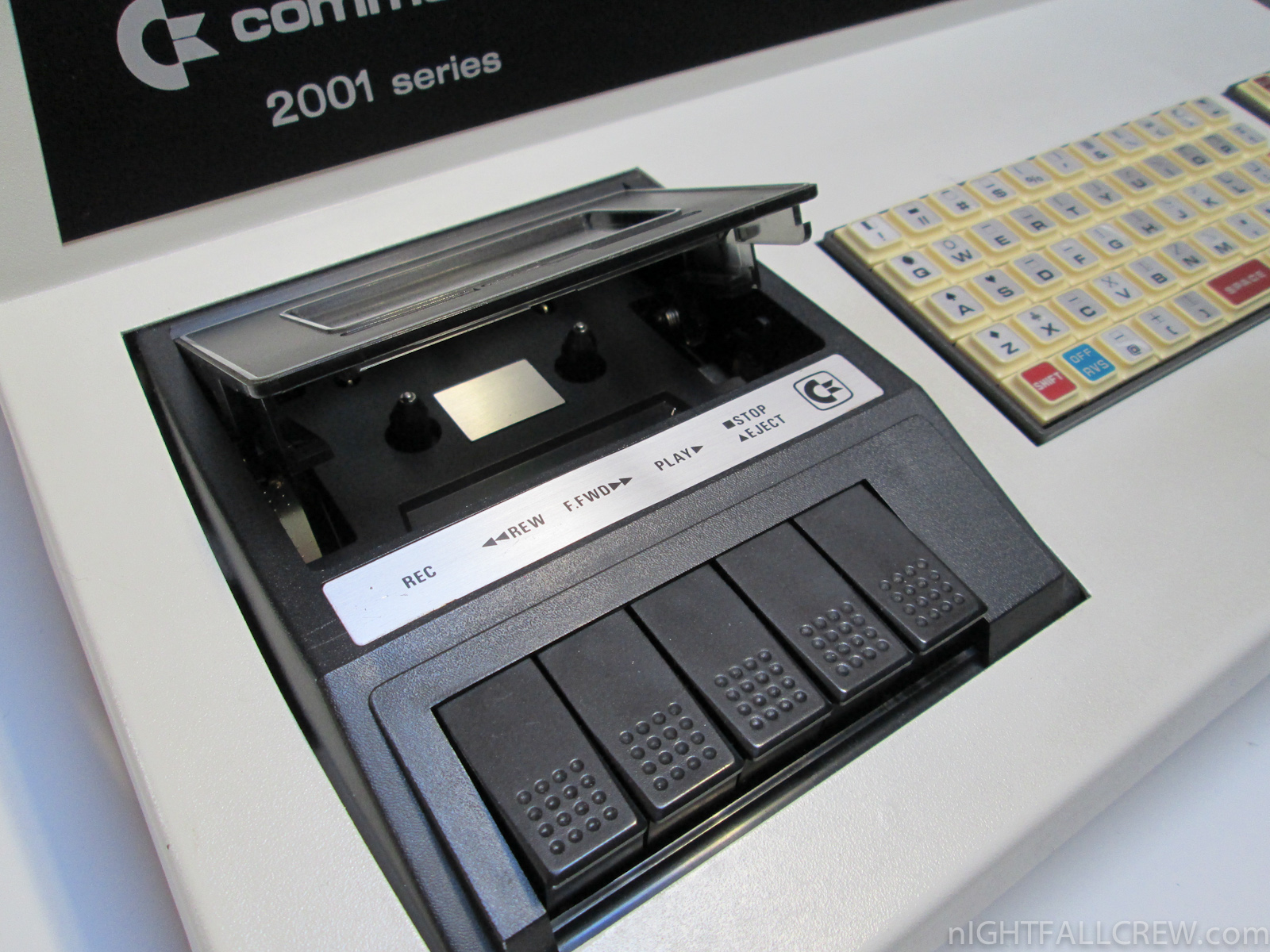

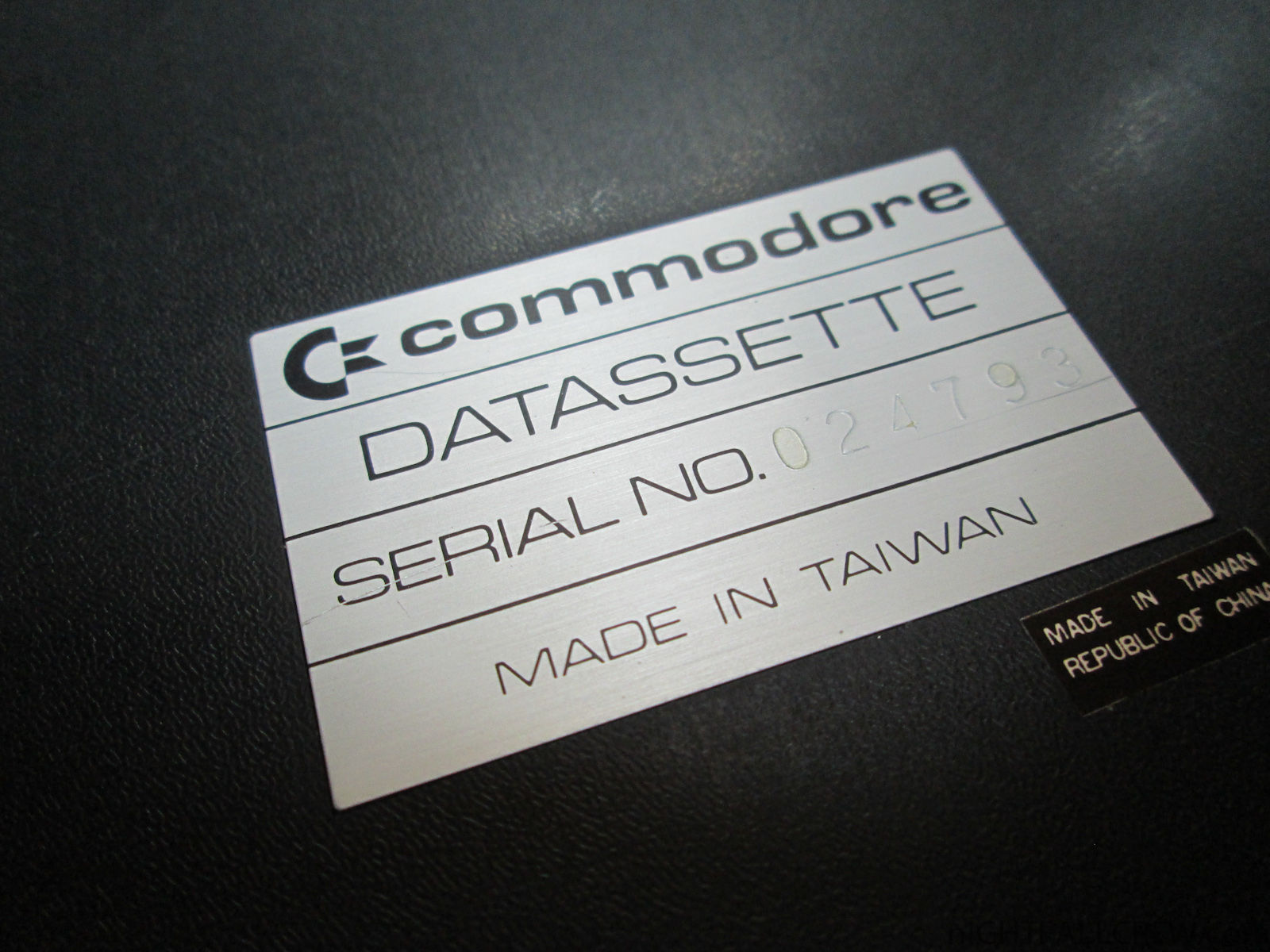

Commodore PET 2001 (Chicklet) Repair datassette.

Defects:

  • Doesn’t load any more.

Repair:

  • Replace motor.
  • Replace belt.
  • Azimuth adjustment.

Thanks to Manosoft for the spare parts (white datassette, the same model of the black one)

Commodore PET 2001 (Chicklet) Repair.

Defects:

  • Wrong chars on the screen.
  • Memory problems.

Repair:

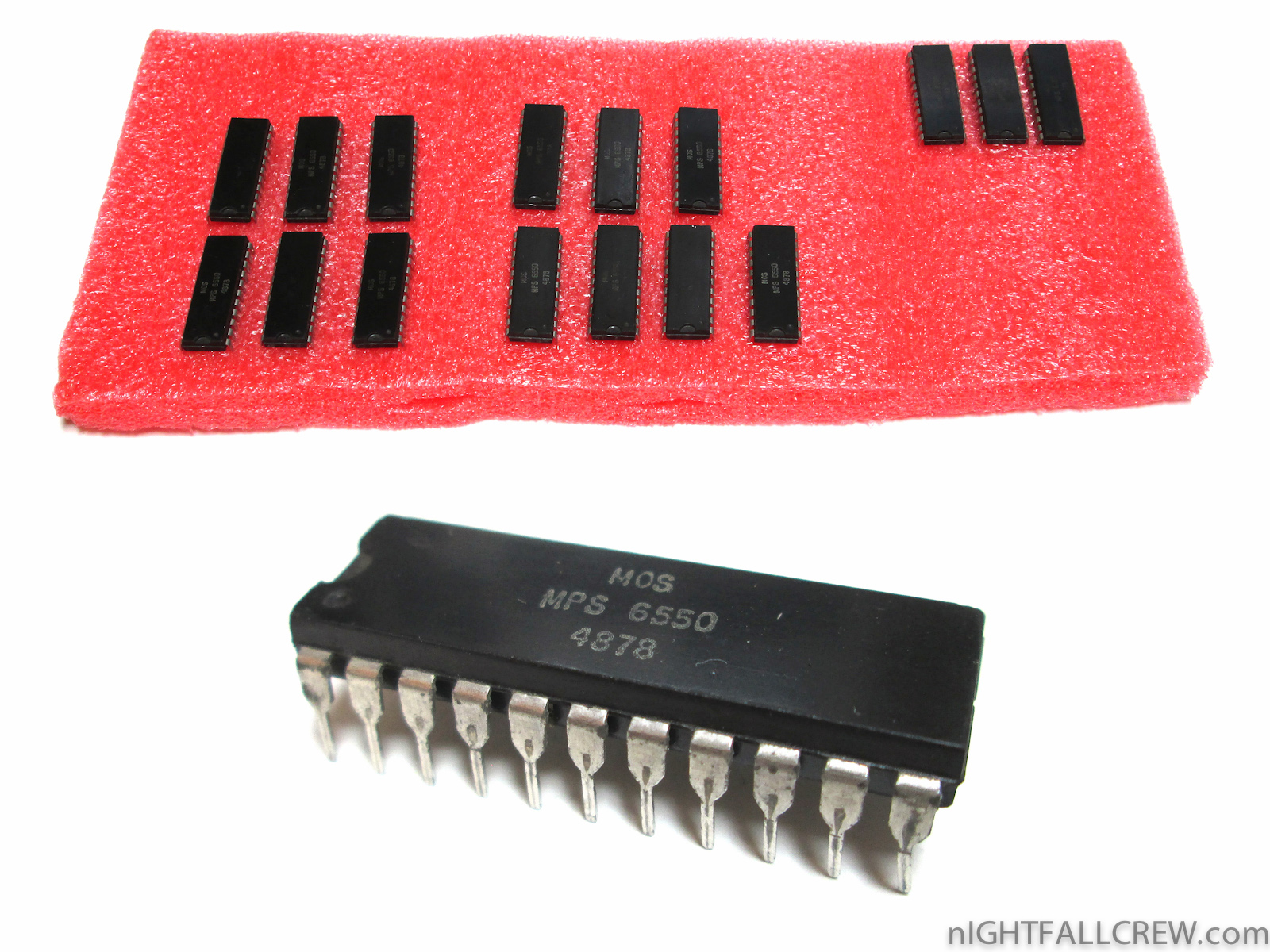

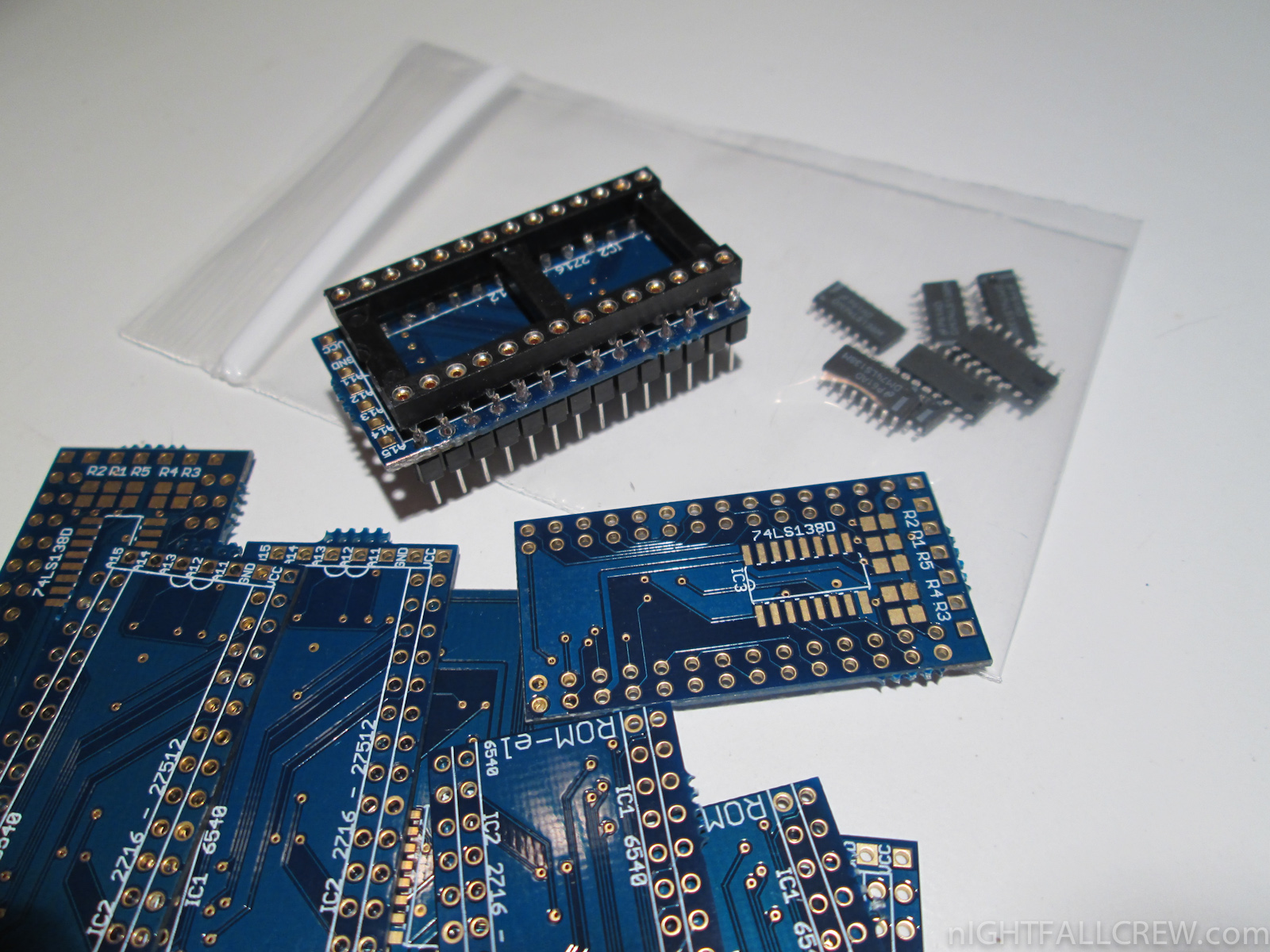

  • Replaced all MOS 6550 main ram with an 6550 Ram Adapter by xAD & Manosoft (only 2 x MOS 6550 was faults)
  • Replaced 1 x MOS 6550 Video Ram with a spare one from the main ram.

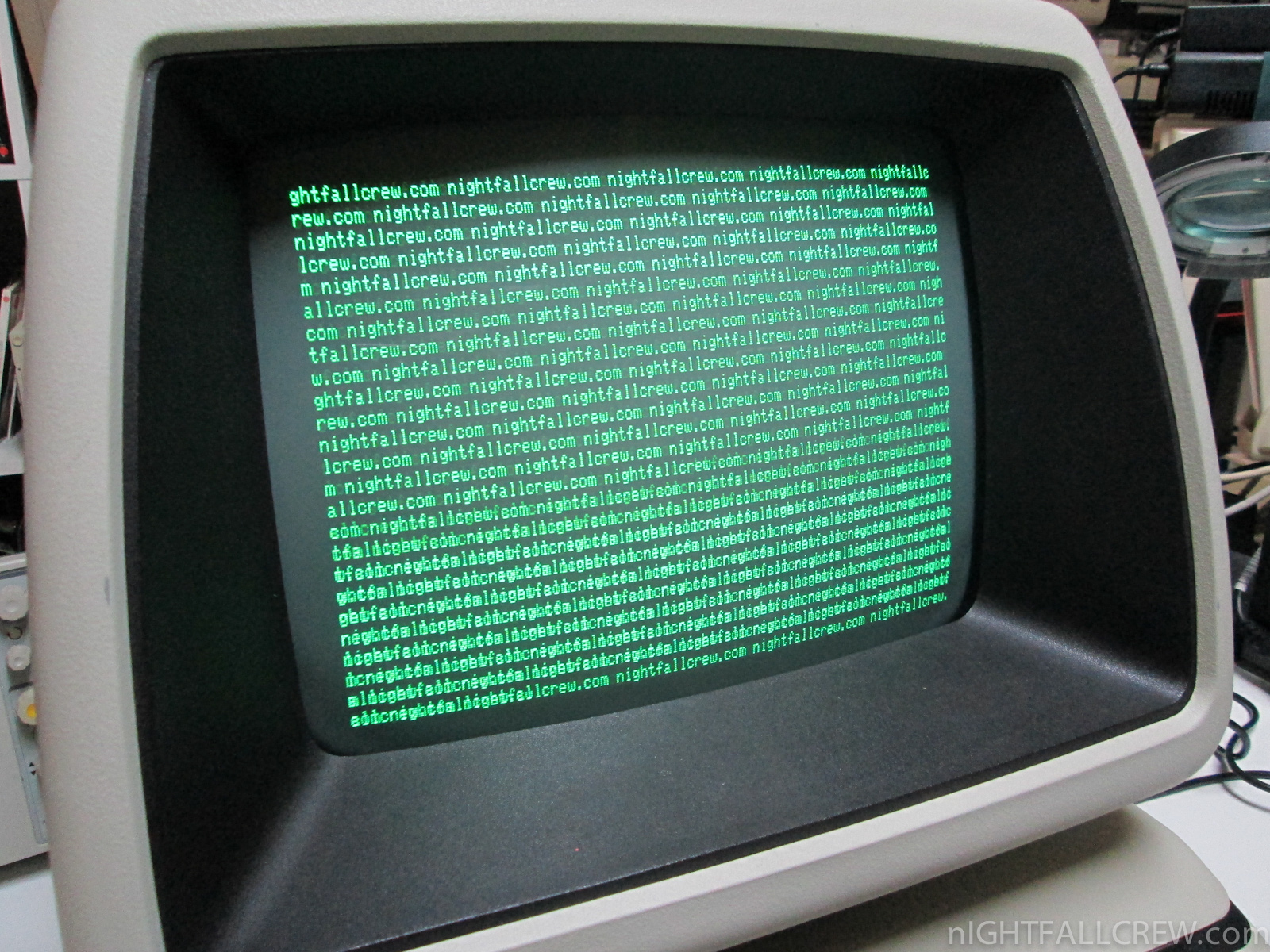

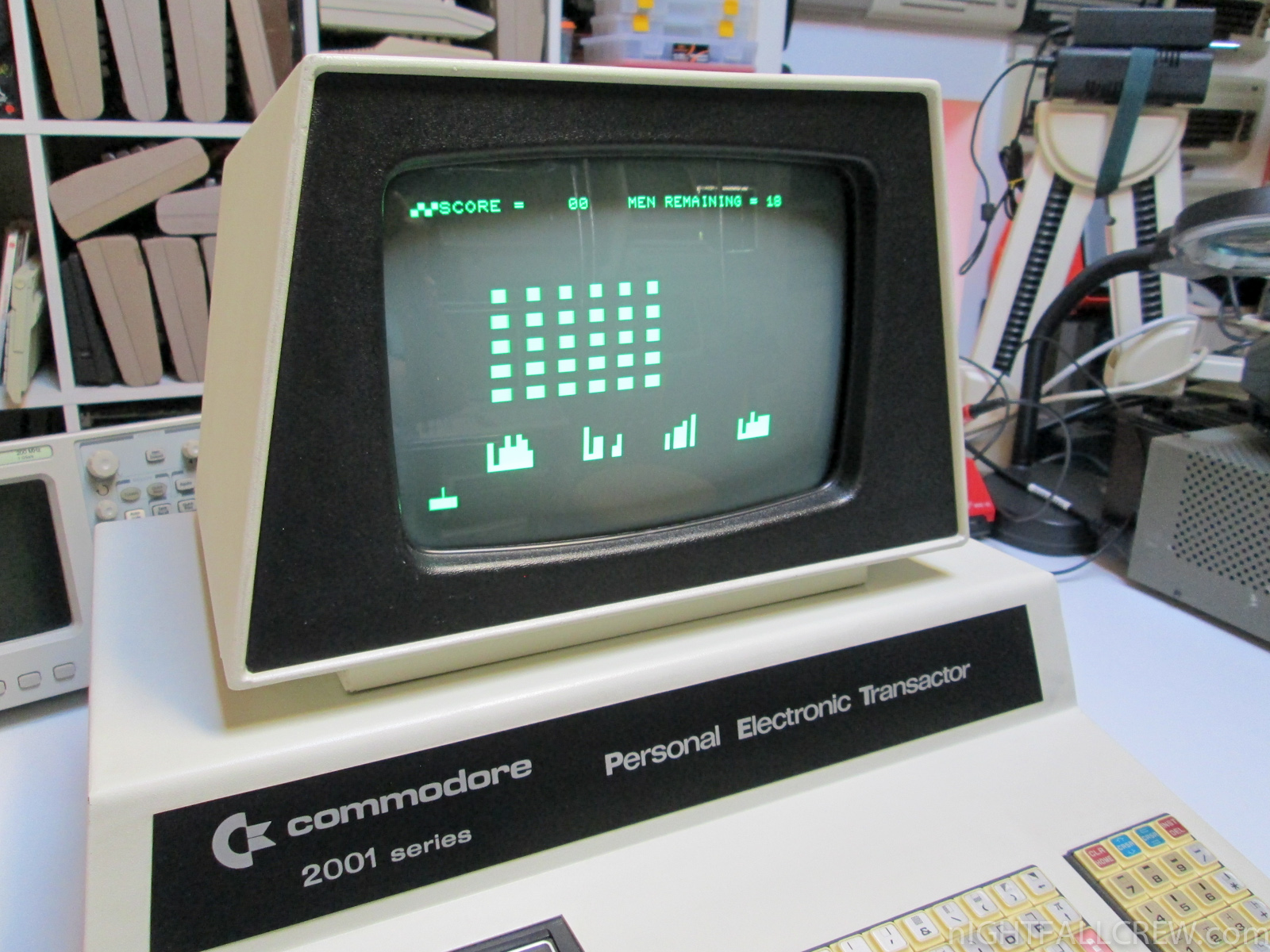

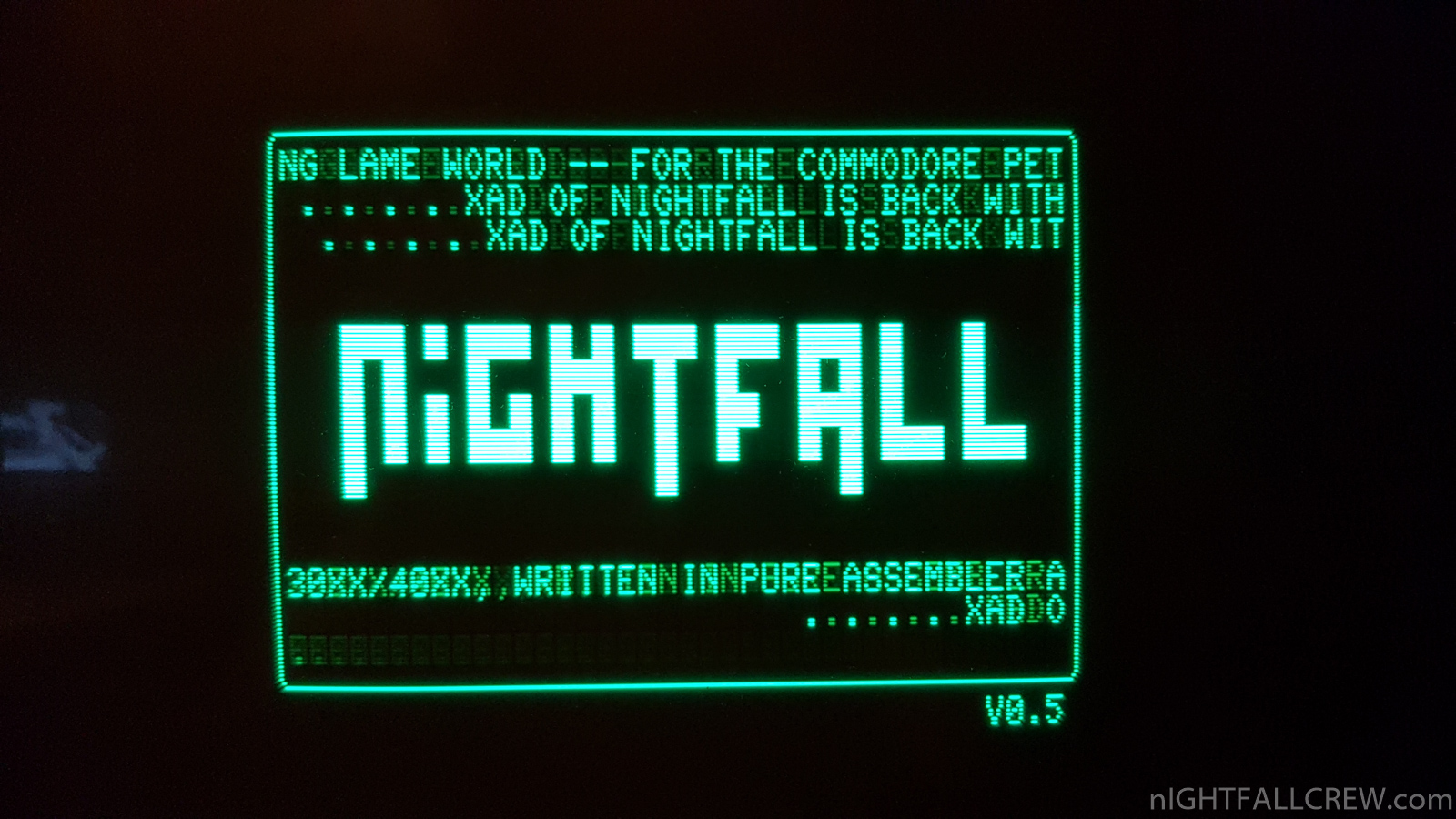

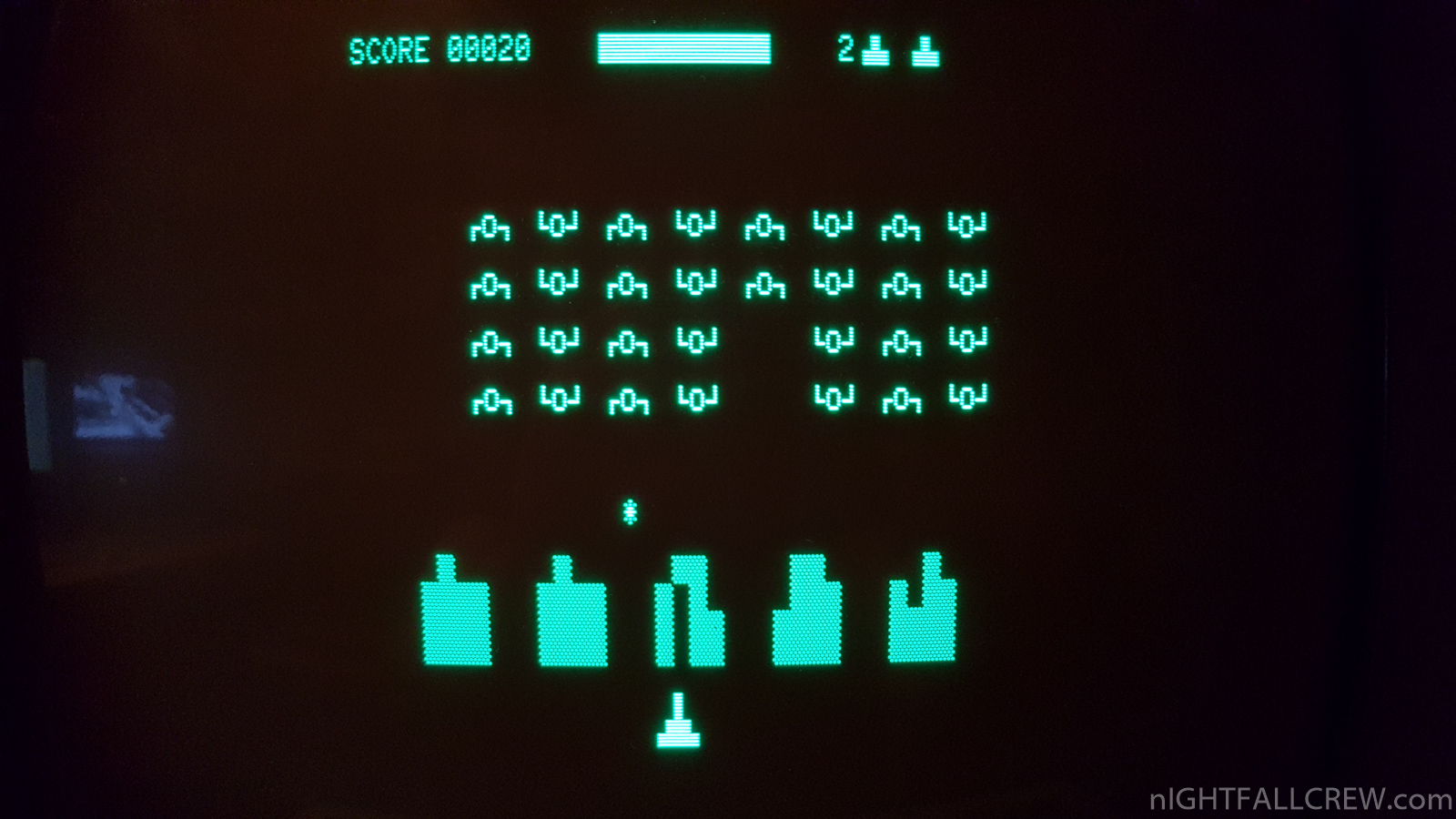

Video of Galaxy Invaders with Sounds:

from Wikipedia homepage:

The Commodore PET (Personal Electronic Transactor) was a home/personal computer produced in 1977 by Commodore International. A top-seller in the Canadian and United States educational markets, it was Commodore’s first full-featured computer, and formed the basis for their entire 8-bit product line.

Read more…

Commodore PET(CBM) 3032 Repair

May 25th, 2014 No comments

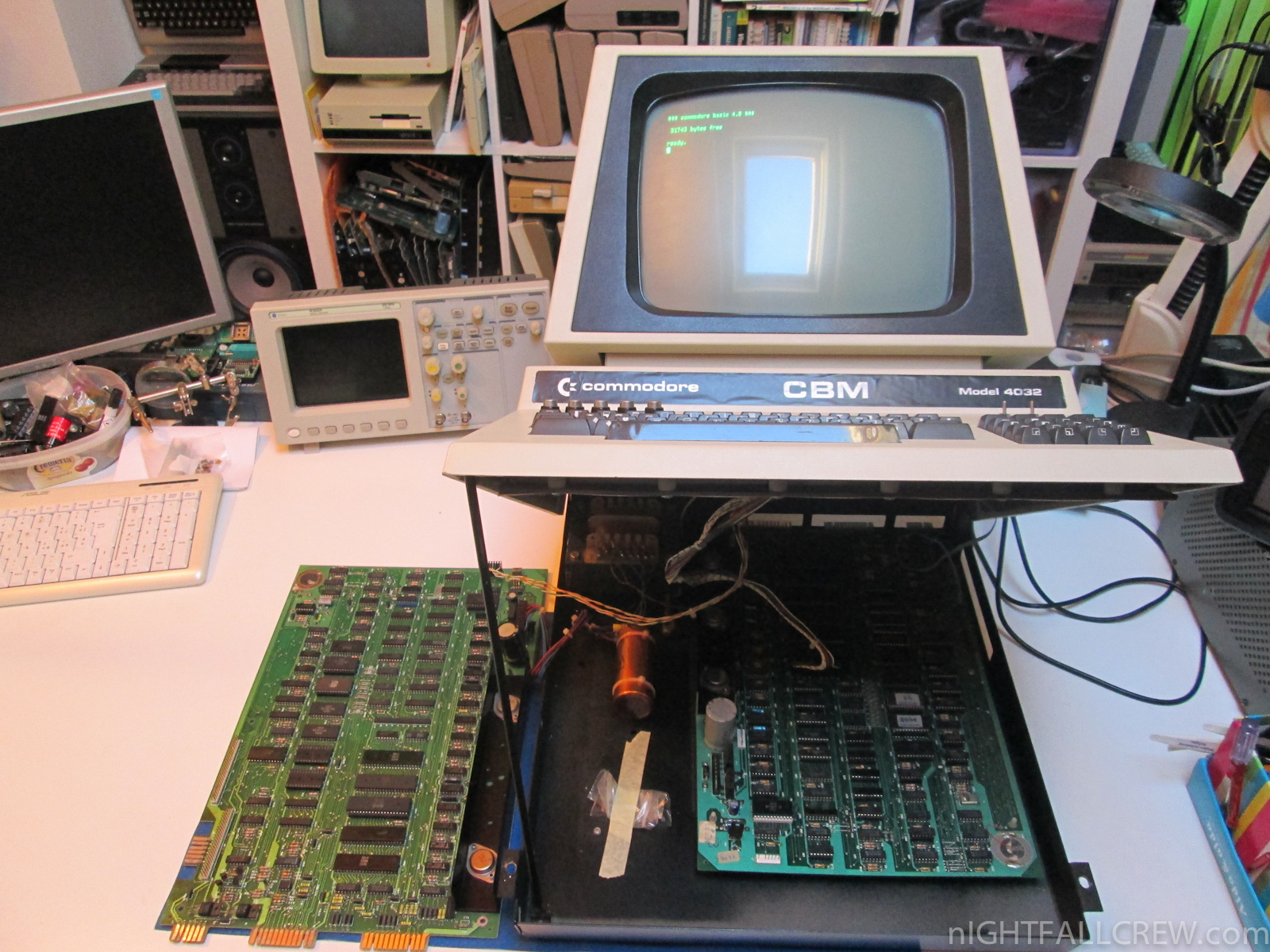

Commodore CBM/PET 3032 Motherboard Repair.

Defect:

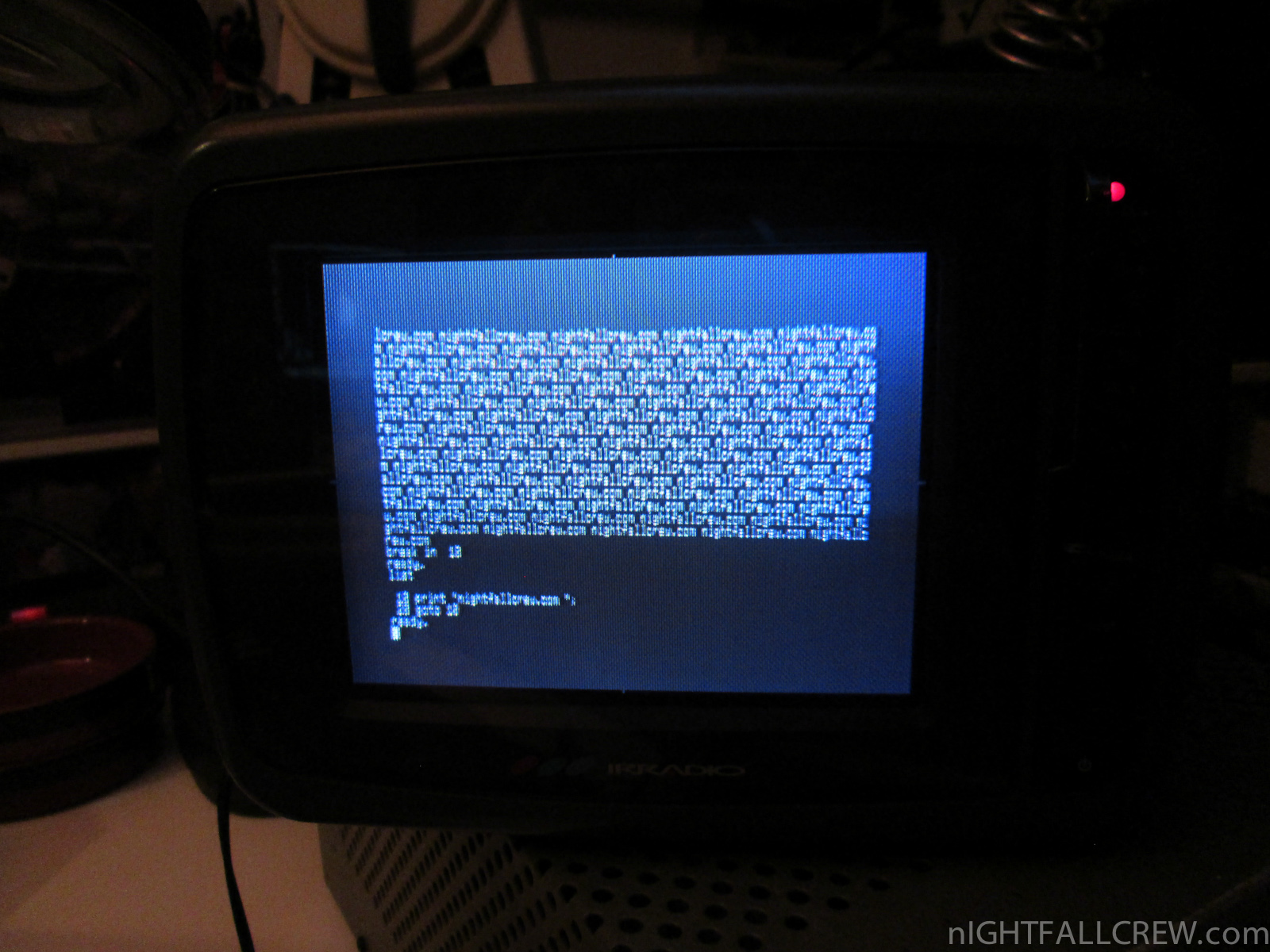

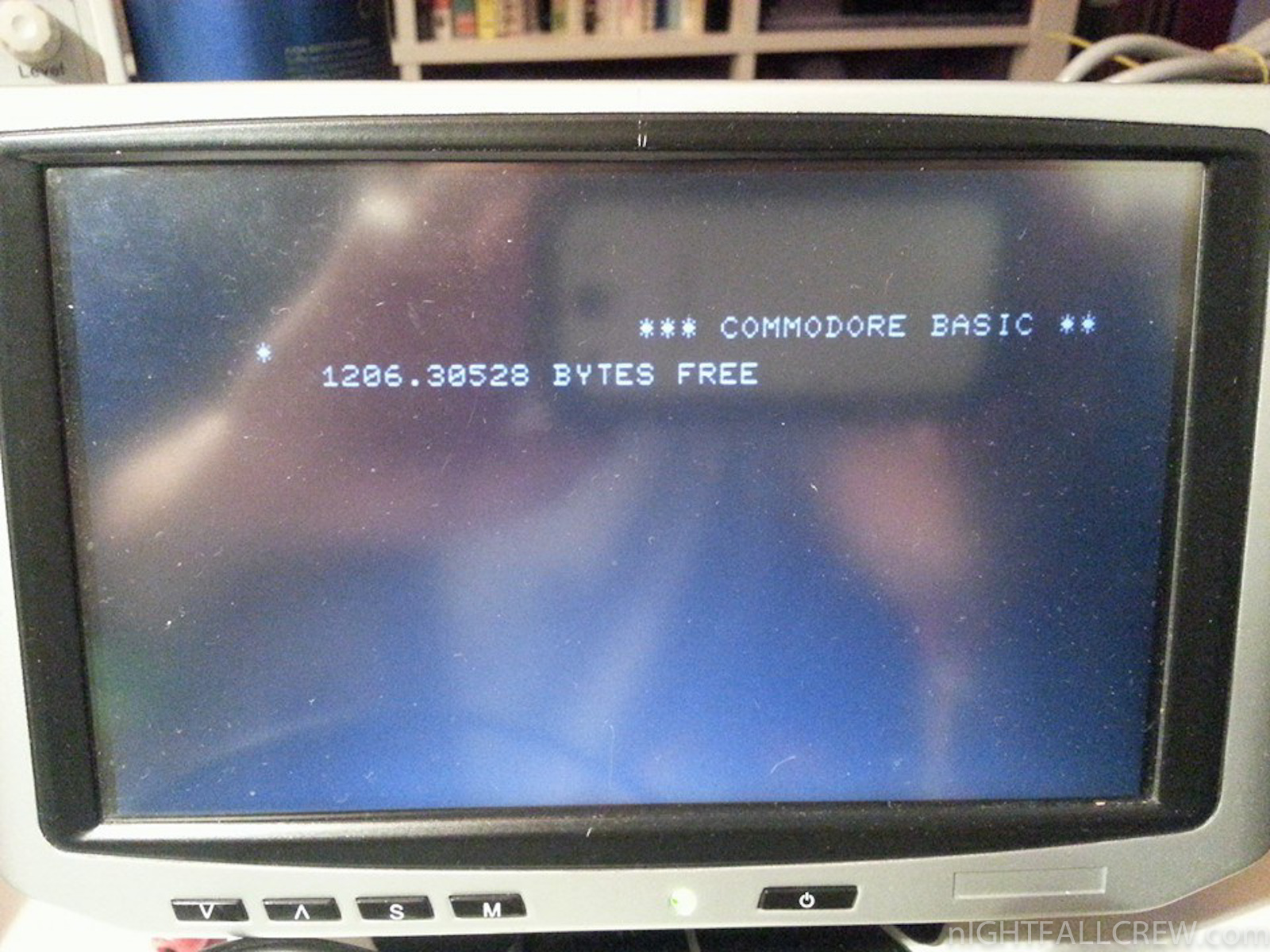

  • Garbled screen and then “Illegal Quantity Error” message or 31 Bytes free

Replaced parts:

  • Replaced 1 x NE555 (A2)
  • Replaced 2 x Unstable RAM 4116 (I2/I3)
  • Replaced 1 x 74LS153 (E4)

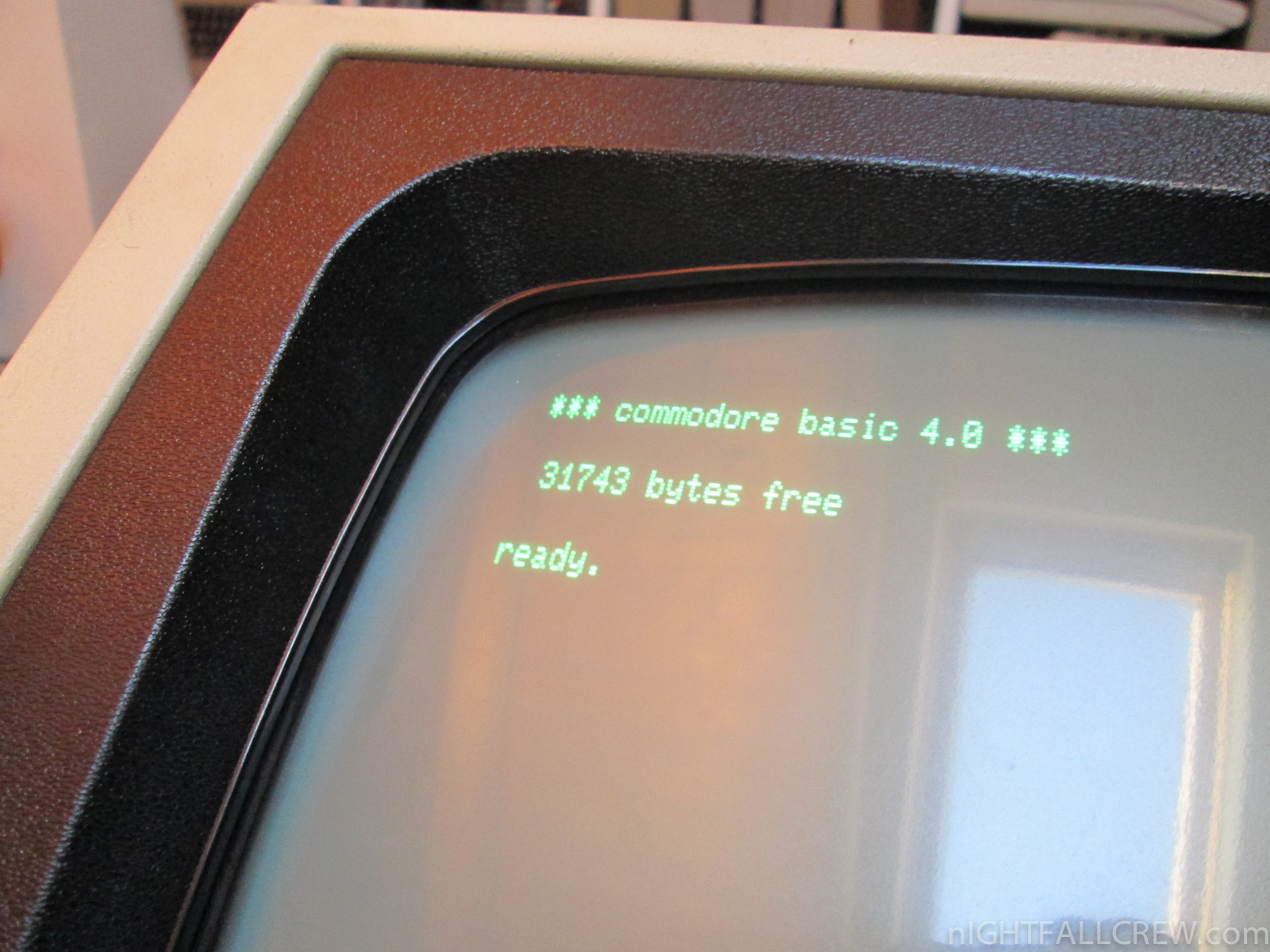

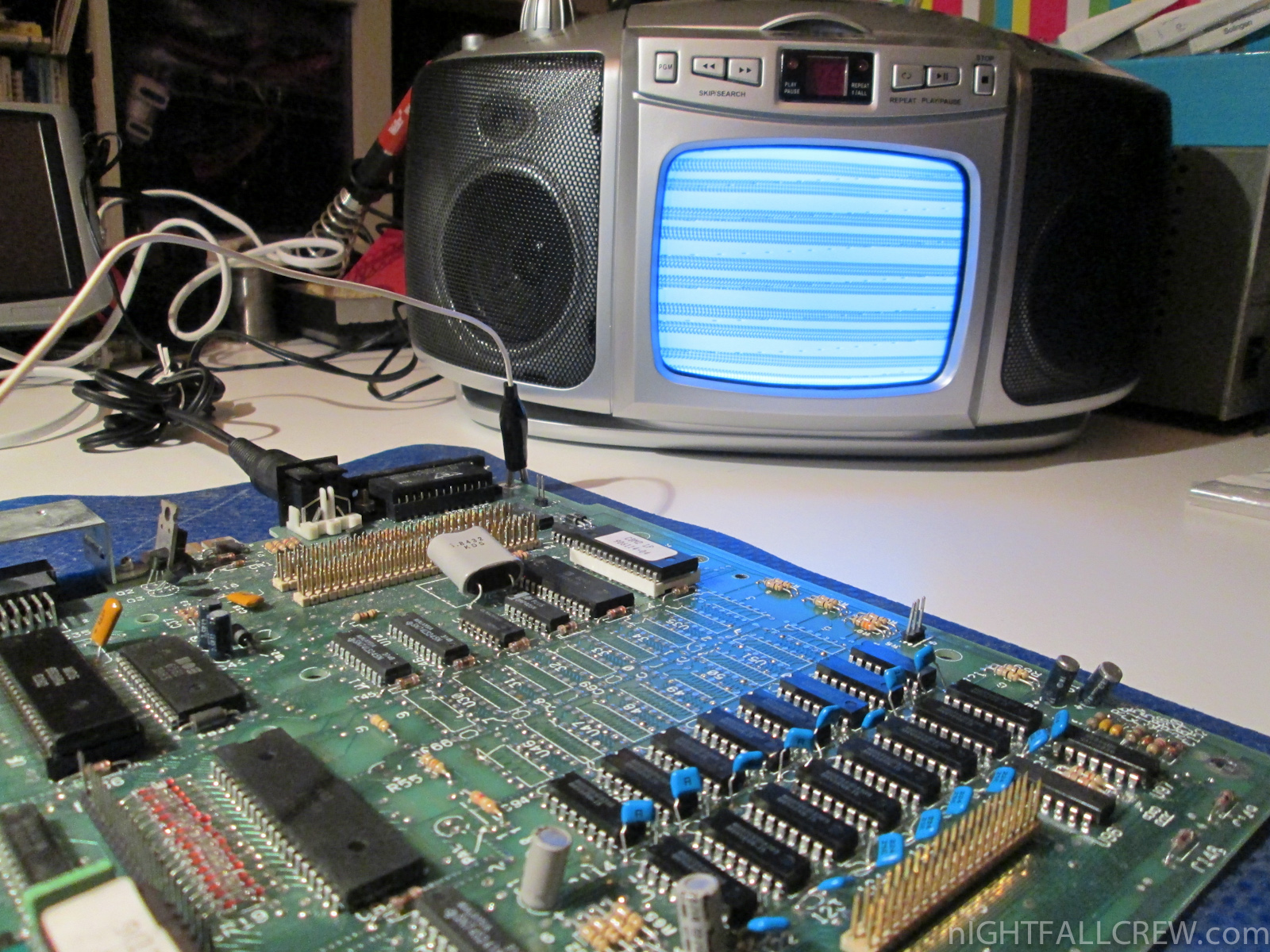

Repaired for a friend a Commodore CBM 8296 Motherboard

March 12th, 2014 1 comment

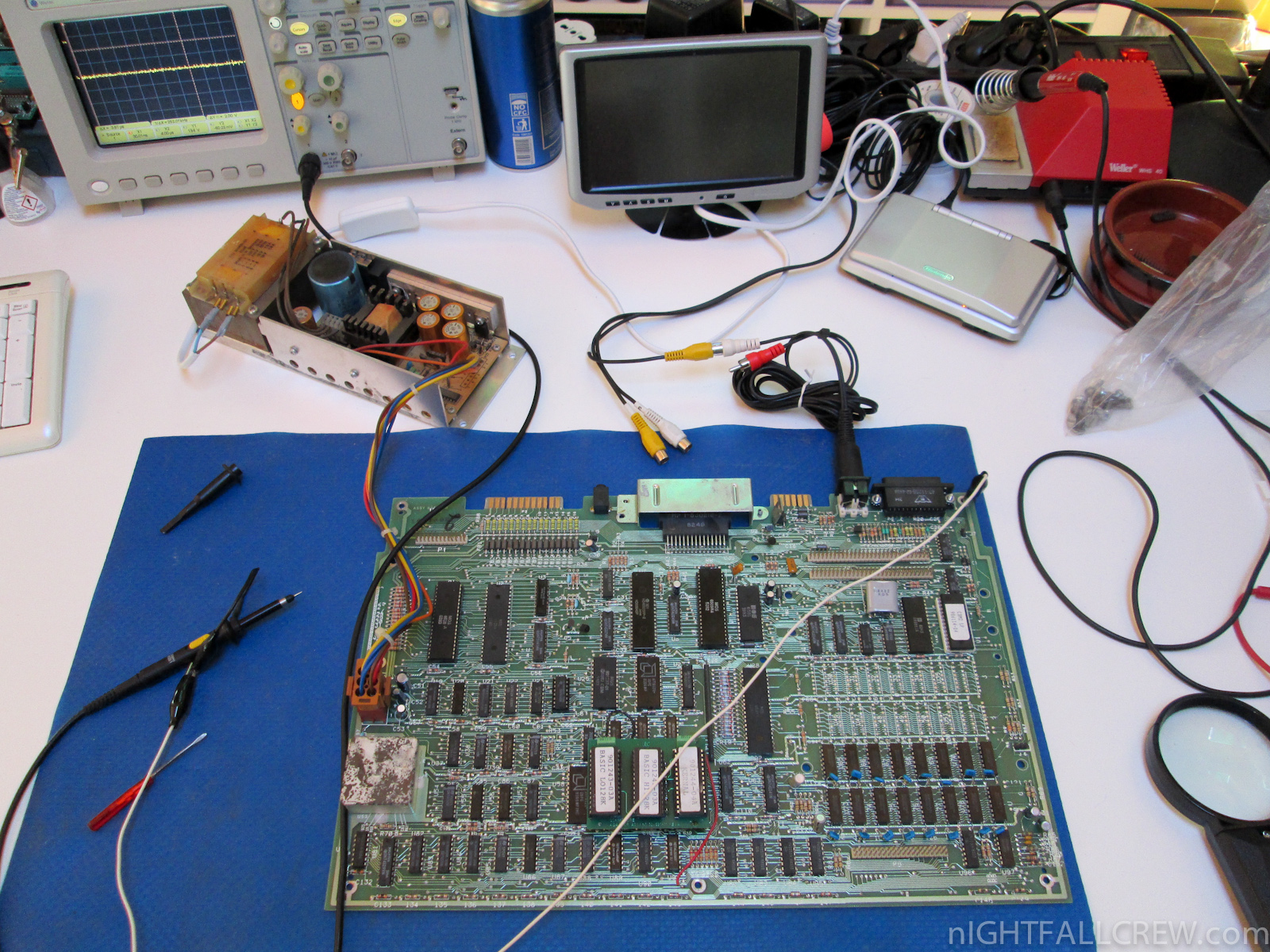

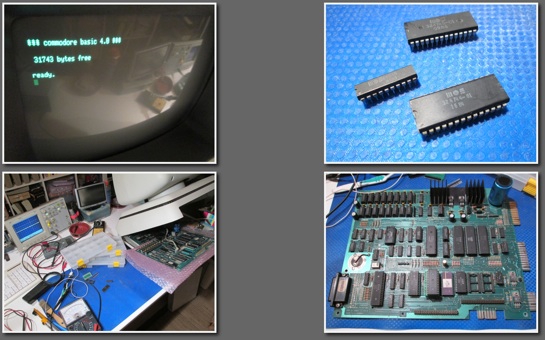

Repaired for a friend a Commodore CBM 8296 Motherboard.

Defect:

  • Black screen of death without startup beep.

Replaced parts:

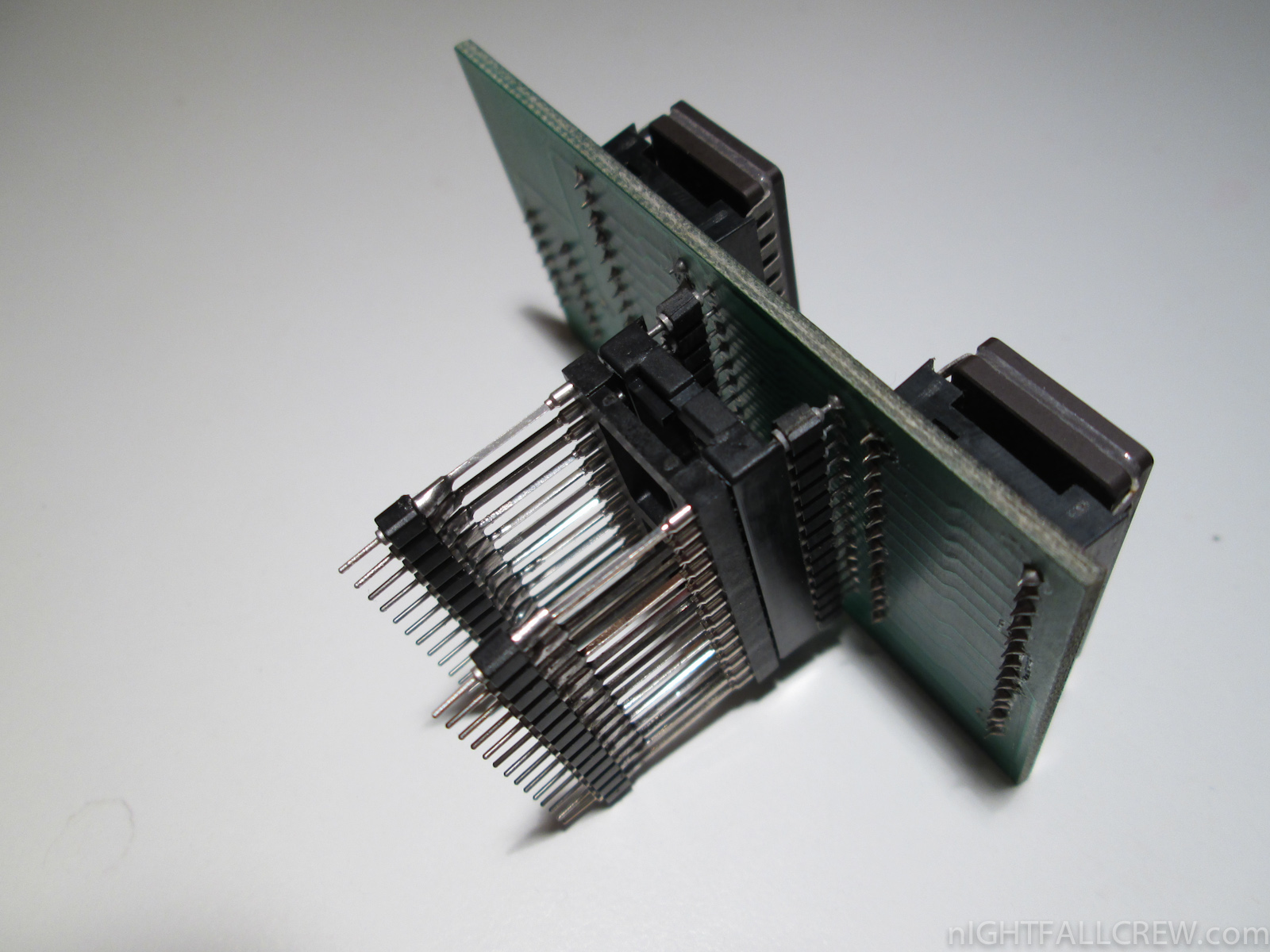

  • Replaced PLA [UE6] with a OTP EPROM 27C512R 70ns + Adapter.
  • Replaced PLA [UE5] with a original one MOS 324744-01

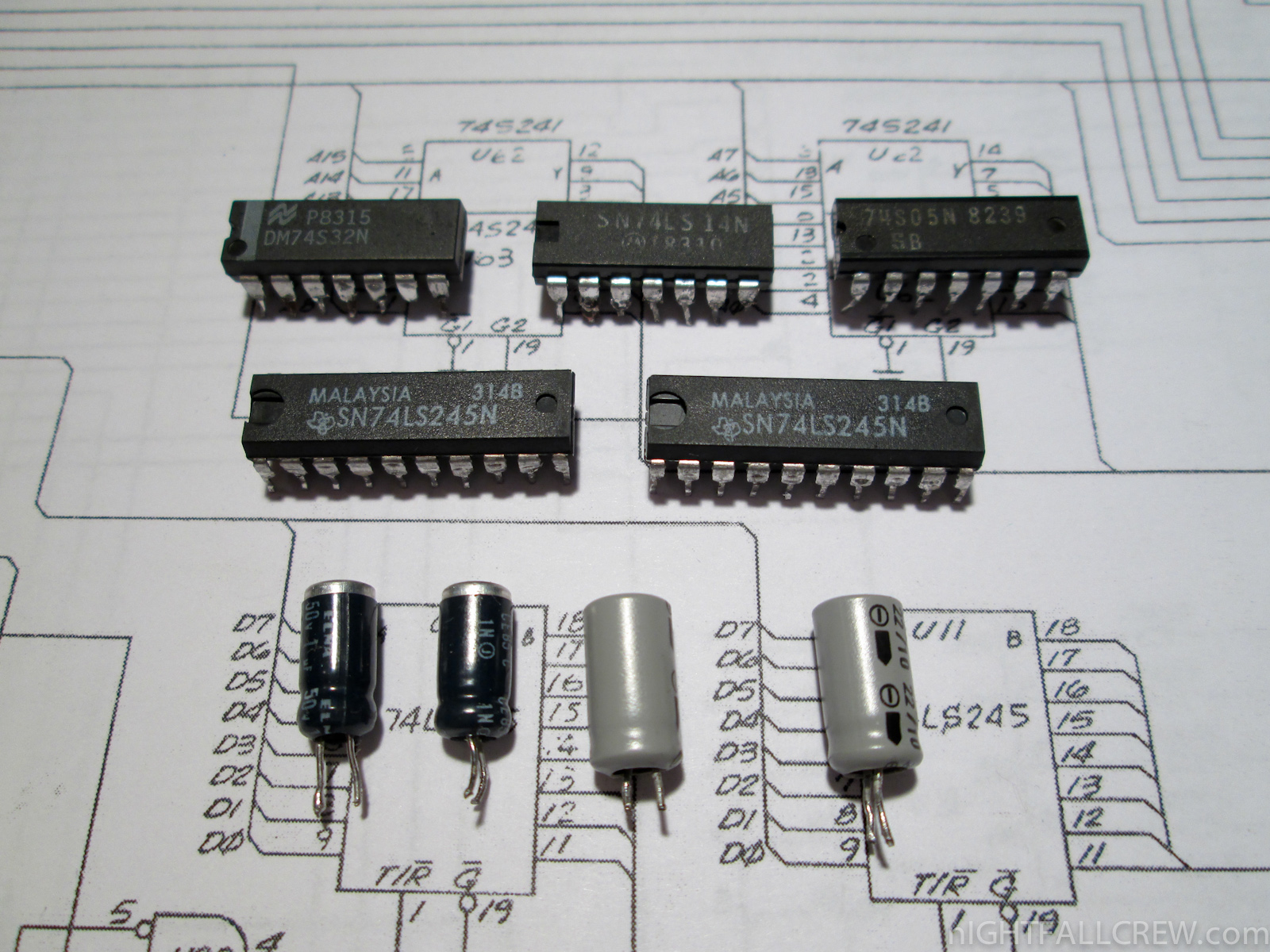

  • Replaced [UC8] 3-State Driver Bus MOS 65245 (74LS245)

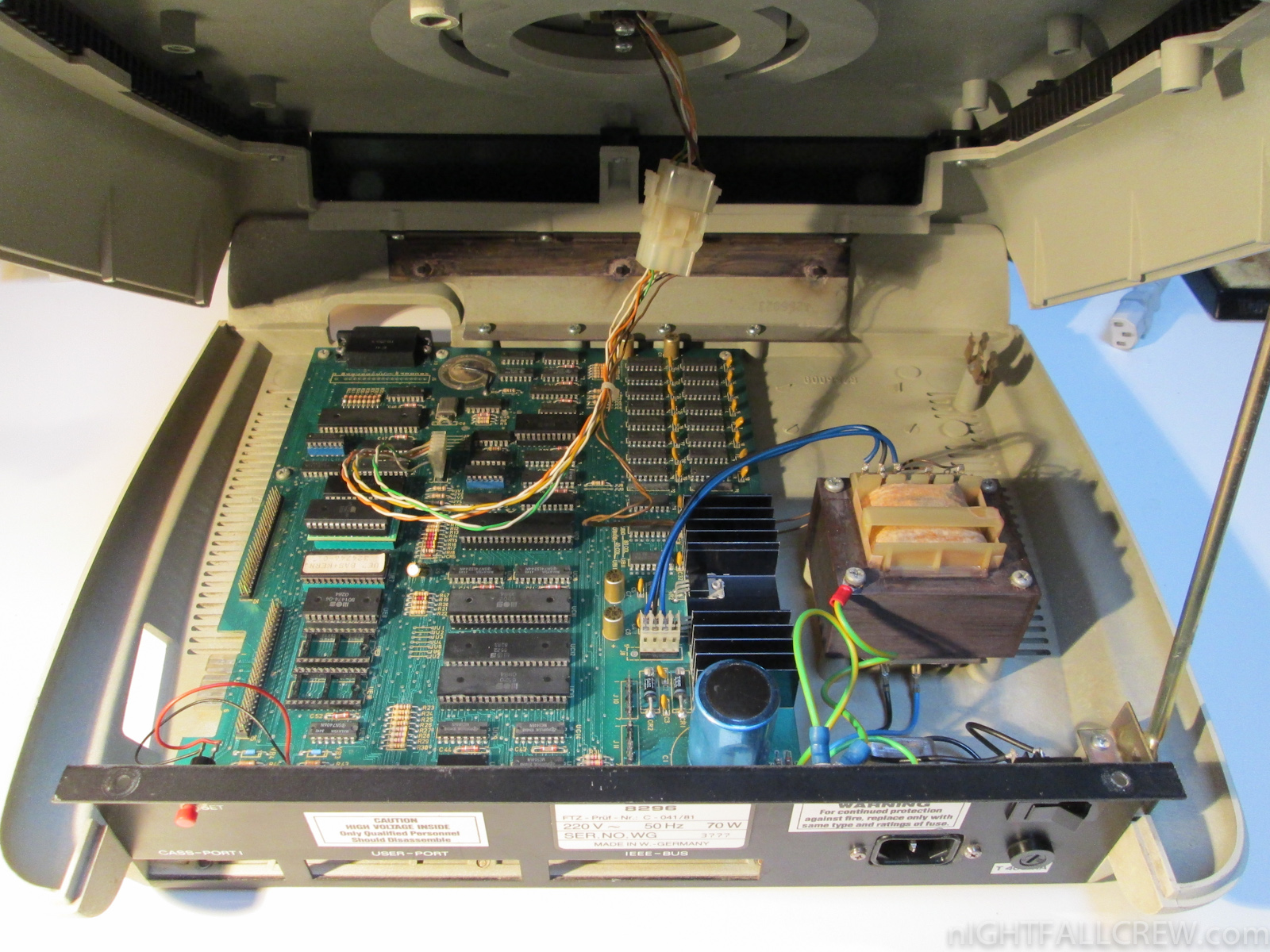

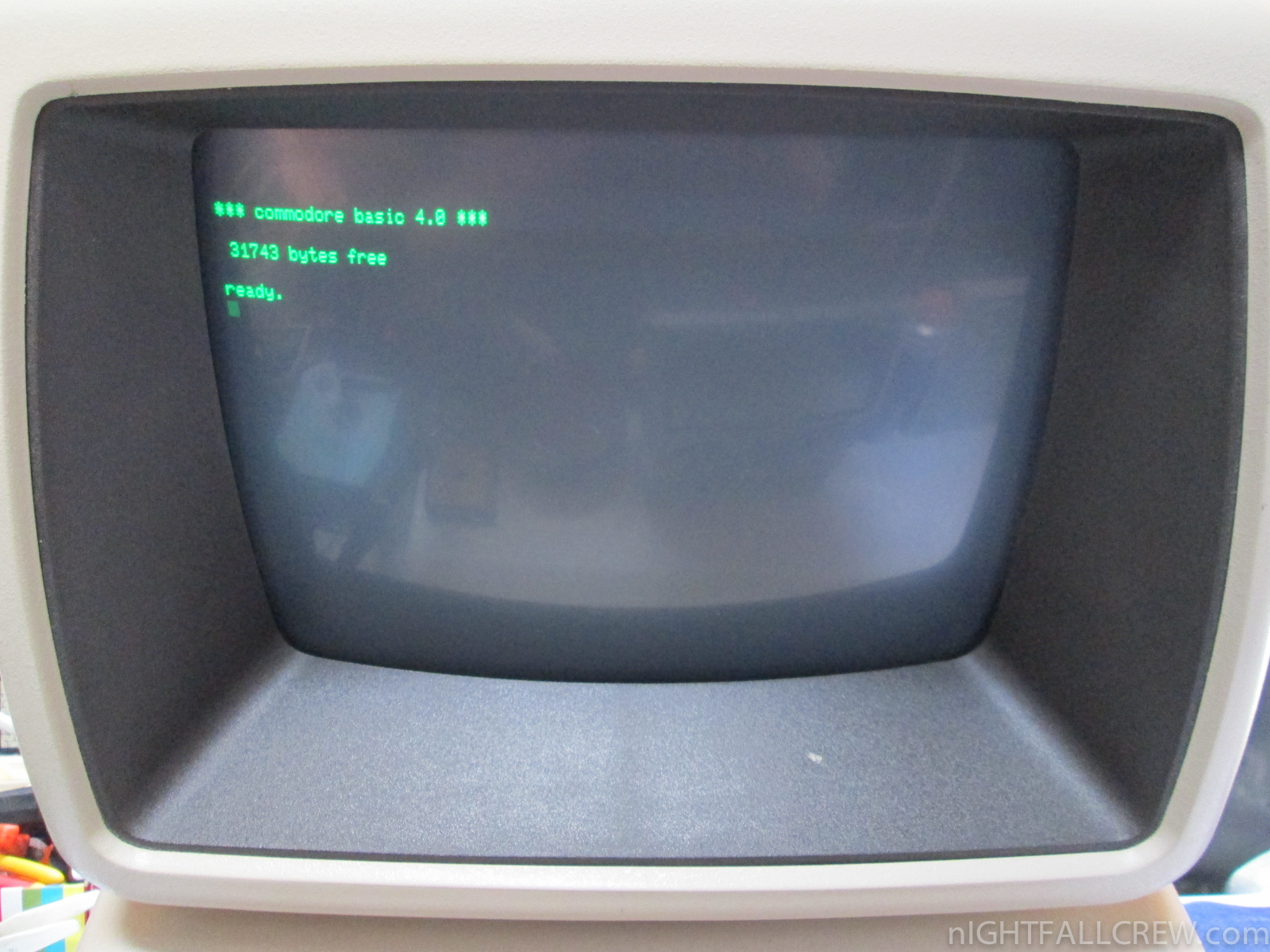

Restoring & Repair a Commodore 8296 (TAN Case)

January 25th, 2014 3 comments

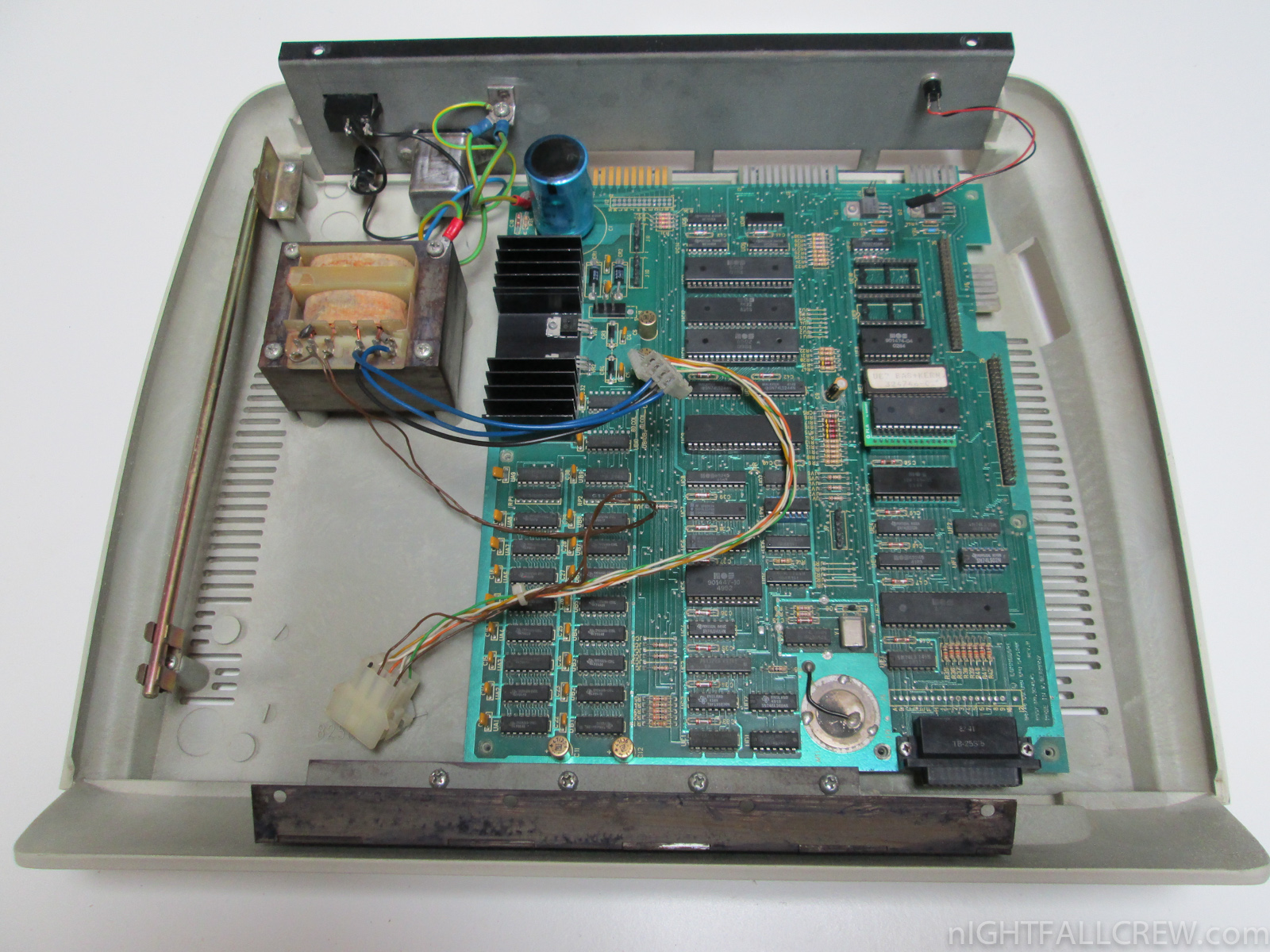

Commodore 8296 (TAN Case)

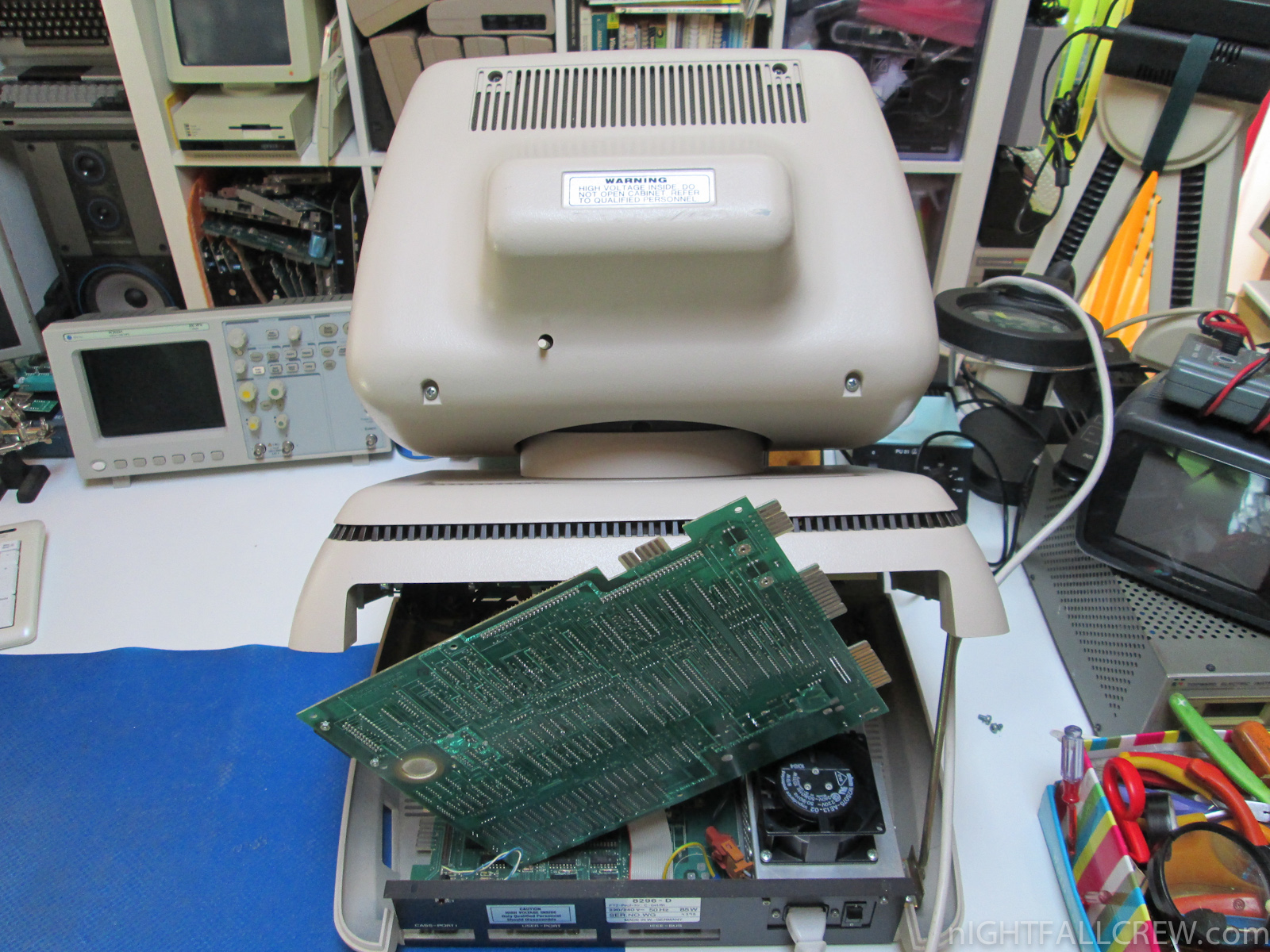

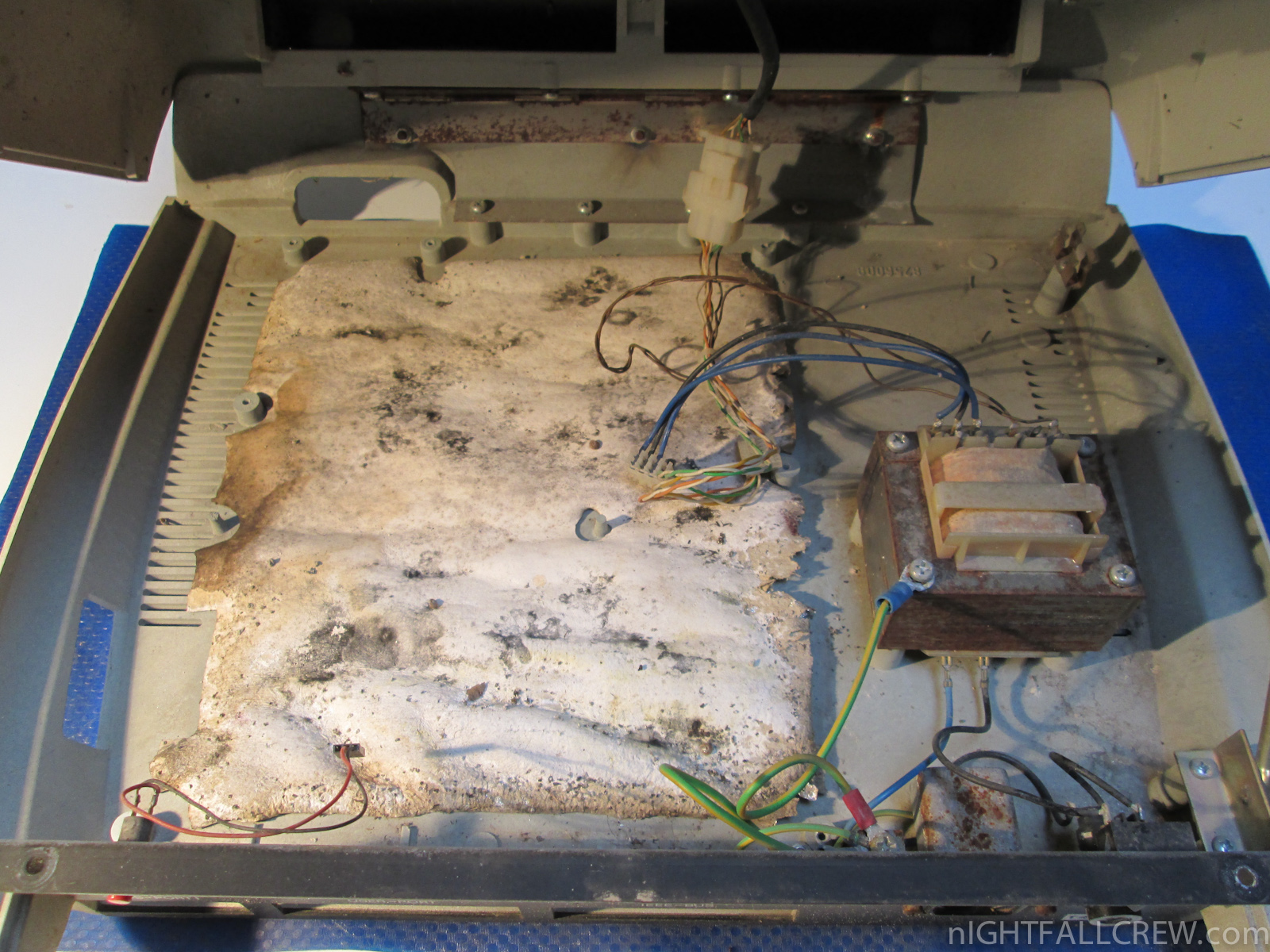

The conditions of this Commodore 8296 (TAN Case) are really bad. The CBM 8296 is left for over 25 years in a dovecote.

The cleaning, repairing and restoration have taken a very long time, but the result is more than acceptable.

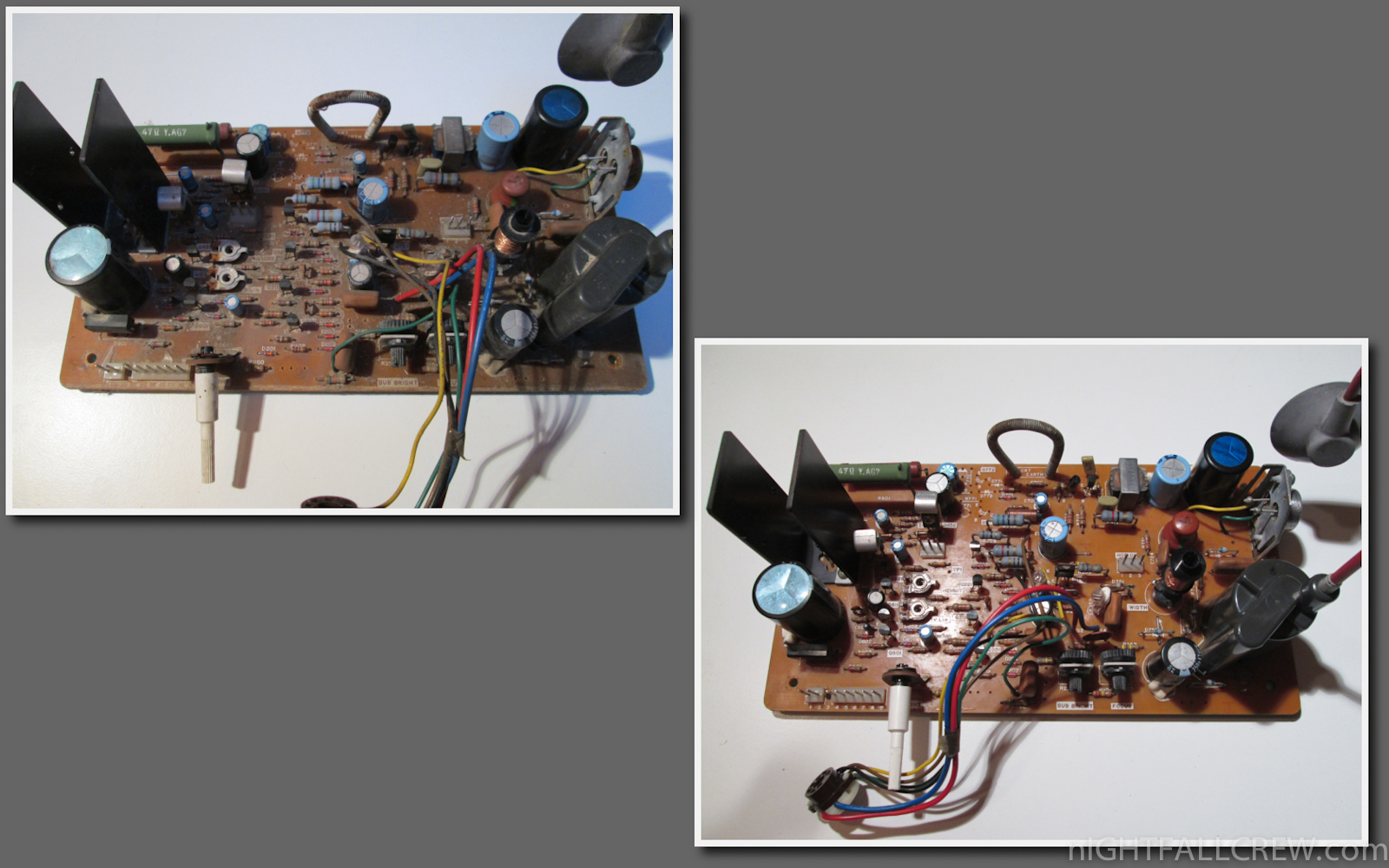

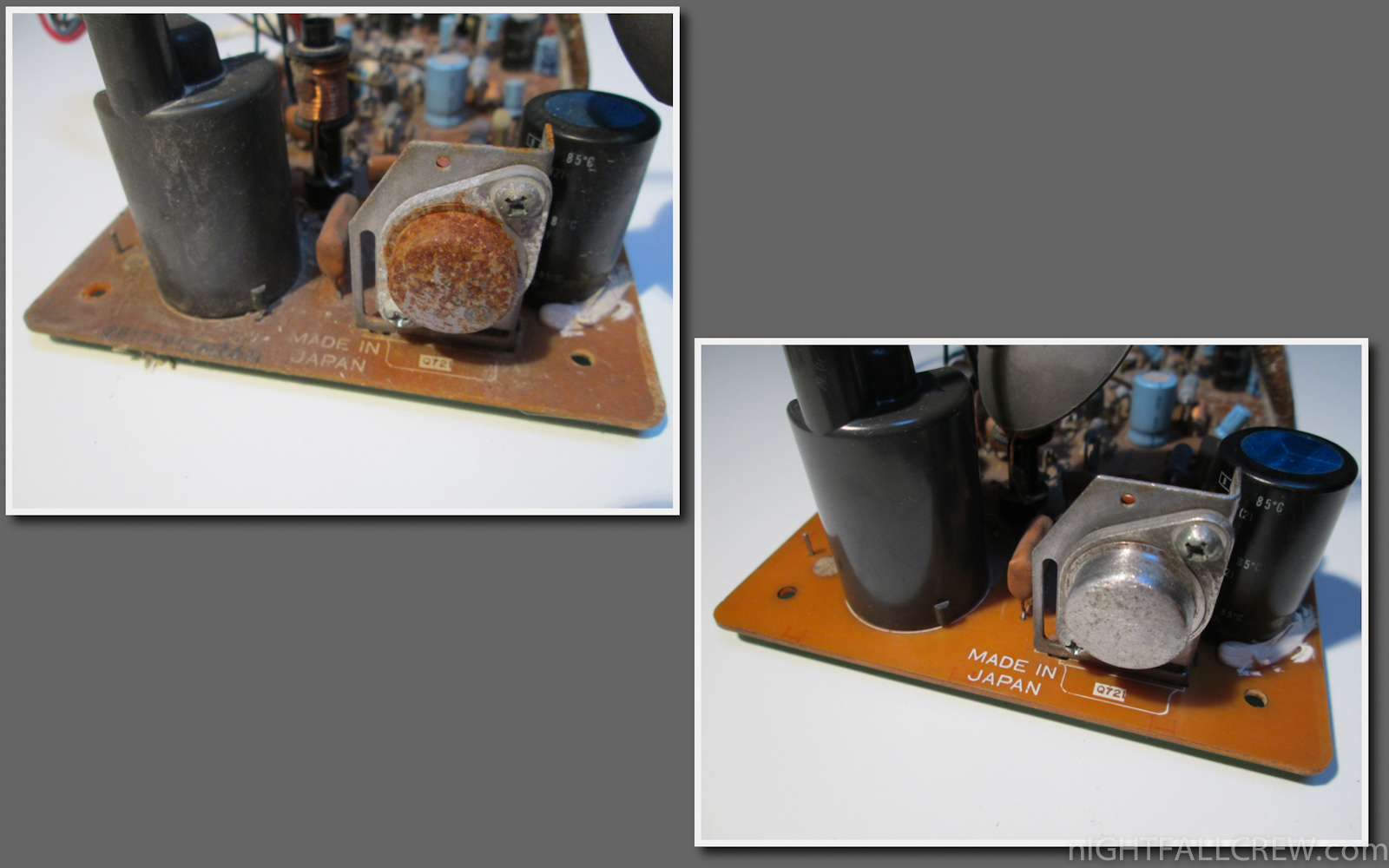

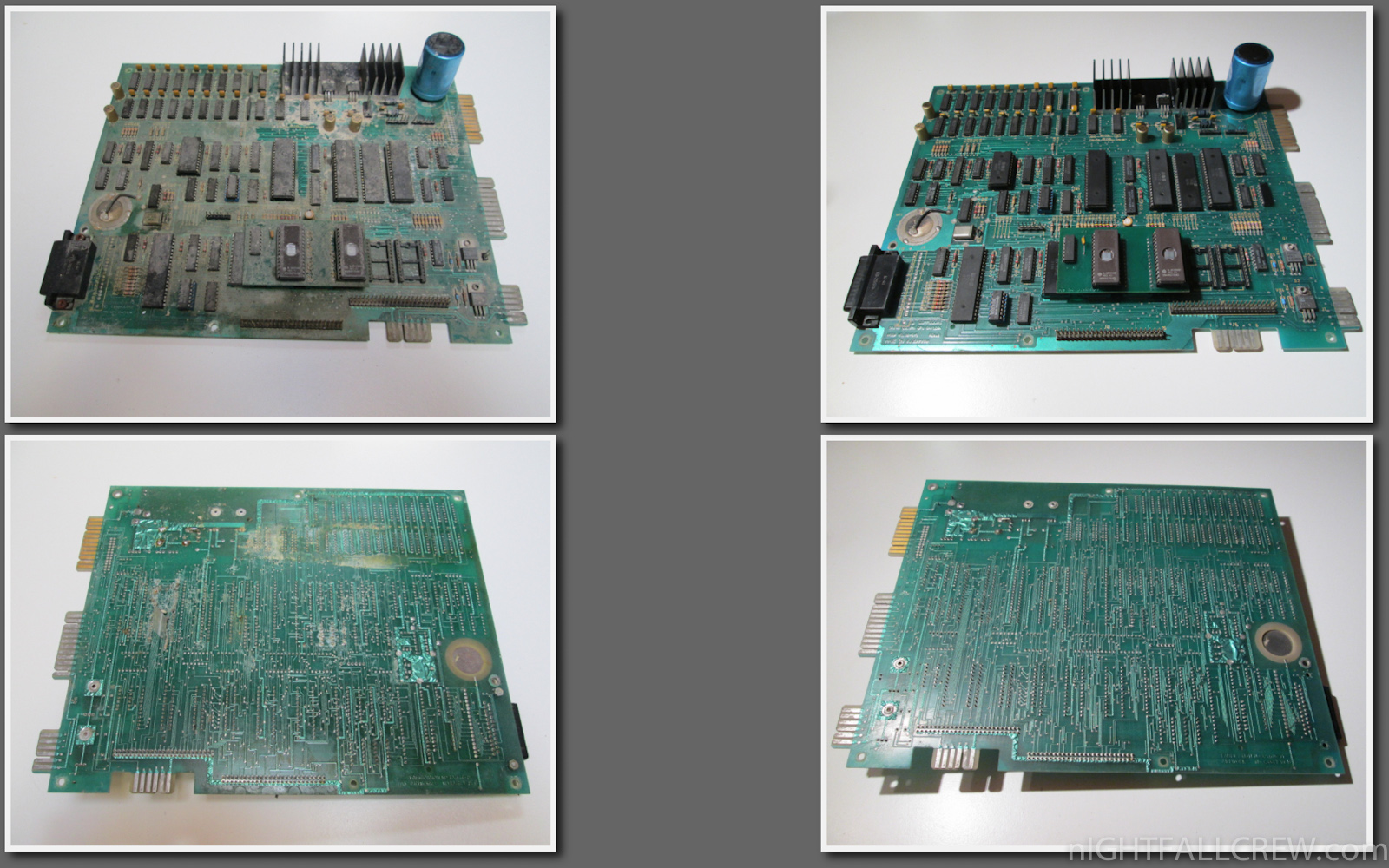

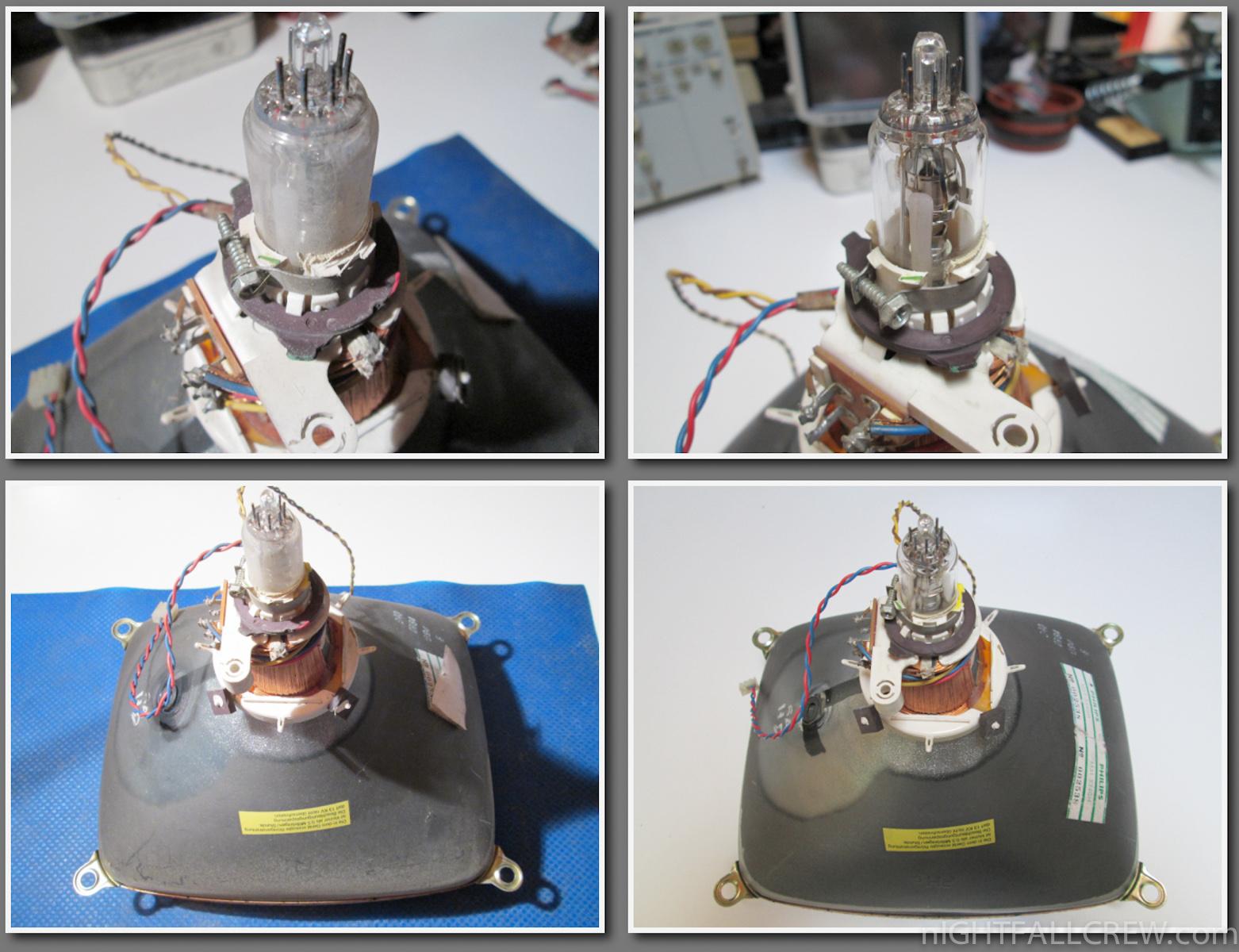

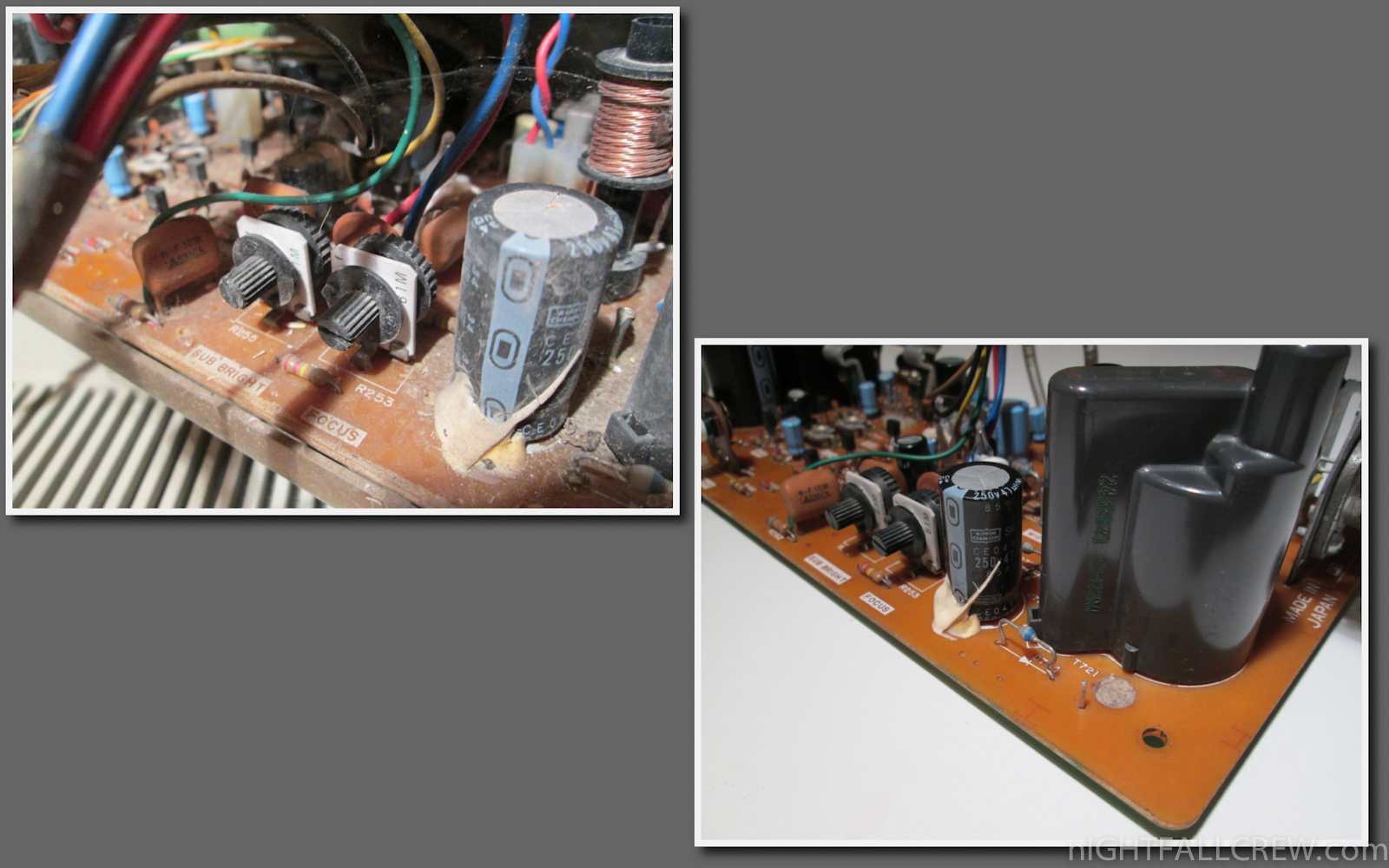

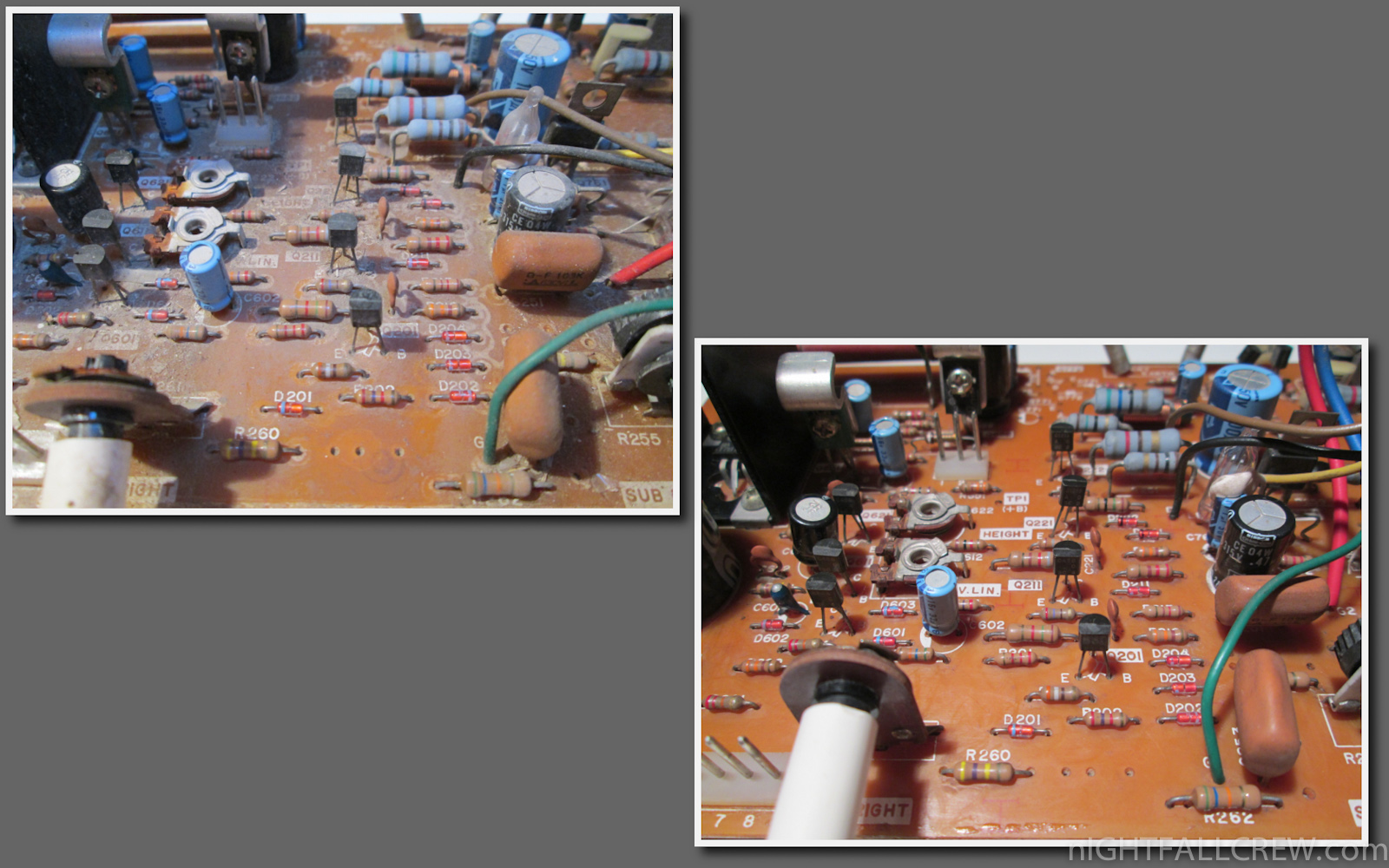

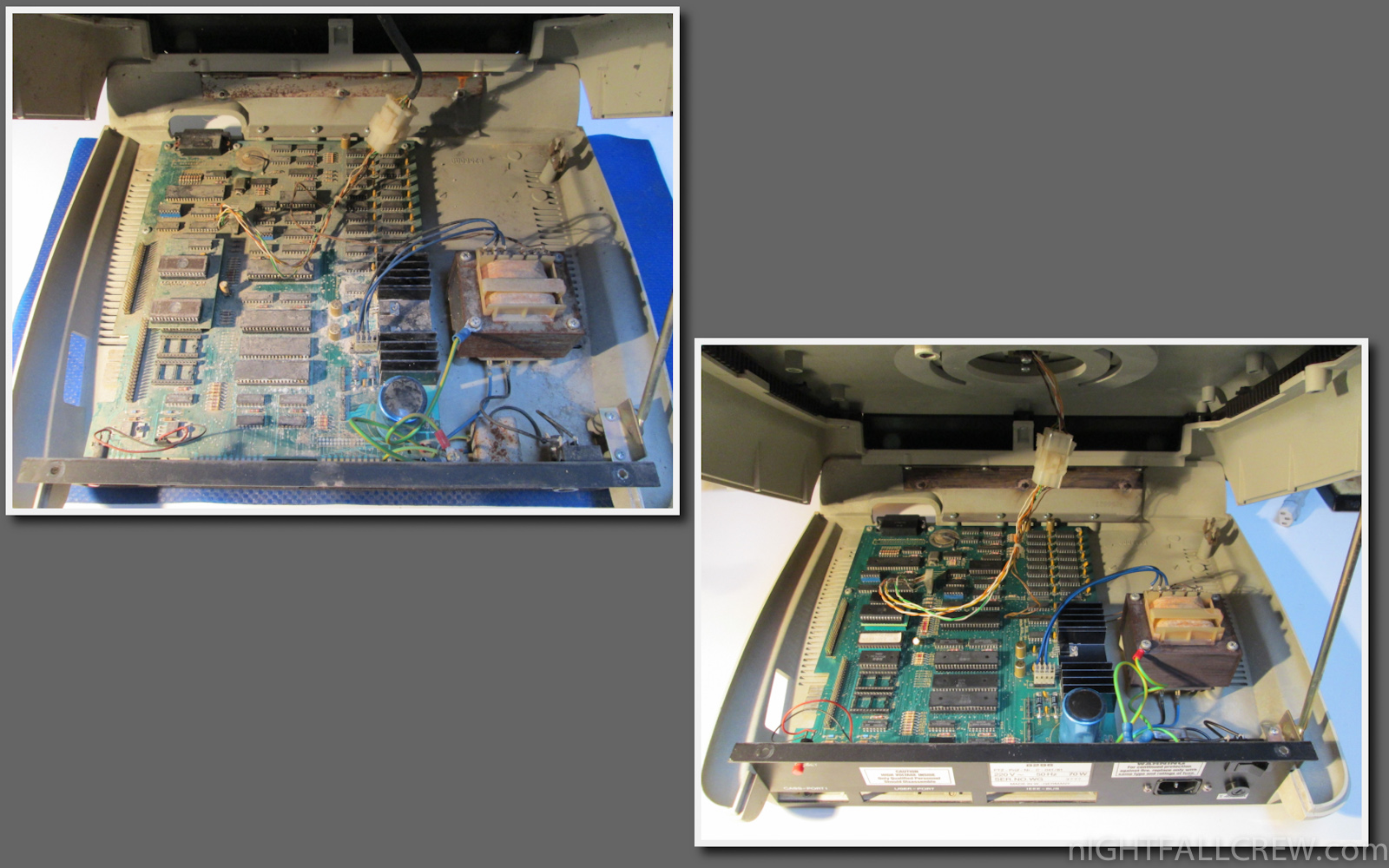

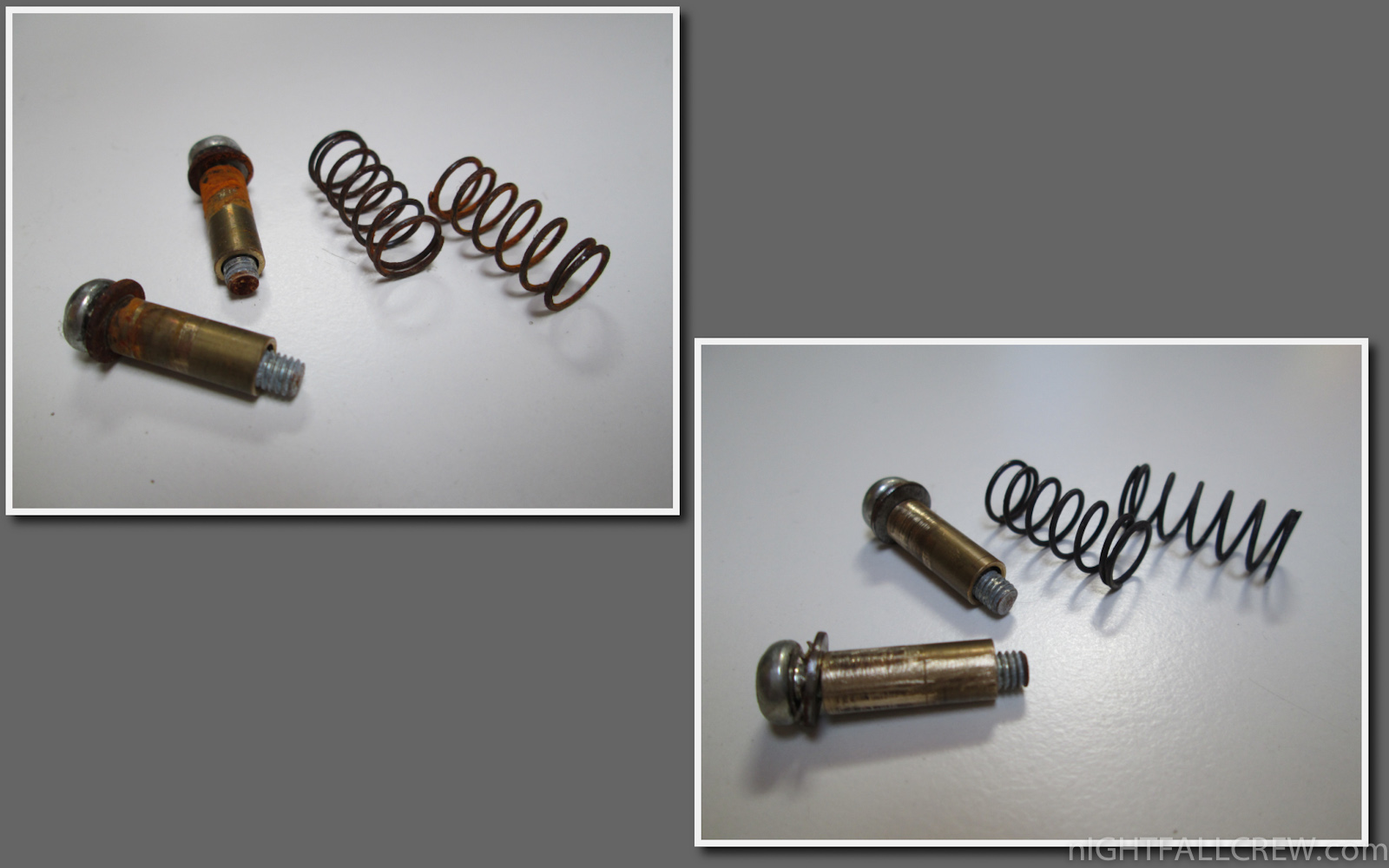

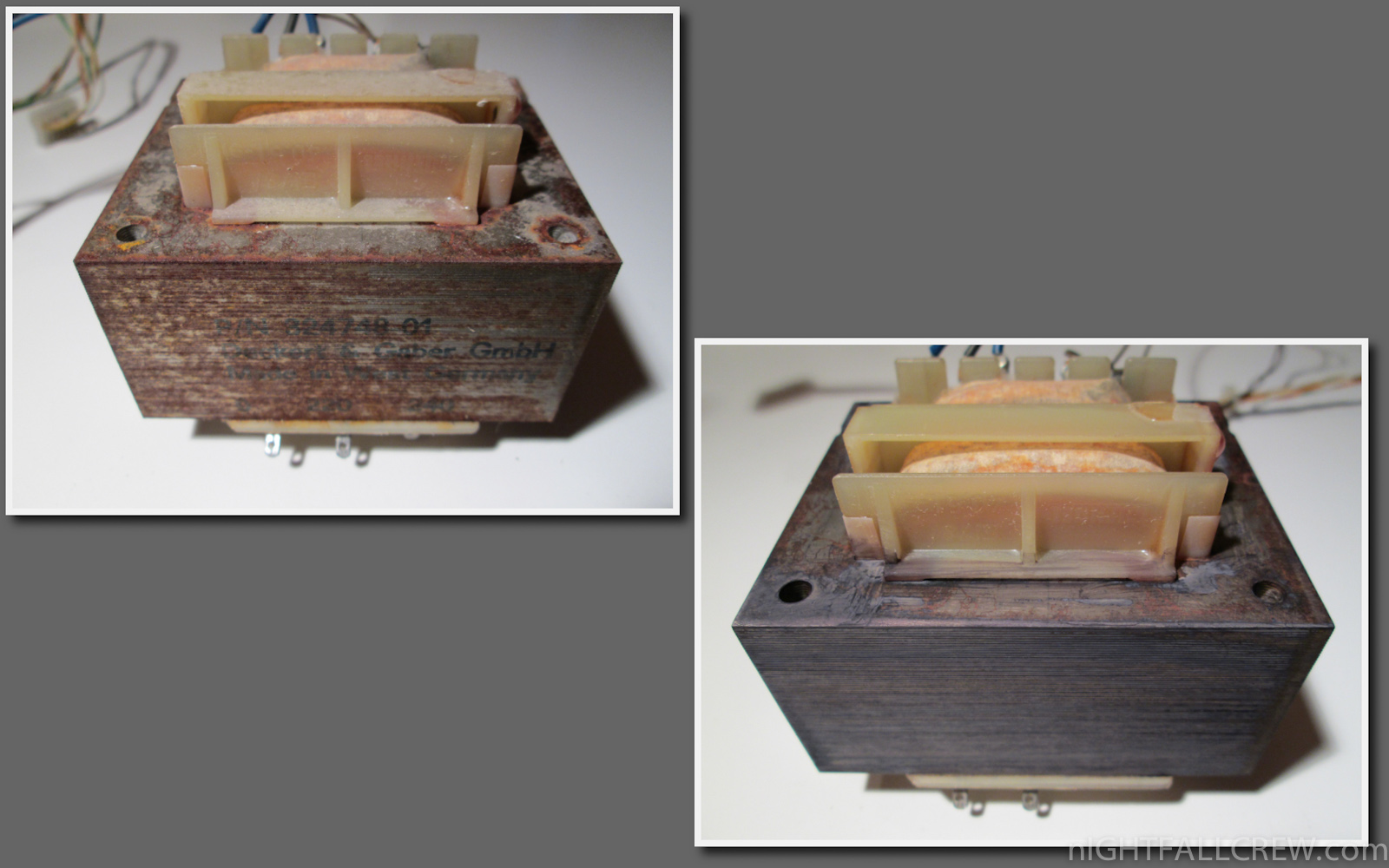

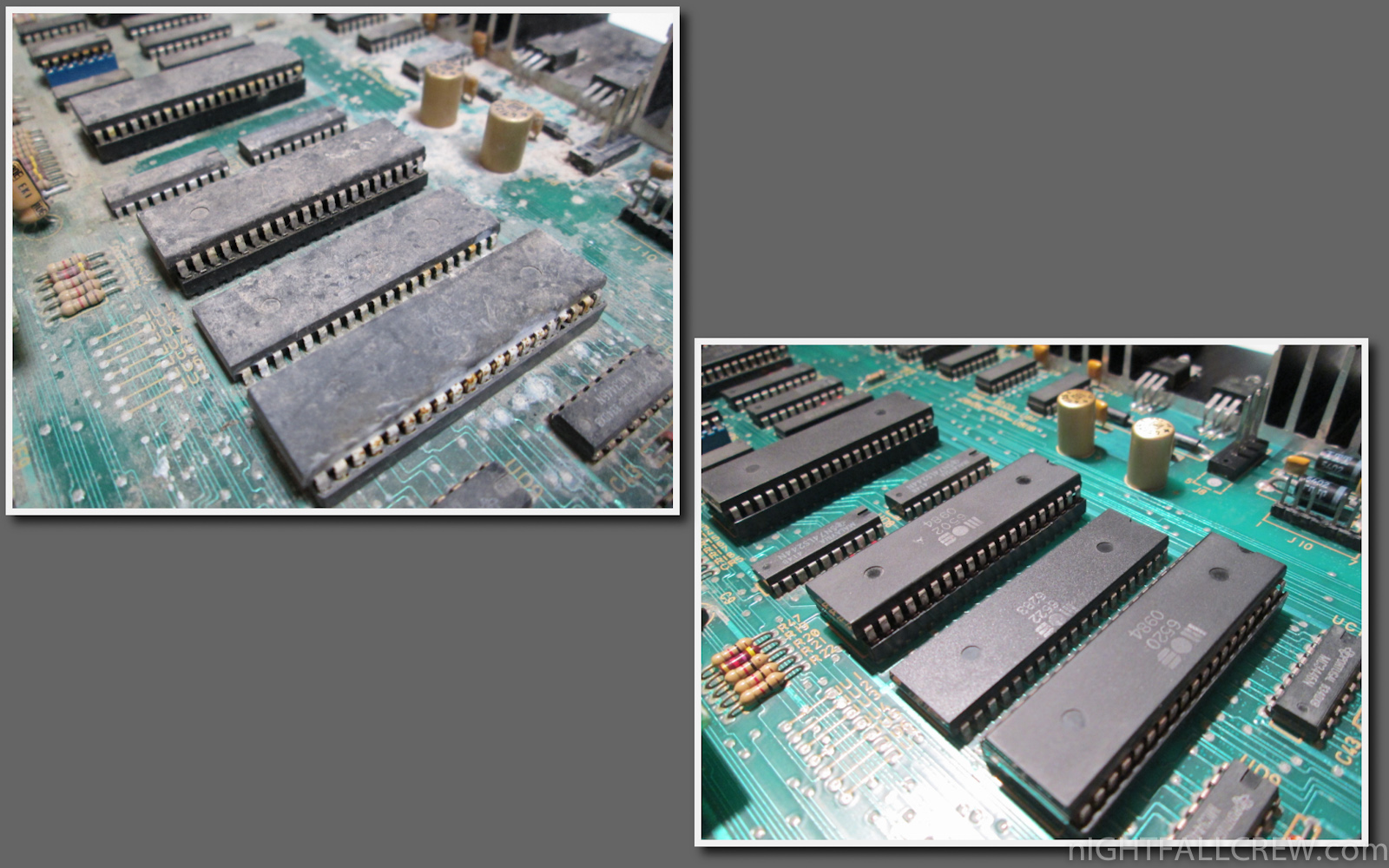

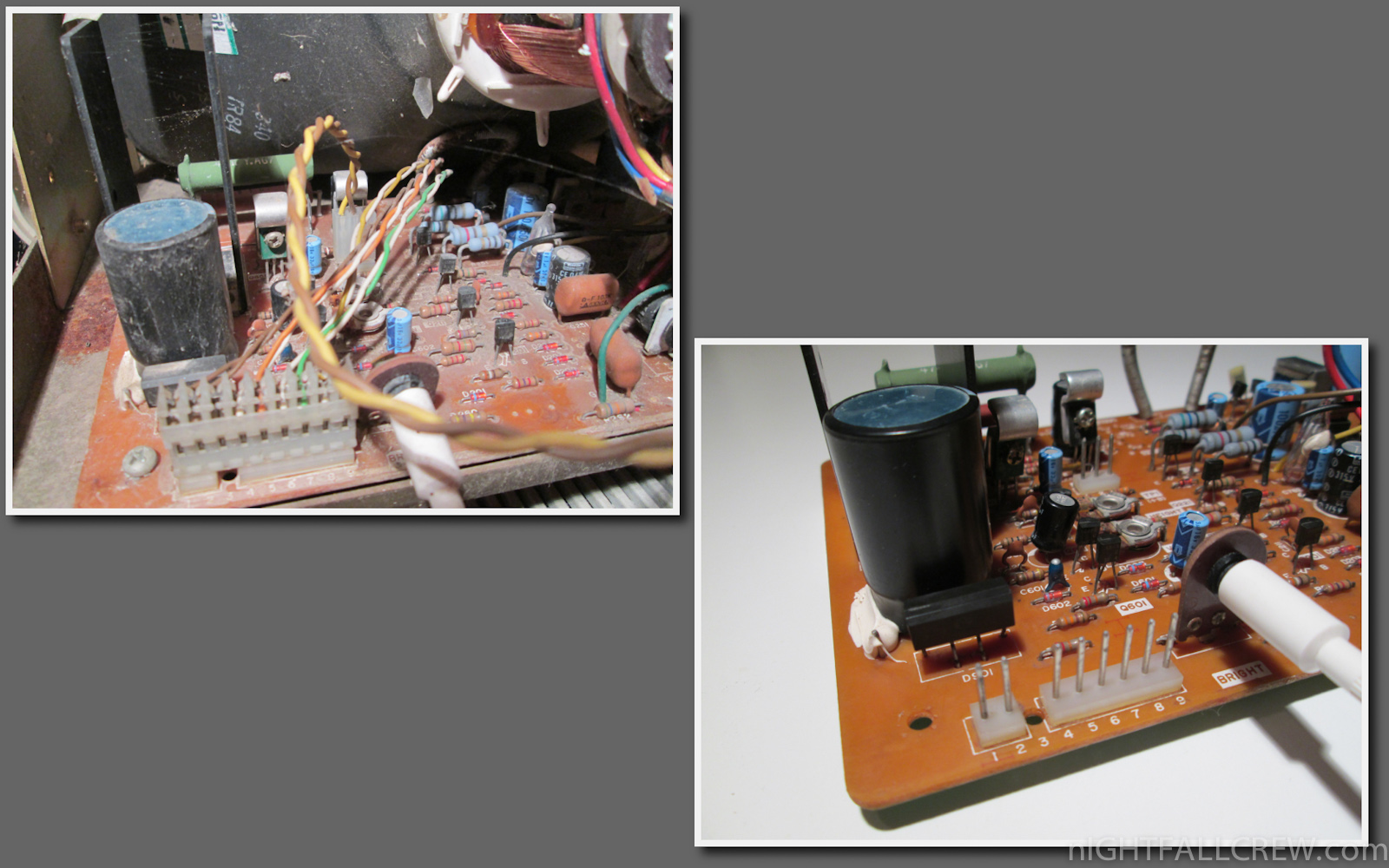

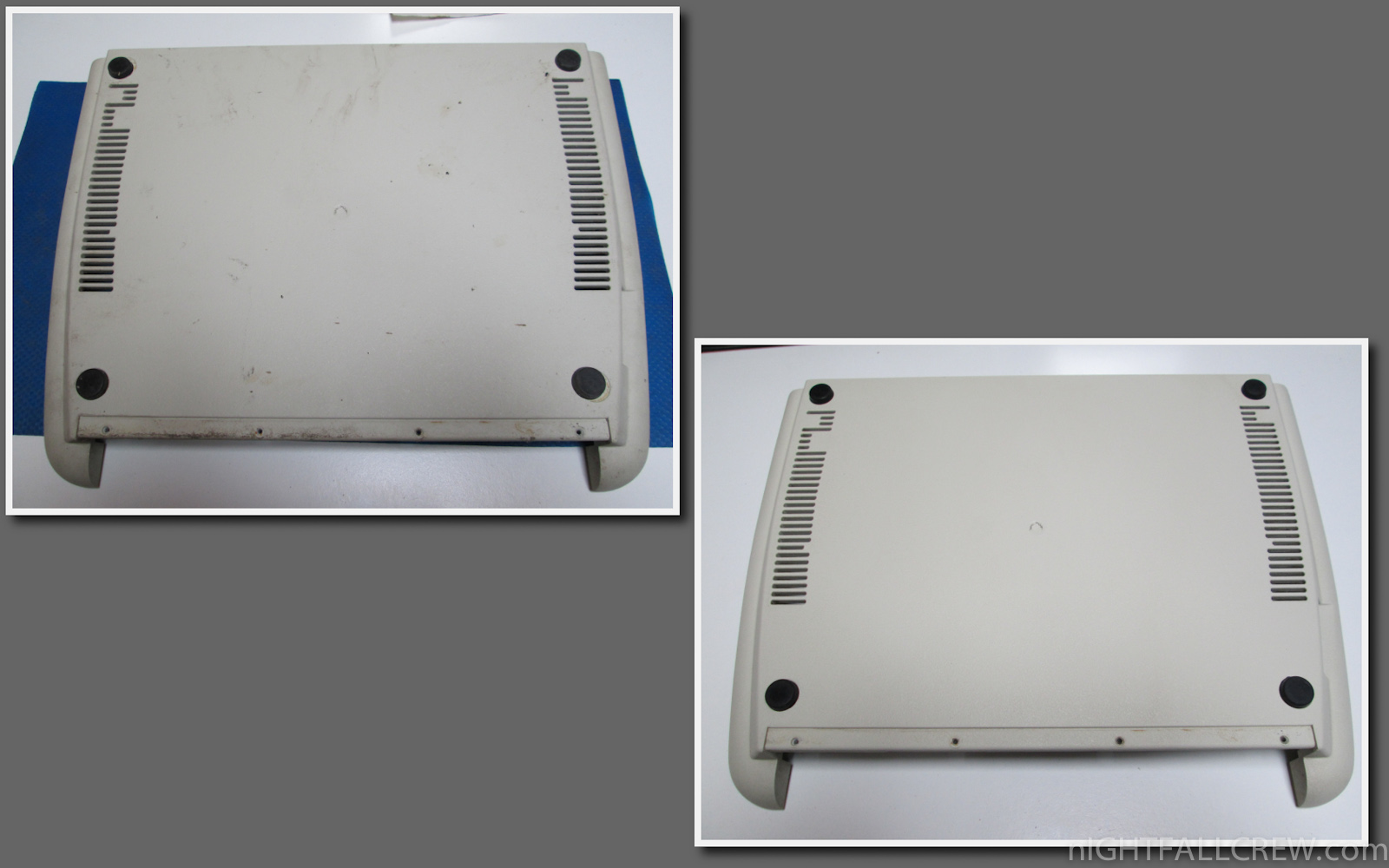

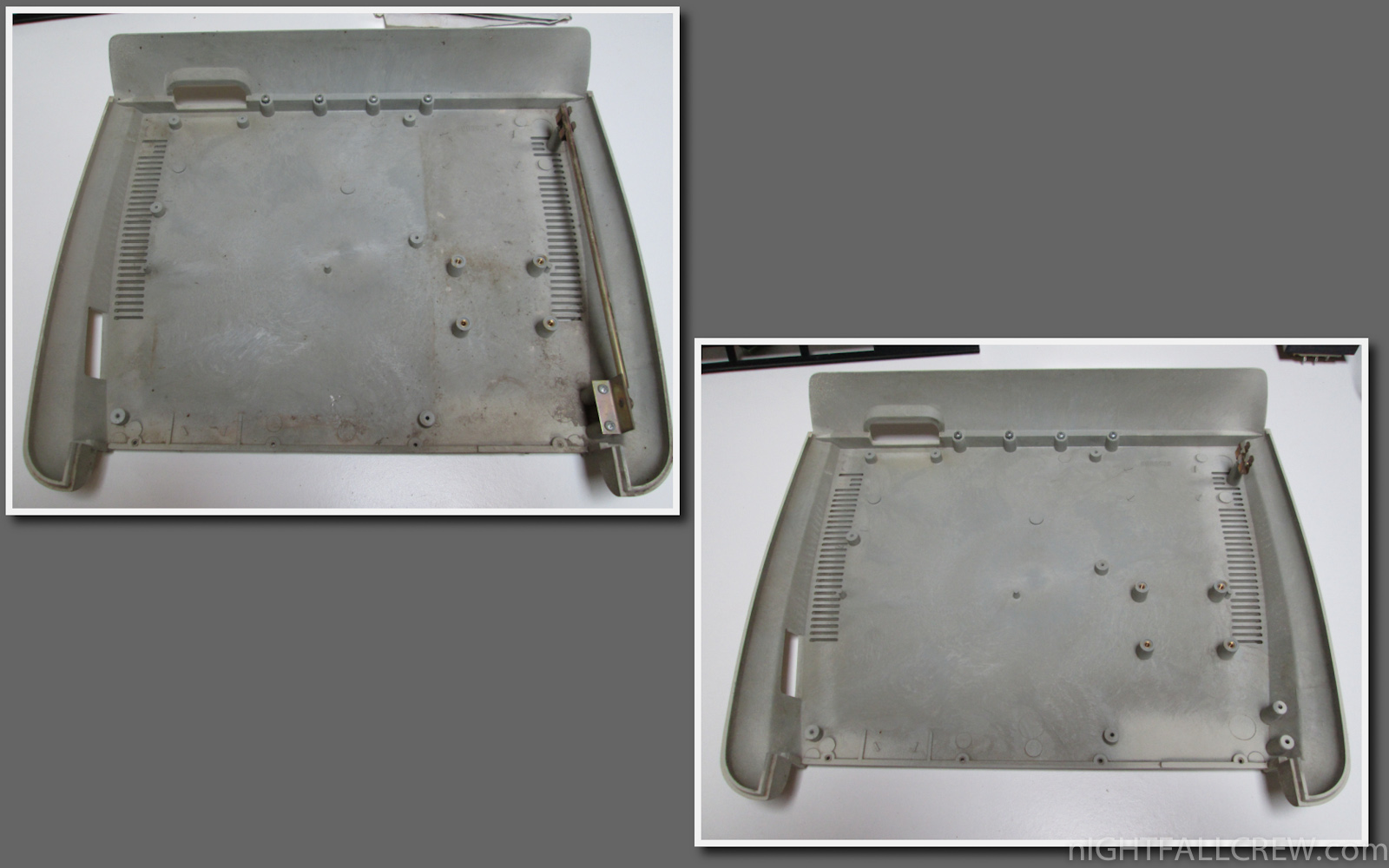

The comparison (before / after):

Defects:

  • The Commodore 8296 was completely dead (Black screen of death).
  • Little problems of CRT geometry.

Replaced parts:

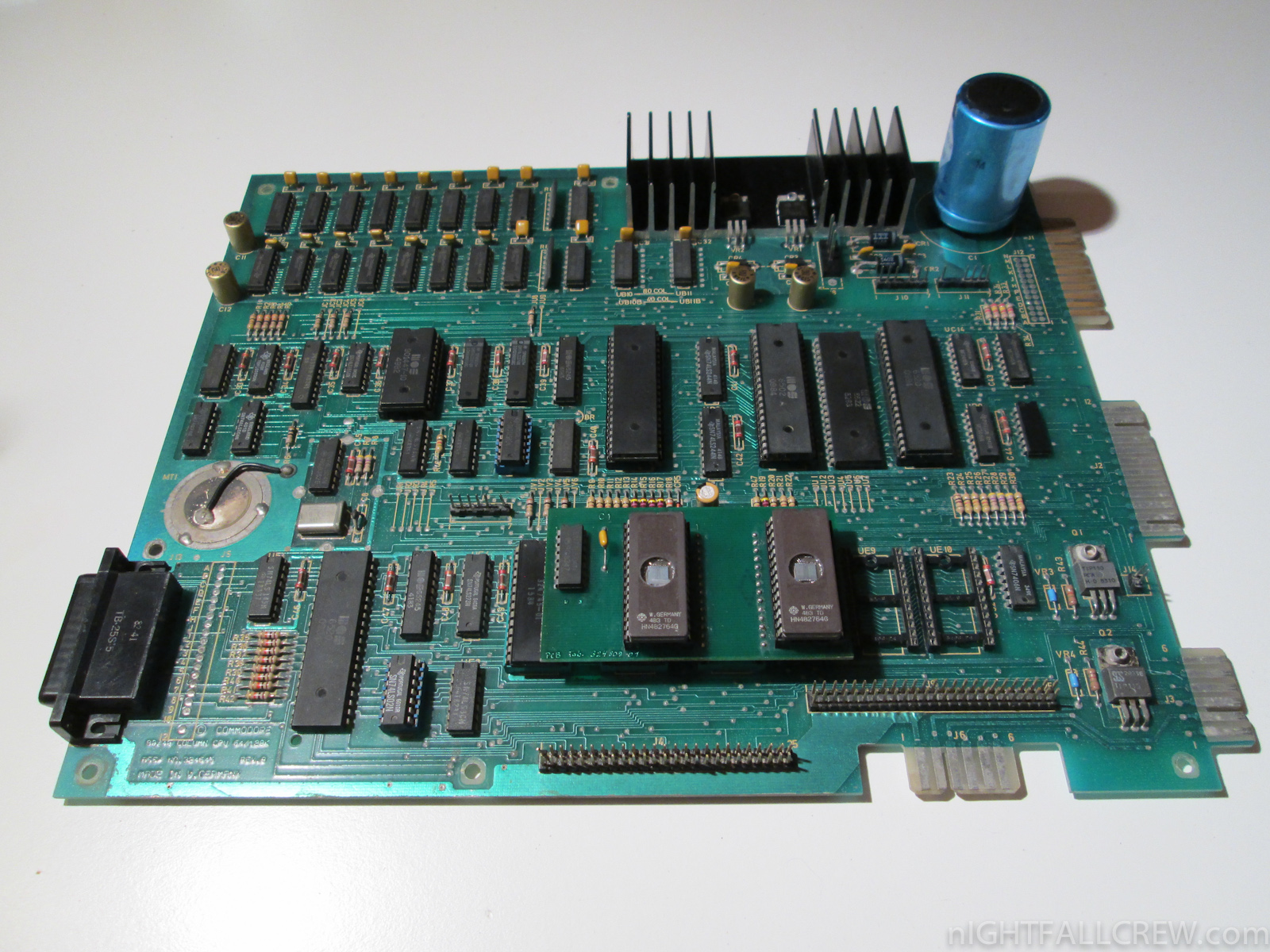

  • Replaced PLA U6 with a OTP EPROM 27C512R 70ns + Adapter

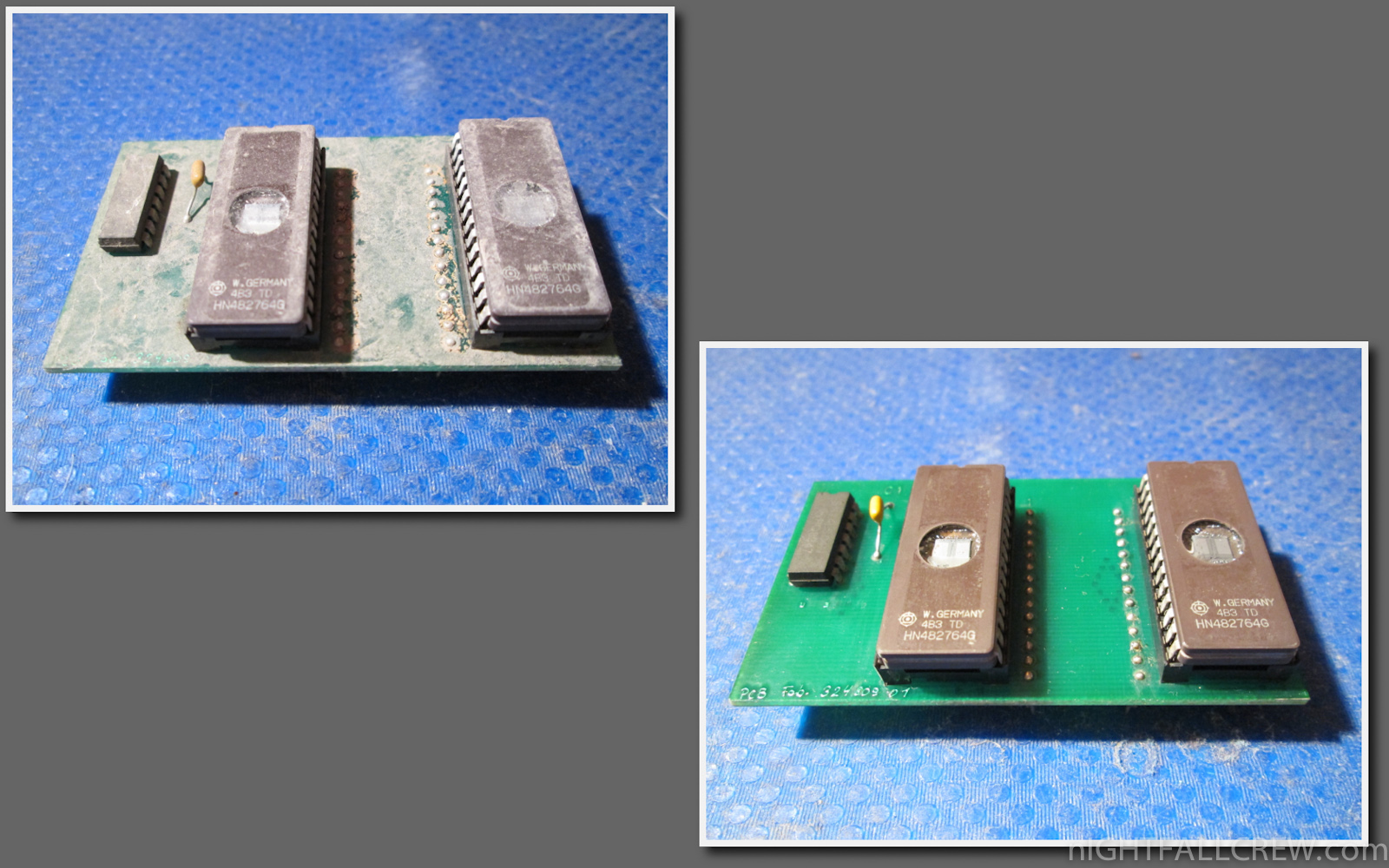

  • Replaced the ROM 2 x 2764 Eprom with 1 x 27C128 Eprom (spare parts from a original cbm pcb)

Note:

I have replaced the original ROM (2 x EPROM) pcb because the PLA adapter is fat. I could insert a small castle (photo) between the ROM pcb and the Main Motherboard but in this time i have prefered to replace with a single Eprom.

Gallery of repair and cleaning:

Repaired for a friend a Commodore CBM 8296-D Motherboard

January 6th, 2014 No comments

This is a Commodore CBM 8296-D Motherboard repaired for a Friend.

Gallery of the repair:

Defect:

  • Black screen of death without startup beep and after replacing U5 and U6 black screen of death with startup beep.

Replaced parts:

  • Replaced PLA U5 with a original PLA MOS 324745-01.
  • Replaced PLA U6 with a OTP EPROM 27C512R 70ns + Adapter

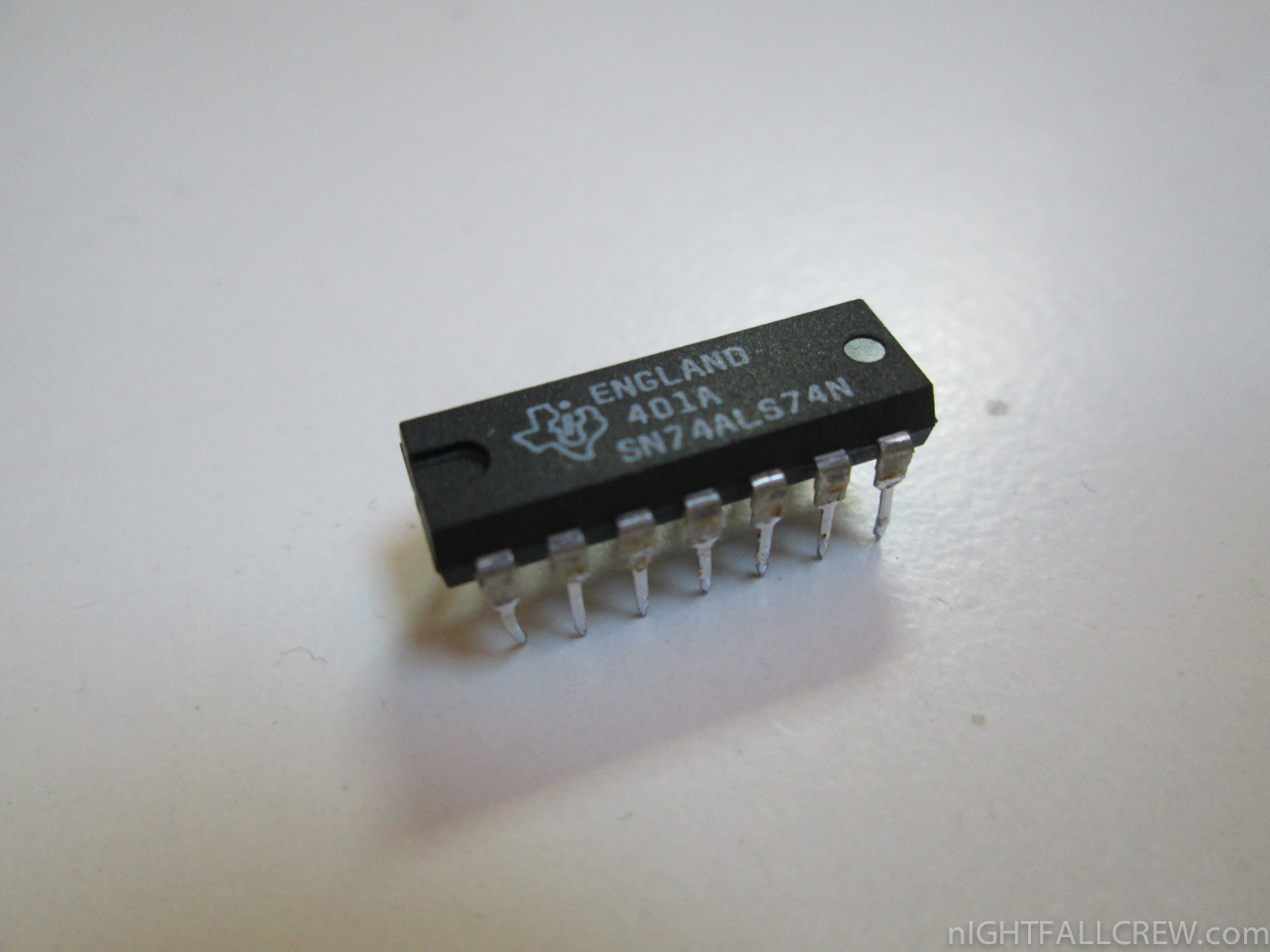

  • Replaced a dual FlipFlop 74LS74 UD4.

* The replacement of the two PLA has already been made earlier by my friend.

Restoration & Repair of a Commodore 8032-SK (Gold Label)

January 6th, 2014 1 comment

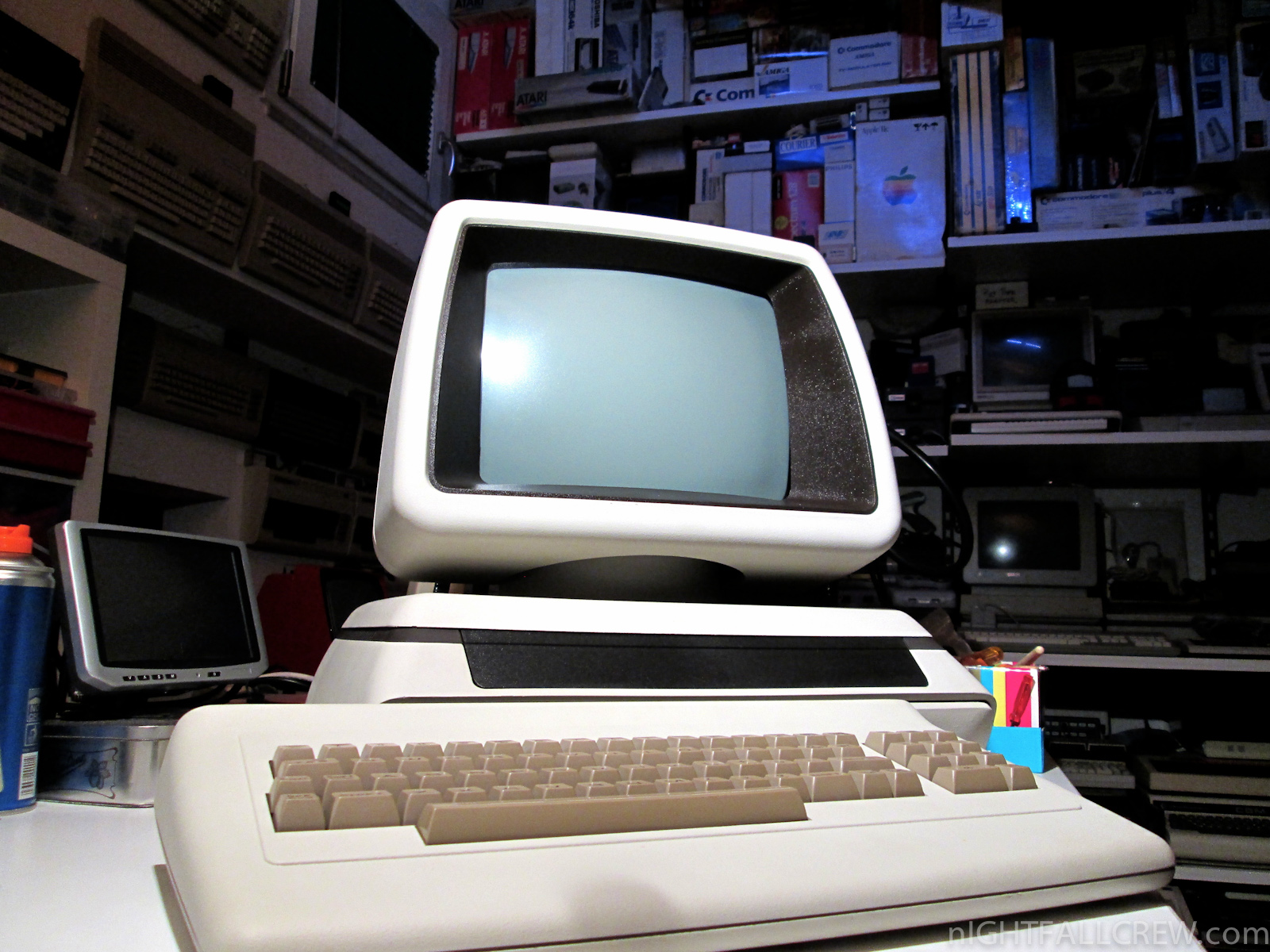

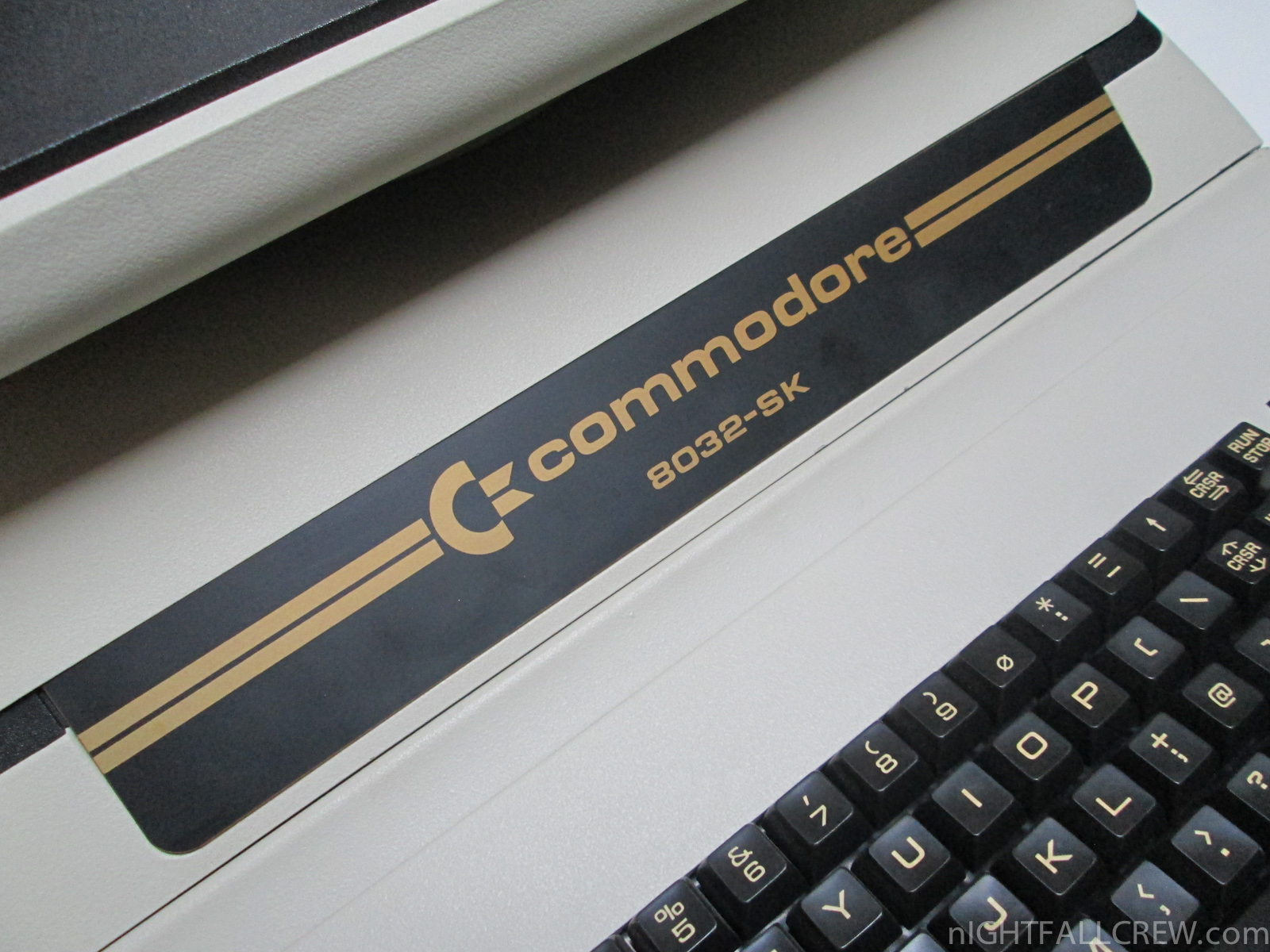

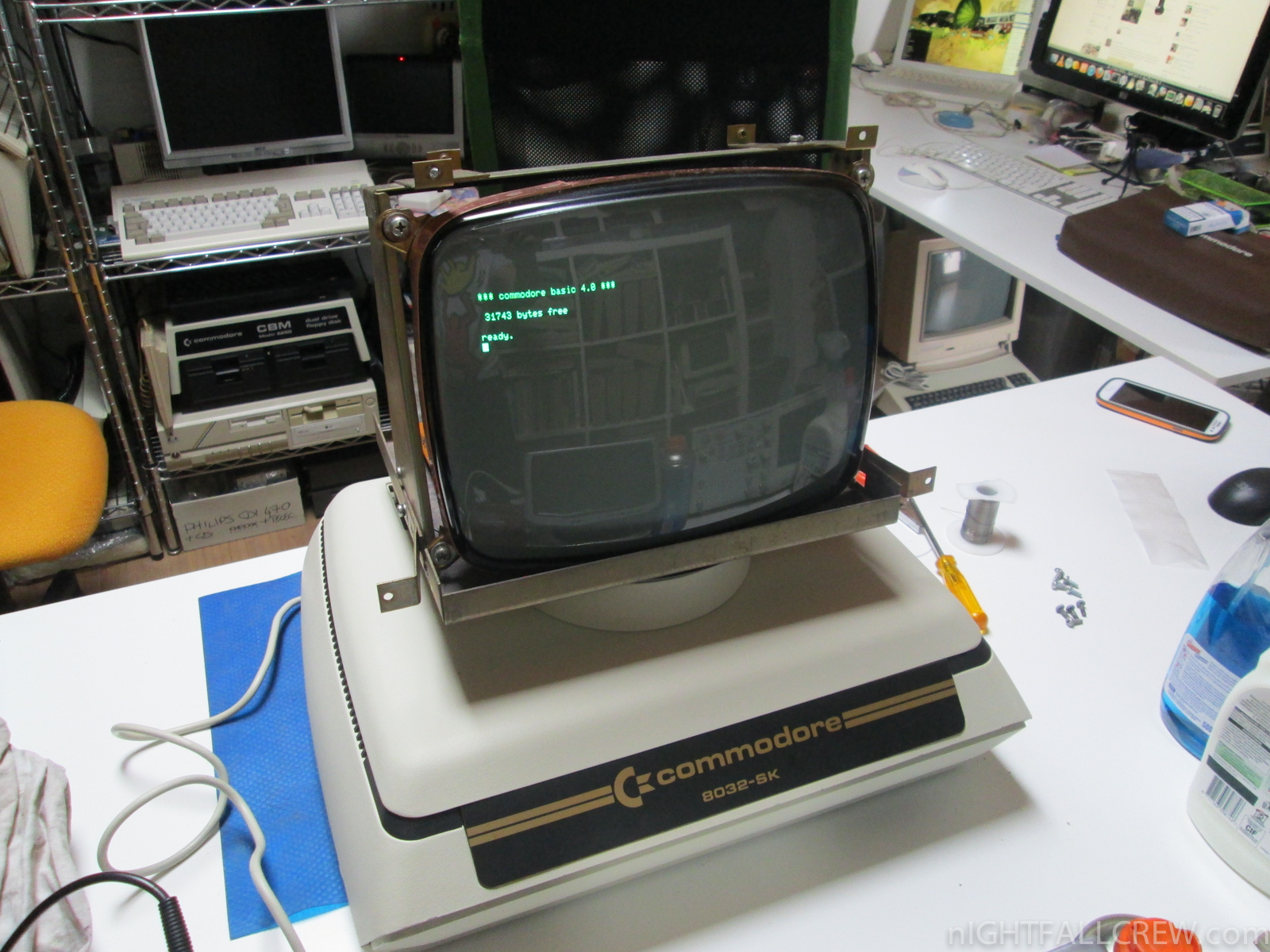

Commodore 8032-SK (Gold Label)

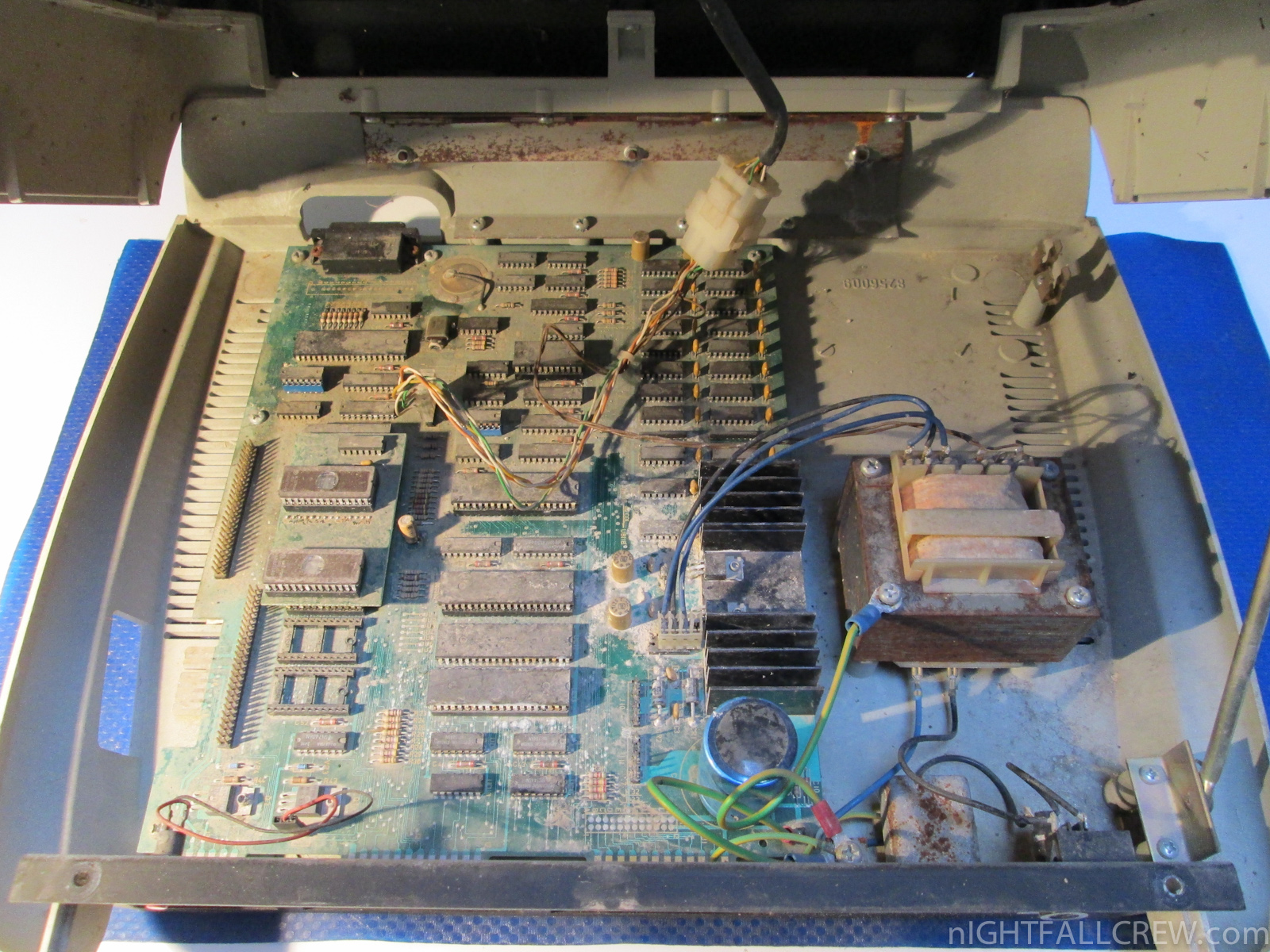

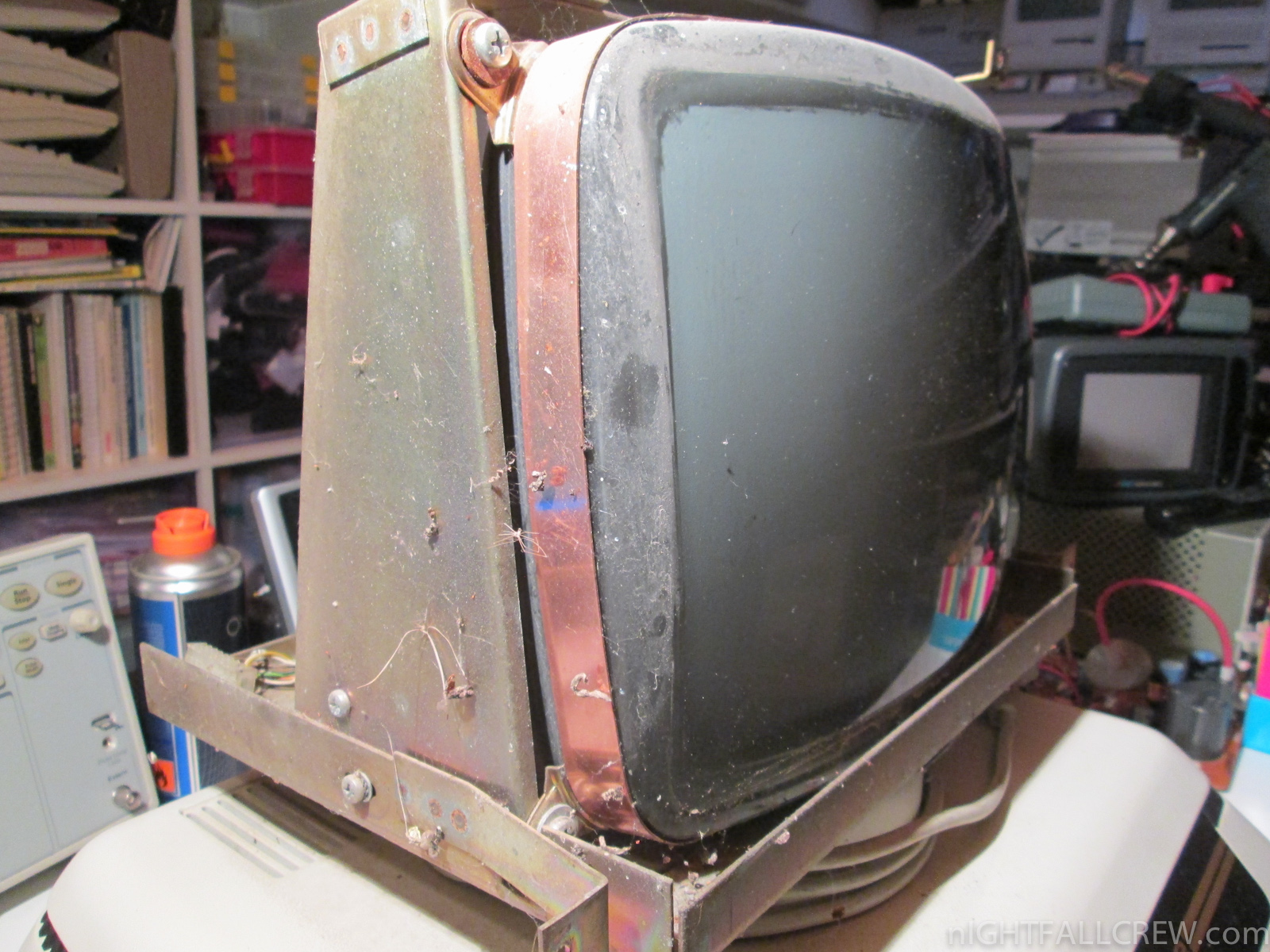

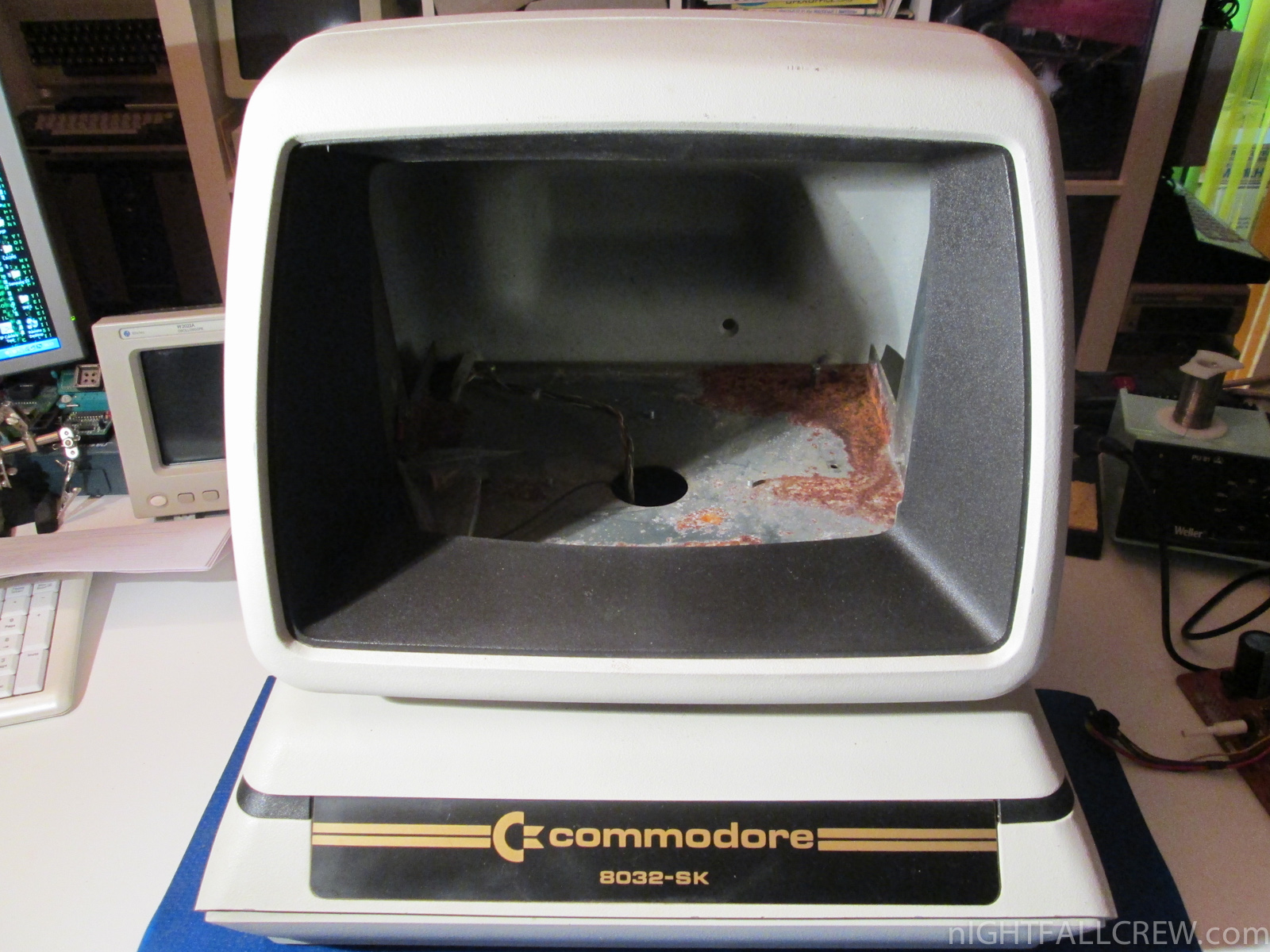

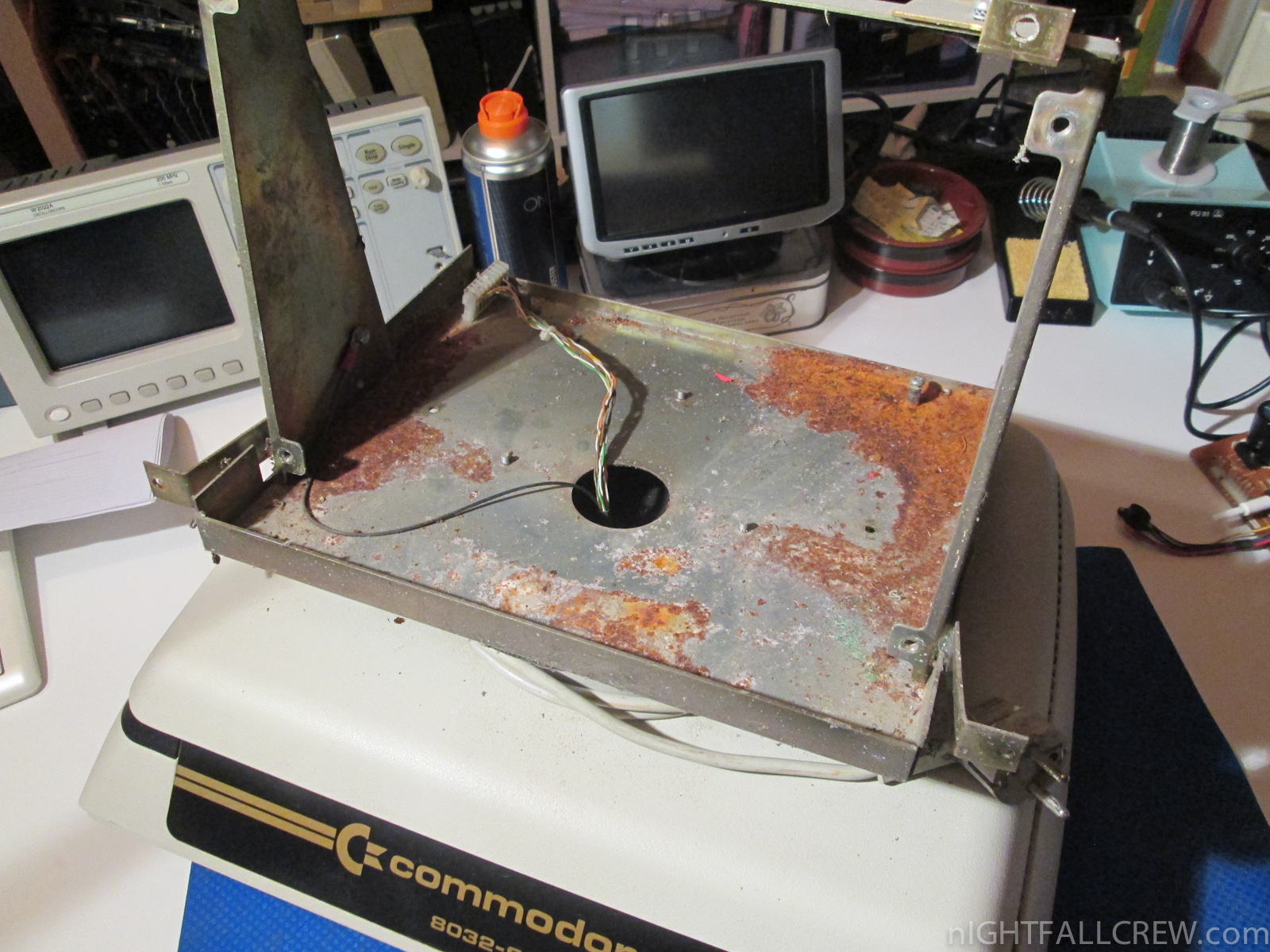

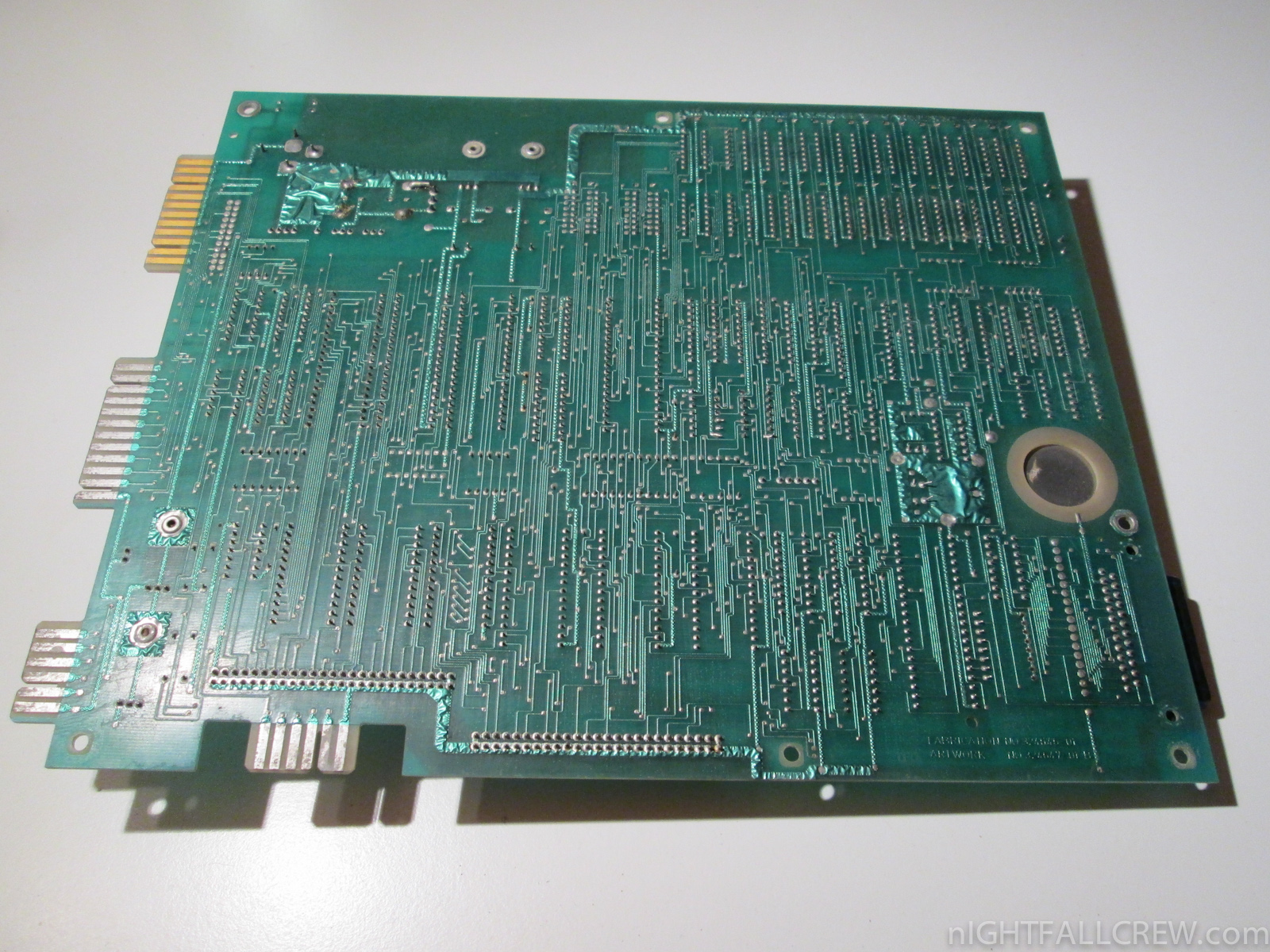

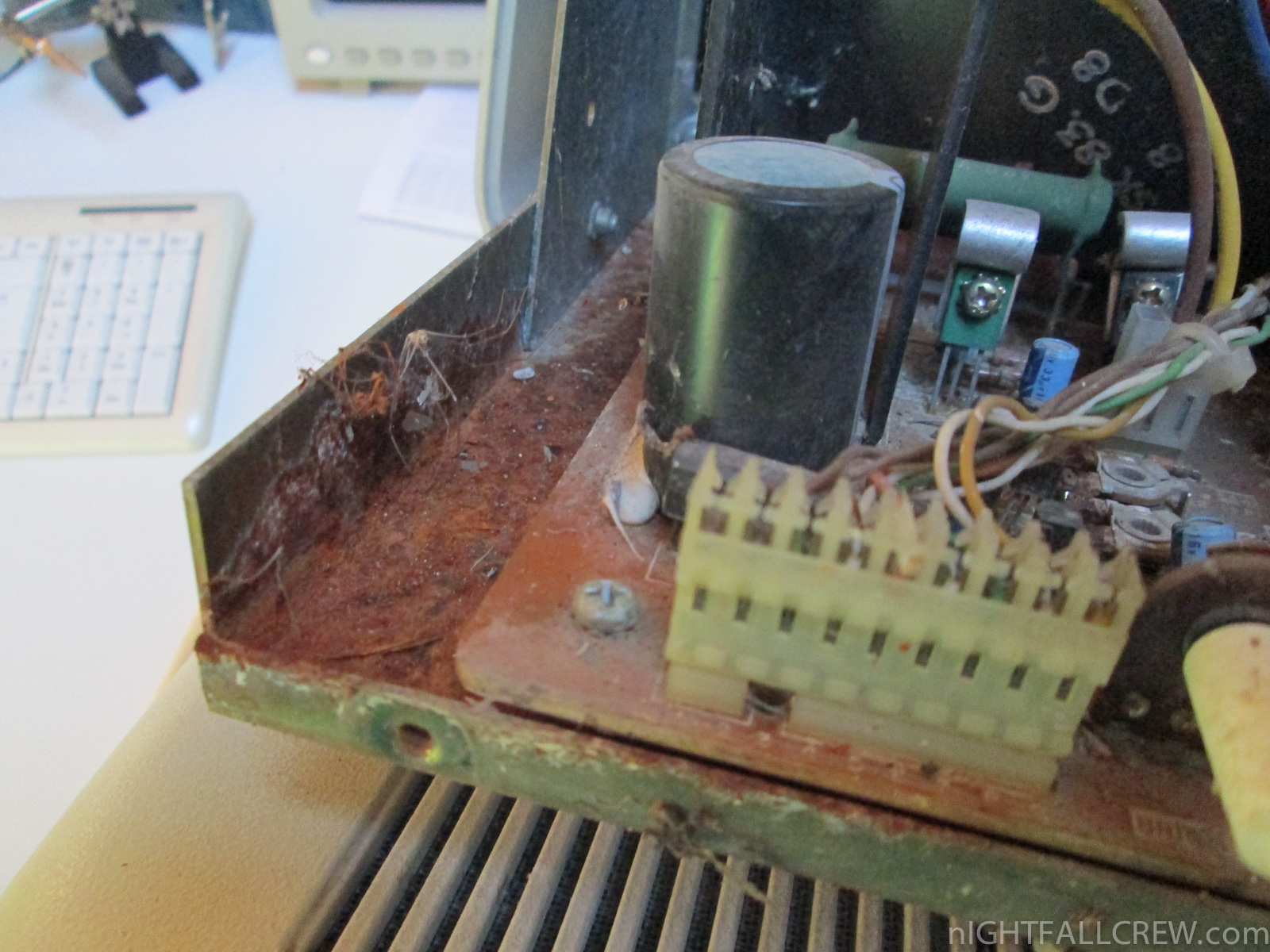

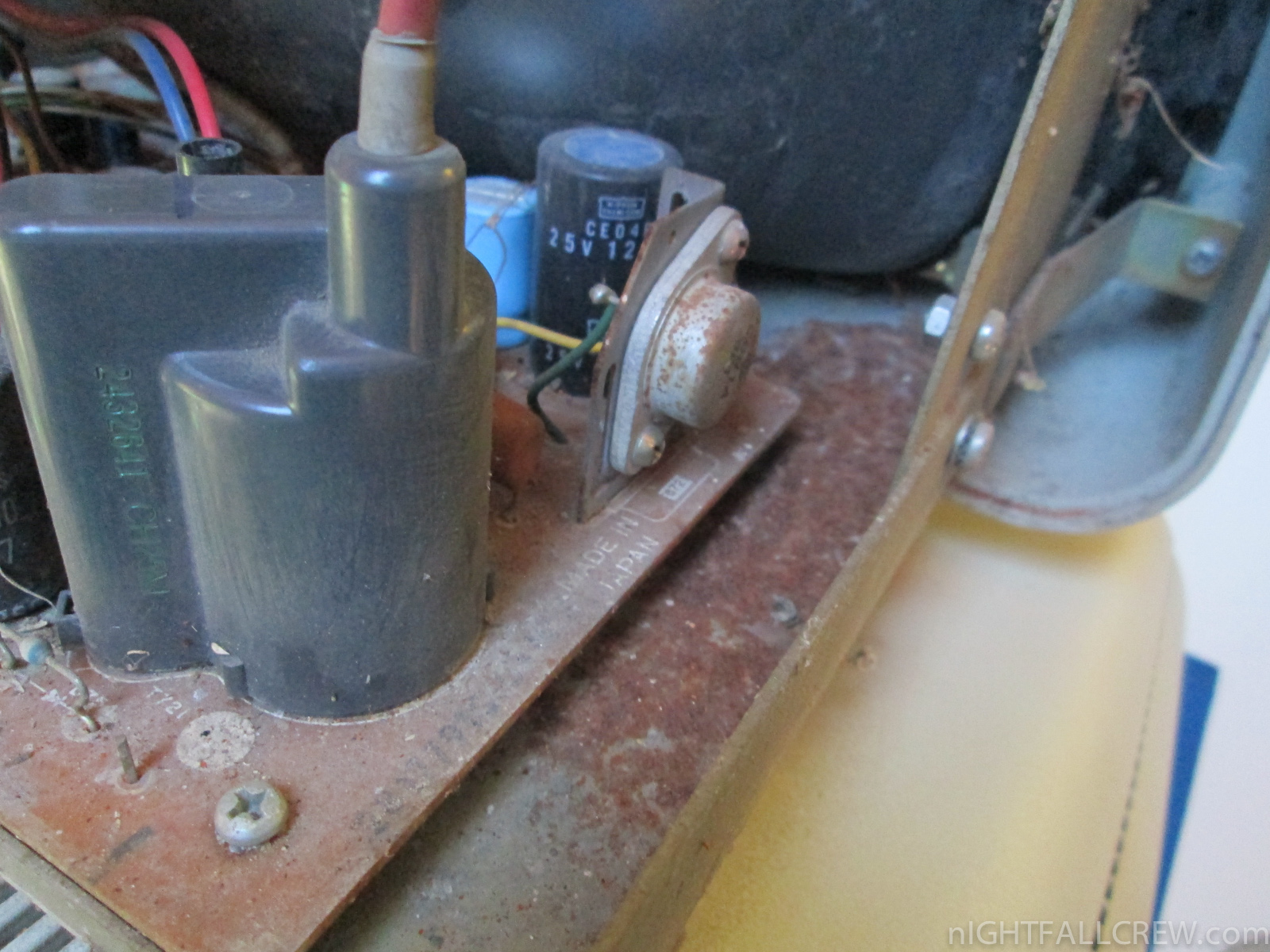

The conditions of this Commodore 8032-SK (Gold Label) are really bad. The CBM 8032-SK is left for over 25 years in a dovecote.

The cleaning, repairing and restoration have taken a very long time, but the result is more than acceptable.

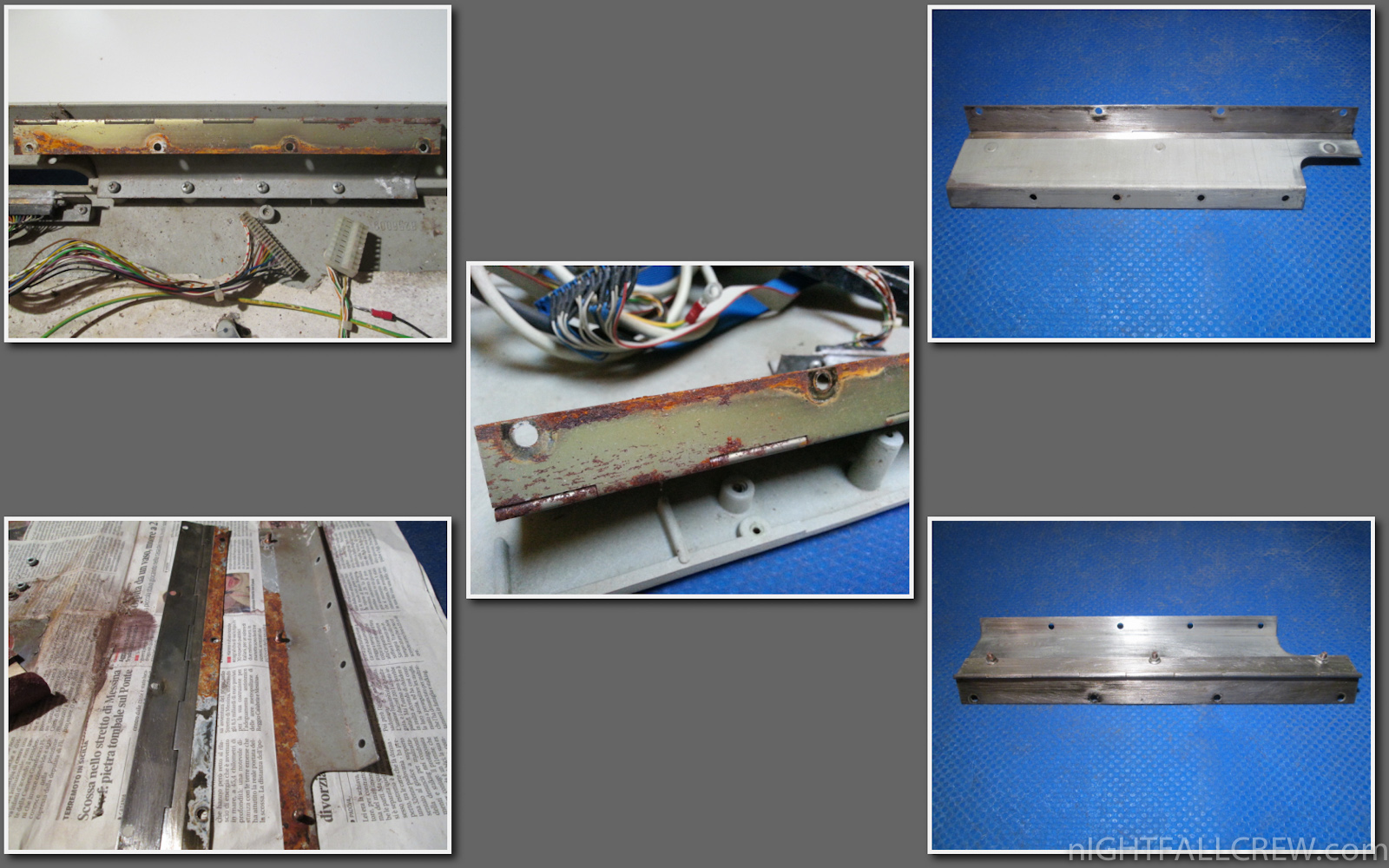

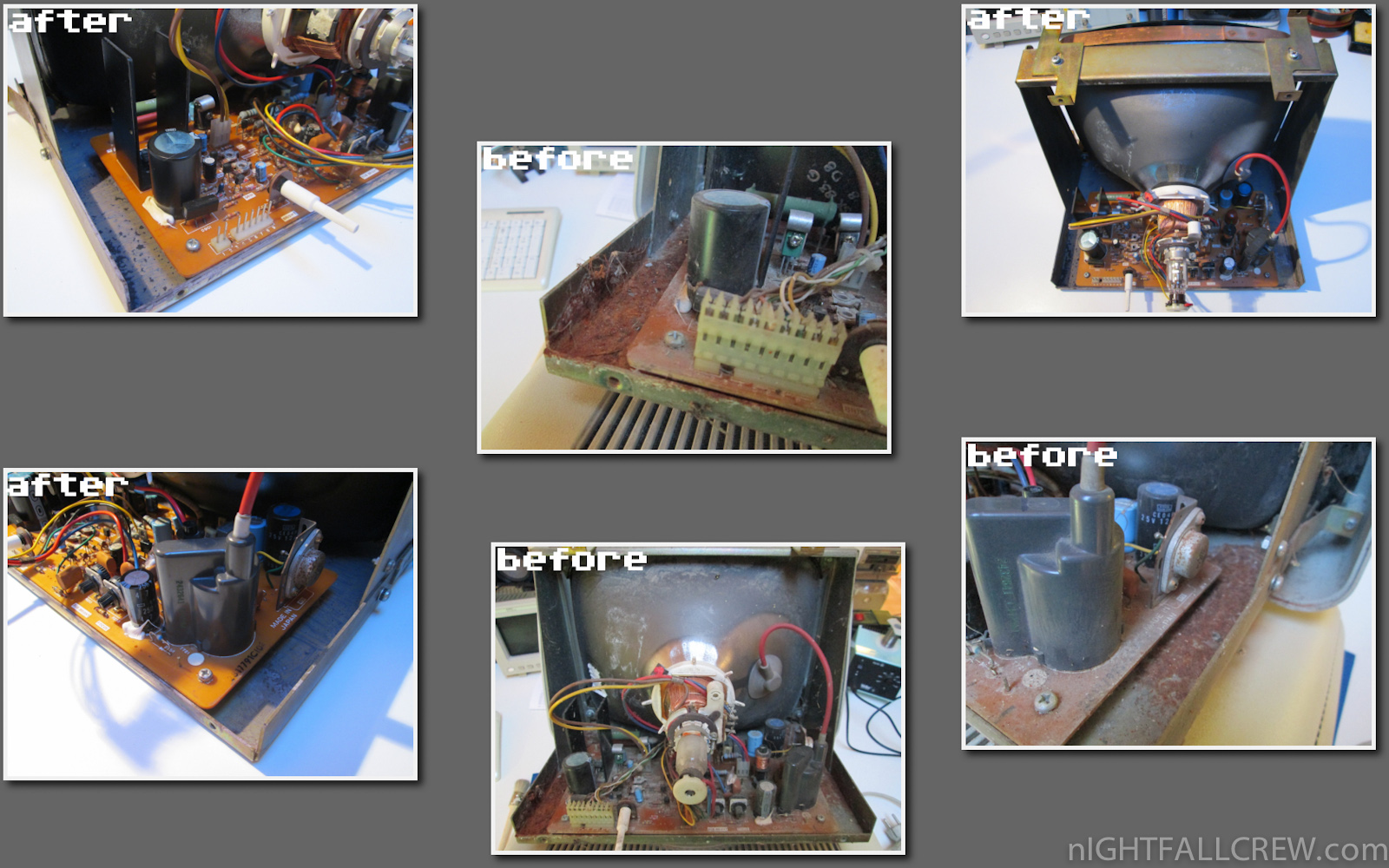

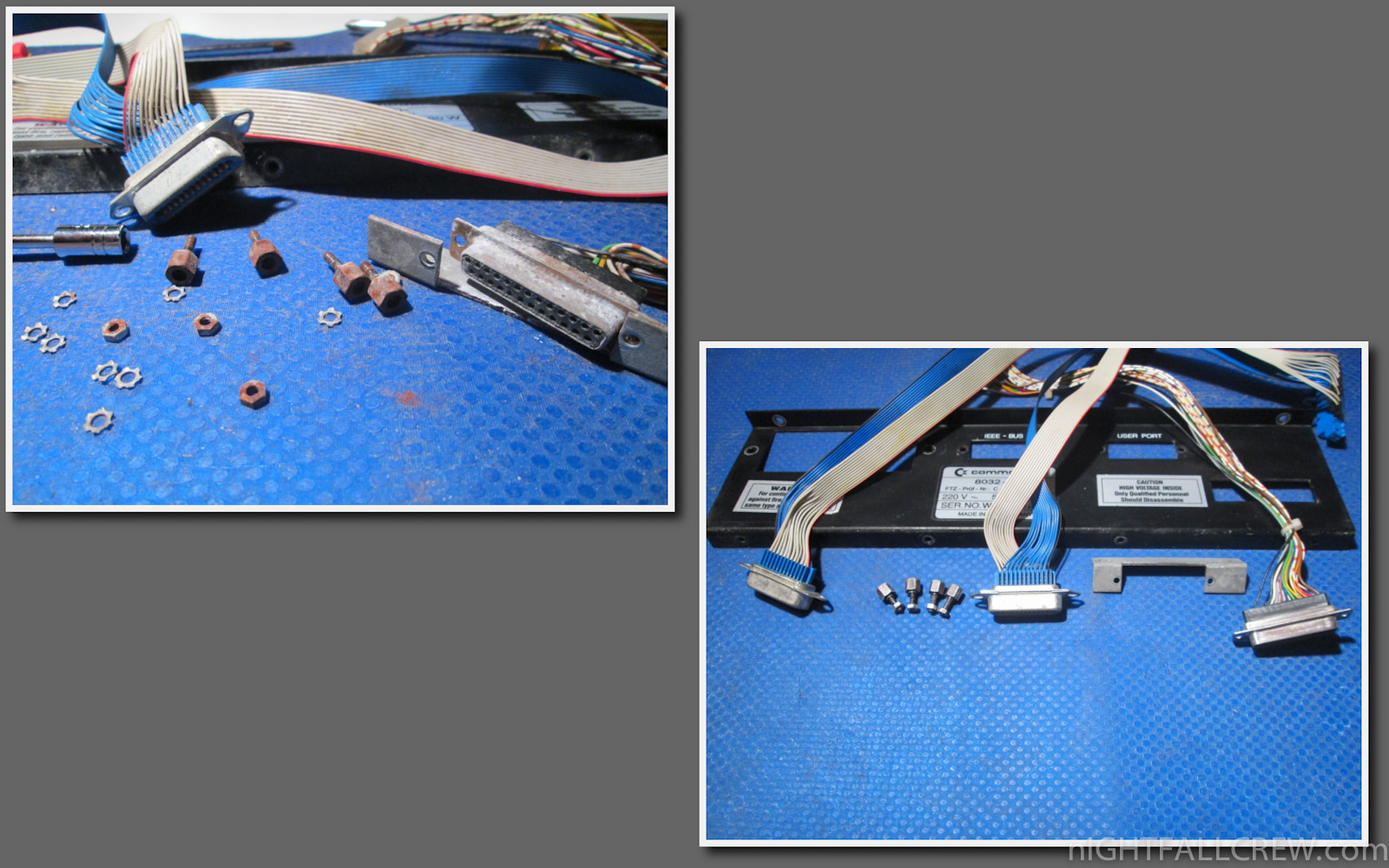

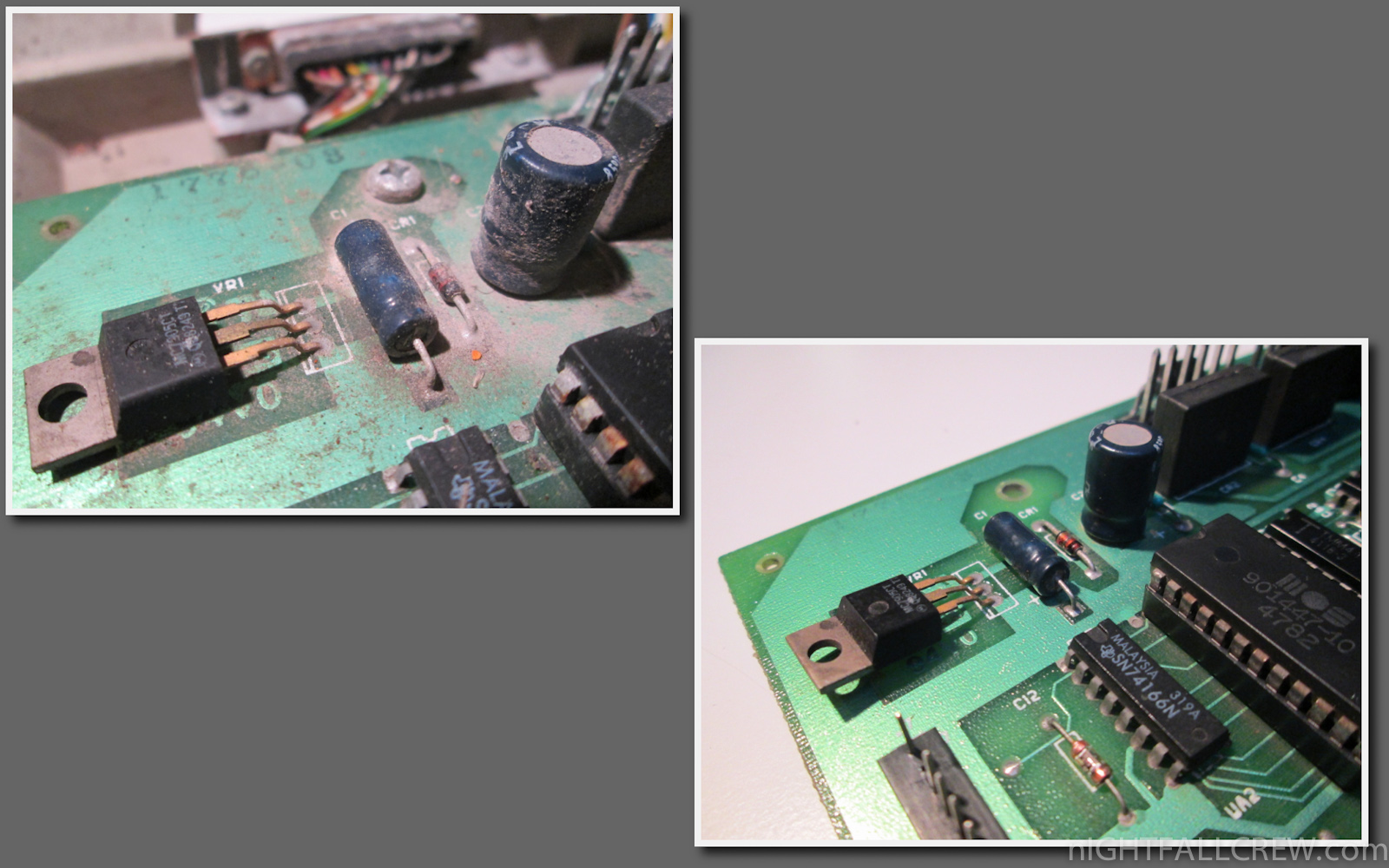

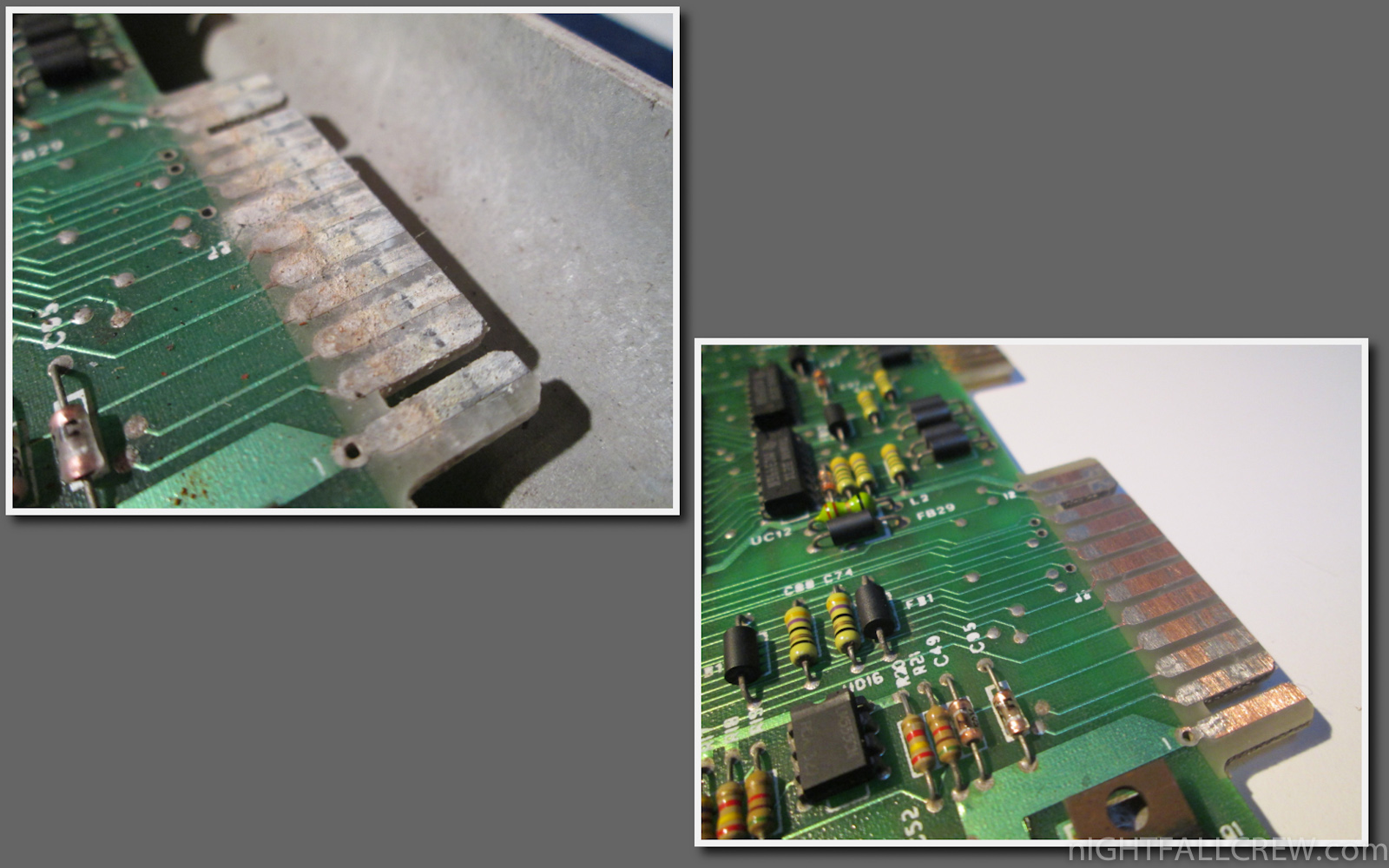

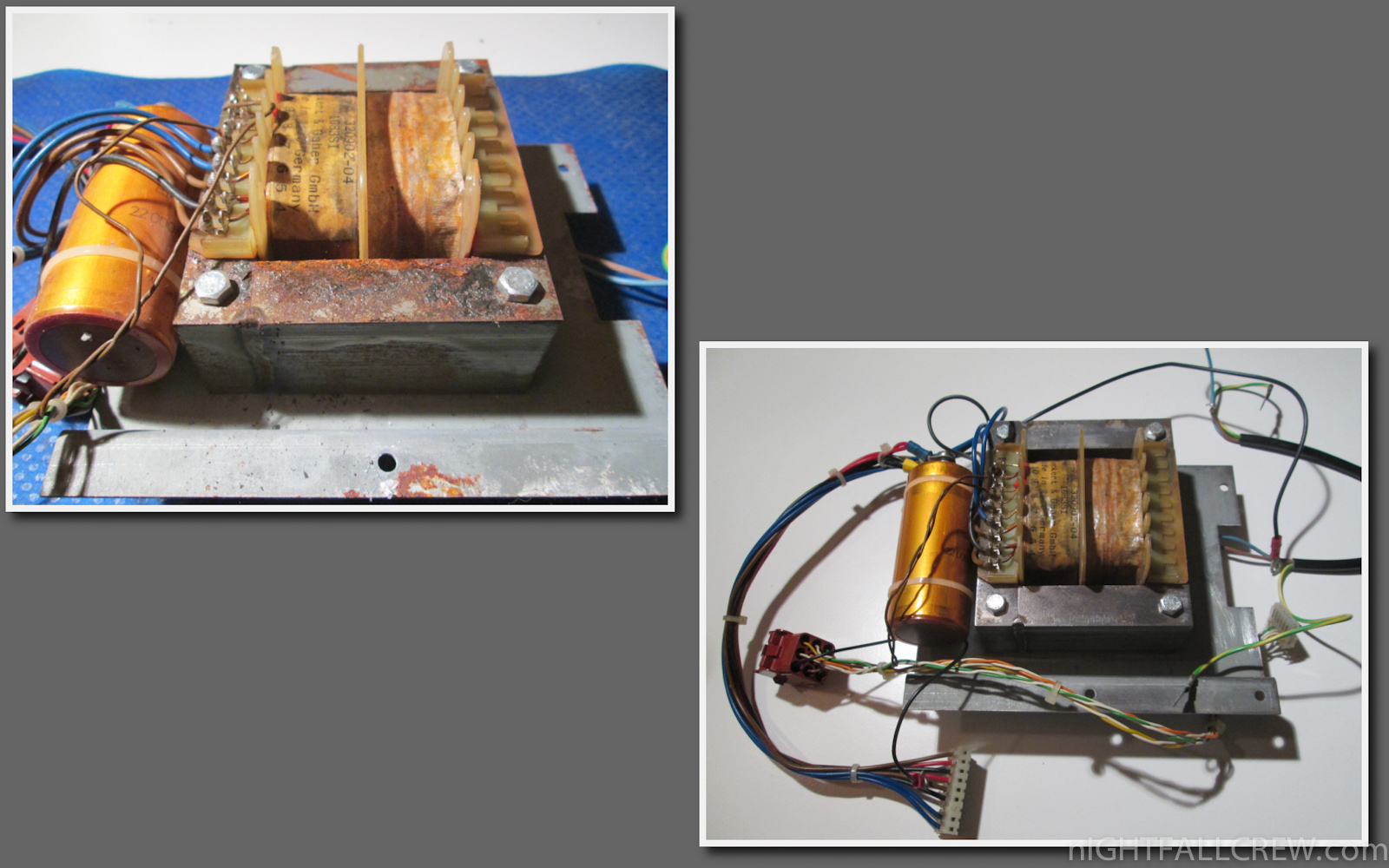

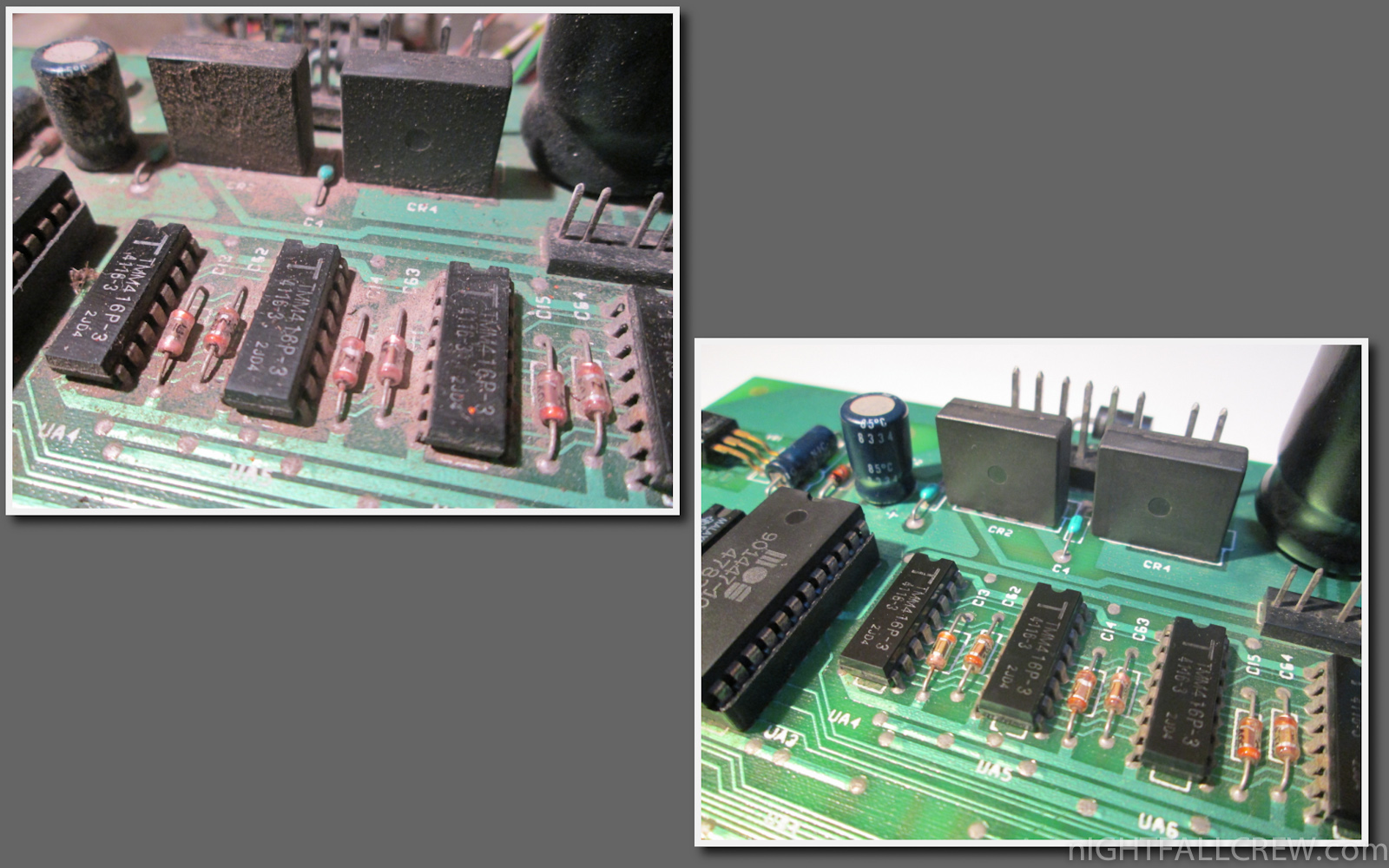

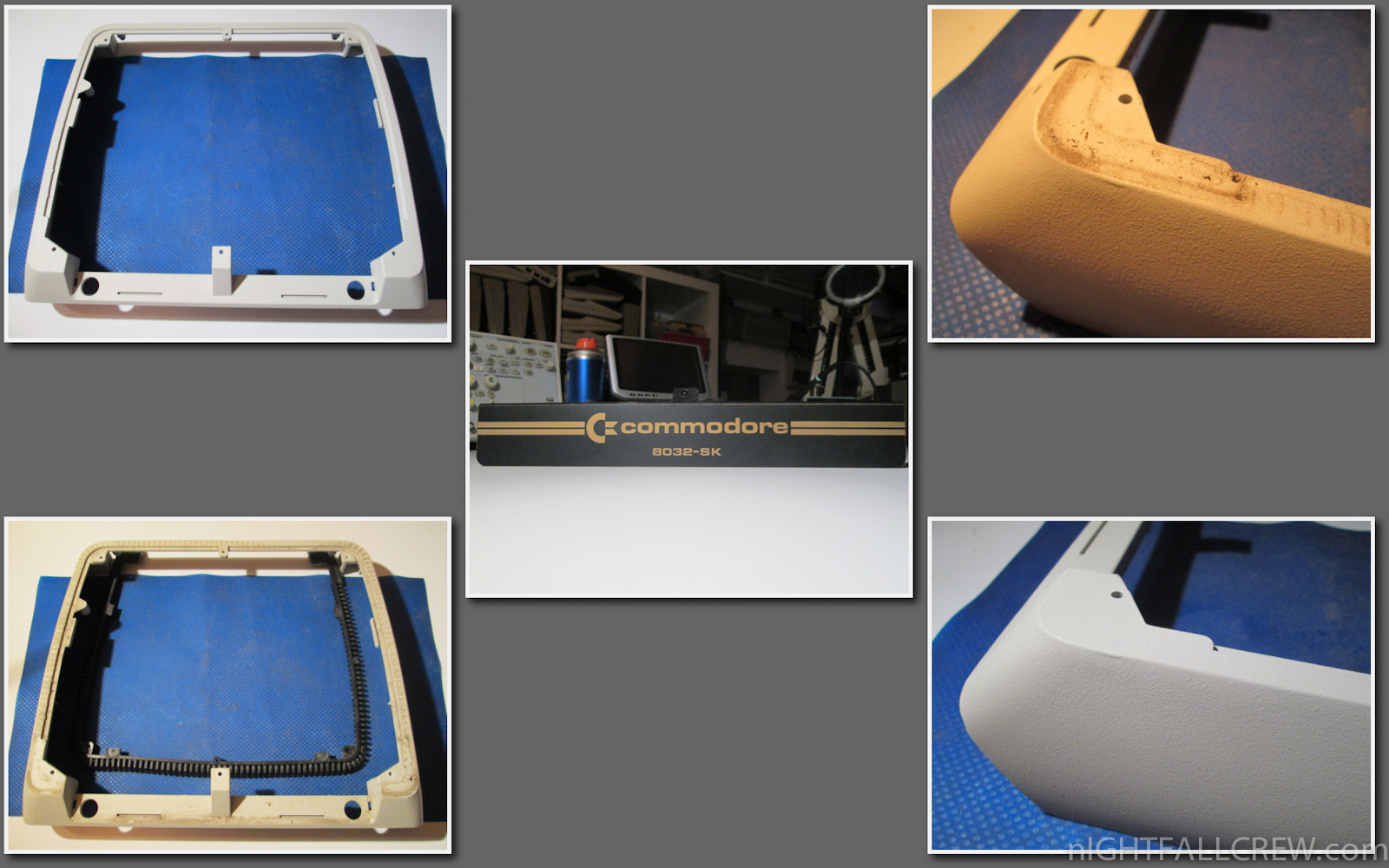

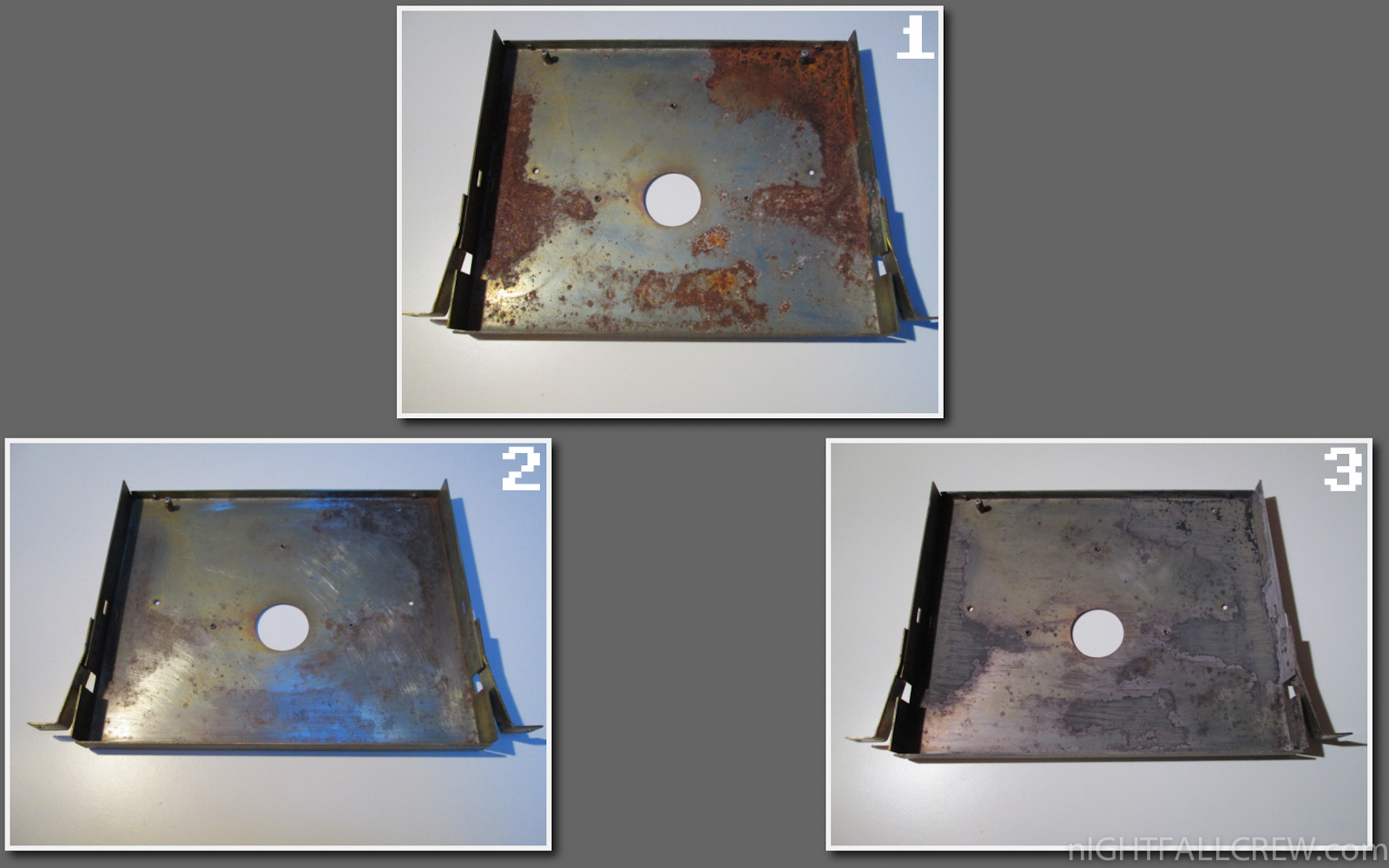

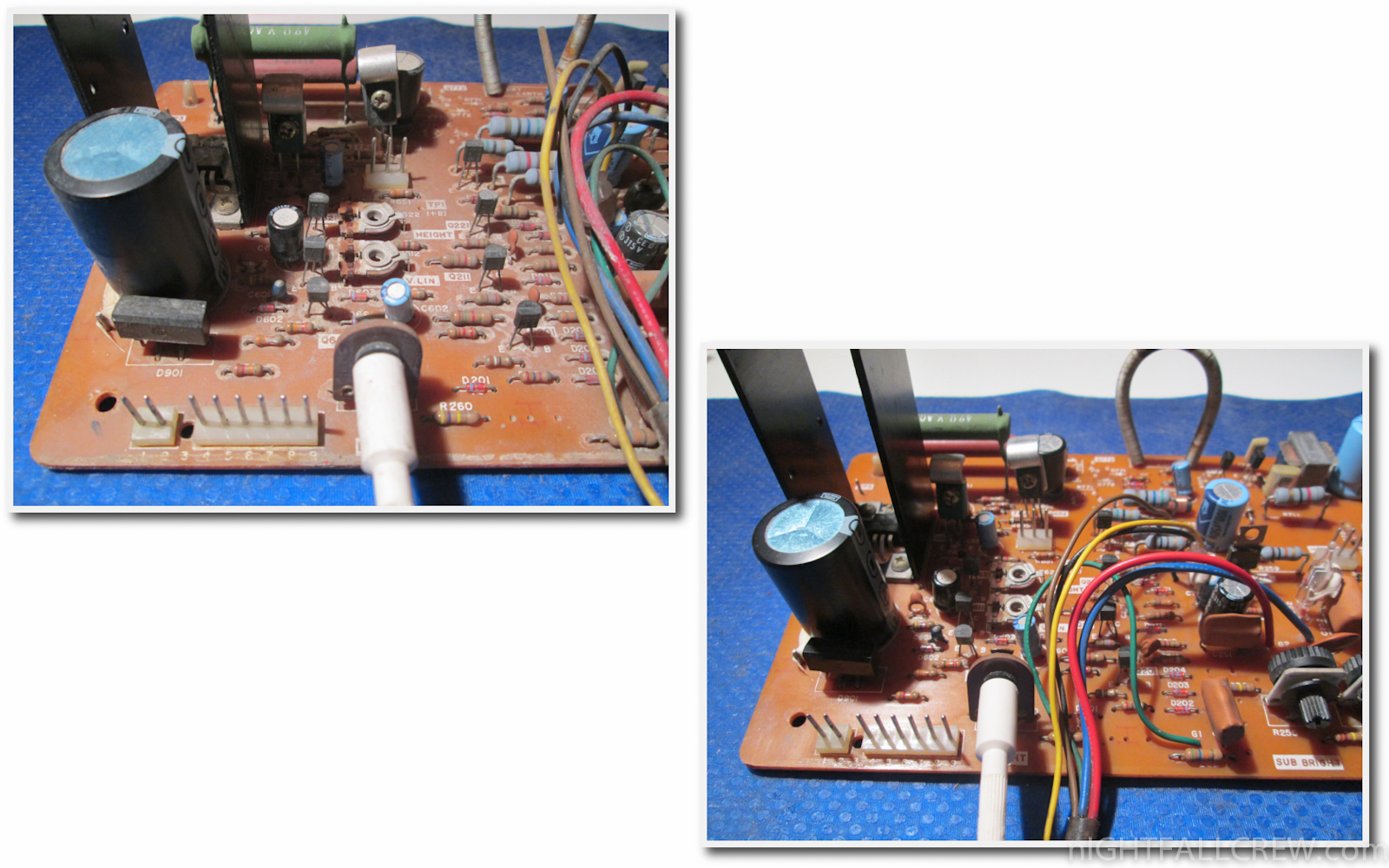

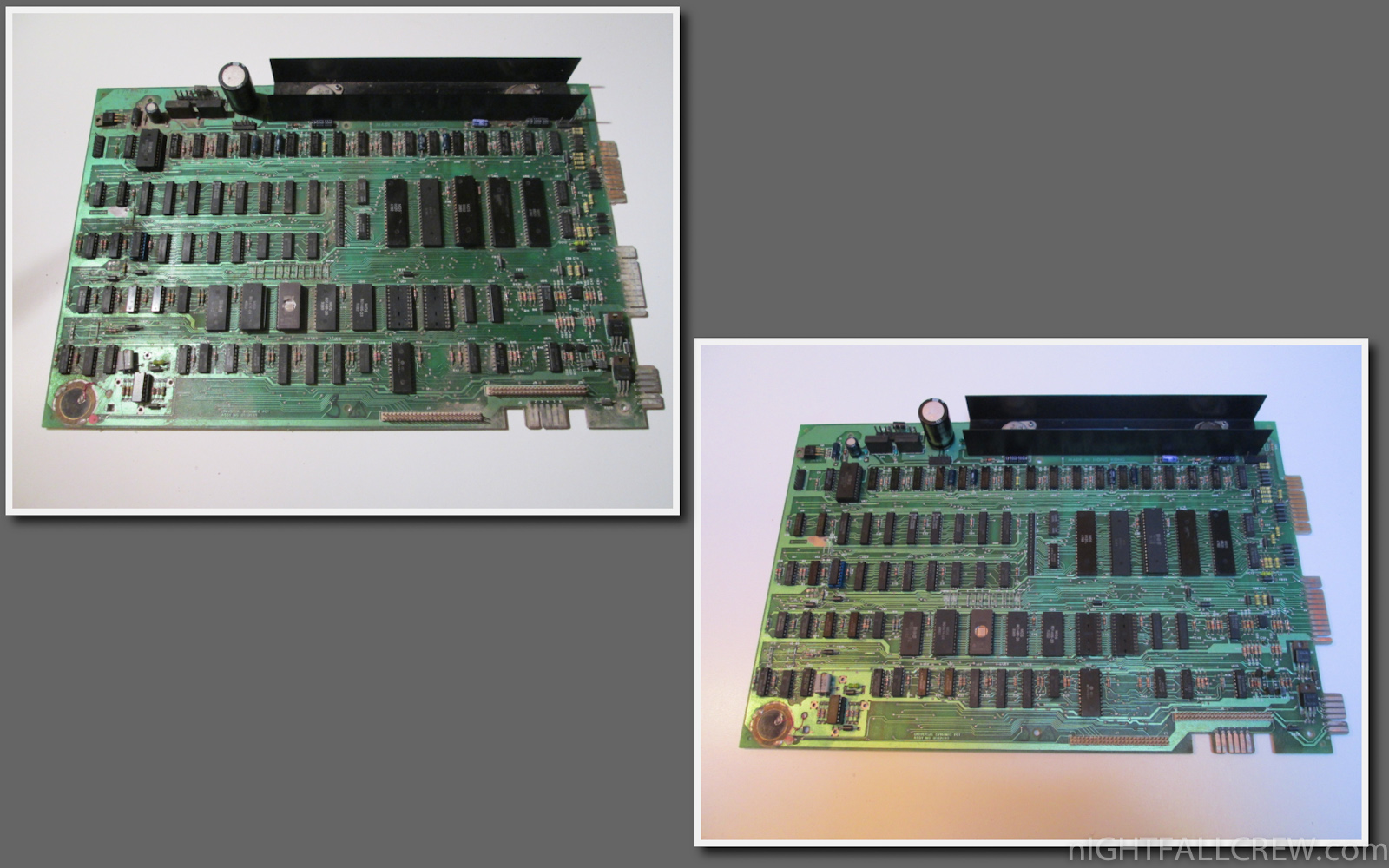

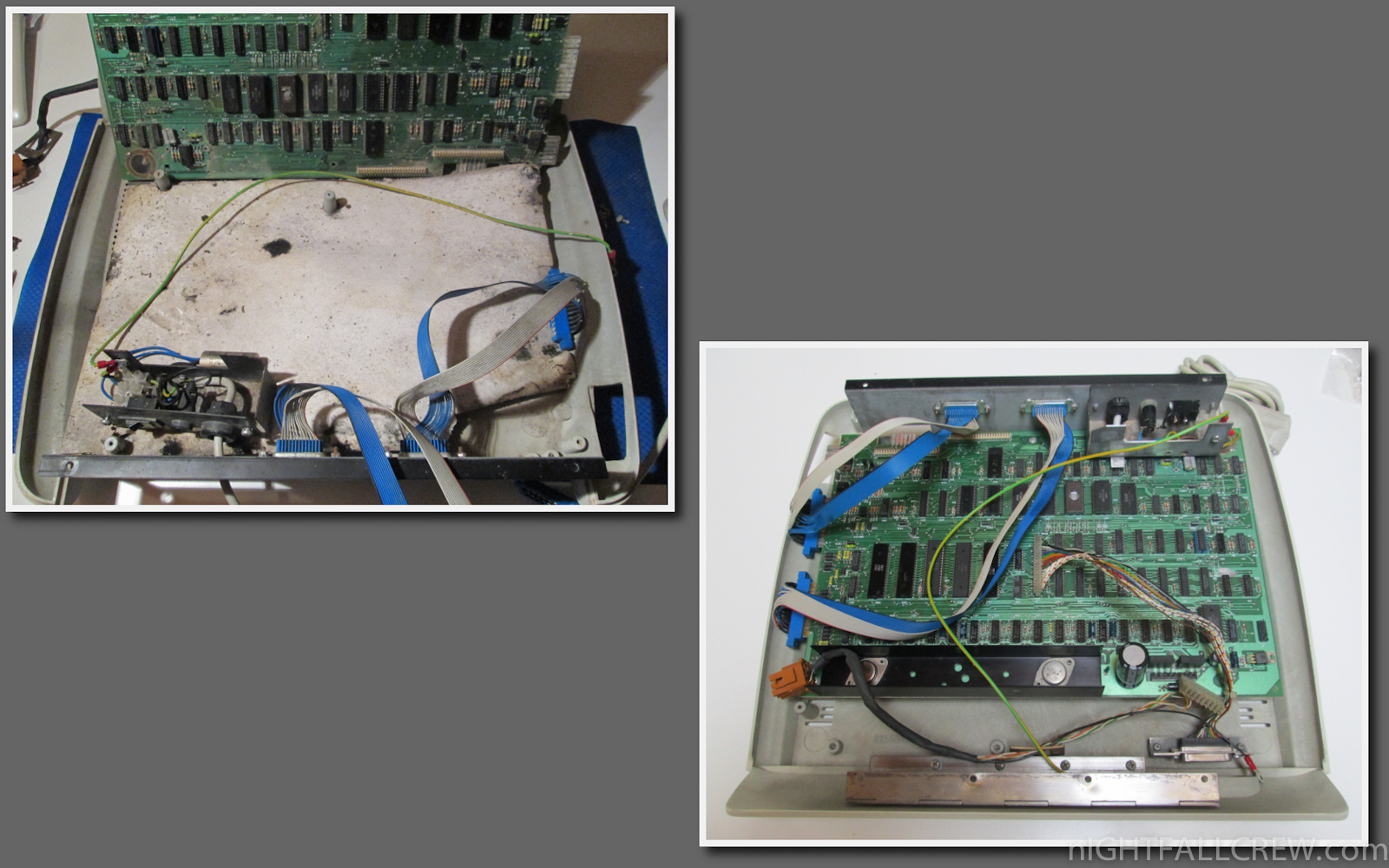

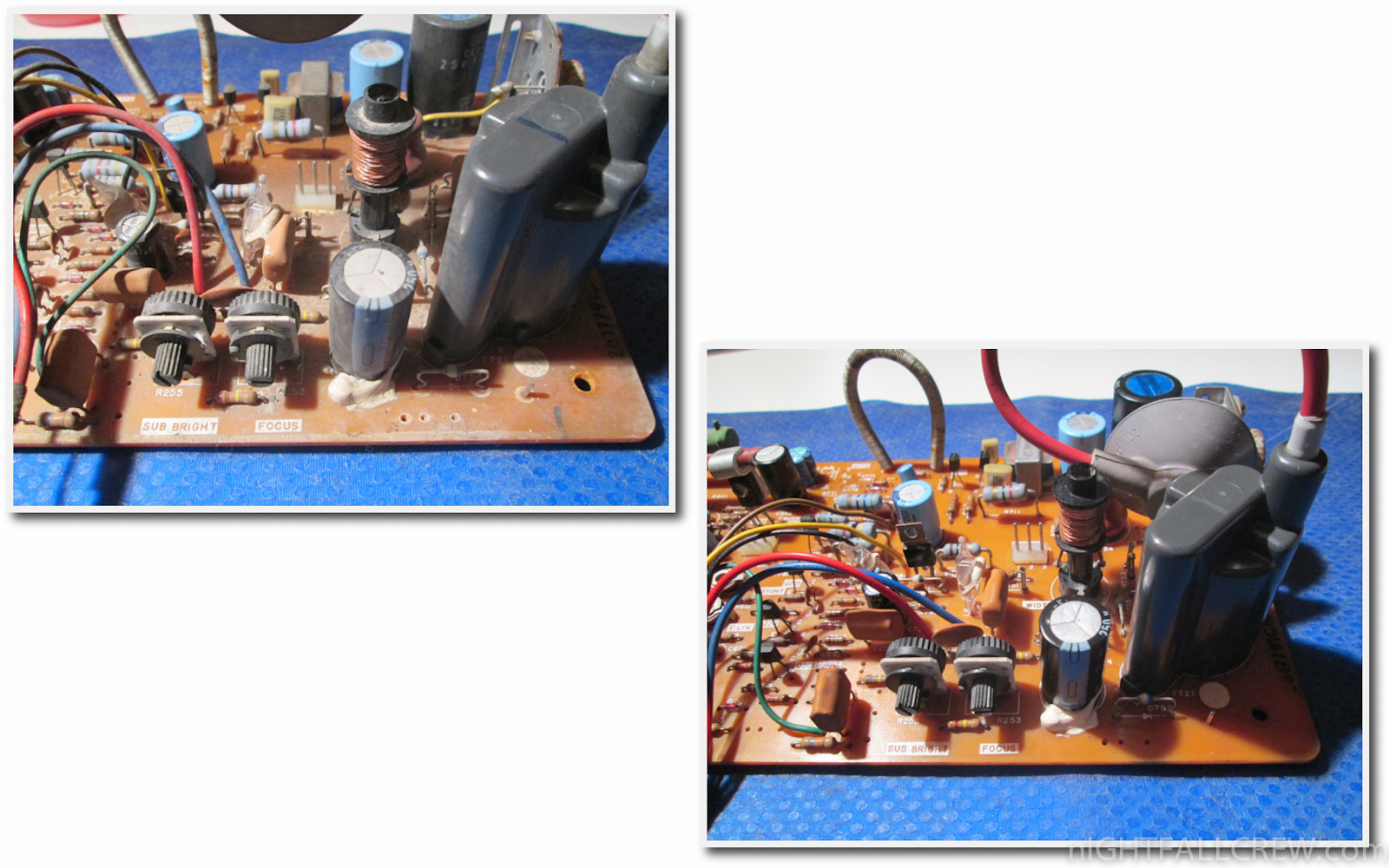

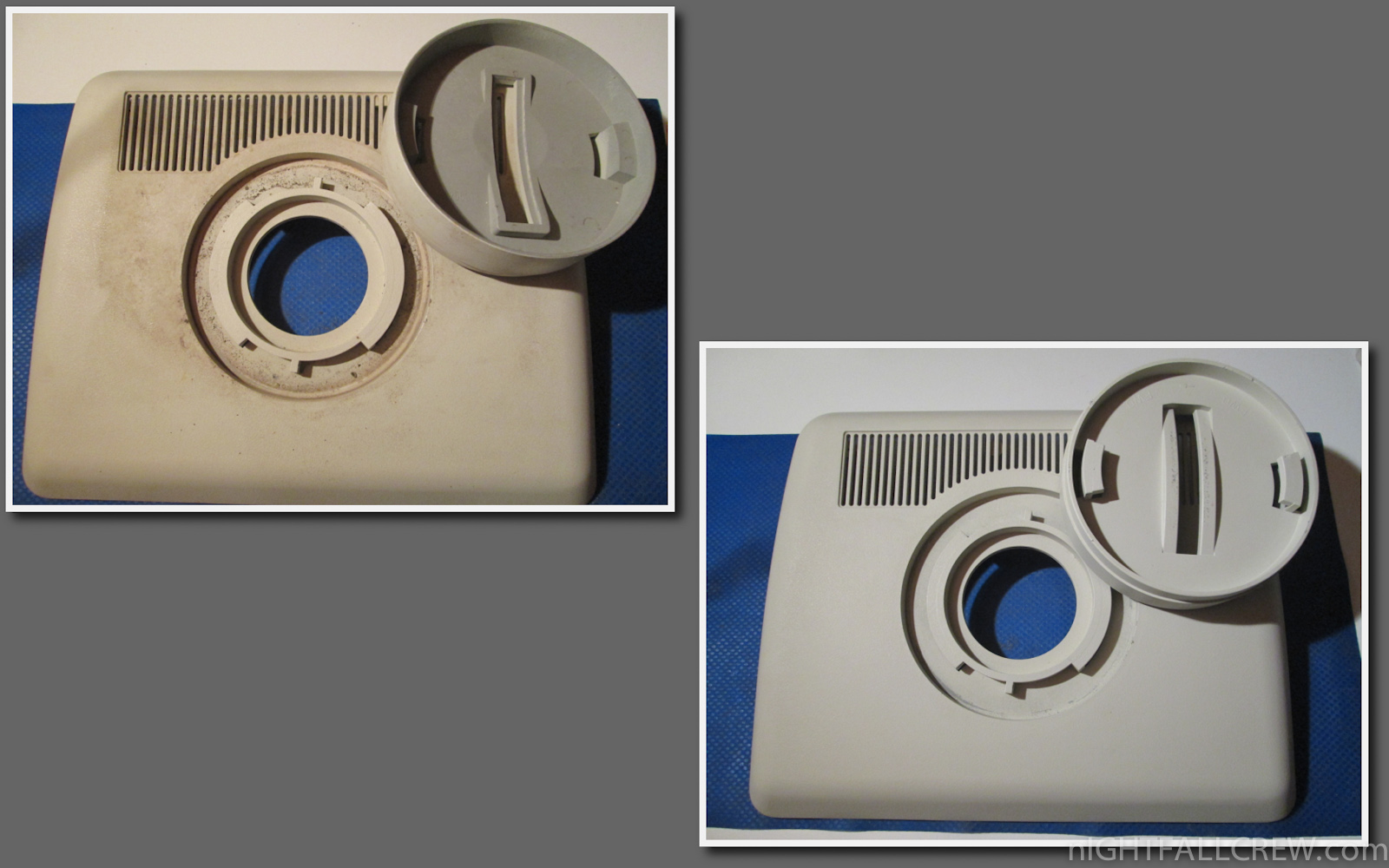

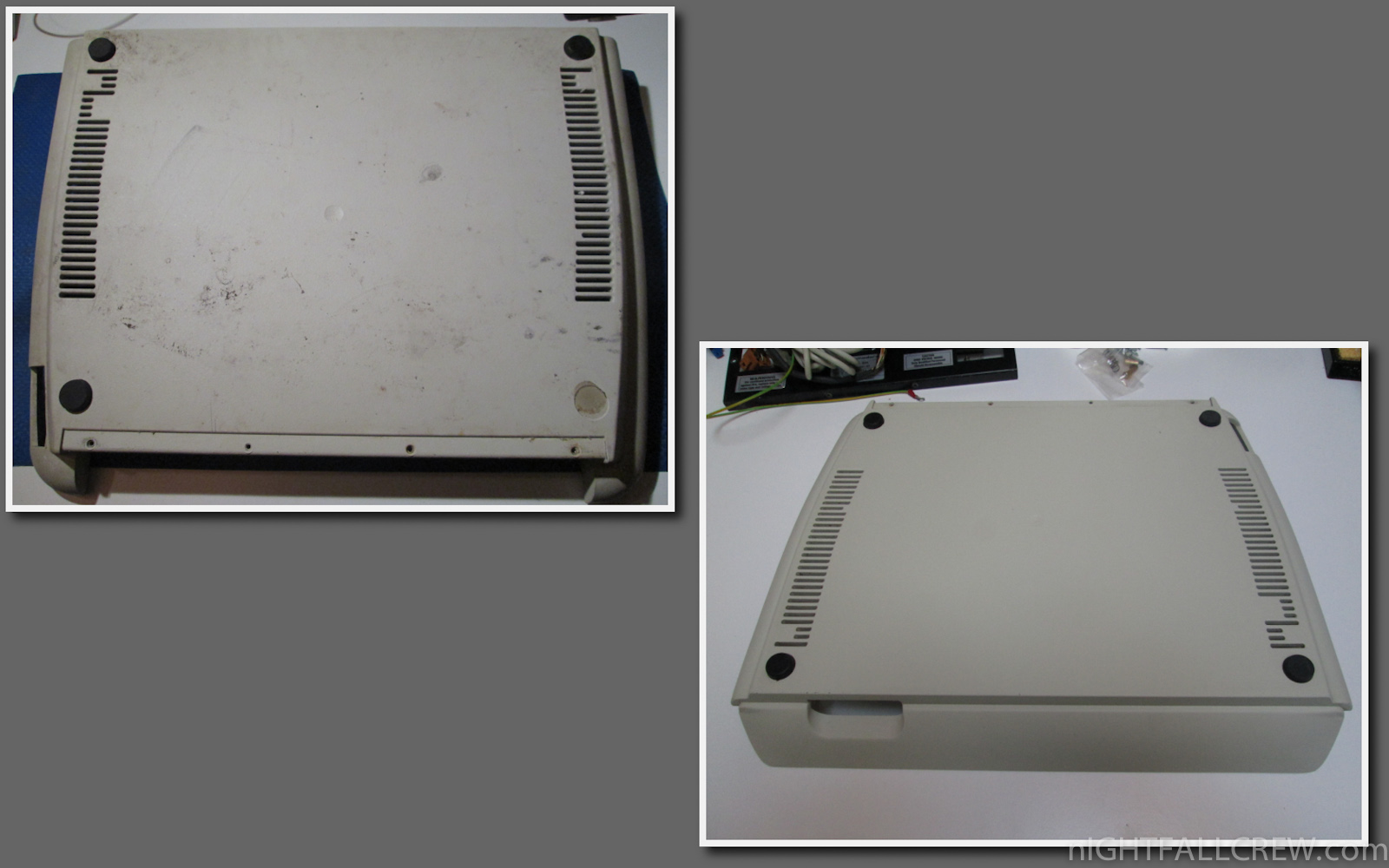

The comparison (before / after):

Defects:

  • The Commodore 8032-SK was completely dead (Black screen of death).

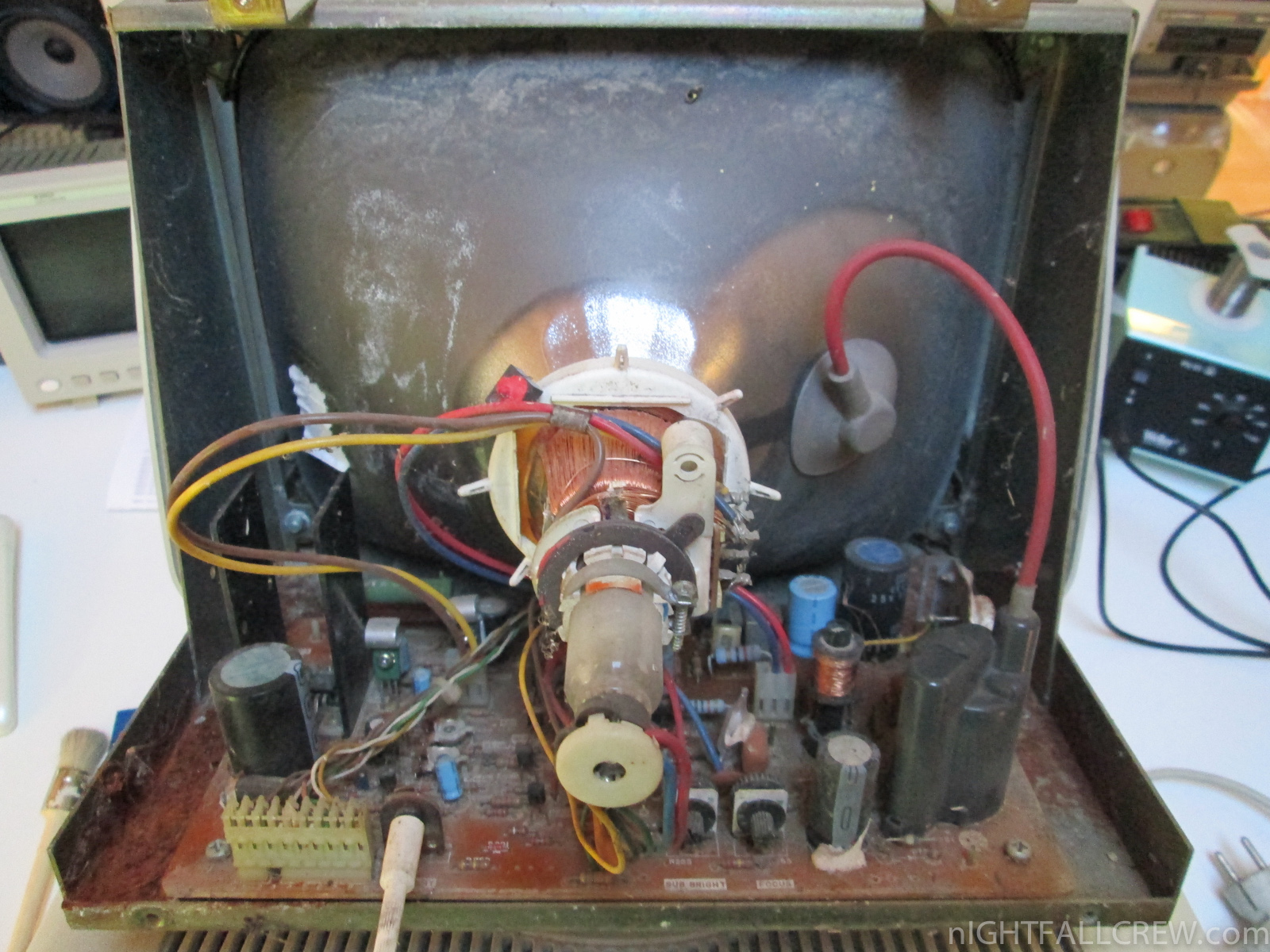

  • Little problems of CRT geometry.

Repair:

  • Replaced the CPU 6502.

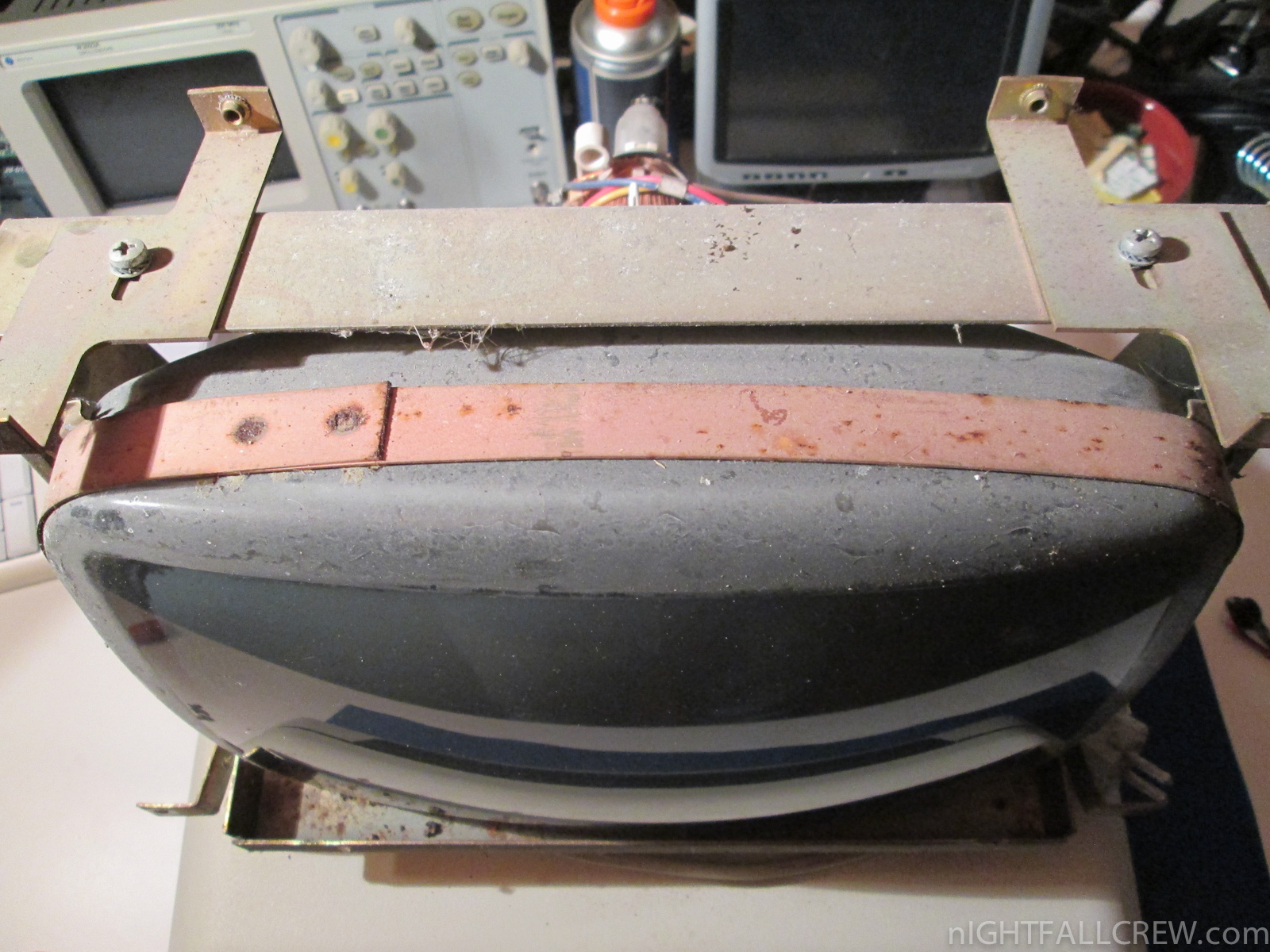

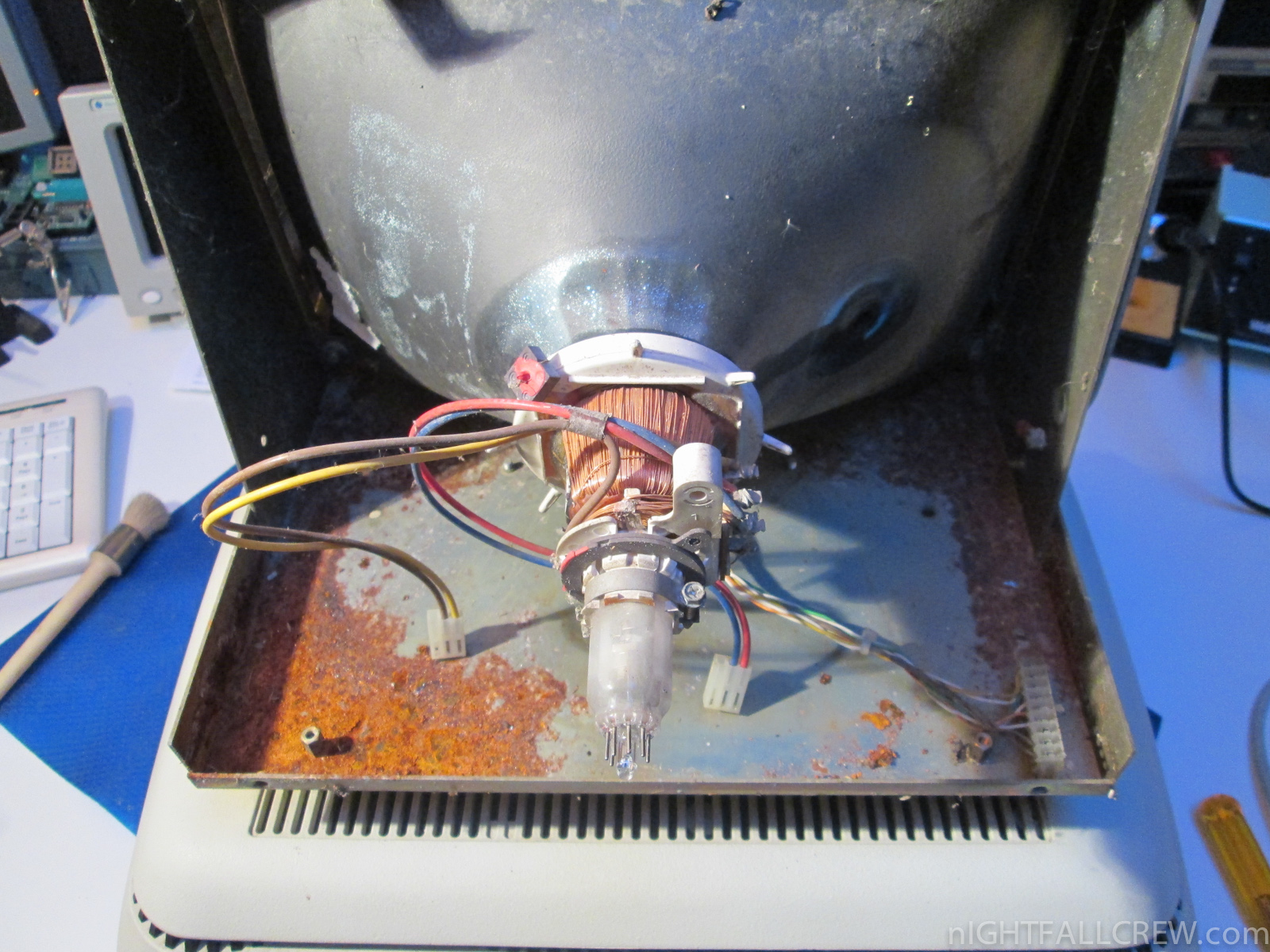

  • Yoke calibration of the CRT

Gallery of repair and cleaning:

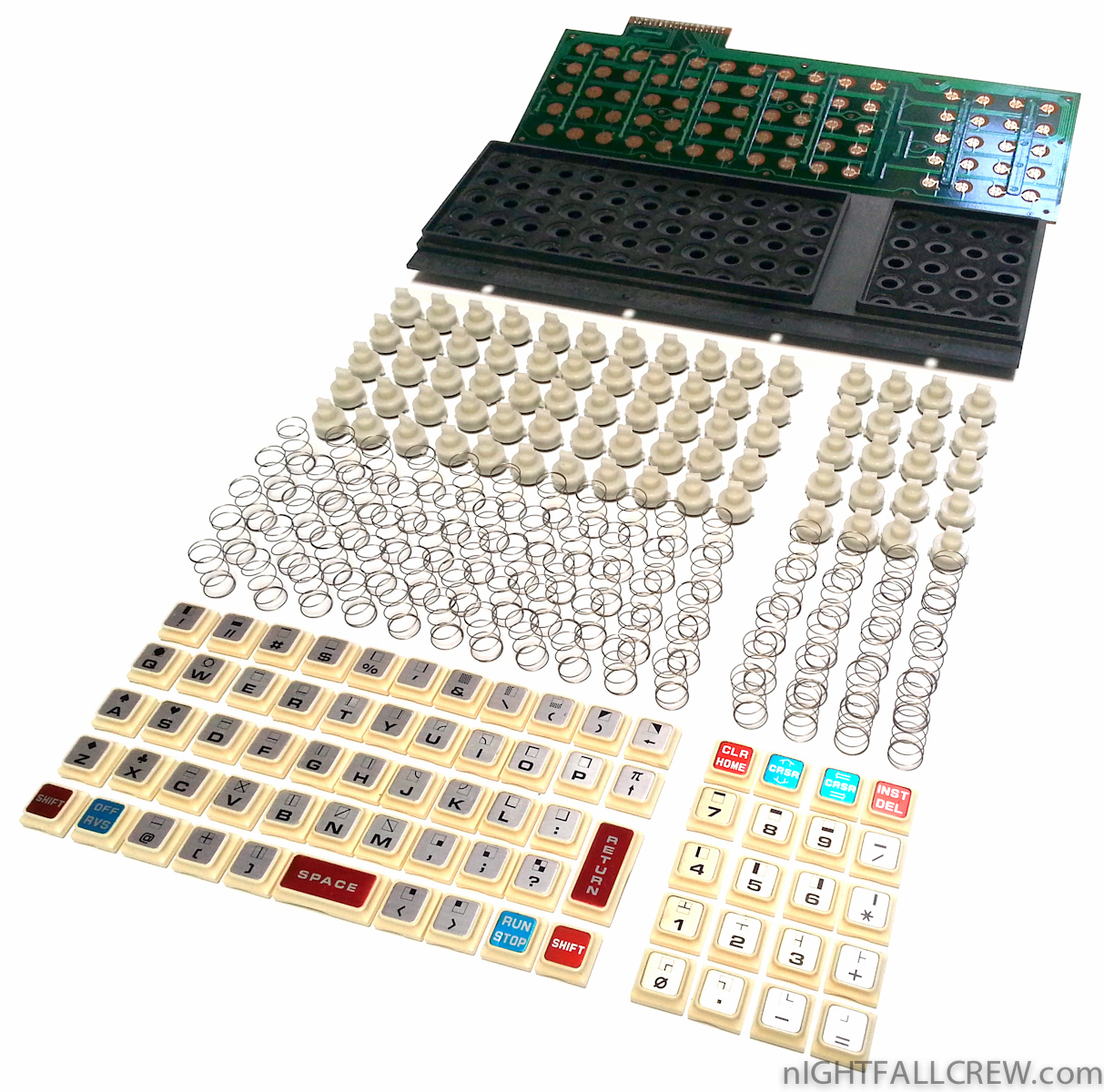

Cleaning & Repairing a Commodore PET 2001-8C

October 31st, 2013 3 comments

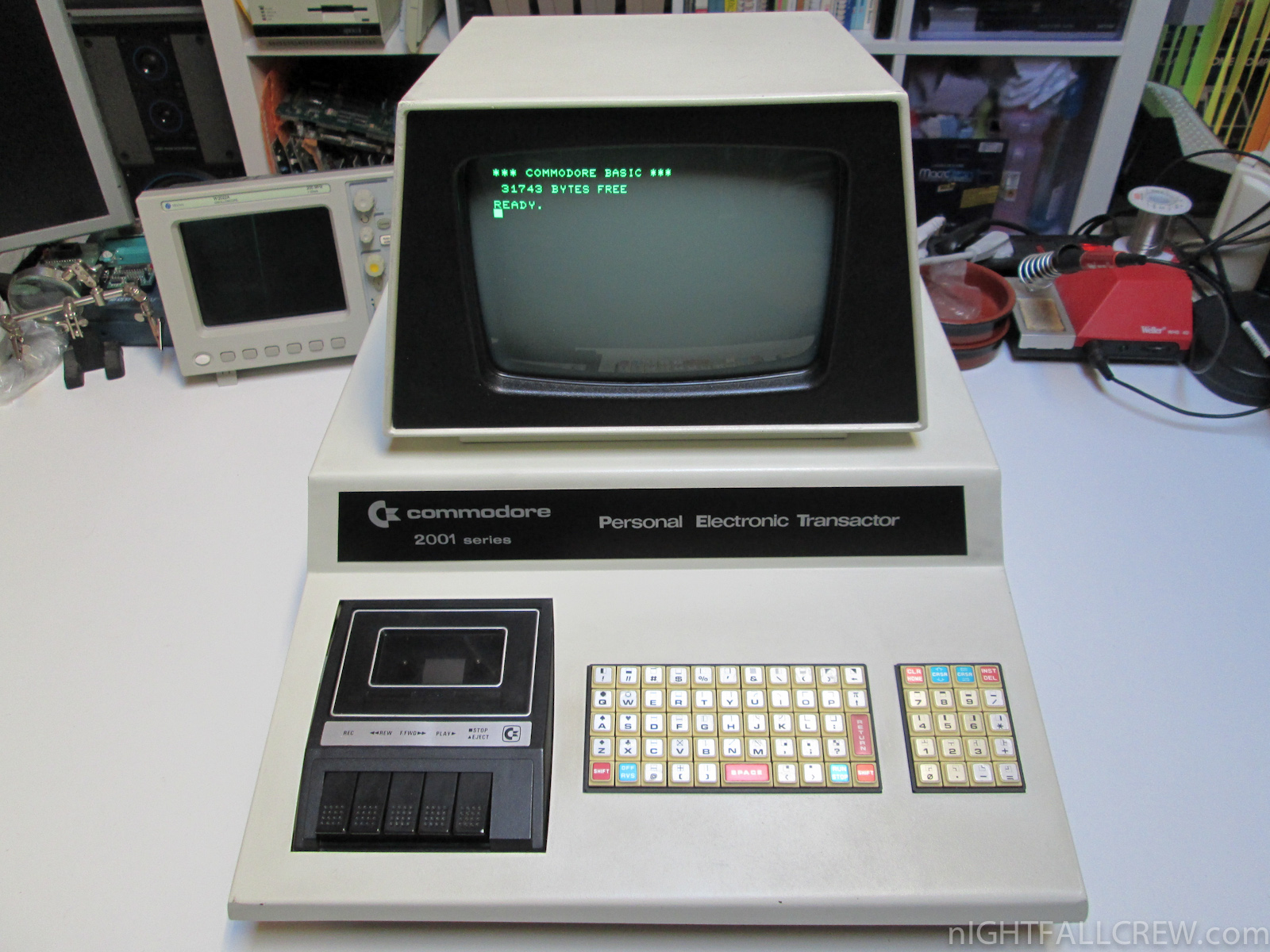

It Works!

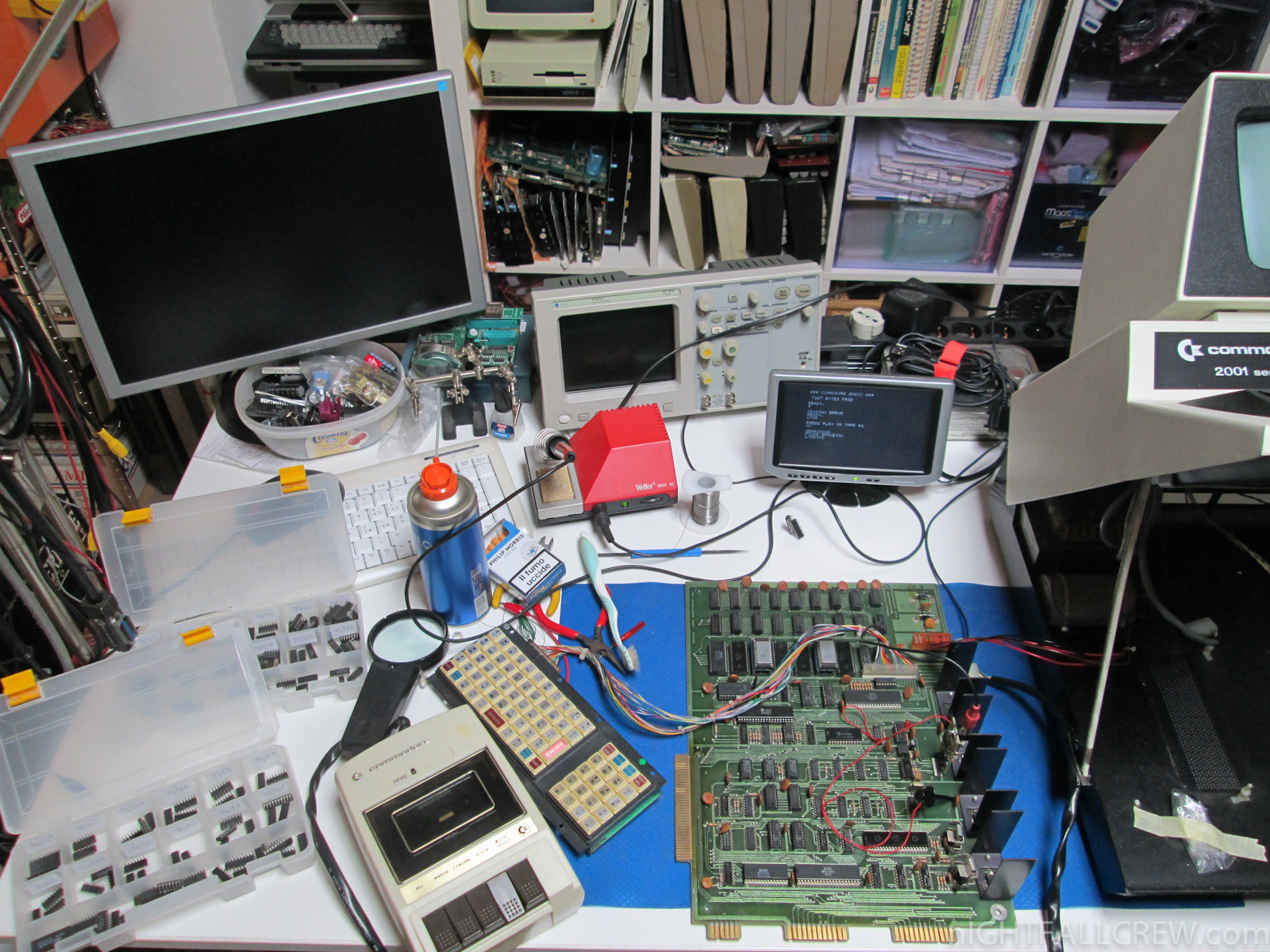

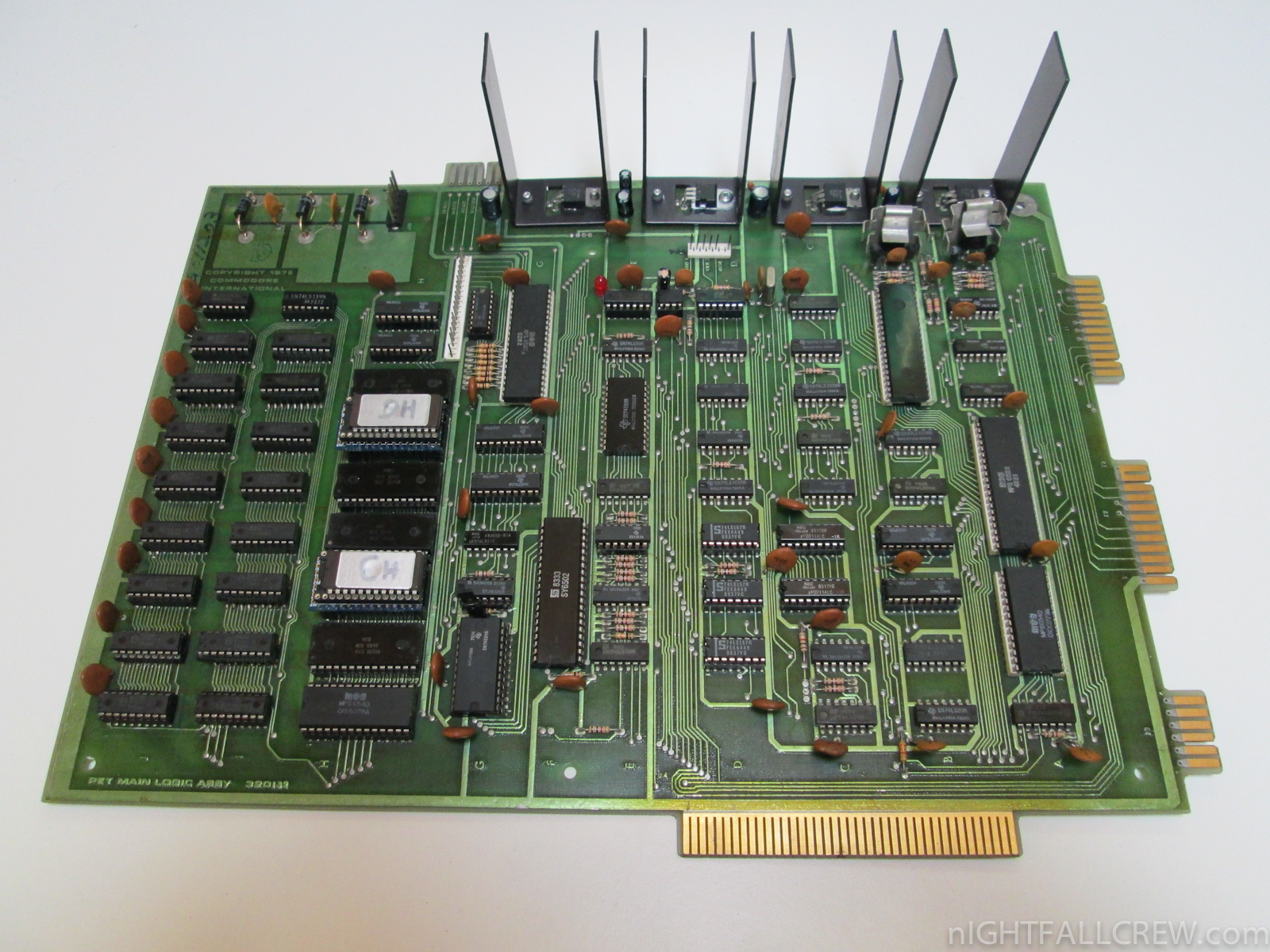

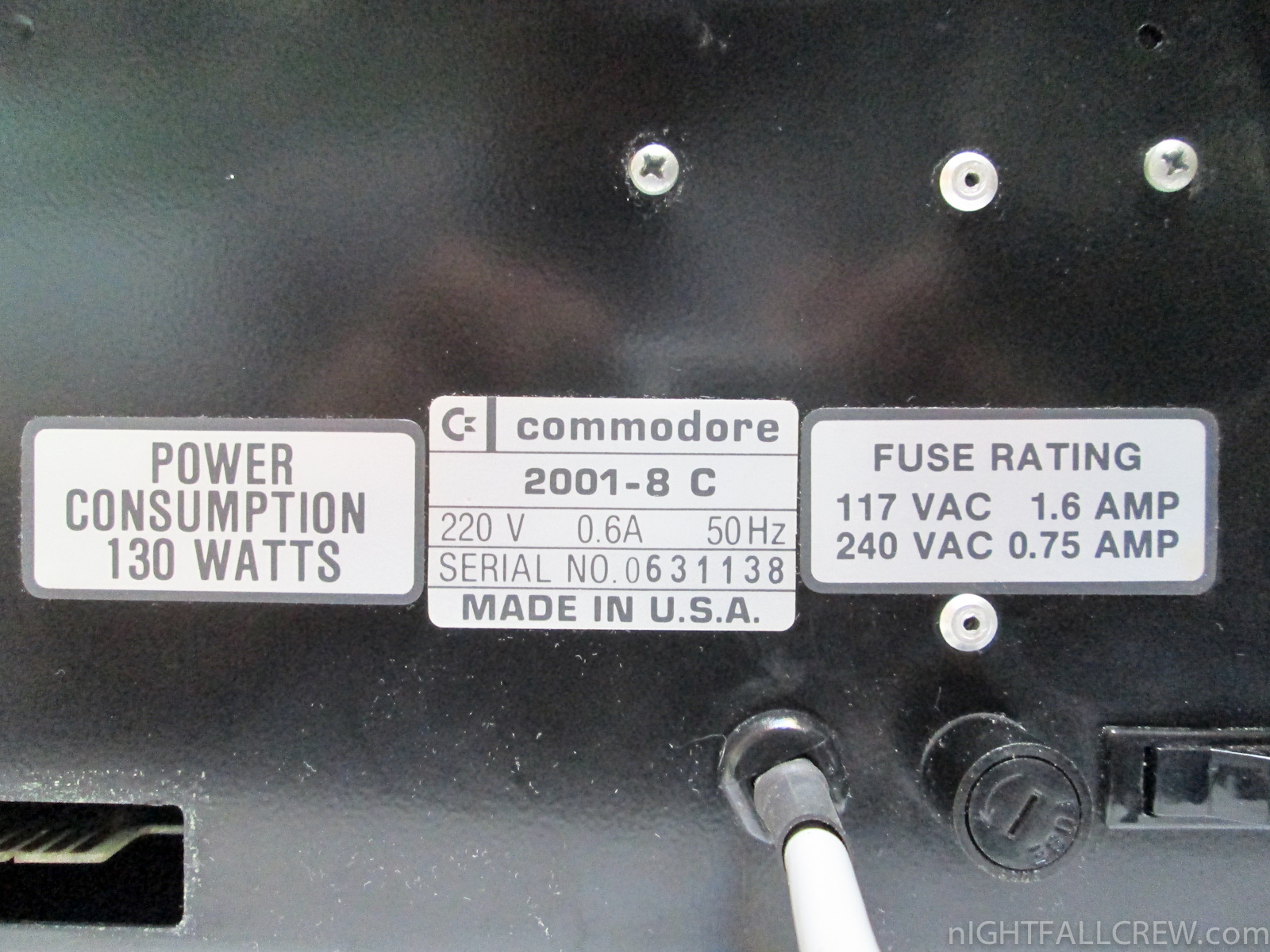

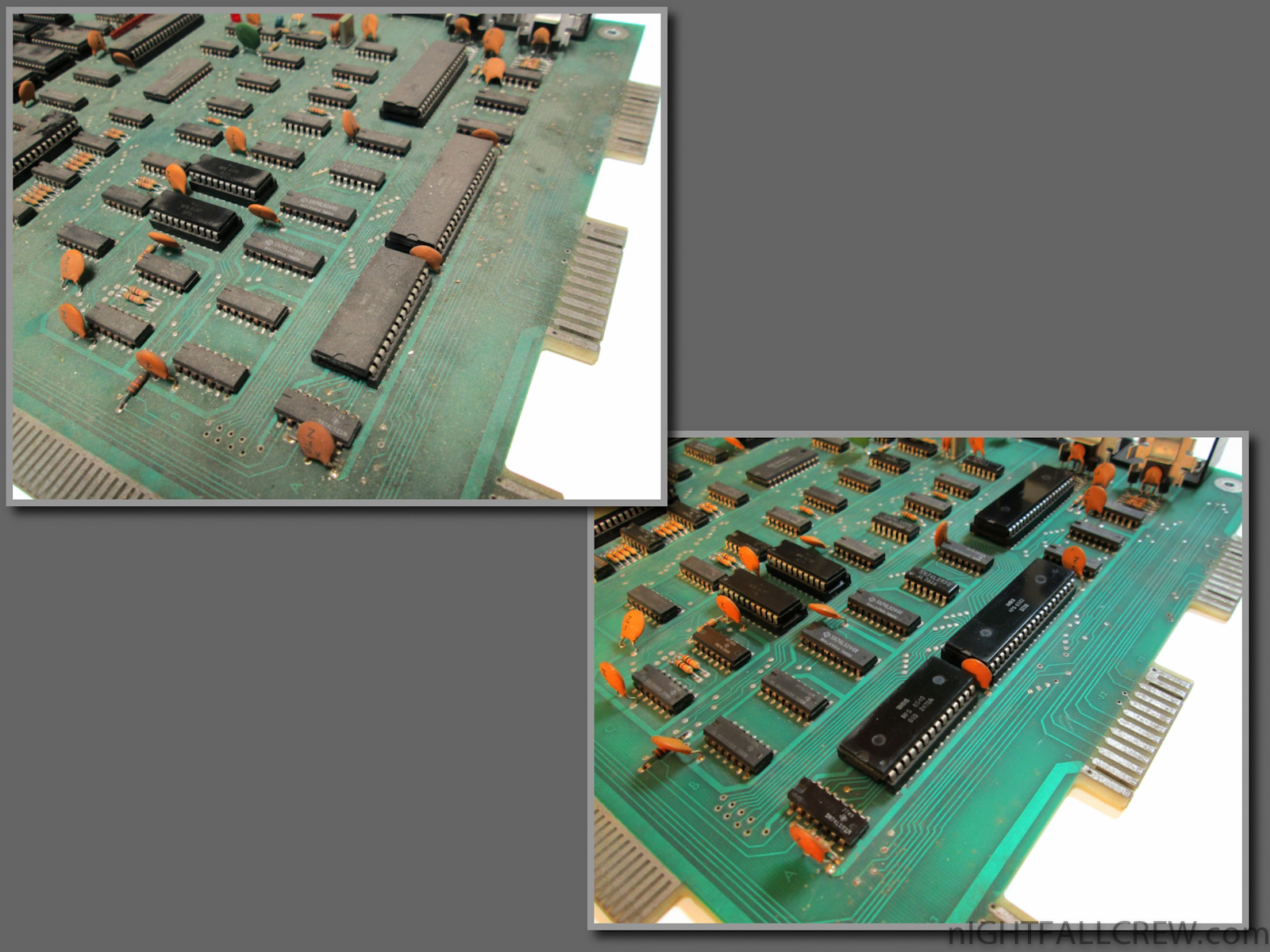

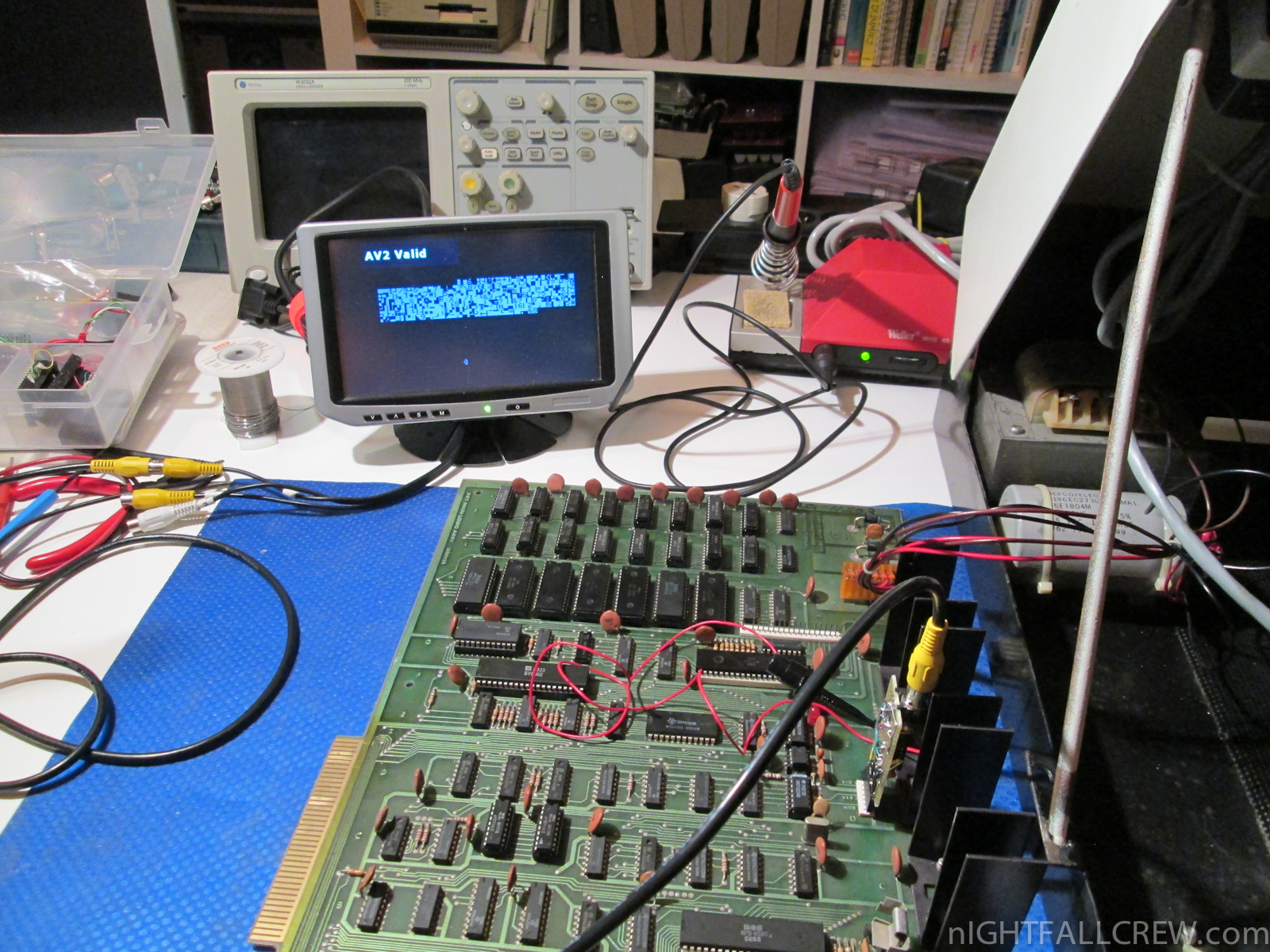

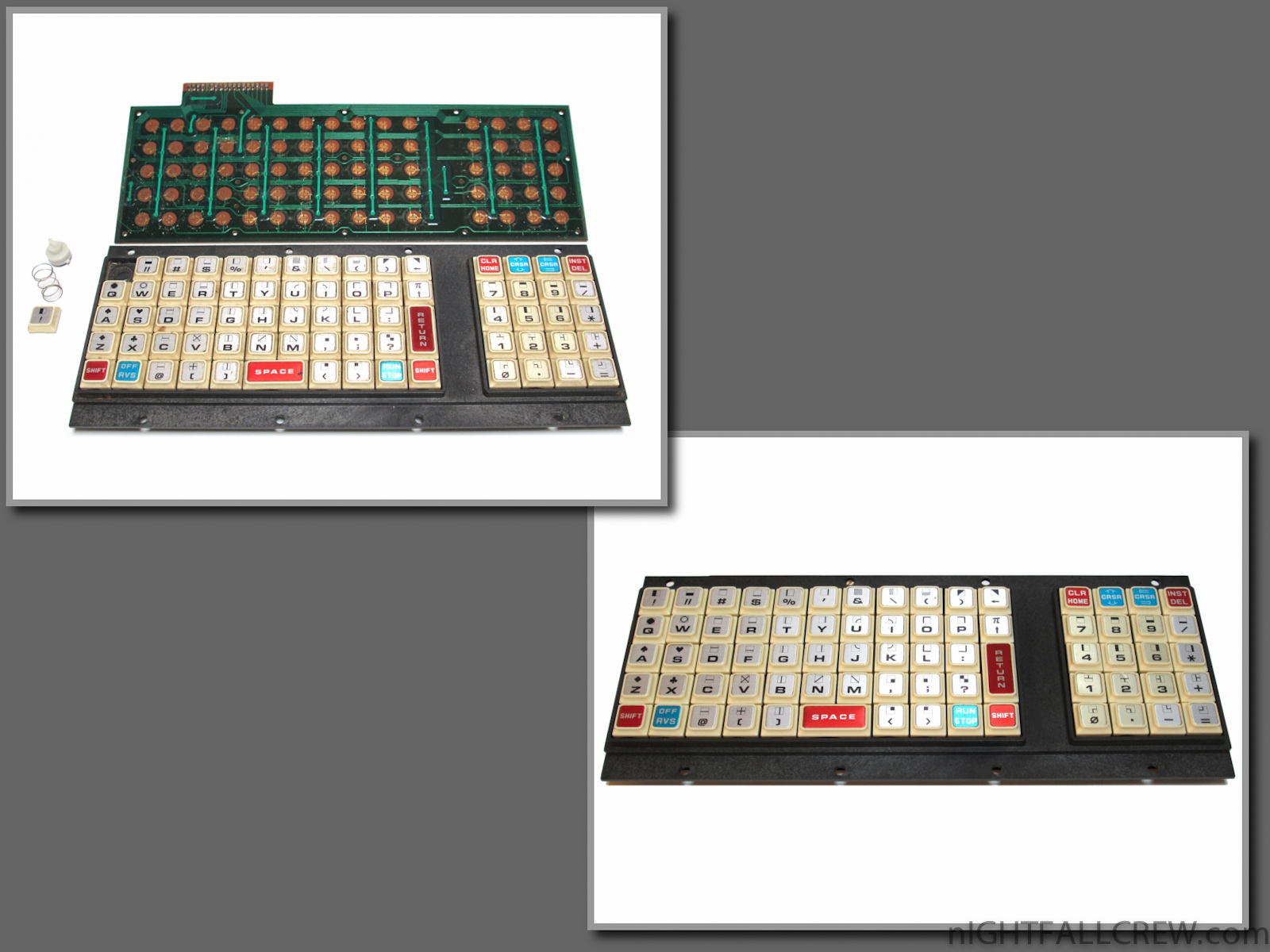

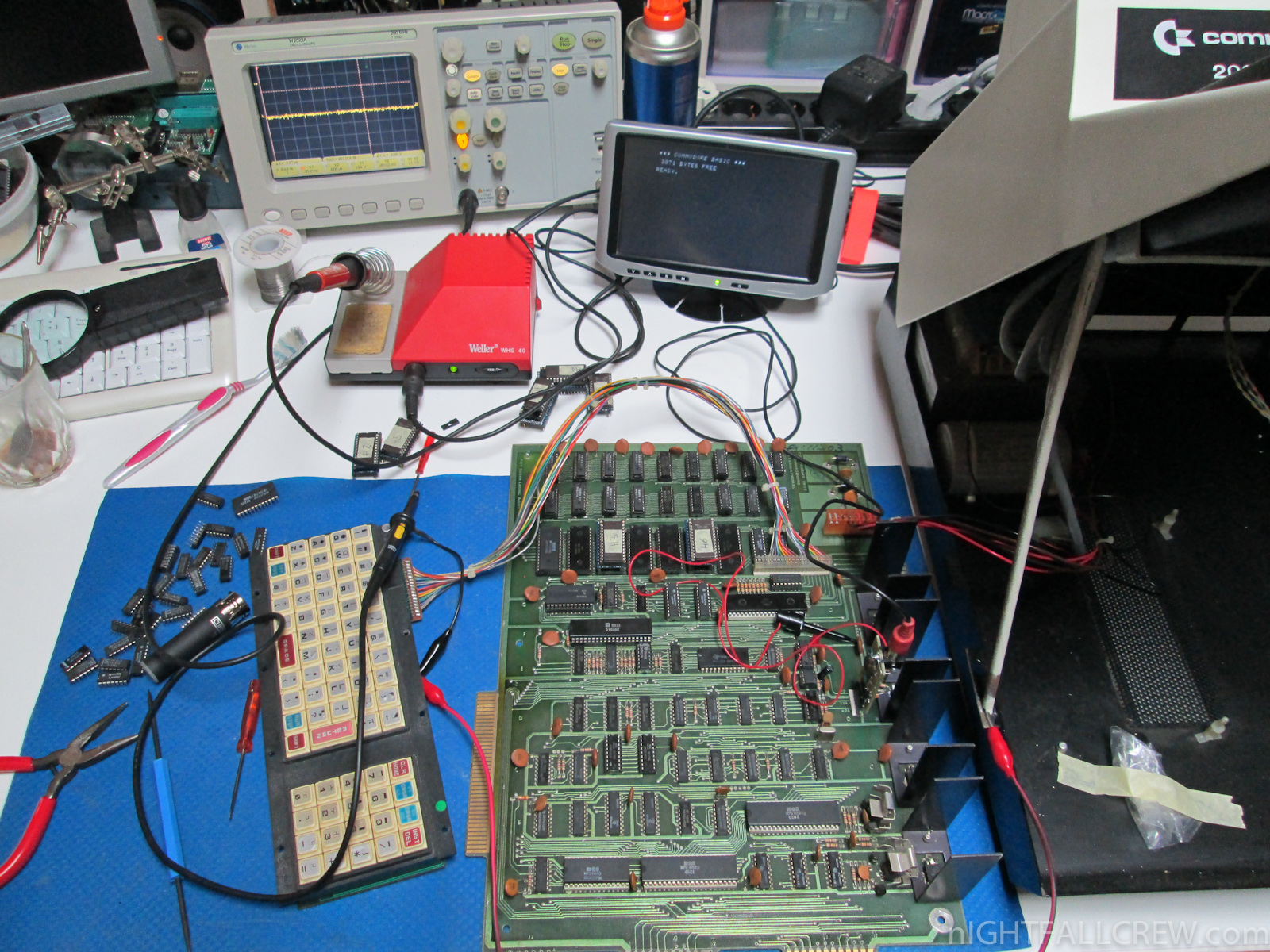

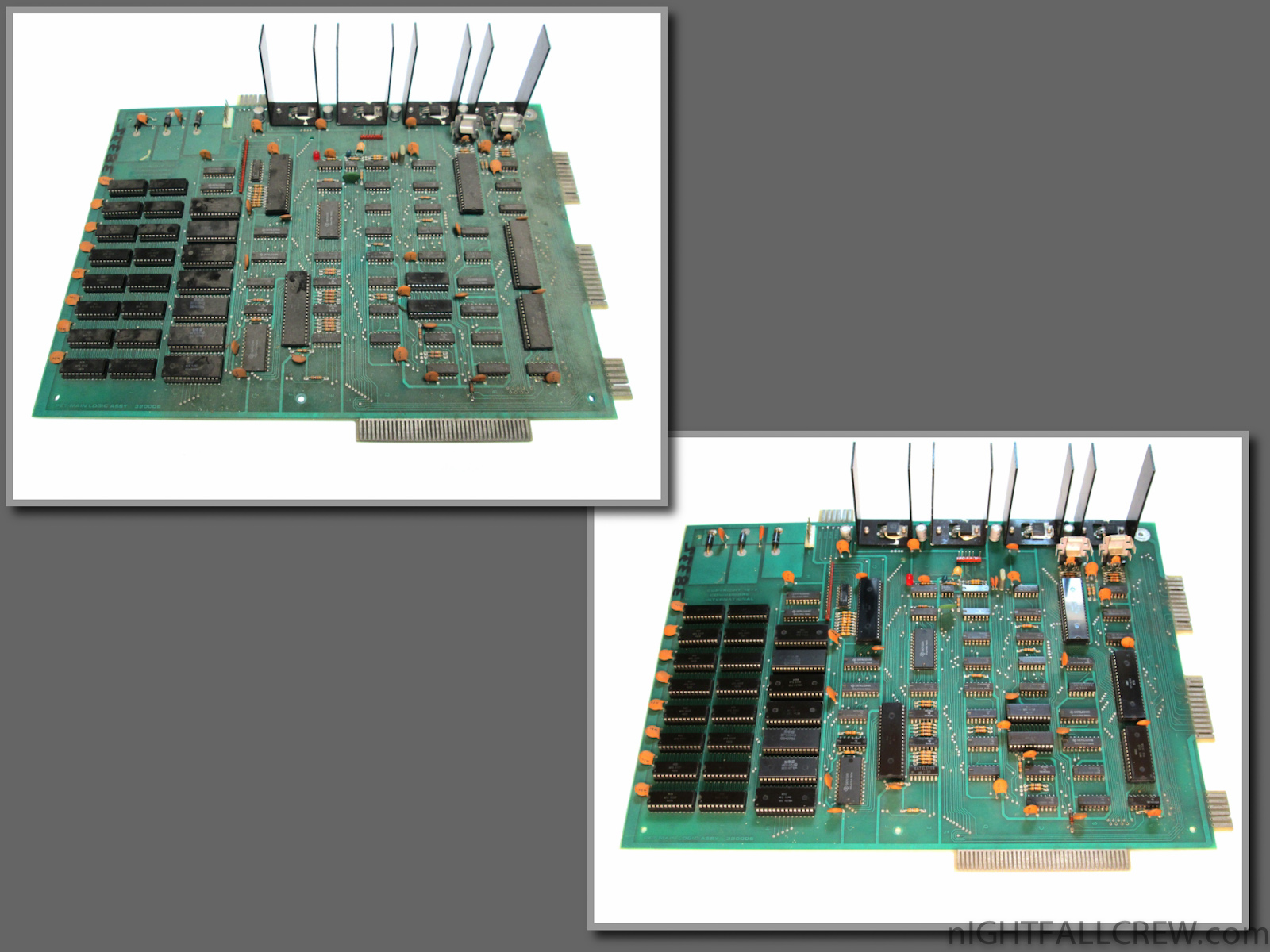

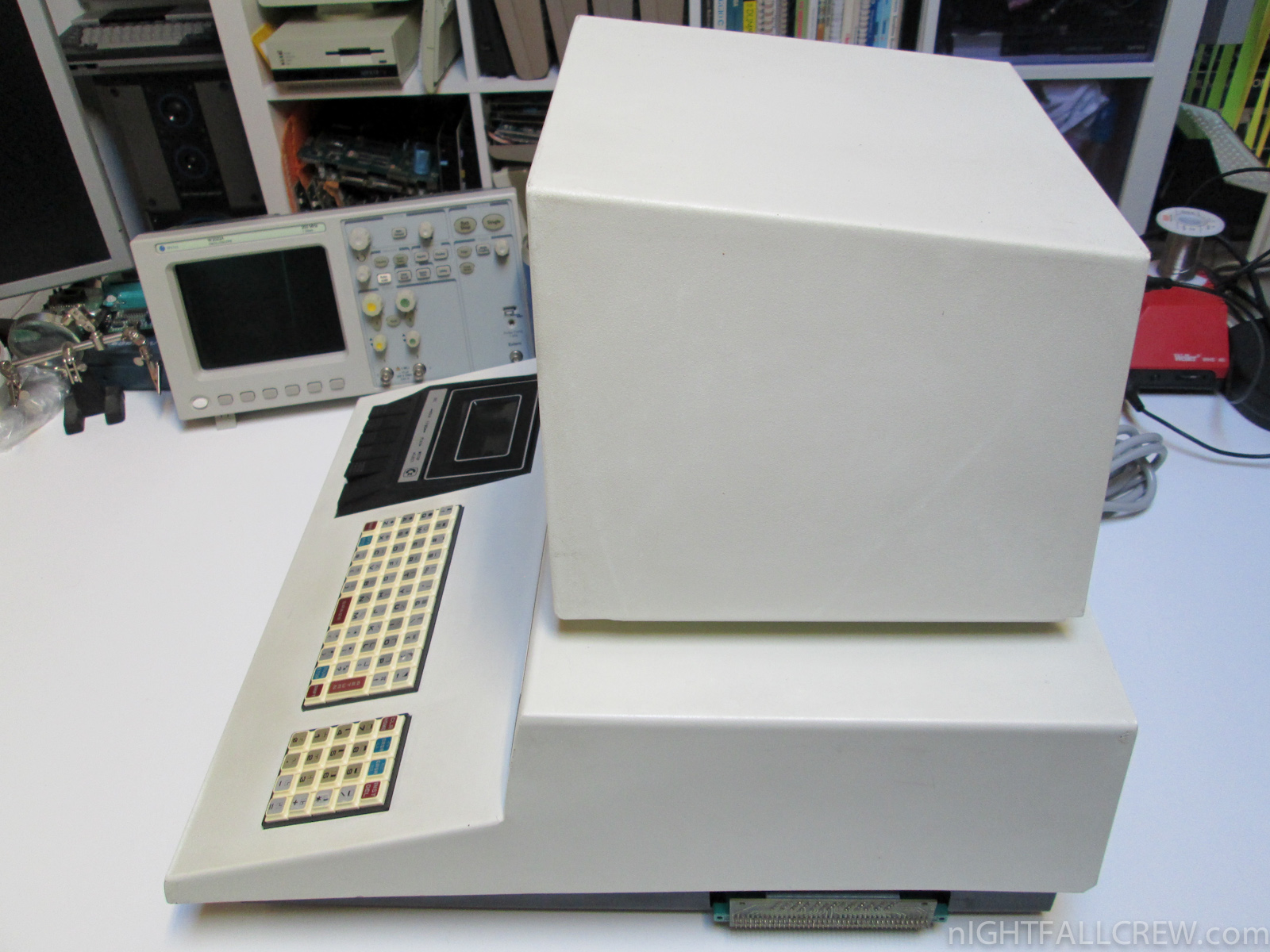

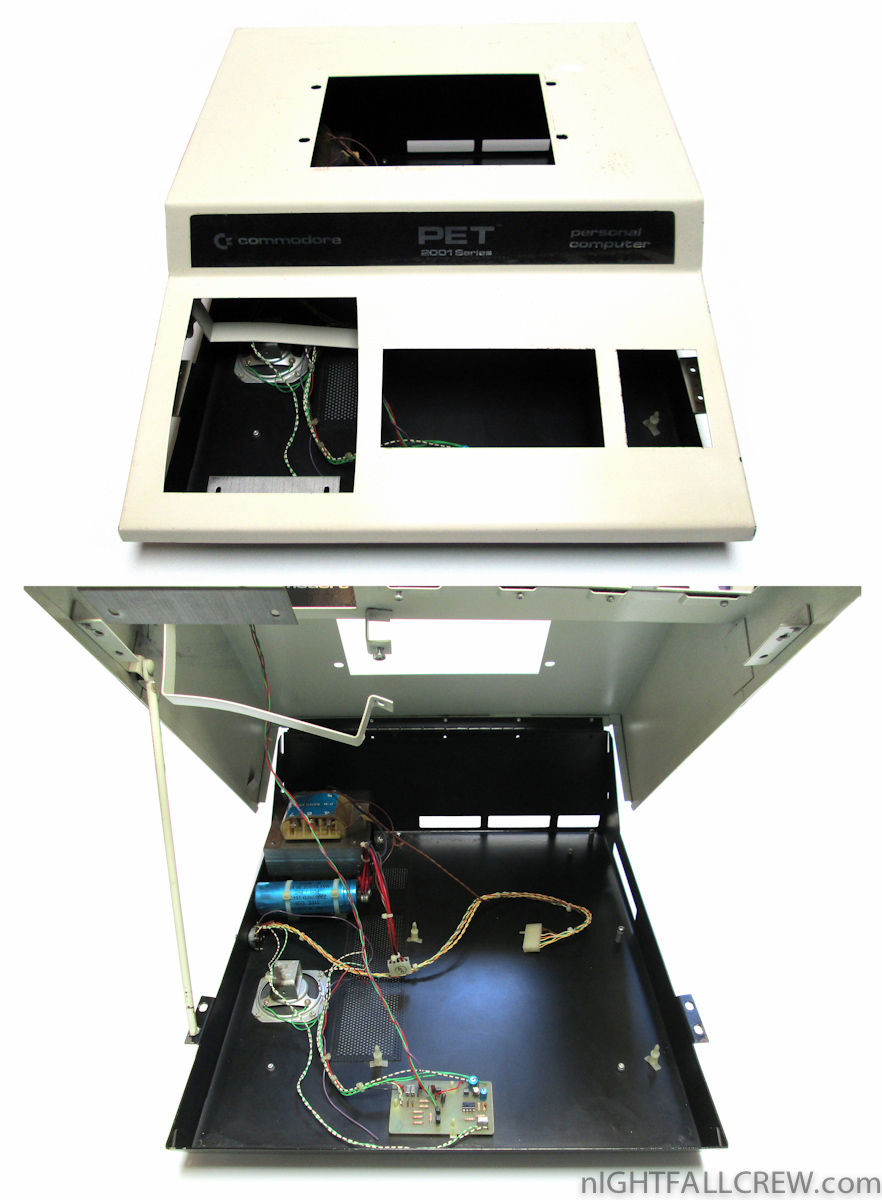

This gallery shows some stages of repairing the Commodore PET 2001-8C

Two months have passed since i have received my Commodore PET 2001-8 Chicklet exchanged for a Sharp MZ-80K, was the day 28/08/2013.

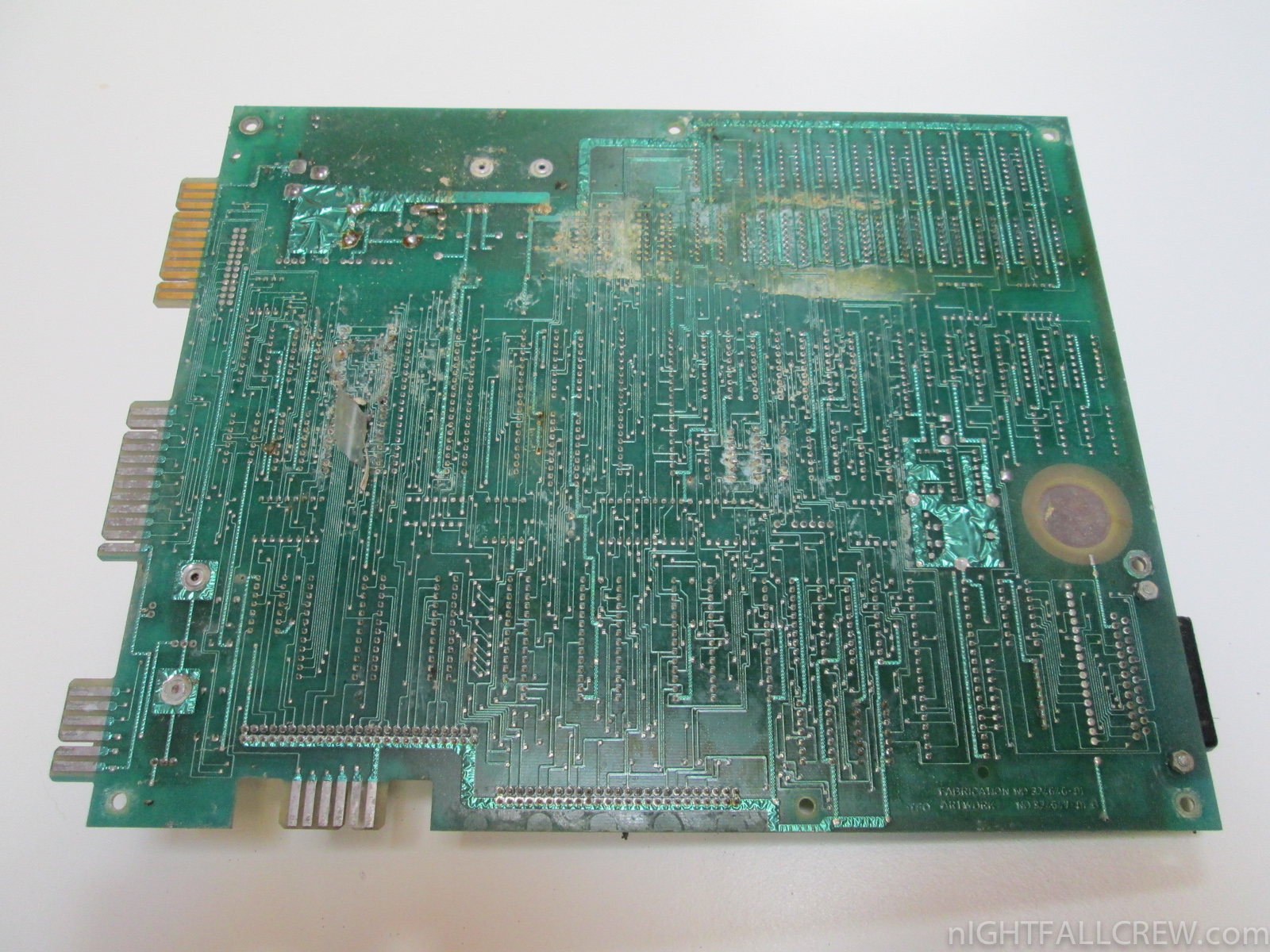

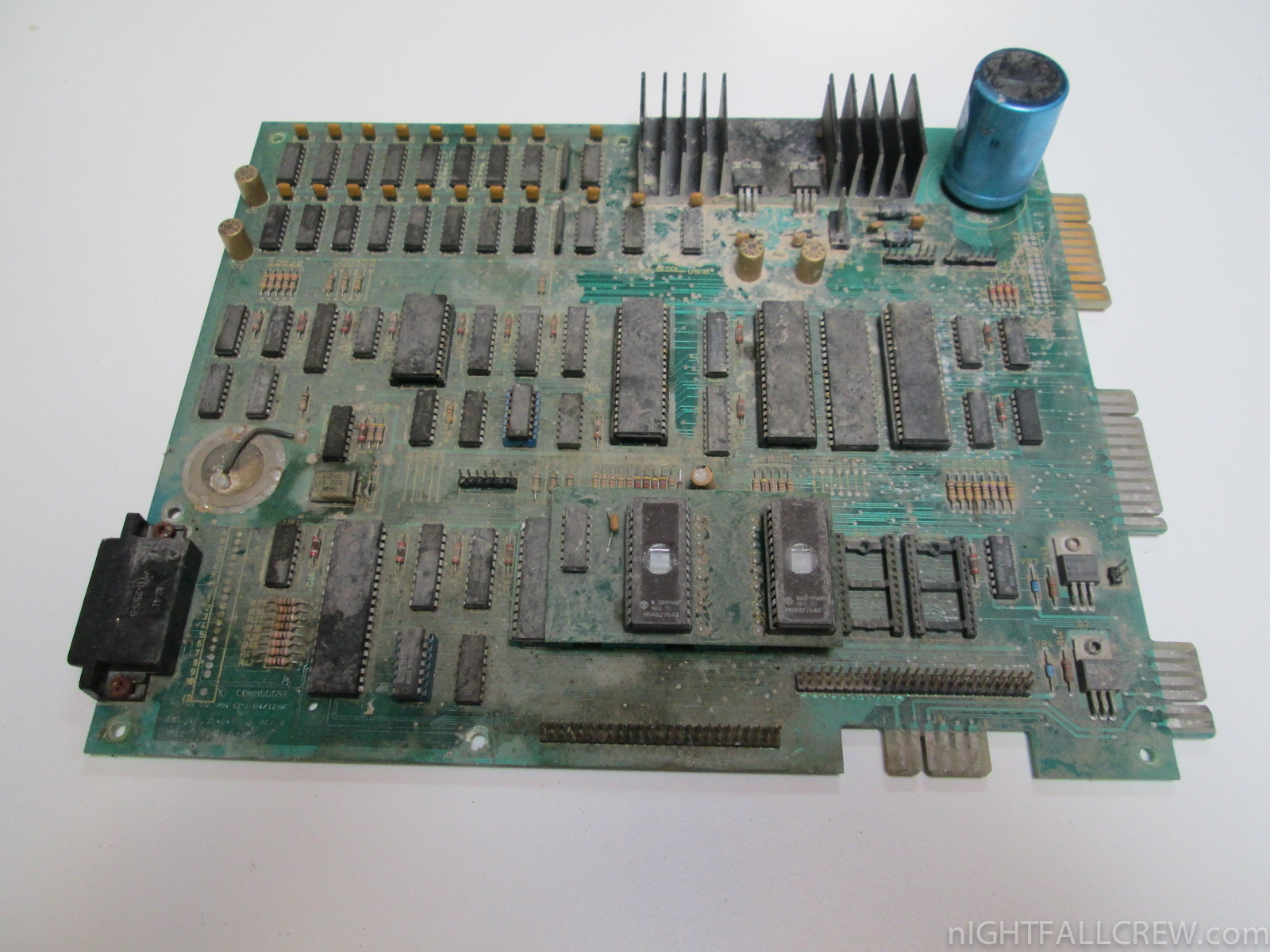

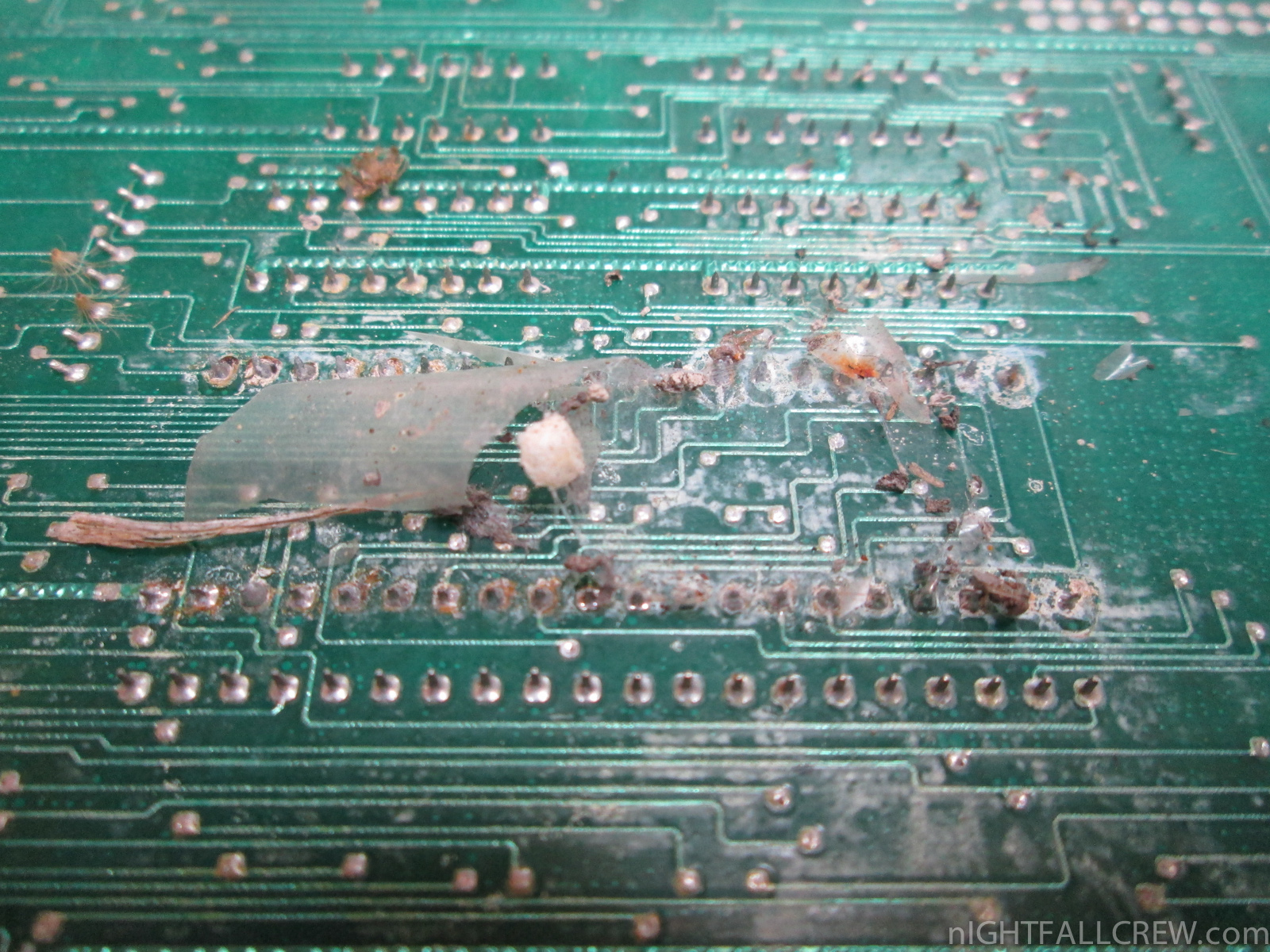

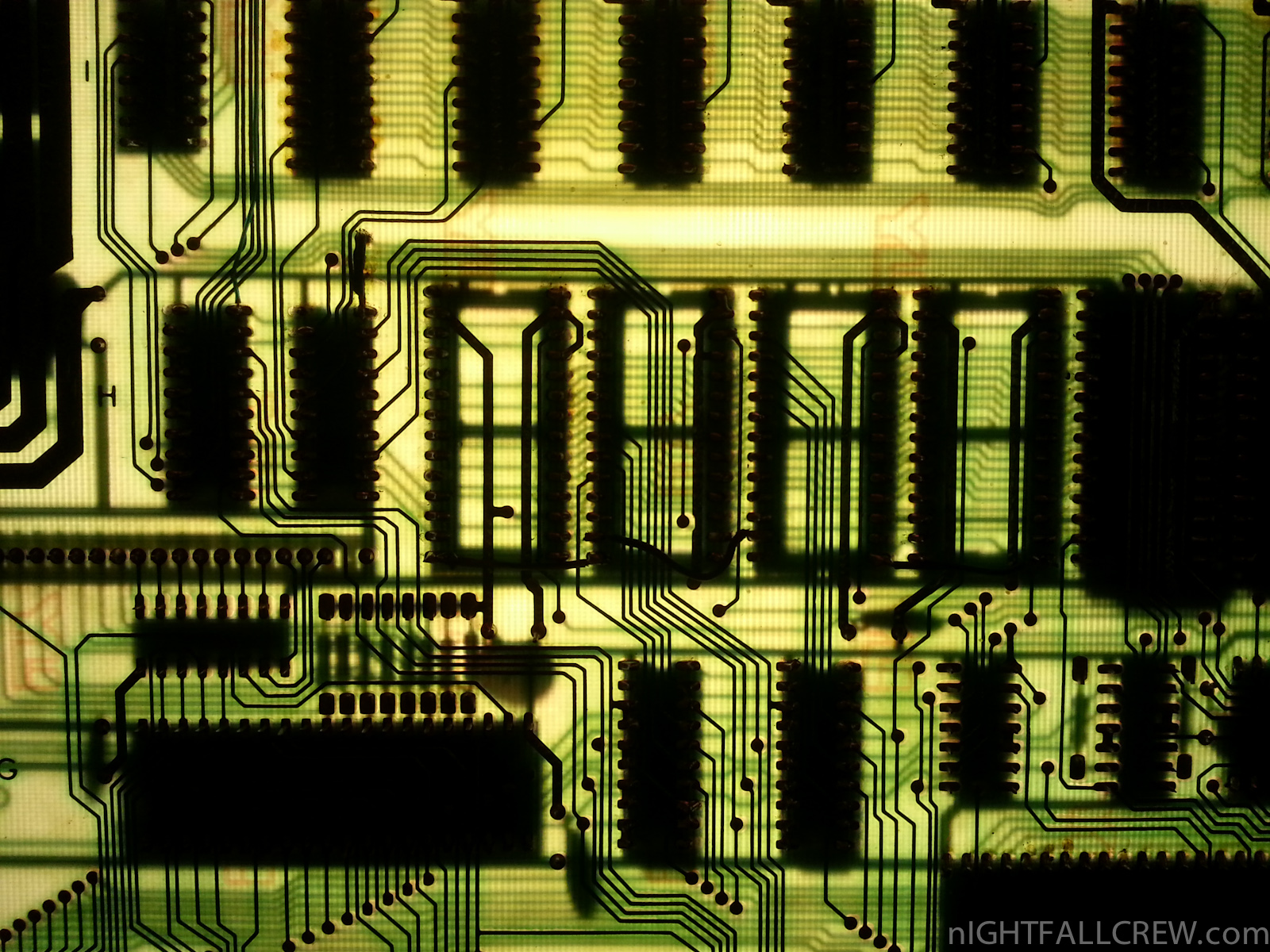

The motherboard was in disastrous conditions, it took two months and a lot of patience to repair it.

Defect:

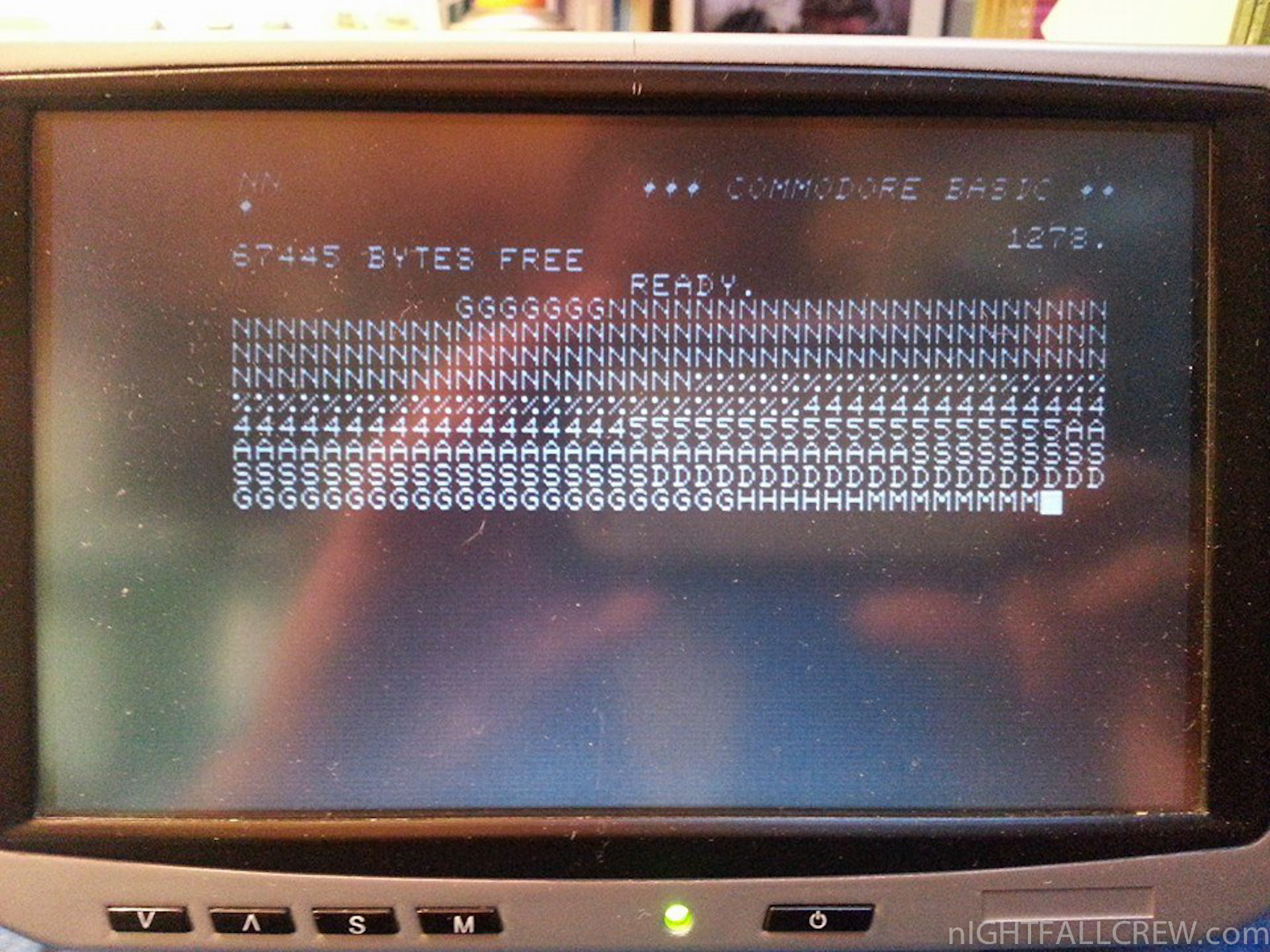

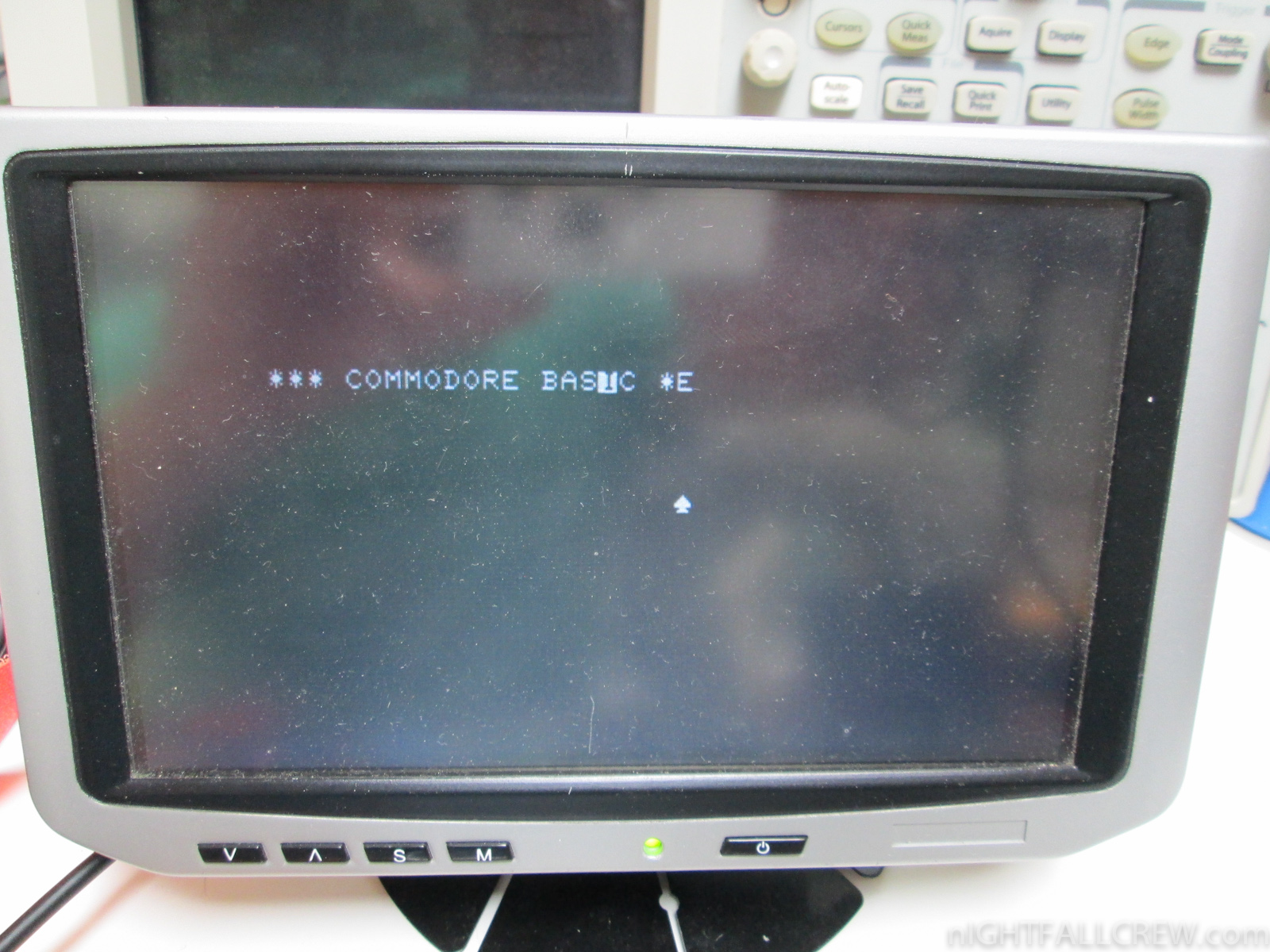

  • Garbled characters at boot.
  • Tape Recorder (Datassette) Motor Tired.

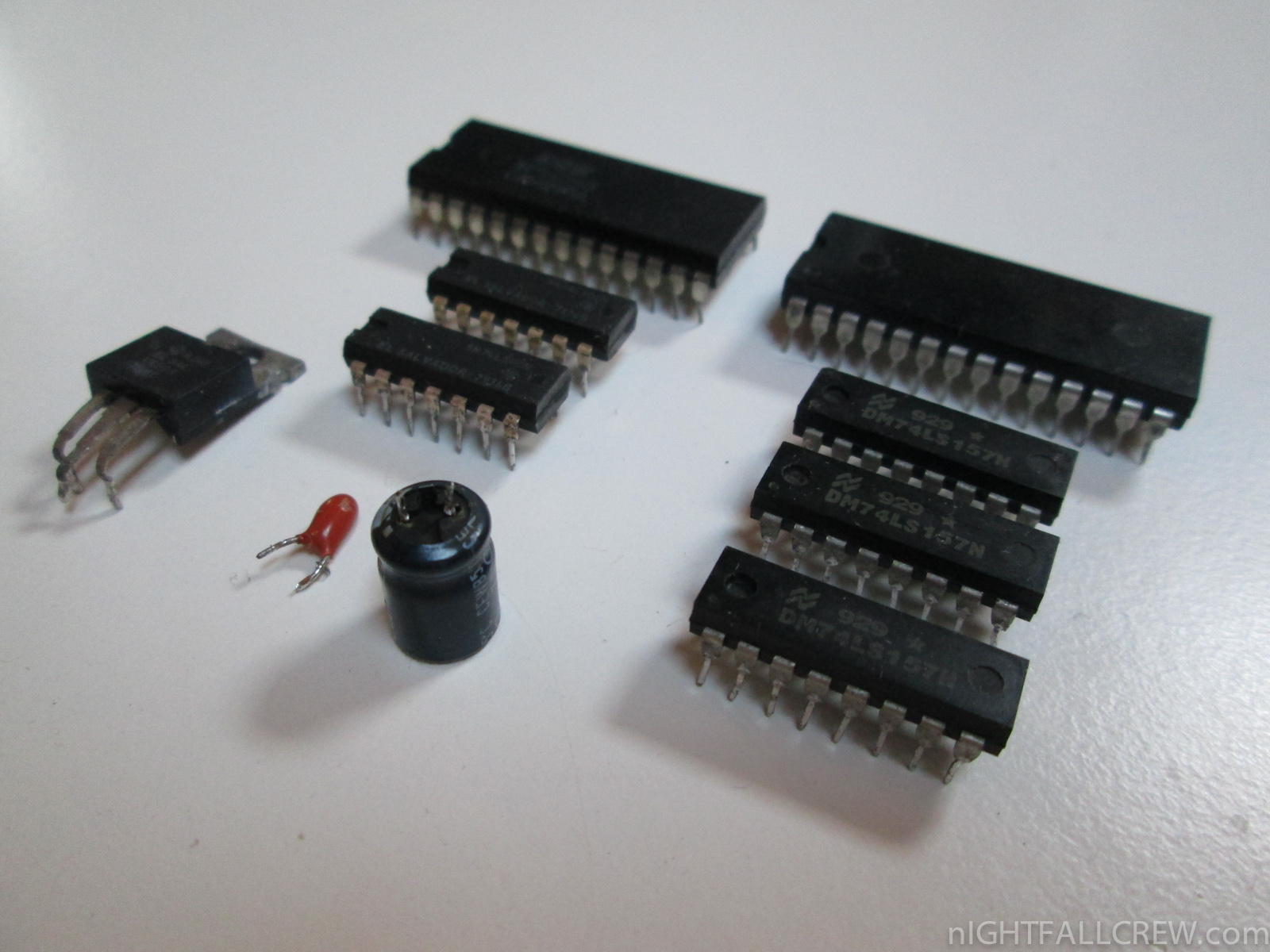

Replaced parts and various repairs:

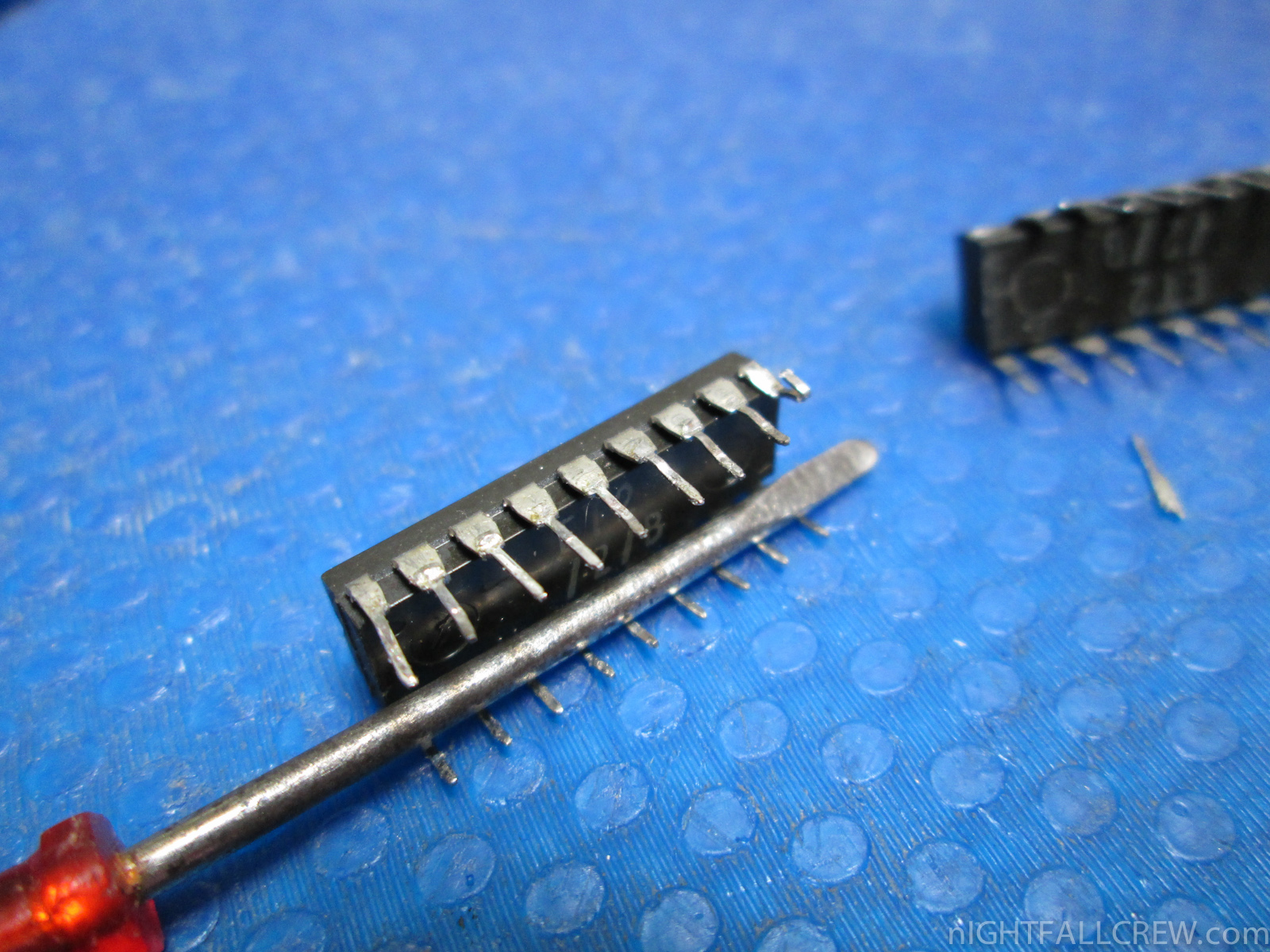

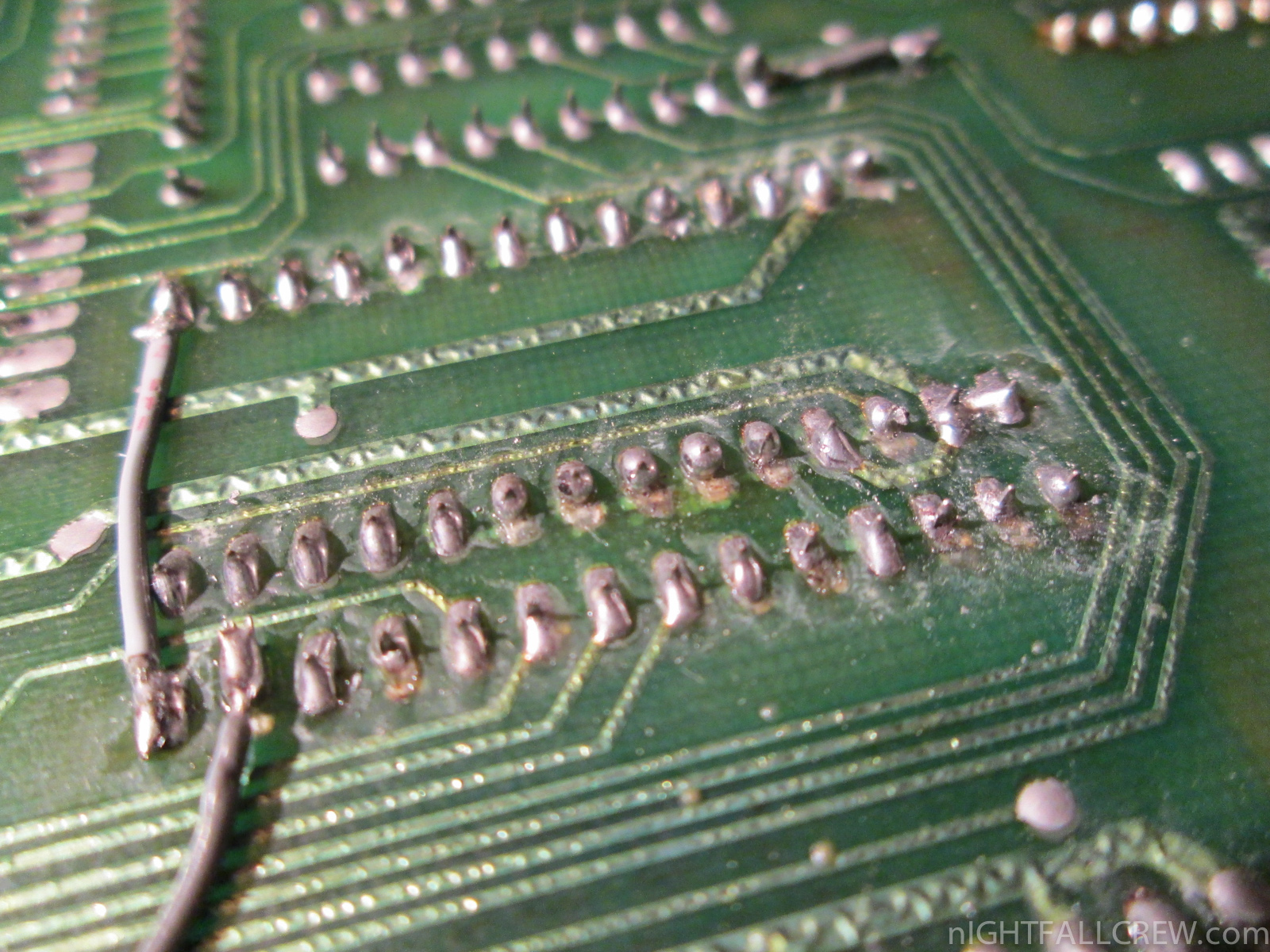

A large number of short circuits visible and not visible (under the ic sockets)

  • 2 x 6540 ROM Basic 1.0
  • 2 x 74LS00
  • 3 x 74LS157
  • 1 x 7805
  • 2 x Electrolytic Capacitor / Tantalum.
  • 1 x Tape Motor
  • 16 x 2114 RAM

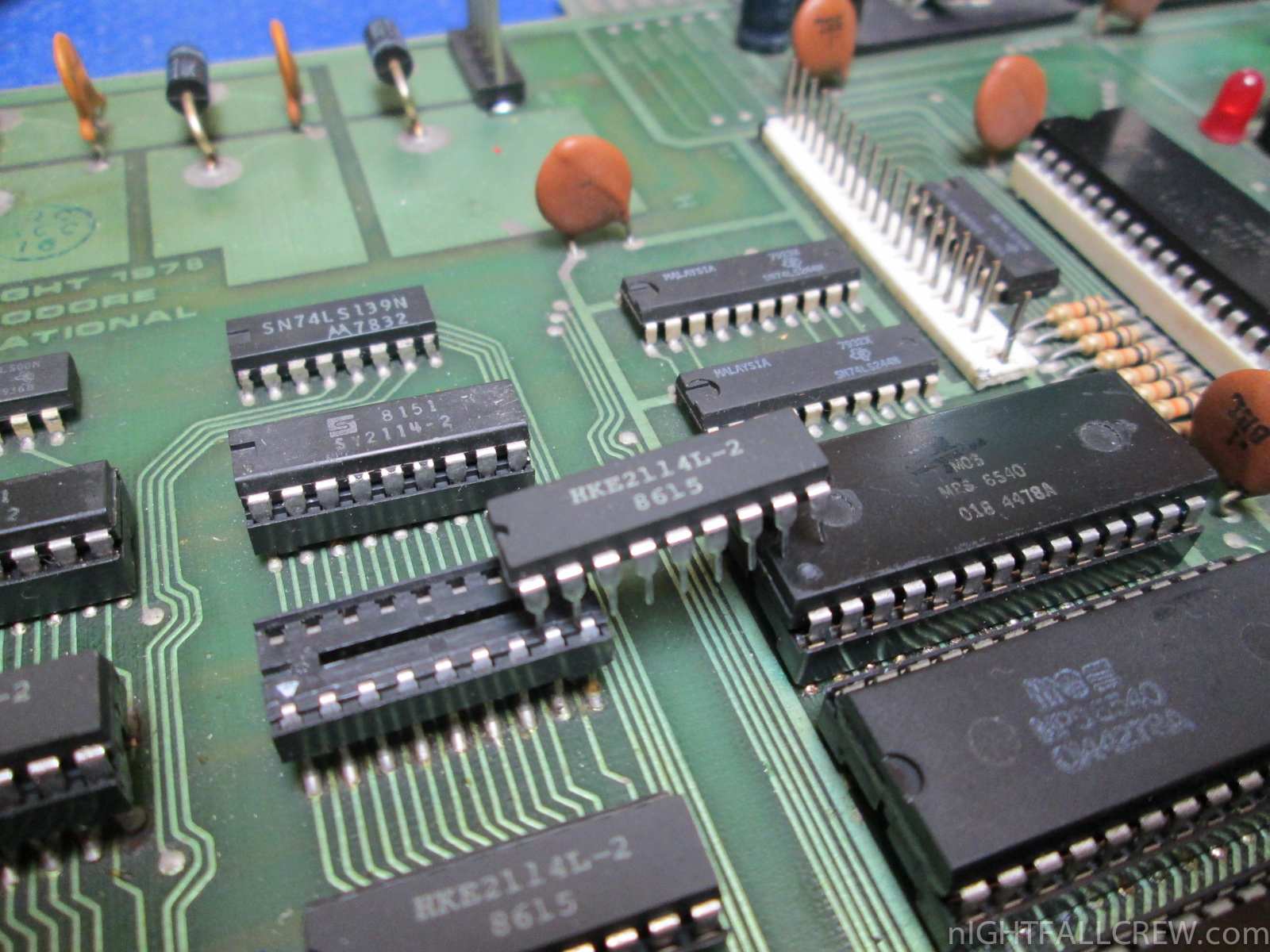

I want to dwell on the ram, i noticed that the PET 2001-8 Chicklet does not digest very well all ram.

These ram don’t work properly for my PET 2001-8 Chicklet:

  • TESLA 2114 (2/8)
  • MM2214N
  • SY2114-2
  • HKE2114L-2

I had to buy several stocks of ram in 2114 to find the right ram that work correctly. The ram that work very well are the ELCAP 2114L-3.

I have to thank Andrea Pierdomenico for the ROM test on his PET 2001-8C and Alessandro Polito. for the exchange.

Commodore PET 2001-8C (Chiclet Keyboard)

October 31st, 2013 No comments
Commodore PET 2001-8C (Chicklet Keyboard)

Autopsy:

This Commodore PET 2001 also includes the Expansion Memory ExpandaMem made by CompuThink

from Wikipedia homepage:

The Commodore PET (Personal Electronic Transactor) was a home/personal computer produced in 1977 by Commodore International. A top-seller in the Canadian and United States educational markets, it was Commodore’s first full-featured computer, and formed the basis for their entire 8-bit product line.

In the 1970s Commodore was one of many electronics companies selling calculators designed around Dallas-based Texas Instruments (TI) CPU chips. However, in 1975 TI increased the price of these components to the point where the chip set cost more than an entire TI calculator, and the industry that had built up around it was frozen out of the market.

Commodore responded to this by searching for a chip set they could purchase outright. They quickly found MOS Technology, who were in the process of bringing their 6502 microprocessor design to market, and with whom came Chuck Peddle’s KIM-1 design, a small computer kit based on the 6502. At Commodore, Peddle convinced Jack Tramiel that calculators were a dead-end. In September 1976 Peddle got a demonstration of Jobs and Wozniak’s Apple II prototype, when Jobs was offering to sell it to Commodore, but Commodore considered Jobs’ offer too expensive.

Tramiel demanded that Peddle, Bill Seiler, and John Feagans create a computer in time for the June 1977 Consumer Electronics Show, and gave them six months to do it. Tramiel’s son, Leonard, helped design the PETSCII graphic characters and acted as quality control. The result was the first all-in-one home computer, the PET, the first model of which was the PET 2001. Its 6502 processor controlled the screen, keyboard, cassette tape recorders and any peripherals connected to one of the computer’s several expansion ports. The PET 2001 included either 4 kB (2001-4) or 8 kB (2001-8) of 8-bit RAM, and was essentially a single-board computer with discrete logic driving a small built-in monochrome monitor with 40×25 character graphics, enclosed in a sheet metal case that reflected Commodore’s background as a manufacturer of office equipment. Designed on an appliance computer philosophy similar to the original Macintosh the machine also included a built-in Datassette for data storage located on the front of the case, which left little room for the keyboard.

The data transfer rate to cassette tape was 1500 baud, but the data was recorded to tape twice for safety, giving an effective rate of 750 baud. The computer’s main board carried four expansion ports: extra memory, a second cassette tape recorder interface, a parallel port (mainly used for disk drives and printers) and an IEEE-488 port (mainly used for modems).

The PET 2001 was announced at the Winter CES in January 1977 and the first 100 units were shipped later that year in October. However, the PET was back-ordered for months and to ease deliveries, early in 1978 Commodore decided to cancel the 4 kB version (also because the user would be left with barely 3 kB of RAM).

source: wikipedia

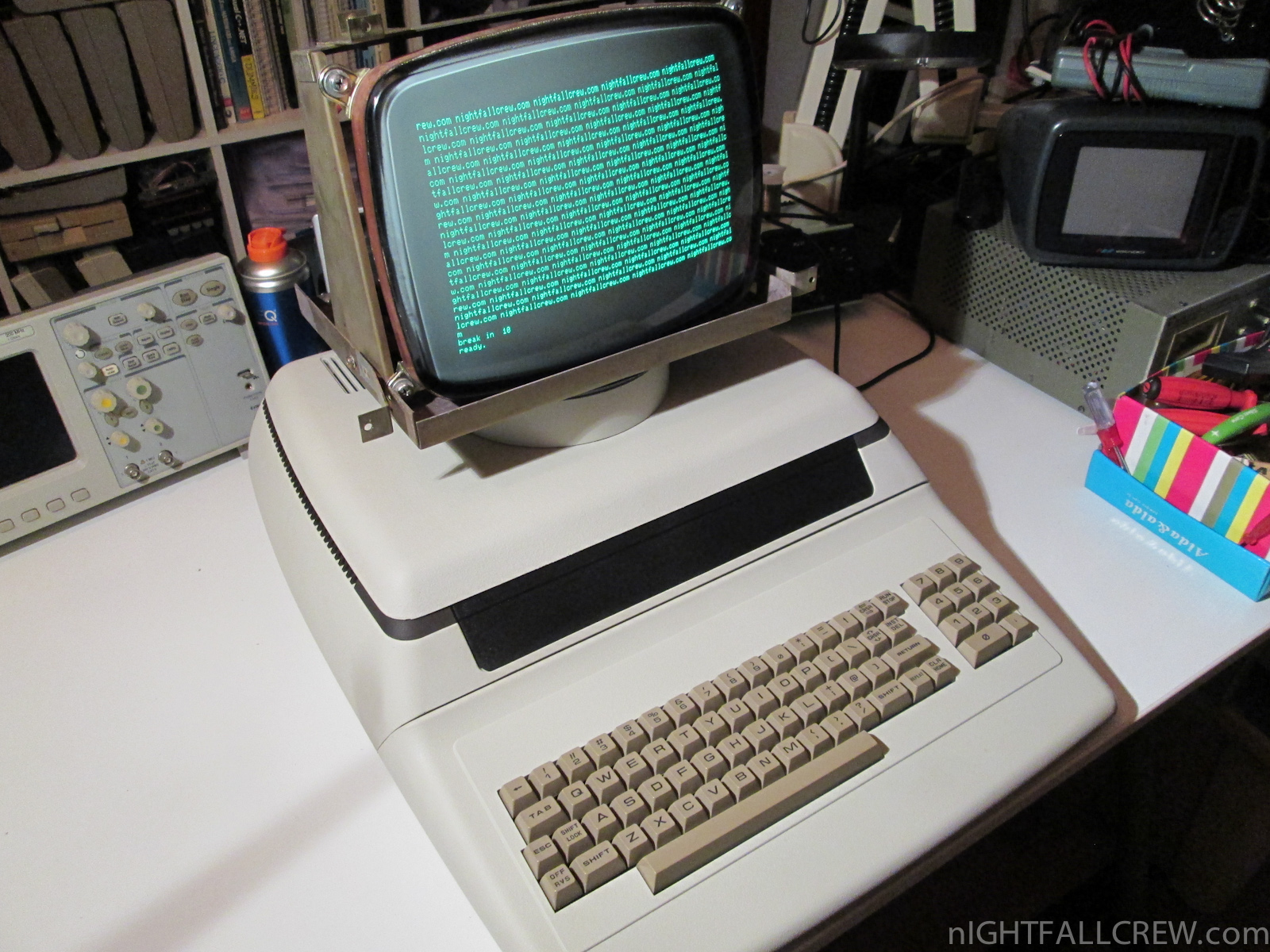

Repairing a Commodore CBM 610

October 26th, 2013 2 comments
Components replaced

This gallery shows some stages of repairing the Commodore CBM 610.

Defects found on the Commodore CBM 610:

  • Random raster lines on the screen.

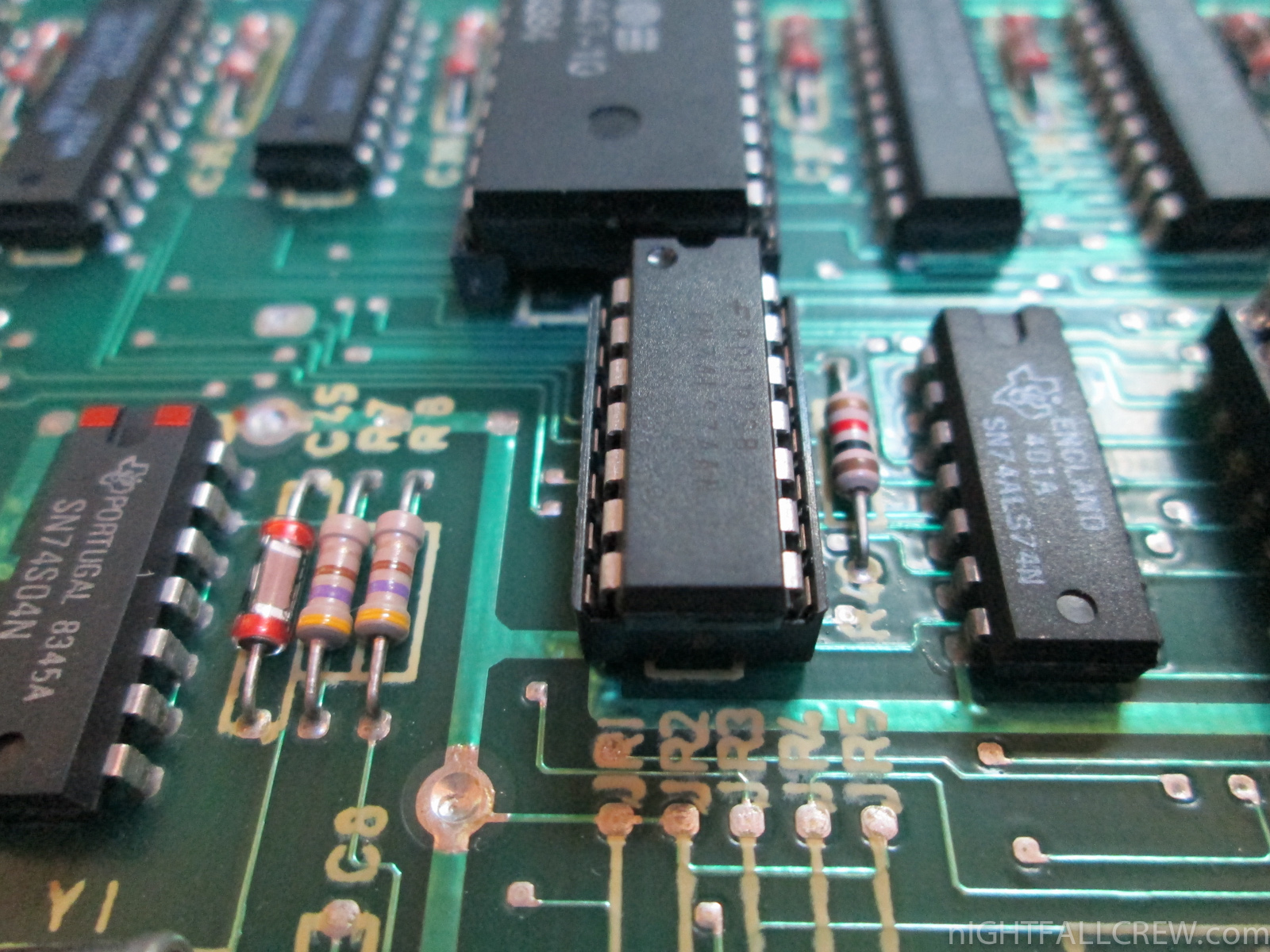

Components replaced:

  • 2 x 74LS245
  • 1 x 74S32
  • 1 x 74S05
  • 1 X 74LS14
  • 2 x Capacitor 22uf 10v
  • 2 x Capacitor 1uf 50v

I have passed three weeks of suffering for repairing this CBM 610. The finding of the fault is not has been easy, the key component of the failure was the IC 74S05 (U96) followed by the other components.
