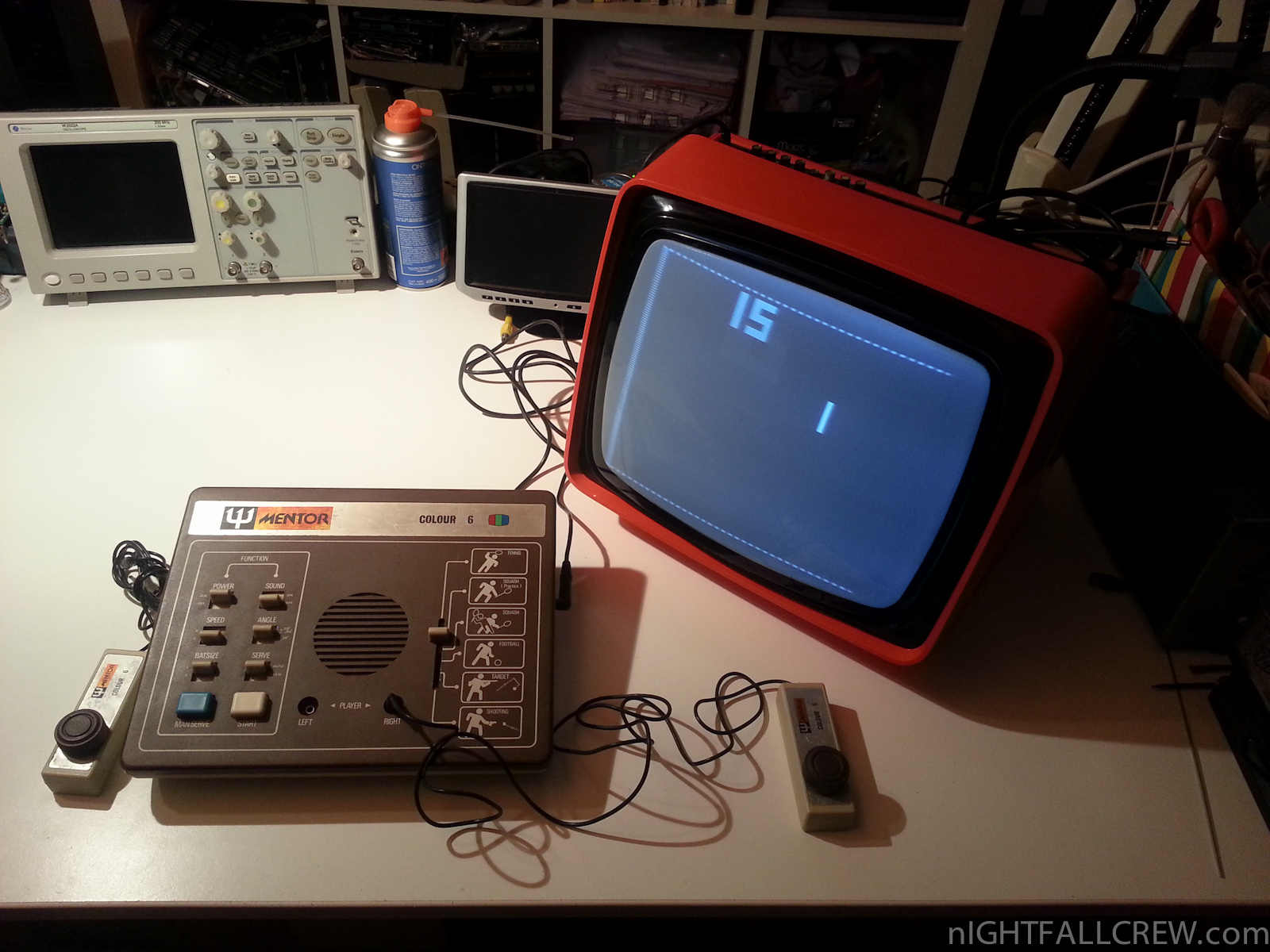

Mentor Colour 6 (Pong clone) has been Repaired

October 3rd, 2013 1 comment

Mentor Colour 6 (Pong clone) has been Repaired

Defects:

  • Black screen of death.
  • No sound.

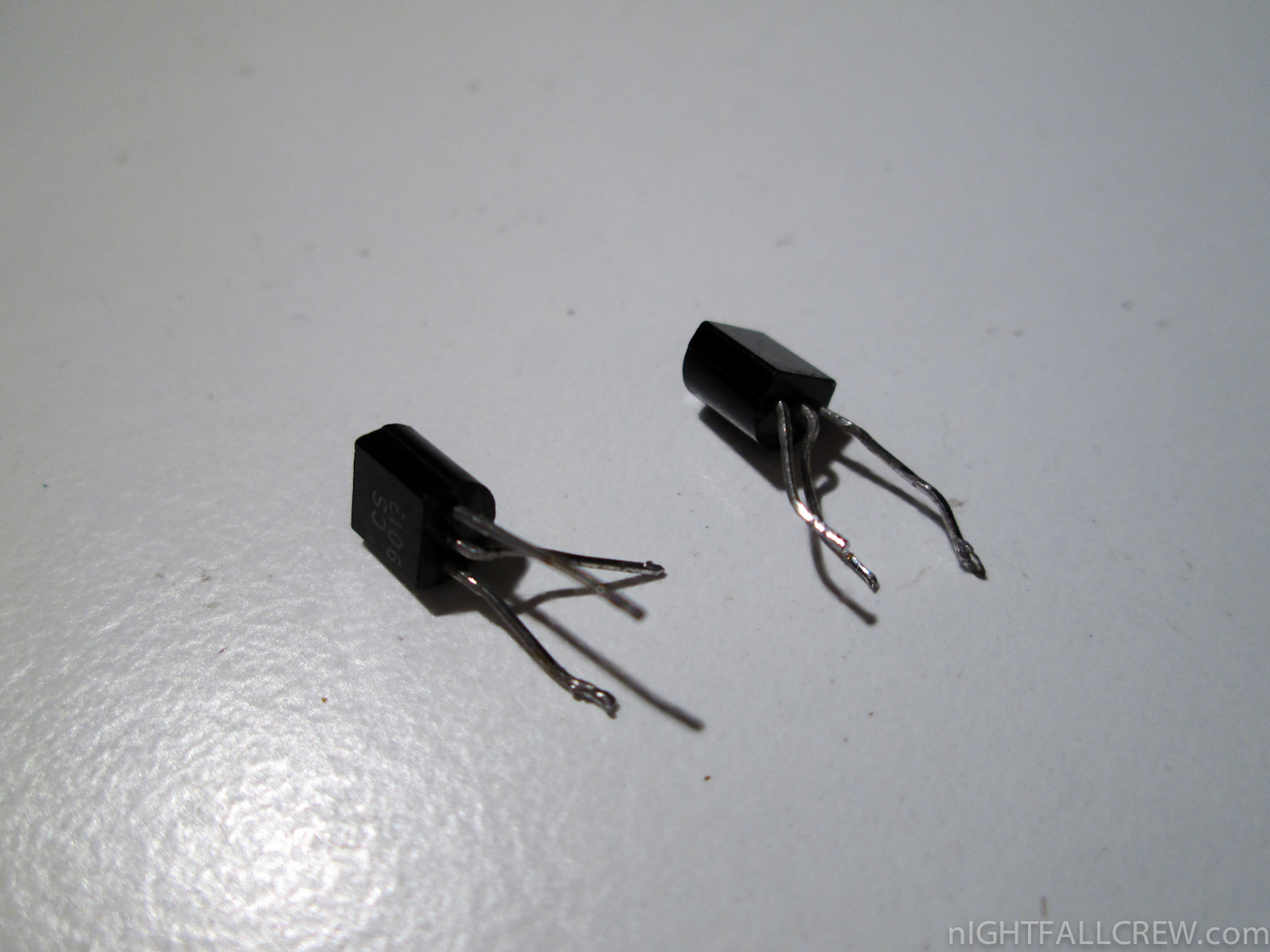

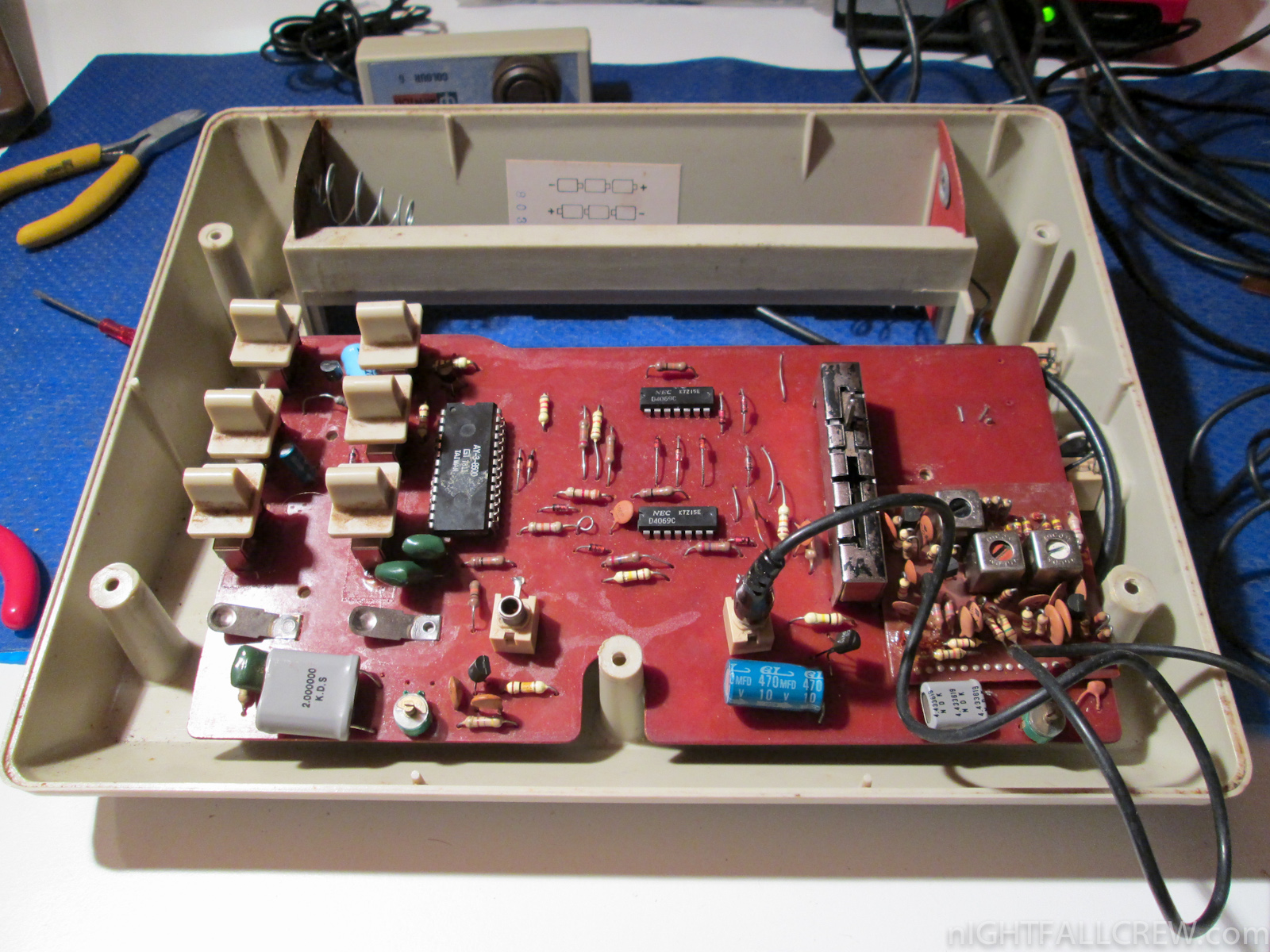

The problem of the power supply has been fixed by replacing the transitor CS 9013 that is used in a very bizarre way to lower the voltage from 9v to 6.85v. The problem of the audio was always caused by a transistor CS 9013 brutally in short circuit. In this case, the transistor is used like a amplifier.

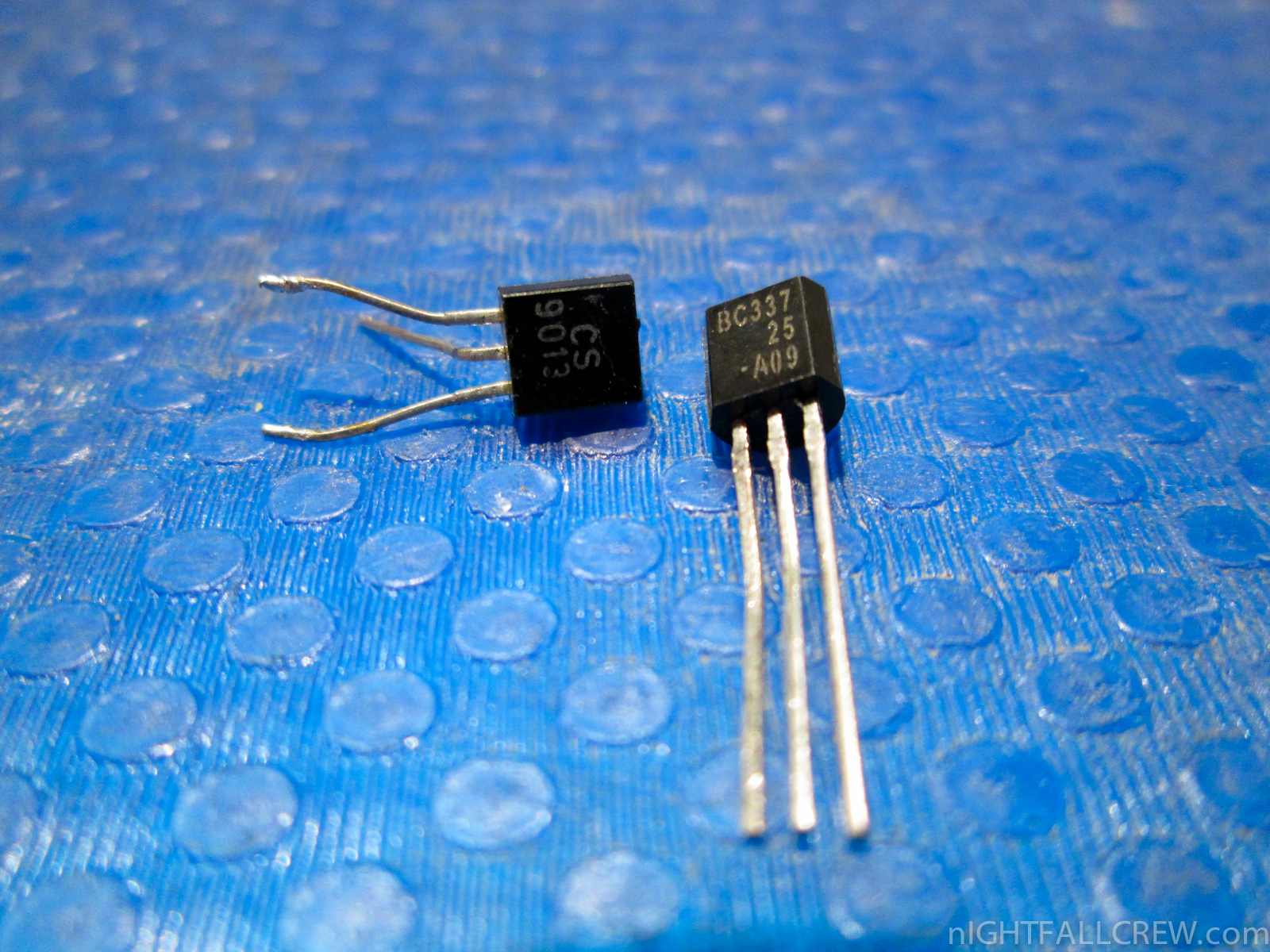

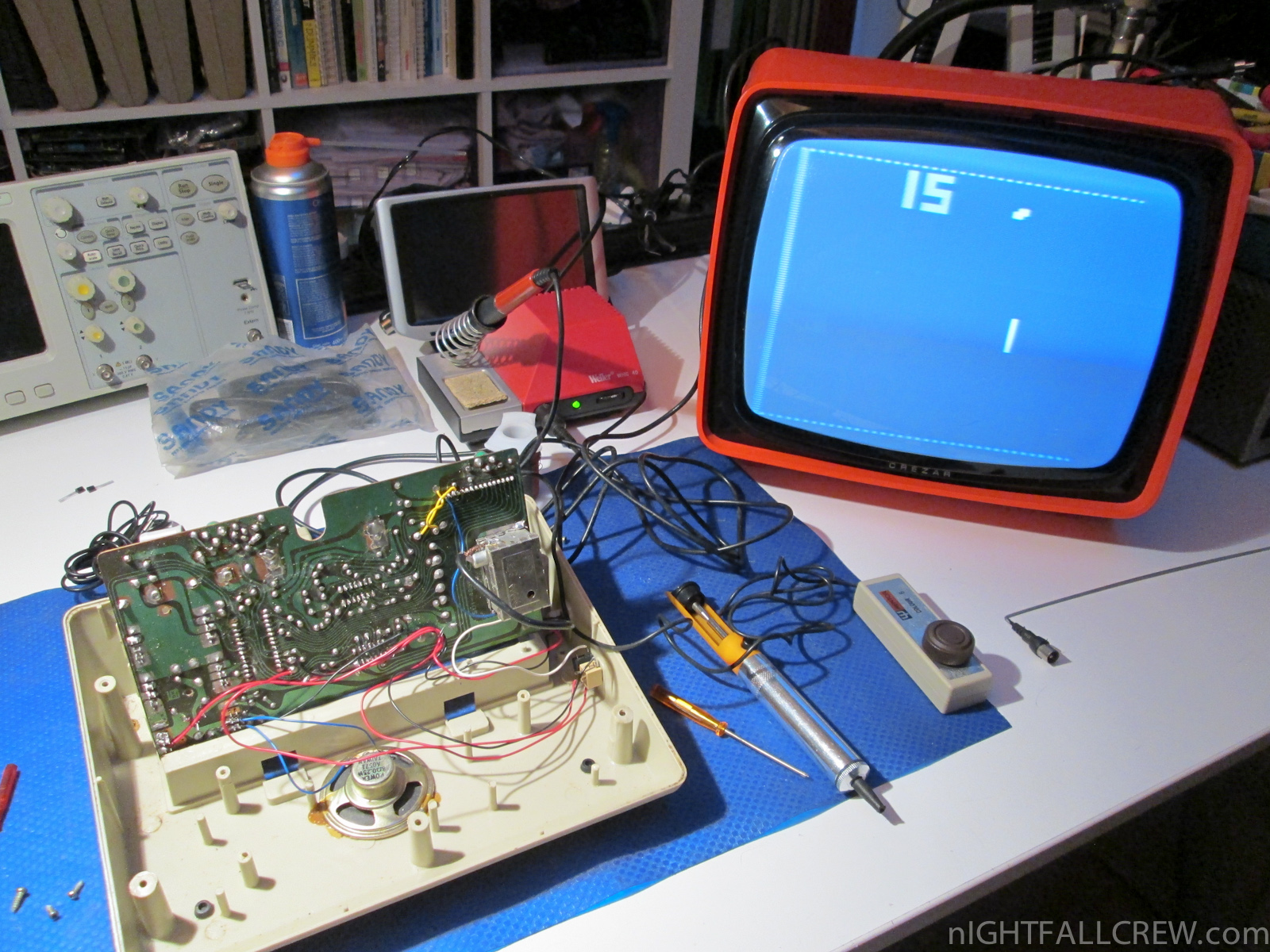

The transistor CS 9013 can be replaced with a BC 337 that it’s equivalent.
