Amiga 2000 REV4.5 Super Denise (8373R4) Upgrade

January 27th, 2011 No comments

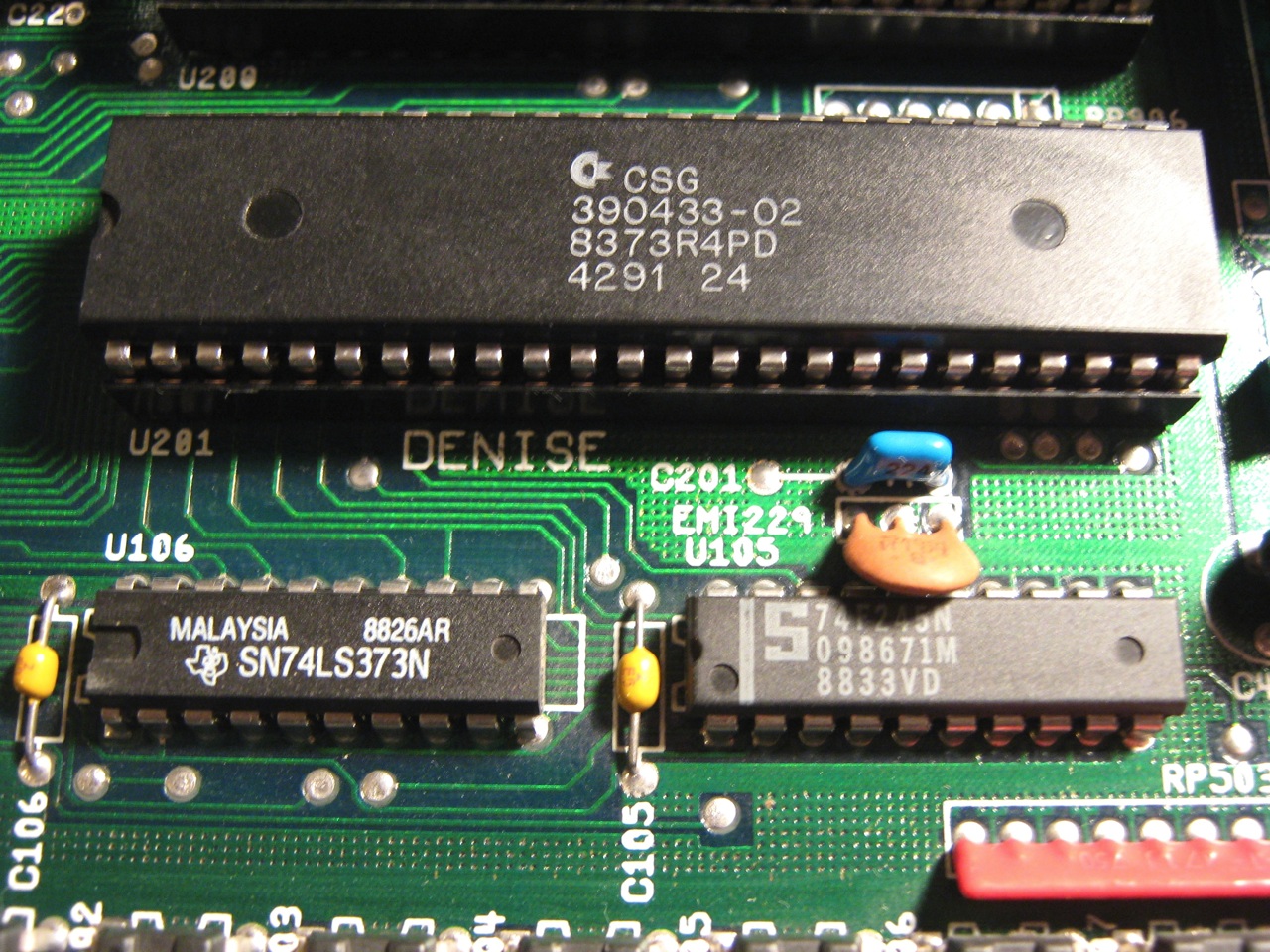

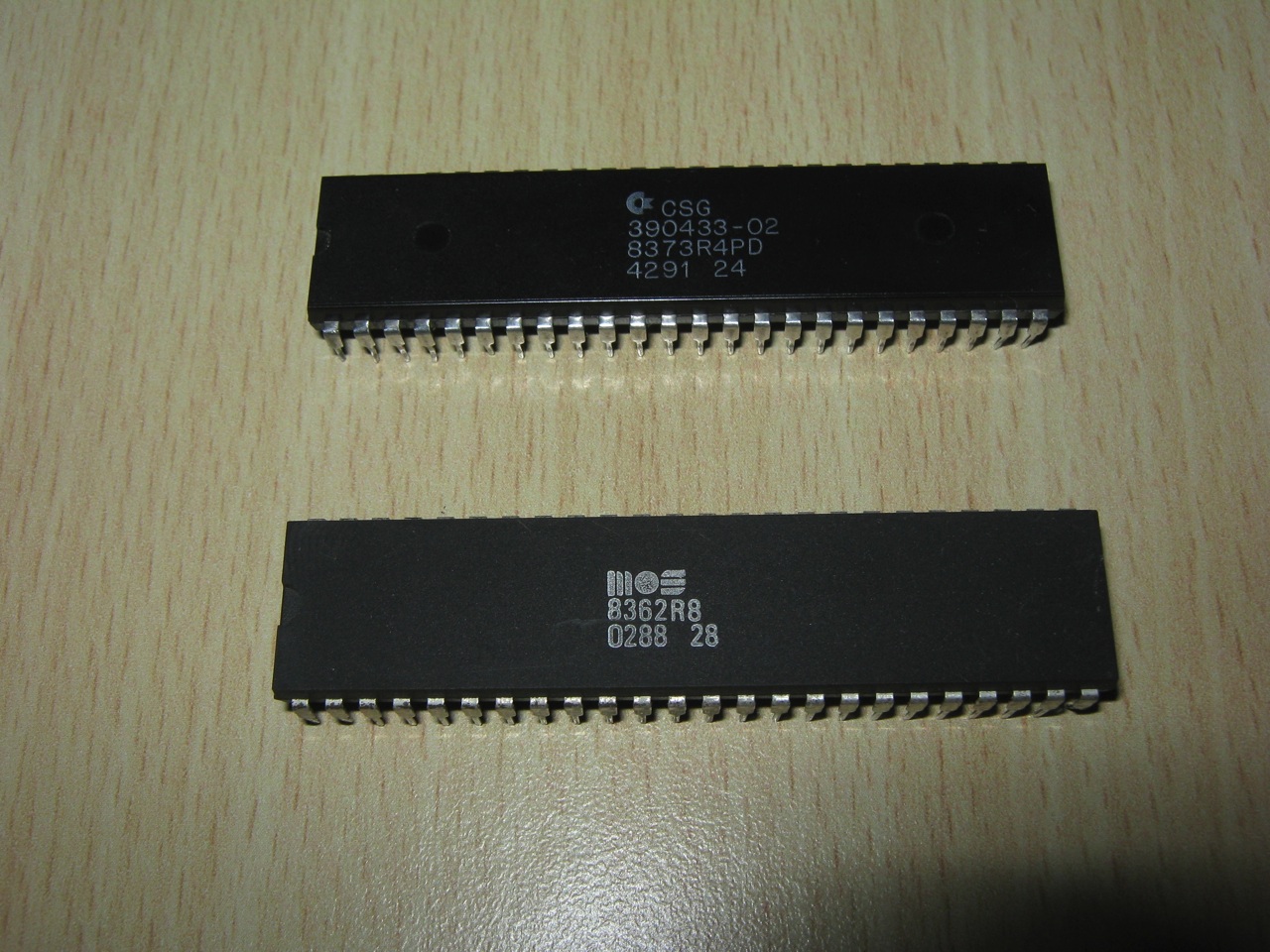

I continue to upgrade my Amiga 2000 PAL REV 4.5. After the upgrade of the chip Fat Agnus and the Kickstart/4MB, today i have replaced the Denise chip with a new one. The Super Denise chip is capable of still higher resolutions and bit depths.

Amiga 2000 PAL REV4.5 Battery & 1MB ChipRAM Upgrade

September 30th, 2010 No comments

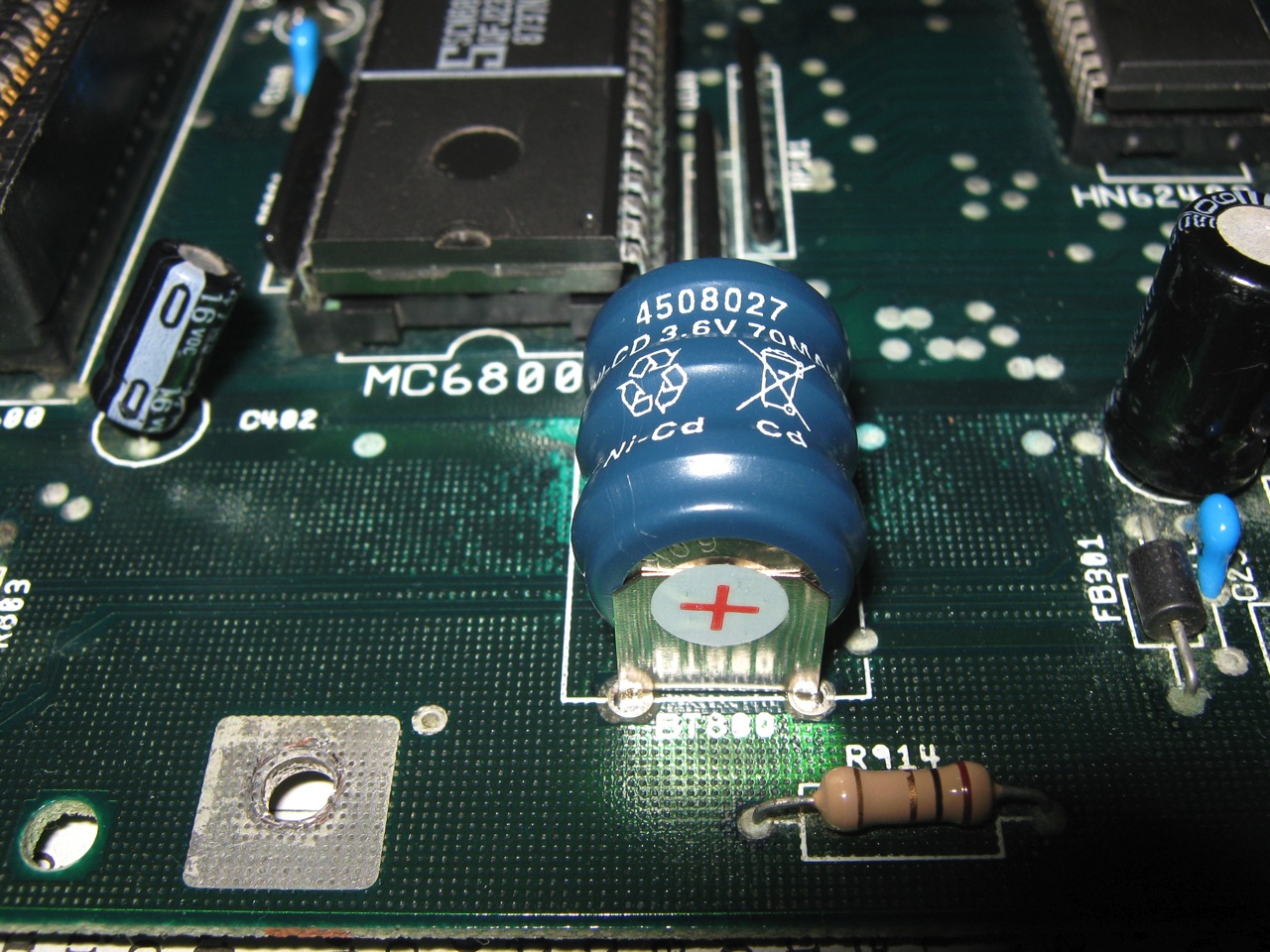

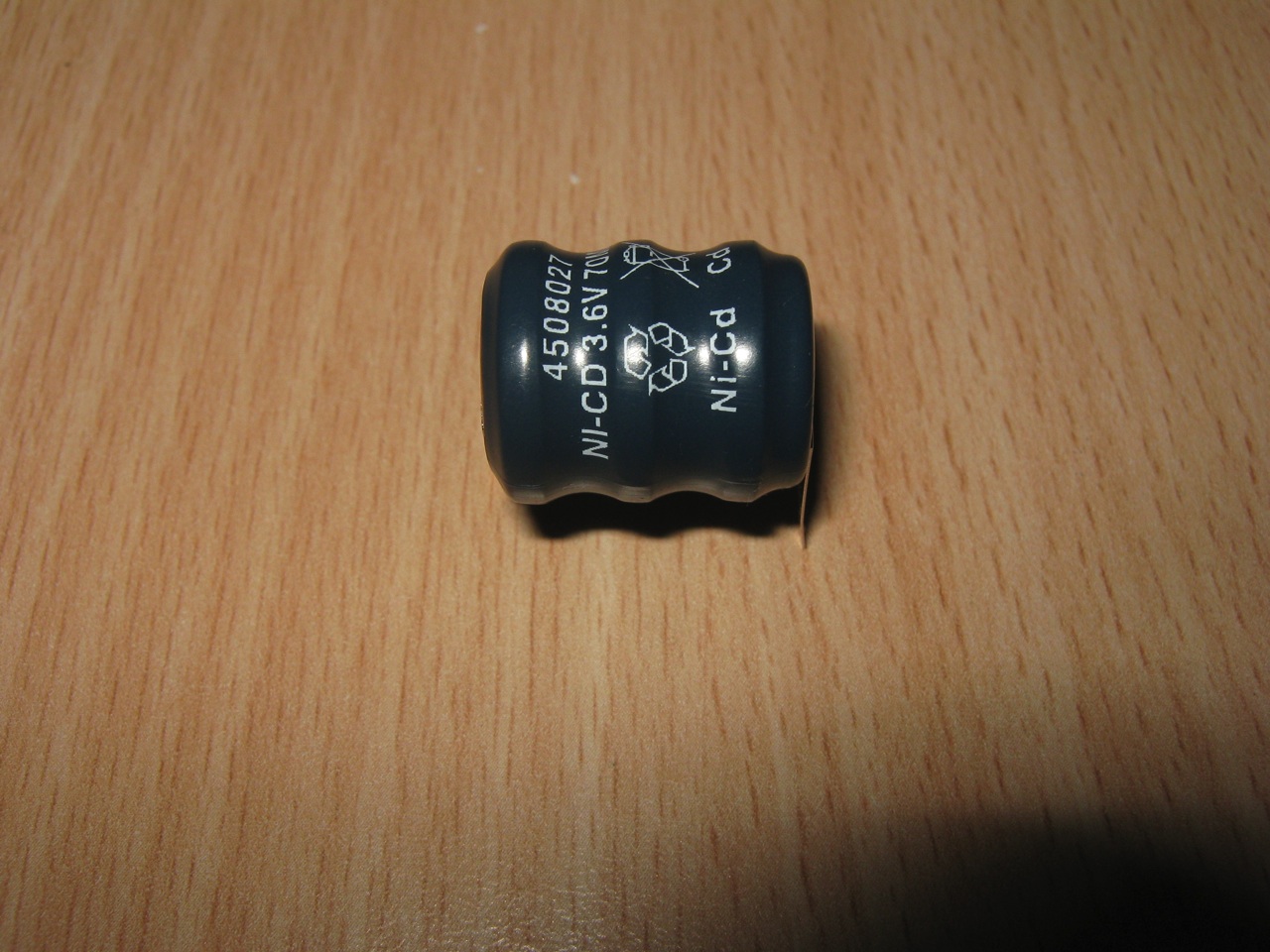

I have decided to upgrade my Amiga 2000 PAL REV 4.5 for get 1MB of chip ram. I also took advantage of this update to install a new battery for the system clock.

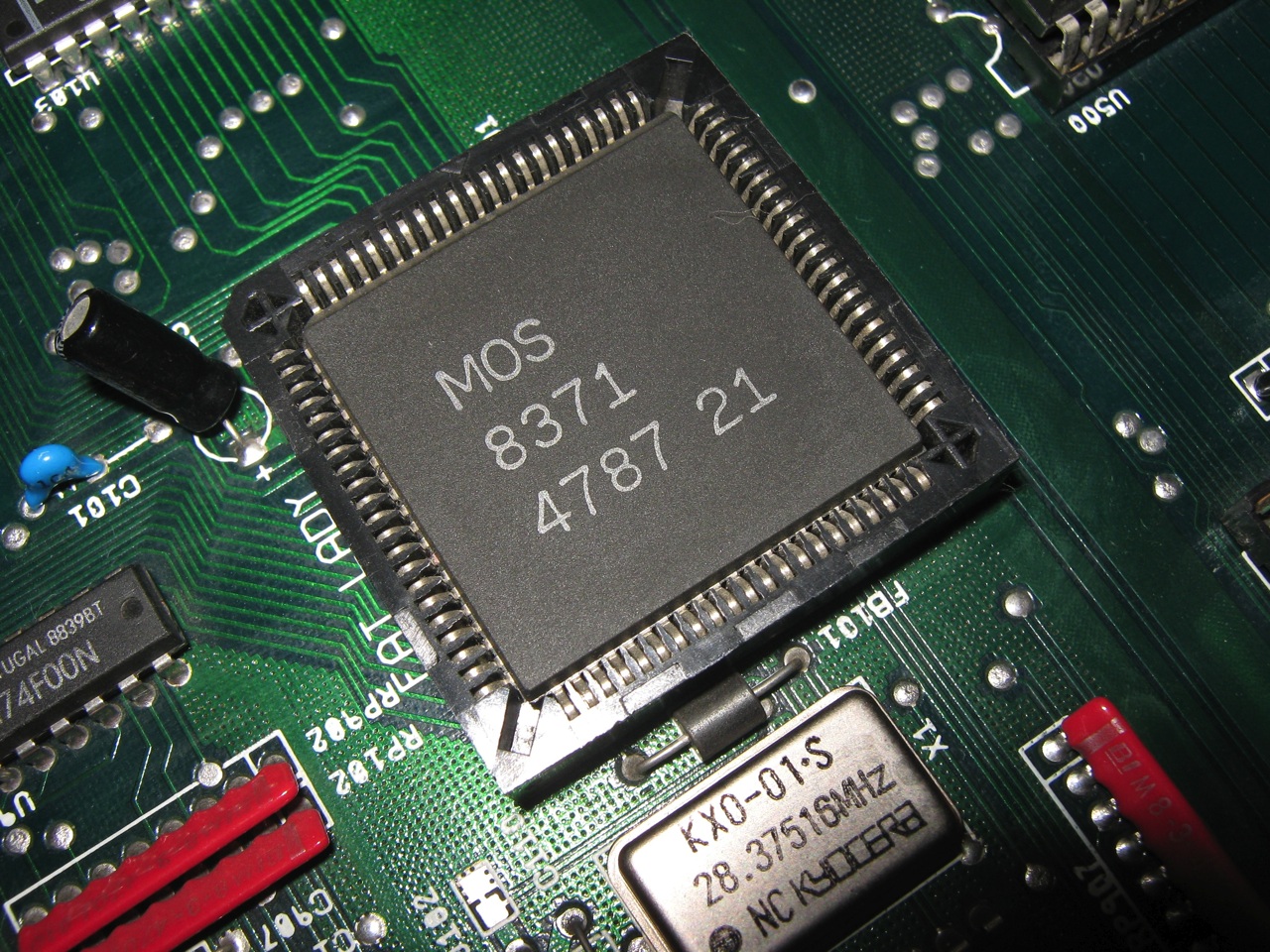

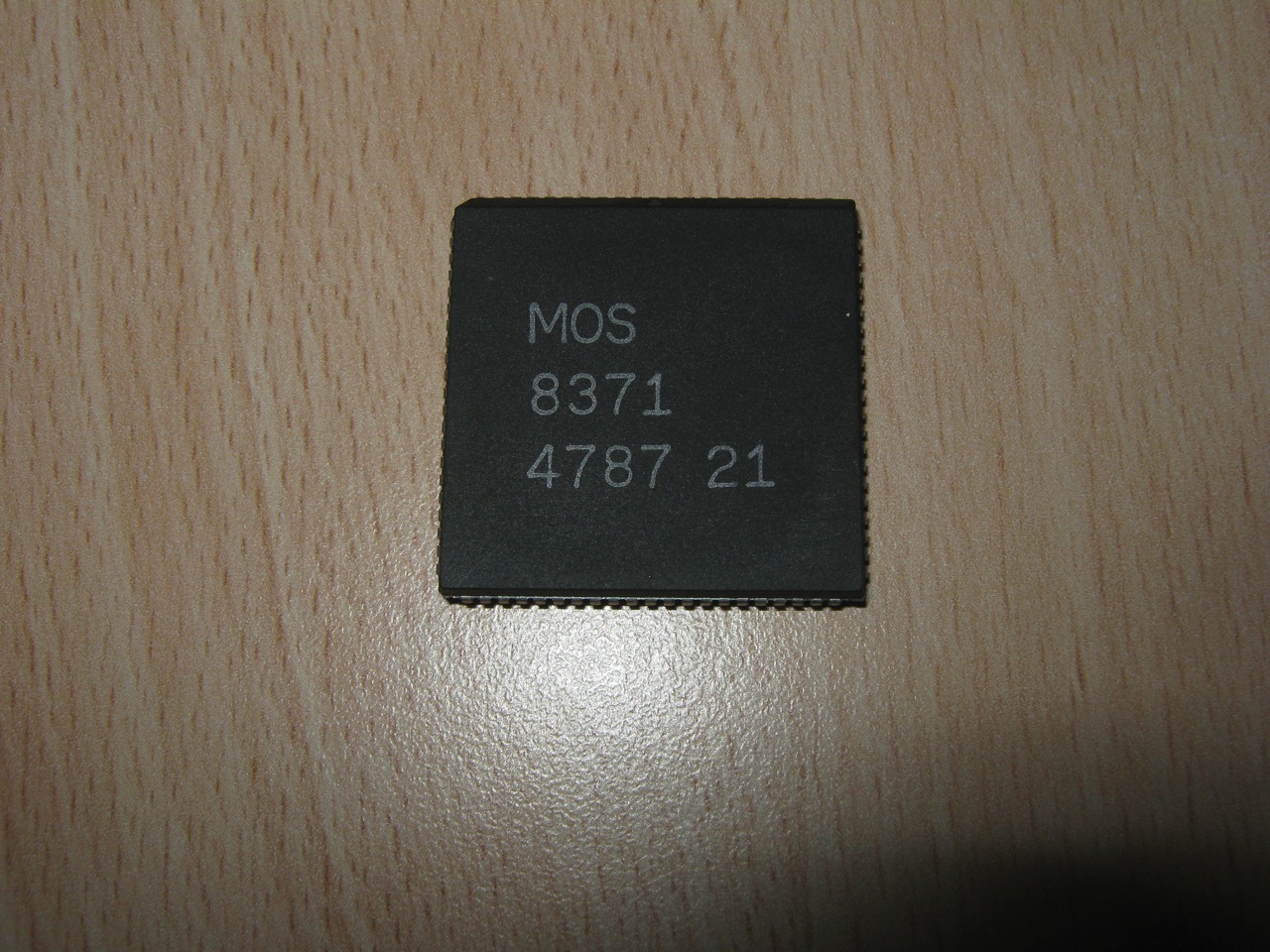

Amiga 2000 PAL REV 4.5 Fat Agnus 8372A Installation:

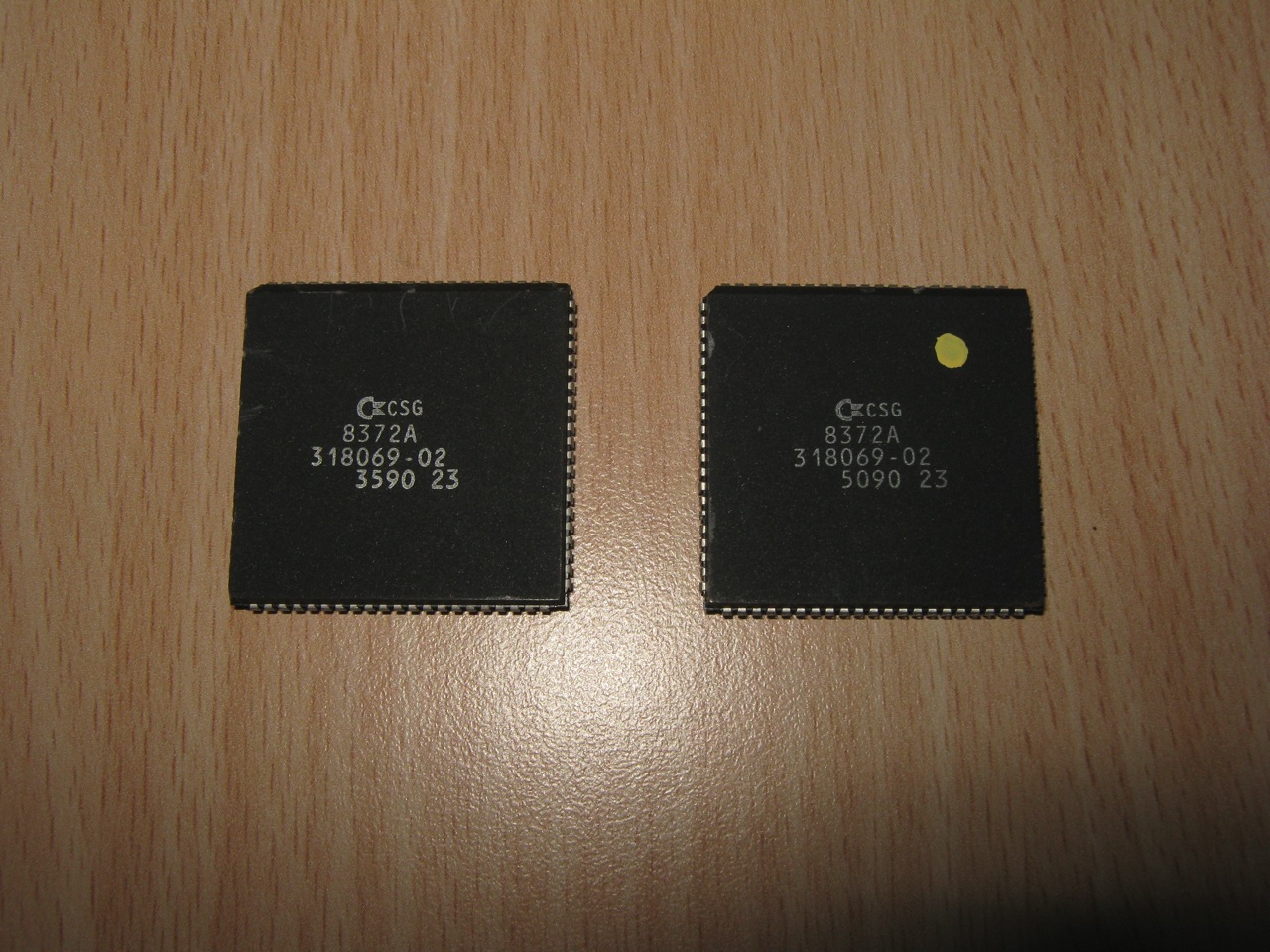

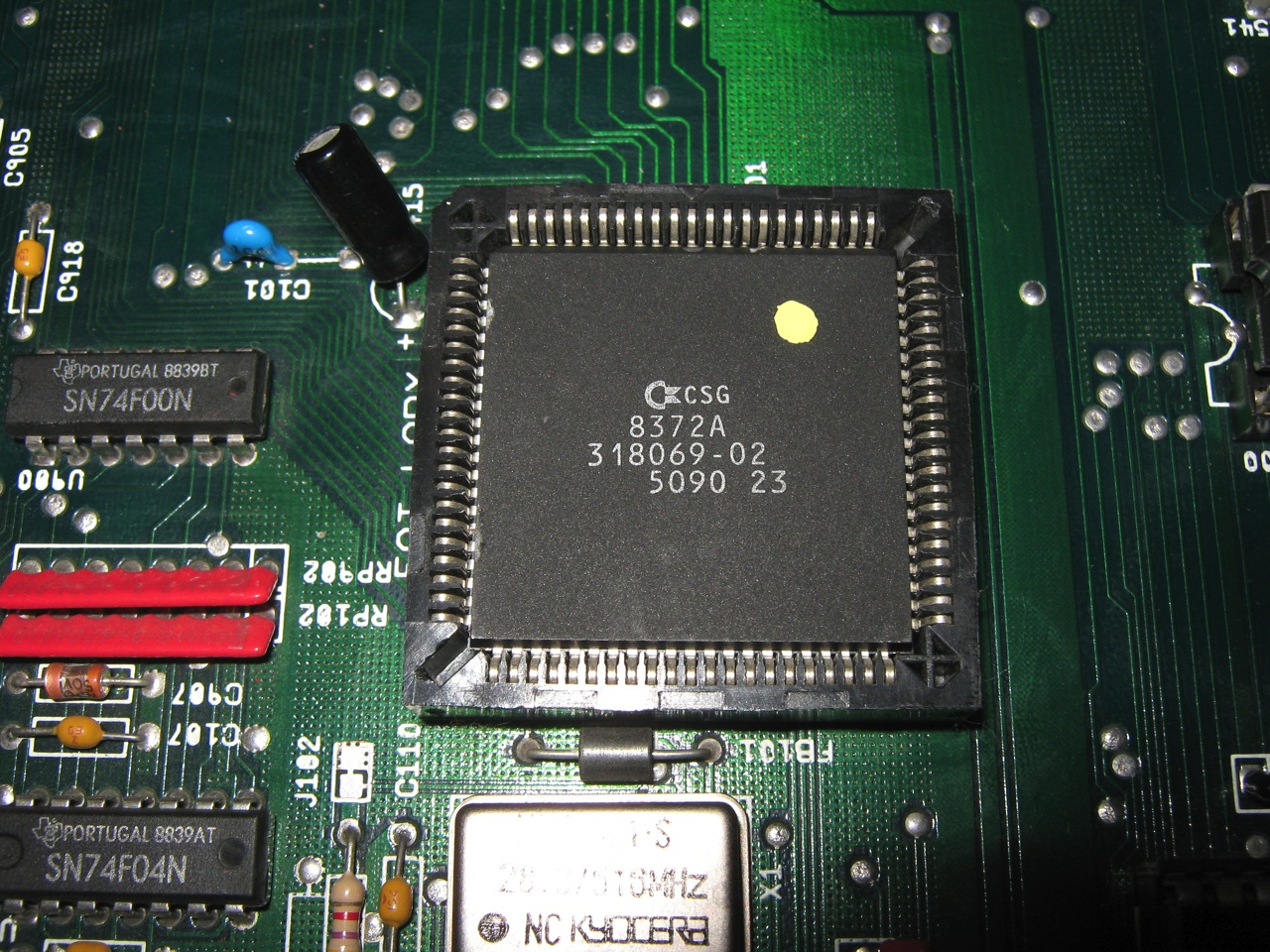

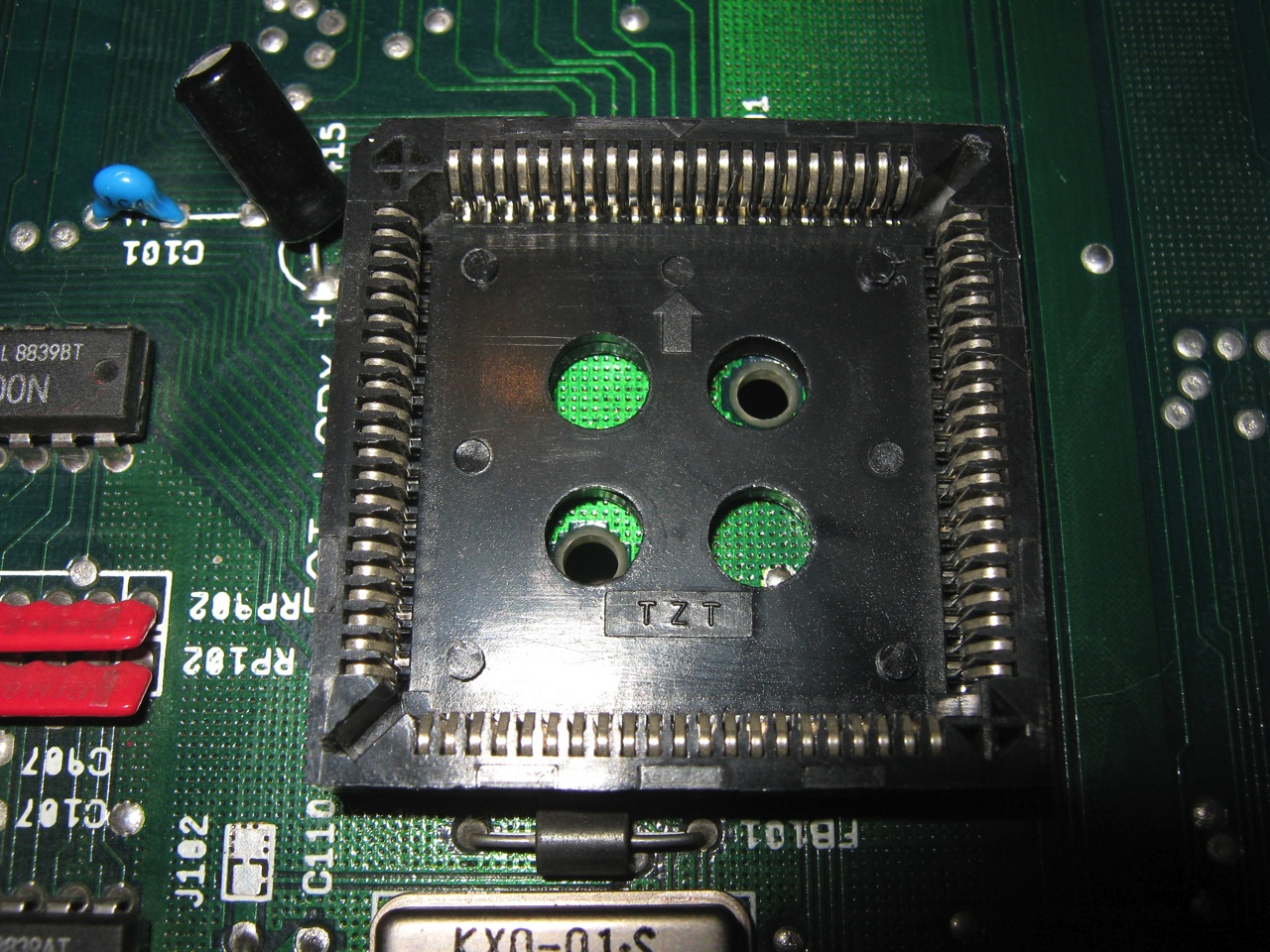

  • Install a new Fat Agnus 8372A or 8375 (8375 R1)
  • Look for jumper J101 beside the power connector to the motherboard. Change it to the opposite position. (photo)

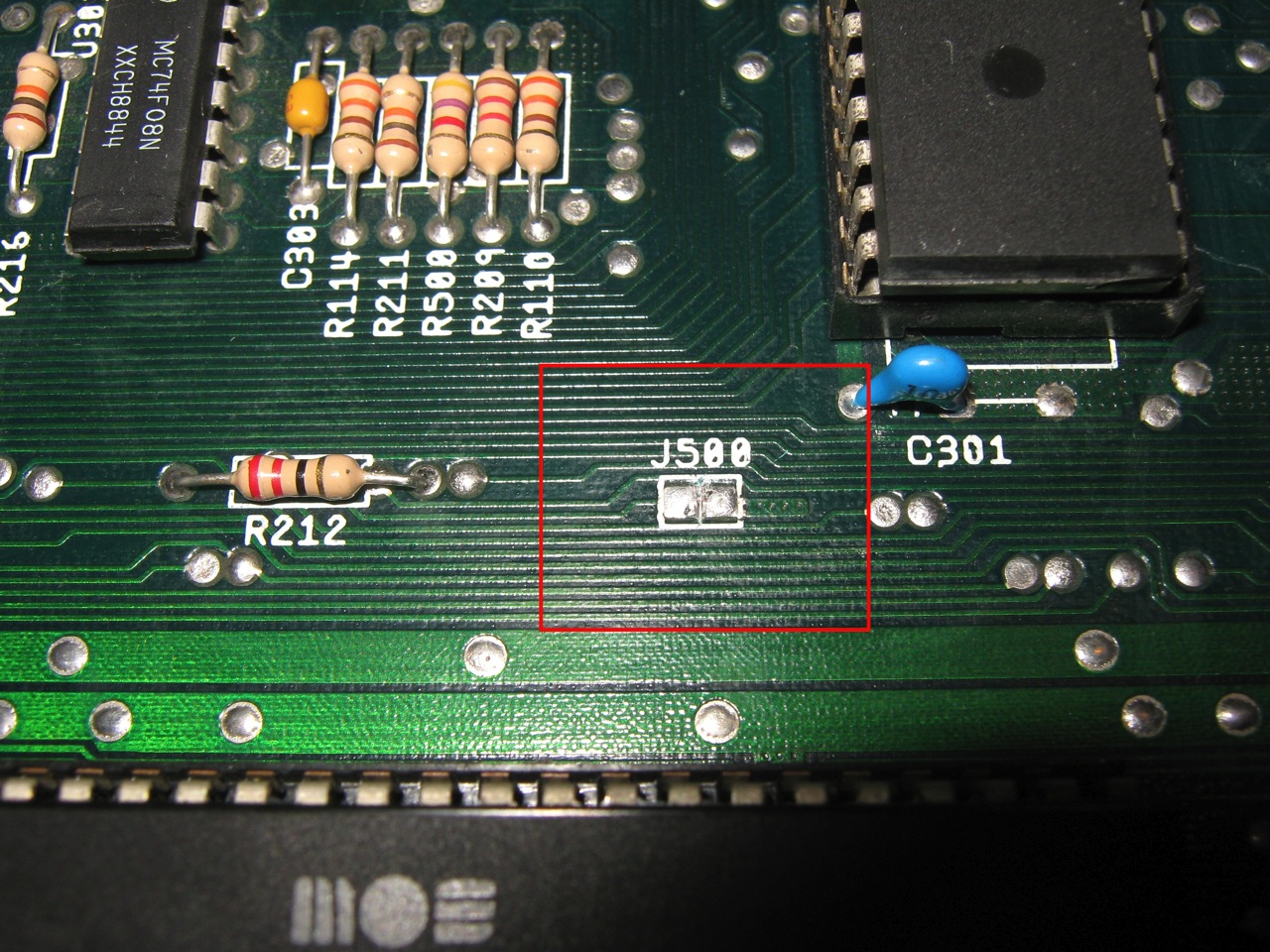

  • Look for trace J500 at the back of the machine near the Cia’s (8520′s). It’s a jumper trace that you will have to cut with a razor blade. (photo)

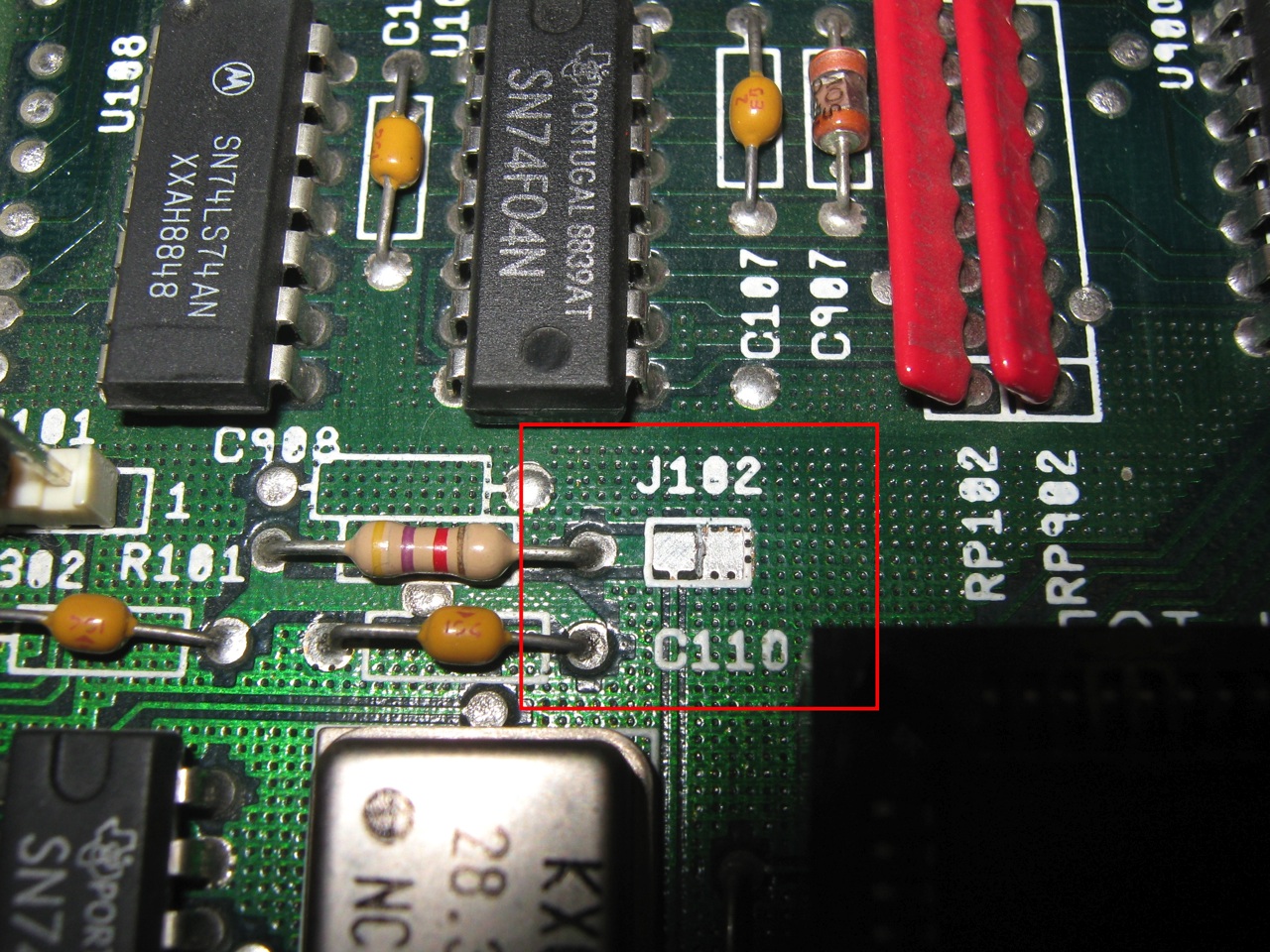

  • Look for trace J102 near the Fat Agnus (8372A). It’s a jumper trace that you will have to cut with a razor blade. (photo)

source: amiga-hardware.com iltecnicorisponde.info amigahardware.mariomisic.de amiga.org

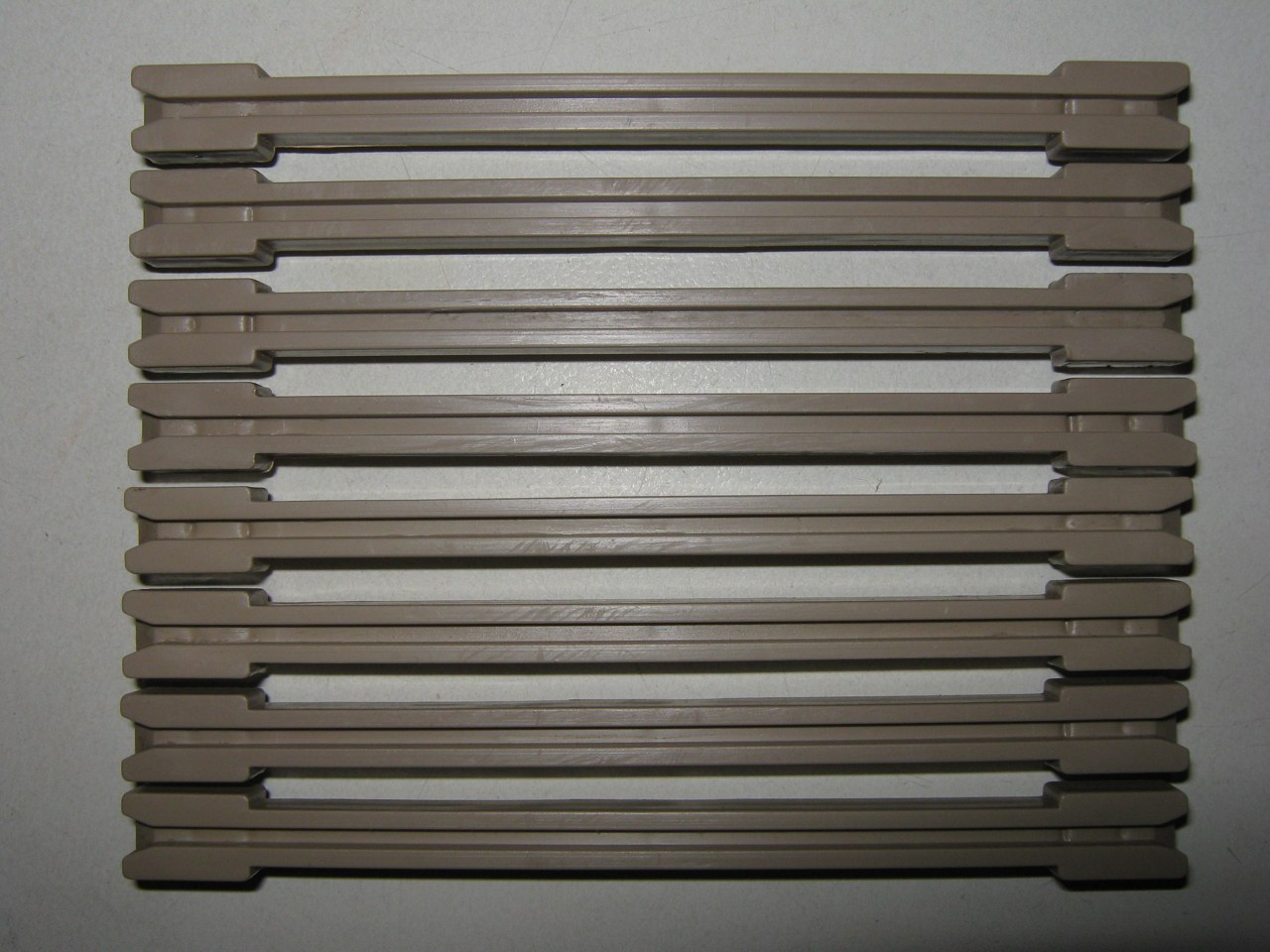

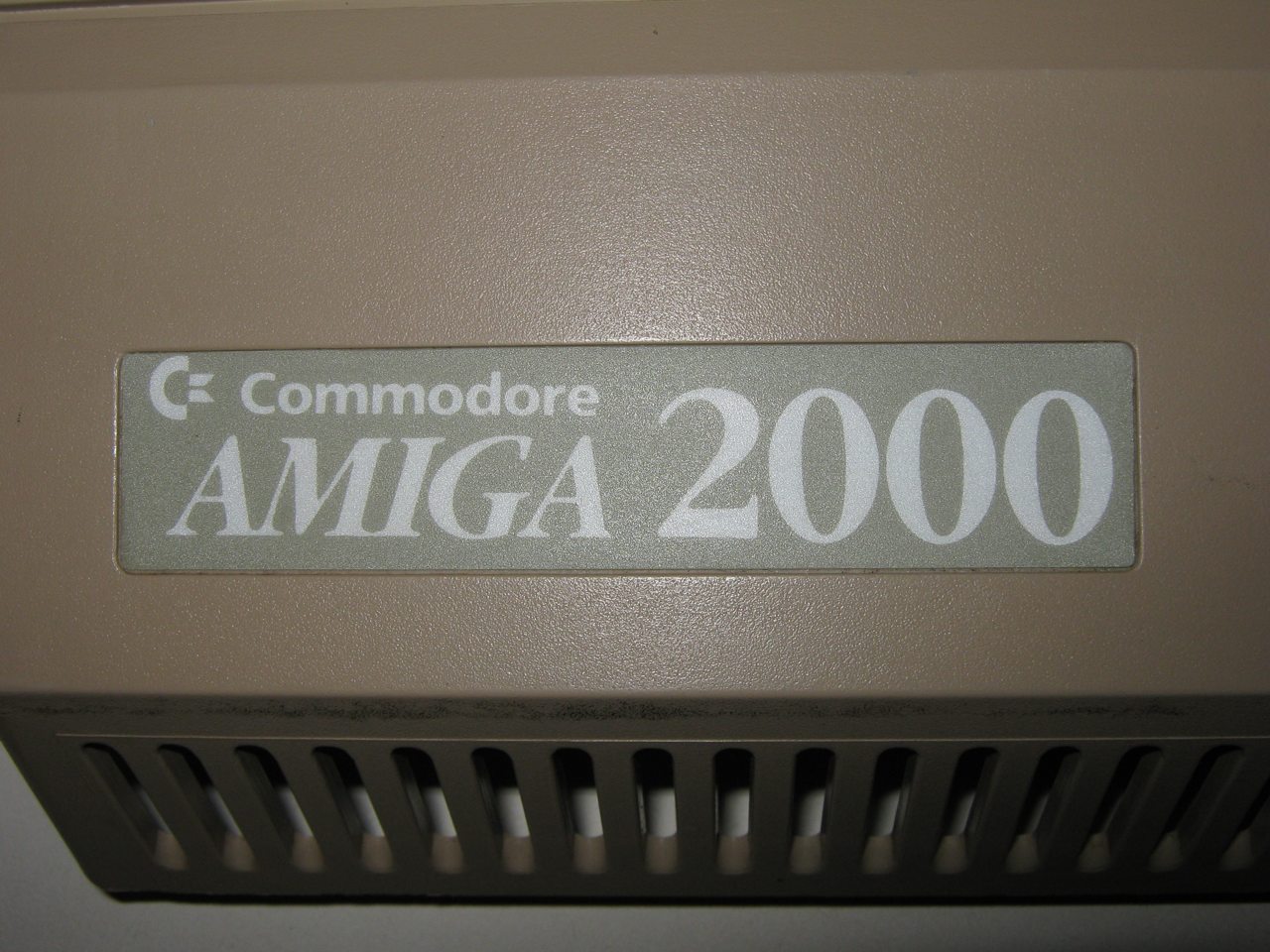

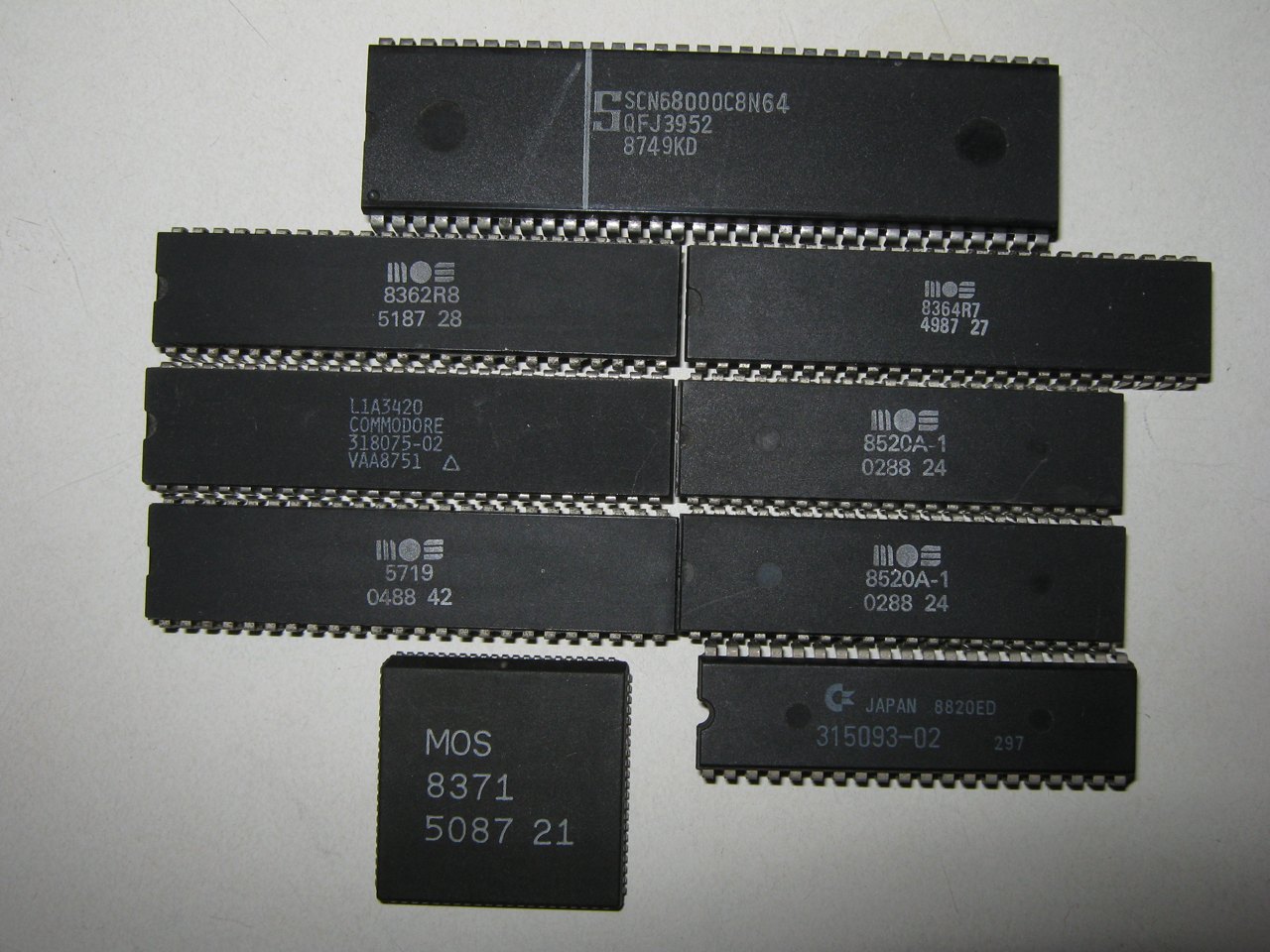

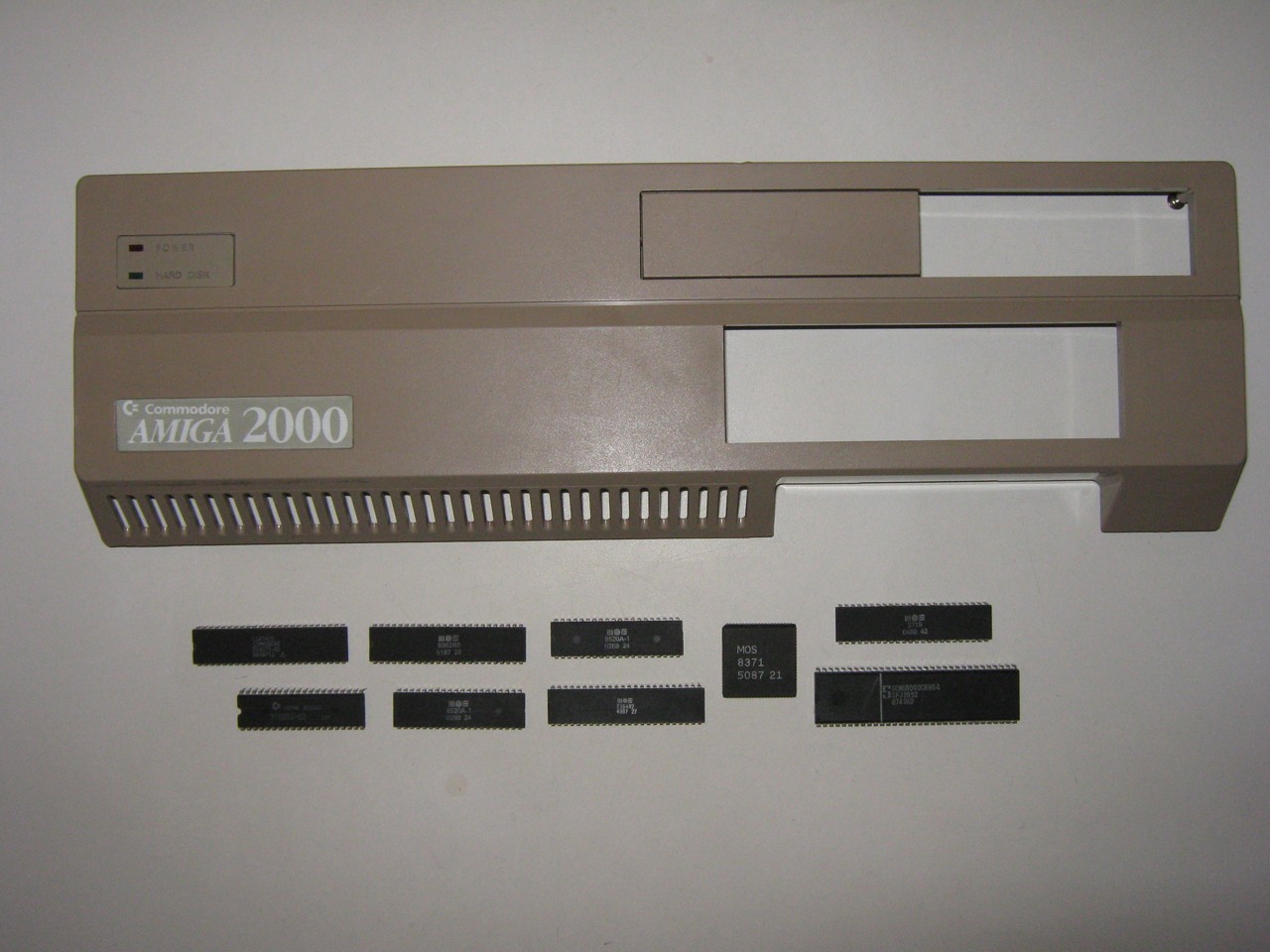

Some pieces recovered from a Amiga 2000 devastated by humidity!

March 7th, 2009 No comments

Some pieces recovered from a Amiga 2000 devastated by humidity!
