Monitor TVM-10 APF Electronics, Inc.

August 12th, 2023 No comments
Monitor TVM-10 APF Electronics, Inc.

First of all, i thank my friend Gerben for giving me the monitor.

This is a Black and White monitor but for some reason a thin transparent film has been applied to the front of the cinescope to simulate the tonality of an amber cathode ray tube, furthermore the APF logo placed on the front of the monitor to the right of the power light is masked.

The TVM-10 APF Monitor is approximately 43 years old and was used with the Computer APF Imagination Machine I/II.

The Monitor had several functioning problems, below is the description of the work that has been done.

  • Removing the colored film.
  • Replacement of all electrolytic capacitors.
  • Replacement of a ceramic capacitor.
  • Horizontal synchronism calibration (H-HOLD) by delicately removing the wax that was melted inside the variable inductor.
  • Installation of a 1uf polyester capacitor in parallel with the 1.5uf one present for width adjustment horizontal (H-WIDTH) of the image, unfortunately the ferrite core inserted into the variable inductor for manual adjustment is blocked, probably with glue, forcing is not a good idea.
  • Check of the Diodes.
  • Calibration using the trimmer placed on the front of the PCB of the monitor for the power supply voltage which must be 12v.
  • Geometry adjustment.
  • General cleaning.

Only one geometry problem remains; the image on the top left side of the CRT tends to bend slightly for about 1cm and the left side of the image is slighty rounded, problem surely attributable to some polyester capacitor or resistance that has lost the capacity/value of the time.

Needless to say i checked almost all the polyester capacitors and resistors in the horizontal section and didn’t find nothing scandalous.

The photo gallery contains all the photos i made during the repair, i take this opportunity to thank a user of the plcforum who gave me tips on how to proceed with the repair.

Gallery of the repair:

Apple ][ EuroPlus Repair

Apple ][ EuroPlus Repair

Apple ][ EuroPlus Repair.

Defects:

  • Black screen.
  • Power light off.
  • Keyboard does not work.

Repair:

About the black screen it was enough to press all the IC in their seat, i have removed some and cleaned the IC's socket and the IC's pins.

The Power light off, the 5v micro bulb was faulty, replaced.

The keyboard had several problems;

The keyboard connector (socket) located on the computer motherboard side was faulty and consequently are missing the -12v for the keyboard encoder PCB.

The 3 TTL chips had been replaced on the keyboard encoder PCB but 2 x 74LS04 are erroneously soldered instead of 2 x 74LS00, the third TTL was correct but not working. Replaced all.

Now everything works reasonably well, unfortunately the bad keyboard has some problems, the internal slats are warped and tend out of their seat, as a result some keys do not work correctly.

I have tried to fix and clean, but the situation hasn't improved much.

Gallery of the repair:

Texas Instruments PHA 2037 Connector FIX

March 26th, 2023 No comments

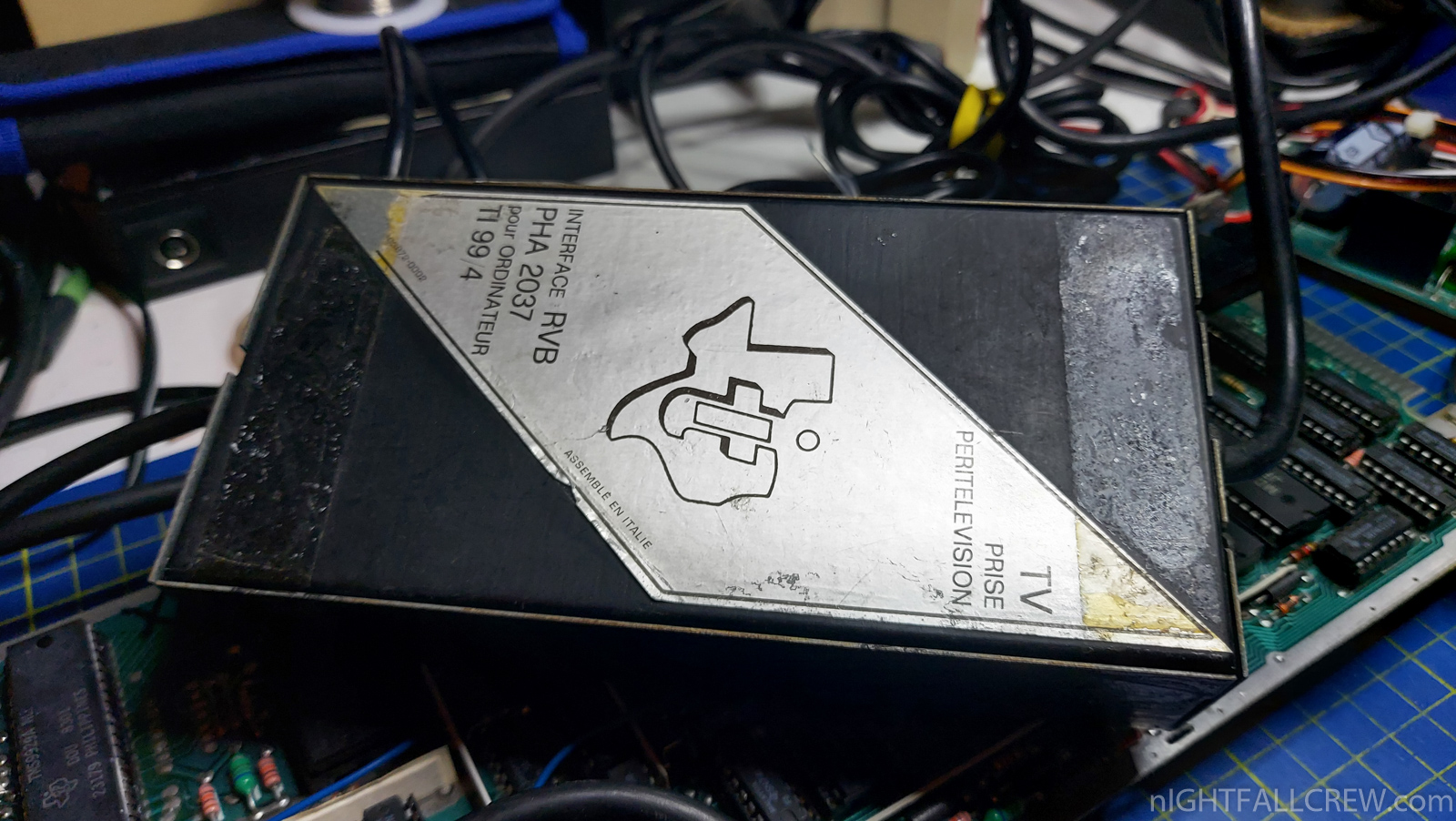

Texas Instruments PHA 2037 Connector FIX

Texas Instruments PHA 2037 Connector FIX

Defect:

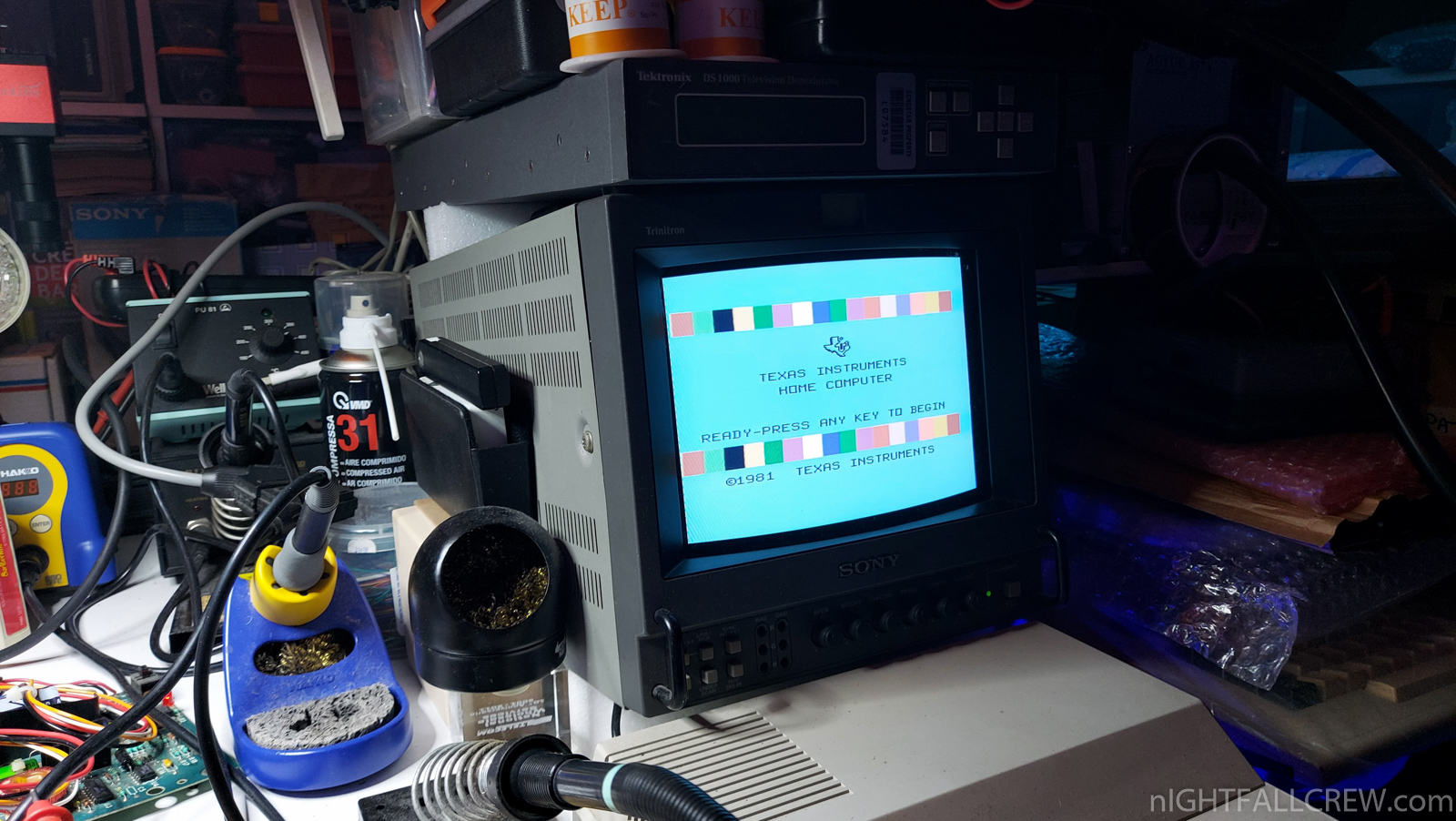

  • Black Screen but sounds works.

Replaced parts:

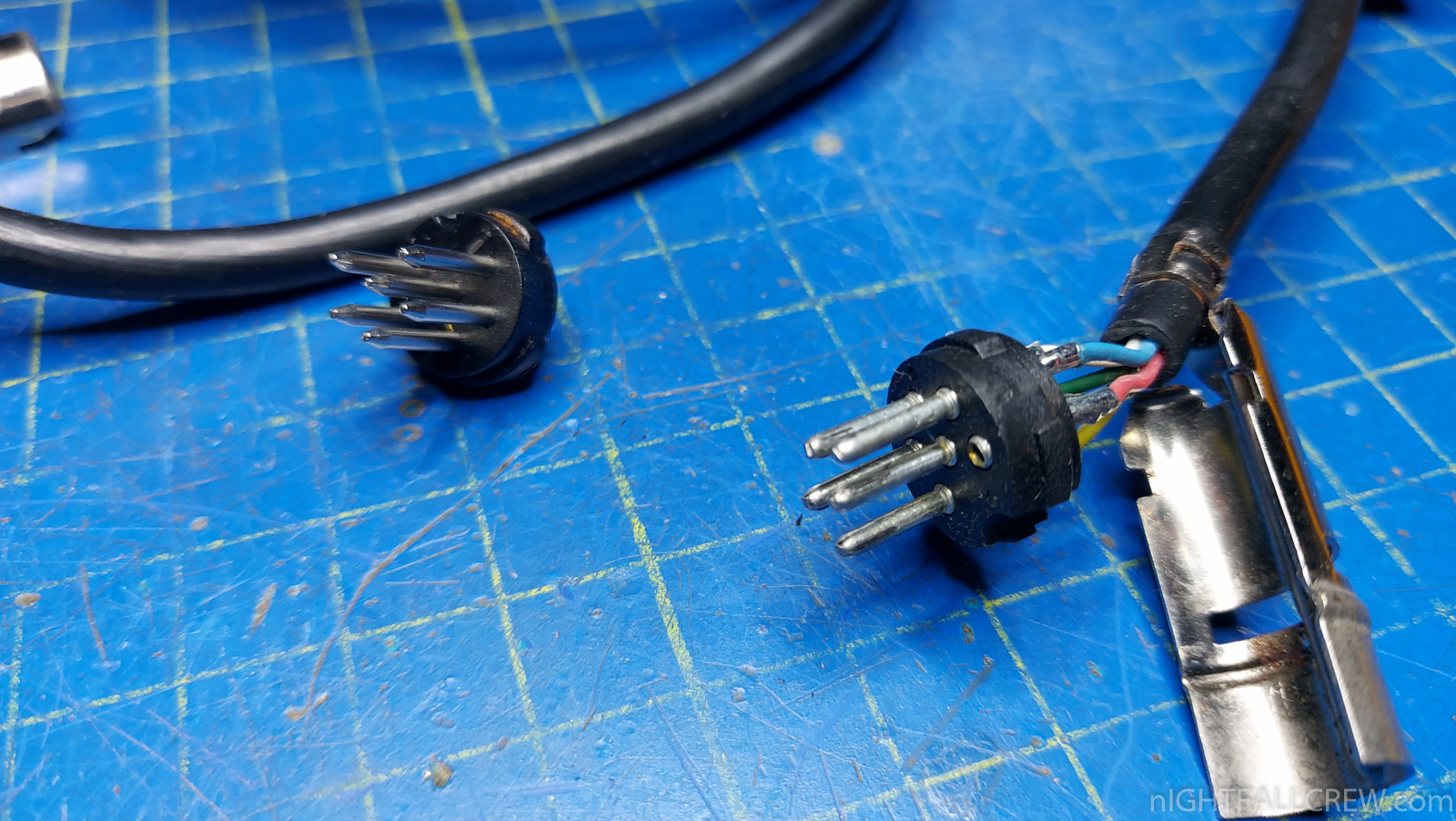

  • 1 x 6 PIN DIN Male.

Gallery:

3 x Texas Instruments TI-99/4a Repair

March 26th, 2023 No comments

Texas Instruments TI-99/4A Repair #1

Defect:

  • Black Screen and deafening sound in background.

Replaced parts:

  • 1 x TMS9900NL CPU (U600)

Texas Instruments TI-99/4A Repair #2

Defect:

  • Wave/Raster Lines.
  • Garbage on Boot Screen.

Replaced parts:

  • 1 x Inductor 2 -> 4.5 μH (L100)
  • 2 x TMS4116-15 RAM

Texas Instruments TI-99/4A Repair #3

Defect:

  • Garbage on Boot Screen.

Replaced parts:

  • 1 x MOSTEK MK4116N RAM

Mattel Intellivision (PAL) Composite MOD

March 19th, 2023 No comments
Mattel Intellivision (PAL) Composite MOD

Video amplifier installation for Composite Video output including installation of the two female RCAs on the case.

I also made a simple fix of the metal PAD of the RESET that no longer stayed in place and consequently fell off inside the shell.

Gallery:

Amiga 1200 Recap and VP-101 DAC Repair

March 19th, 2023 No comments
Amiga 1200 Recap and VP-101 DAC Repair

You shouldn’t turn on an Amiga that has been off for about thirty years without first running the usual Recap, but also following this simple rule it is not said that everything works as expected.

After the Recap i have realized that the RGB / Composite and RF output were not working properly.

From the RGB output the BLUE color was missing while the composite video and consequently RF show only a black screen.

After various measurements i came to the conclusion that the VP-101 (U30) DAC had to be replaced.

Once the DAC was replaced, the RGB output started working perfectly again, while the Composite/RF video signal they still didn’t work.

The failed component for the Composite/RF video output is the Z222 delay line, bypassing the delay line on the pins of the same one i have a “decent” composite signal but it’s not good, unfortunately this component is not easy to find, it could be solved by performing a “hack” i.e. by installing a different RGB Encoder that doesn’t need the delay lines and with some modifications on the PCB.

The game is worth the candle ? when will we use the Composite/RF video output ? probably never.

Gallery of the repair:

Commodore 64 Repair Mix ASSY

March 19th, 2023 No comments

Commodore 64 (ASSY 250466) Repair

Defect:

  • Black Screen and then Black Screen :-D

Replaced parts:

  • 1 x Power Switch
  • 1 x PLA 906114 (U17)

Commodore 64 (ASSY 250407) Repair

Defect:

  • Garbled Screen and then No Sound.

Replaced parts:

  • 2 x MOS 7708 [74LS257] (U13/U25)
  • 1 x MOS 7709 [74LS258] (U14)
  • 1 x MOS 6581 (U18)

Commodore 64C (ASSY 250469 REV-A) Repair

Defect:

  • Garbled Screen.

Replaced parts:

  • 1 x 4066 (U21)

Amiga 1200 Full Recap and Restyling

February 23rd, 2022 1 comment
Amiga 1200 Full Recap and Restyling

This Amiga 1200 was sent to me by a friend to made the usual replacement of the capacitors and also overhaul everything and migrate the pcb to a new case with a new colored keyboard.

Works that have been done:

  • Replacement of all electrolytic capacitors.
  • Cleaning the expansion connector which was oxidized in some parts.
  • General cleaning of the PCB.
  • Kickstart OS3.2 installation
  • Replacement electrolytic capacitor in the Panasonic JU-253-043P Floppy Drive
  • Floppy Drive Cleaning.
  • Greasing of Floppy Drive mechanical parts with silicone grease.
  • Painting of the Floppy Disk eject button with matt Black color (Only the black button for Chinon Floppy Drive is supplied with the new case)
  • CF Card adapter fixing.
  • Installazione PCB and colored keyboard in the new case.
  • Functioning test with Floppy Disk and CF Card.

Gallery:

Atari 1050 Disk Drive Repair

February 23rd, 2022 No comments
Atari 1050 Disk Drive Repair

This drive has two different problems.

  • The Floppy Drive just did not turn on.
  • The motor spinning always, regardless of whether a Floppy Disk was inserted or not.

Repair:

The Floppy Drive could not work because the FUSE inside the external power supply (transformer) was missing. :-D

The second problem was caused by the RAM-I/O-Timer (RIOT) 6532 which had decided to stop working.

Replaced the RIOT and made a good cleaning and greased some mechanical parts with silicone grease, everything has started again to work better than before. :-D

Gallery of the repair:

Commodore 64 with some strange problems

February 23rd, 2022 No comments
Commodore 64 with some strange problems

This poor Commodore 64 already been previously repaired by me but soffer of these new problems.

  • Out of Memory
  • Black Screen
  • No Cursor.
  • Garbage screen.

The problem of the black screen at irregular intervals with the out of memory was solved by replacing the CPU 6510, as soon as the CPU warms up a little more than normal the computer displayed only a black screen, cooling the CPU still did not work but at least something was displayed.

The problem of the out of memory are 4 dead ram + 1 previously replaced and i have decided to put in a socket the remain 3.

Last problem, there was no cursor and sometimes a garbage screen was displayed, as we all know the CIA 6526 in position U1 should be faulty due to the missing cursor.

Instead of CIA 6526 it was the socket of the 6569R3, replaced the socket the cursor is back and other annoying glitches disappeared.

2 x Commodore 1541 (1540050 / 251830) Repair

February 23rd, 2022 No comments
2 x Commodore 1541 (1540050 - 251830) Repair

Commodore Floppy Drive 1541 (1540050) Repair #1

Defects:

  • Drive access problems (IEC): drive resets but the computer freez with a “searching for”
  • The RED led flashes twice times then stops and start again and motor runs continuously.
  • The RED led flashes repeatedly every second without stopping and motor runs continuously.

Replaced parts:

  • Replaced 6522 (UC3)
  • Replaced 6522 (UC2)
  • Replaced 901229-03 ROM (UB4)

Commodore Floppy Drive 1541 (251830) Repair #2

Defects:

  • The RED led flashes repeatedly every second without stopping and motor runs continuously.

Replaced parts:

  • Replaced MOS 8713 [74LS04] (UC6)

Selcom Lemon II Floppy Drive Repair and Clean

April 7th, 2021 No comments
Selcom Lemon II Floppy Drive Repair and Clean

Selcom Lemon II Floppy Drive Repair and Clean.

Defect: The Floppy Drive motor spins and the LED stays on but the R/W head does not move and don’t read anythings. This is a classic failure due to incorrect insertion of the Floppy Drive connector into the male connector on the side of the Floppy Drive Controller card.

By inserting the connector moved one row externally the supply consequently go to in the wrong places and the first IC to explode in the true sense of the word is the 74LS125 (see photo).

Replaced the component, everything has started to working again.

Taking advantage of the repair, i have cleaned the inside of the LEMON II Computer and done a DUMP of the EPROM, i also cleaned and lubrificate the mechanical parts of the Floppy Drive.

Gallery of the repair:

Download: Selcom Lemon II ROM EPROM Dump (710)

2 x Atari Lynx II Repair and Recap

March 21st, 2021 No comments
2 x Atari Lynx II Repair and Recap

2 x Atari Lynx II Repair and Recap.

The first Atari Lynx II did not turn on but when powering the console at 5v bypassing the power stage it worked properly.

I had to replace all the electrolytic capacitors and the critical components of the power stage.

  • 1 x MOSFET MTDJ055E with a equivalent one.
  • 2 x Transistor 2N3906.
  • 1 x Zener Diode 1N5991B.
  • 1 x 120 Ohm resistor.

The second Atari Lynx II working correctly so consequently i have only replaced the electrolytic capacitors.

Gallery of the repair:

Philips NMS 8245: The usual melted belt of the Floppy Drive

August 26th, 2020 No comments
Philips MSX NMS 8245 usual melted belt

Philips NMS 8245: The usual melted belt of the Floppy Drive.

Gallery:

Philips Videopac G7000 a little bit Dirty but Working

August 10th, 2020 No comments
Philips Videopac G7000 a little bit Dirty but Working

Philips Videopac G7000 a little bit Dirty but Working. Nothing to write this time, just needed only a good clean up.

Gallery:
