ROM-el testing complete

ROM-elfrom Homepage:

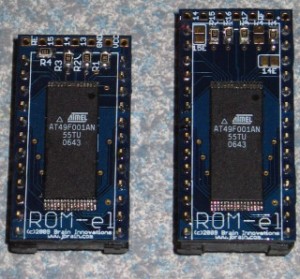

Aries was backordered on the required 24 and 28 pin headers needed to finish testing, and the order just came in this past week.  Thus, I finally had a chance to solder and test the units.  Testing went well, and I can program the units with my Willem programmer.

Originally designed to hold a 29EE512 64kB EEPROM, I found a good price on Atmel AT49F001 128kB 5V Flash, so I made the necessary adjustments and tested with the new memory.  Testing went well, so I am releasing the design to production.

I have noticed one issue that I need to address.  Some CBM units have an RFI shield that doubles as a heat shield.  To perform the latter function, metal “fingers are stamped out of the shield that press on the top of the ICs.  I need to ensure the metal shield/heat sink does not contact any of the pins on this unit.
