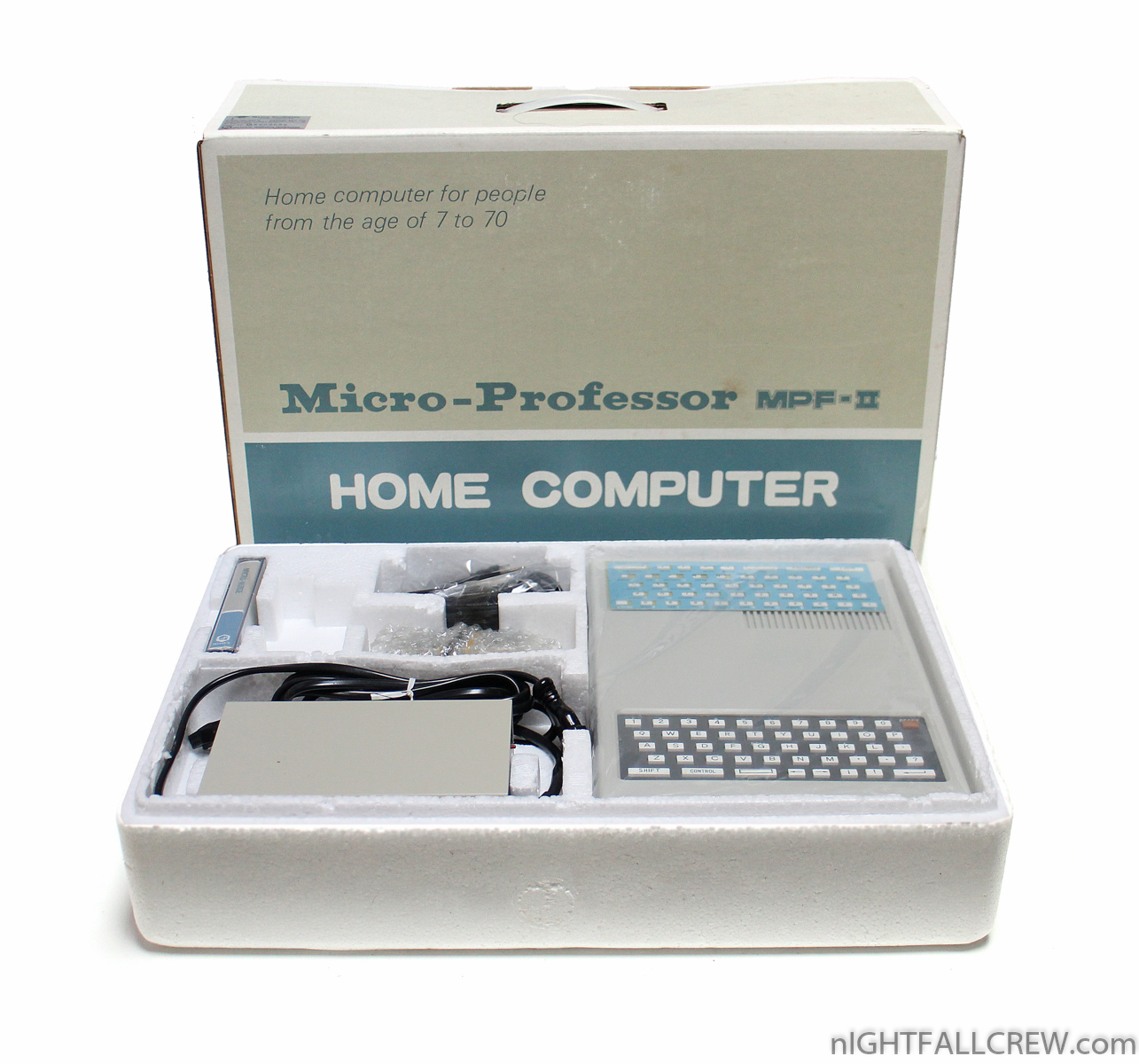

Multitech Micro-Professor MPF-II (Boxed)

May 30th, 2015 No comments

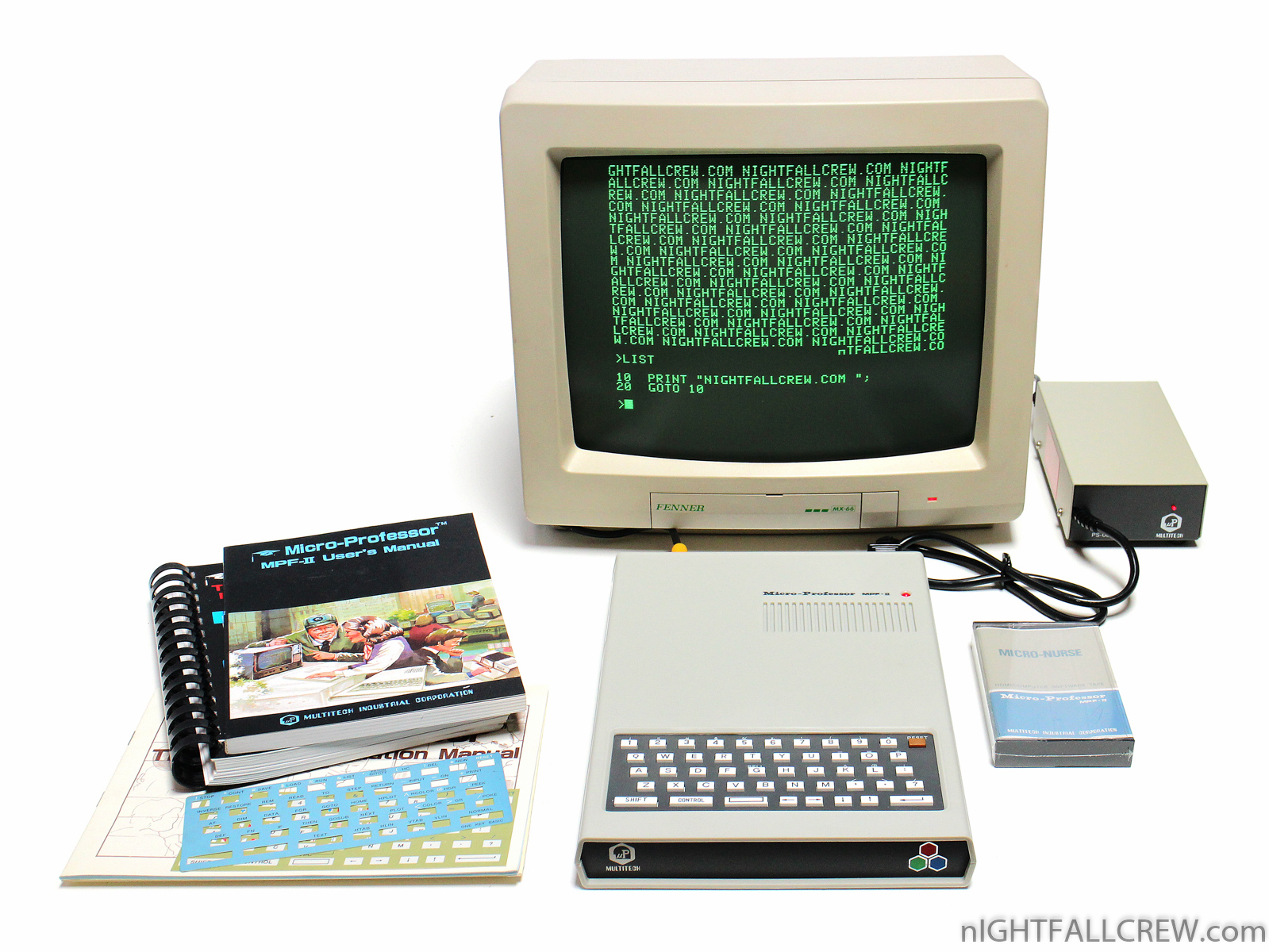

Multitech Micro-Professor MPF-II

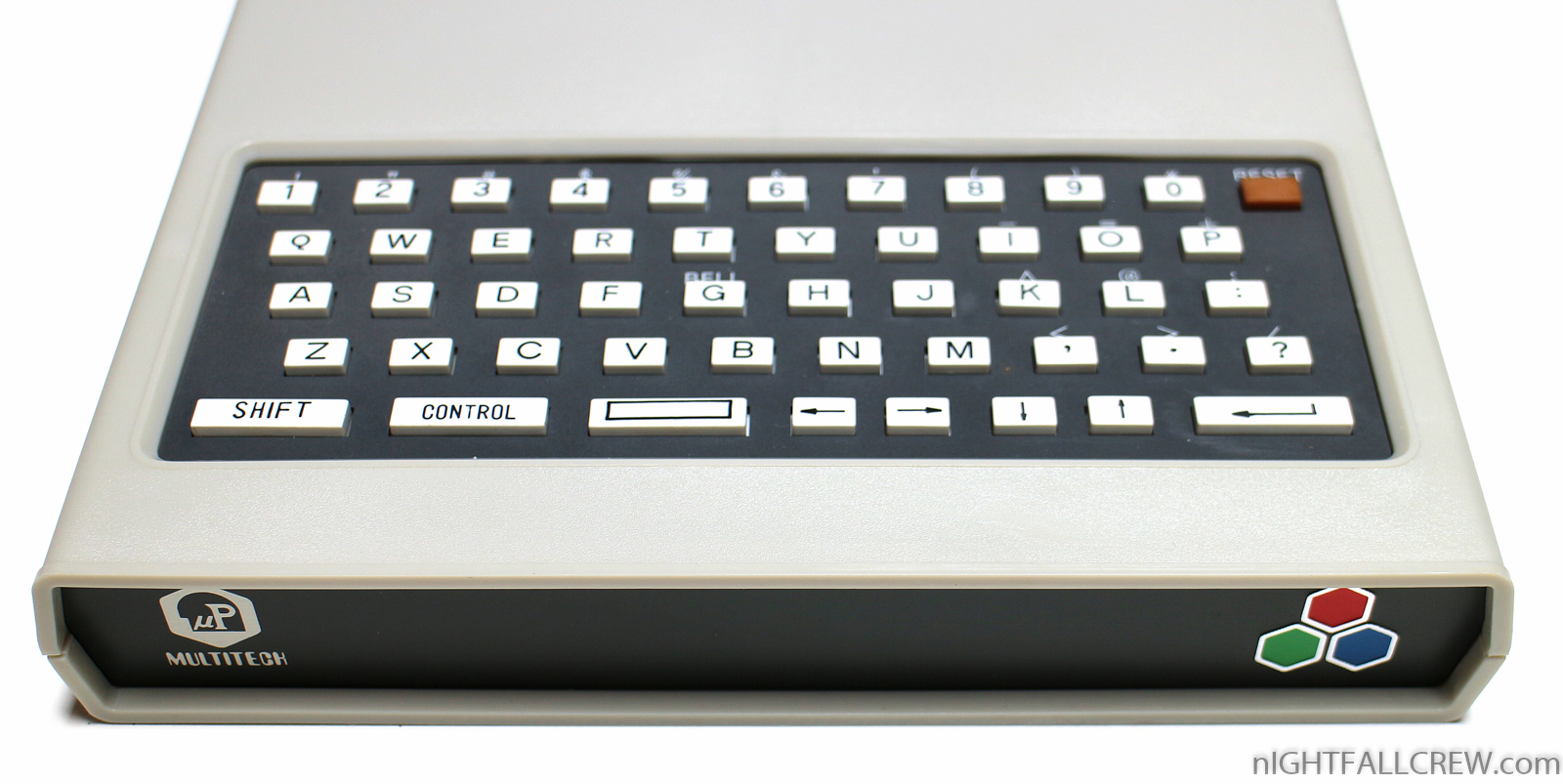

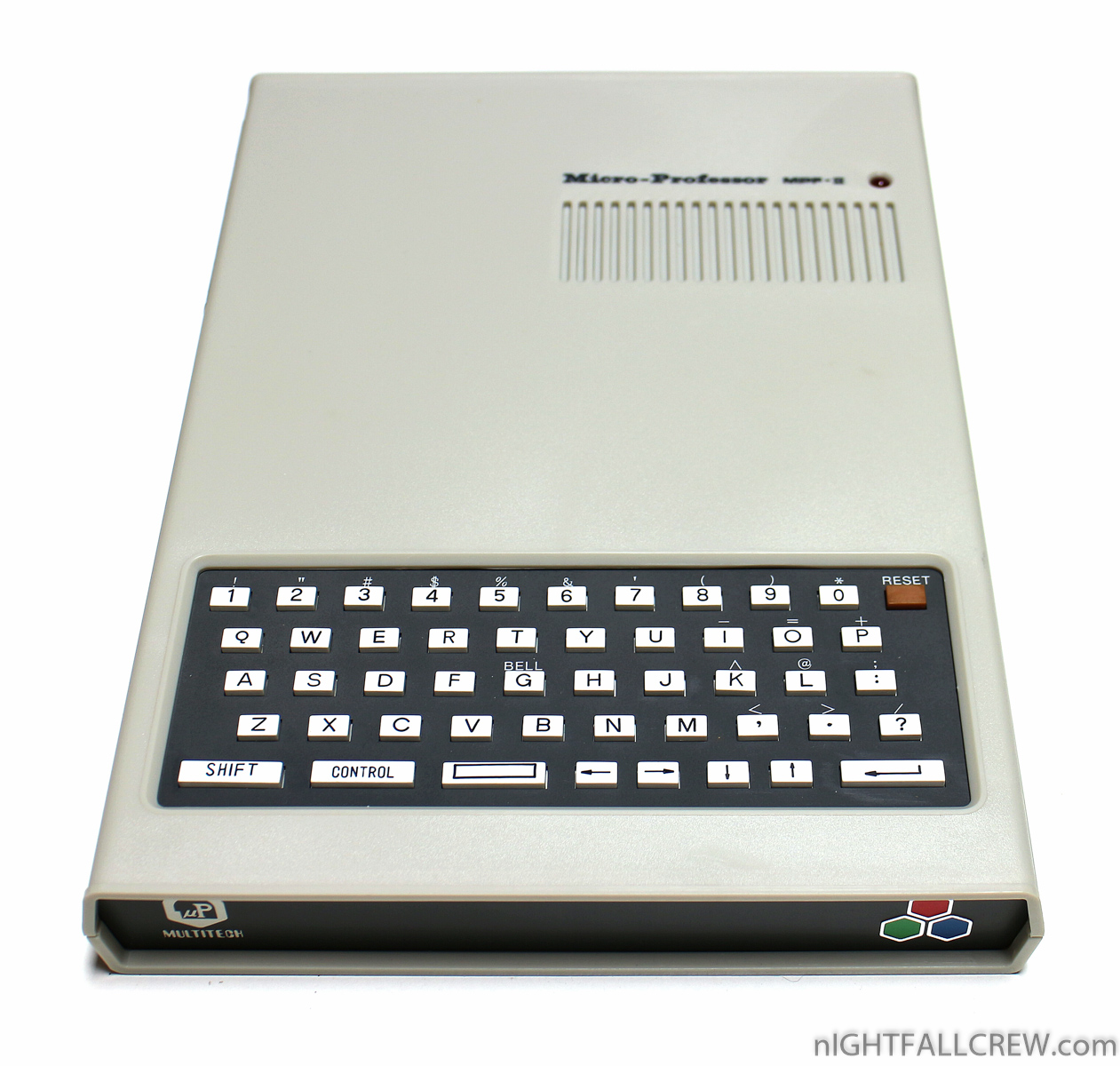

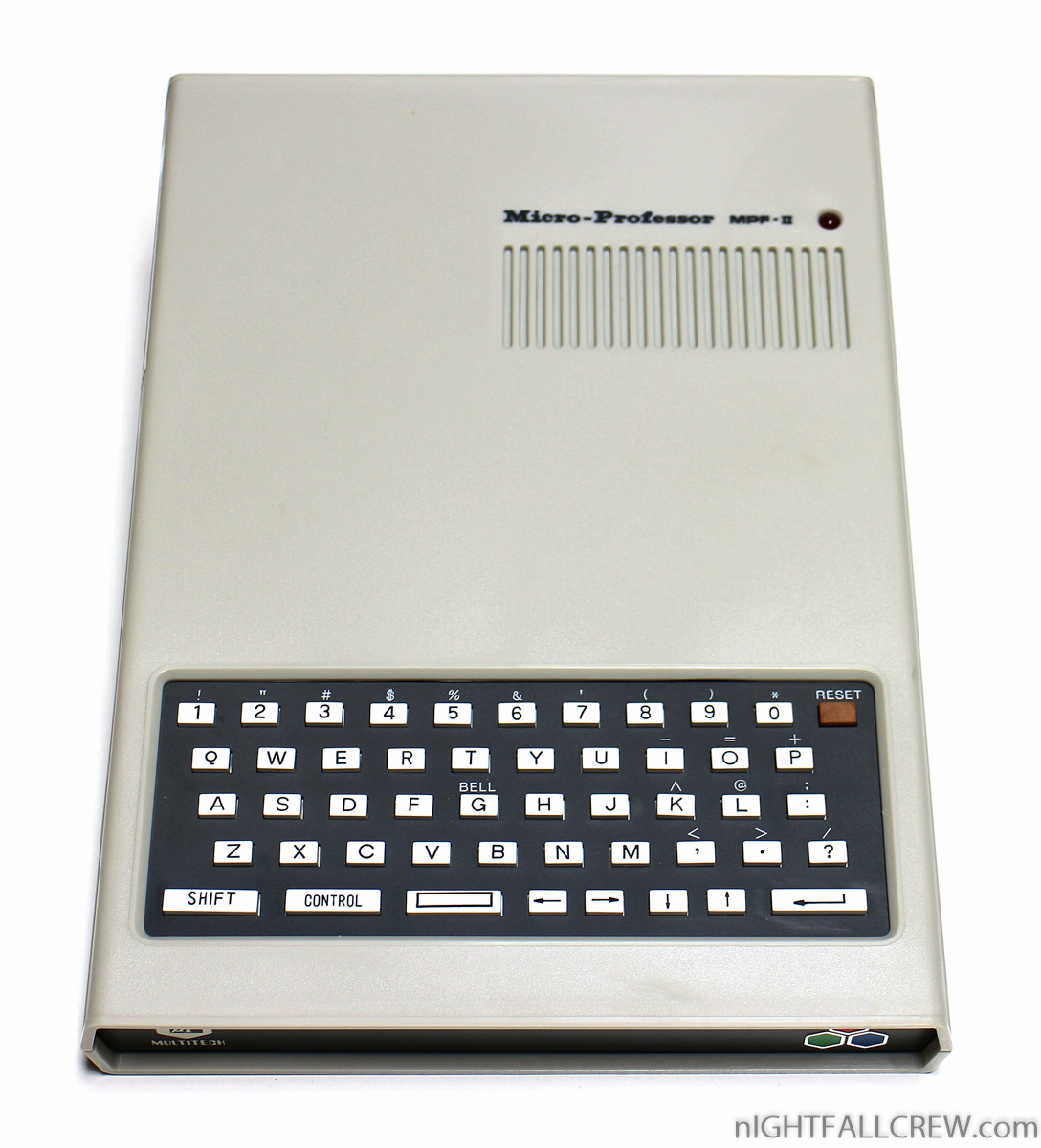

Microprofessor II (MPF II), introduced in 1982, was Multitech’s (later renamed Acer) second branded computer product and also one of the earliest Apple II clones. It does not look like most other computers. The case of the MPF II was a slab with a small chiclet keyboard on its lower part.

In 1983, the Multiprofessor II retailed in the UK for £269.00 including VAT.

One key feature of the MPF II was its Chinese BASIC, a version of Chinese-localized BASIC based on Applesoft BASIC. There was also a version sold in Europe that did not have Chinese localization.

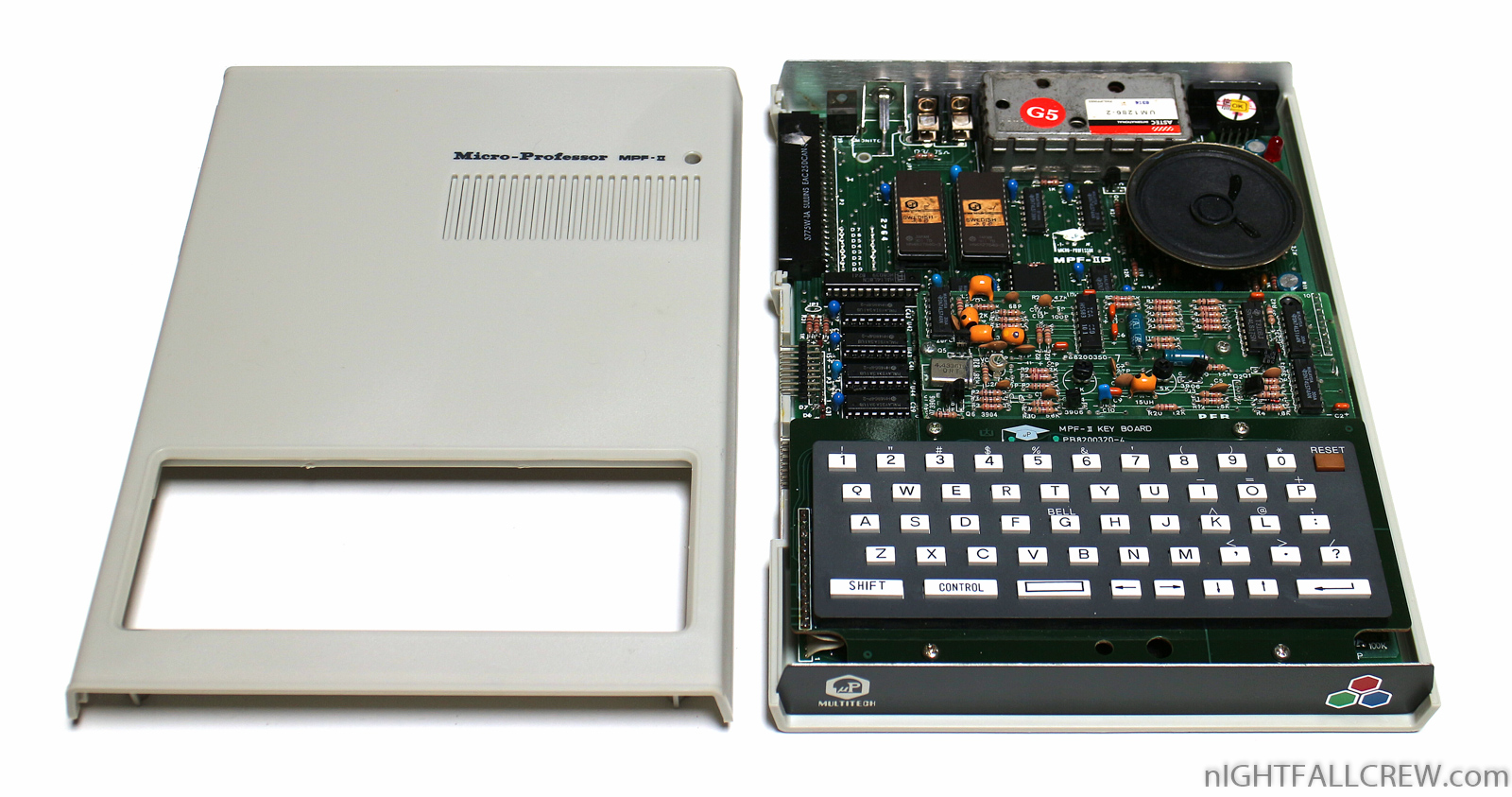

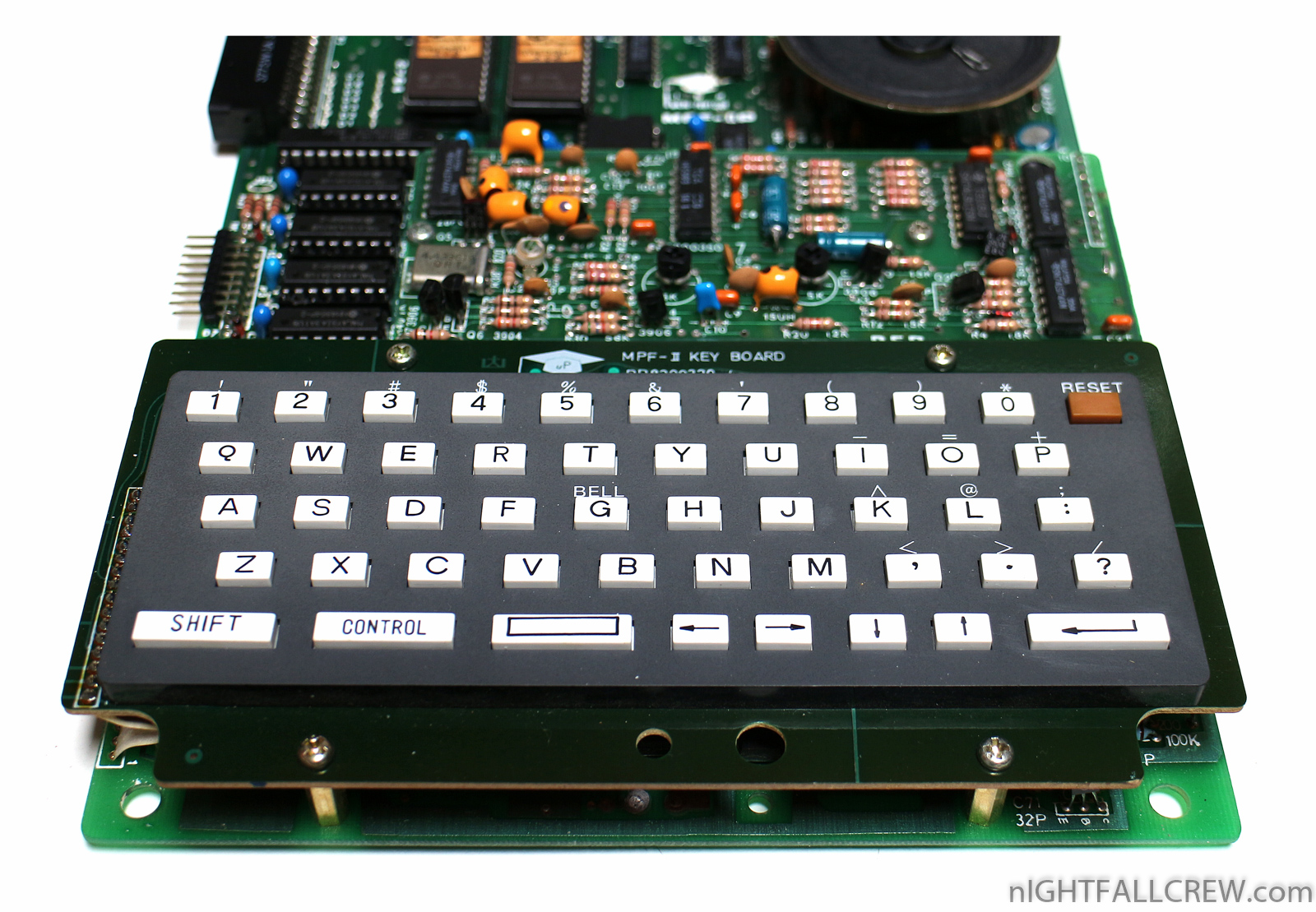

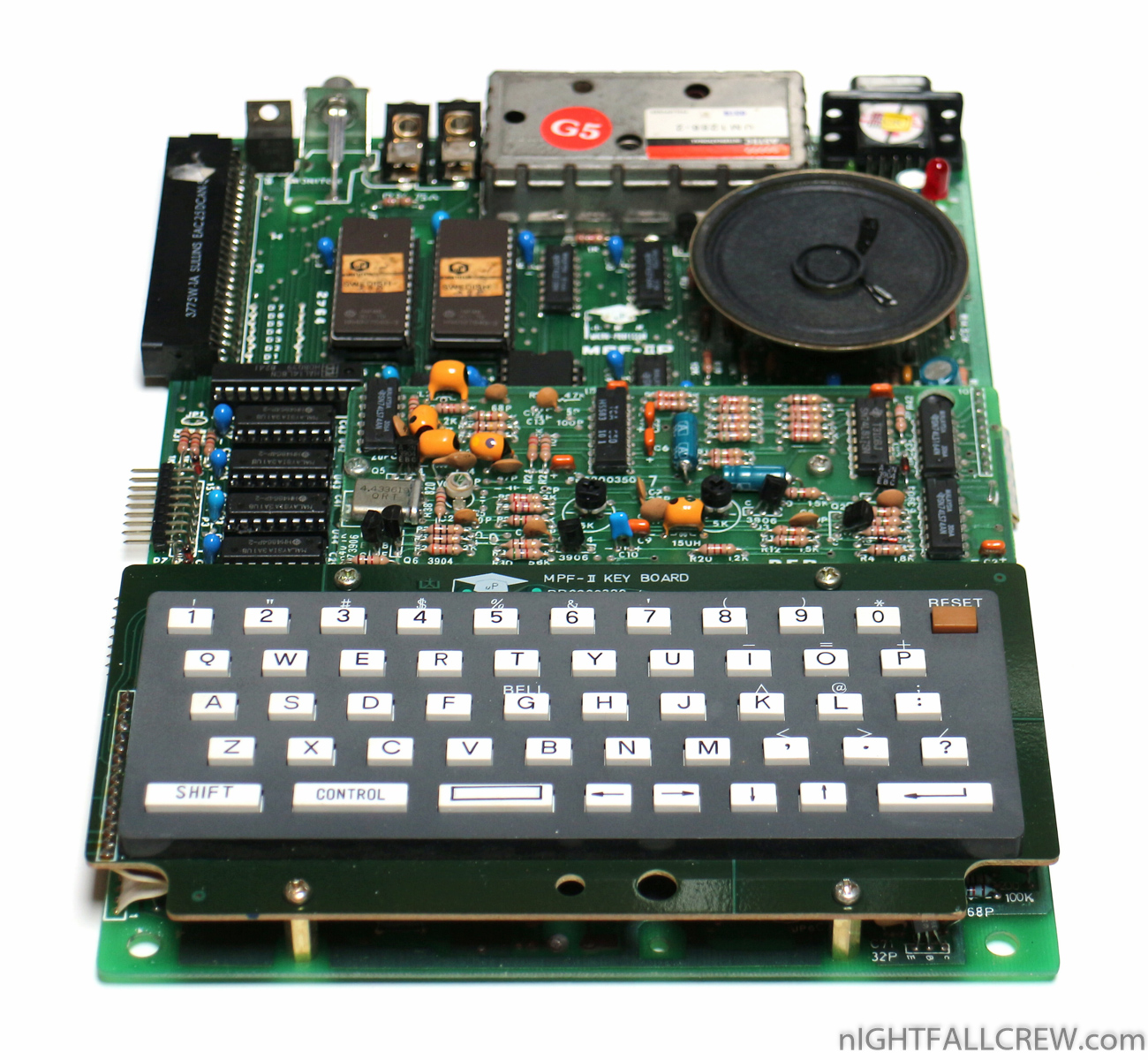

Multitech Micro-Professor MPF-II (under the cover)

Differences to Apple II:

The MPF II was not totally compatible with the Apple II.

The MPF II did not have Apple II’s text mode. All the text was drawn on the screen by software rather than generated by hardware. It was the only cost-effective way to generate Chinese text on screen at a time when a hardware-based Chinese character generator could cost hundreds of U.S. dollars.

Like Apple II, MPF II had two graphics buffers. However the second buffer was at address A000H while with Apple II it was at 4000H. The keyboard input was mapped to a different address than the Apple II making impossible to play Apple’s games on the MPF II.

MPF-II keyboard interface was very simple and consisted of an 8 bit output port and an input port that were directly connected to keyboard matrix. The Apple joystick interface was not there, and instead the joystick appeared as a keyboard with arrow keys and two other buttons.

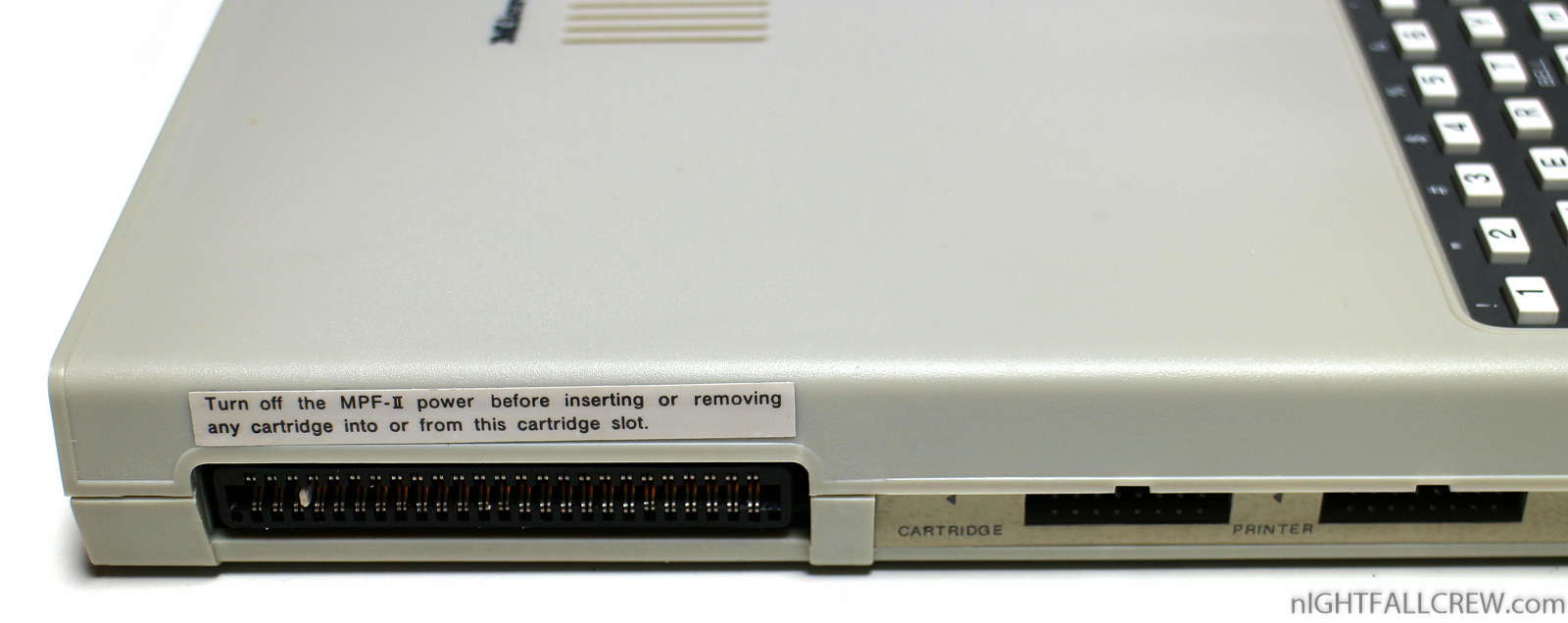

The external slot interface was also not compatible with the Apple II and could not use many standard interface cards including the Disk II controller.

Technical information:

  • CPU: MOS Technology 6502
  • Clock rate: 1 MHz
  • RAM: 64 KB (including 16KB RAM mapped at the same address as the ROM)
  • ROM: 16 KB (12 KB of which is a BASIC interpreter)
  • Text modes: 40×24 (using graphics mode)
  • Graphics modes: 280×192
  • Colours: 8 colours
  • Sound: 1 channel of 1-bit sound

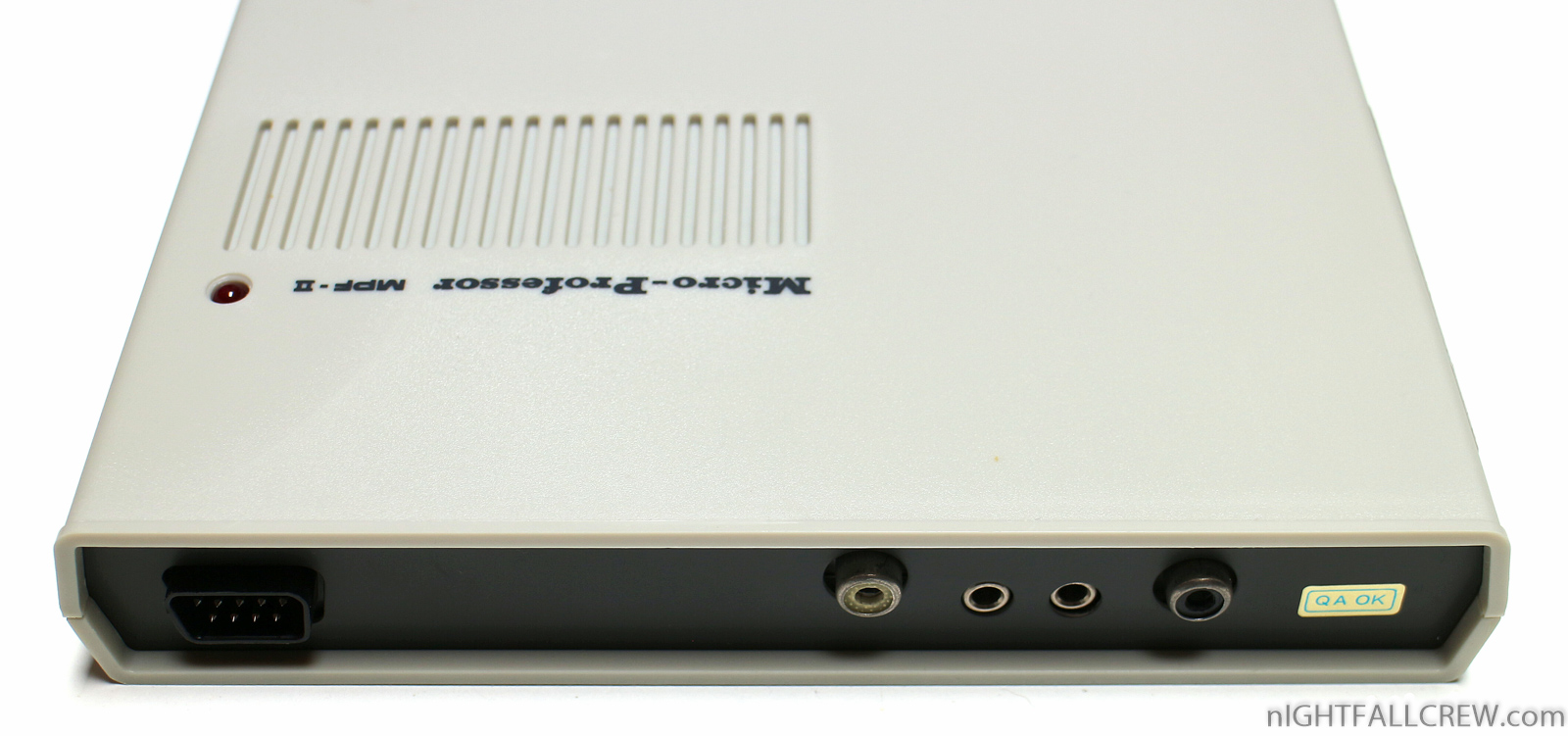

  • Connectors: Keyboard, Printer, Expansion port, cassette recorded input and output, Composite and TV-out
  • Optional peripherals: 55 key full-size keyboard, Floppy disc drive, Thermal and Dot-matrix printers, Joystick

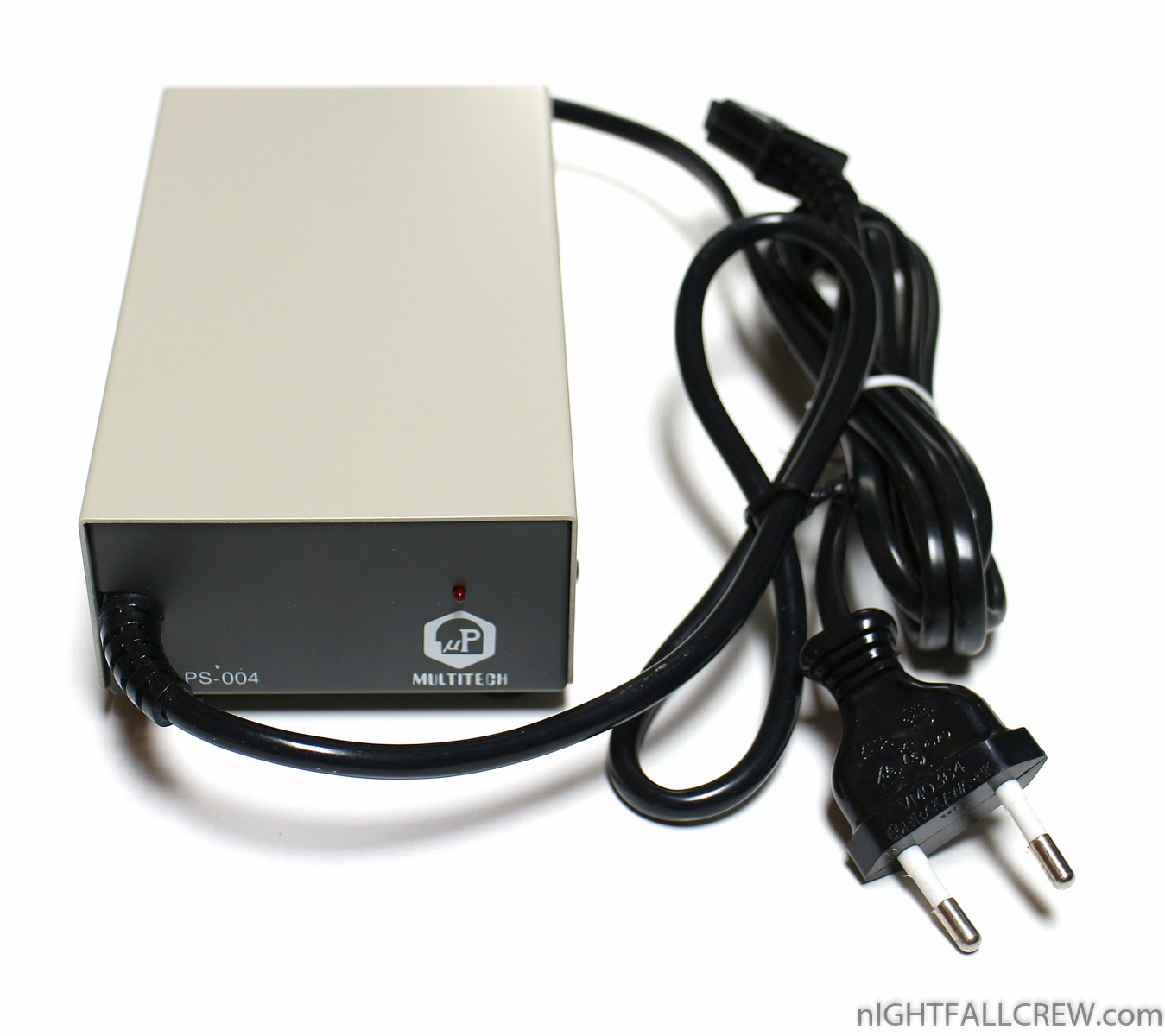

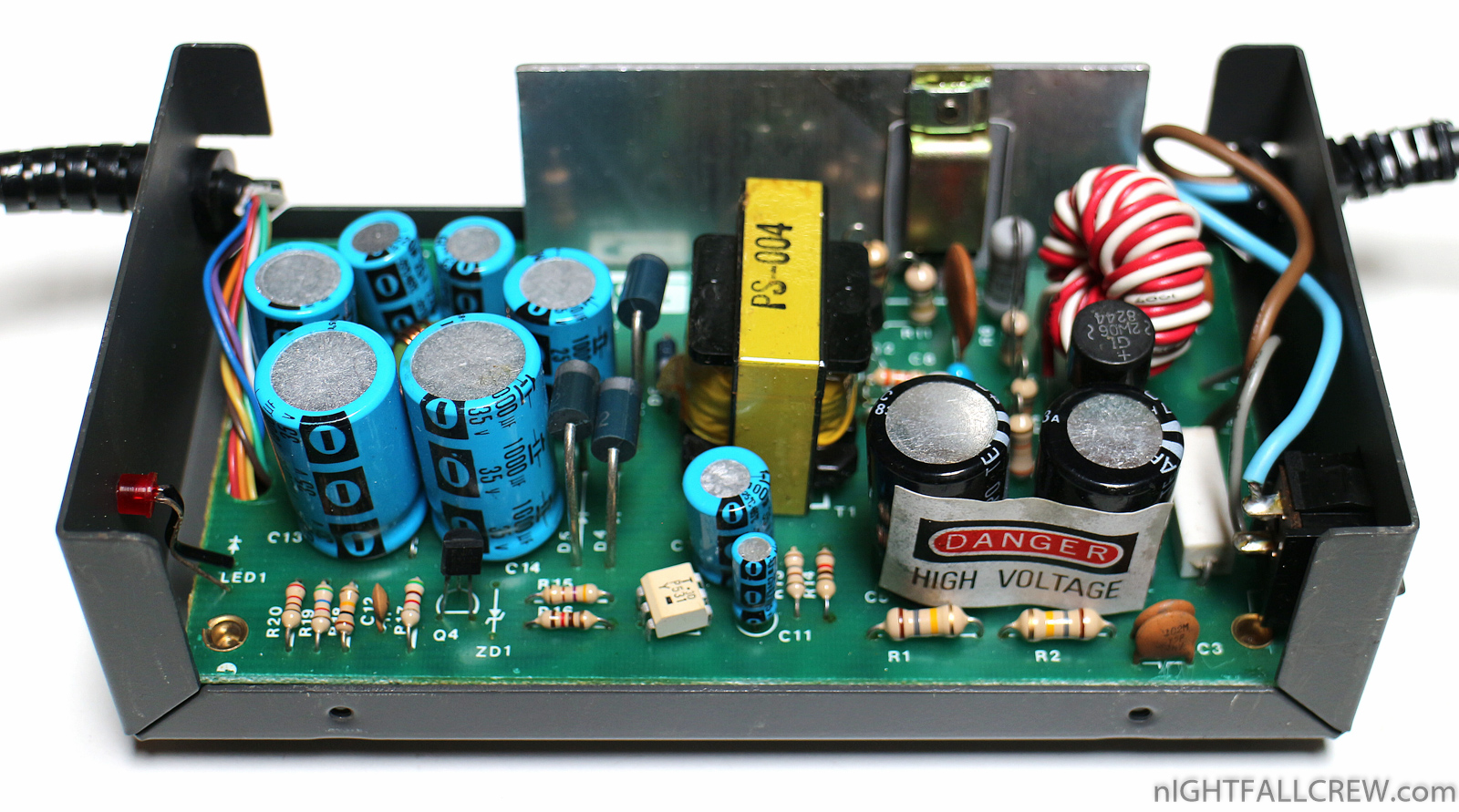

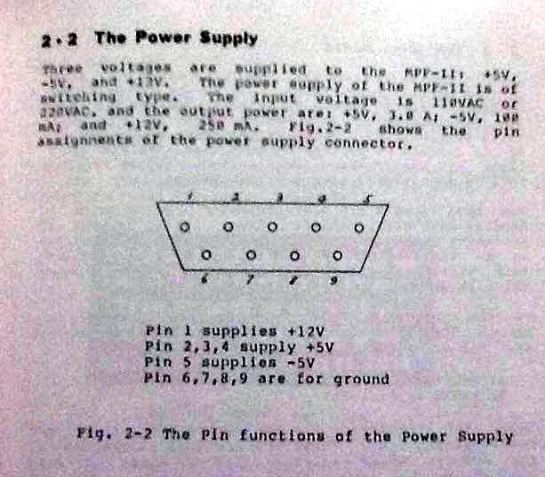

  • Power supply: External PSU, 5,12V

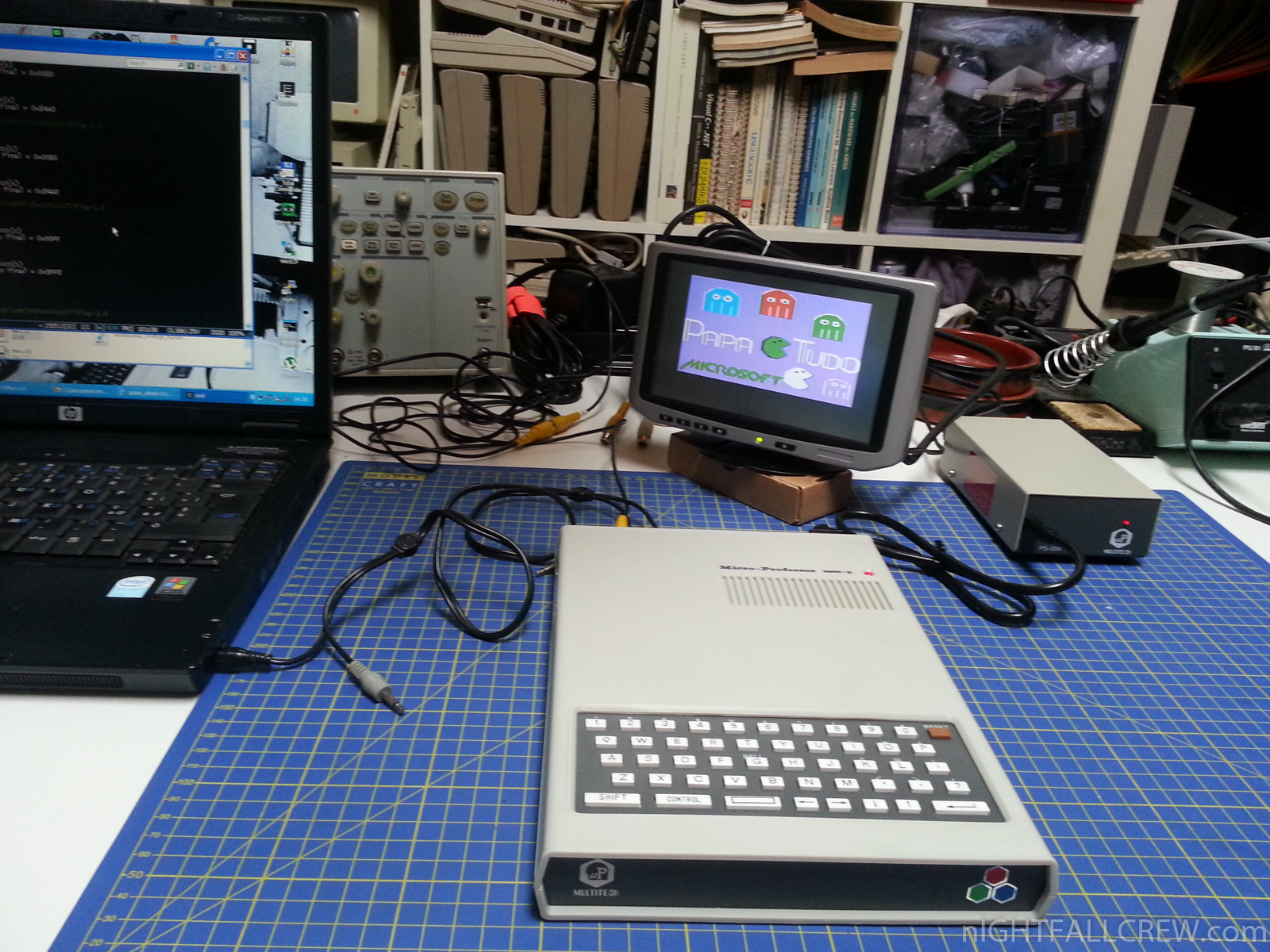

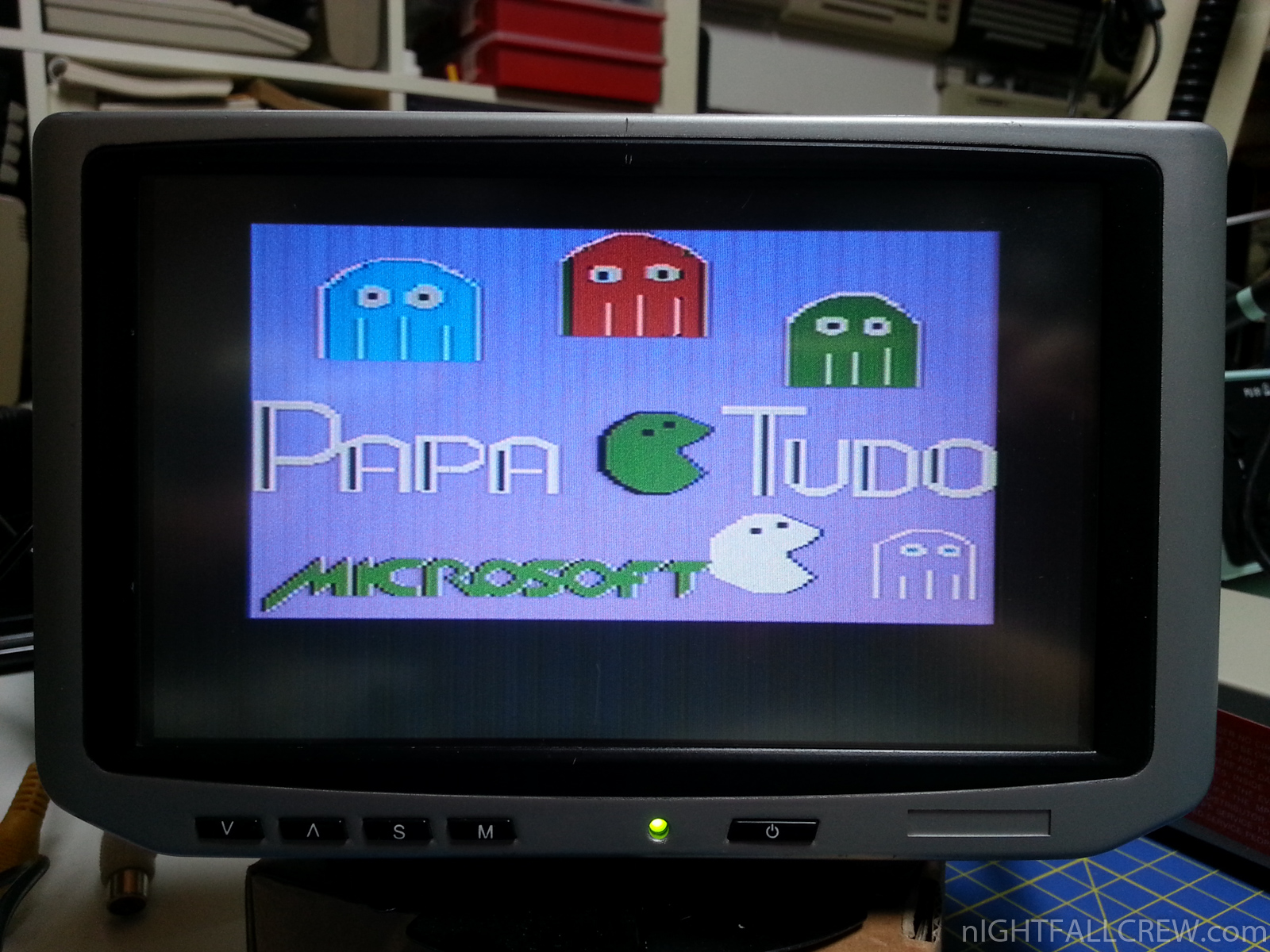

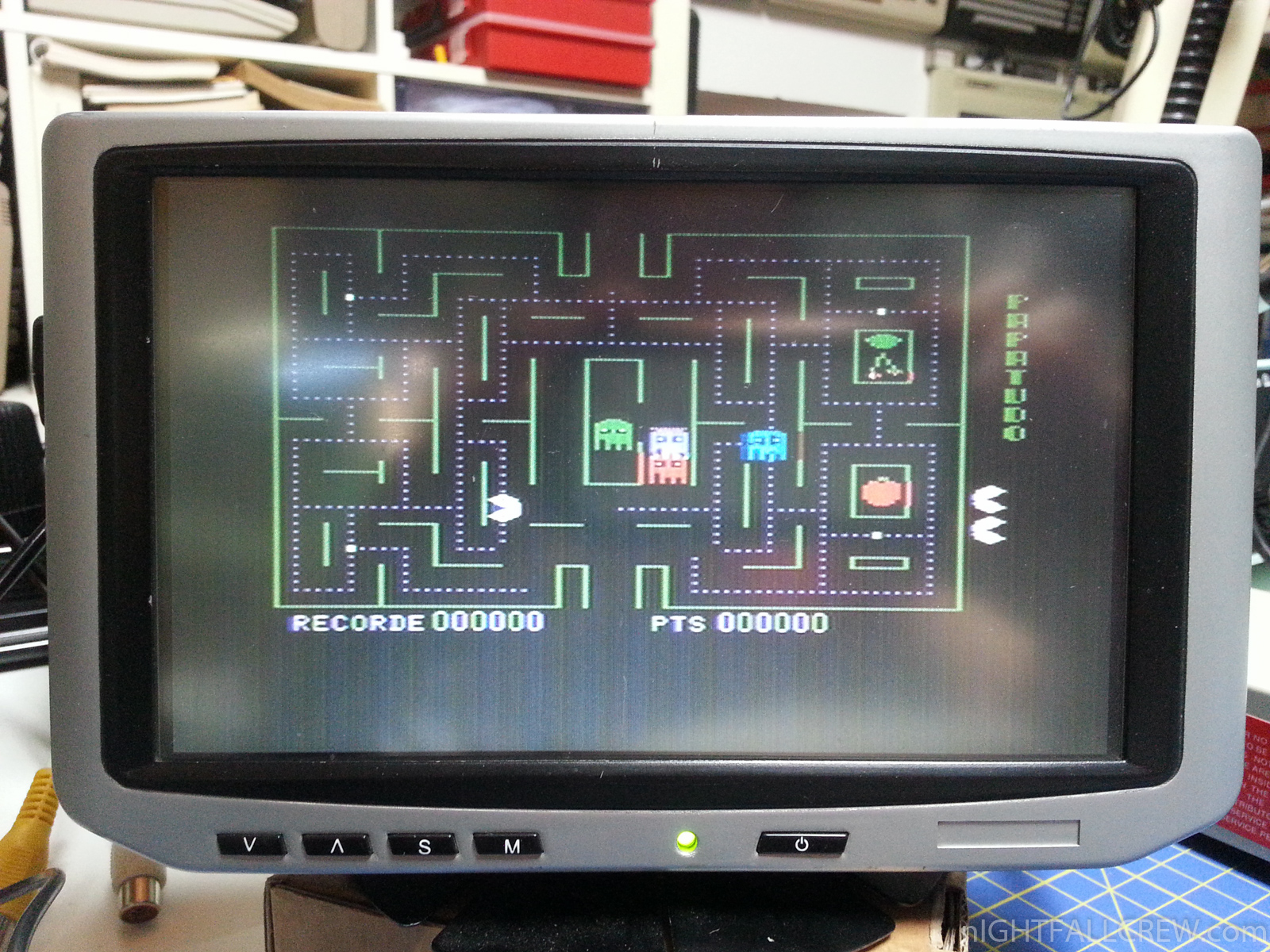

Multitech Micro-Professor MPF-II – PapaTudo (Pacman Clone) by Microsoft:

Multitech Micro-Professor MPF-II (testing some games) Multitech Micro-Professor MPF-II (testing some games) Multitech Micro-Professor MPF-II (testing some games)


Multitech Micro-Professor MPF-II Loading TK-2000 Game:

source: wikipedia TK-2000 games download
