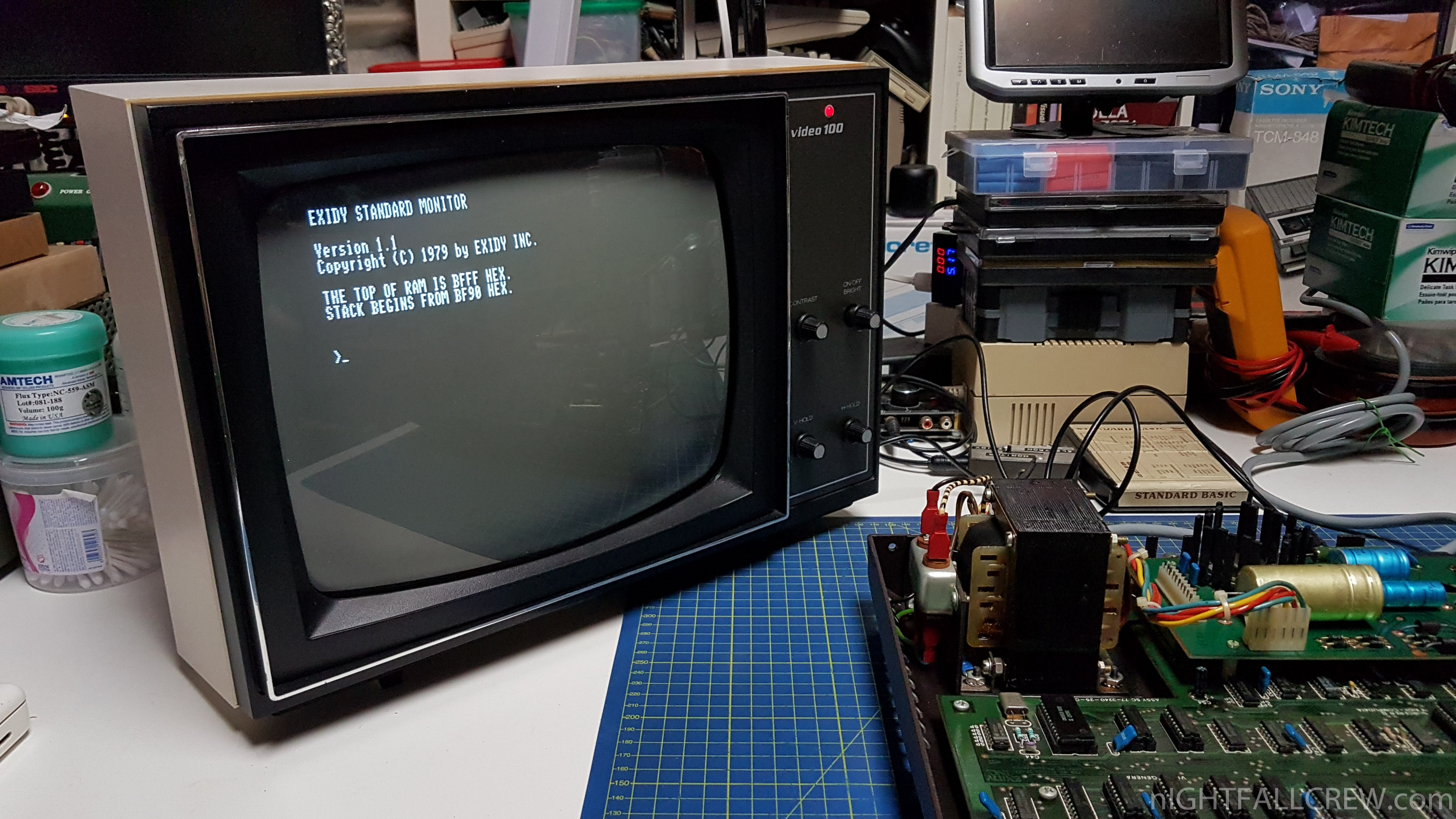

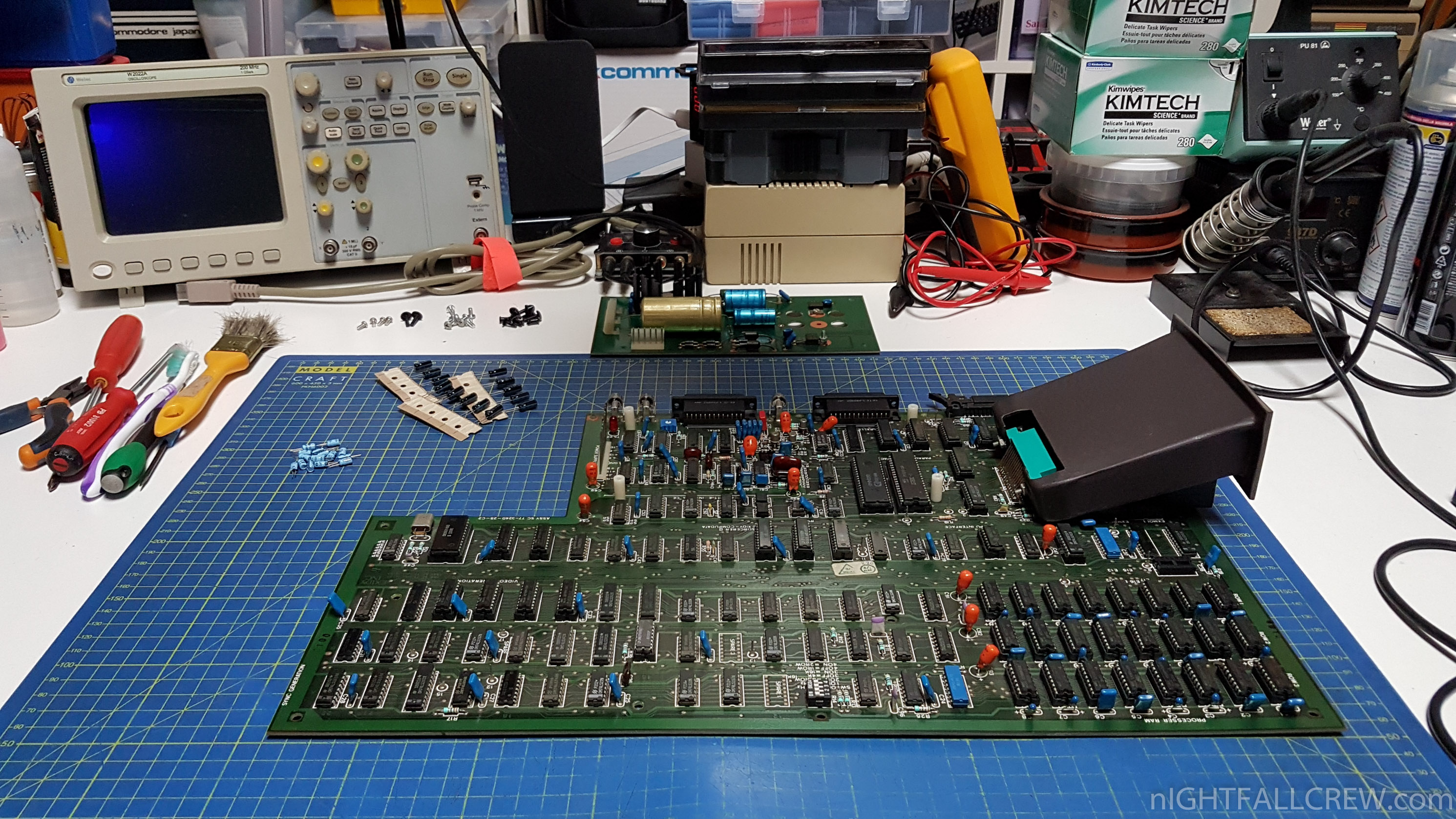

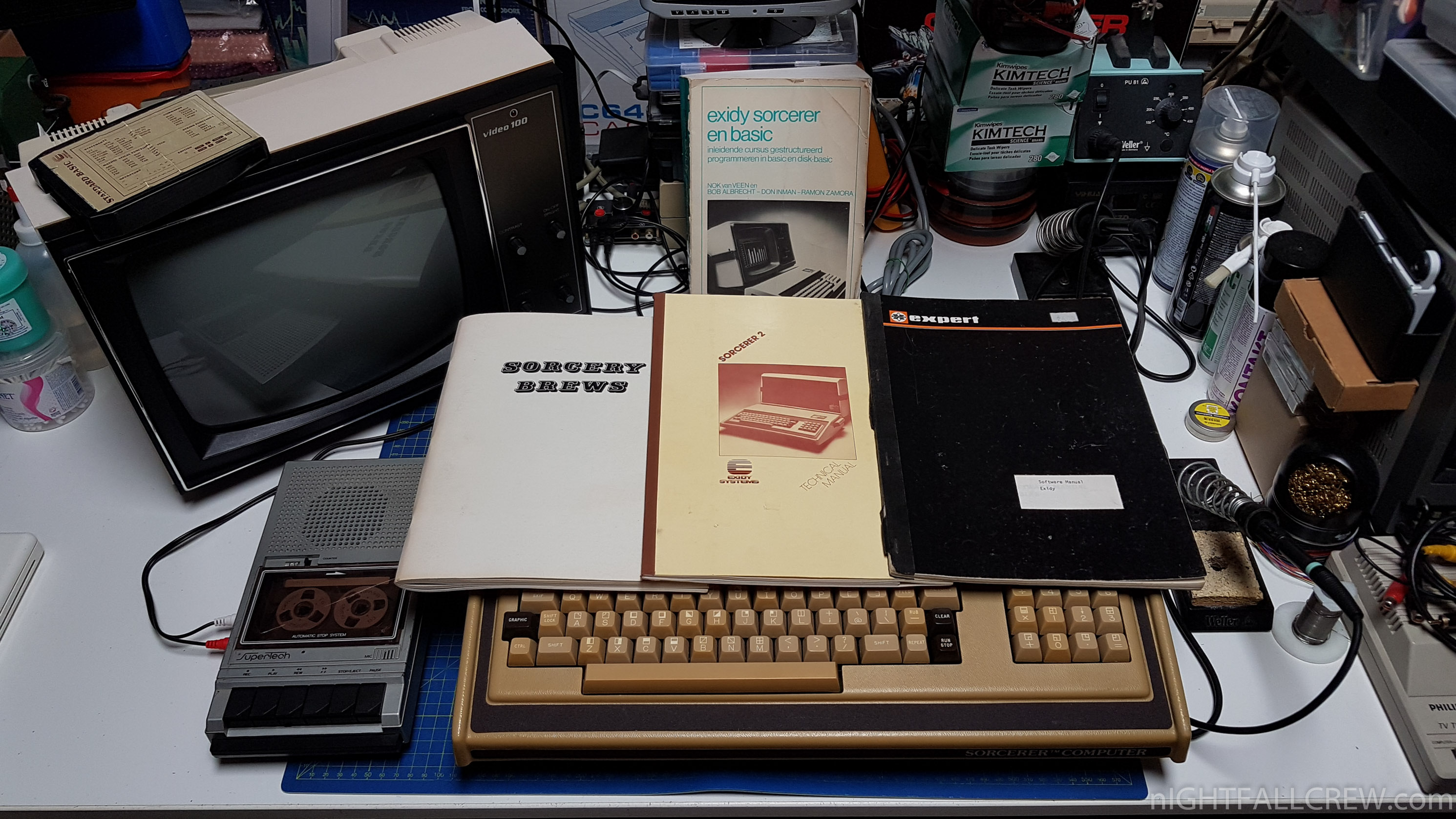

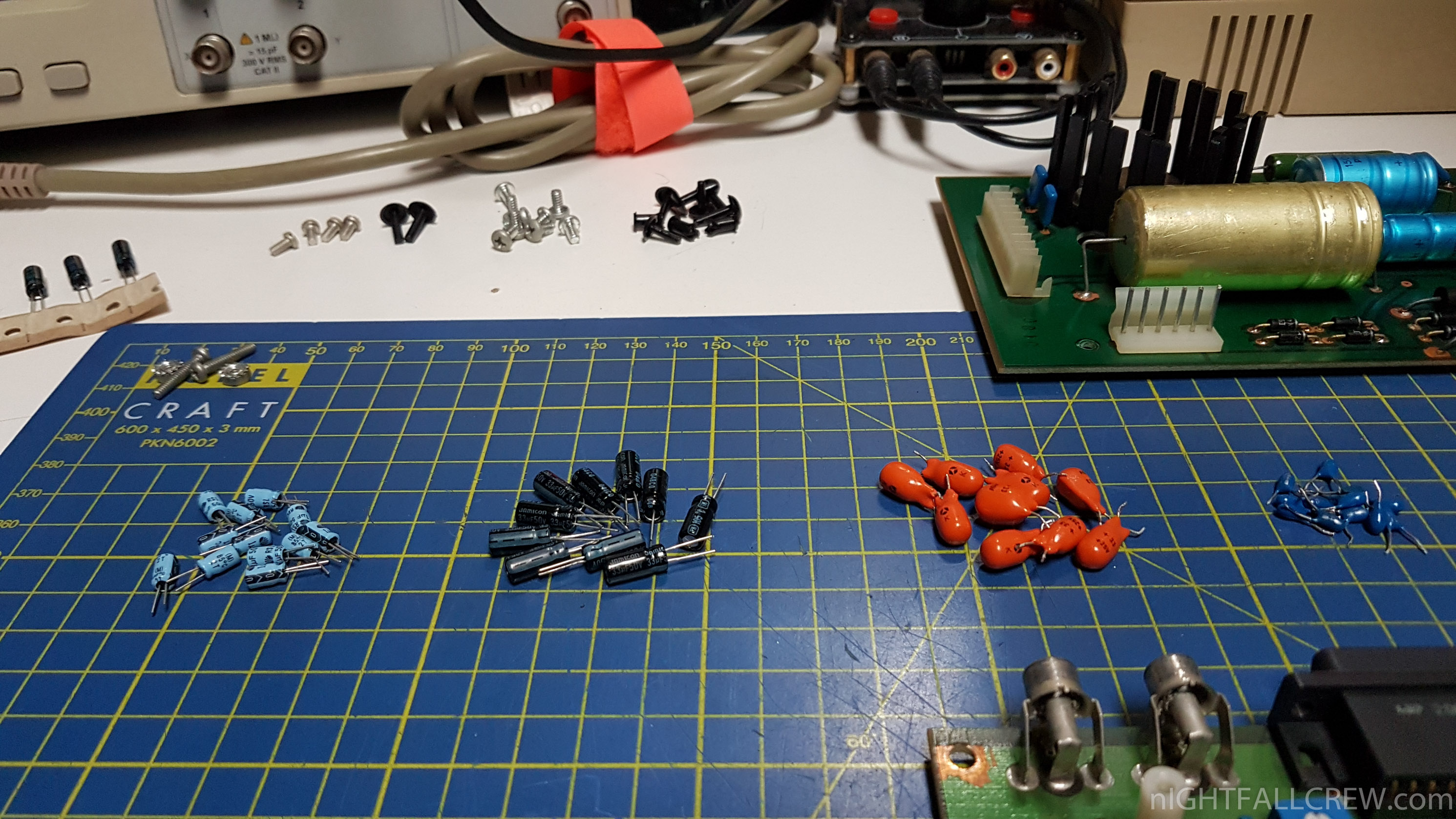

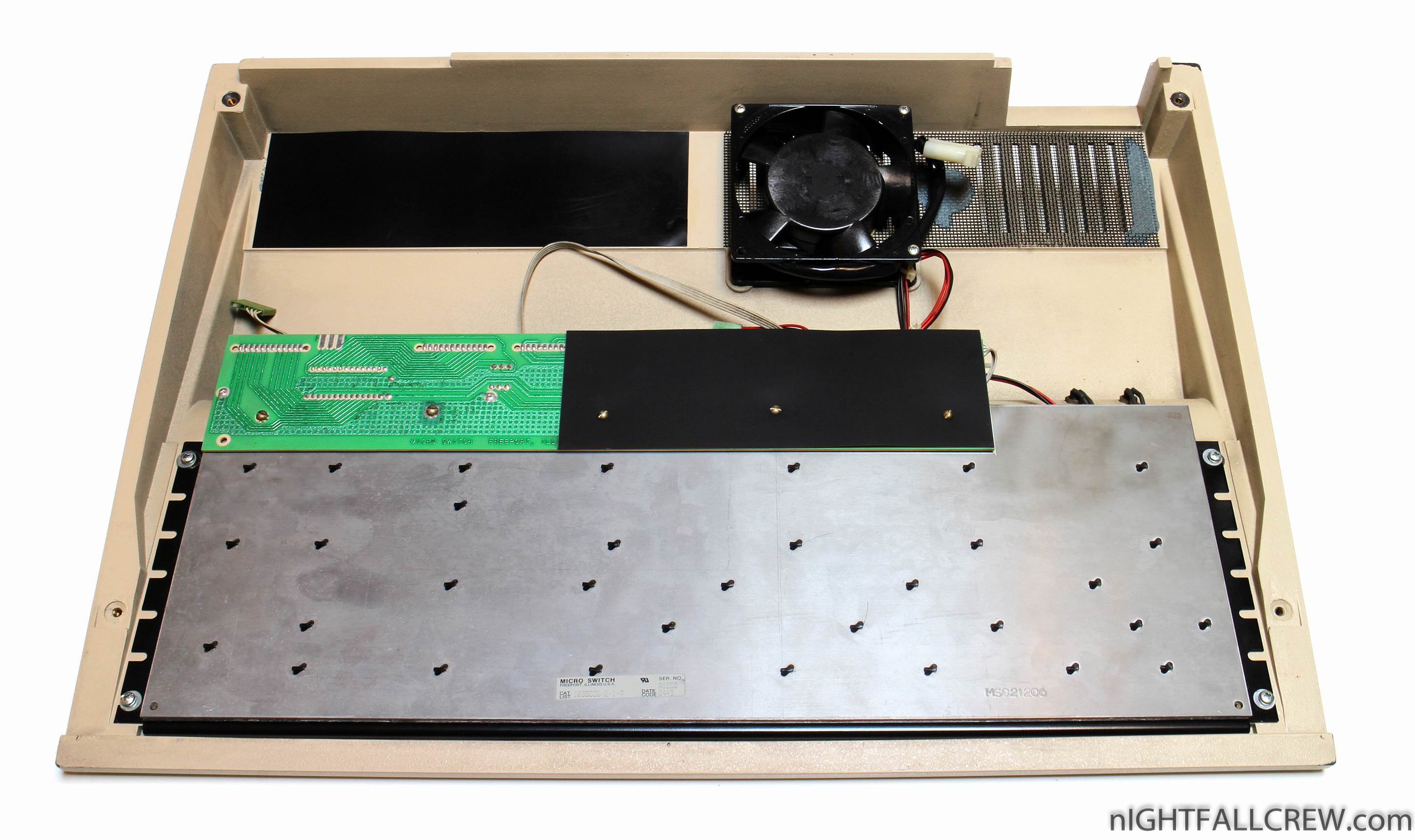

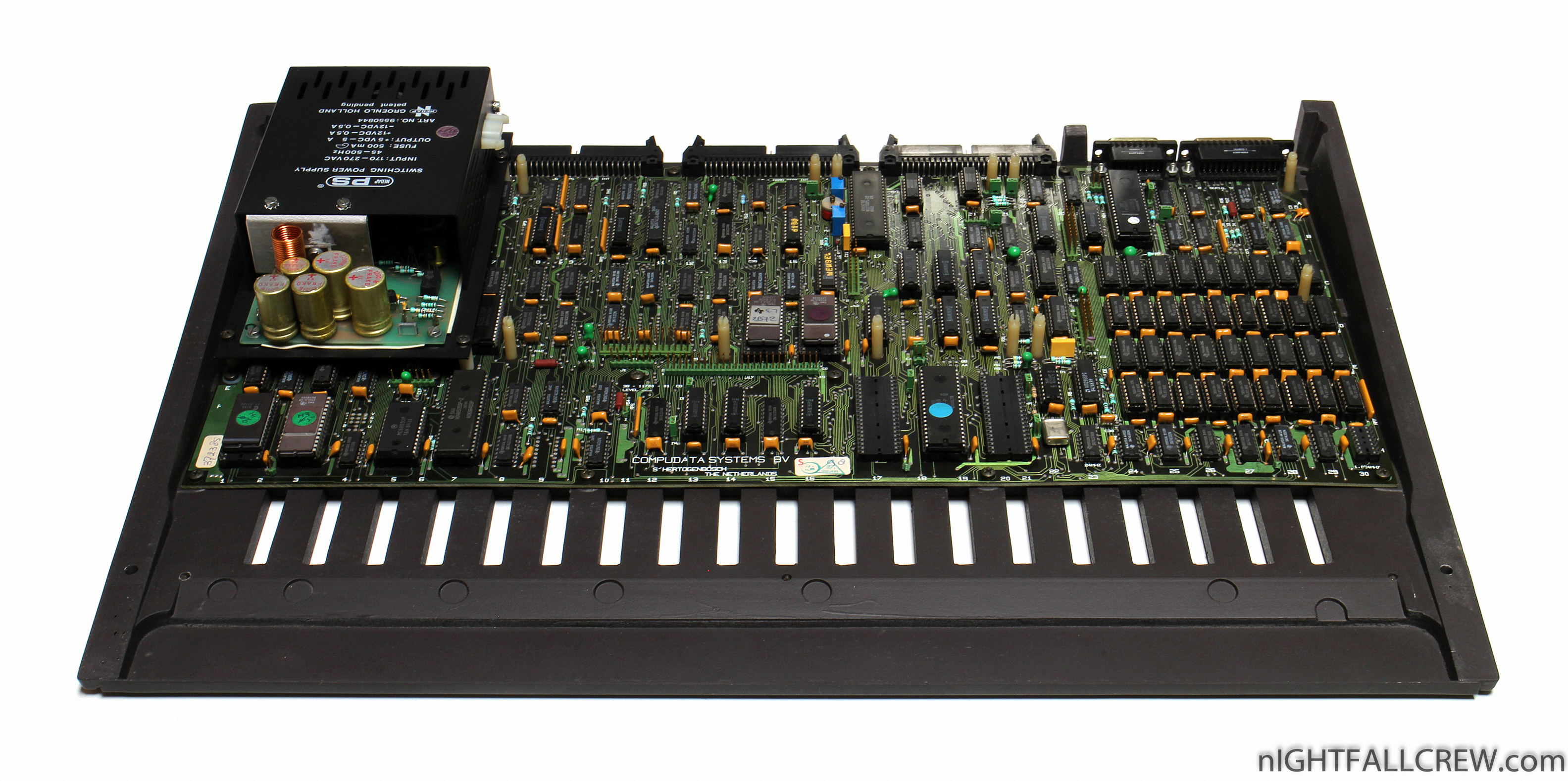

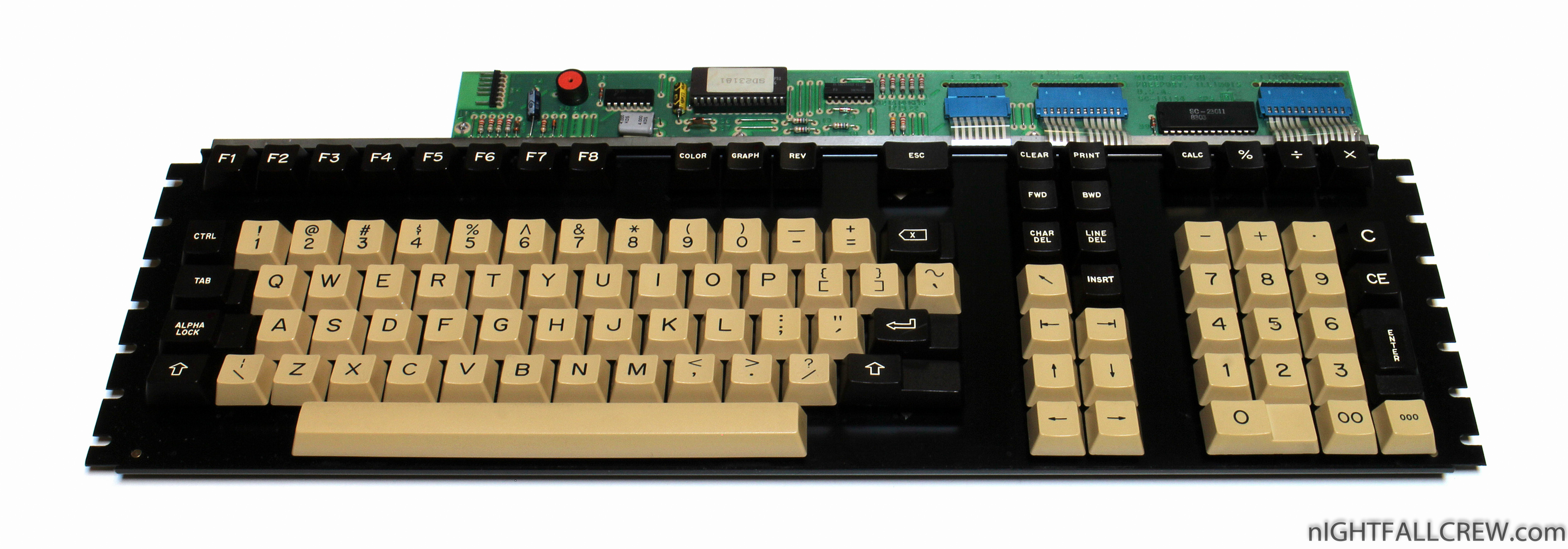

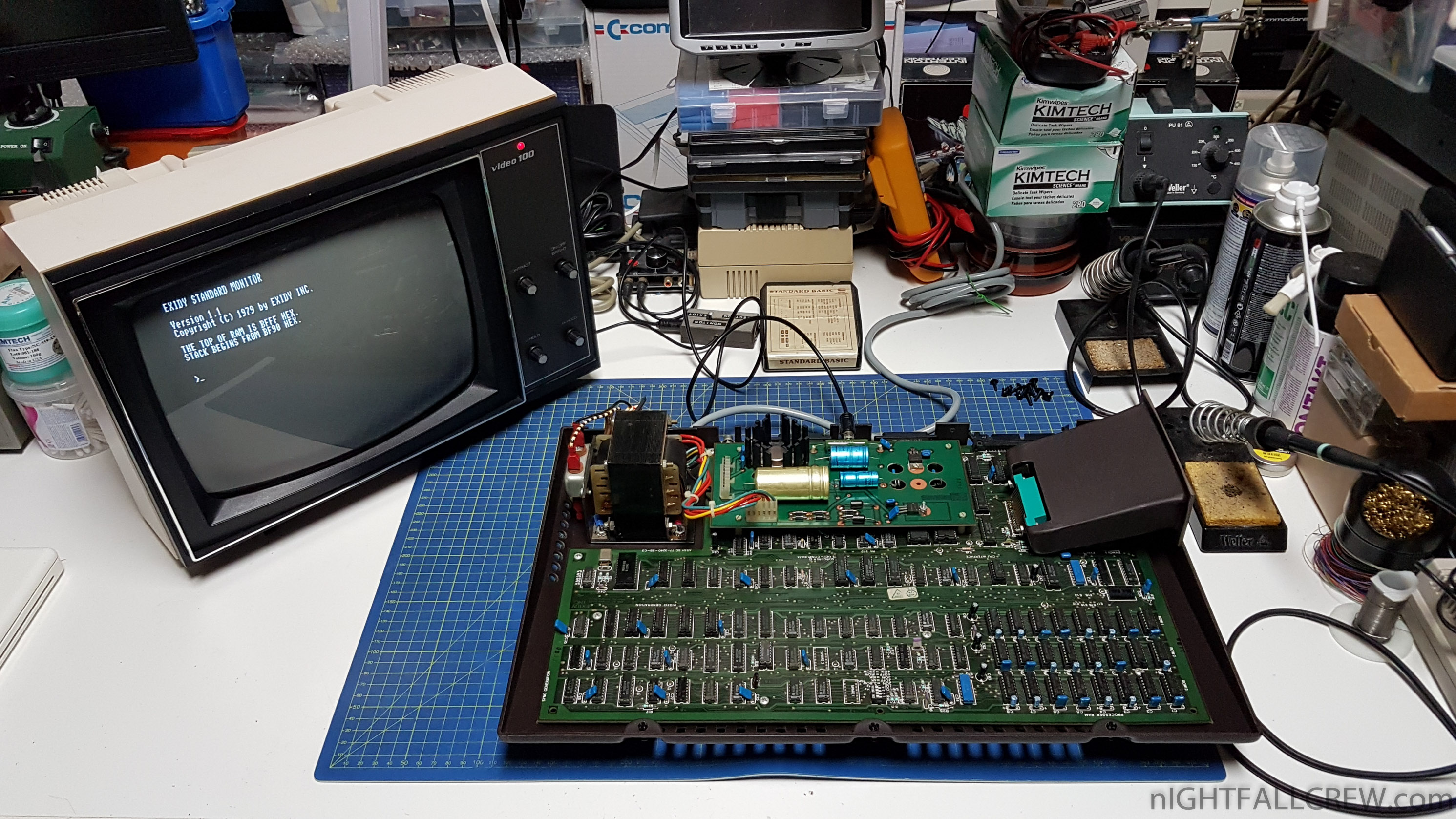

The restoration of the Sorcerer II of the Compudata (Exidy) was very simple, it was enough to replace all the tantalum capacitors with electrolytics one and make a good cleaning.

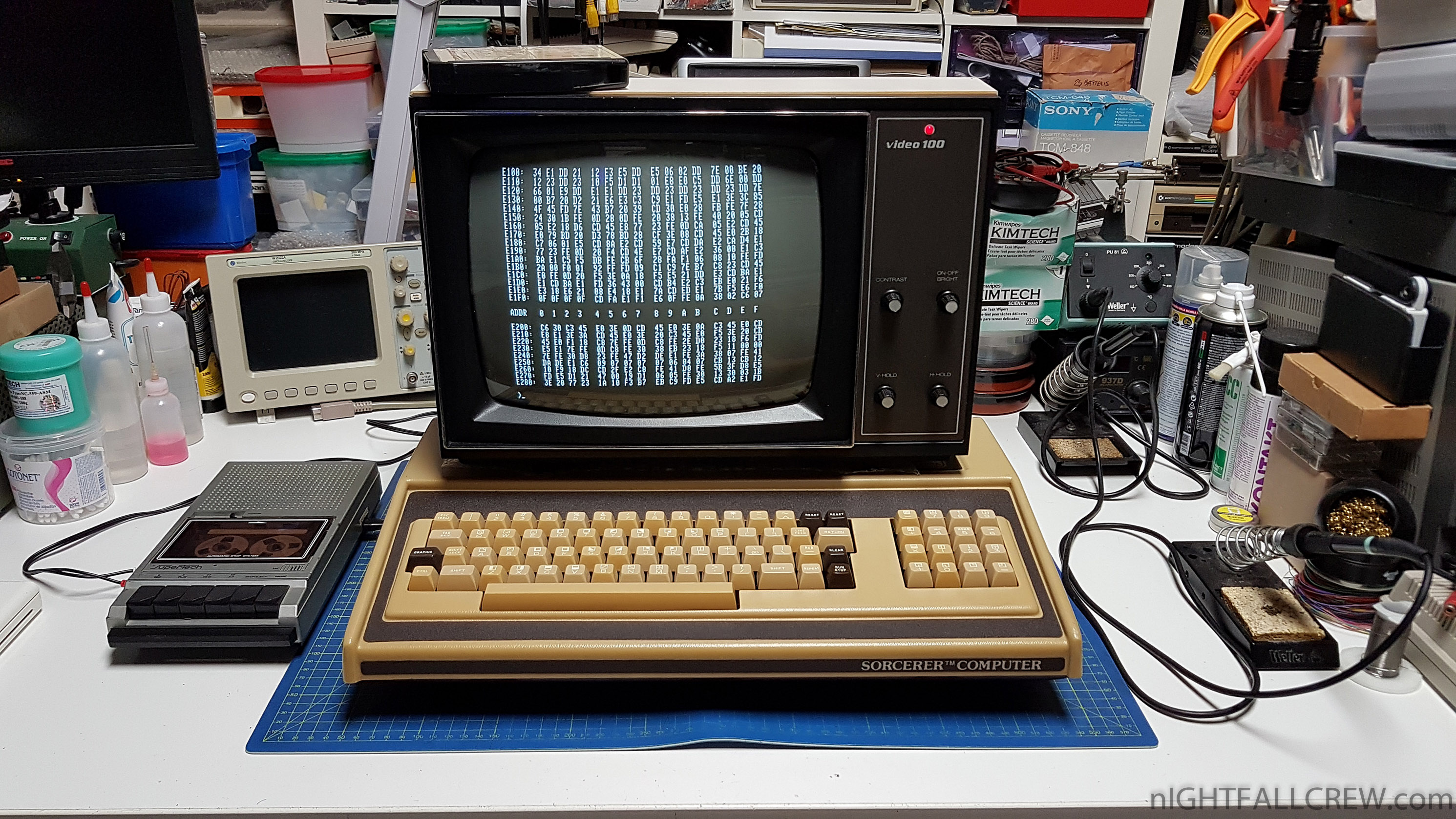

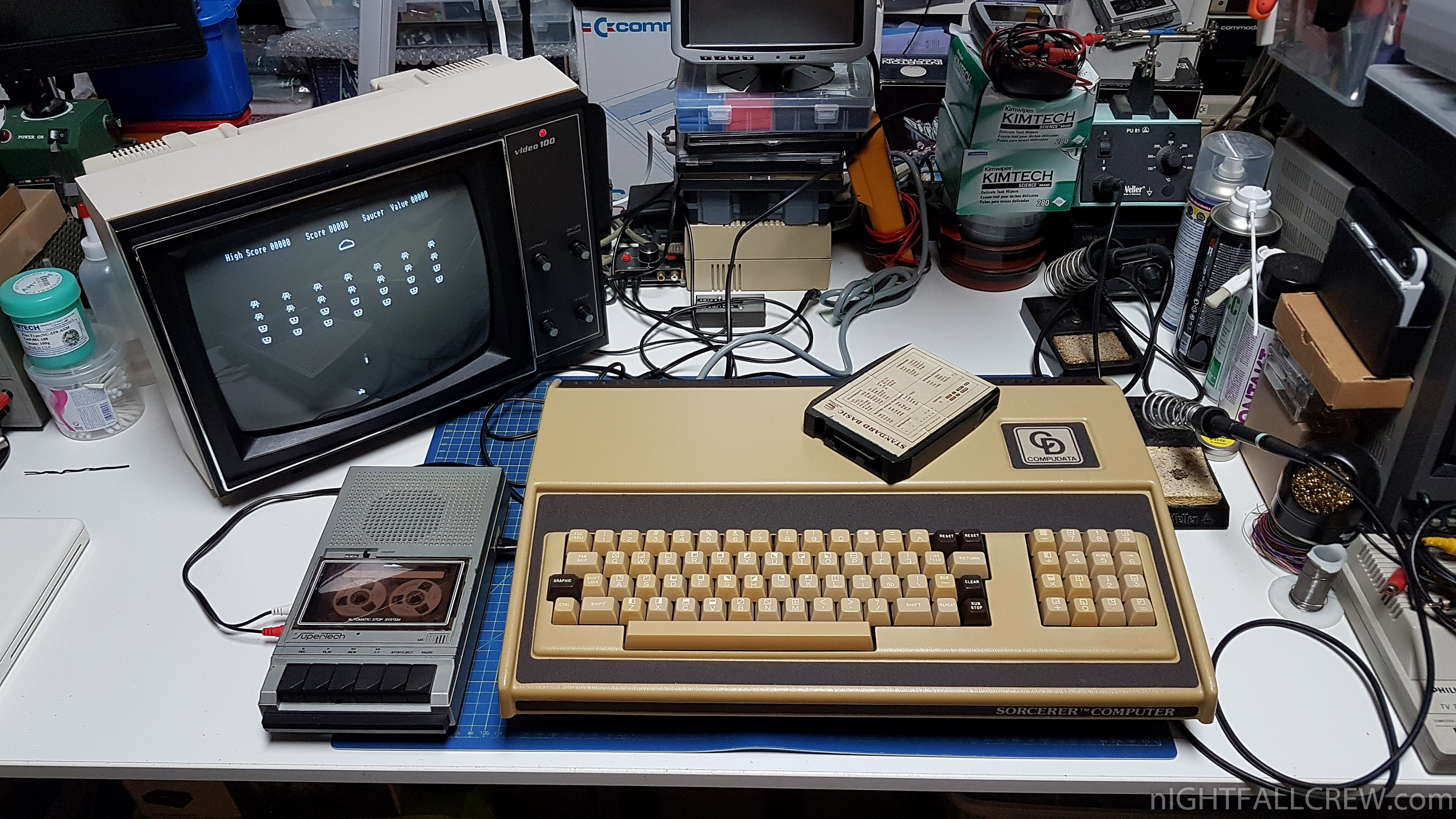

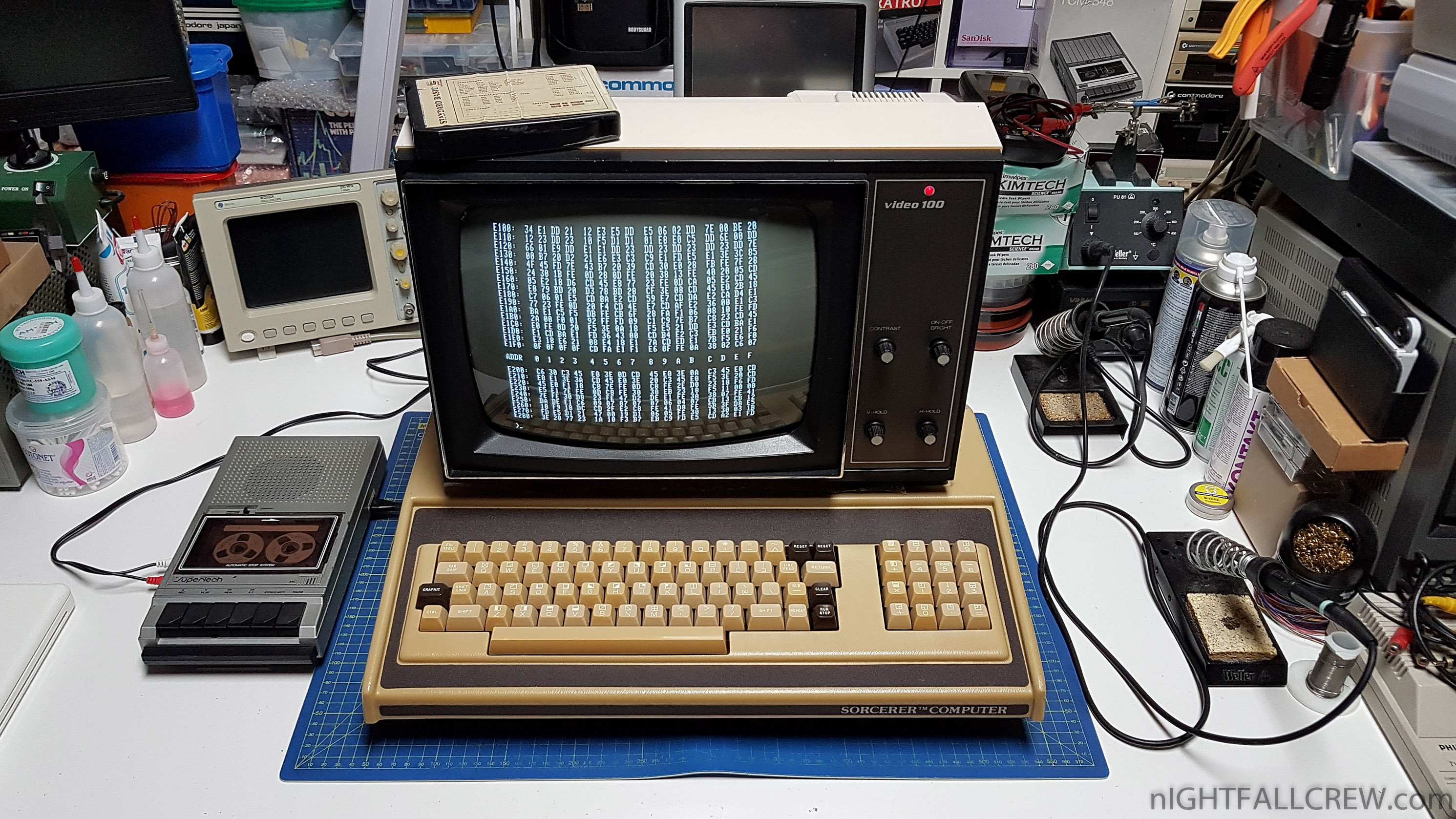

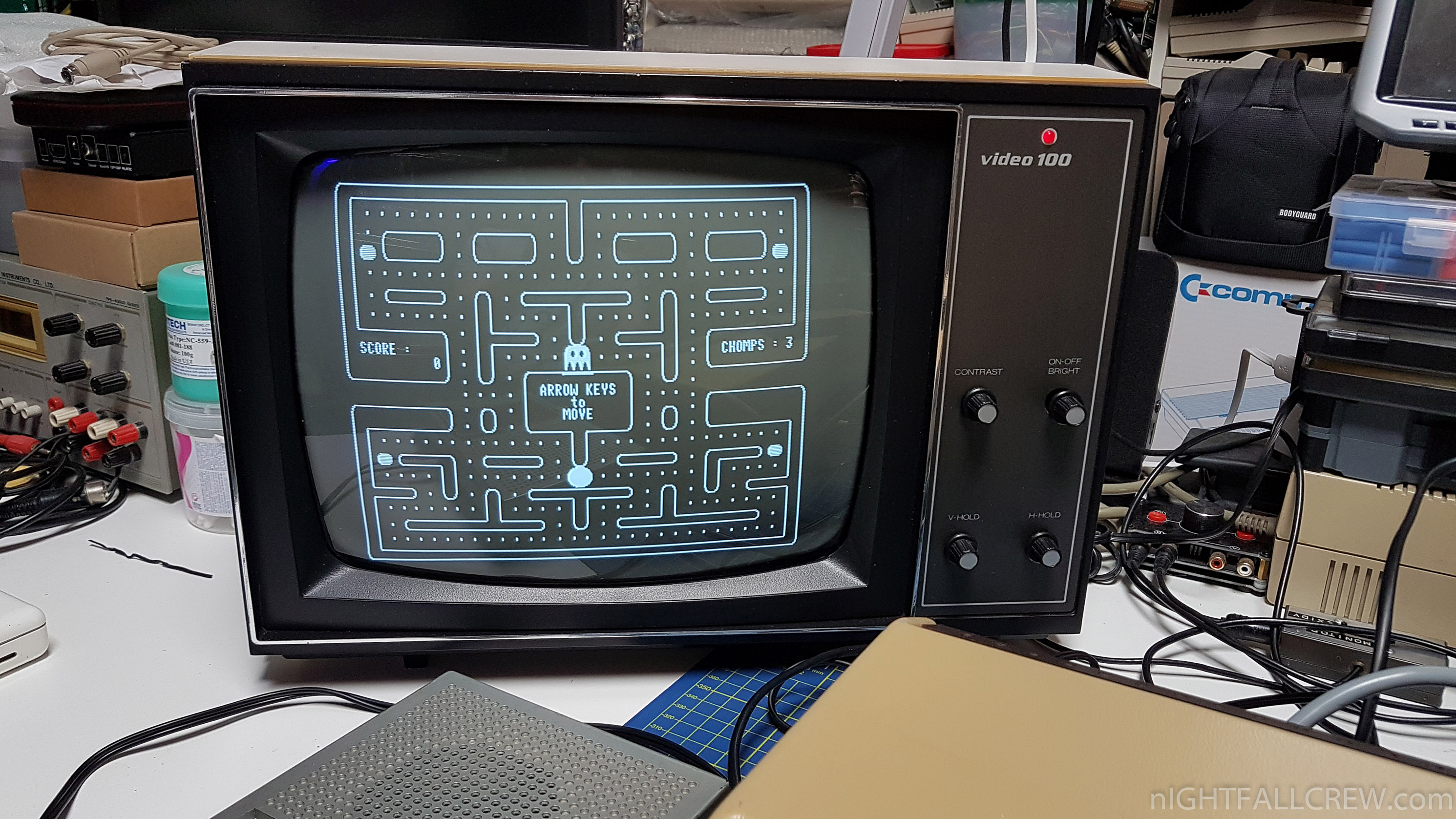

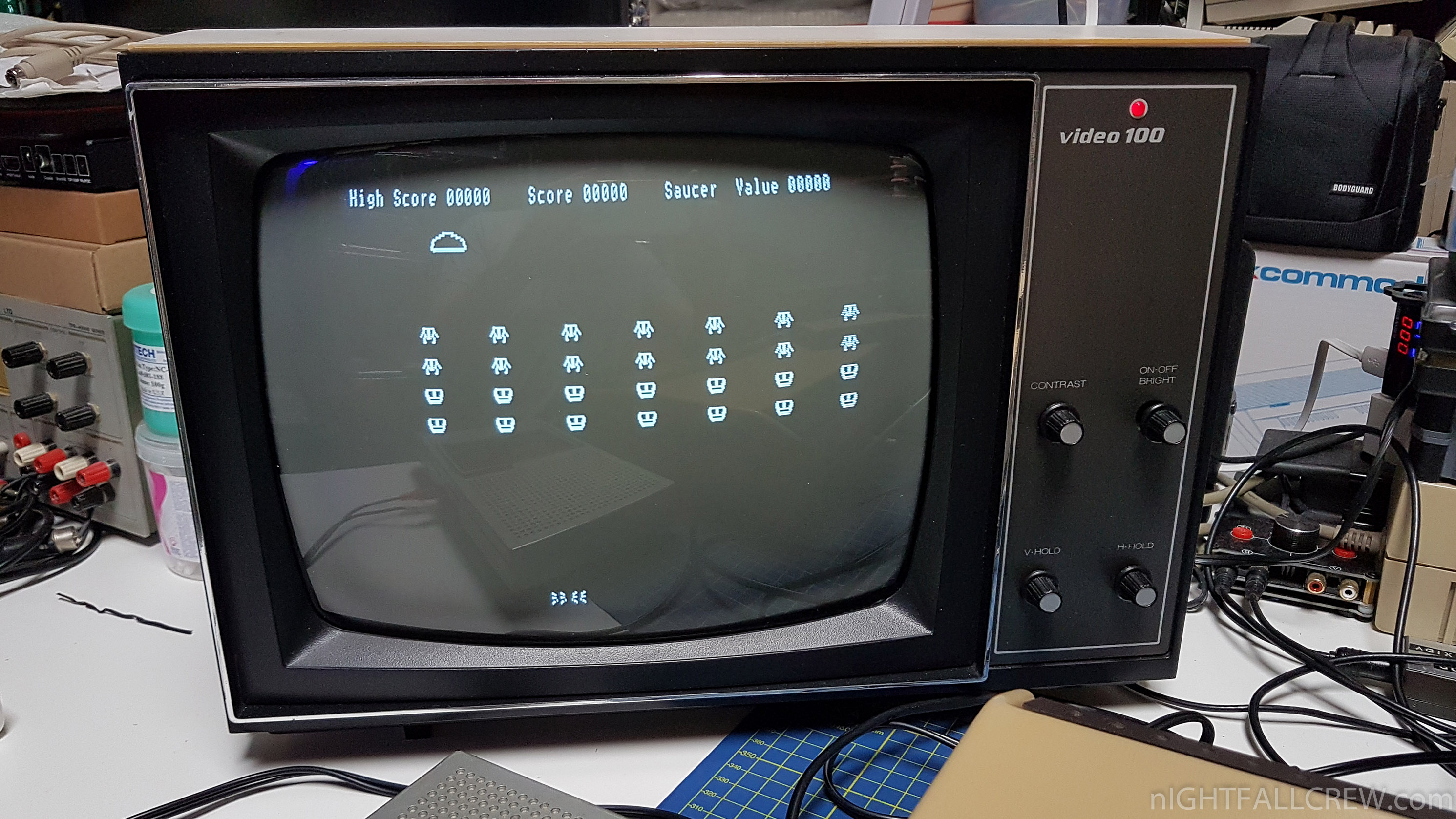

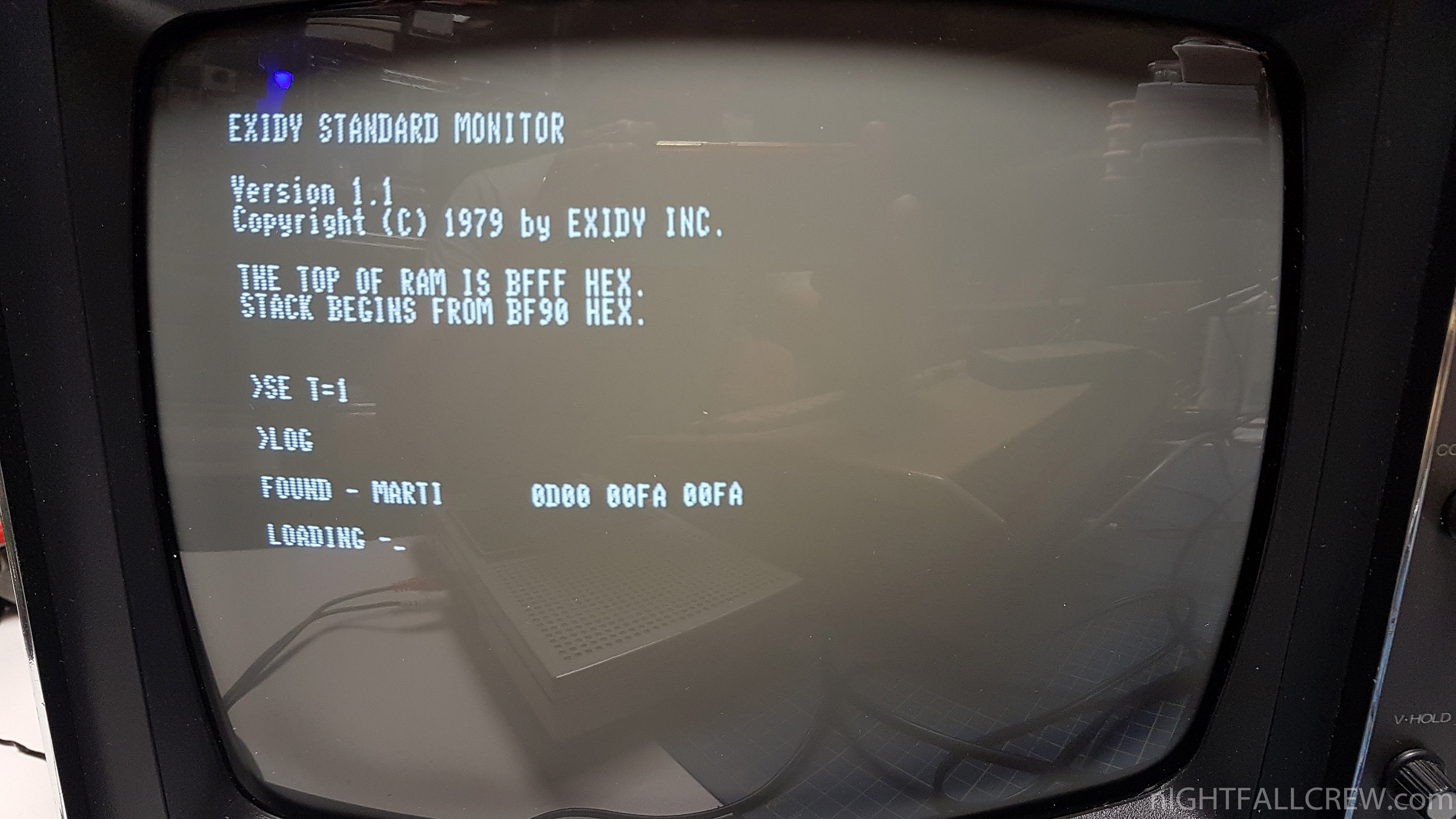

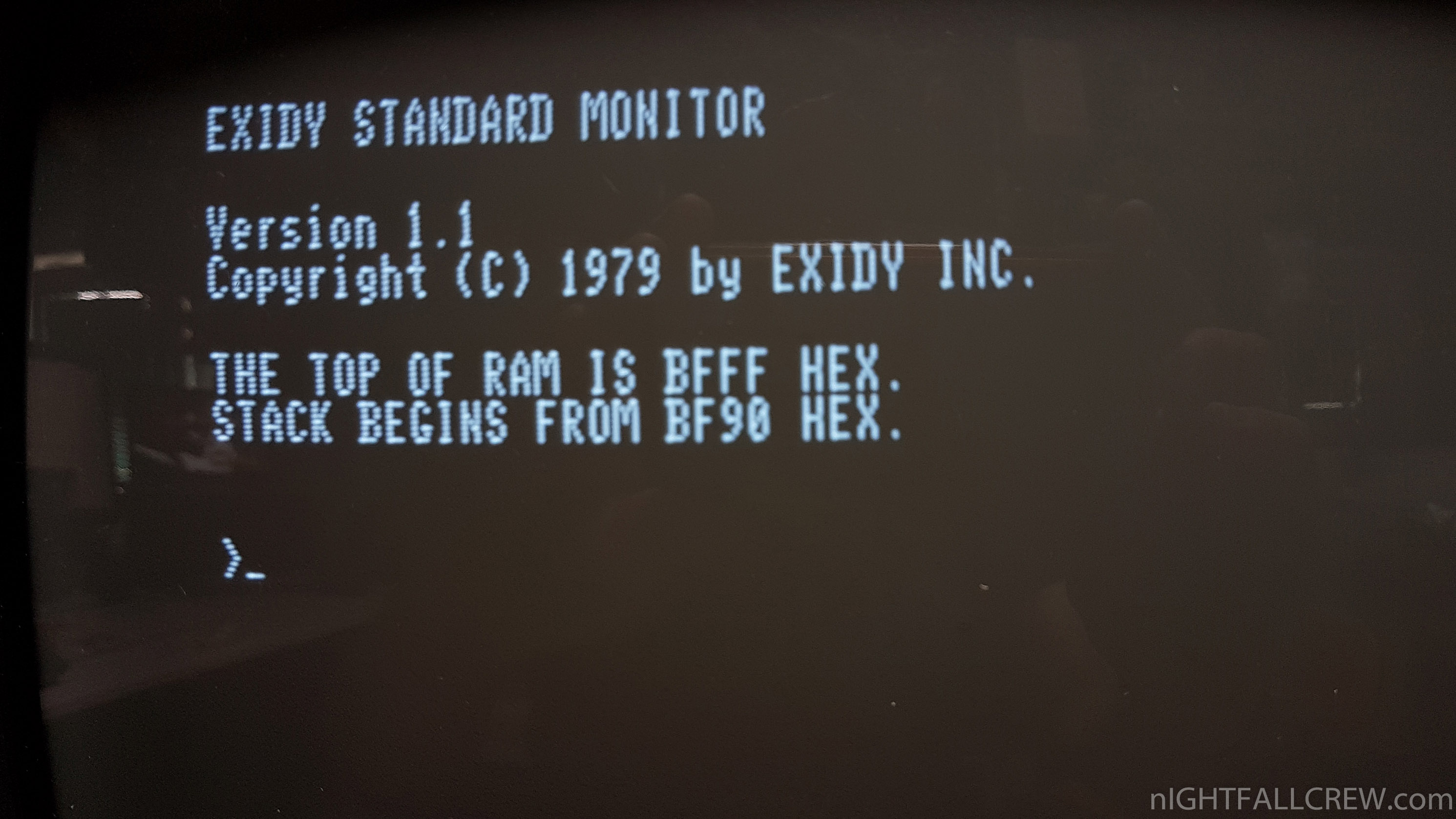

I tried the Sorcerer with the software downloadable at this link and to do a better understand the idea of the long loading (average 7 minutes) i have recorded the WAV file of the tape format on a Tape Cassette and used an old recorder to load the software, everything worked perfectly on the first try.

from Wikipedia;

The Sorcerer is a home computer system released in 1978 by the video game company Exidy.

It was comparatively advanced when released, especially when compared to the contemporary more commercially successful Commodore PET and TRS-80, but due to company focus on the coin operated video game marketplace resources were restricted for personal computer expansion and a separate division of the company was created.

Exidy Data Systems was headed by Paul Terrell to expand the product line to include small business computing with international distribution and technology license agreements to supplement corporate funding.

Distribution agreements with Dick Smith Electronics in Australia and Liveport in the UK as well as Compudata which included a manufacturing license to build, market and distribute the Tulip line of computers in Europe. Exidy sold the PC division to a Wall Street firm, Biotech, in 1983.

Gallery:

123►

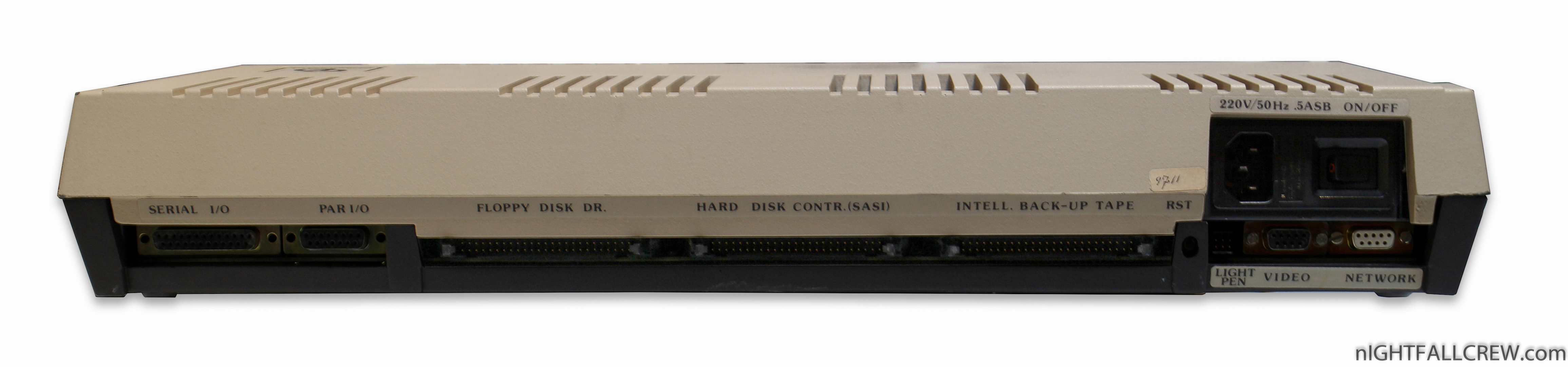

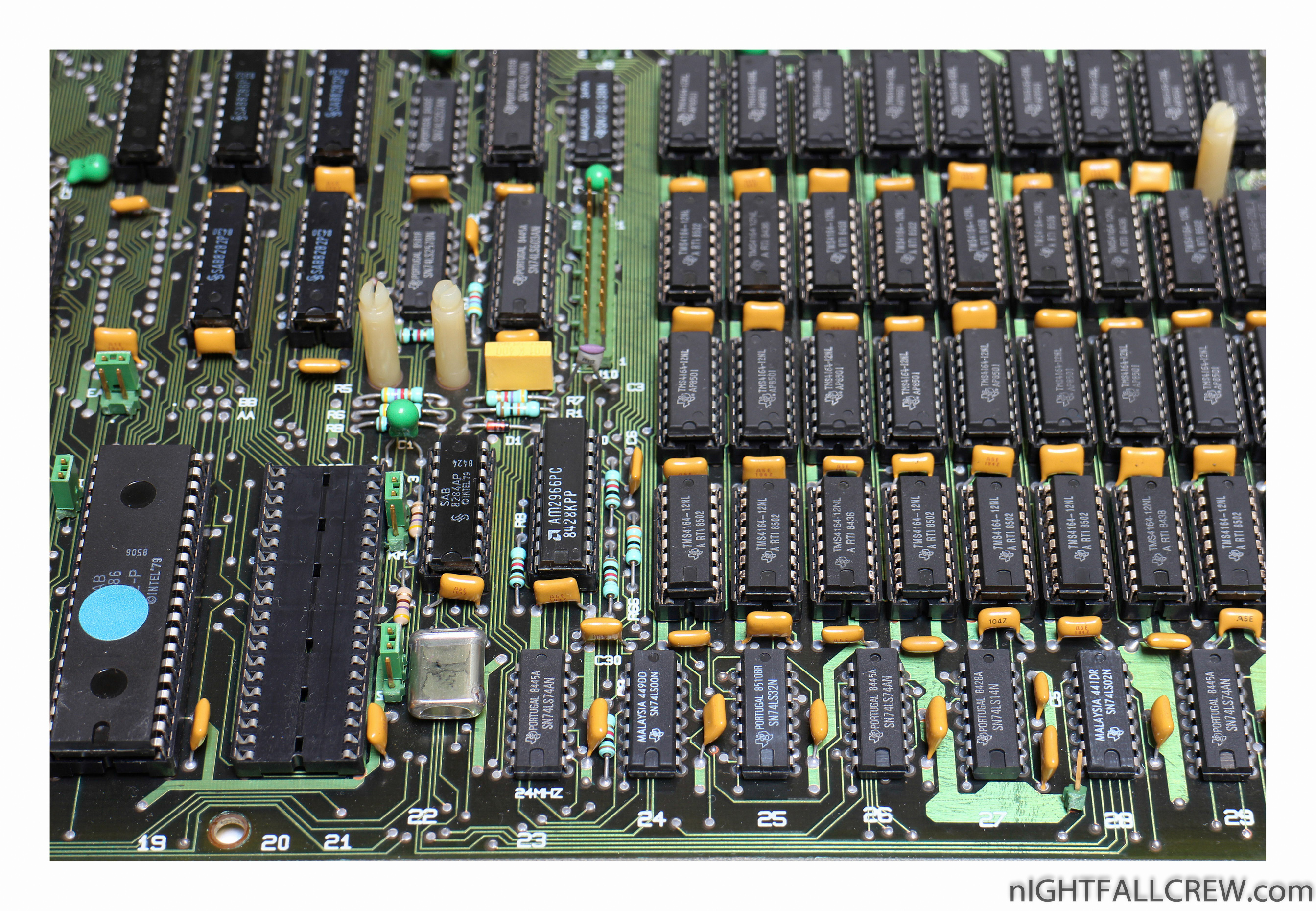

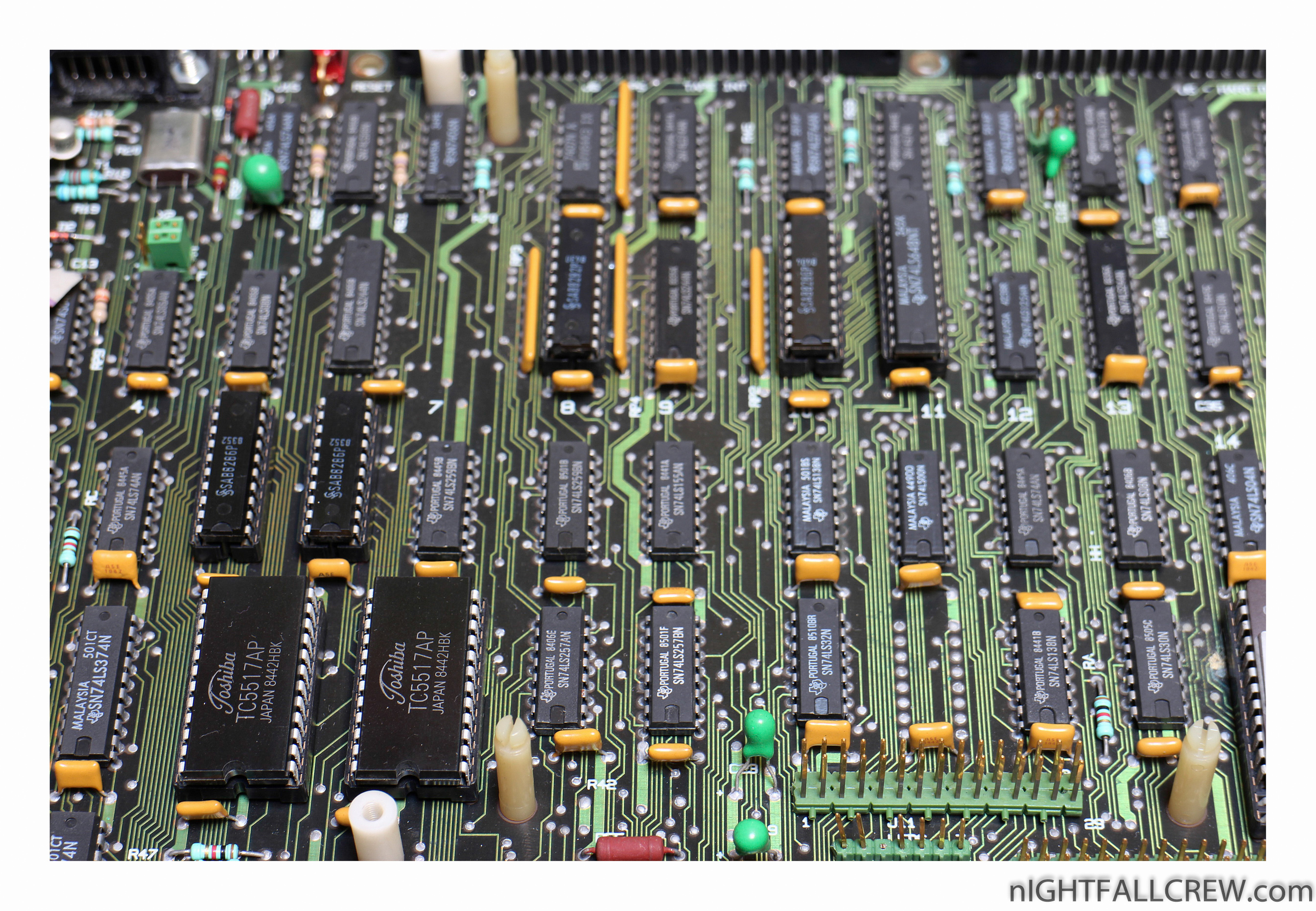

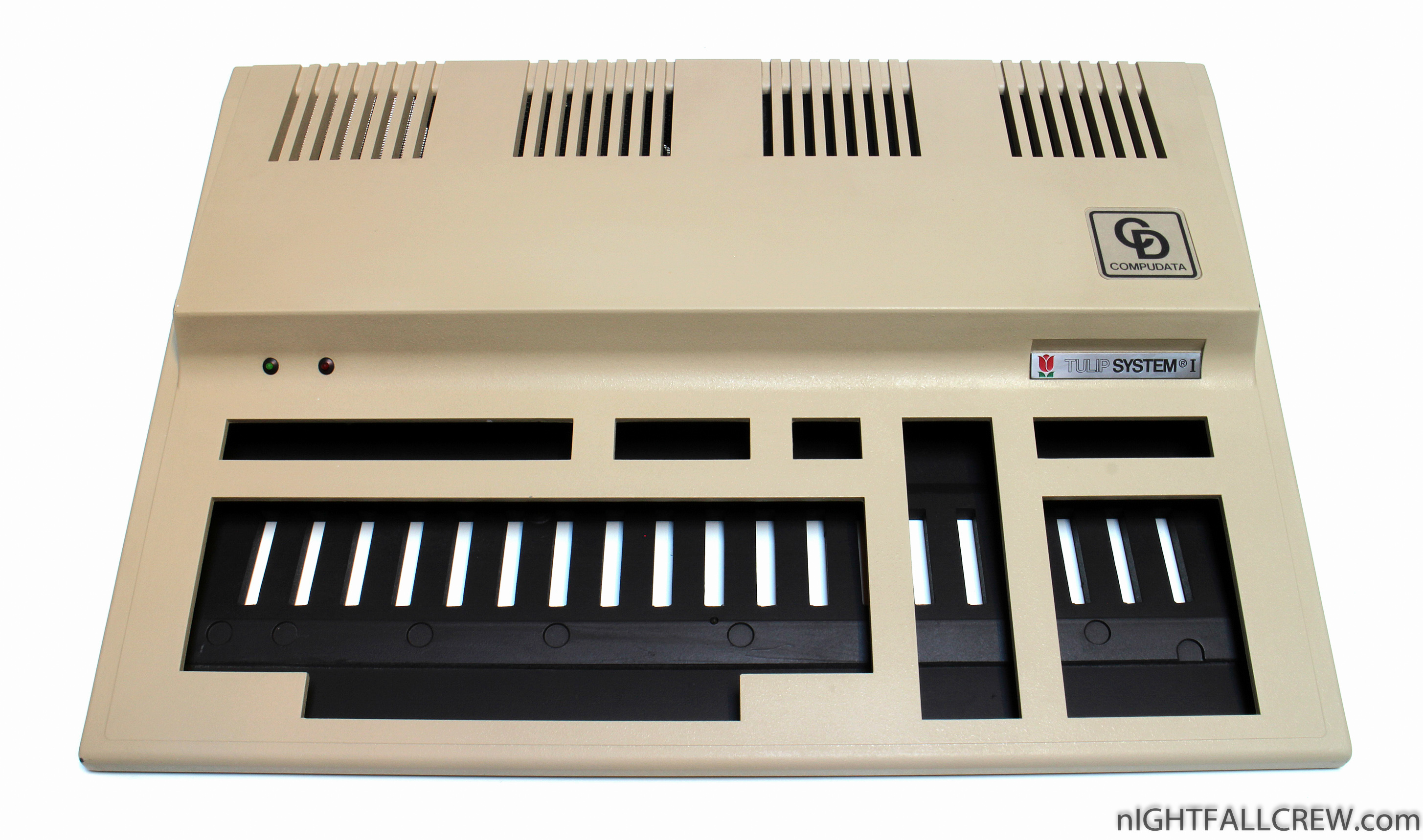

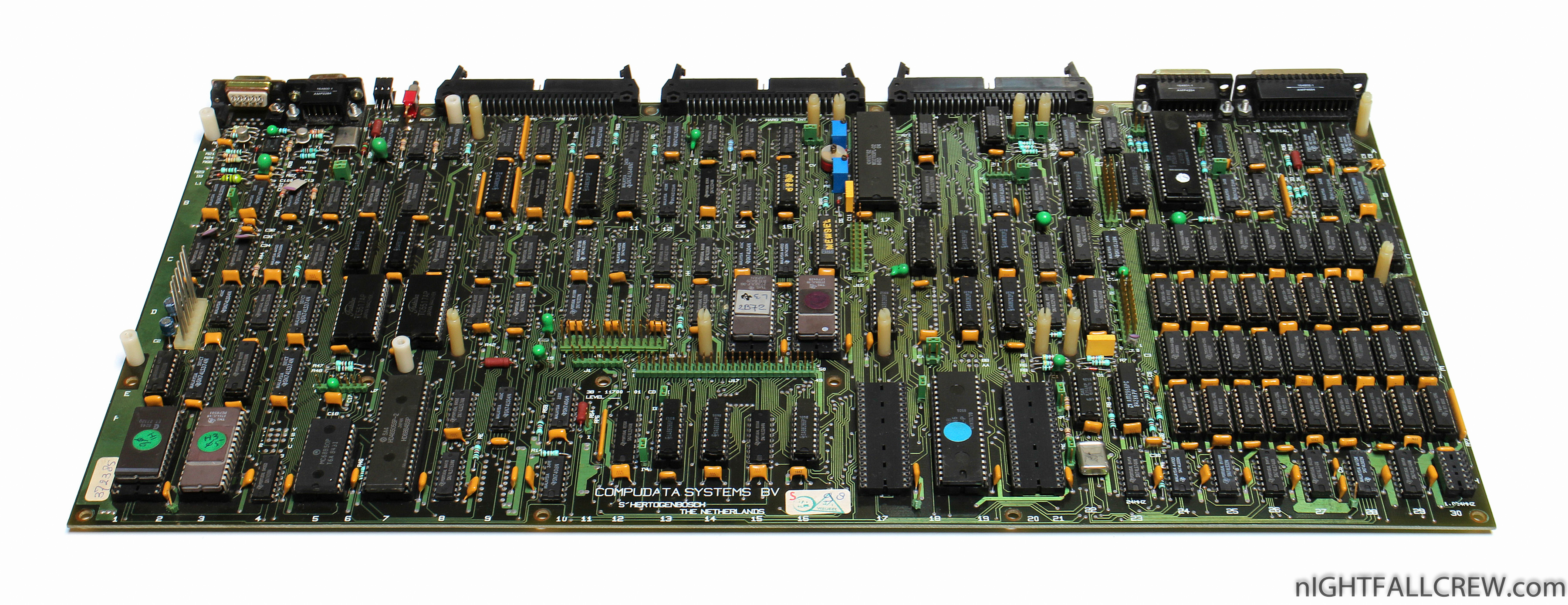

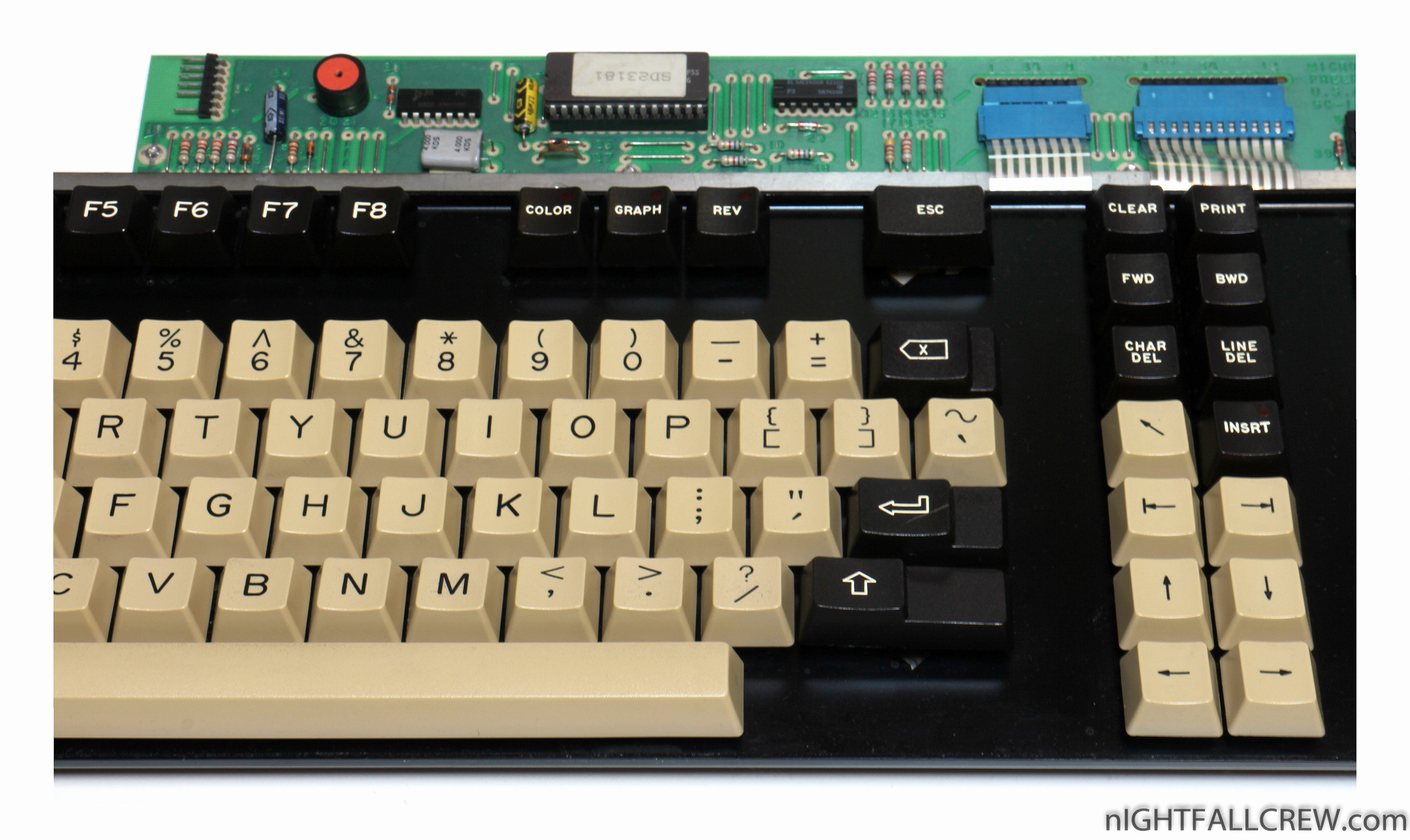

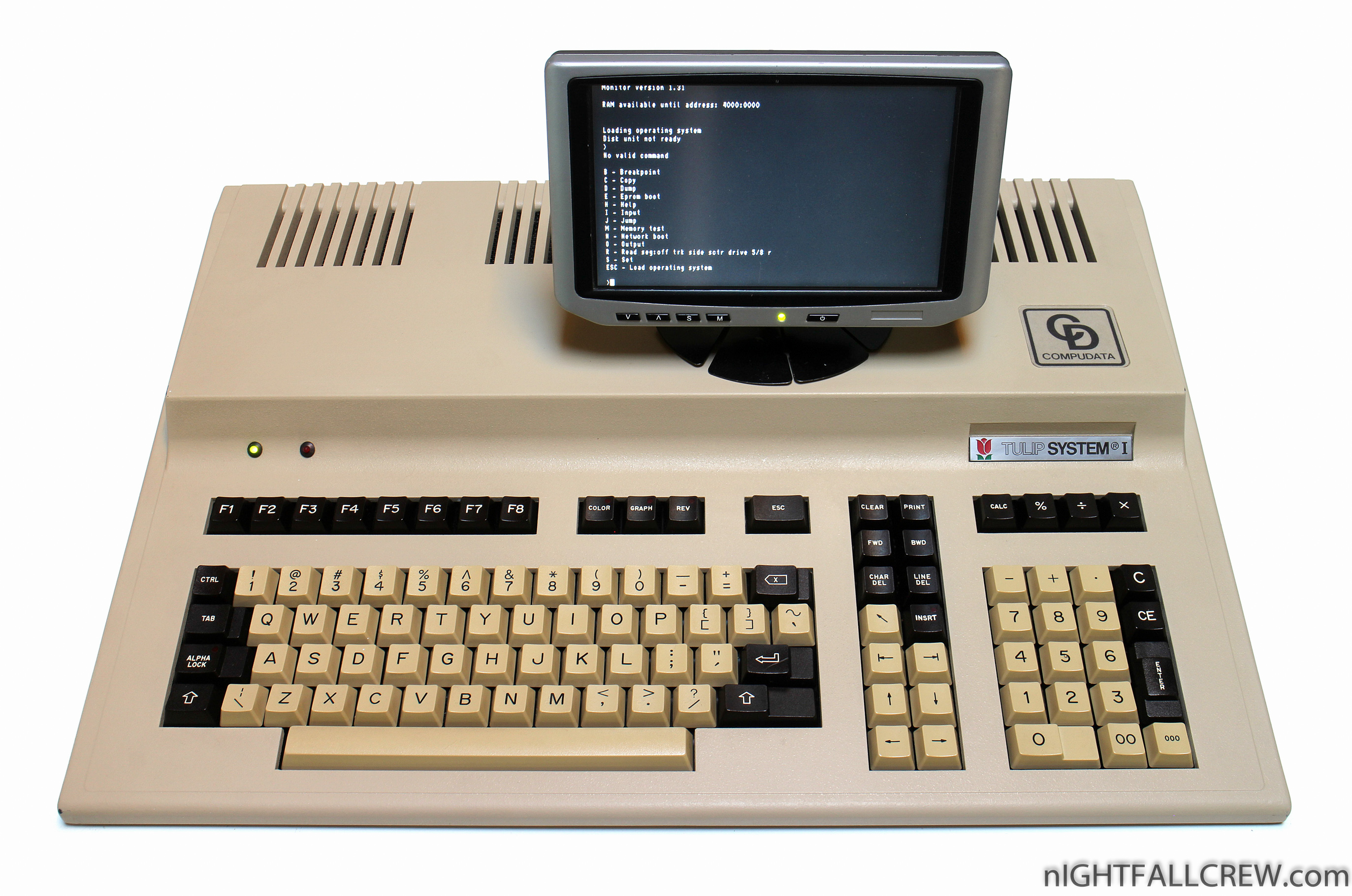

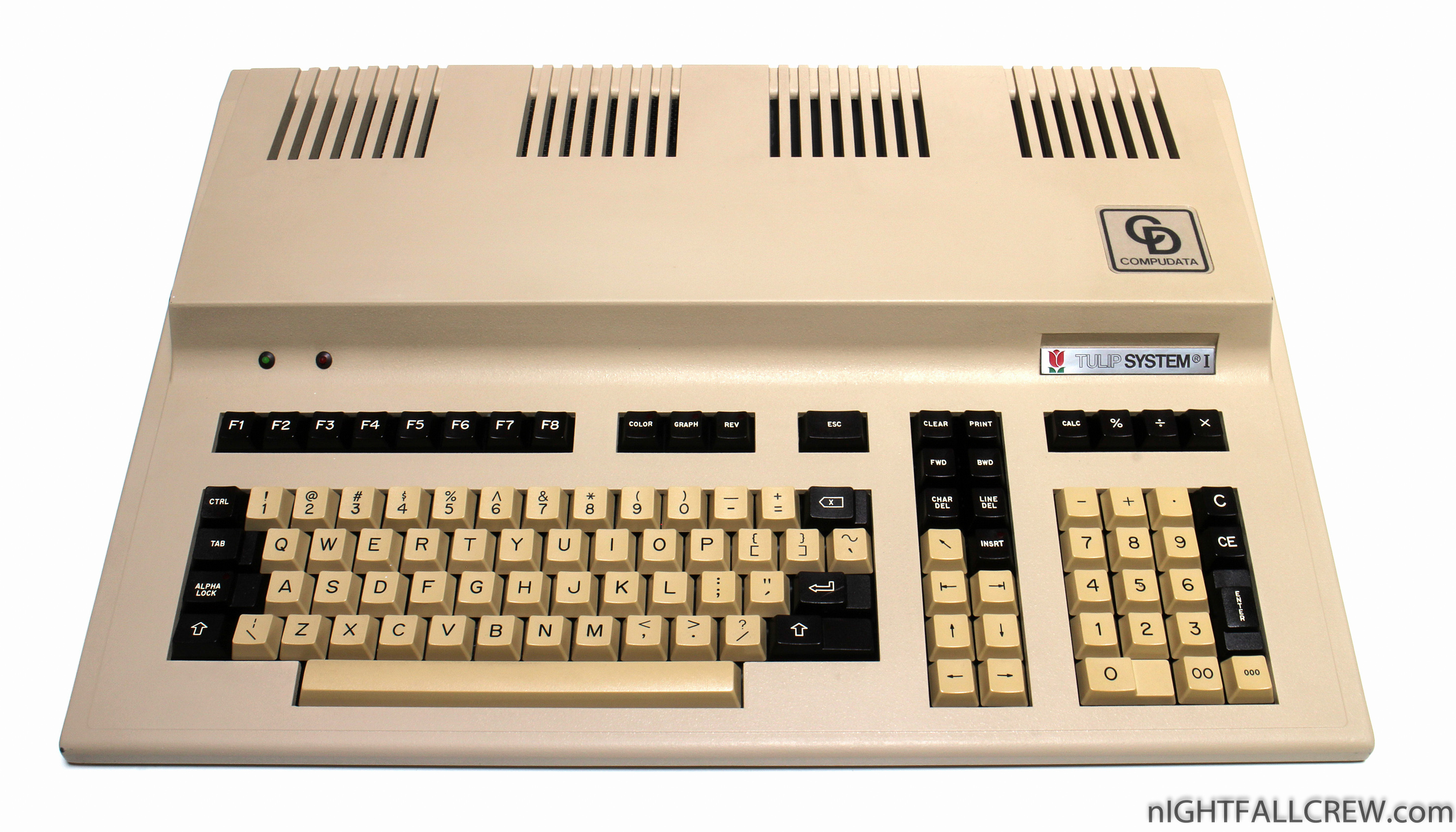

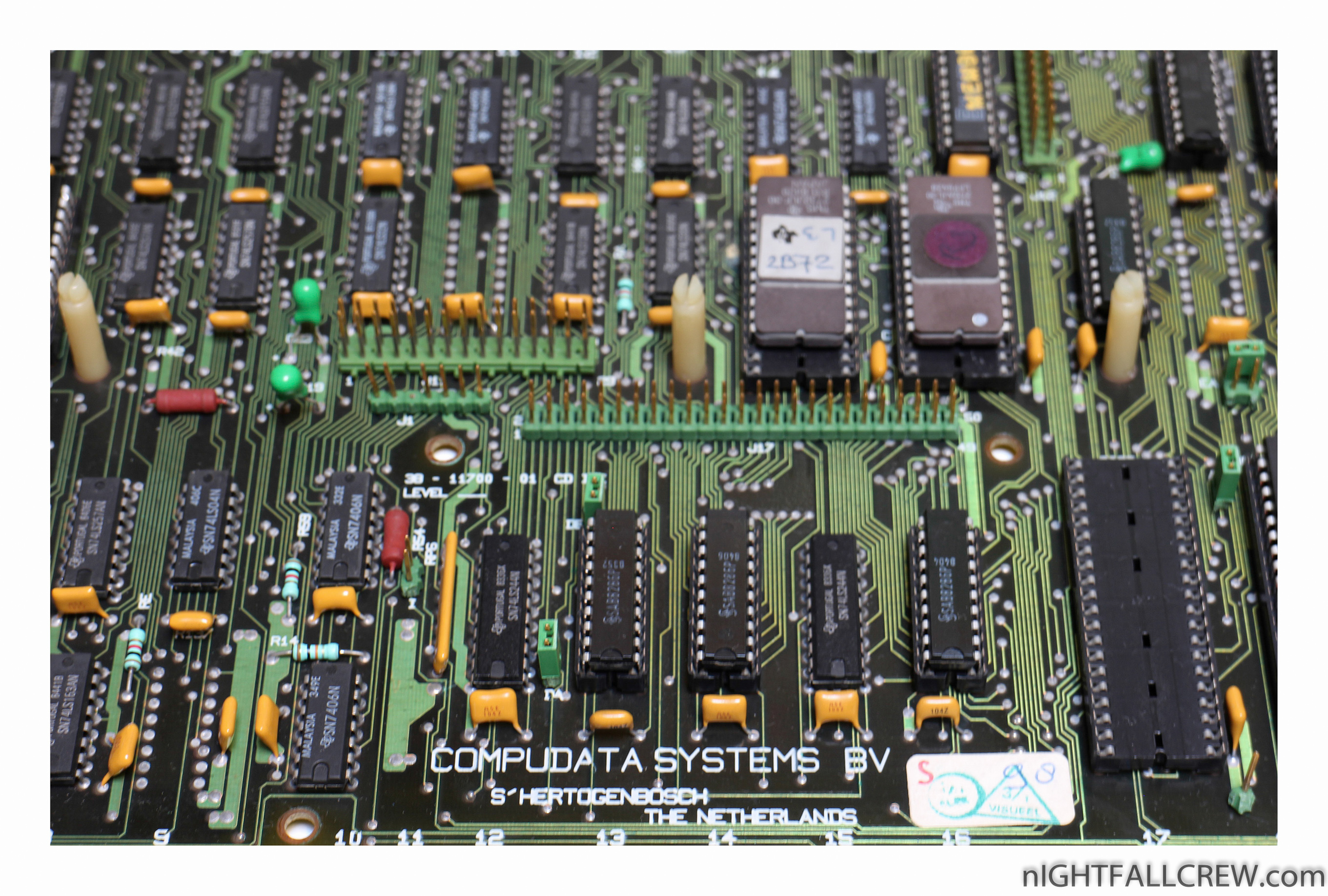

The Tulip system I was a 16-bit personal computer based on the Intel 8086 and made by Tulip Computers, formerly an import company for the Exidy Sorcerer, called CompuData Systems.

Its 6845-based video display controller could display 80×24 text in 8 different fonts for supporting different languages, including a (Videotex based) font for 2×3 pseudo graphic symbols for displaying 160×72 pixel graphics in text mode. The video display generator could also display graphics with a 384×288 or 768×288 (color) or 768×576 (monochrome) pixel resolution using its built-in NEC 7220 video display Coprocessor, which had hardware supported drawing functions, with a very advanced set of bit-block transfers, it could do line generating, arc, circle, ellipse, ellipse arc, filled arc, filled circle, filled ellipse, filled elliptical arc and many other varied commands.

Its memory could be upgraded in units of 128 KB up to 896 KB (much more than the 640 KB of the original PC).

It included a SASI hard disk interface (a predecessor of the SCSI-standard) and was optionally delivered with a 5 MB or 10 MB hard disk. The floppy disk size was 400 KB (10 sectors, instead of 8 or 9 with the IBM PC) or 800kb (80 tracks).

It ran at 8 MHz, almost twice the speed of the IBM PC XT which was launched only a few months earlier in July 1983. It had the possibility to use an 8087 coprocessor for math, which increased the speed to > 200 kflops, which was near mainframe data at that time.

After initially using CP/M-86 it quickly switched to using generic MS-DOS 2.00. There was a rudimentary IBM-BIOS-emulator, which allowed the user to use WordStar and a few other IBM-PC software, but Compudata B.V. shipped WordStar and some other software as adopted software for this computer. There was a programming support by Compudata B.V. with MS-Basic, MS-Pascal and MS-Fortran. On a private base, TeX and Turbo Pascal were ported to the Tulip System 1.

Gallery:

12►

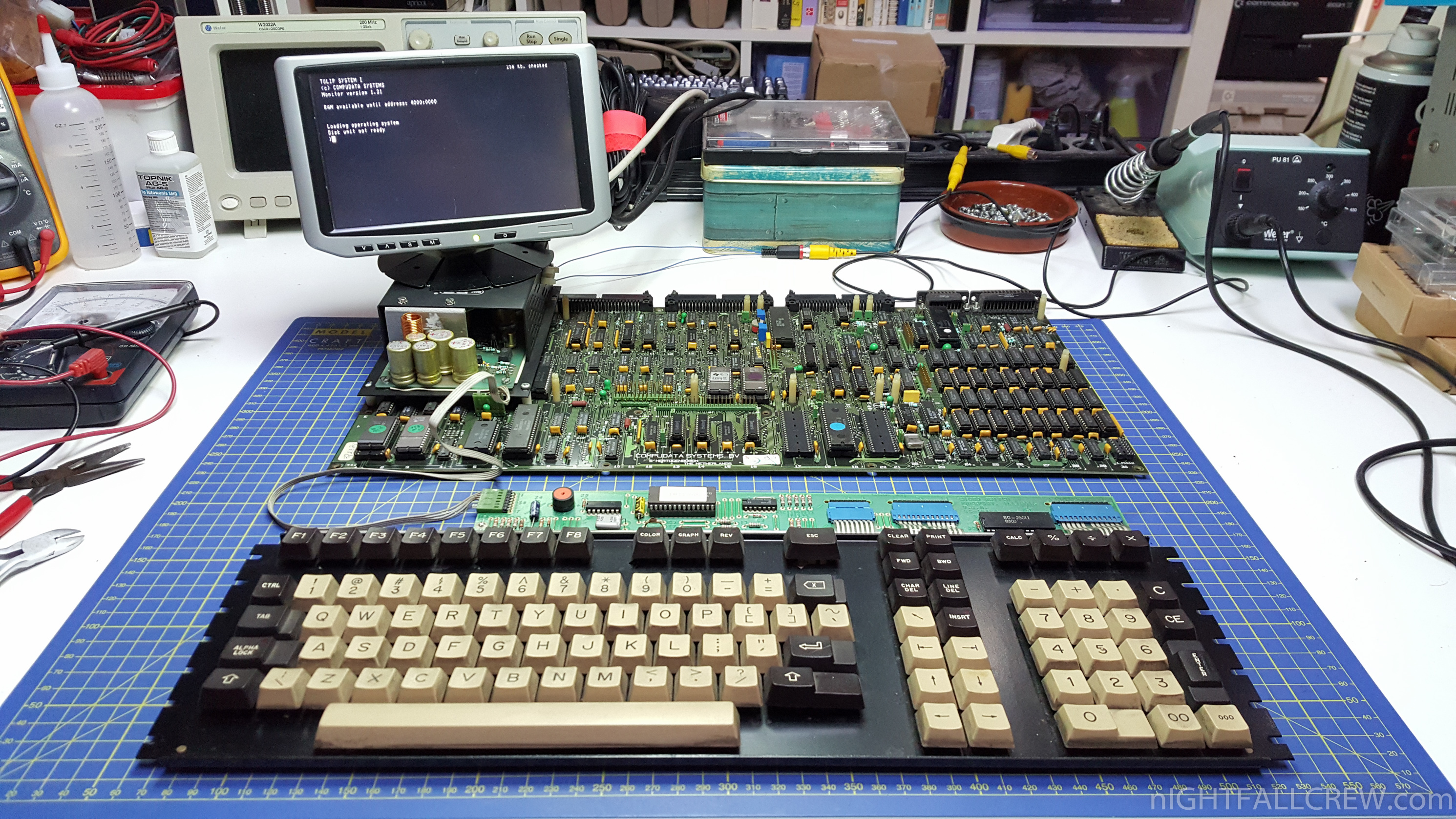

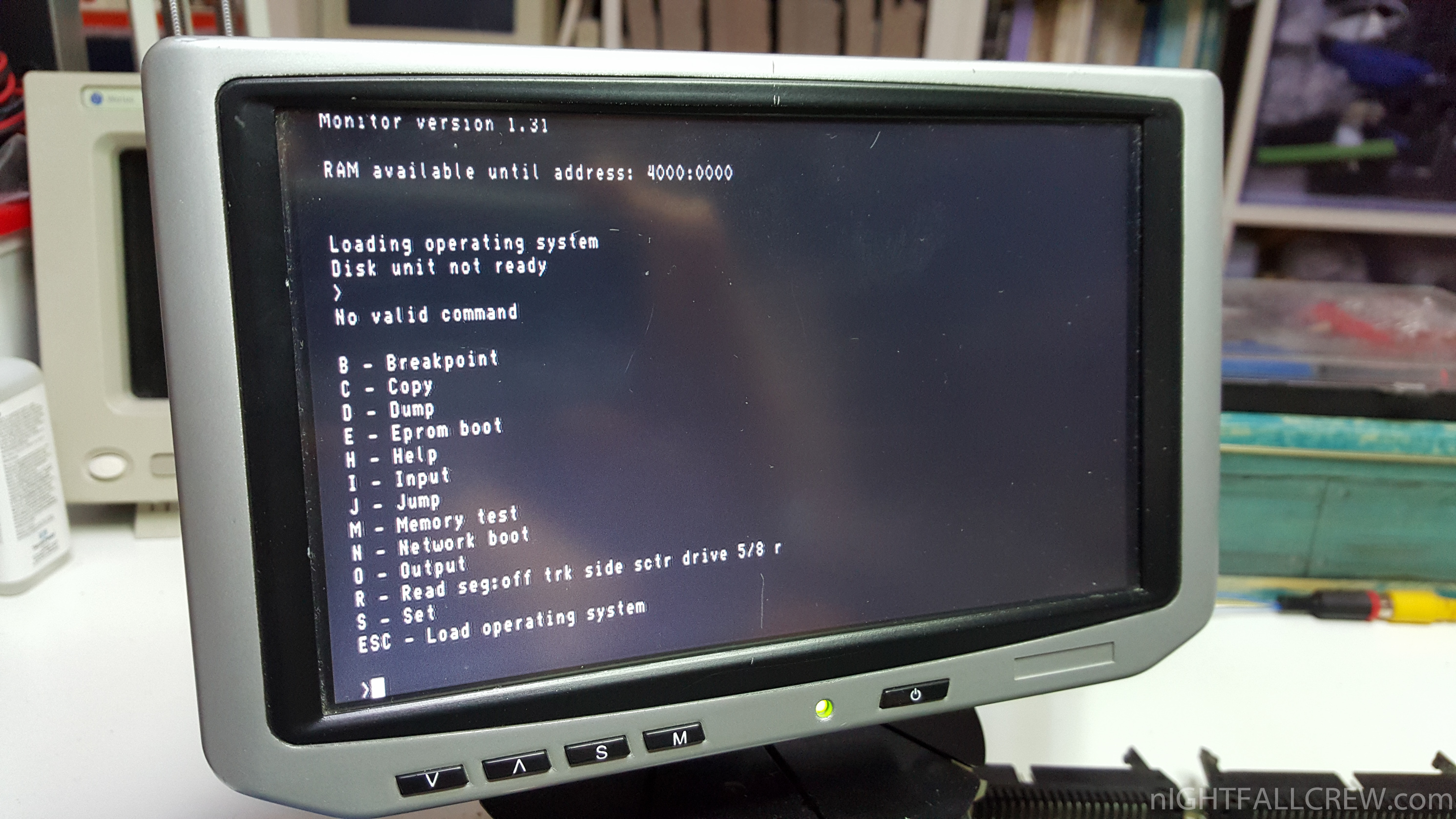

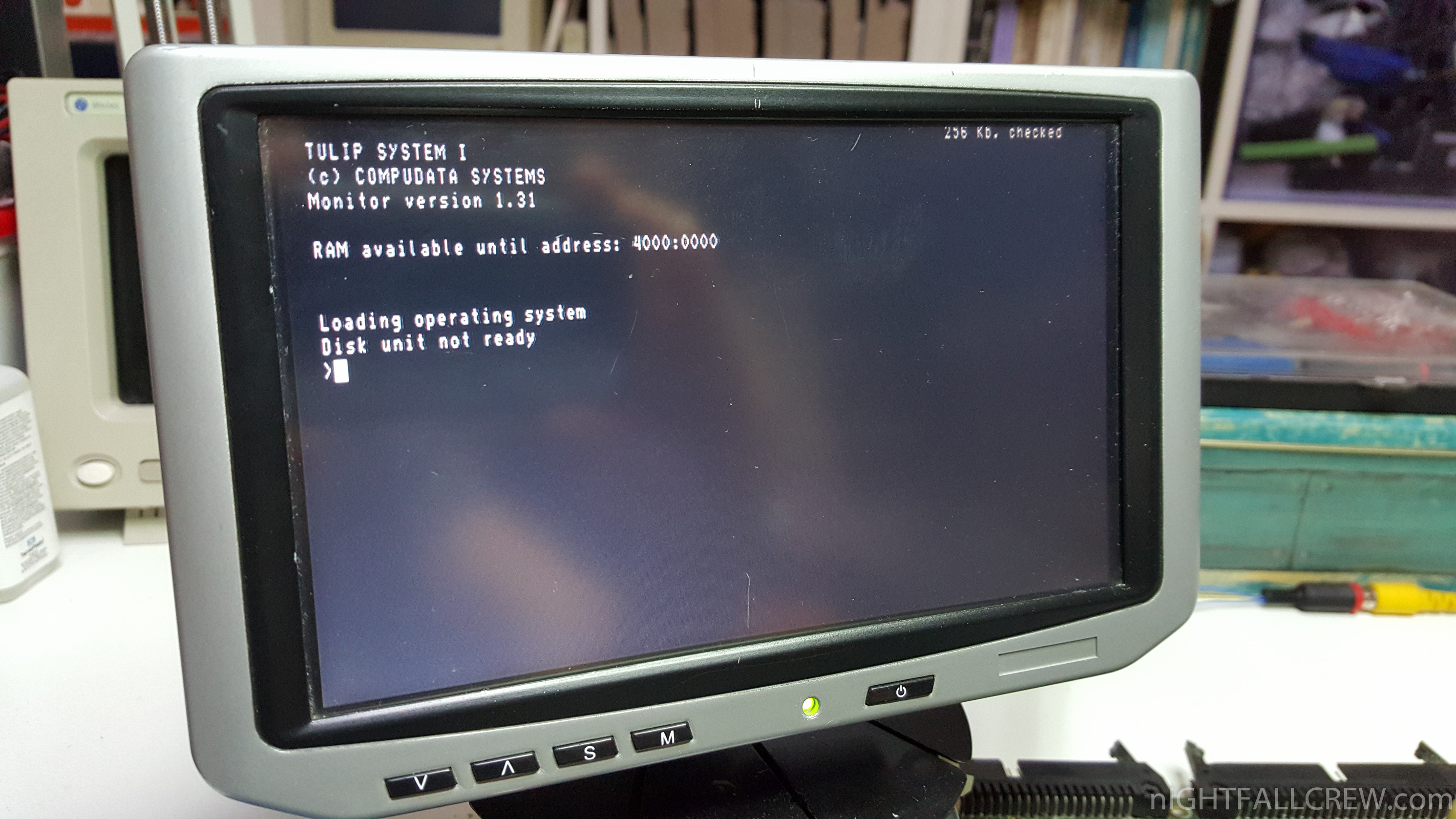

Works that i have made before power on the computer:

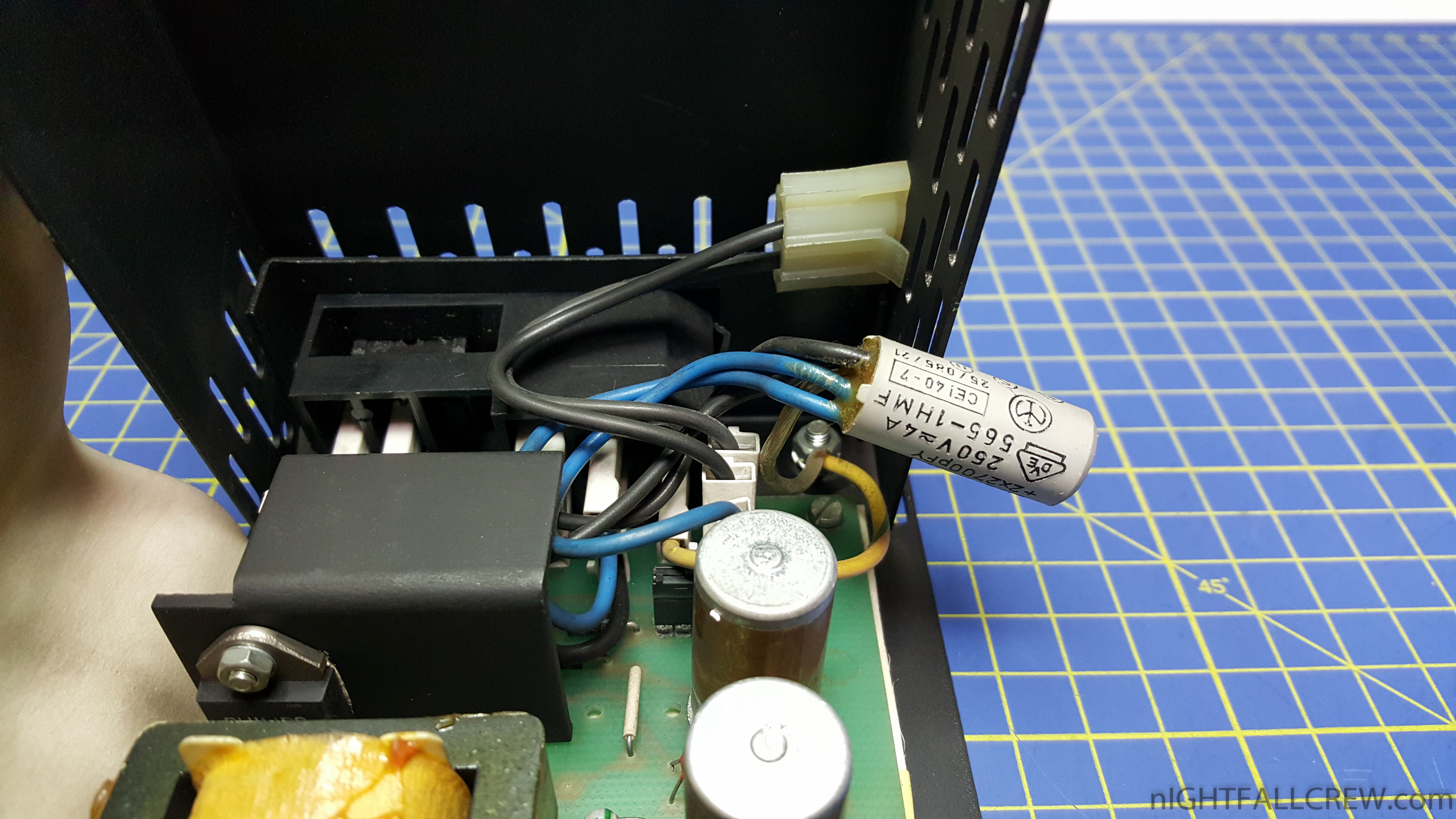

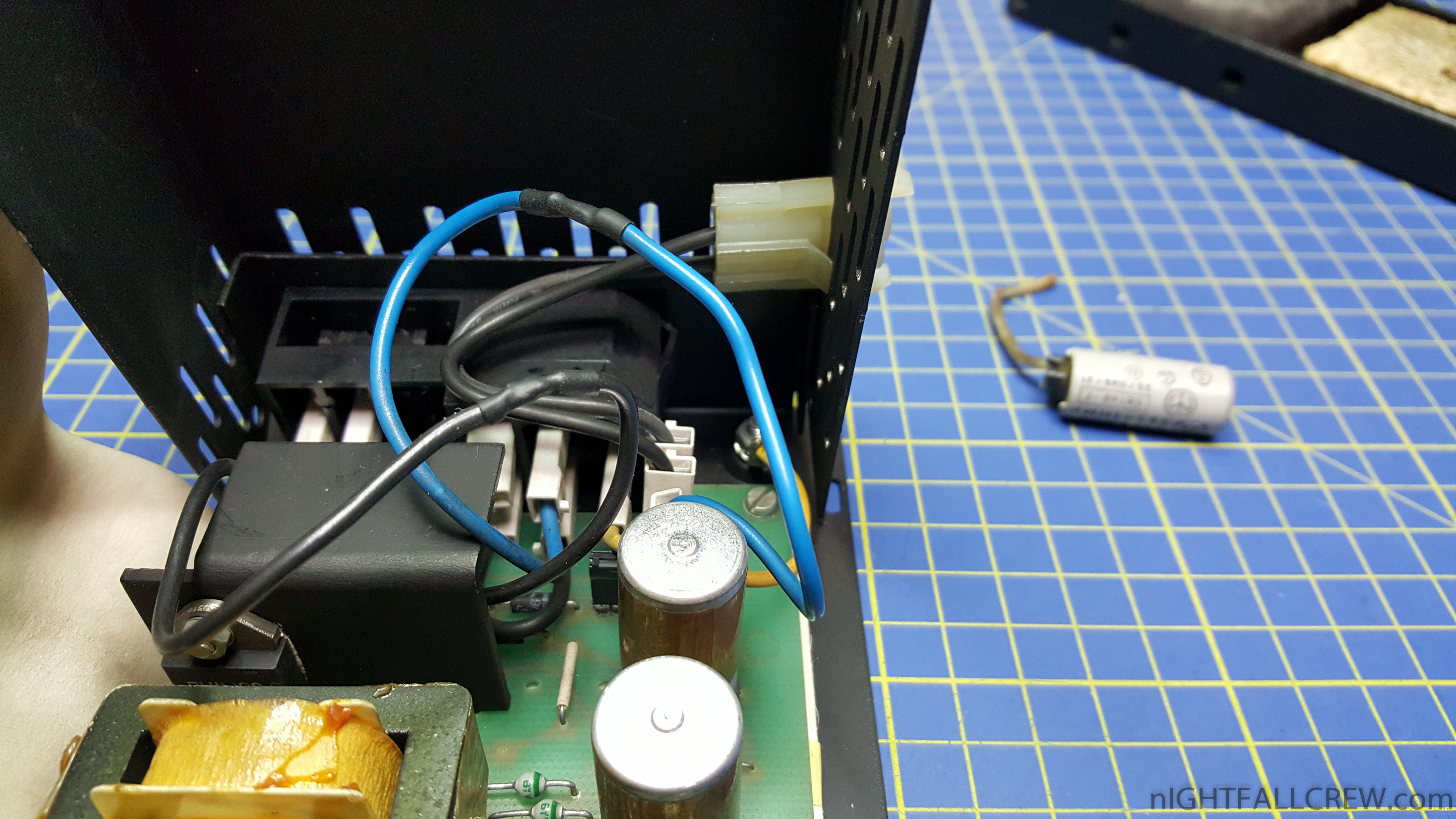

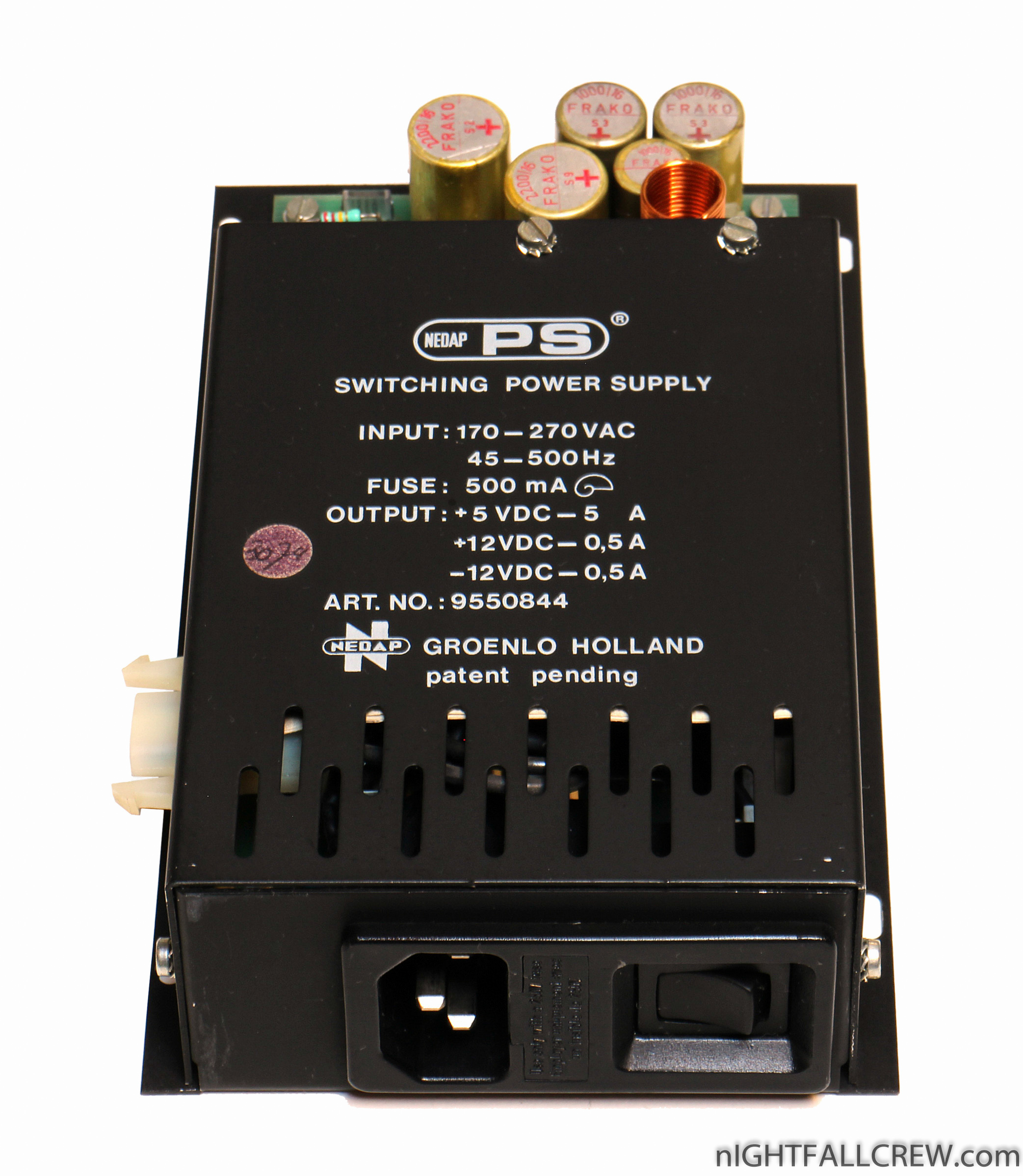

• Removing the filter capacitor inside the power supply.

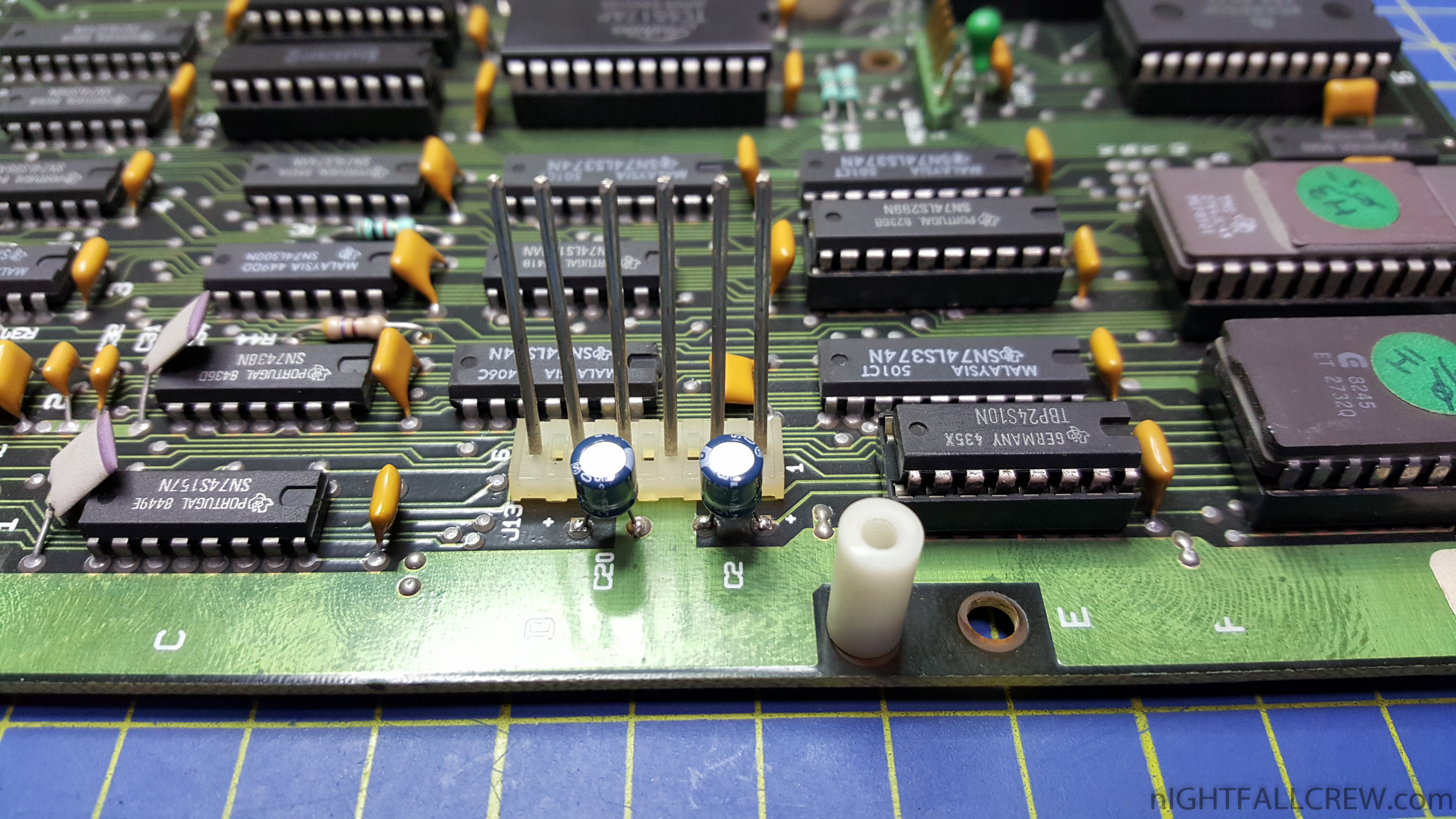

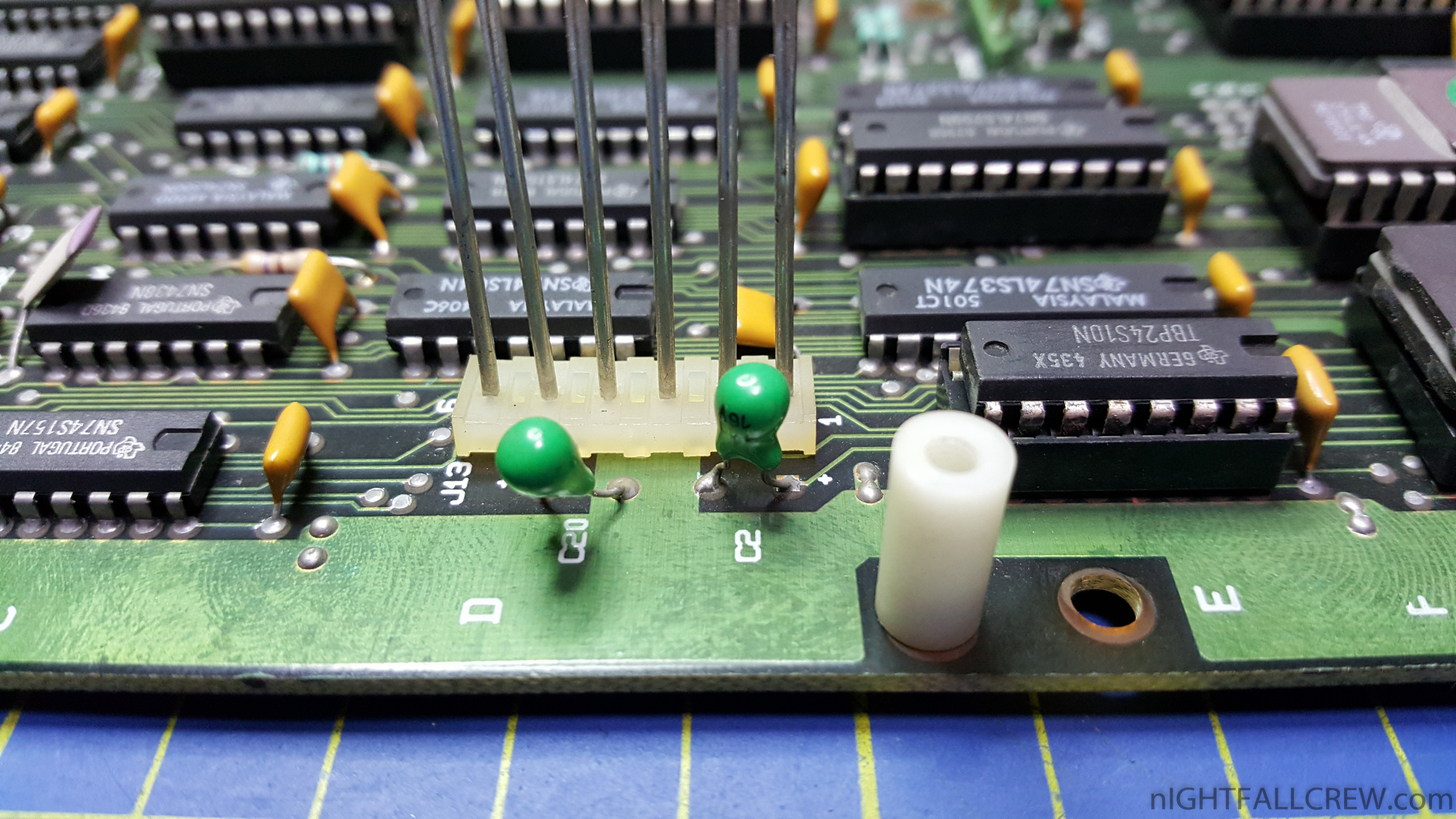

• Replaced the tantalum capacitors.
• Eprom (ROM) dump.
• Found the pinout for the Video composite signal.

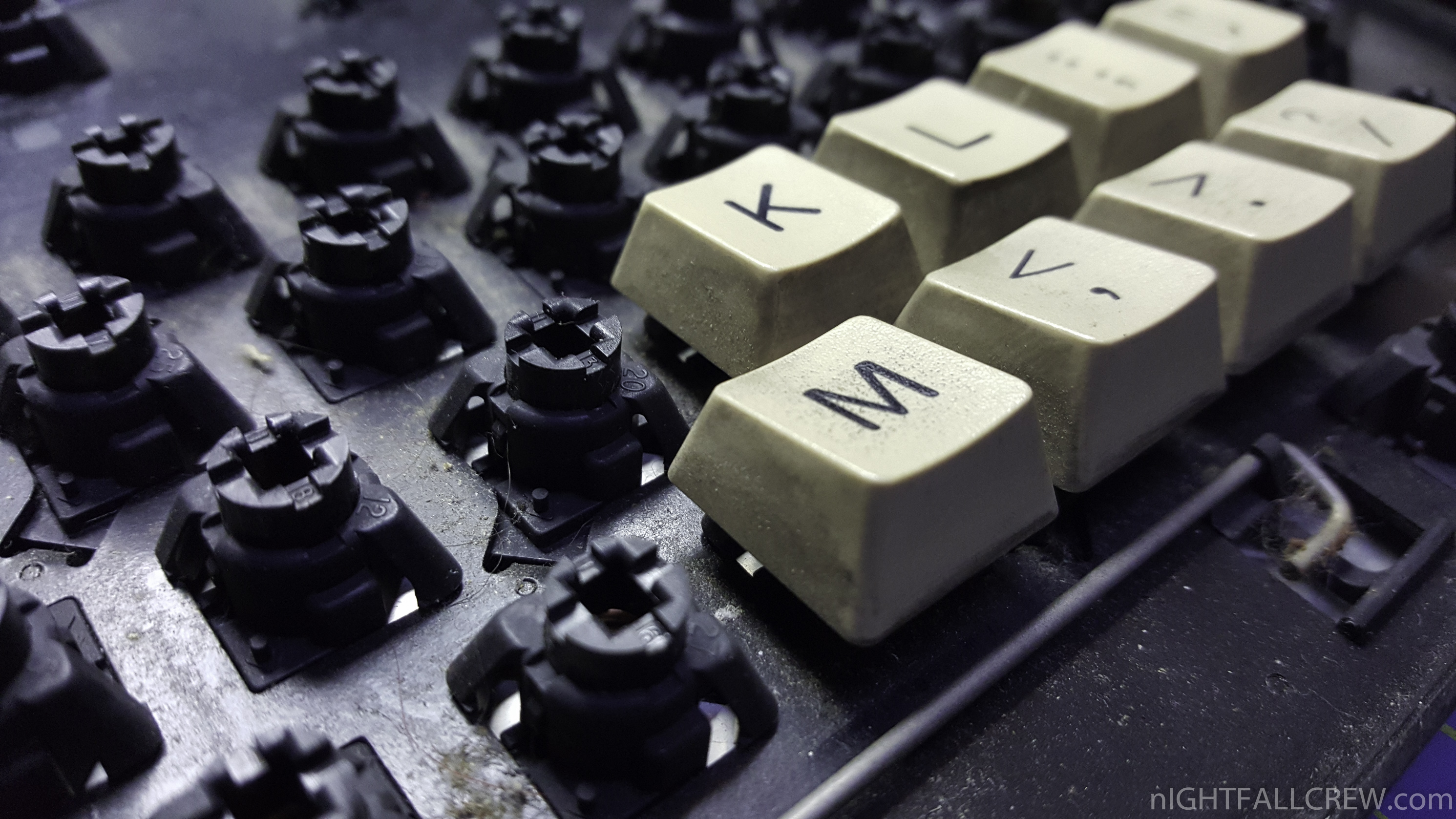

• Cleaning.

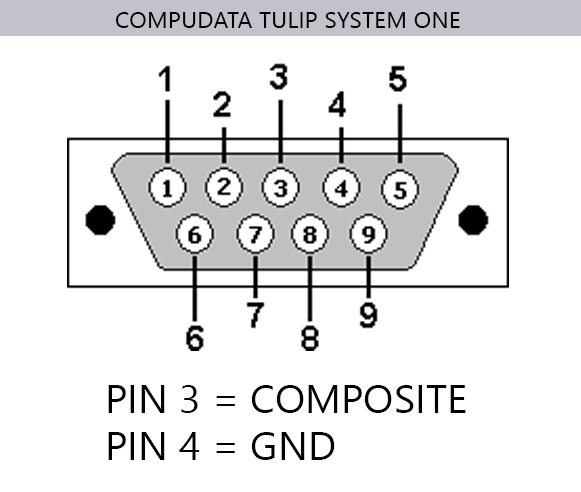

Pinout for the Video composite:

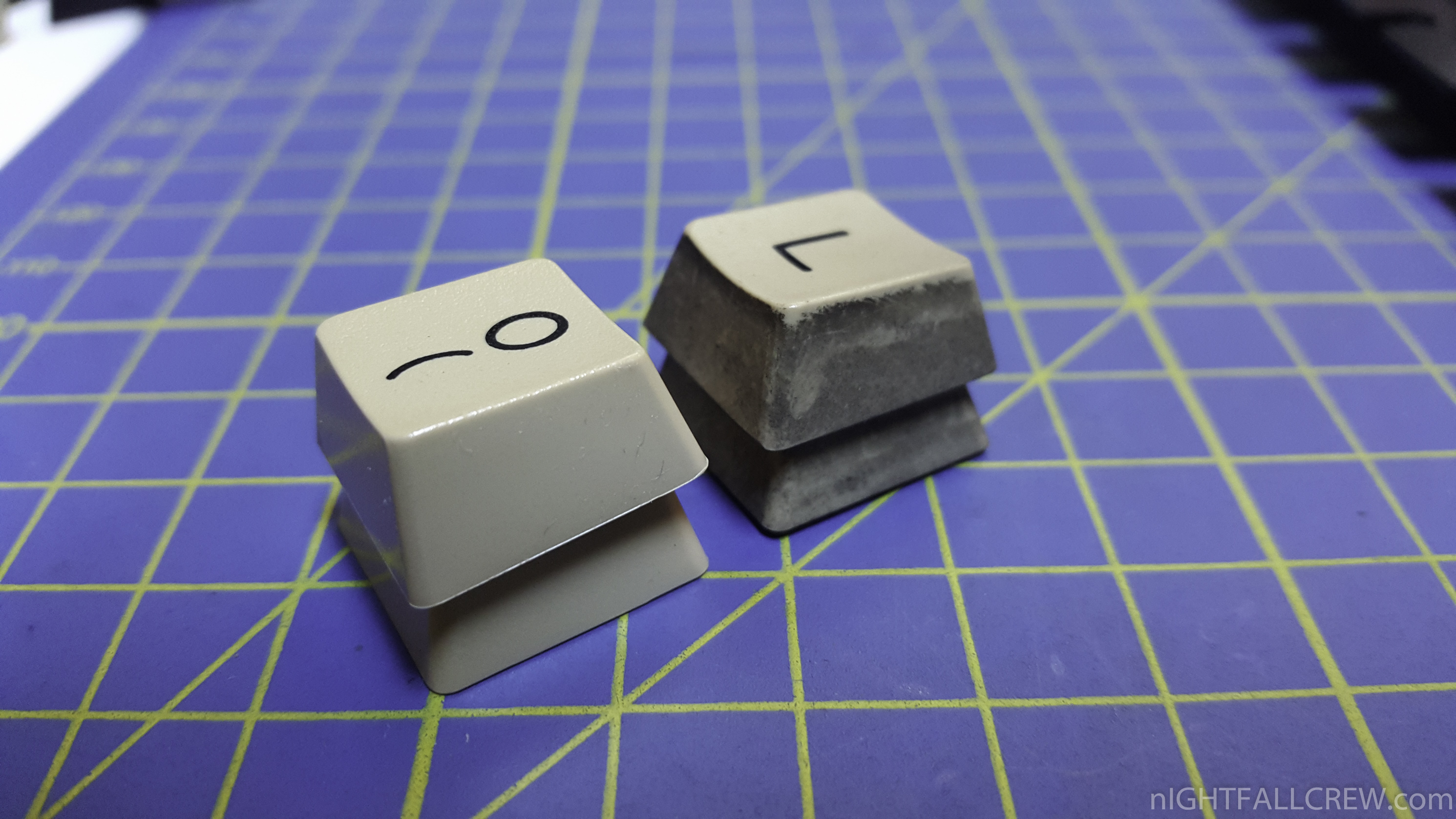

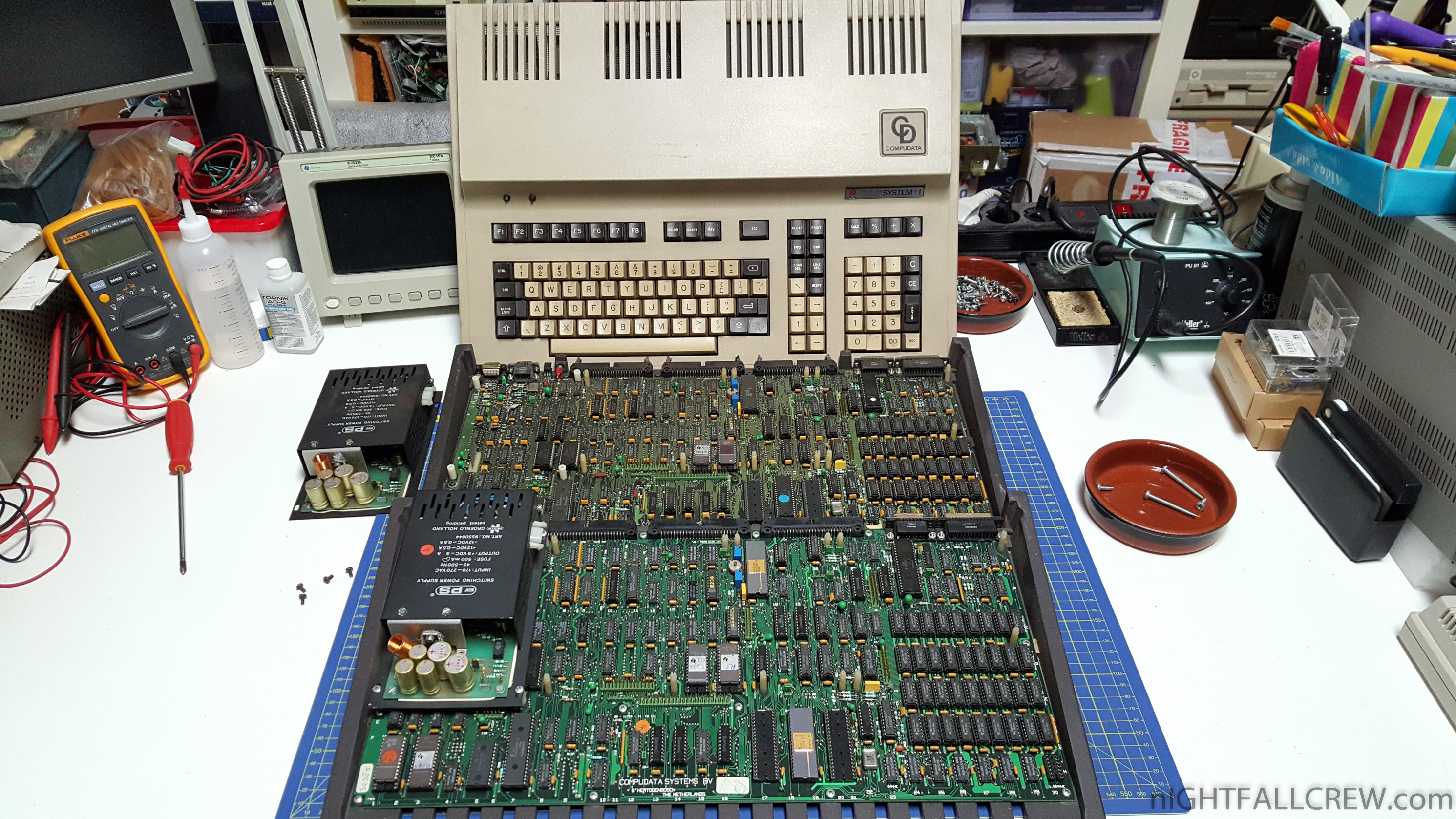

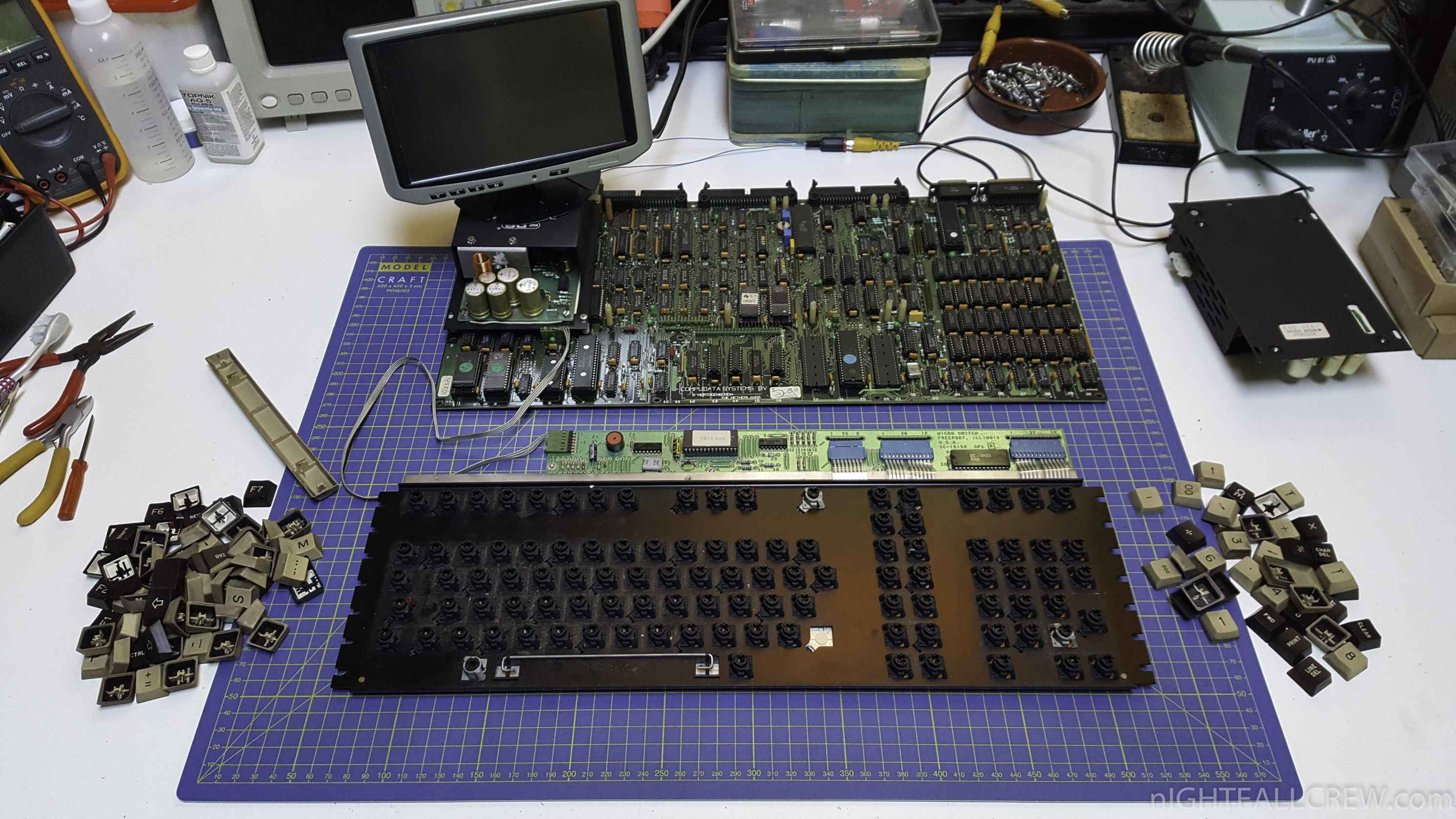

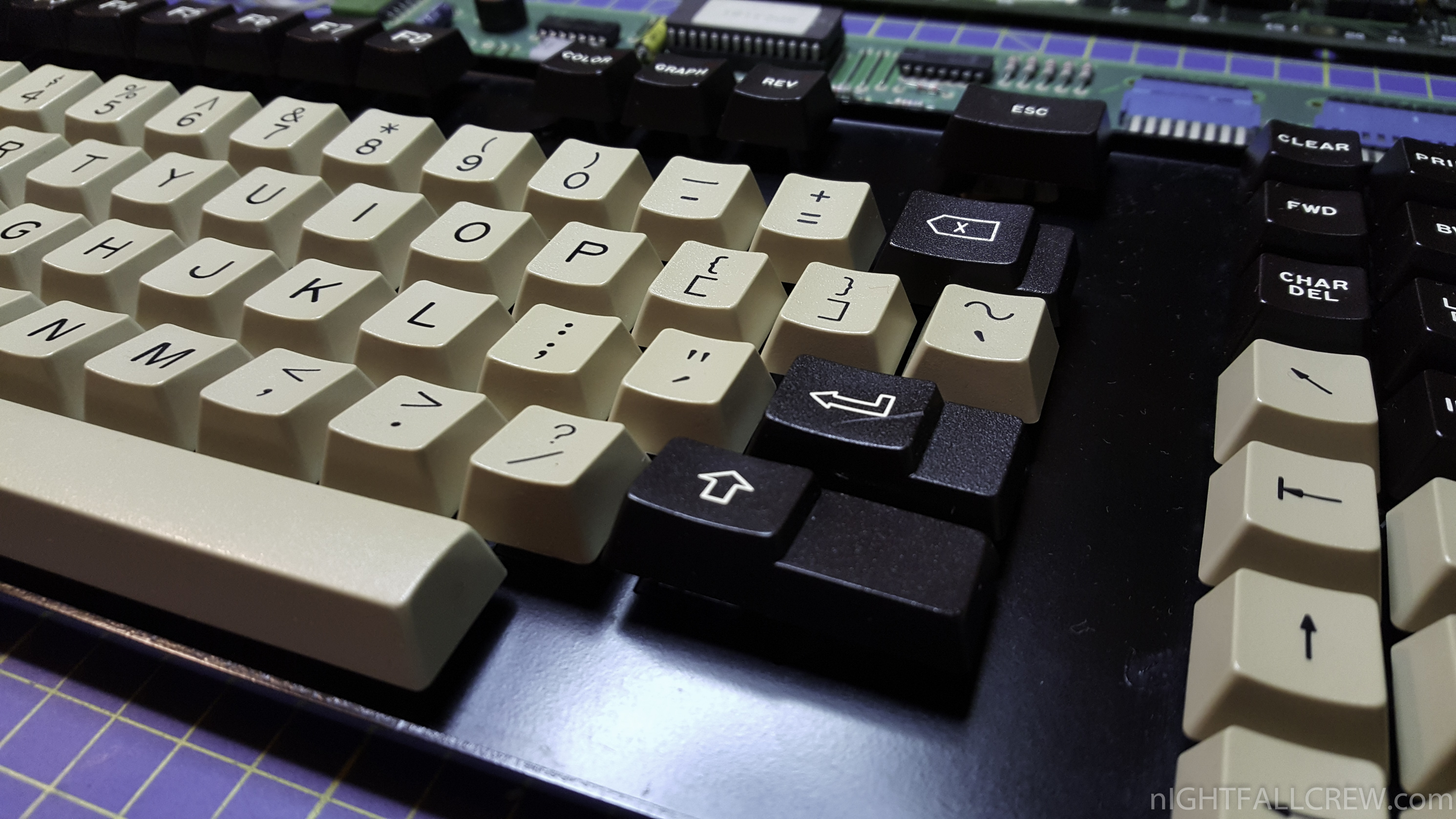

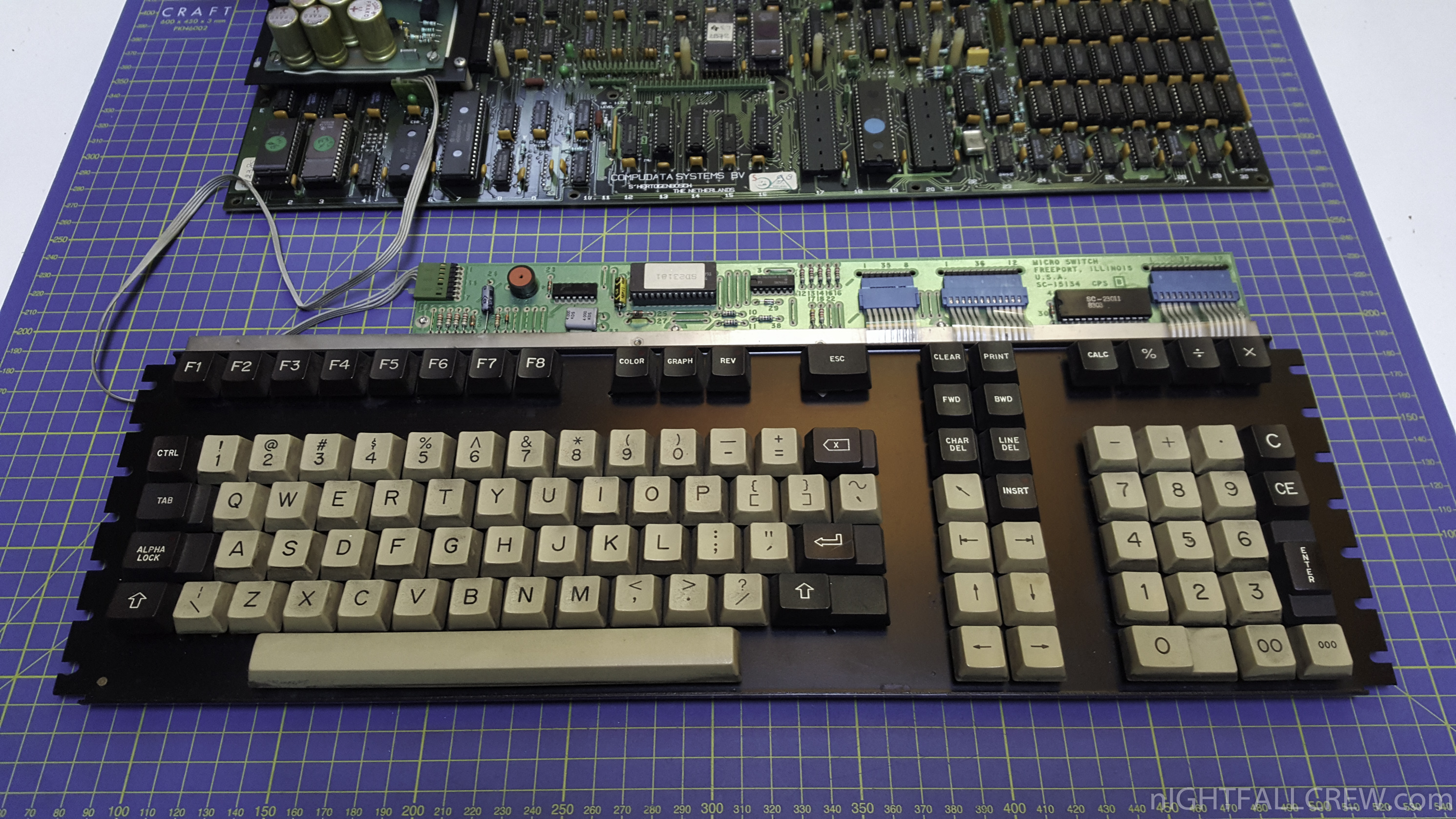

Cleaning & Fix gallery:

Download:

• CompuData Tulip System 1 Eprom Dump (1124)
• TIM 2000 DOS/CPM 2.0 IMD/ImageDisk (681)
