Pioneer LaserActive CLD-A100 – Repair/Recap & Modules full Recap.
Defects:
- The Game cartridges on the Sega Genesis Module do not work but the games on CD-ROM work correctly.

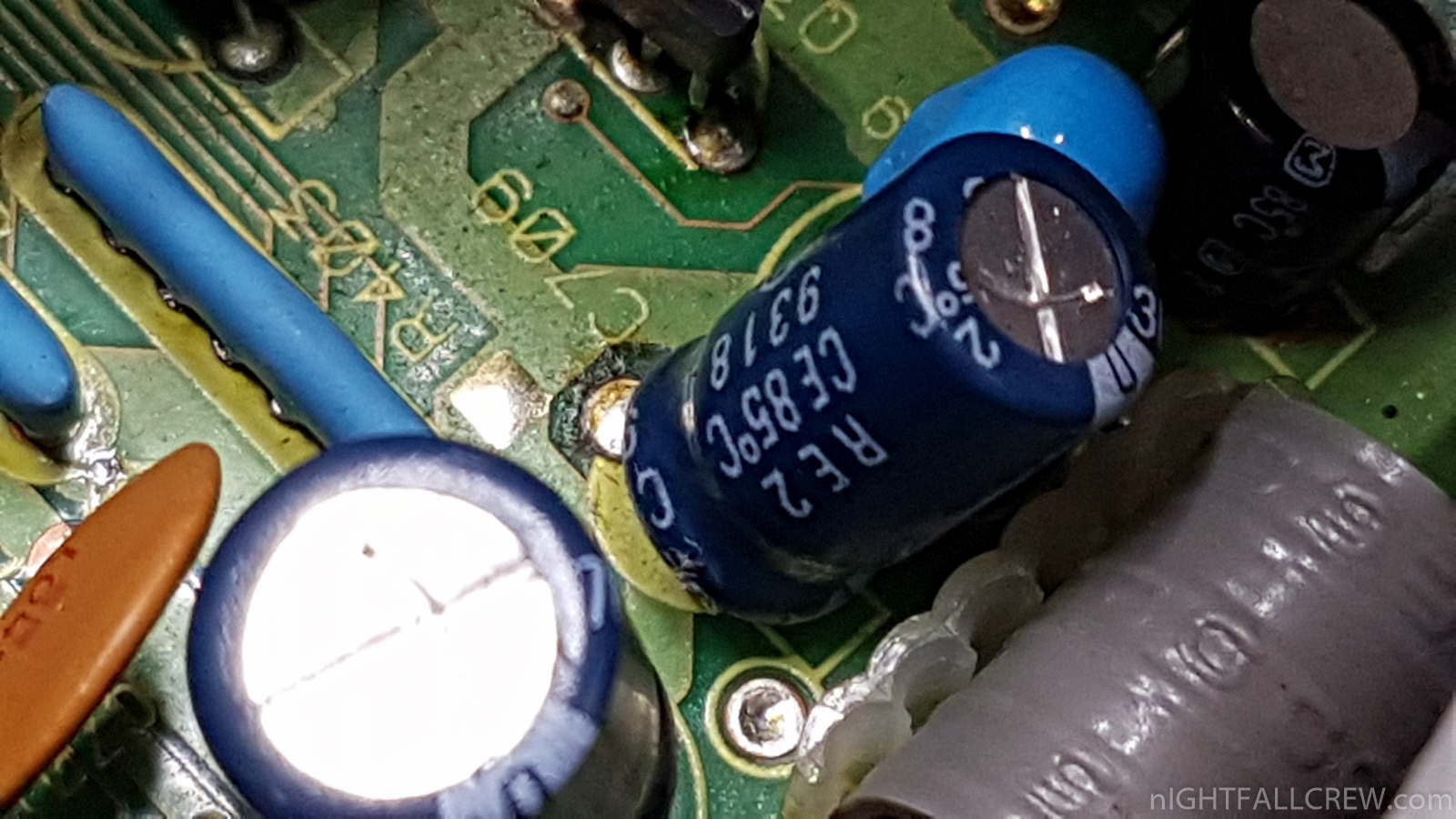

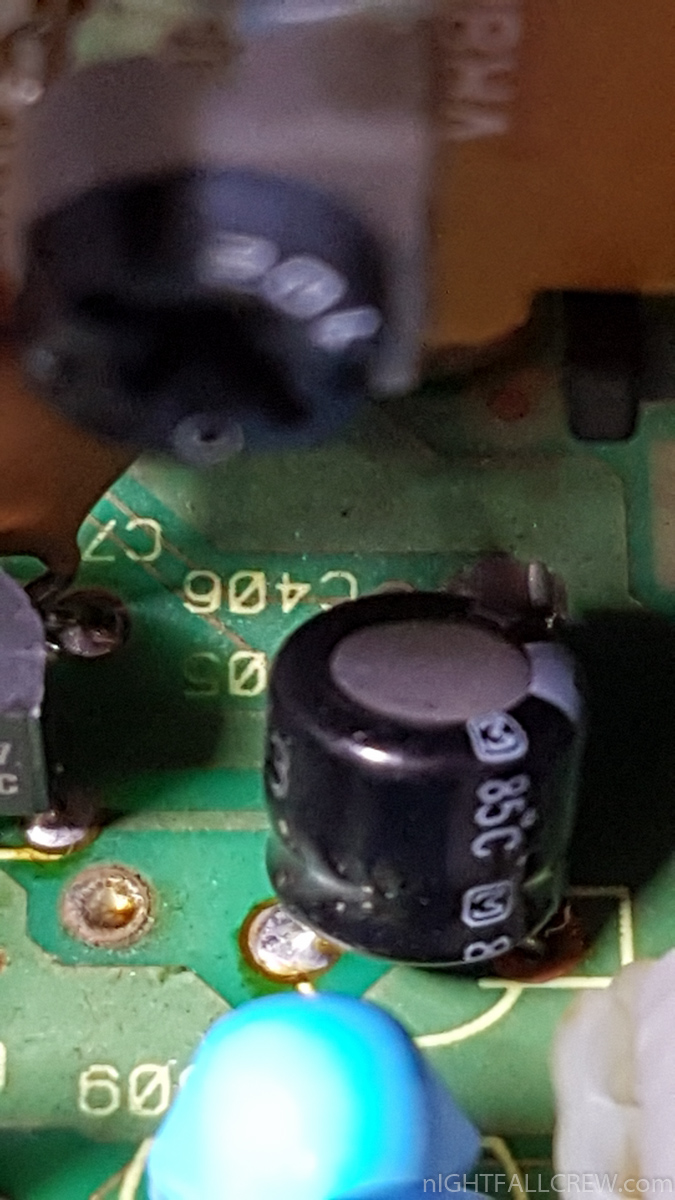

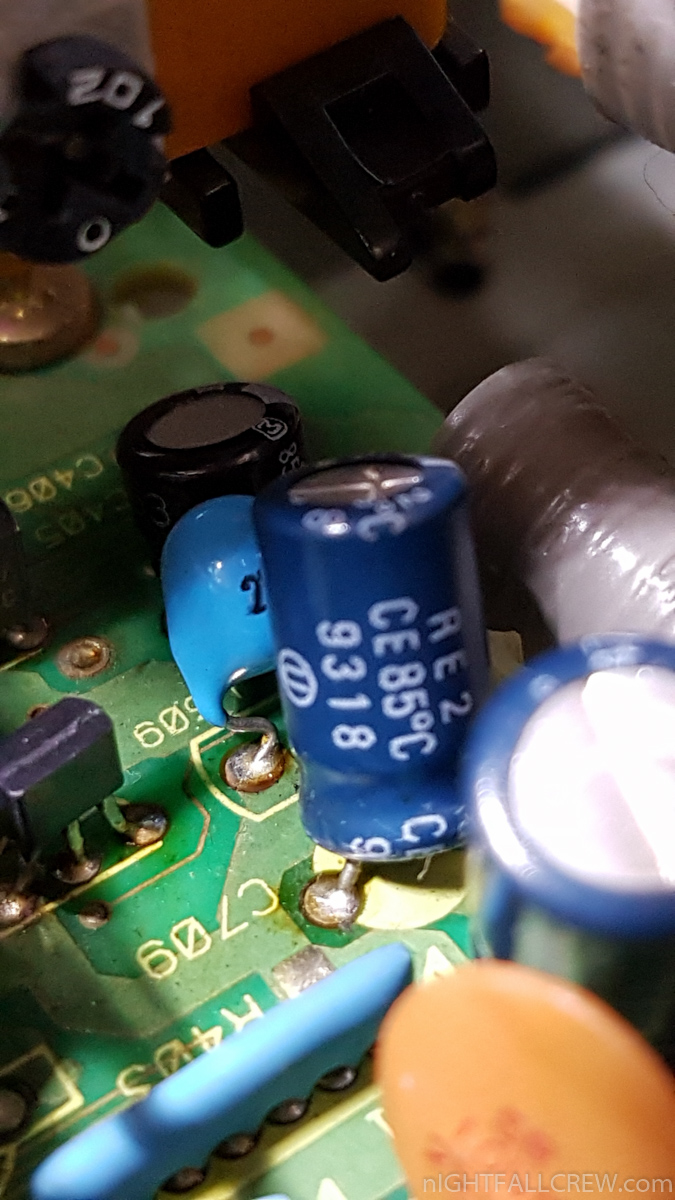

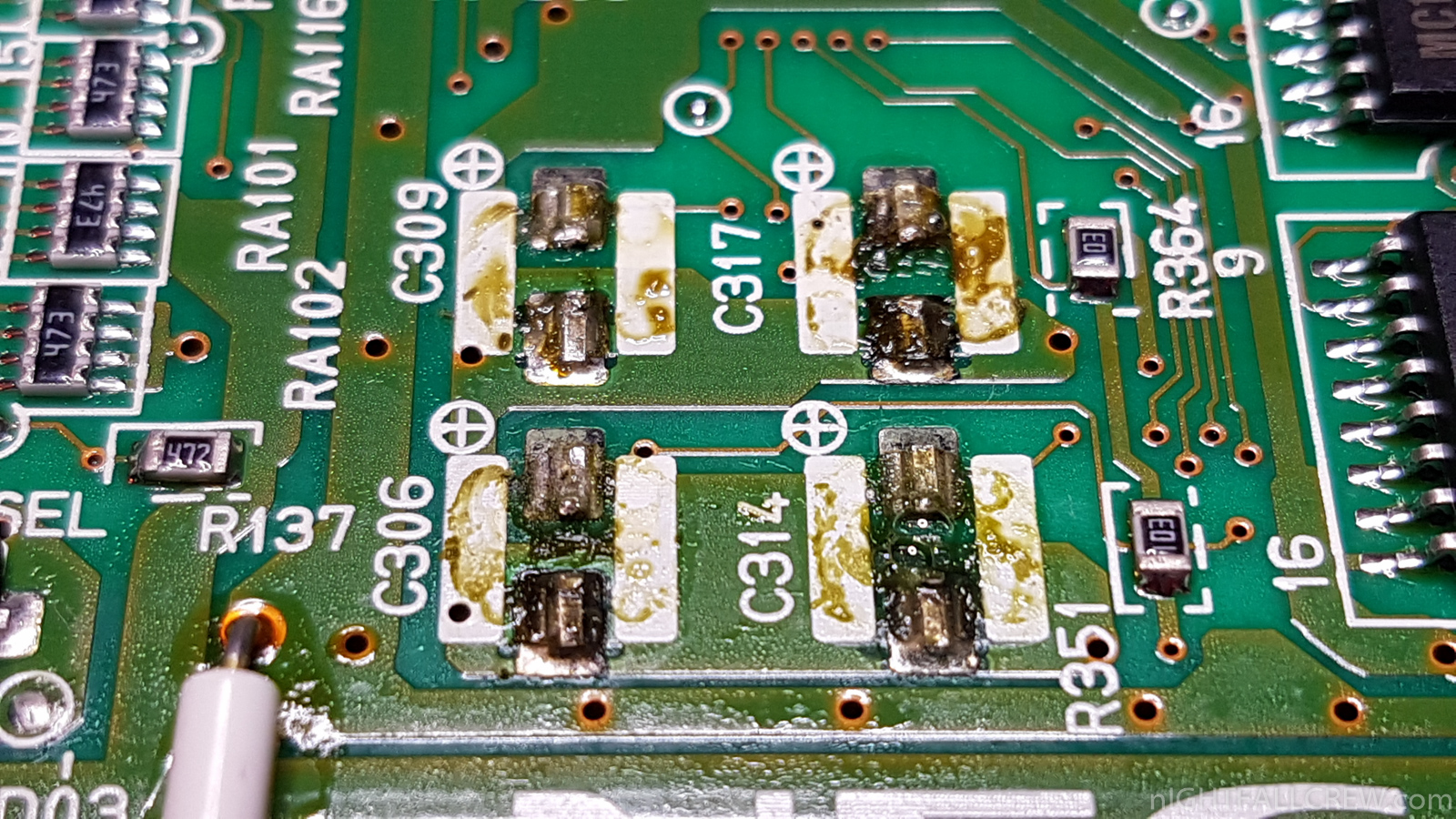

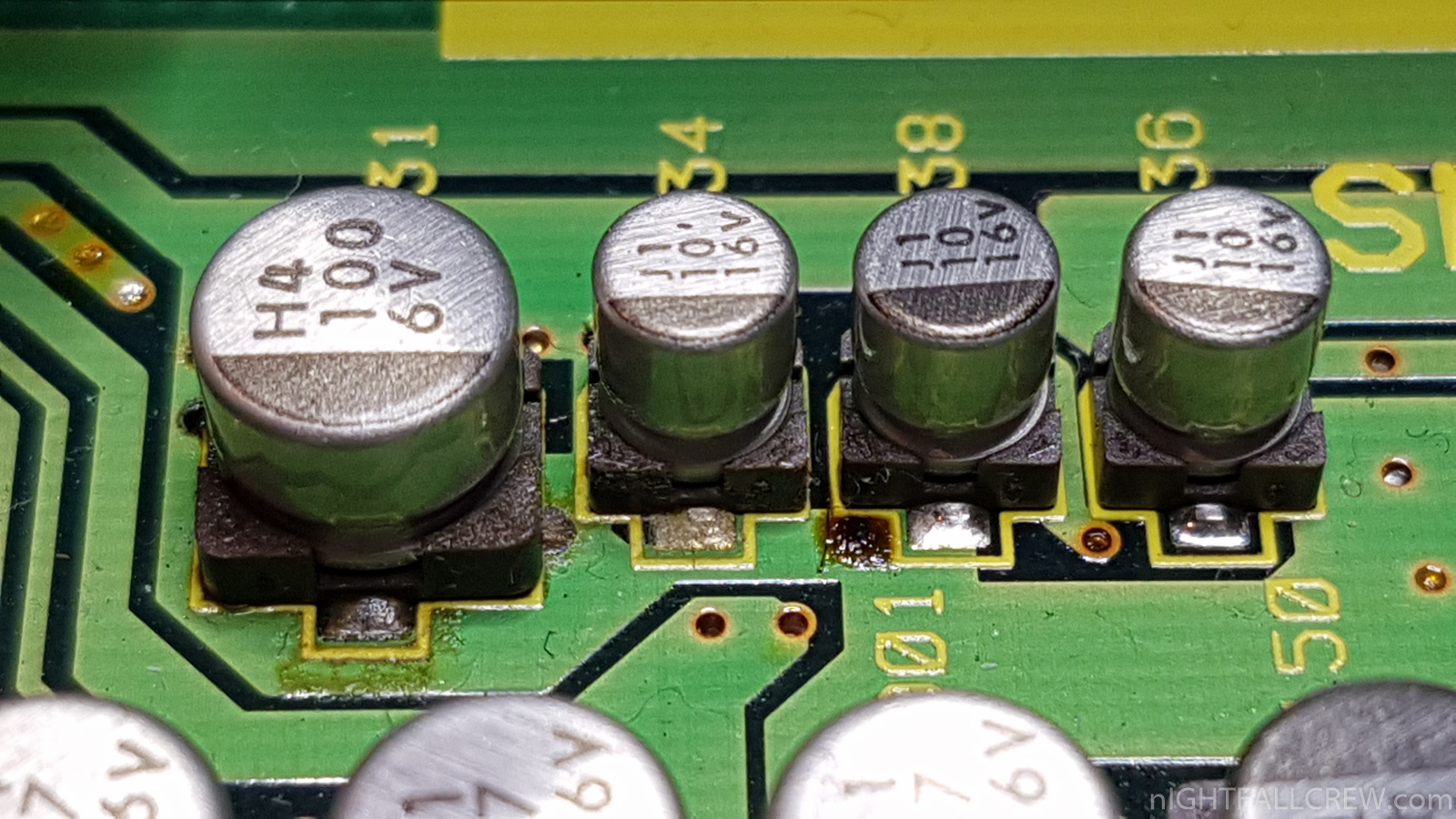

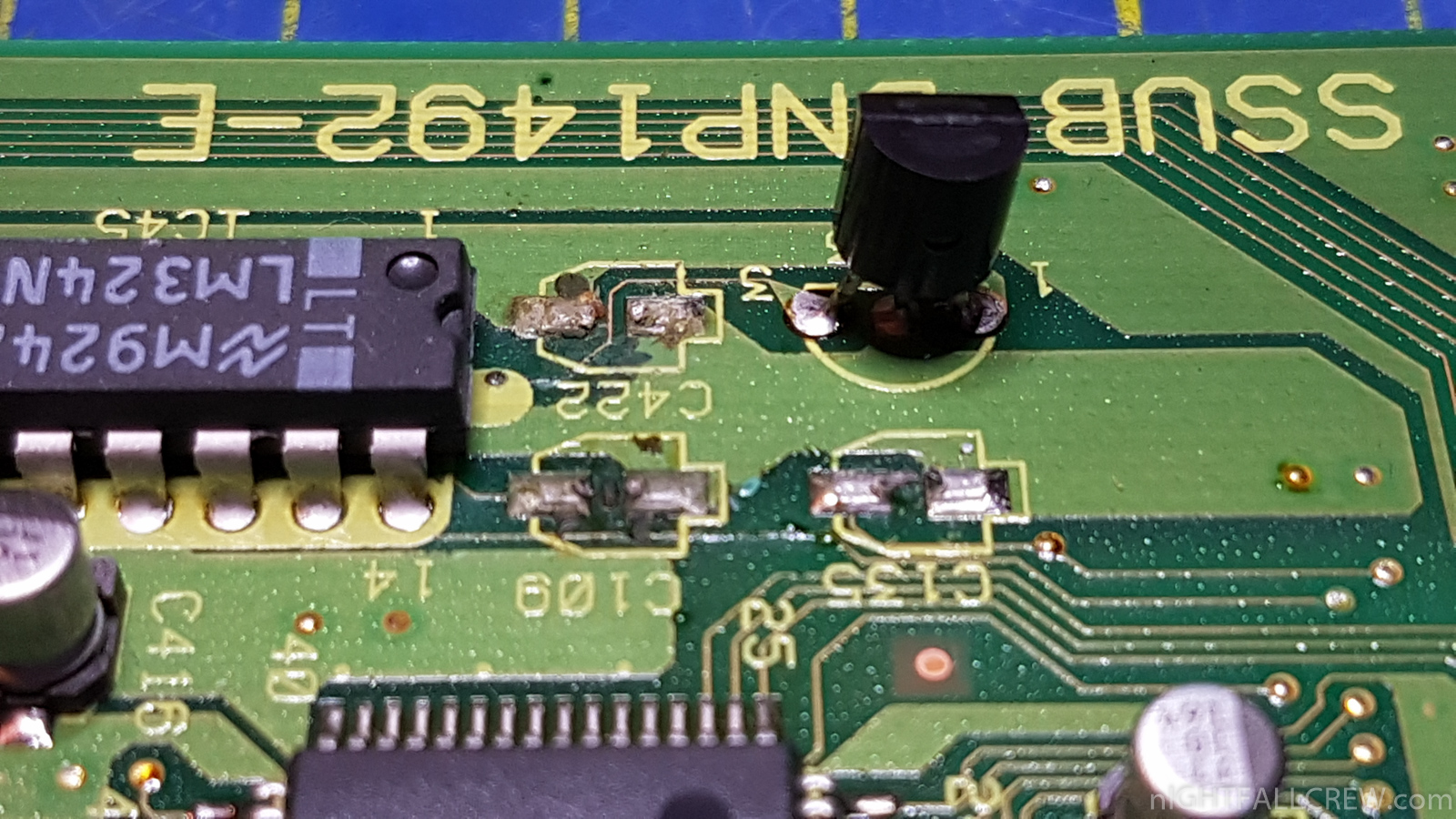

- The INTF Ass’y Interface has some leakage capacitors and in short circuit.

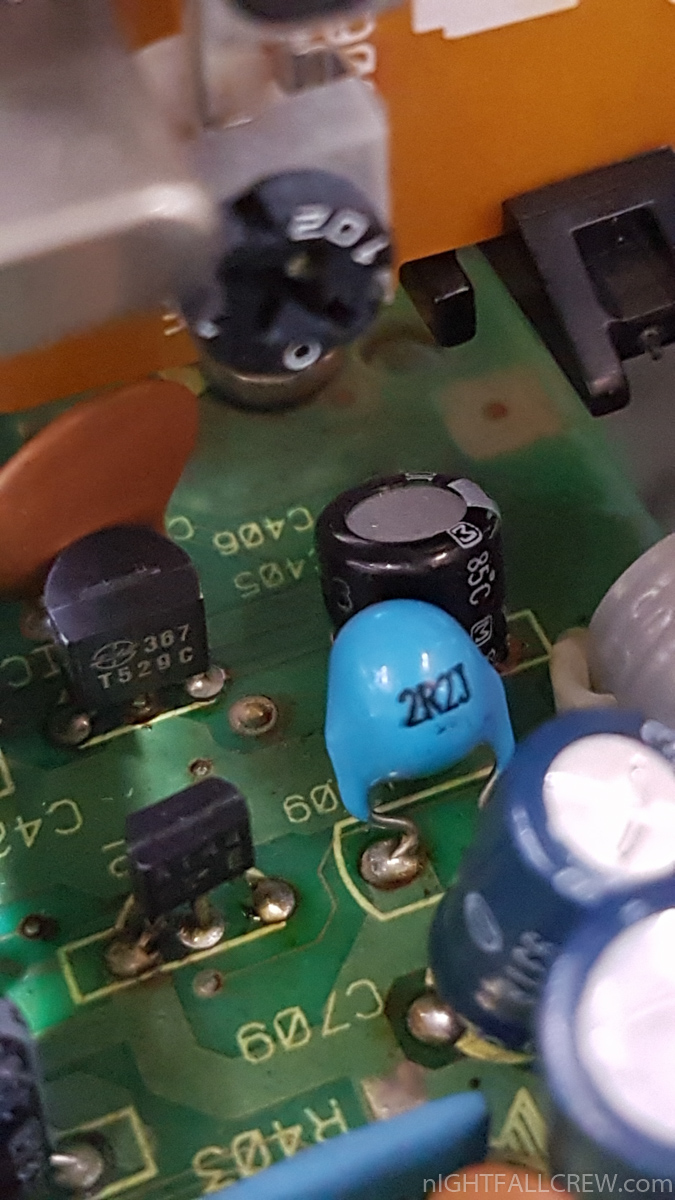

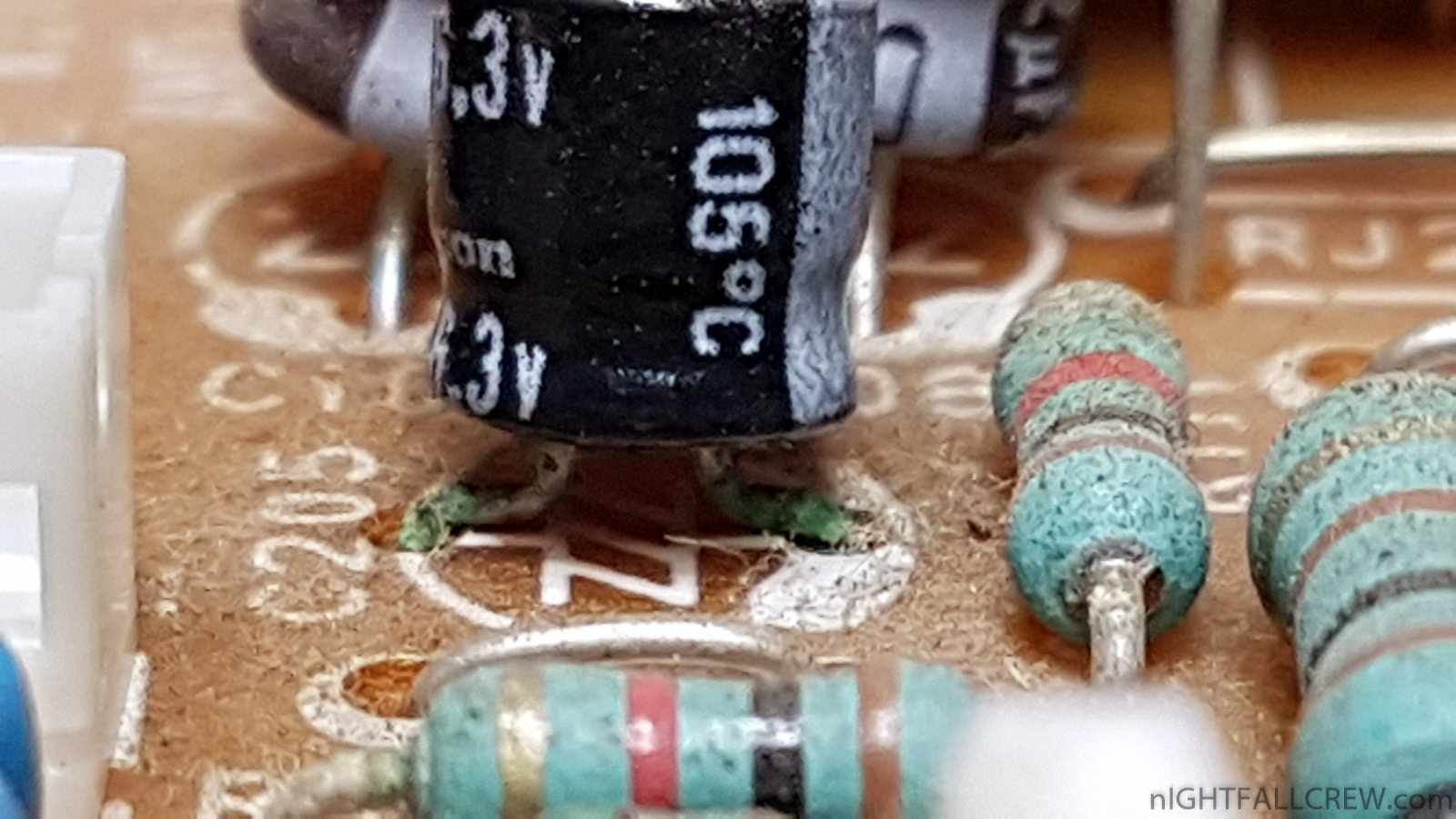

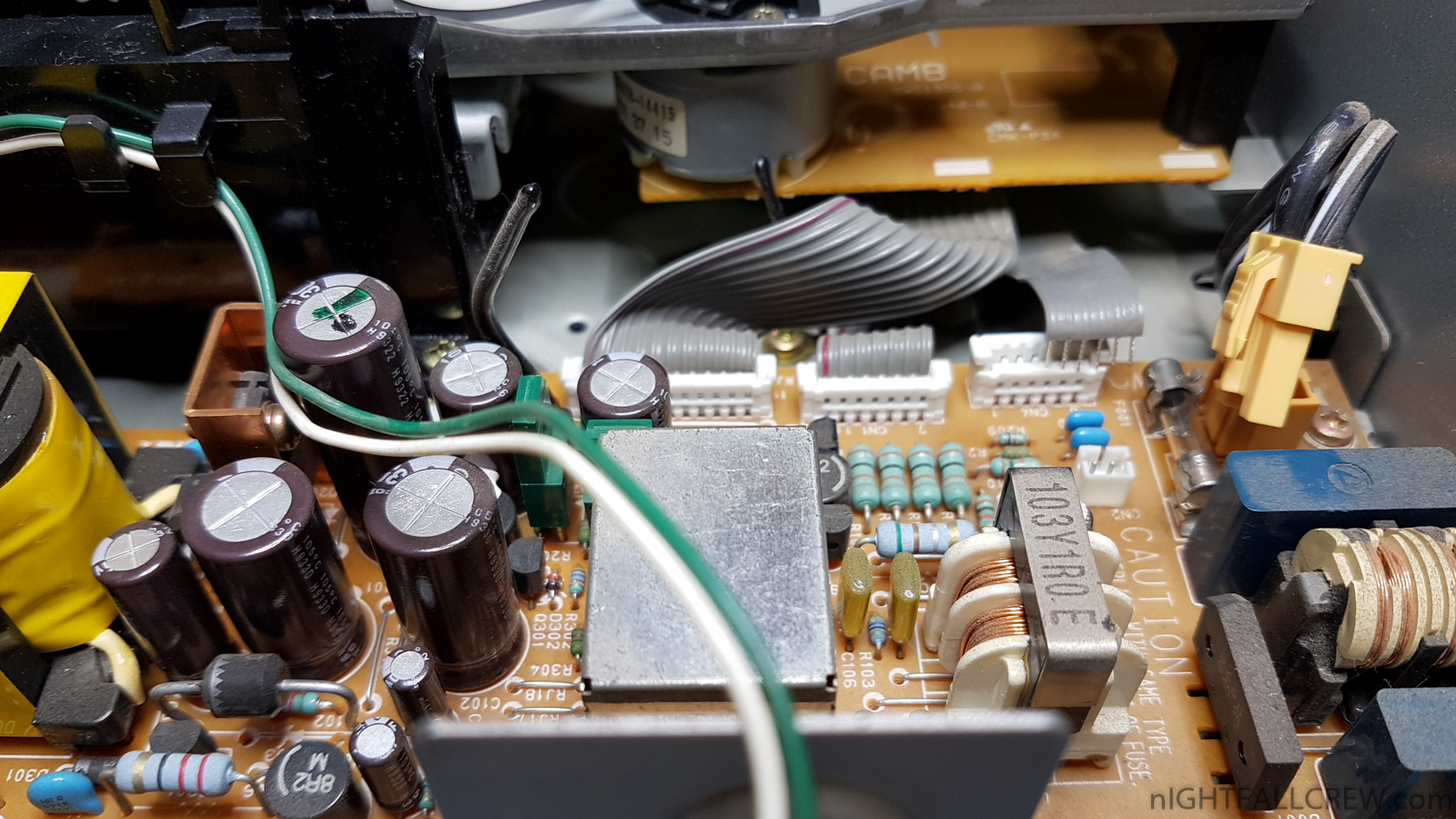

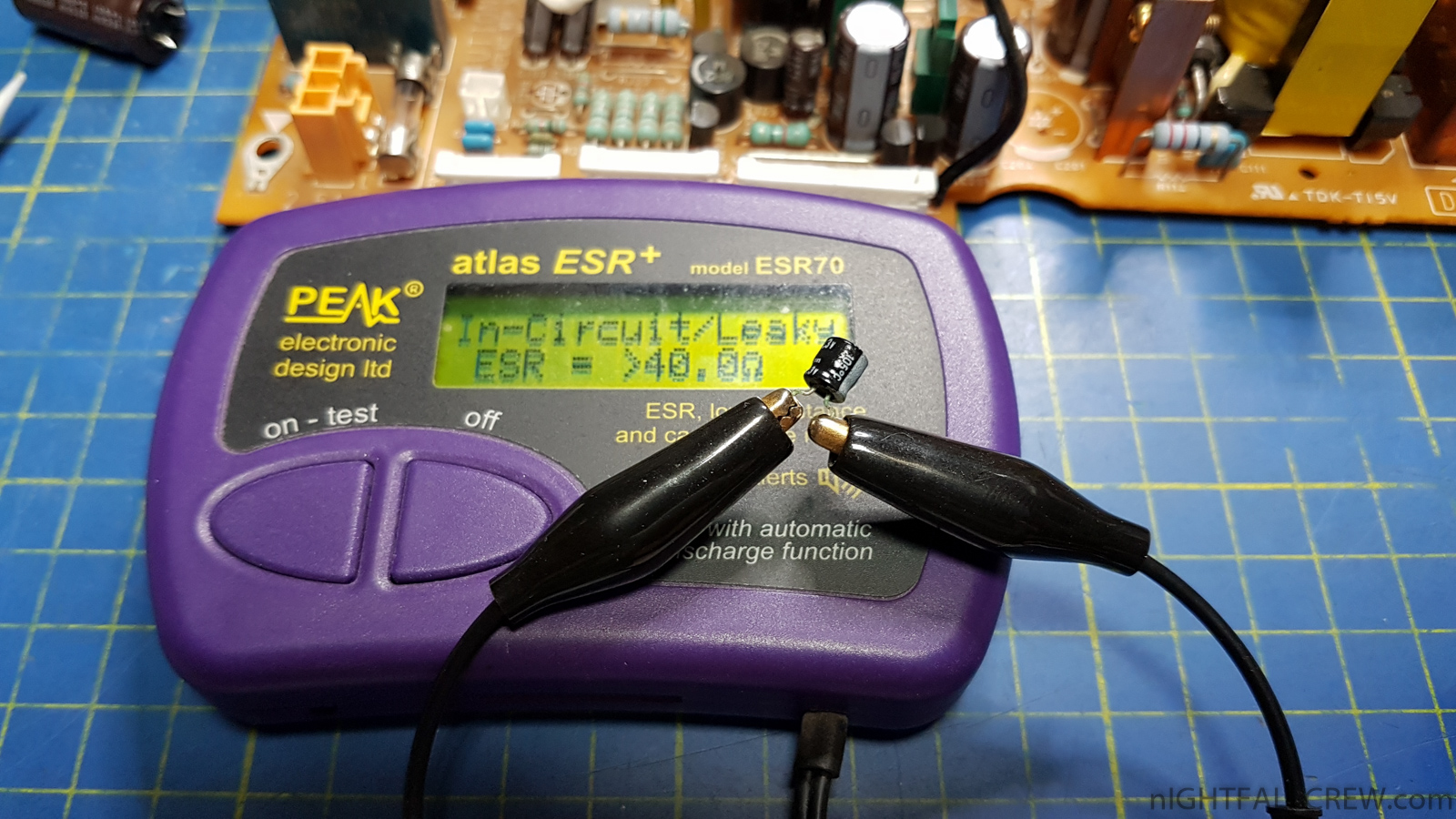

- The PSU has some leakage capacitors and in short circuit.

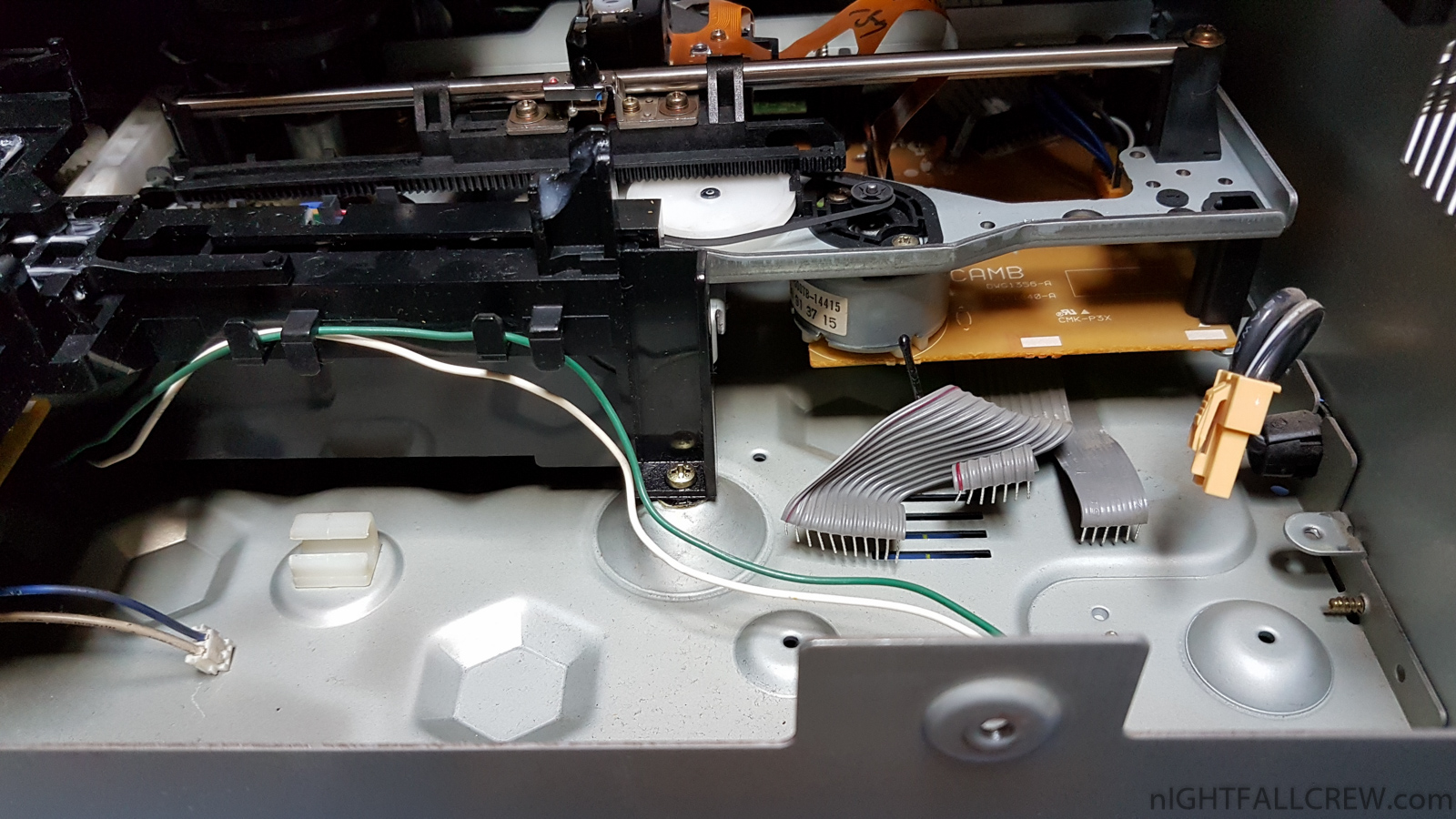

- Solder joint jumped out on the three connectors that connect the two horizzonal/vertical motherboards.
- Some cold solder on the power stage.

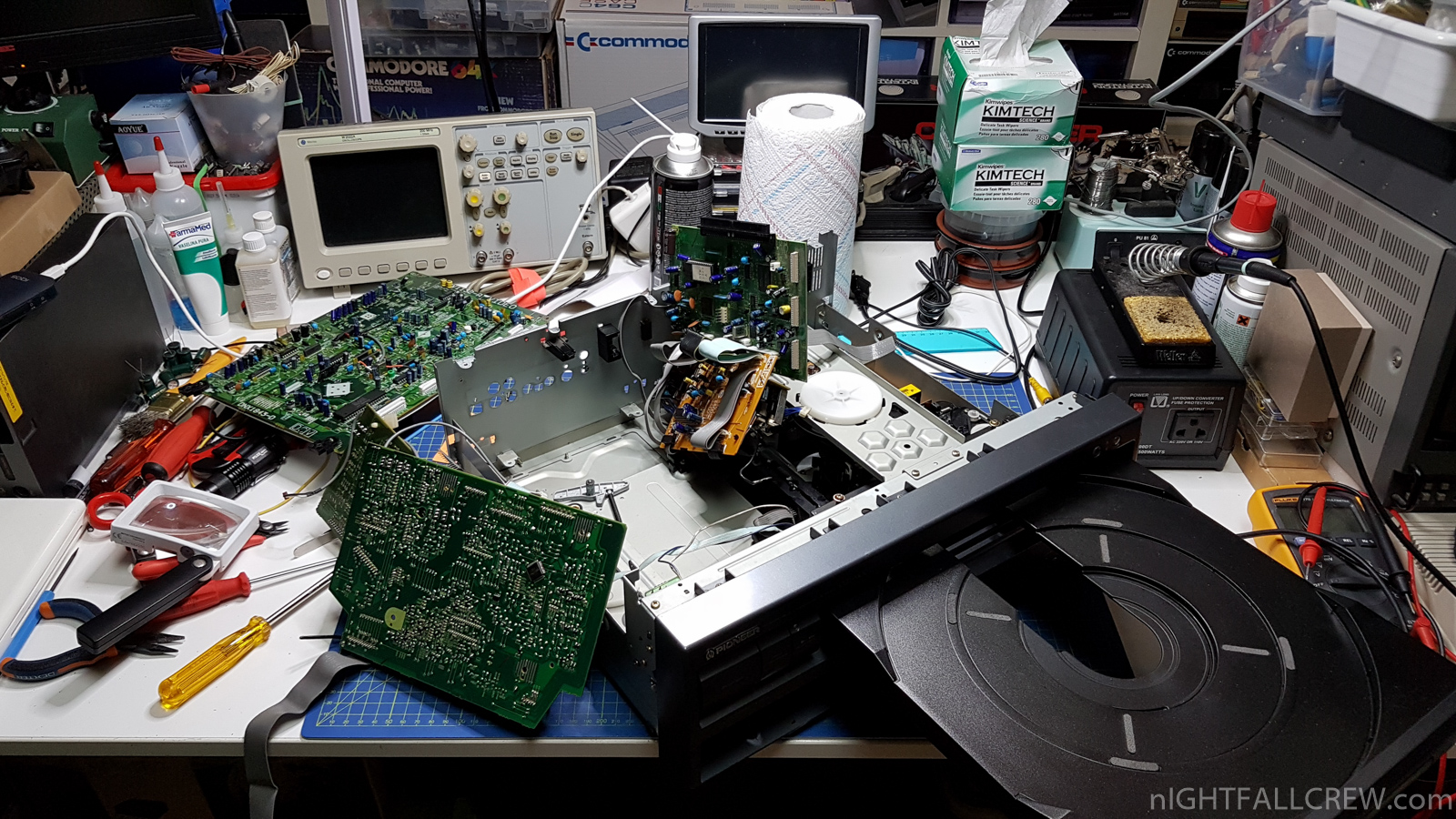

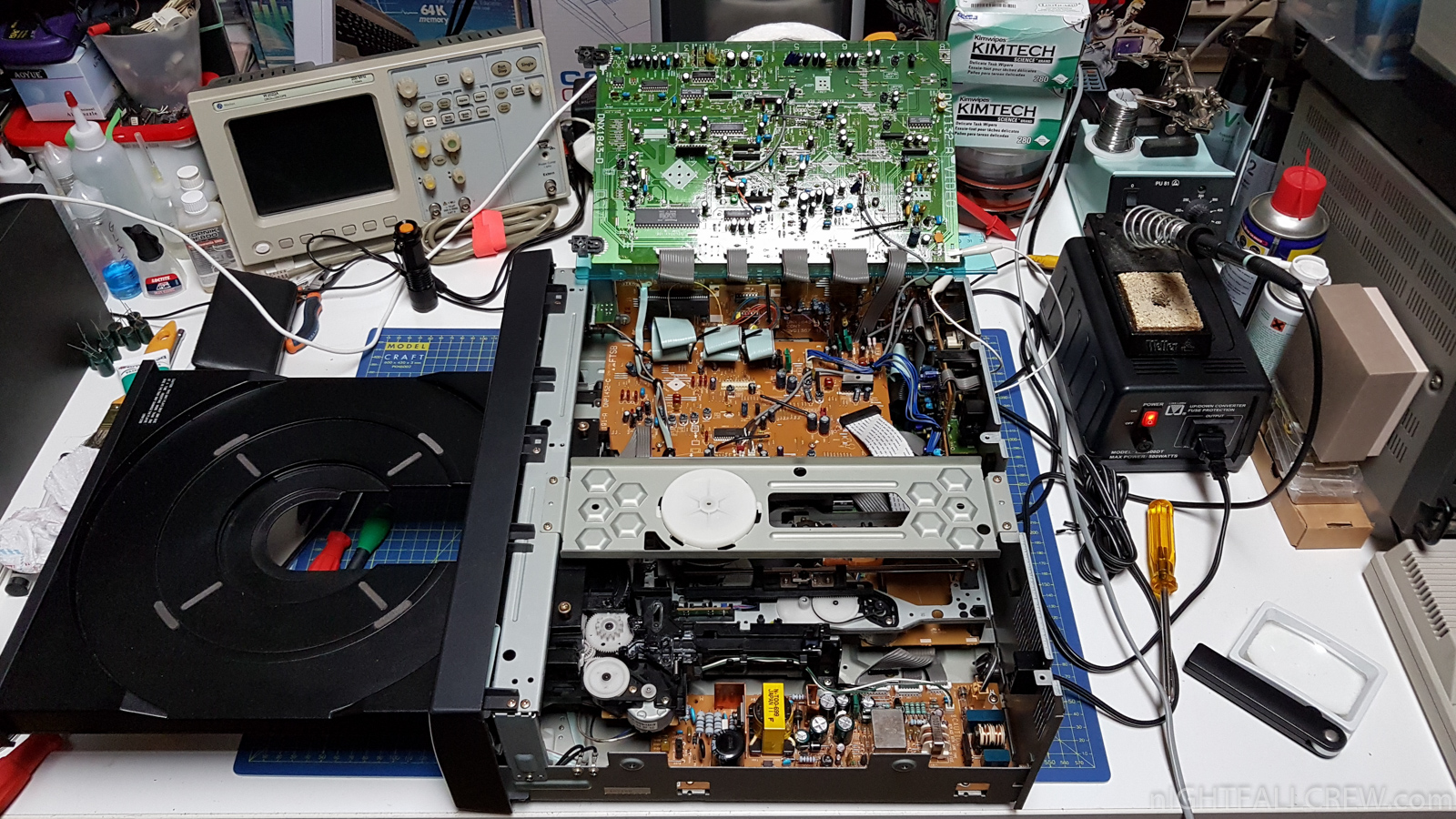

Works that have been done:

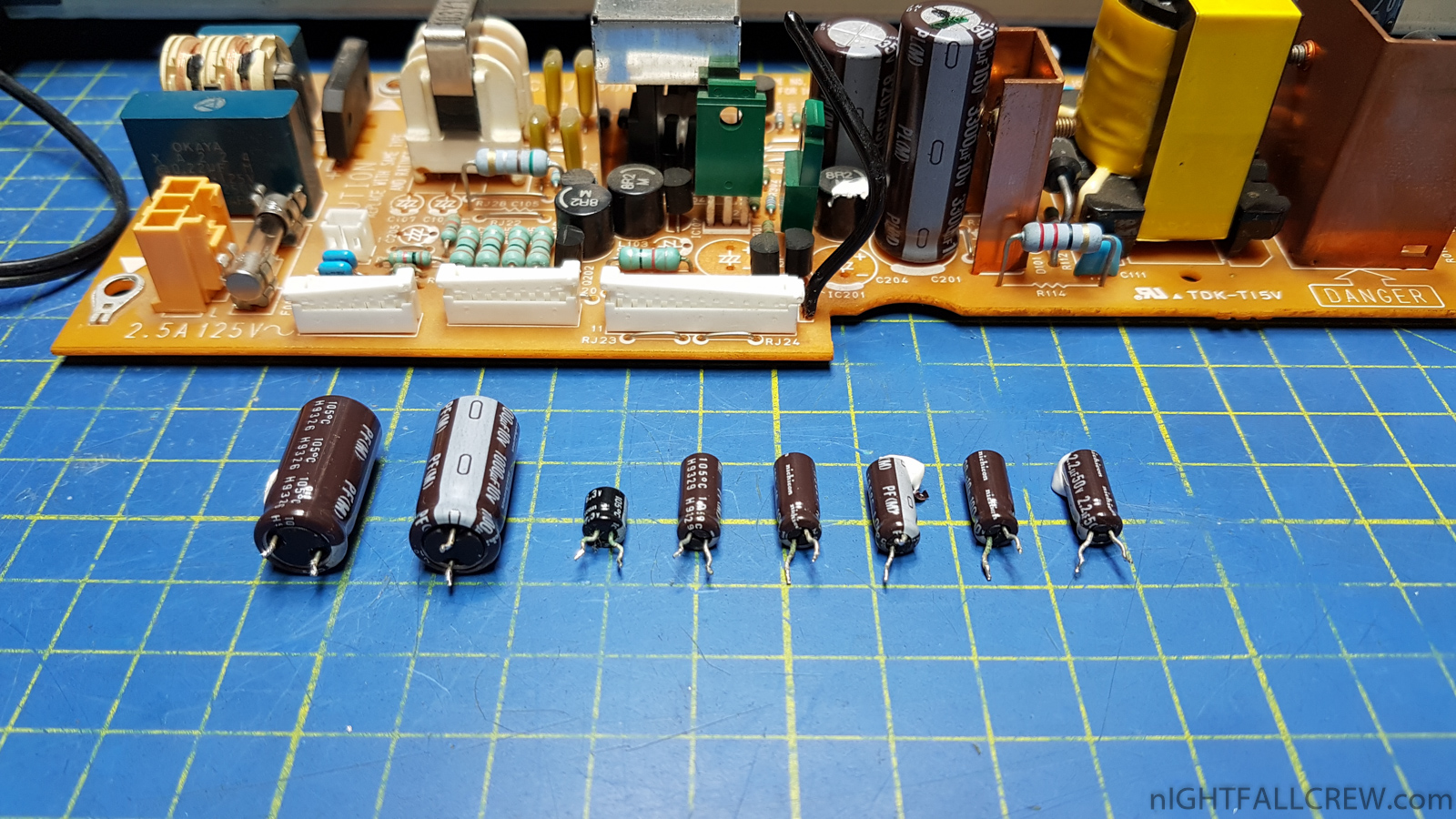

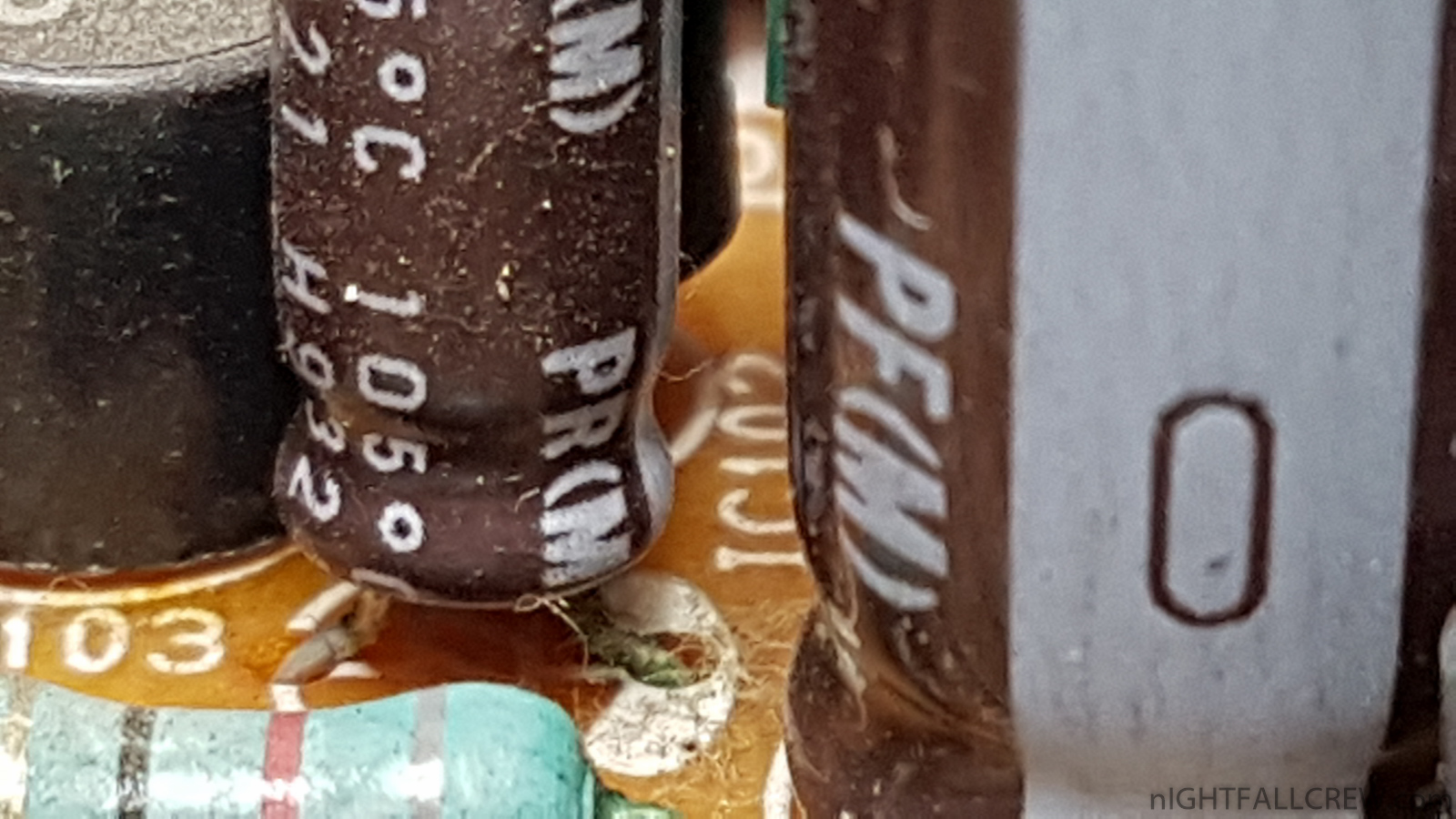

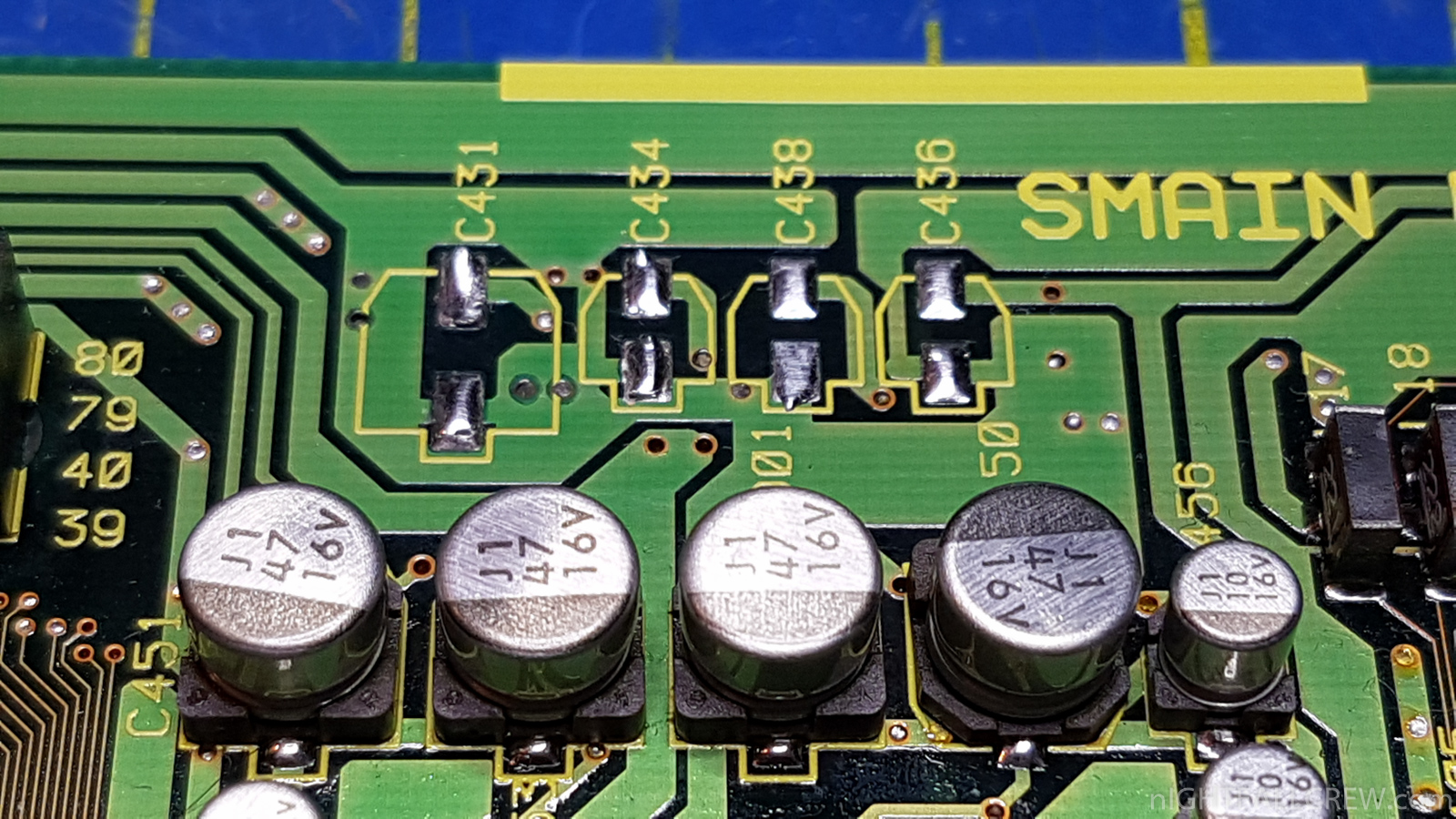

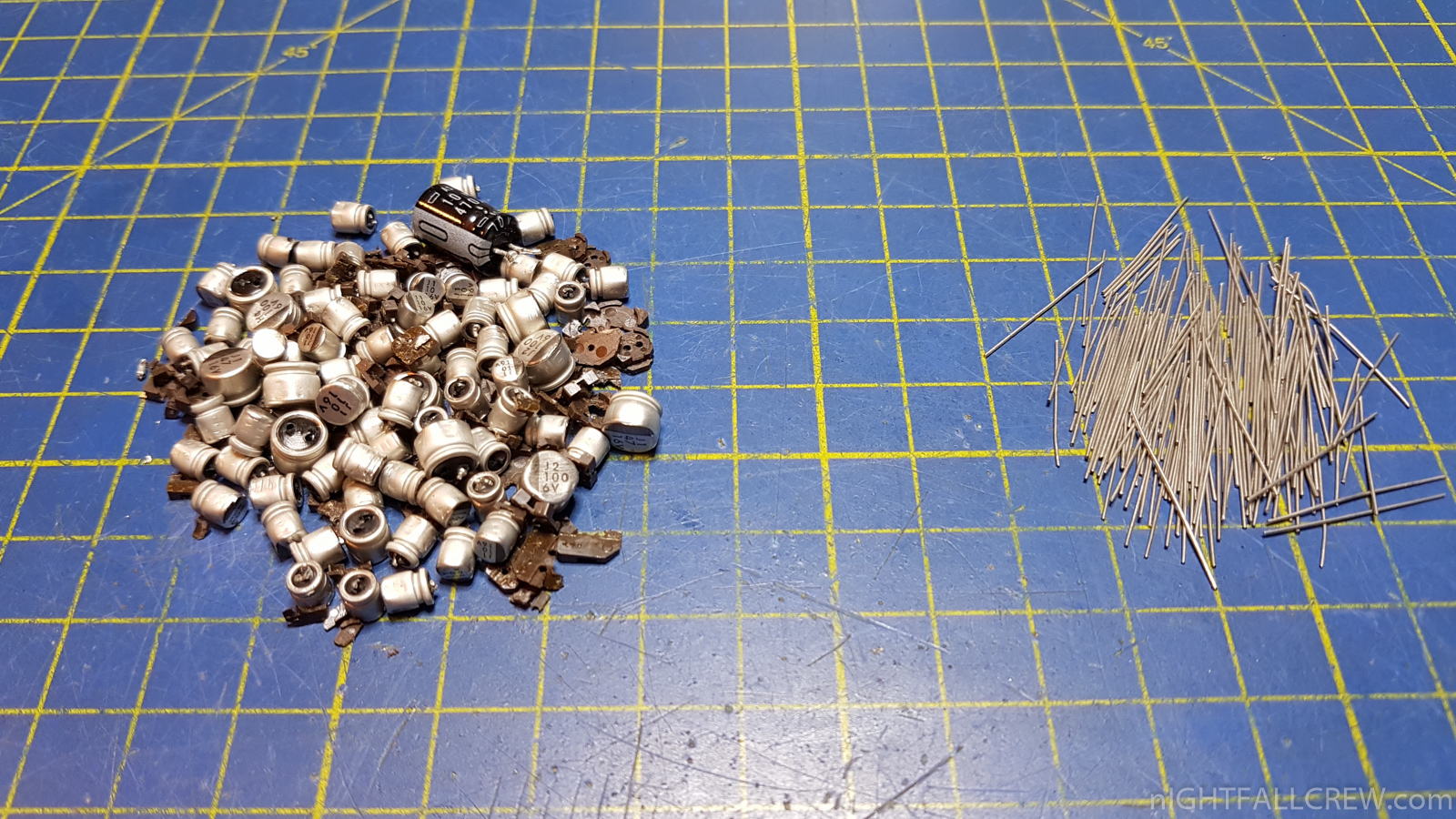

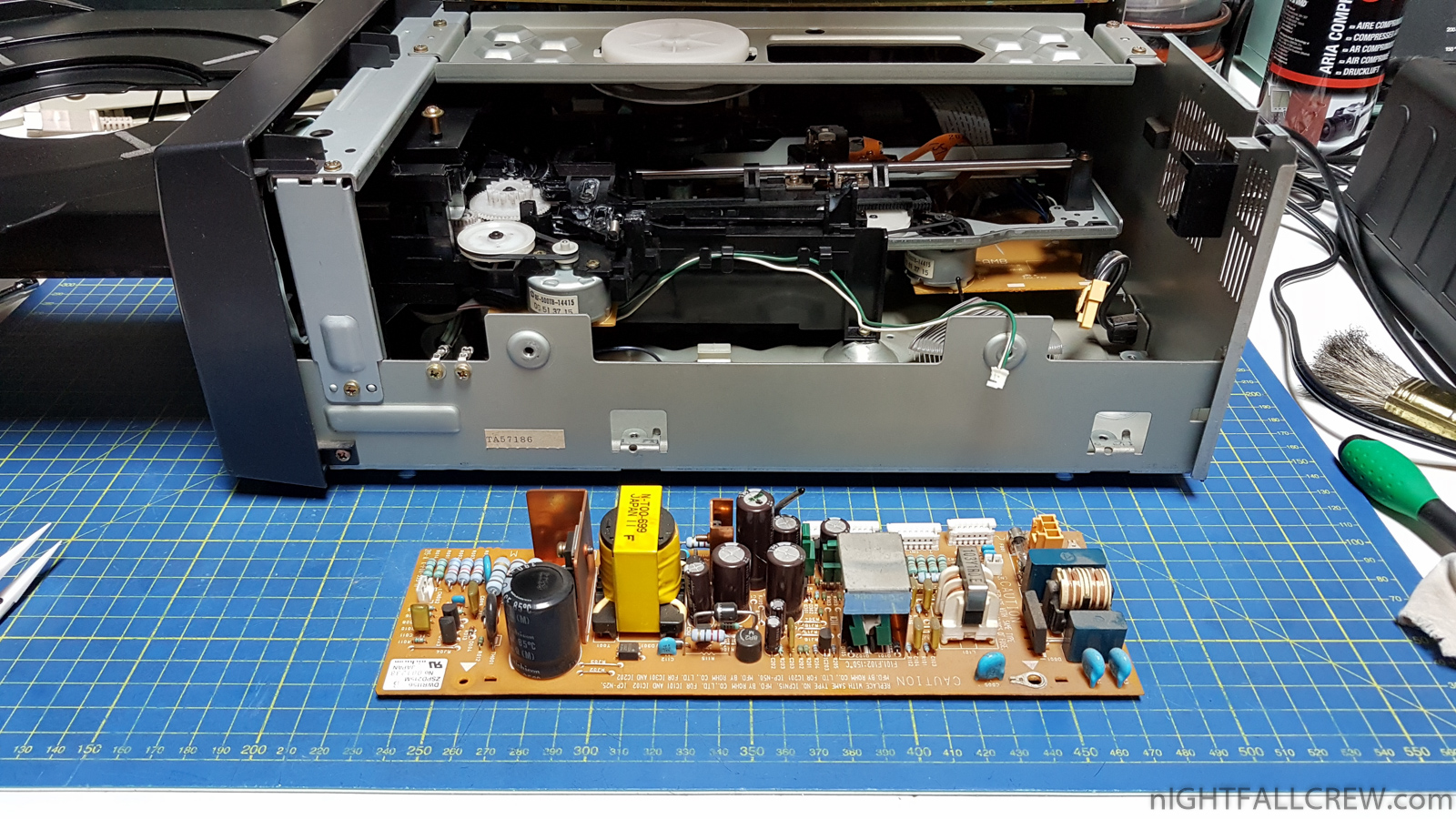

- Cleaning and Full Recap PSU.

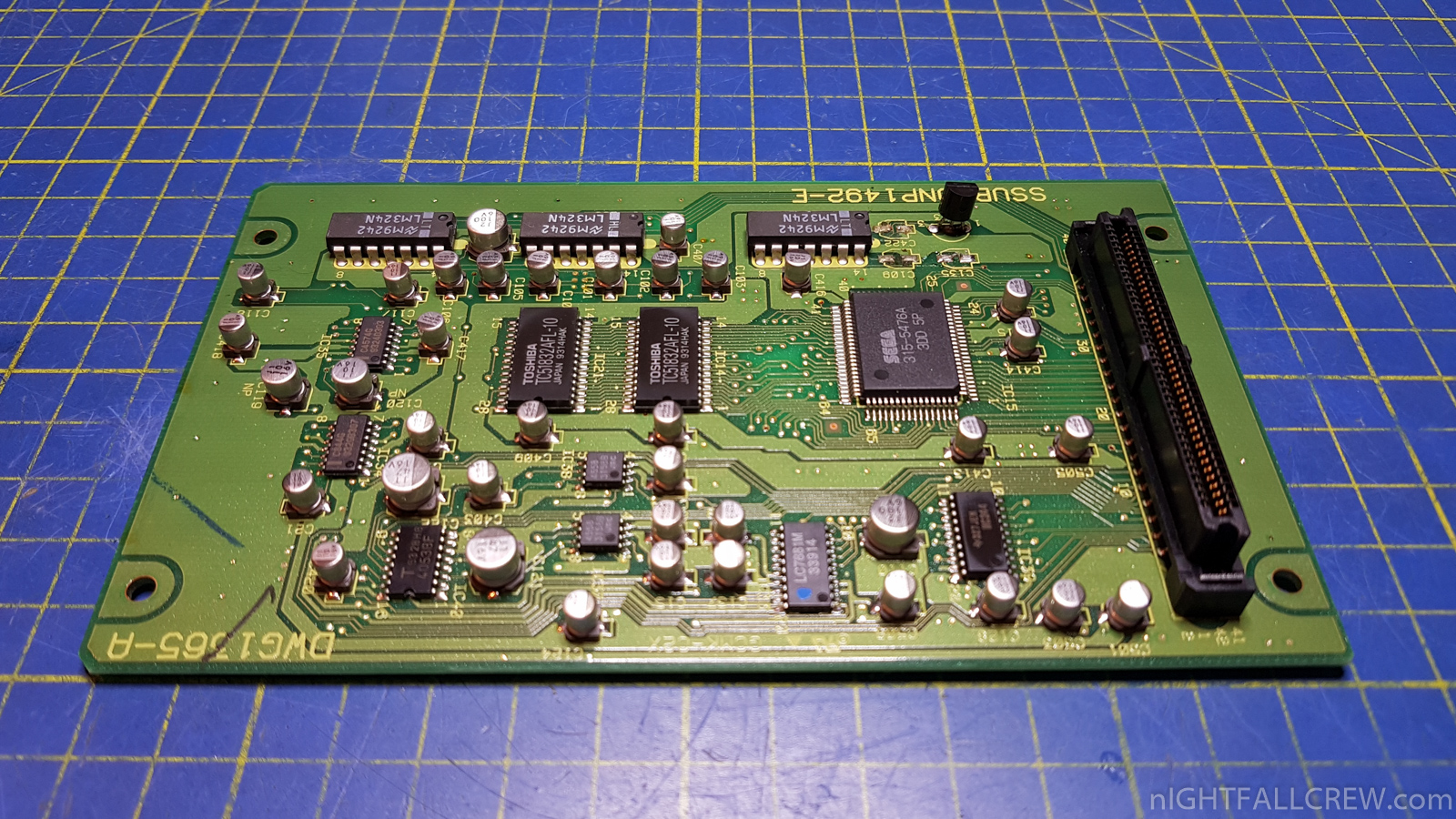

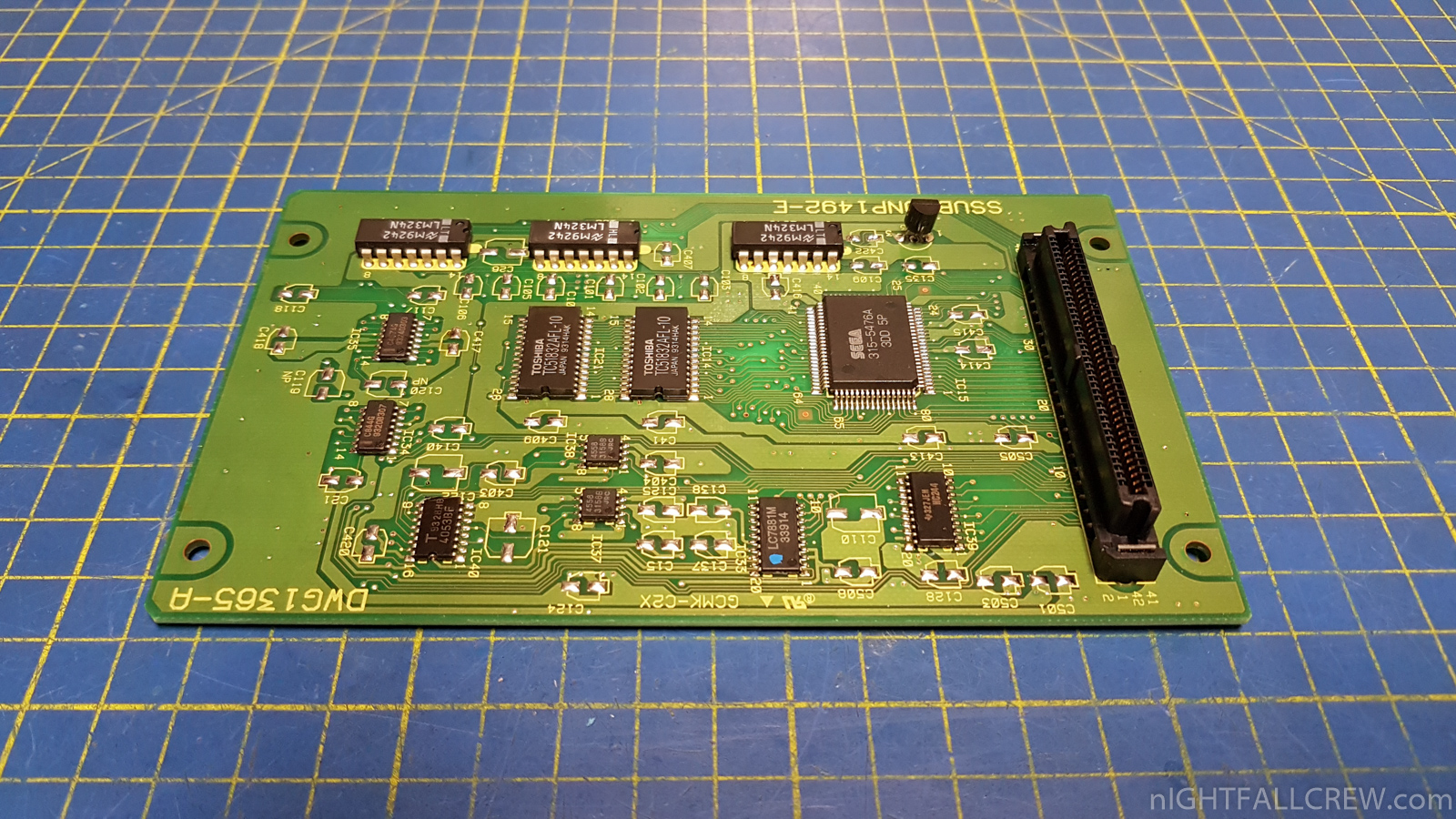

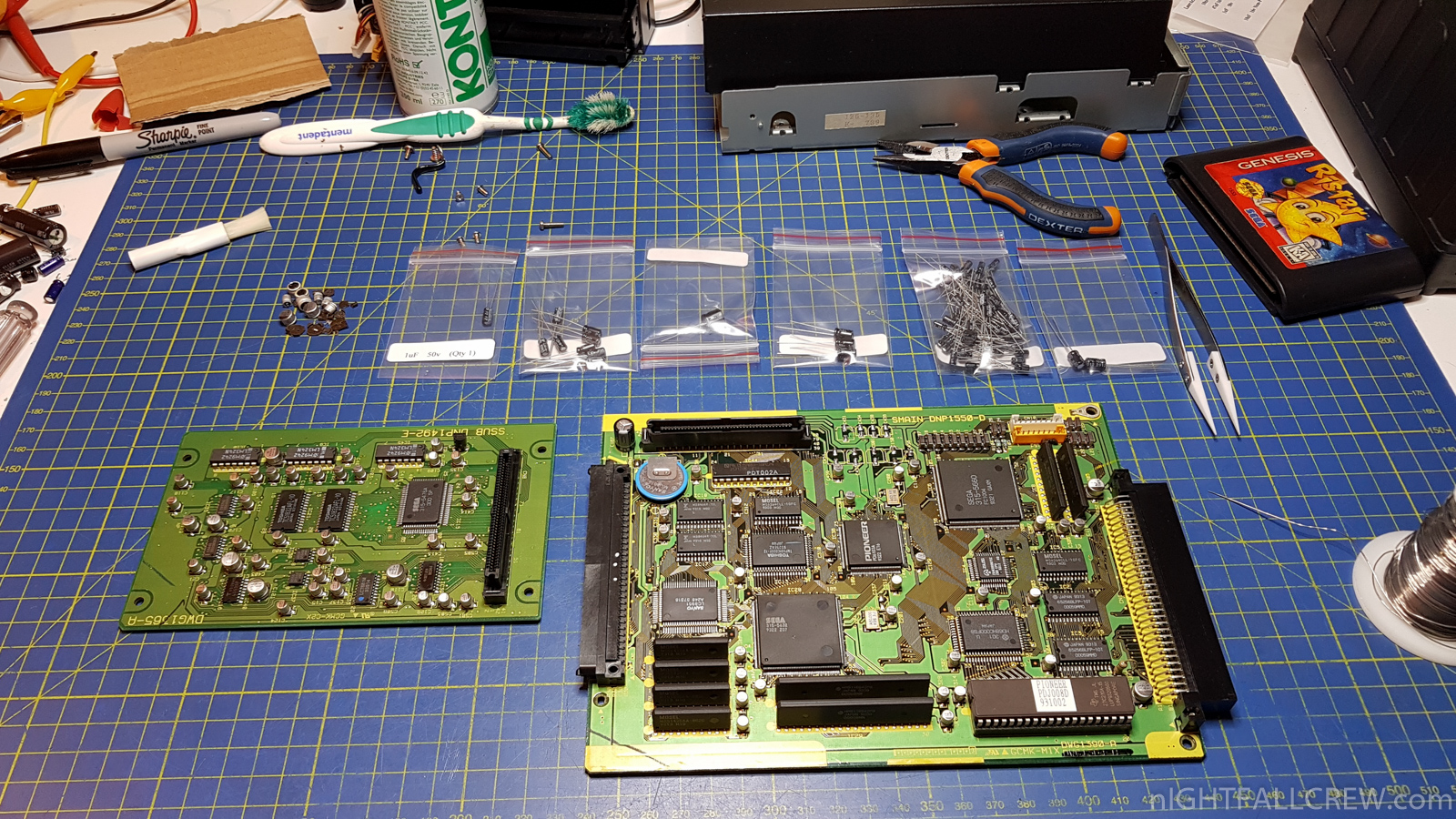

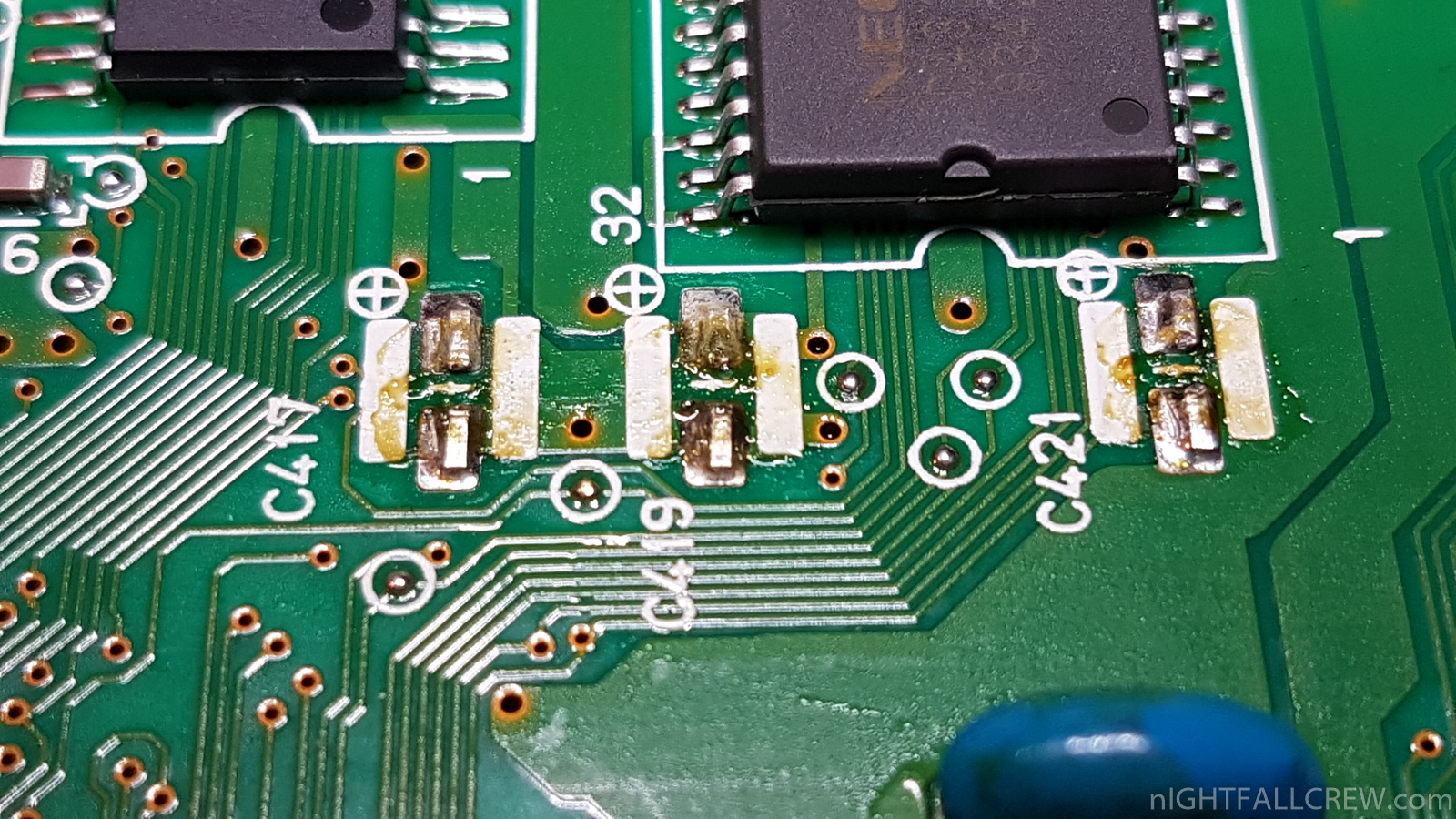

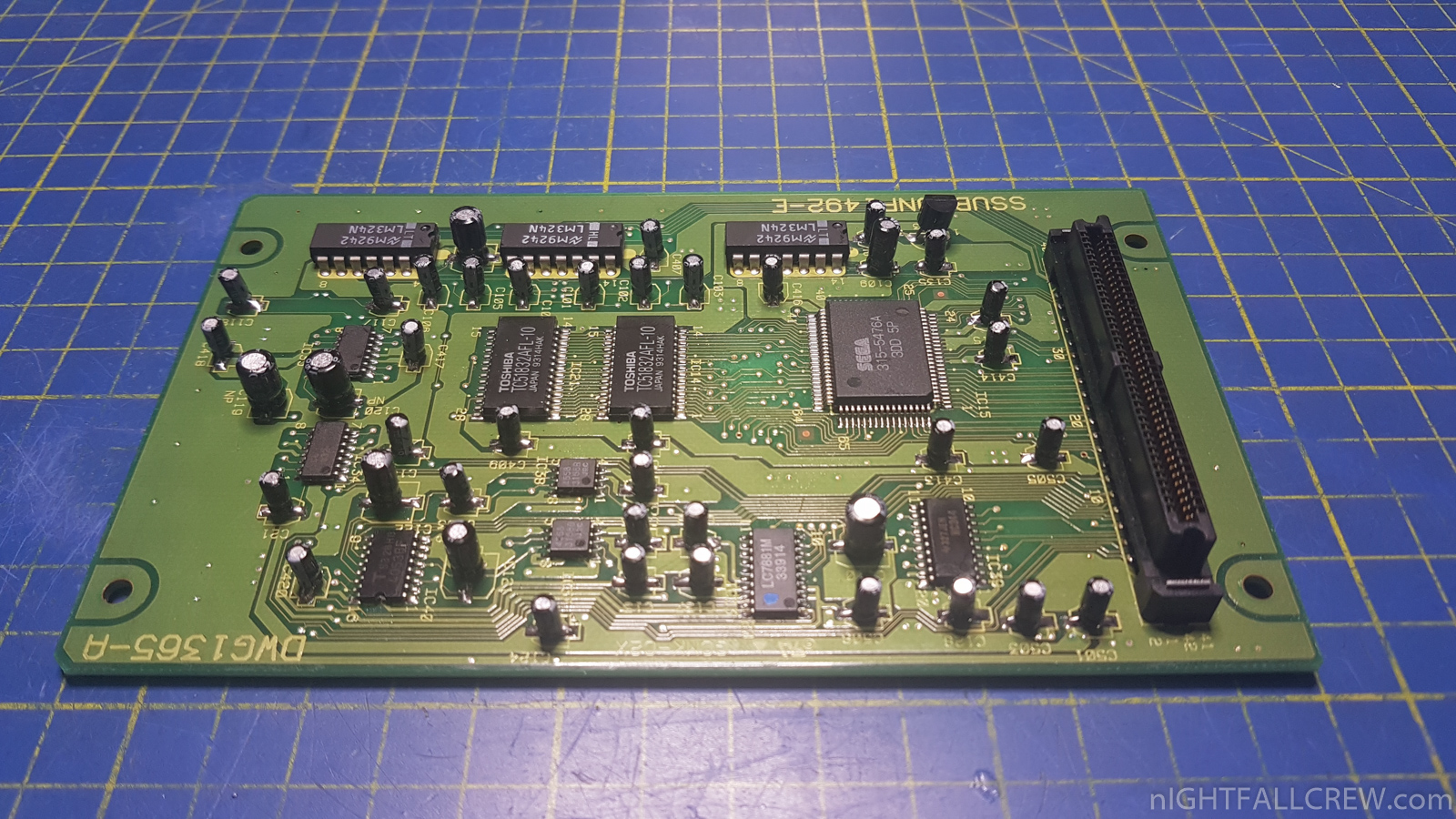

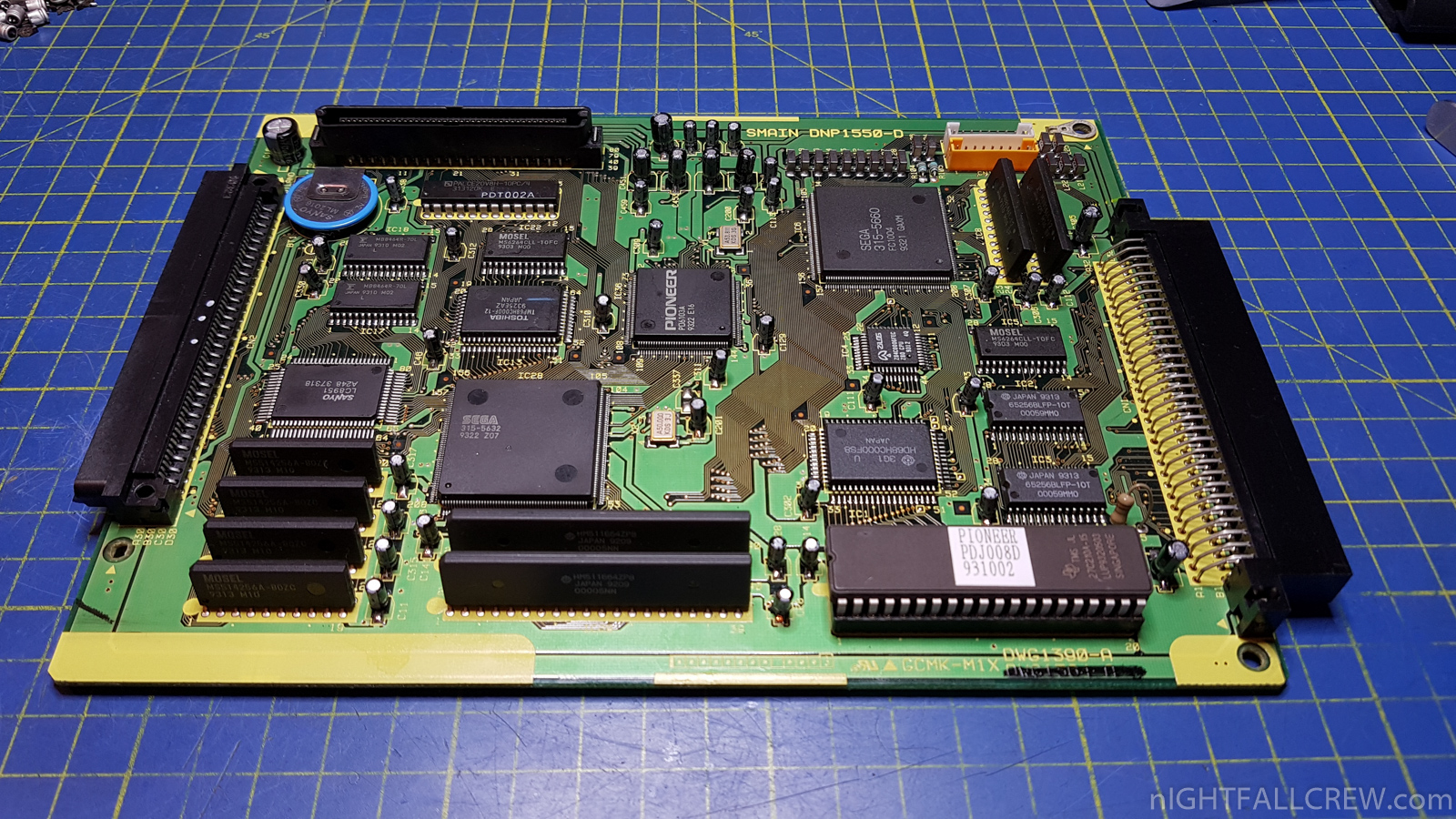

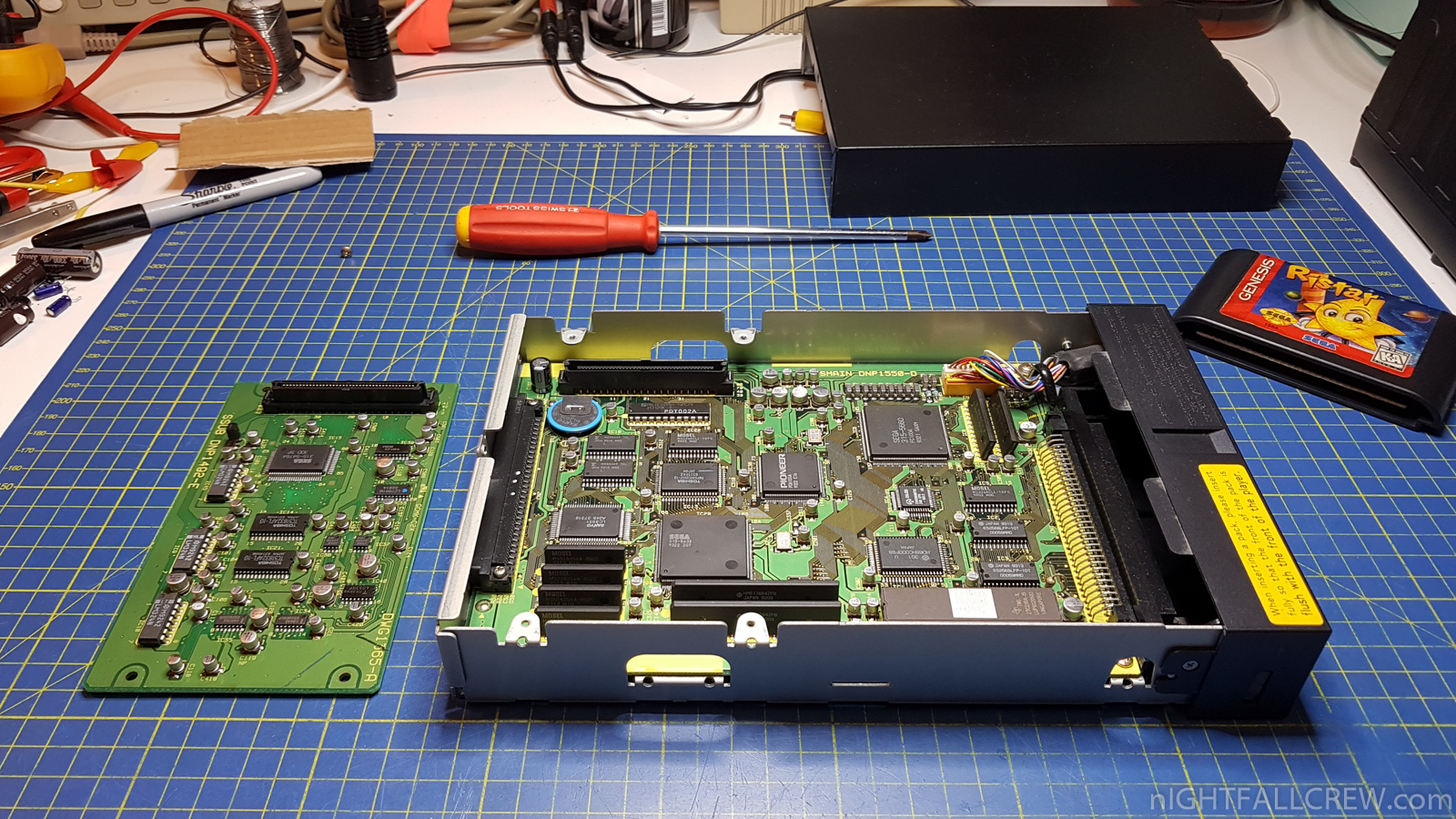

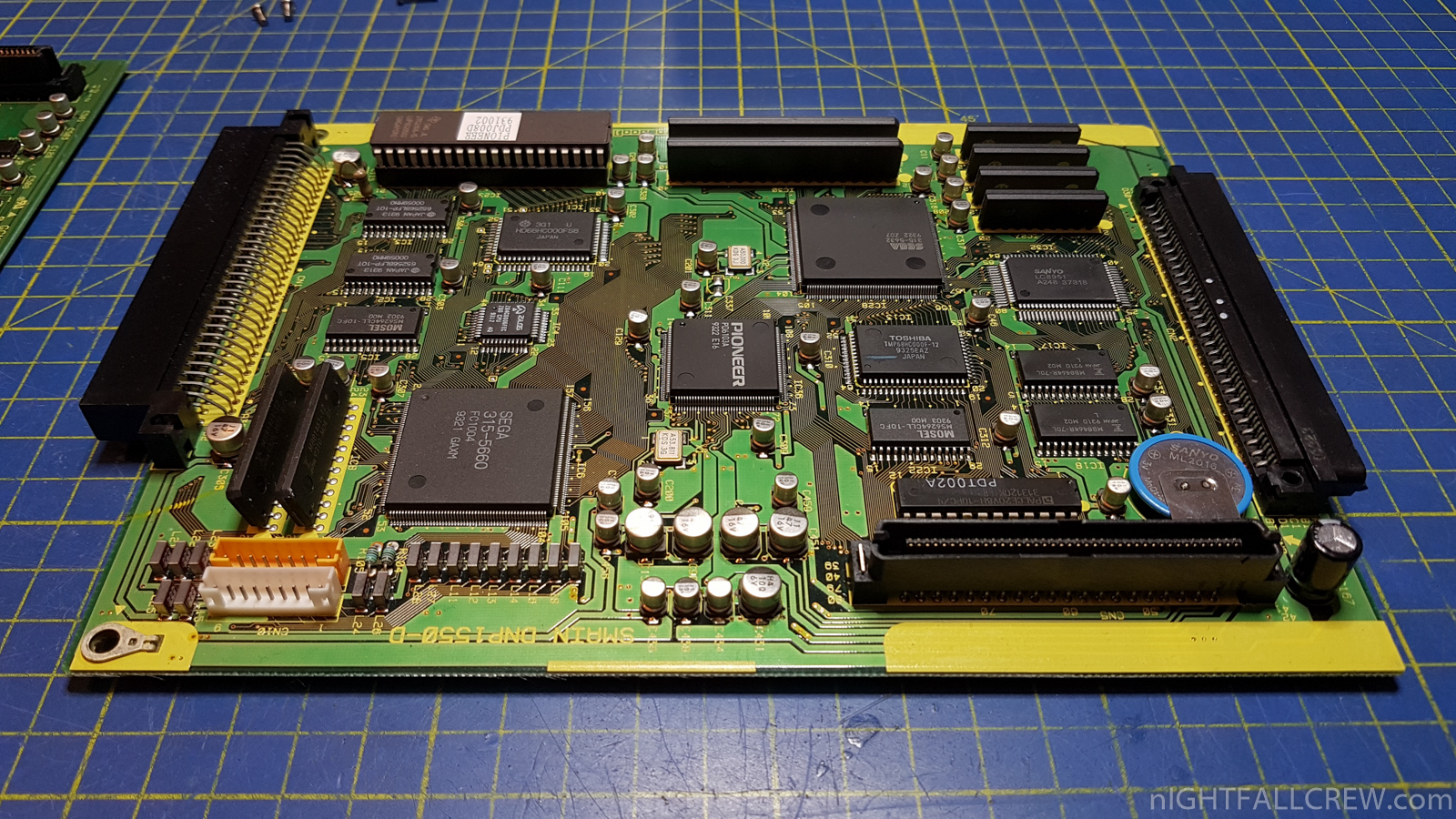

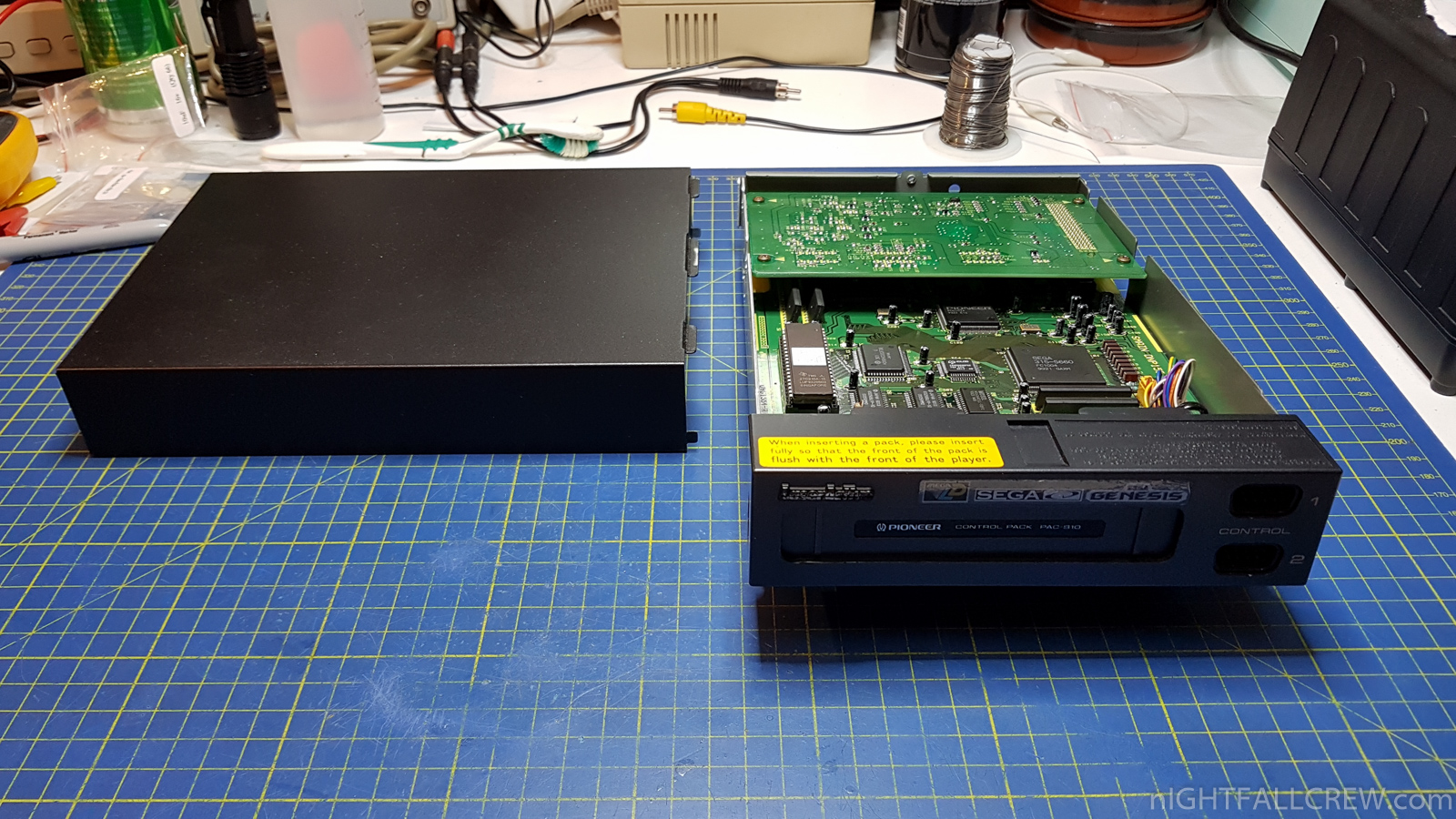

- Cleaning and Full Recap Sega Genesis/Sega CD PAC-S10 Module.

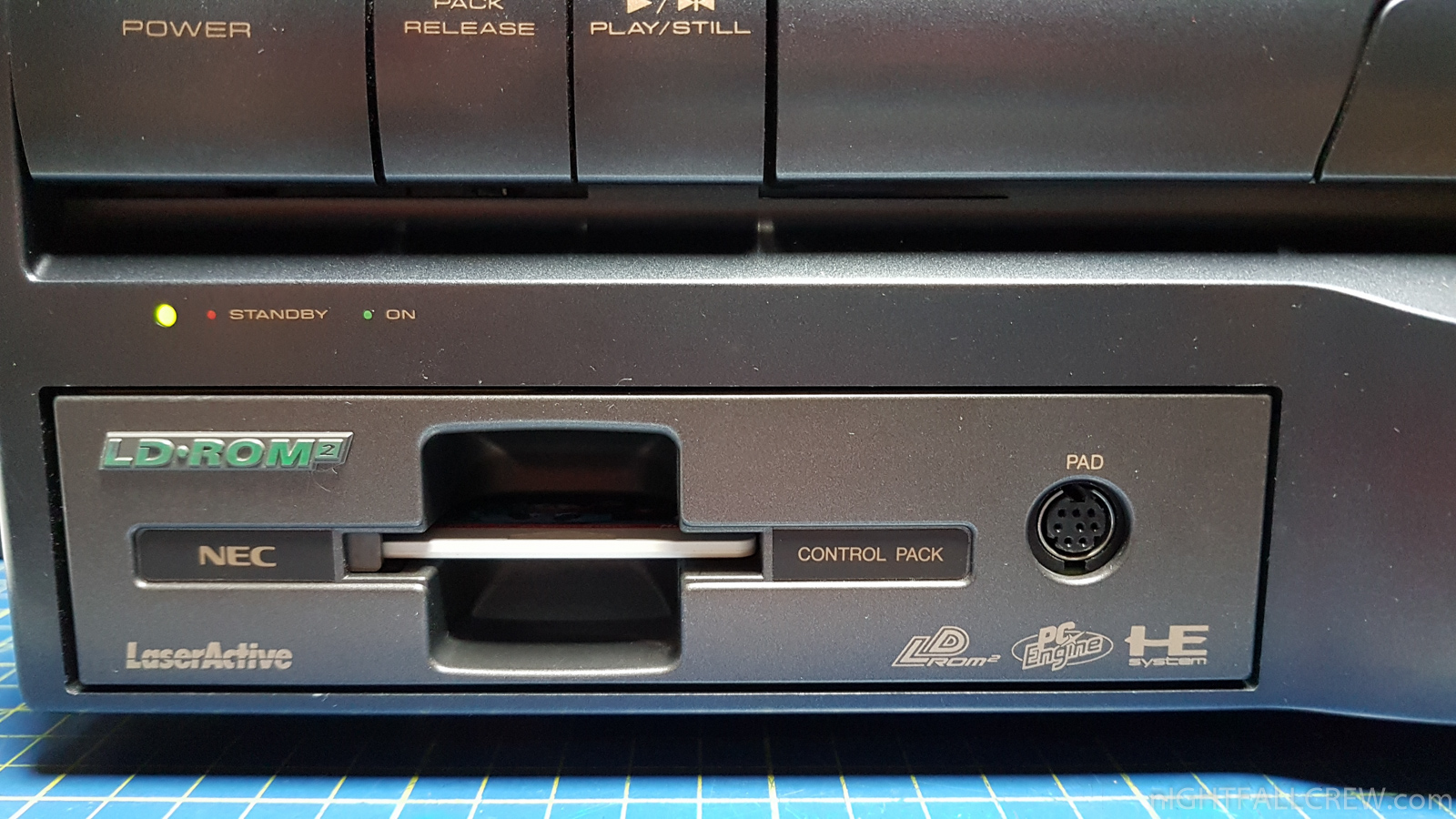

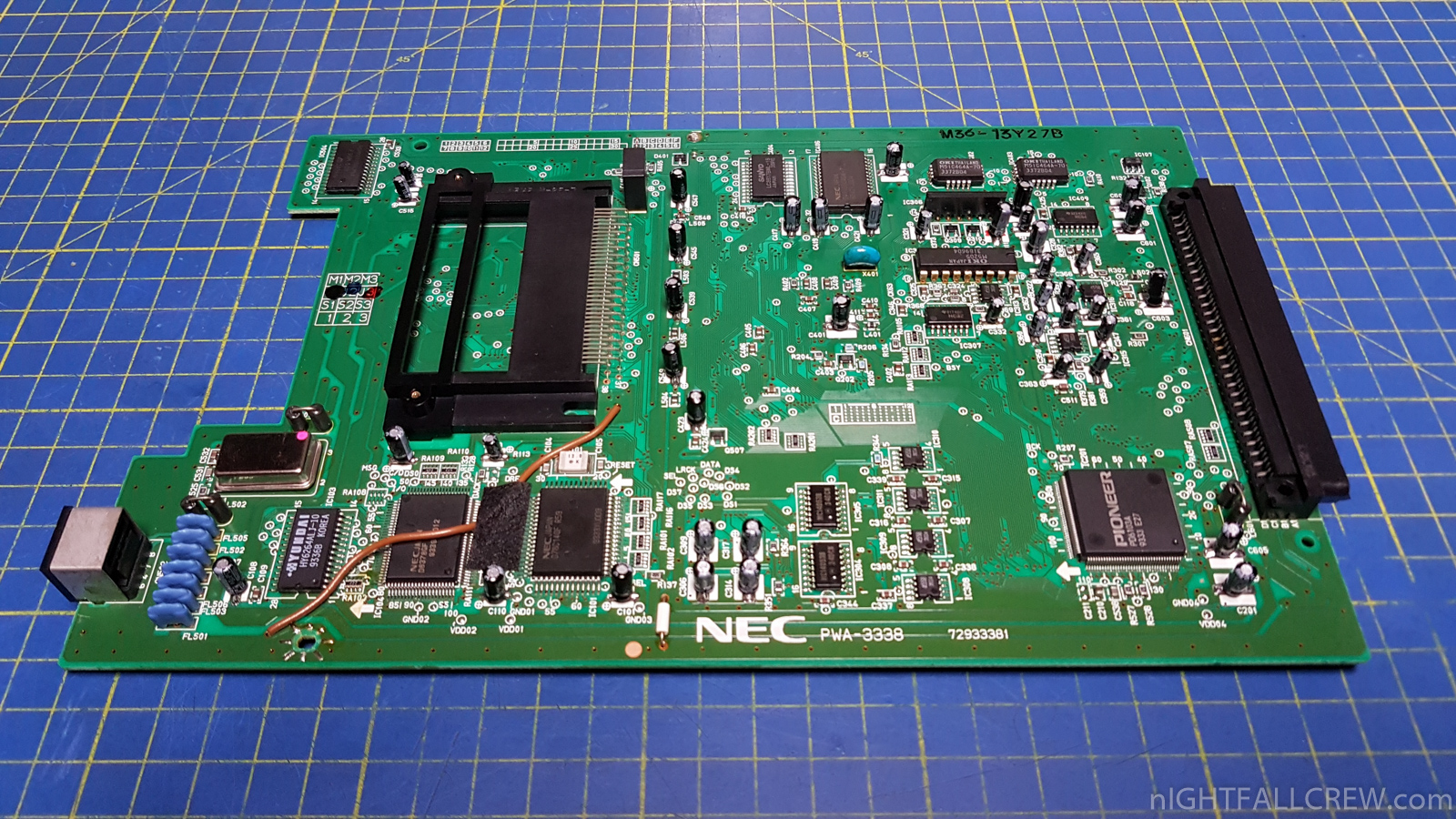

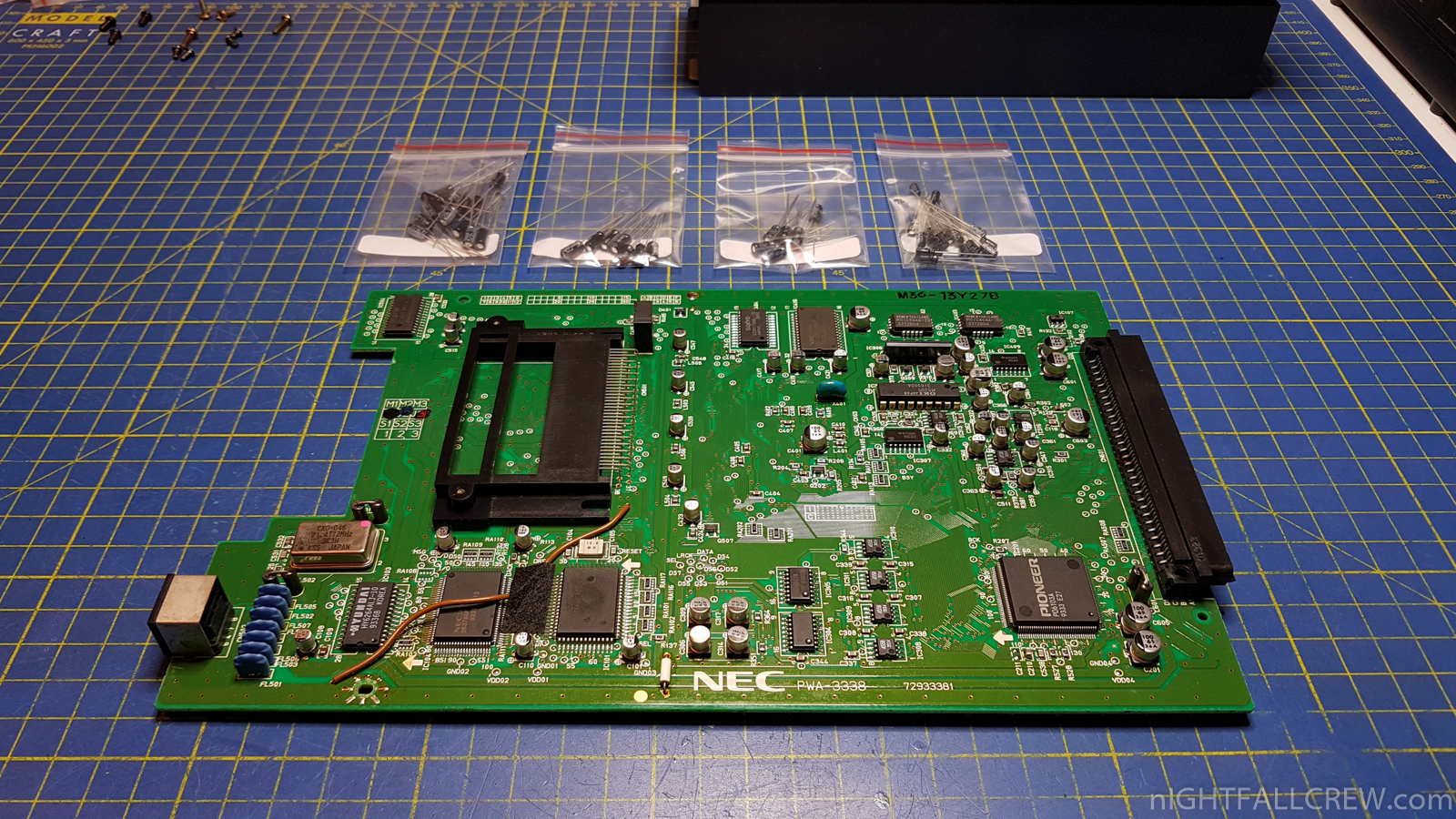

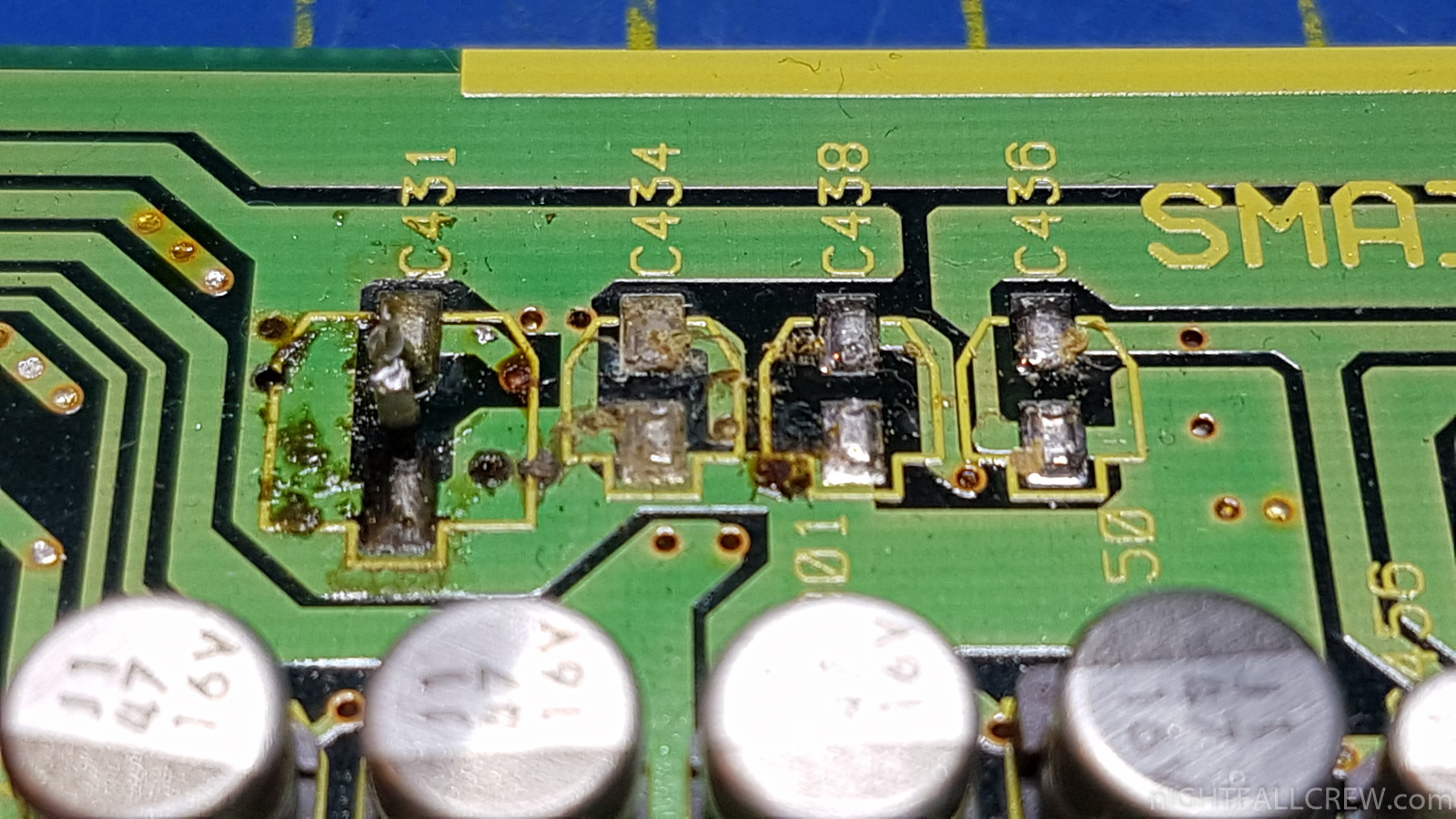

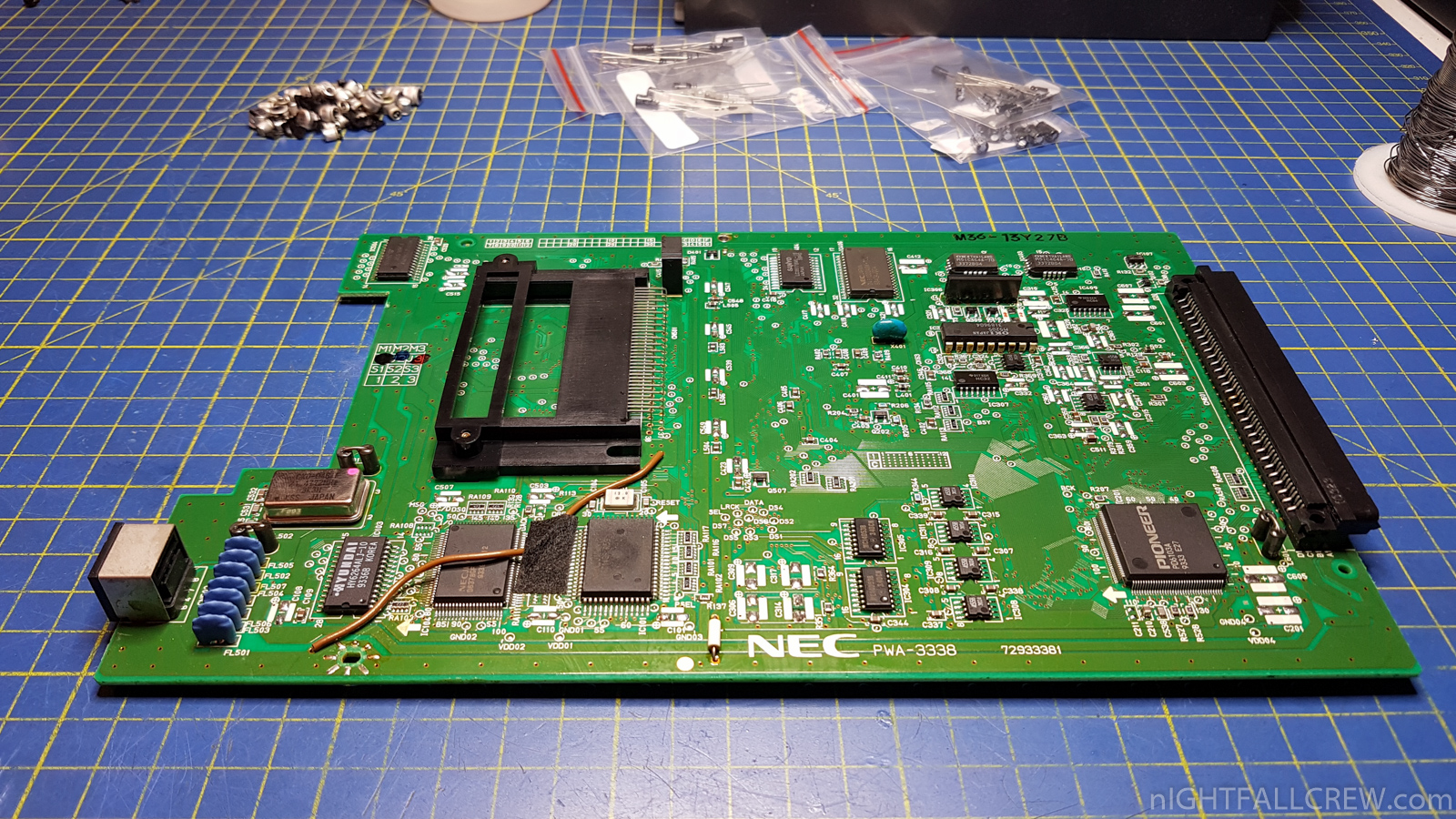

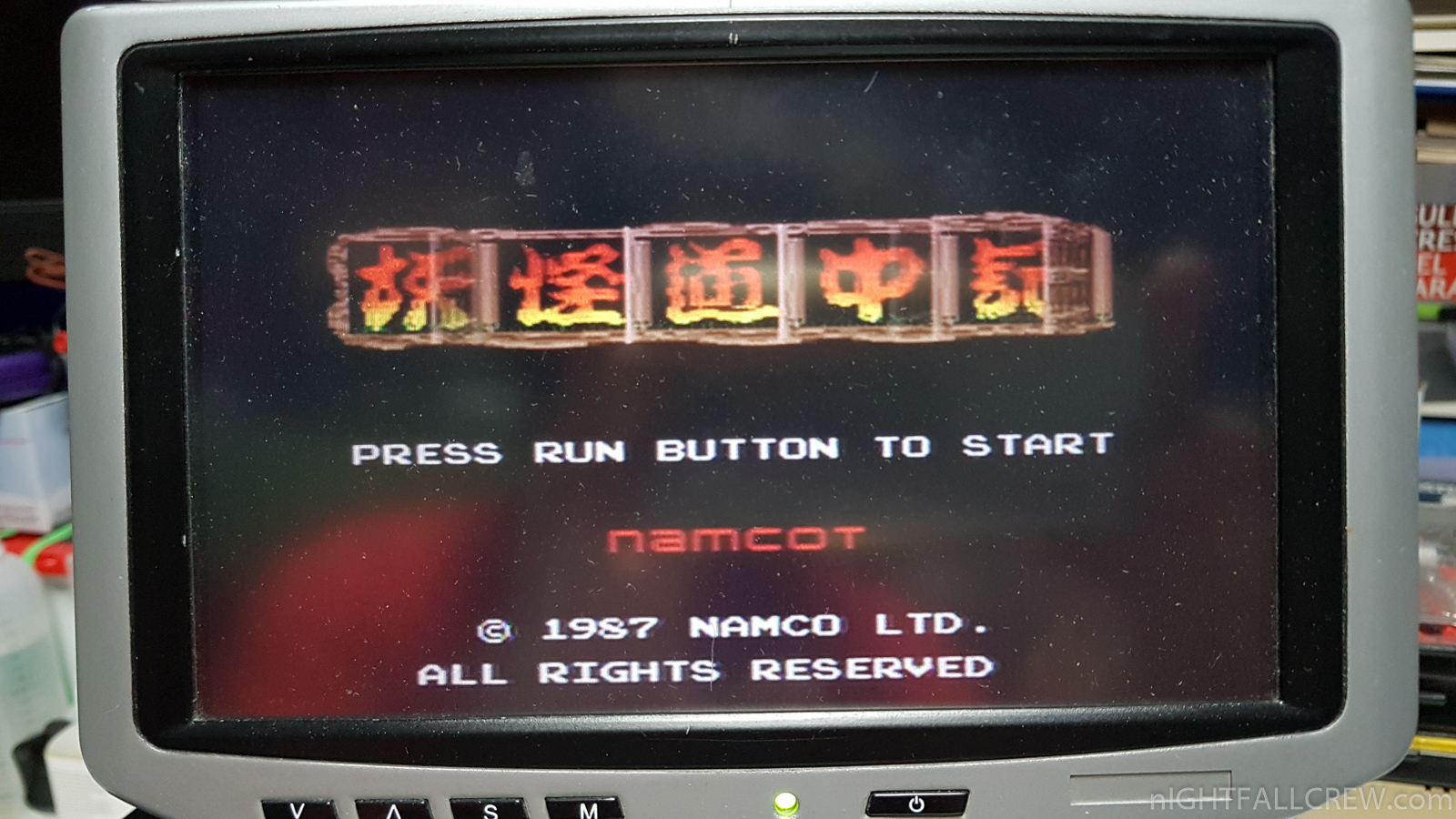

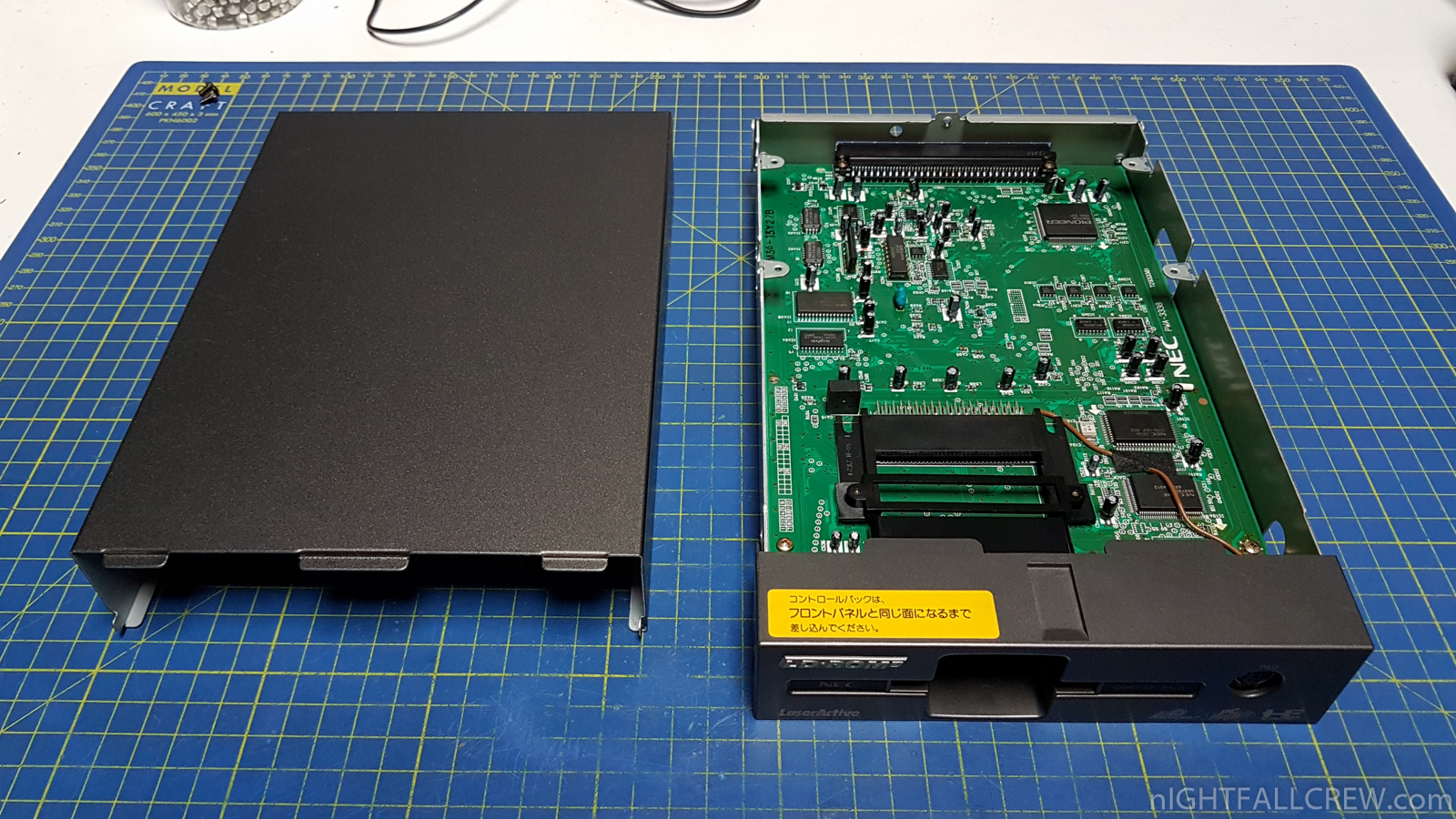

- Cleaning and Full Recap Nec PC Engine PAC-N1/N1 Module.
- Cleaning and Recap INTF Ass’y Interface.

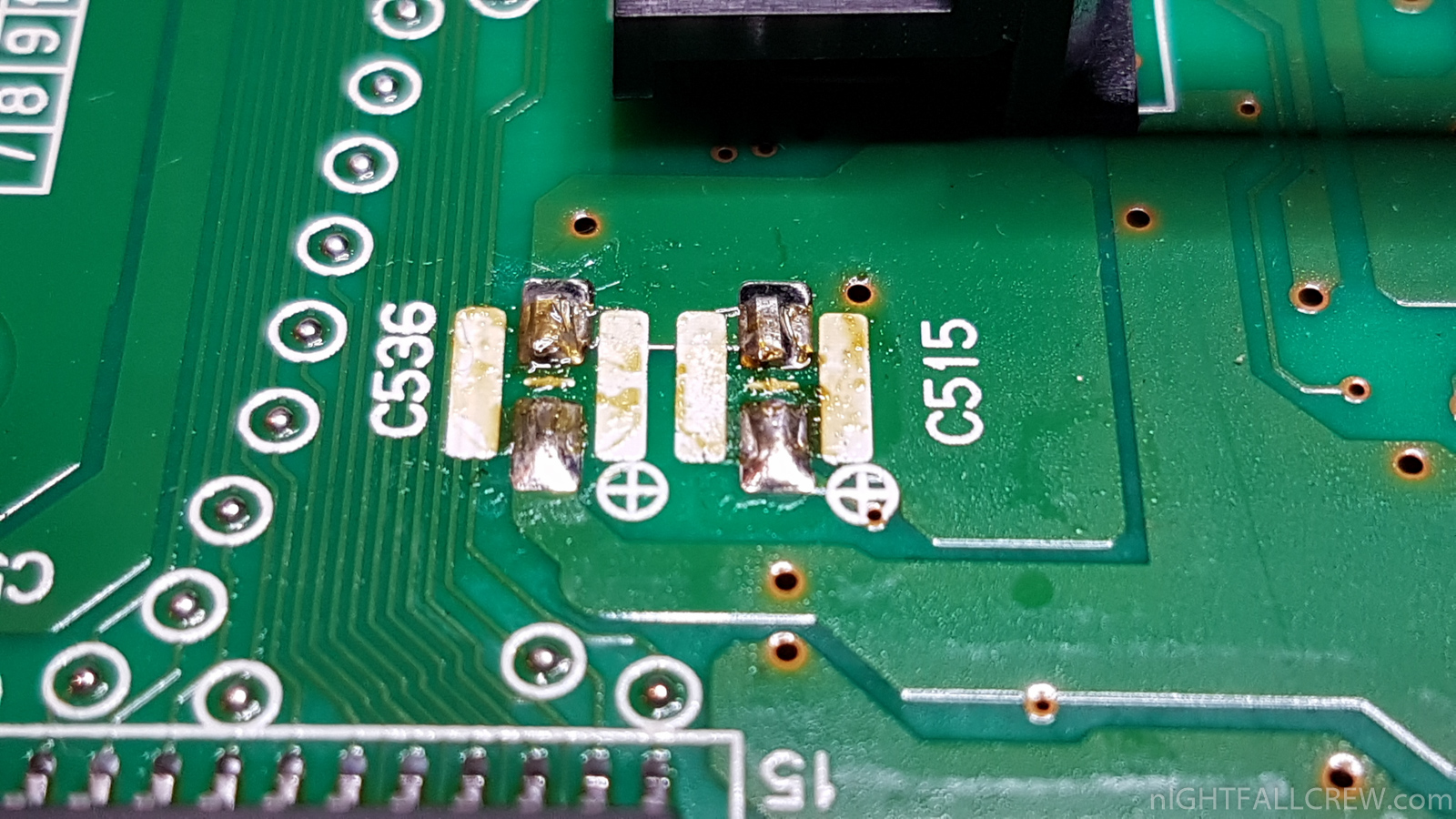

- Rebuilding PADs of the two pcb connectors.
- Rebuilding cold solder joint on the power stage.

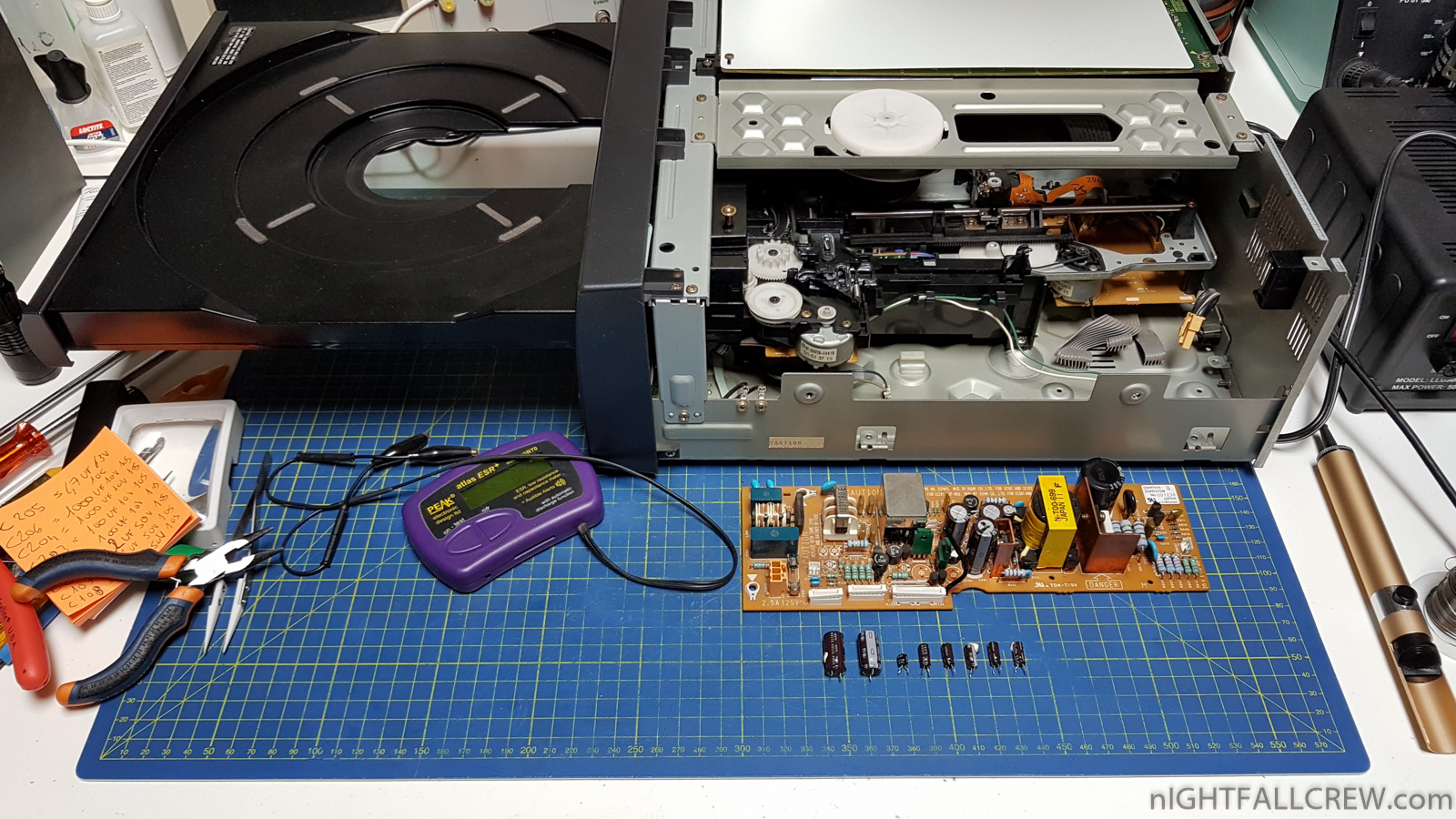

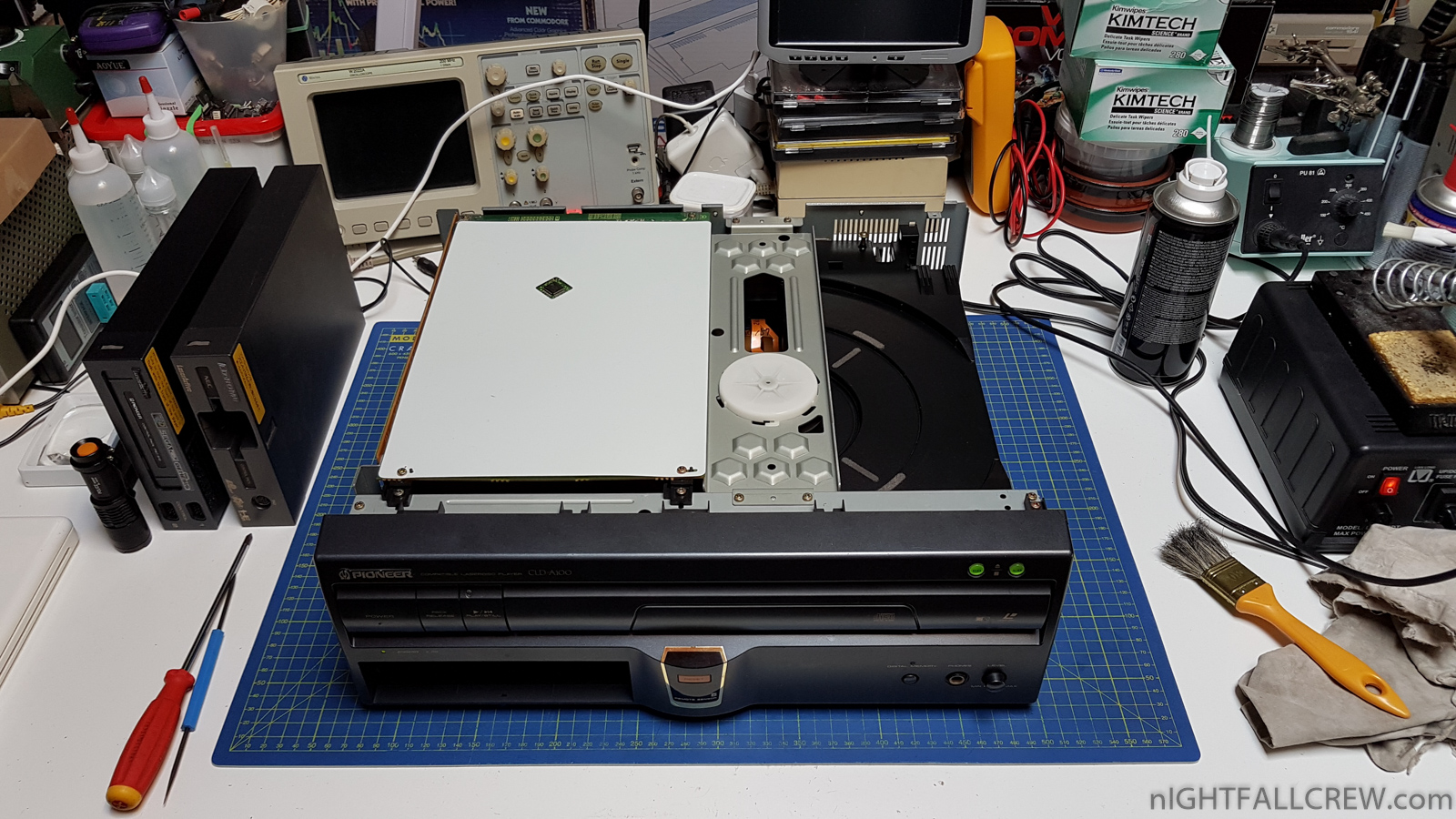

Pioneer LaserActive CLD-A100 Gallery:

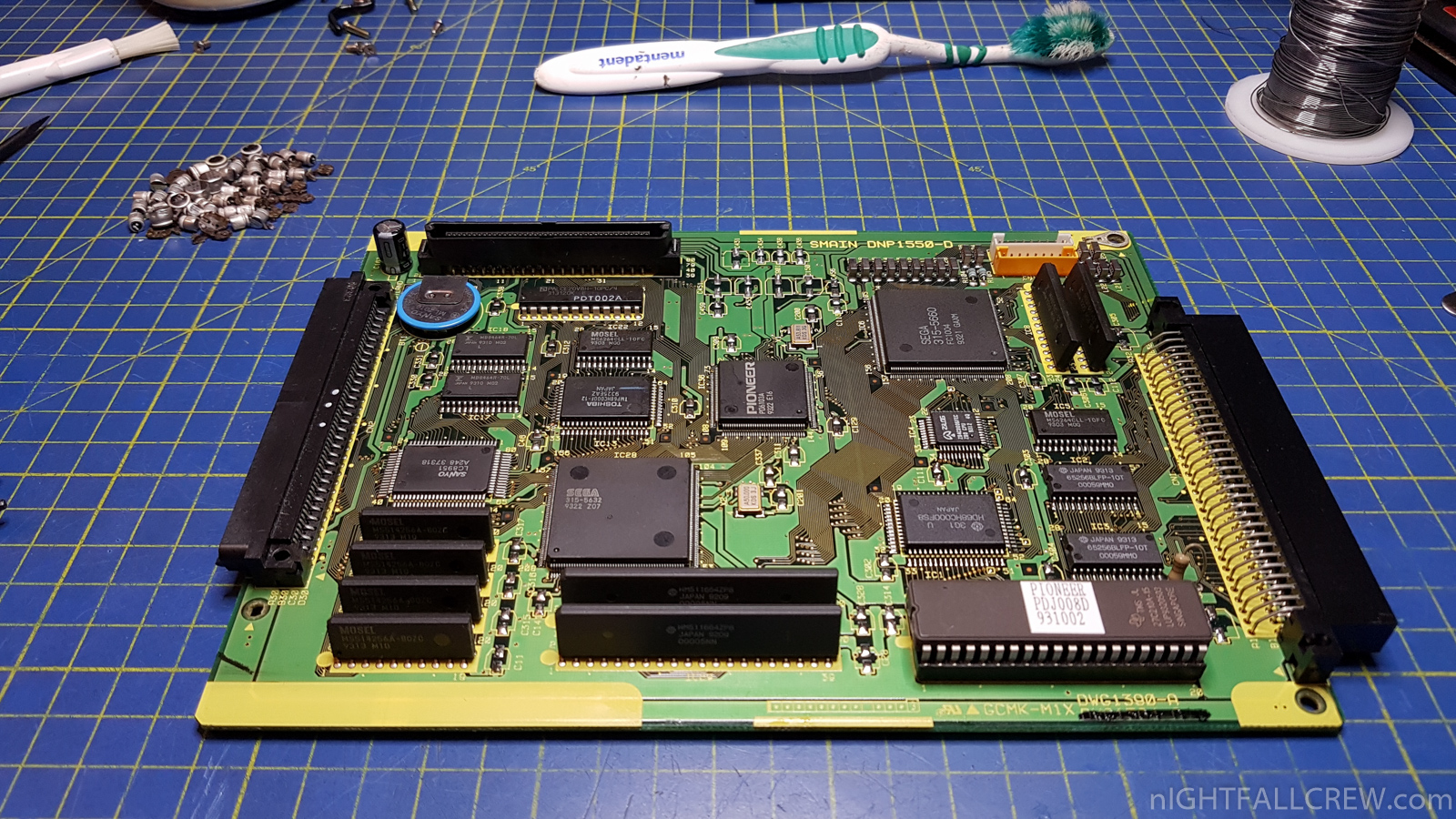

Sega Genesis/Sega CD PAC-S10 Module Gallery:
Nec PC Engine PAC-N1/N1 Module Gallery:
