Atari 2600 JR MOD (its a long story :O)

Atari 2600 JR (its a long story)

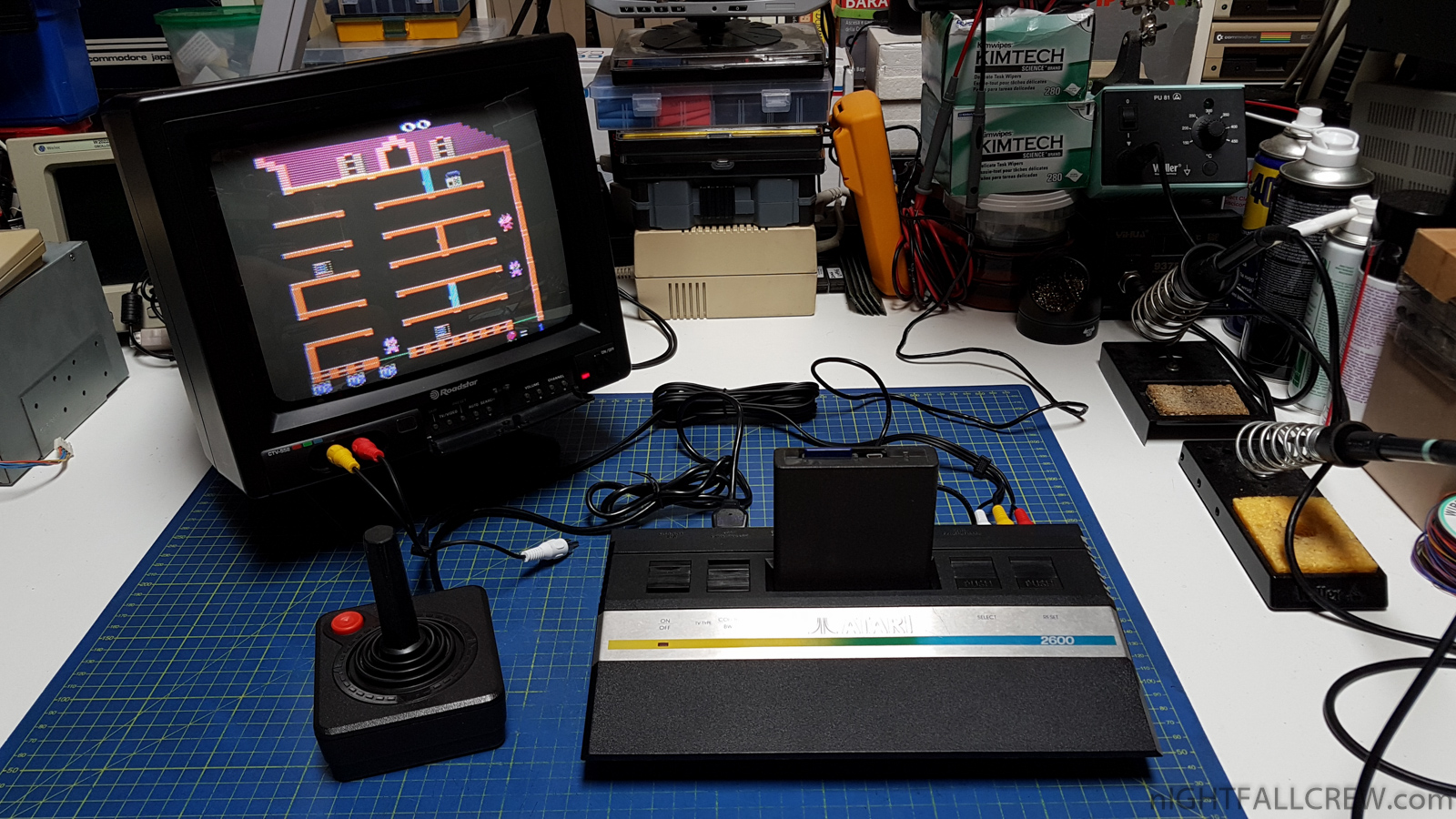

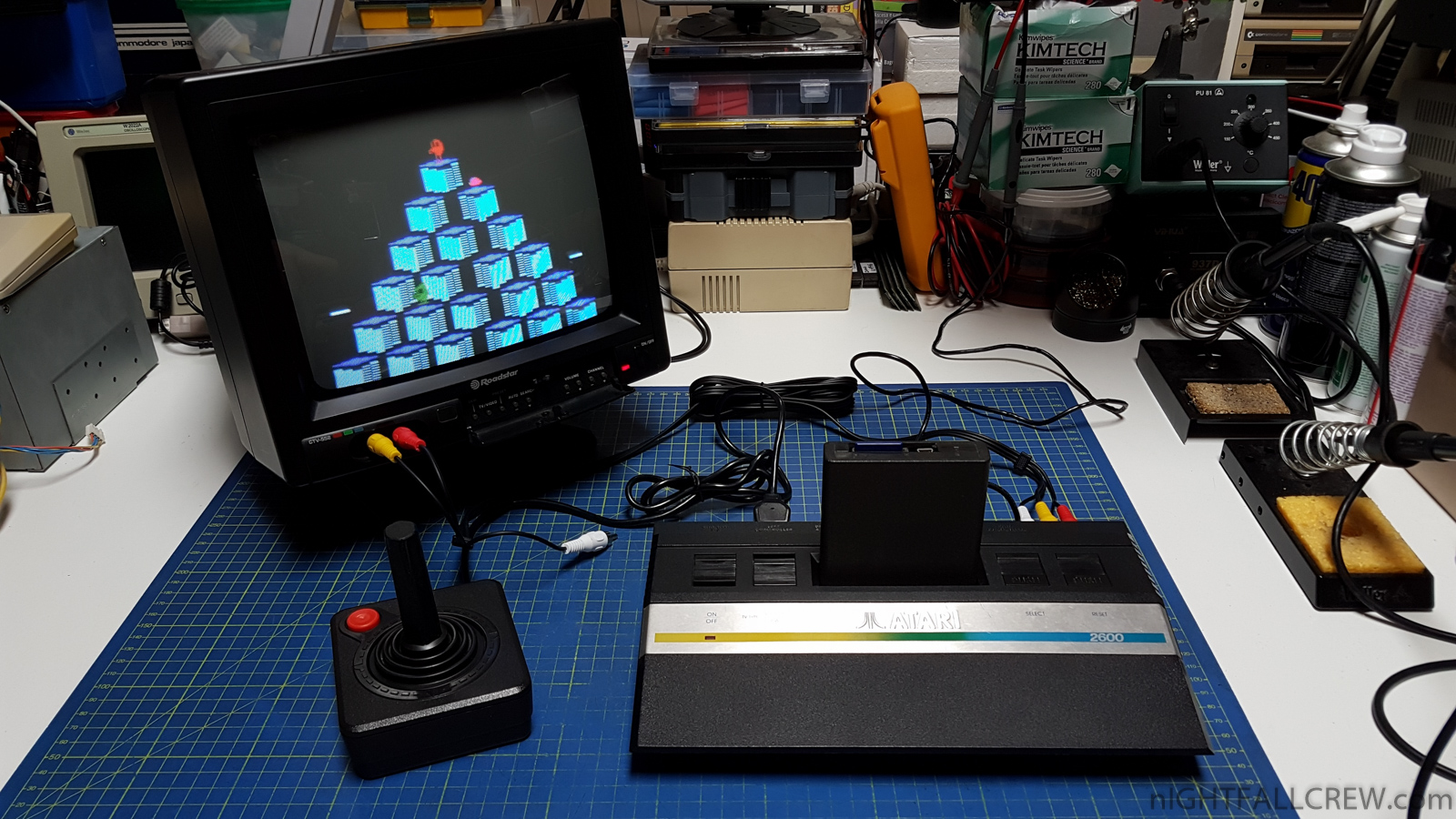

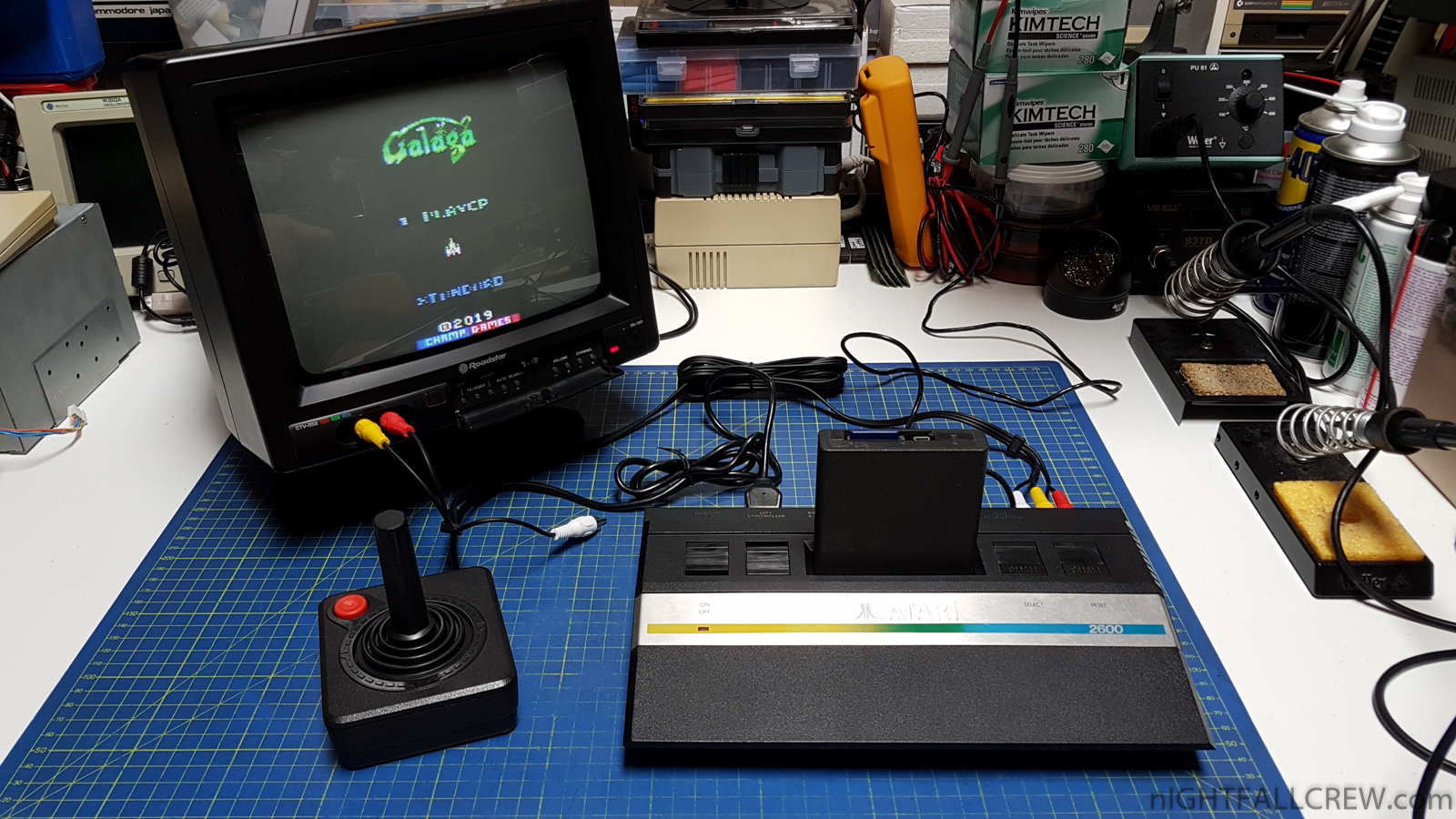

Yes, it’s a long story, because i have modded this Atari 2600 JR many times.

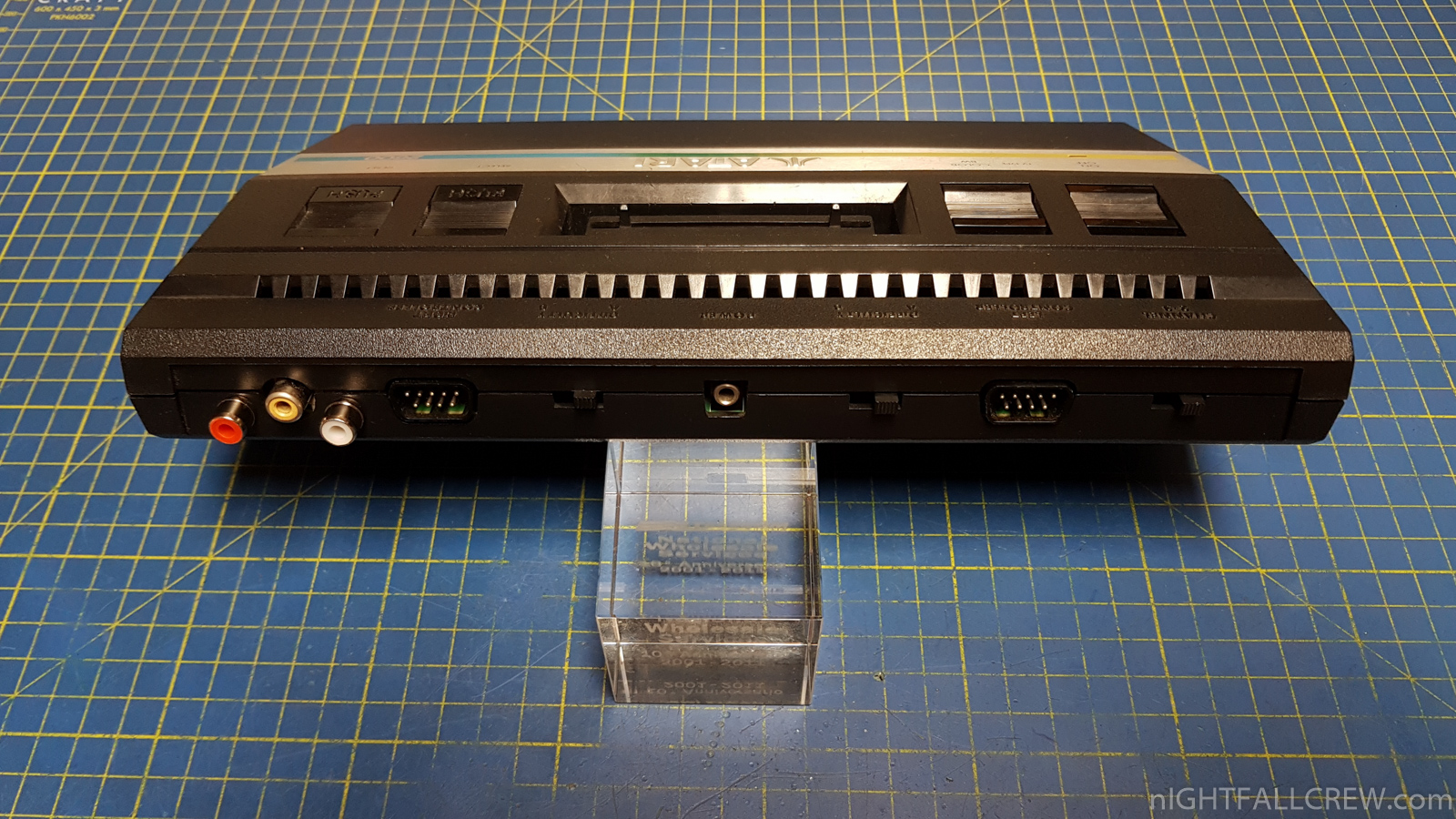

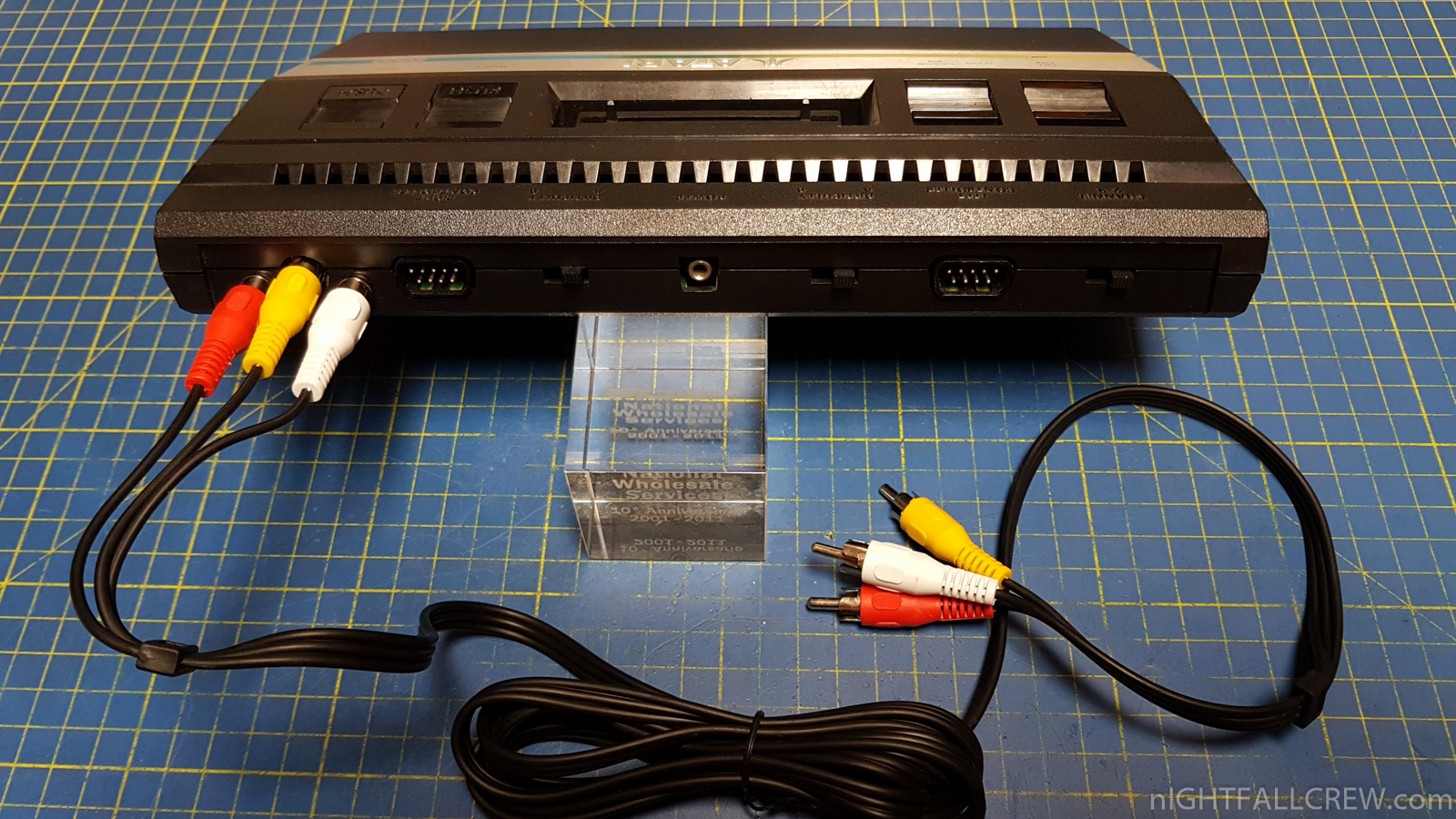

The first time have made a simple composite video mod without adding any external components, so i have made the composite mod with 1 transistor and a couple of resistors, the last composite mod is the UAV (Ultimate Atari Video) made from a dude of AtariAge that was given to me by my friend Charlie and today i have put 3 x RCA for video/audio output in place of a cable passed through the RF hole.

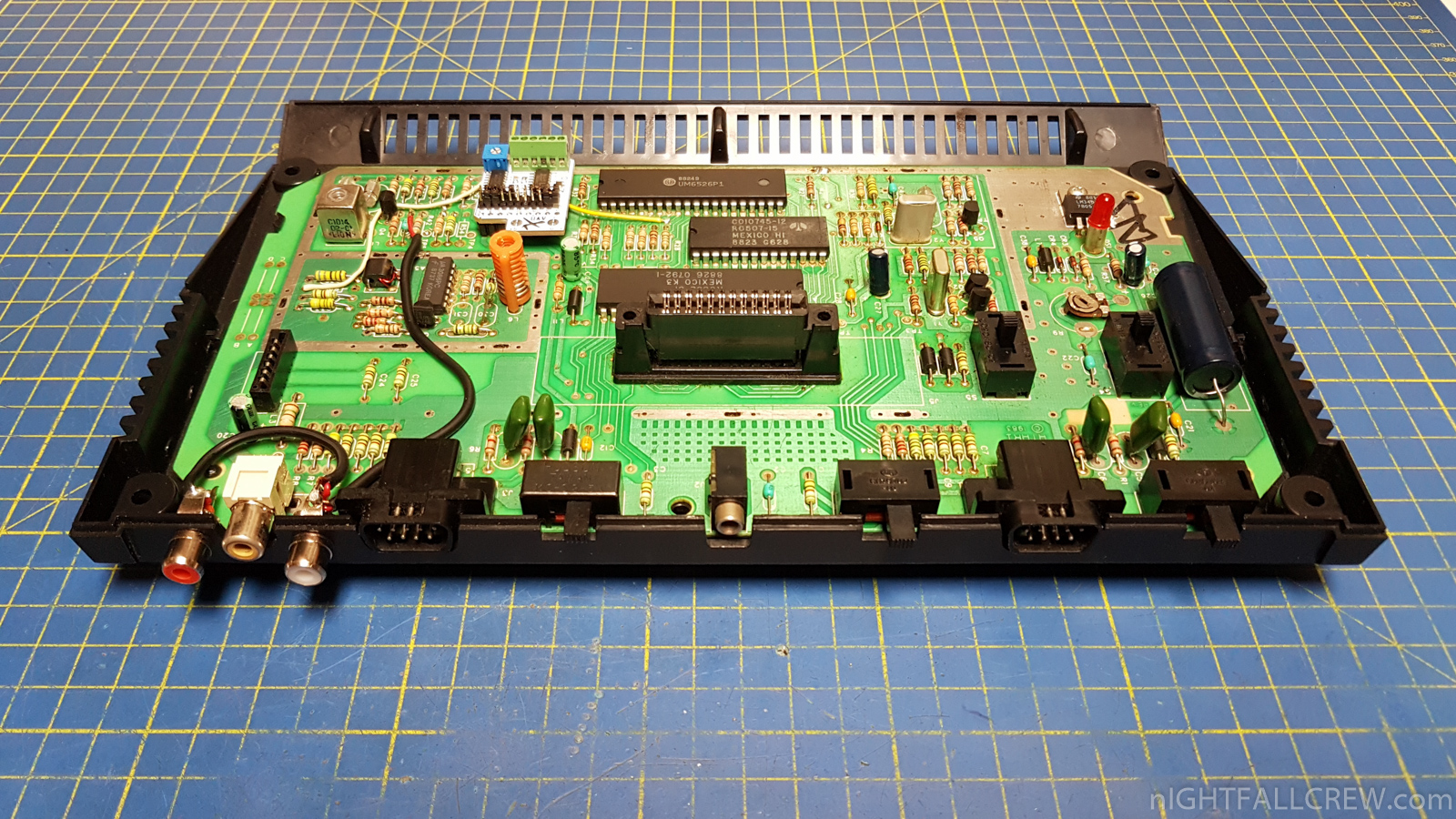

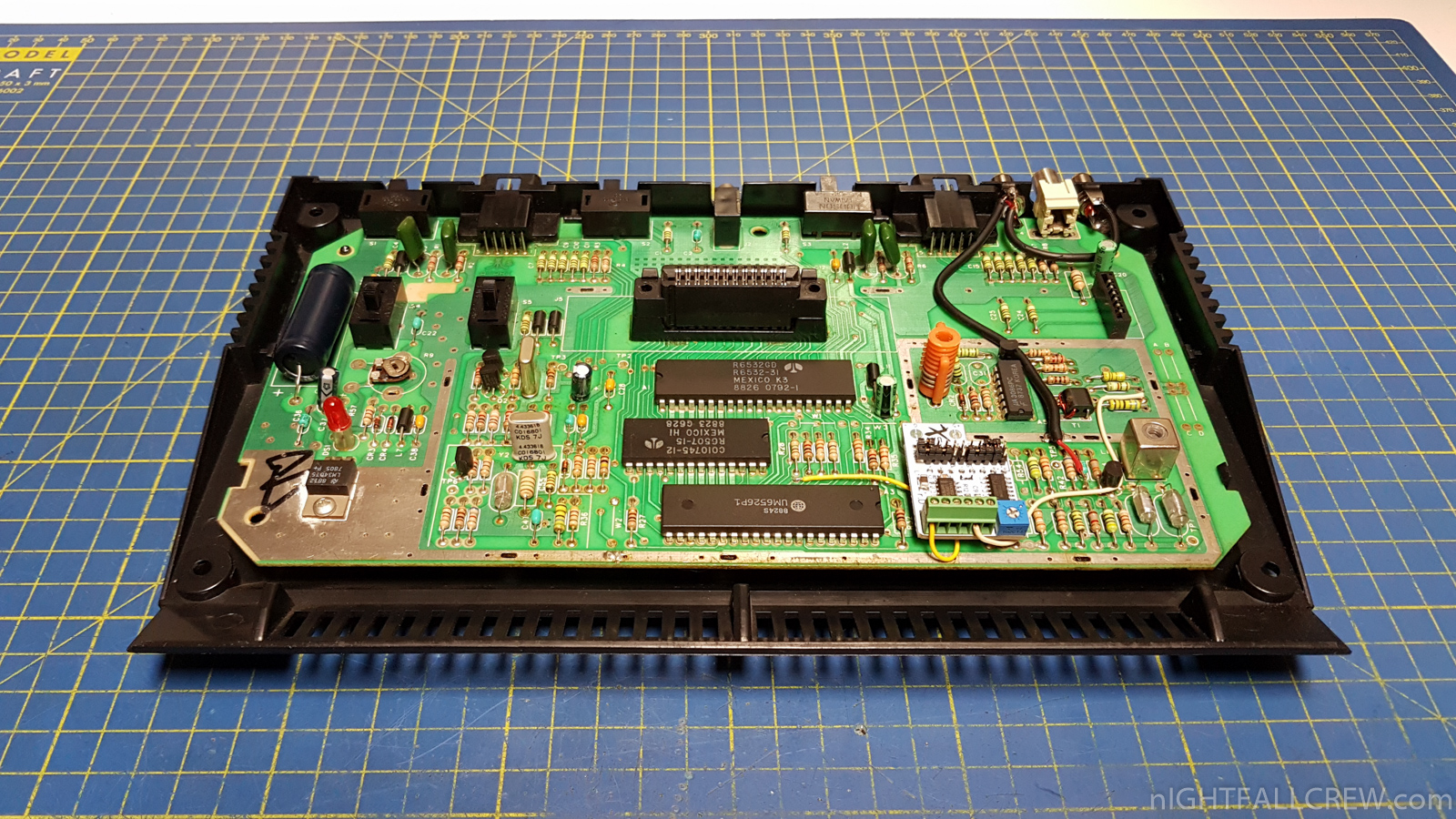

I used the same hole as the RF output for the VIDEO output and soldered a RCA connector in the same pcb pad of the RF RCA connector, i have used the same pcb track that was needed for the RF signal for the Composite signal, i have also removed a resistor (R19) to isolate the pcb track.
