Timex Computer 2048 (TC 2048) – Spectrum 48k Clone

Timex Computer 2048 (TC 2048) - Spectrum 48k Clone

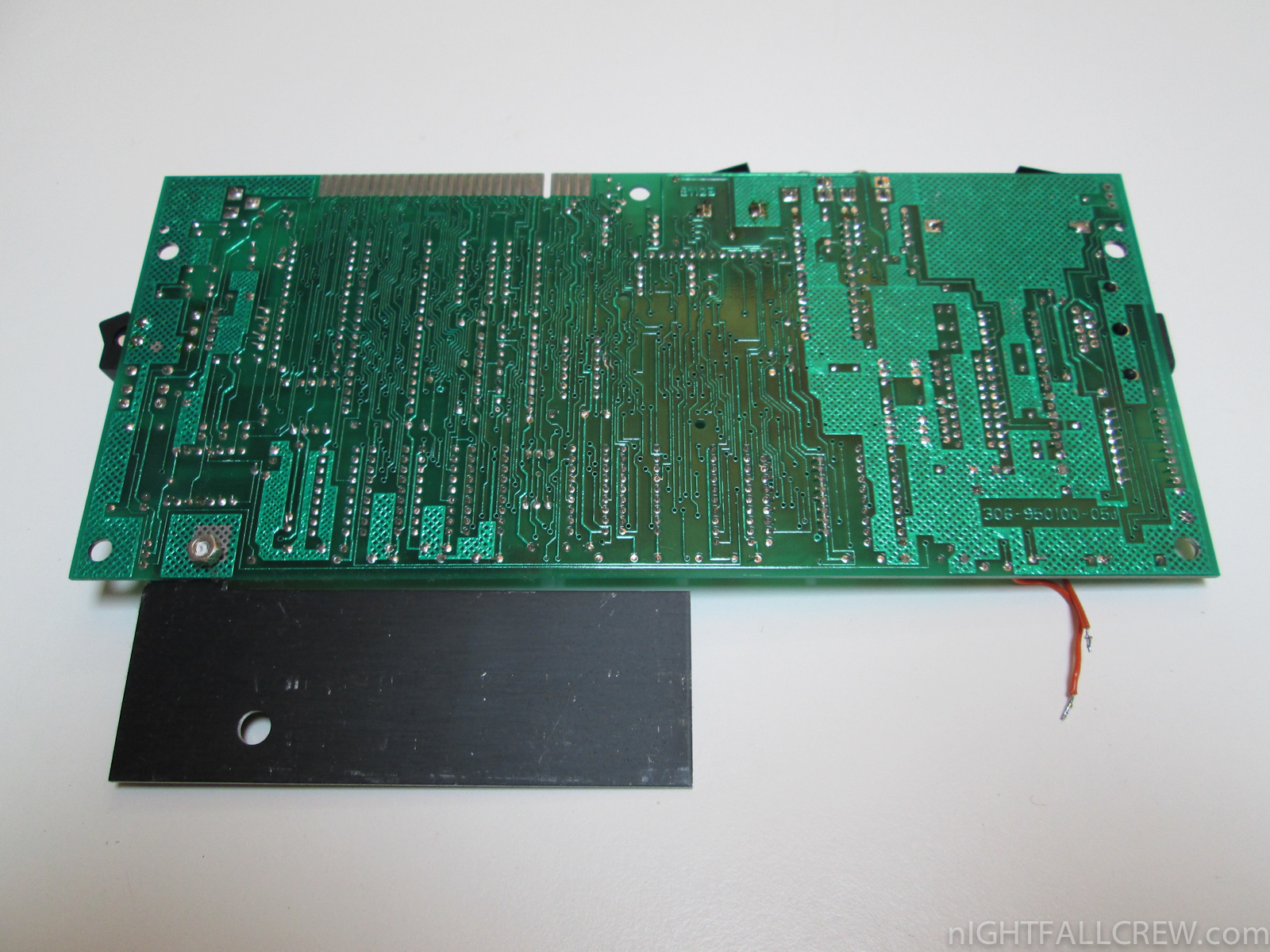

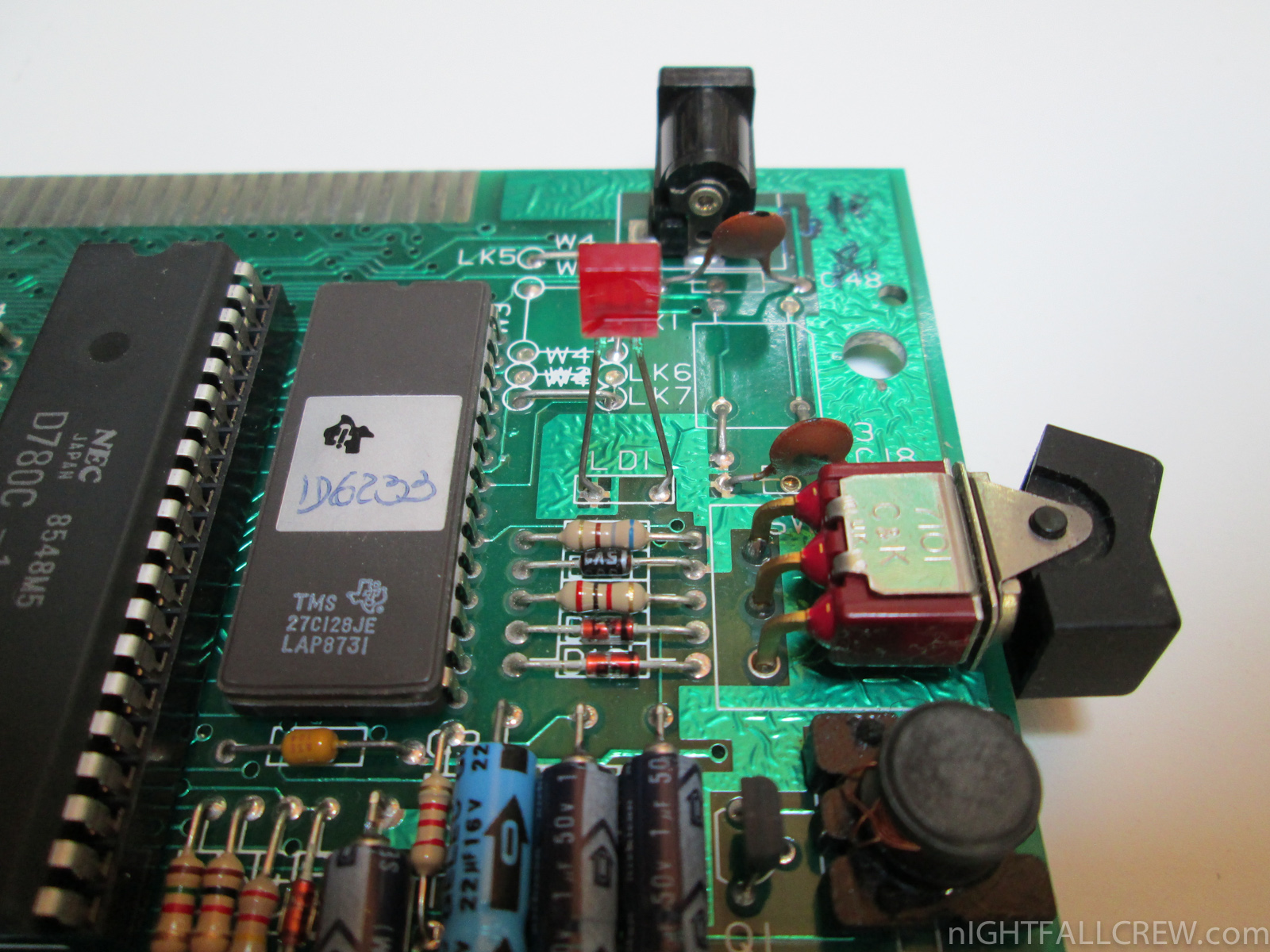

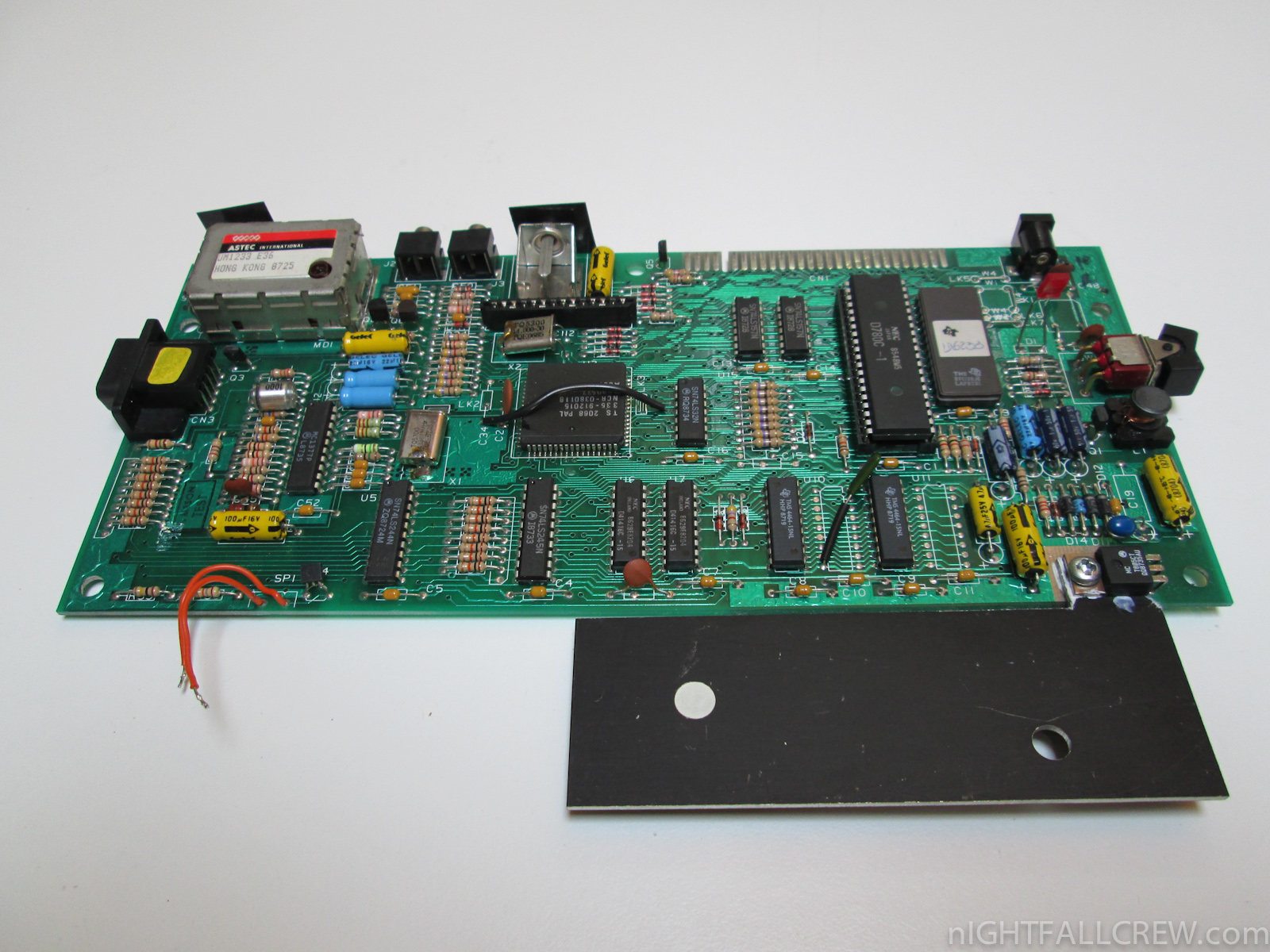

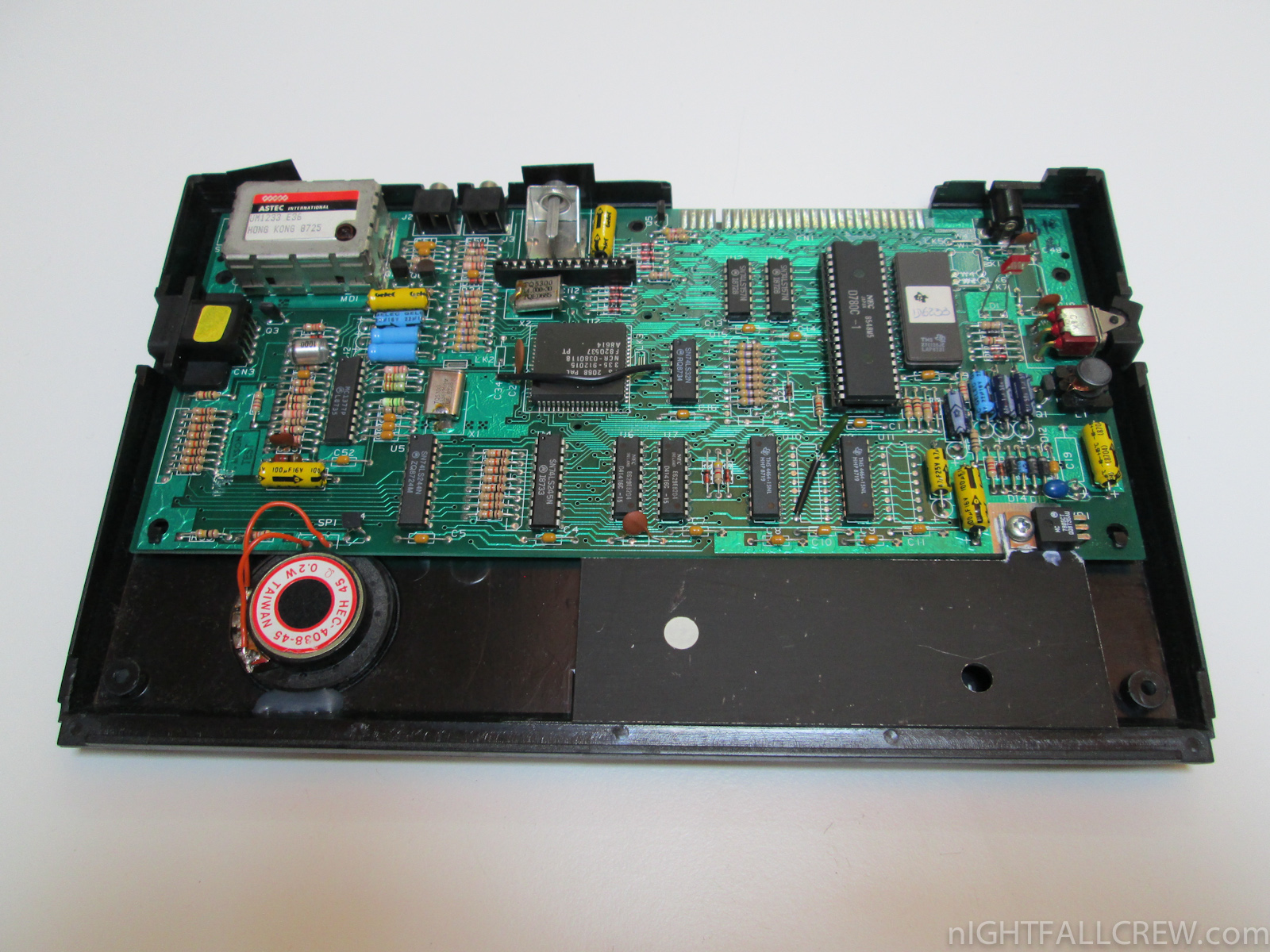

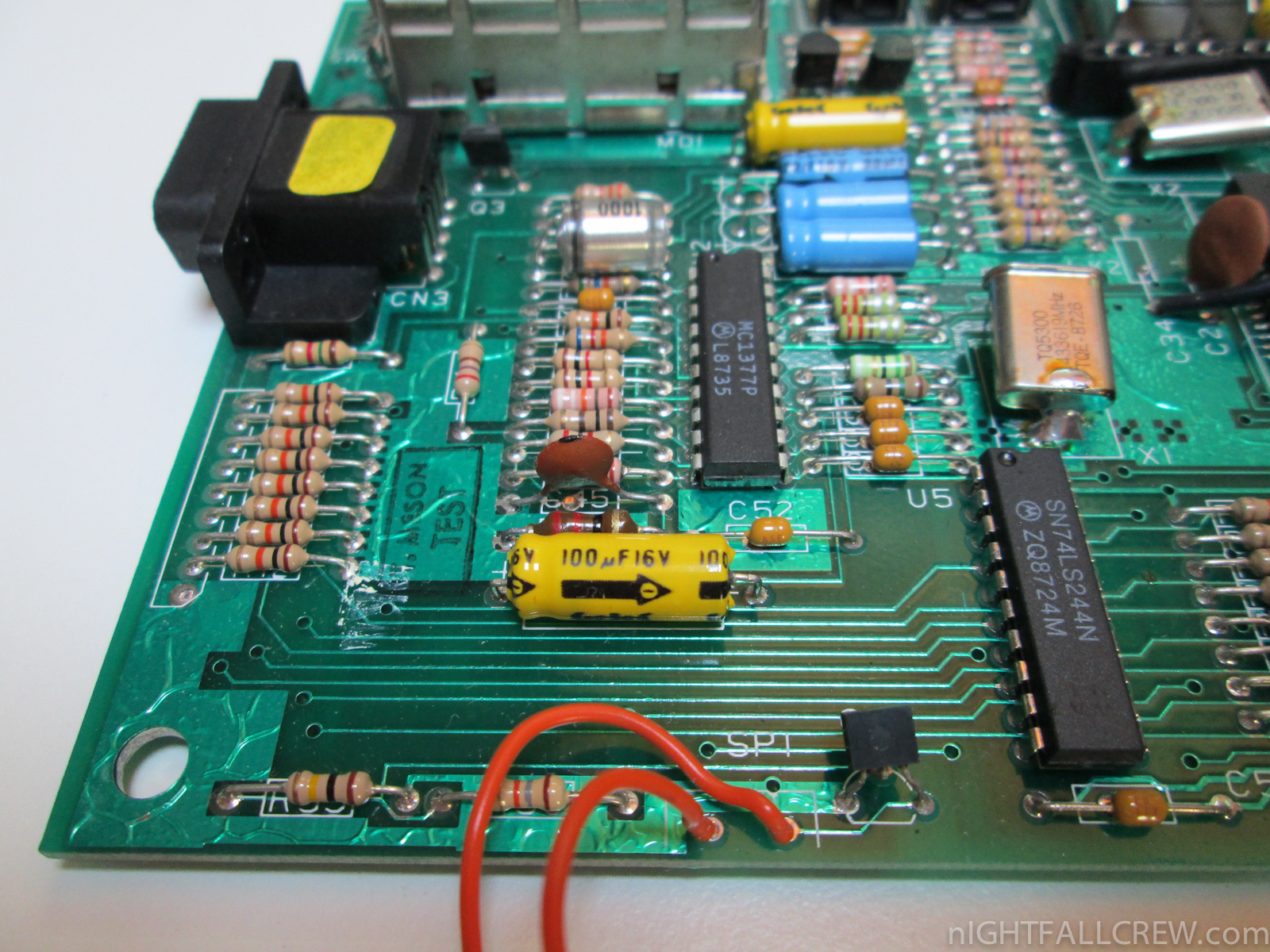

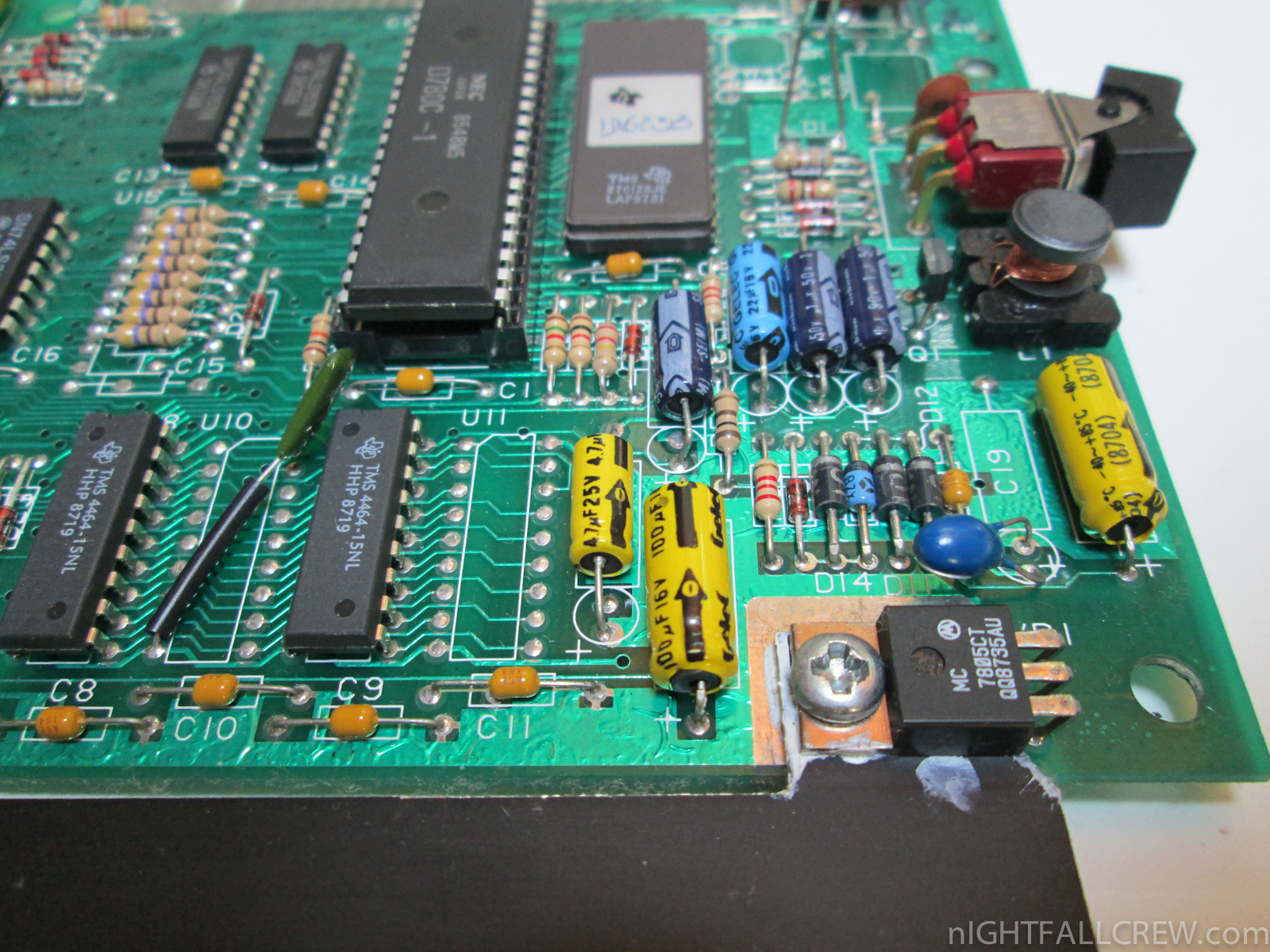

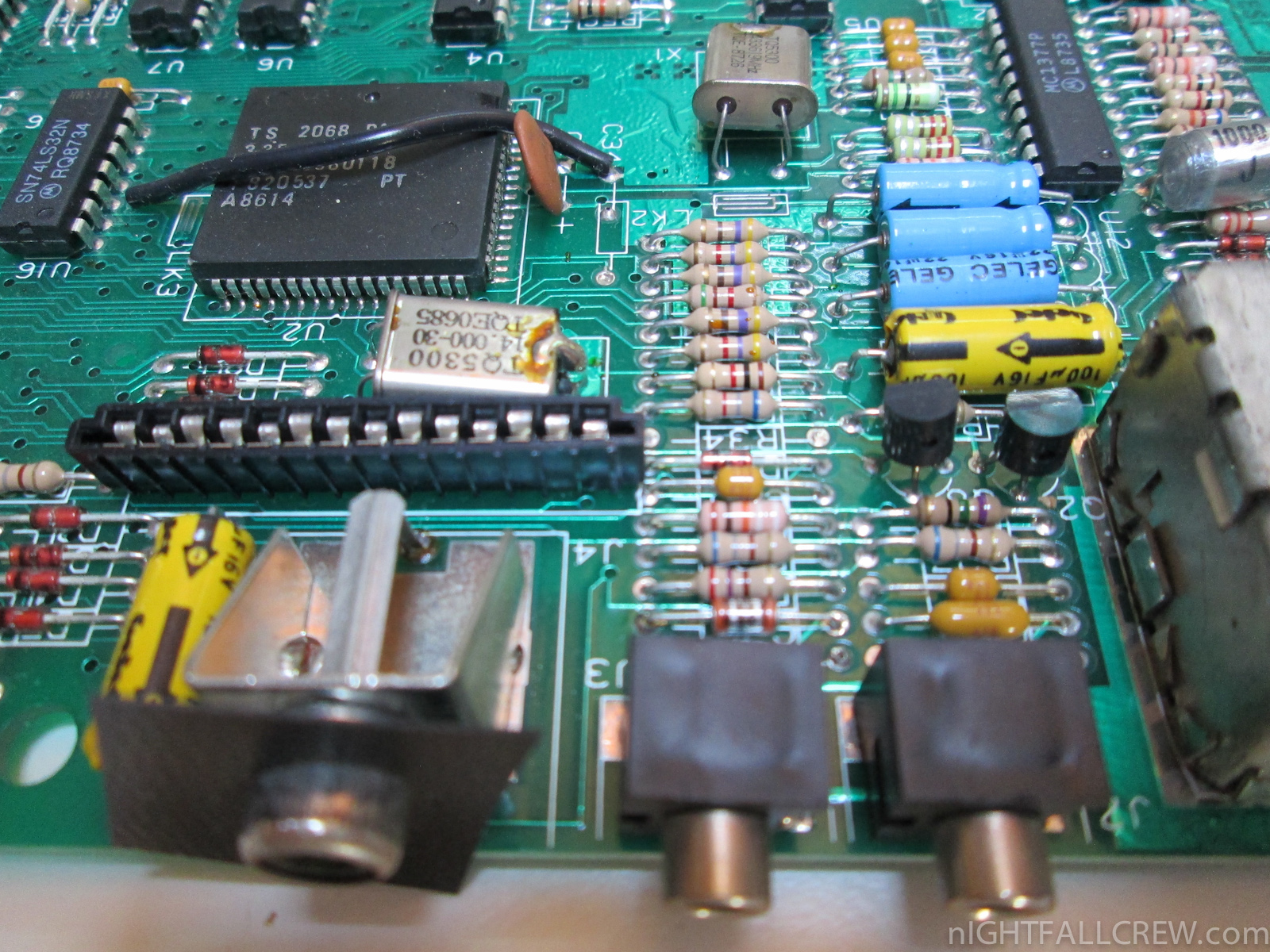

Autopsy:

Il TC 2048 o Timex Computer 2048 è un computer creato dall’azienda “Timex Portogallo, Lda.” che era un ramo della Timex Corporation. Il TC 2048 aveva una compatibilita’ molto alta con il computer Sinclair ZX Spectrum anche se alcune differenze nella ROM impedivano la compatibilità al 100%.

Negli Stati Uniti i computers Sinclair vennero prodotti da T/S (TIMEX/SINCLAIR): la collaborazione tra le due societa’ fu necessaria per garantire negli States prodotti di qualita’.

Specifiche tecniche:

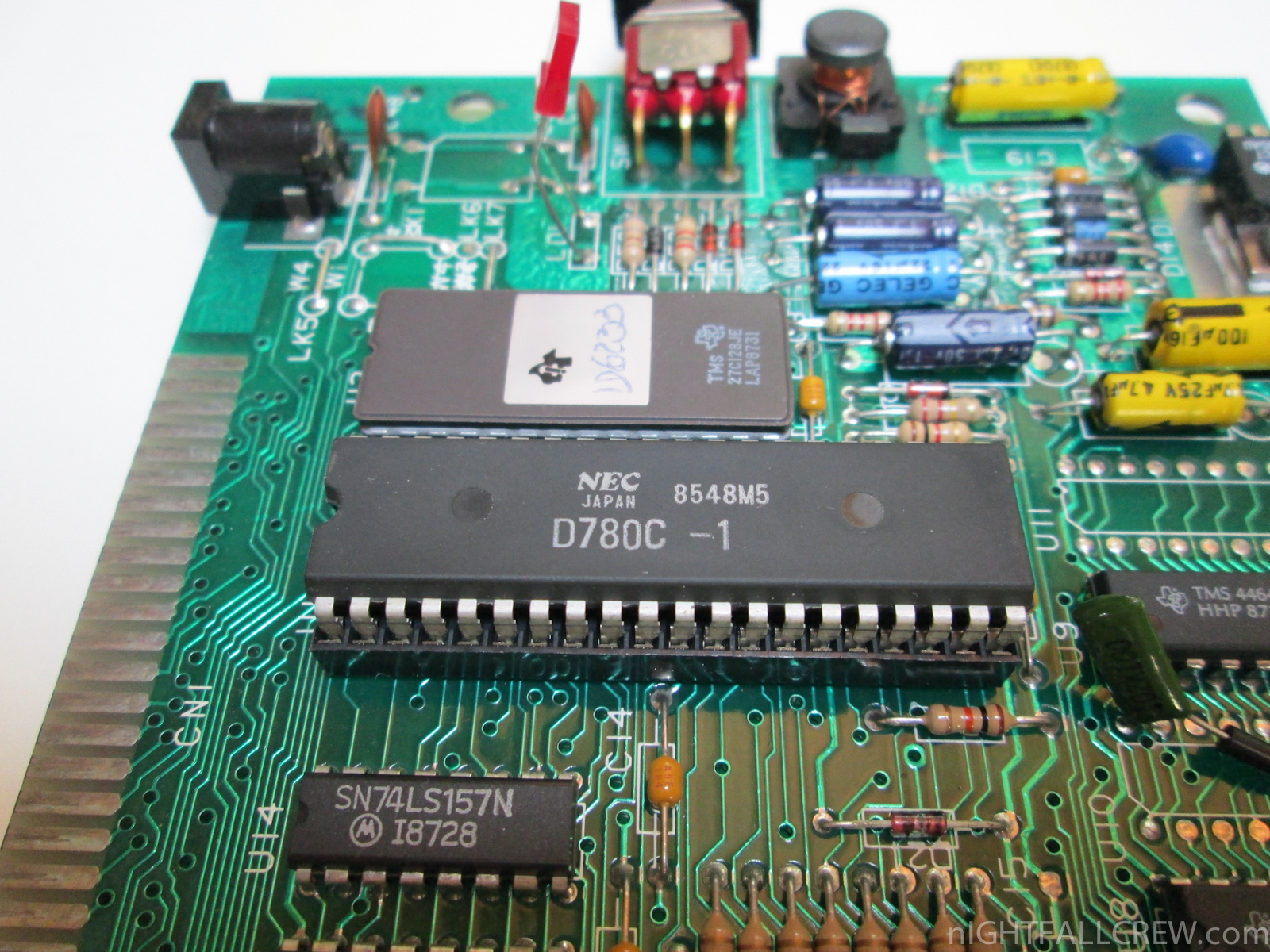

  • CPU: Zilog Z80A @ 3.50 MHz
  • ROM: 16 KB
  • RAM: 48 KB
  • Sound: Beeper (1 channel, 10 octaves and 10+ semitones via internal speaker)
  • Display:

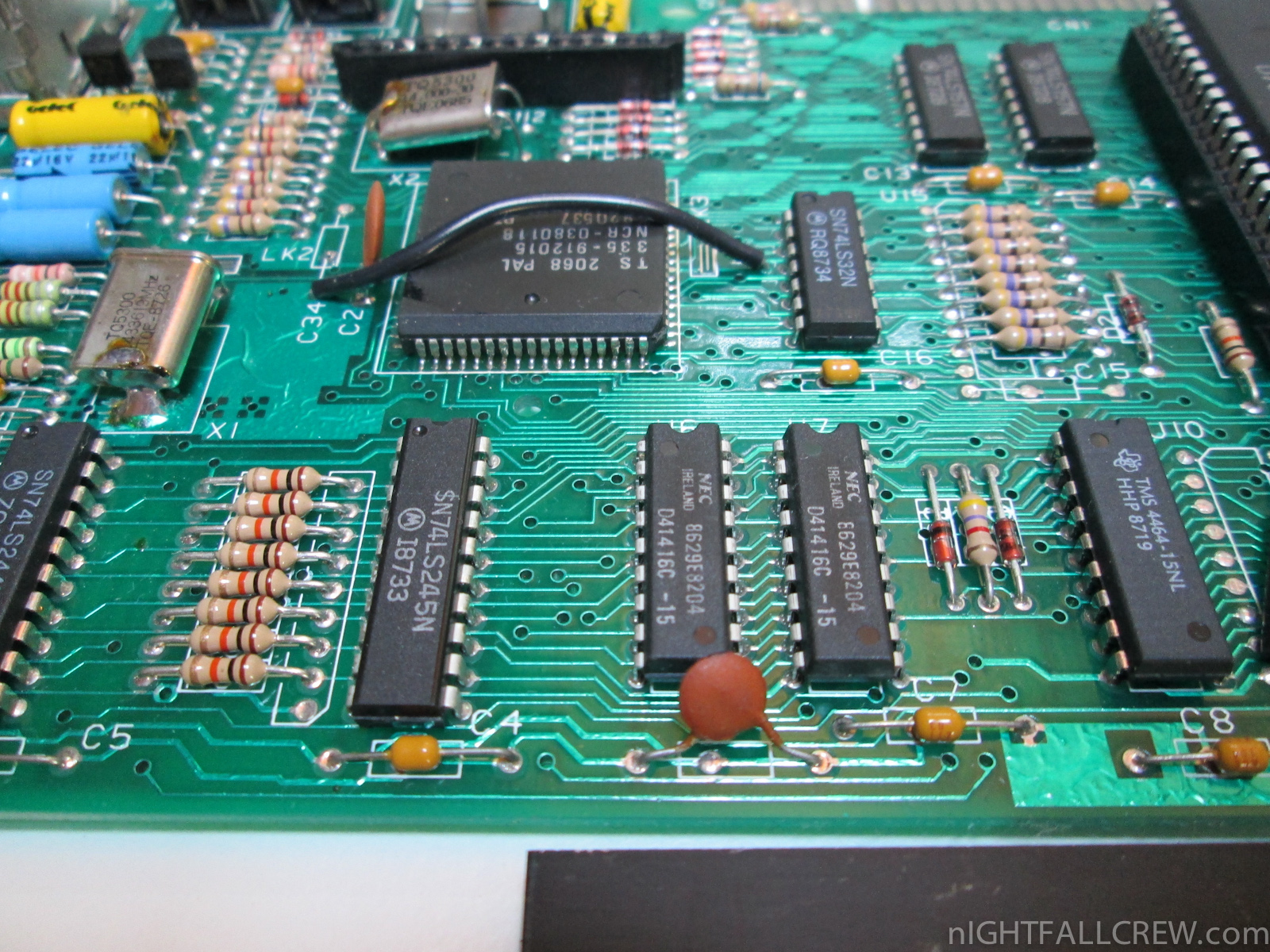

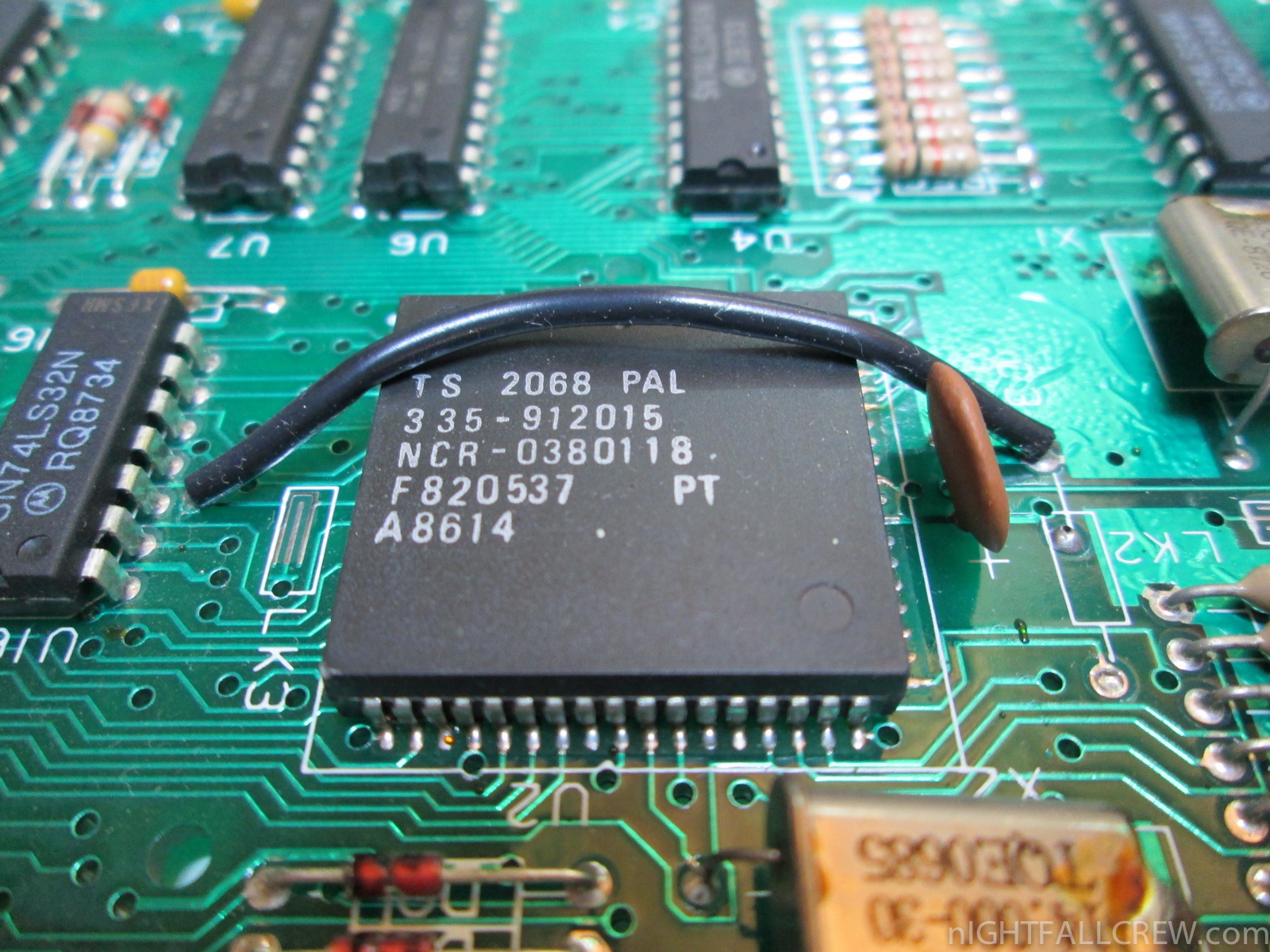

    • Improved ULA offering additional screen modes:
    • Text: 32×24 characters (8×8 pixels, rendered in graphics mode)
    • Graphics: 256×192 pixels, 15 colours (two simultaneous colours – “attributes” – per 8×8 pixels, causing attribute clash)
    • Extended Color: 256×192 pixels, 15 colors with colour resolution of 32×192 (two simultaneous colours – “attributes” – per 1×8 pixels)
    • Dual Screen: (two 256×192 pixels screens can be placed in memory)
    • A monochrome 512×192 mode
  • I/O:
    • Z80 bus in/out
    • Tape audio in/out for external cassette tape storage
    • RF television out
    • Composite video monitor out
    • Kempston Joystick input

Download: Timex Computer 2048 Schematic (1430)

source: wikipedia
