Commodore Printer 4023 (IEEE 488)

Commodore Printer 4023 (close-up)

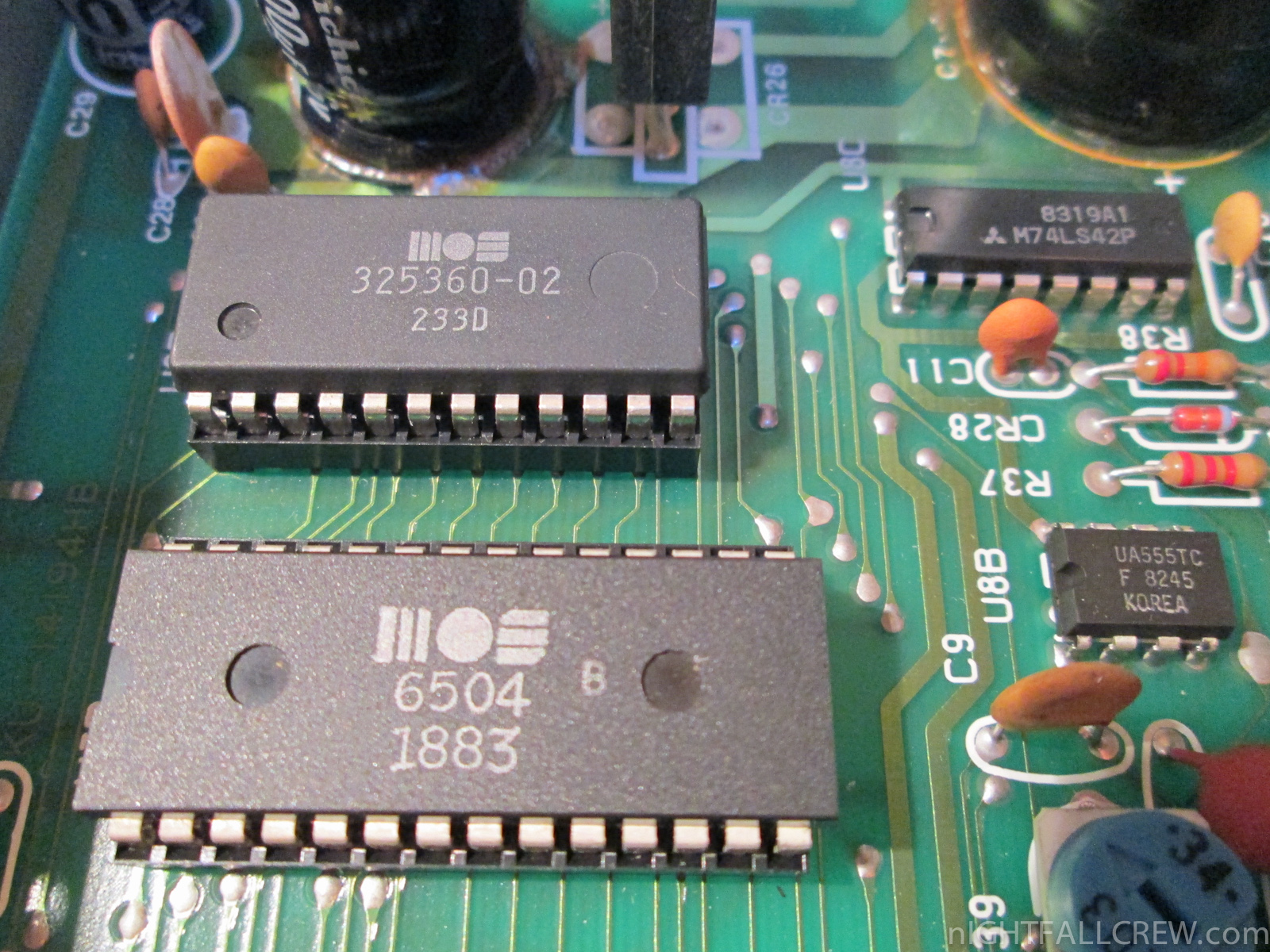

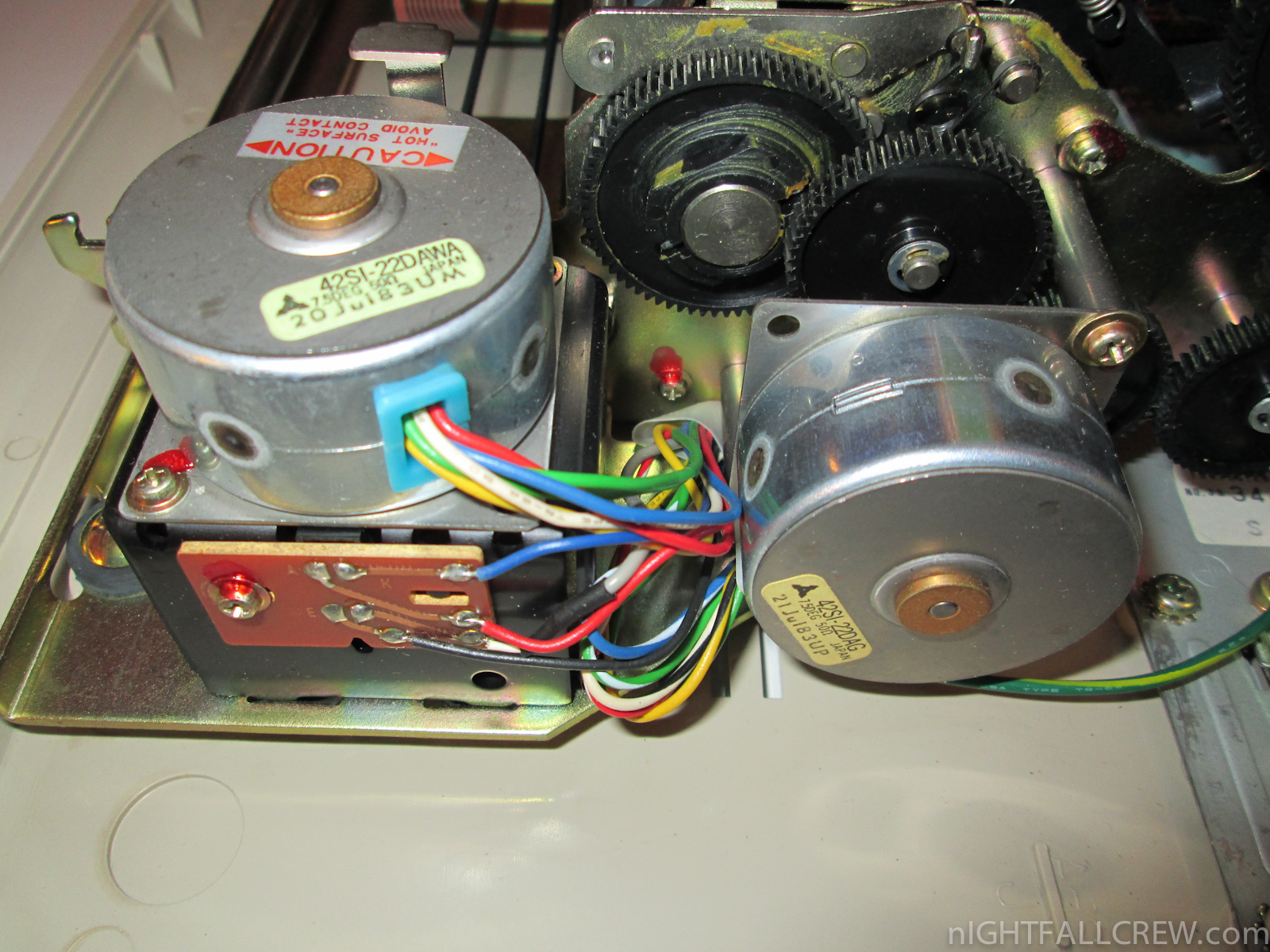

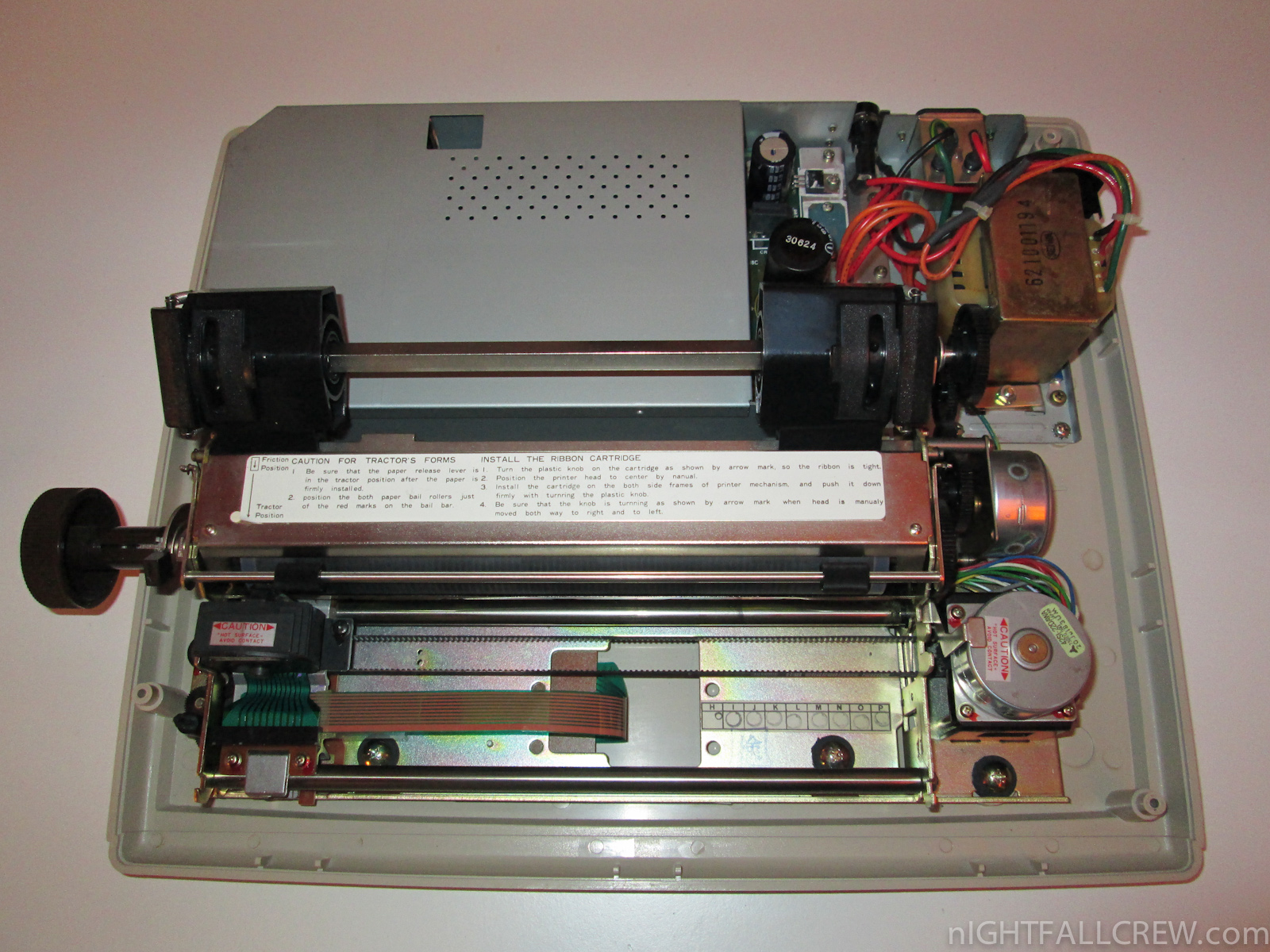

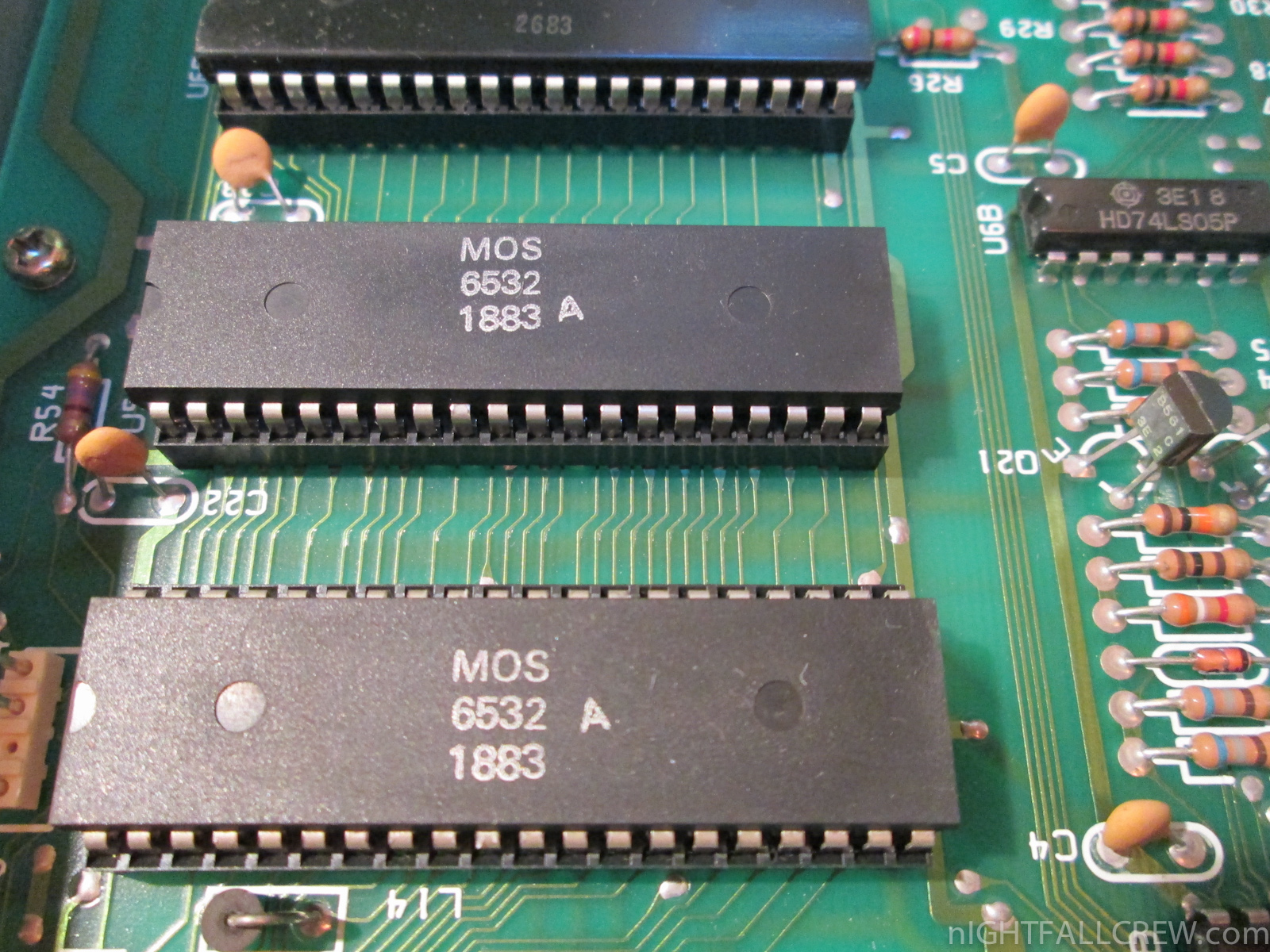

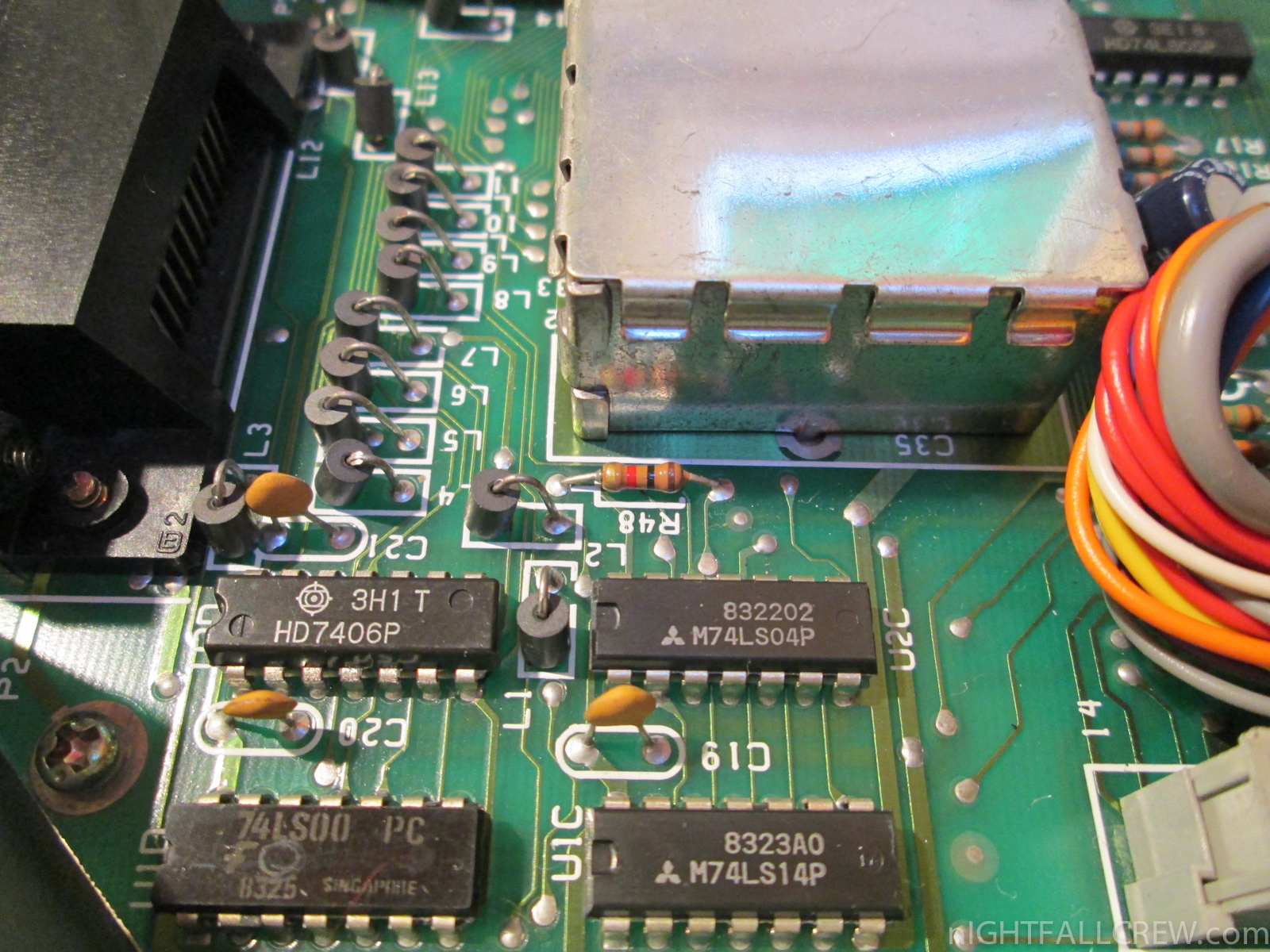

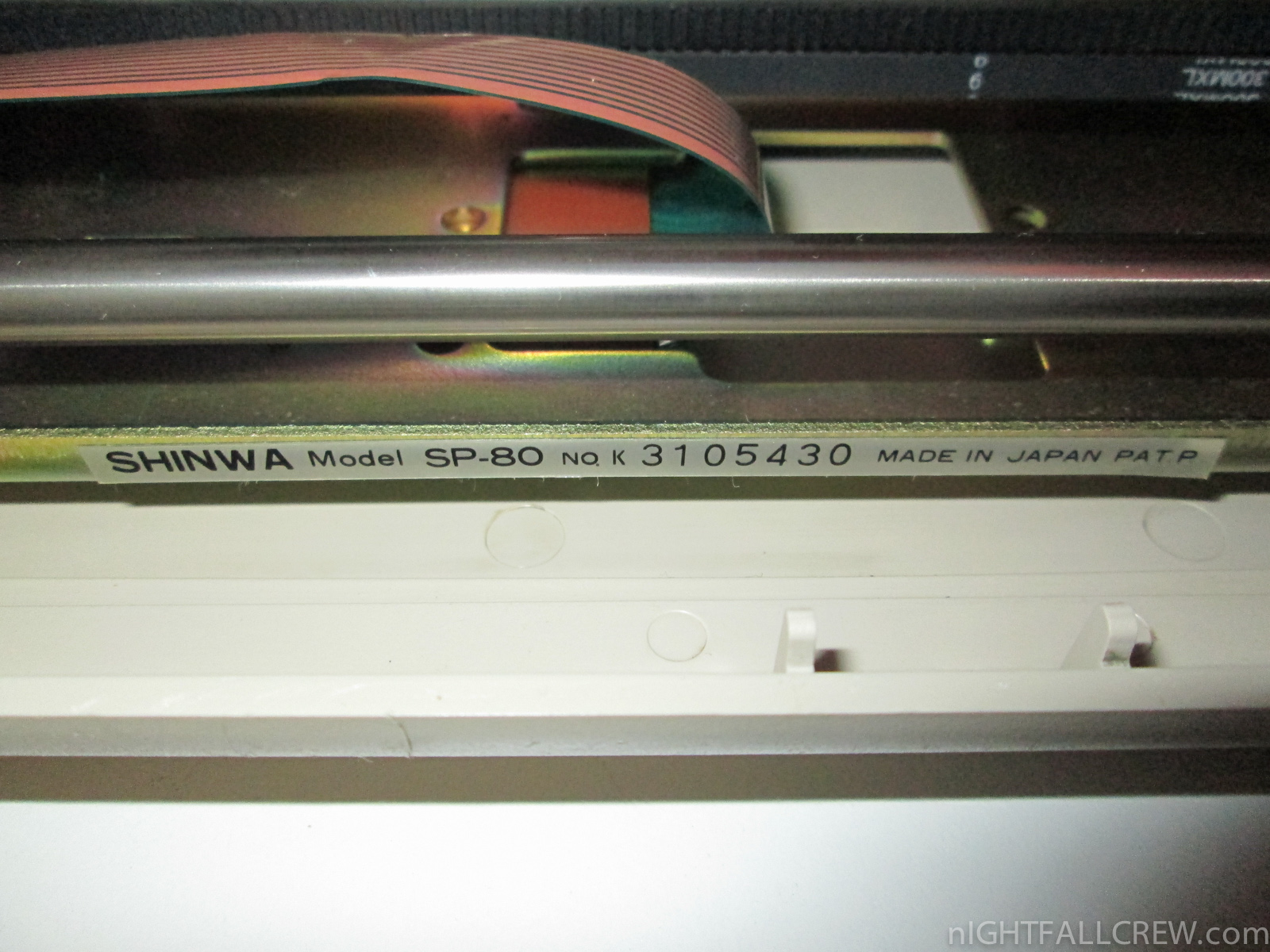

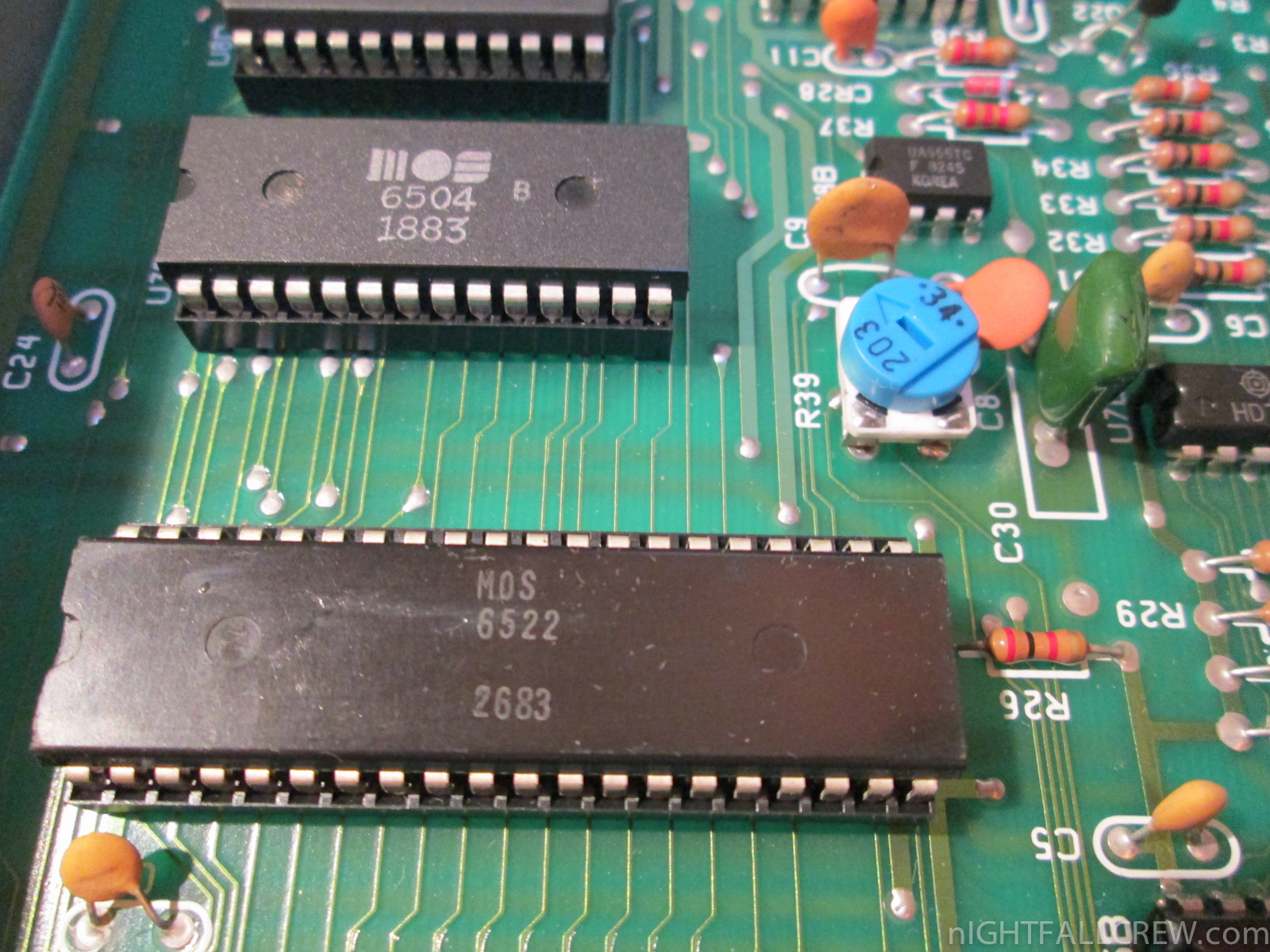

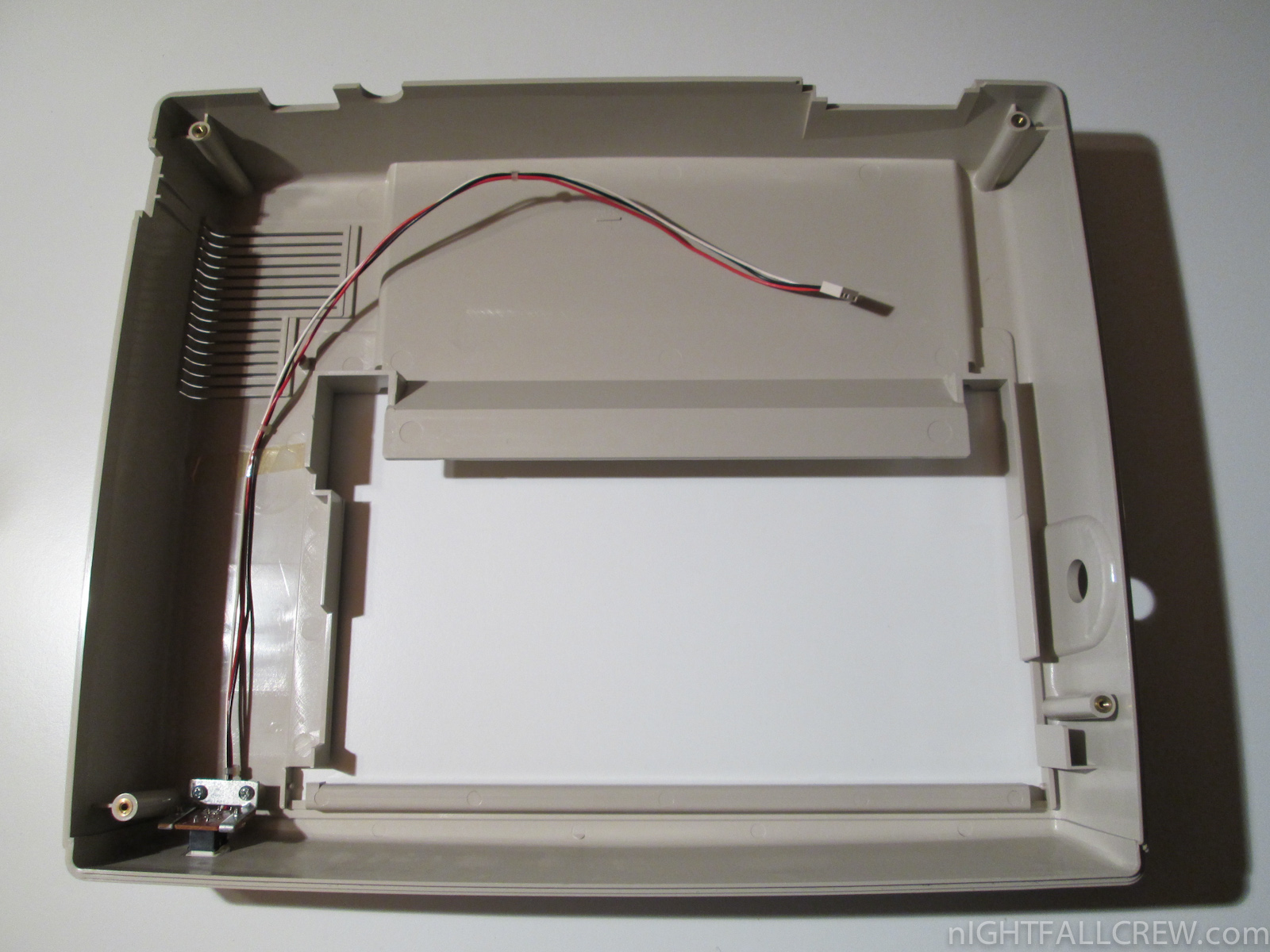

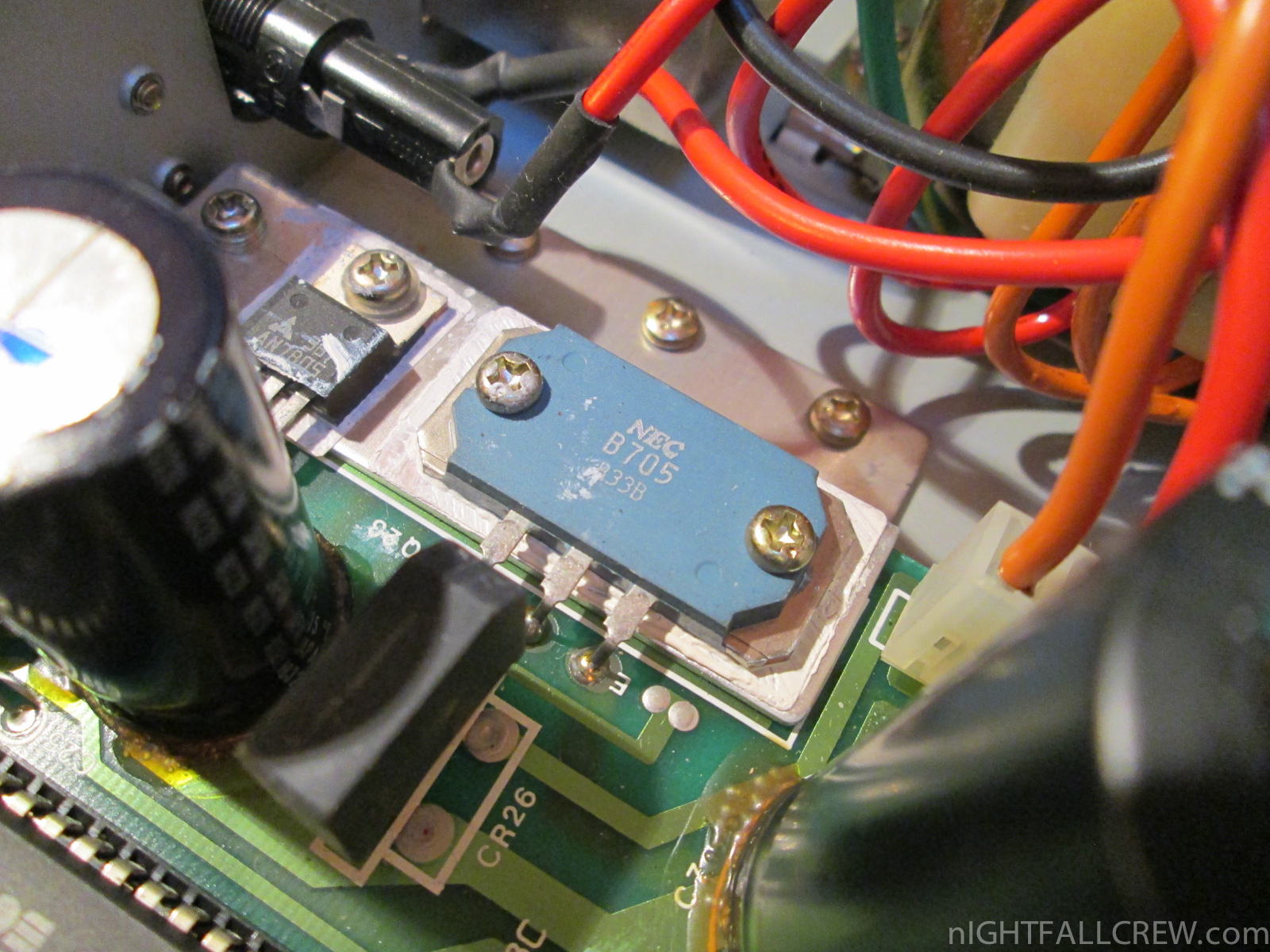

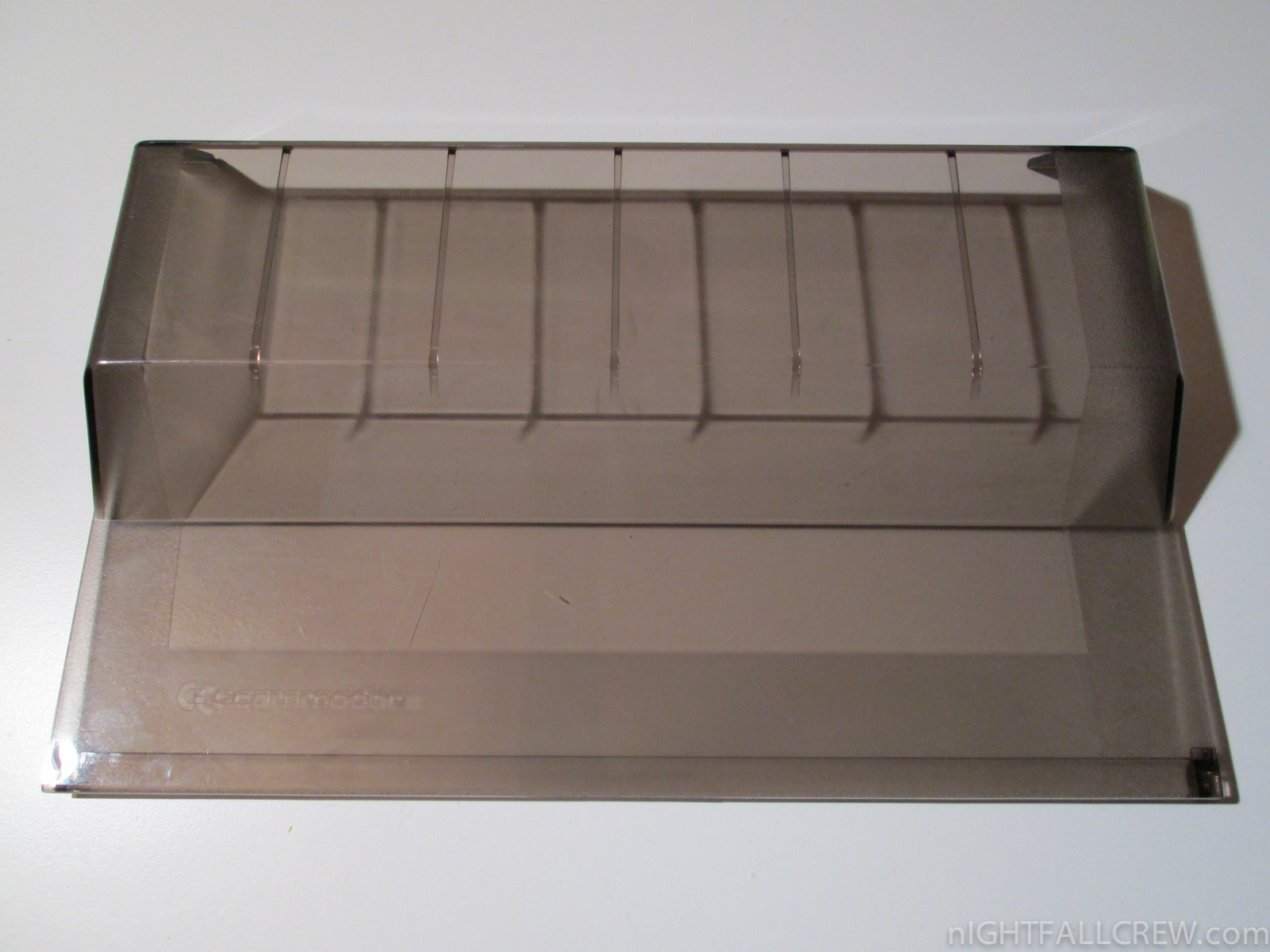

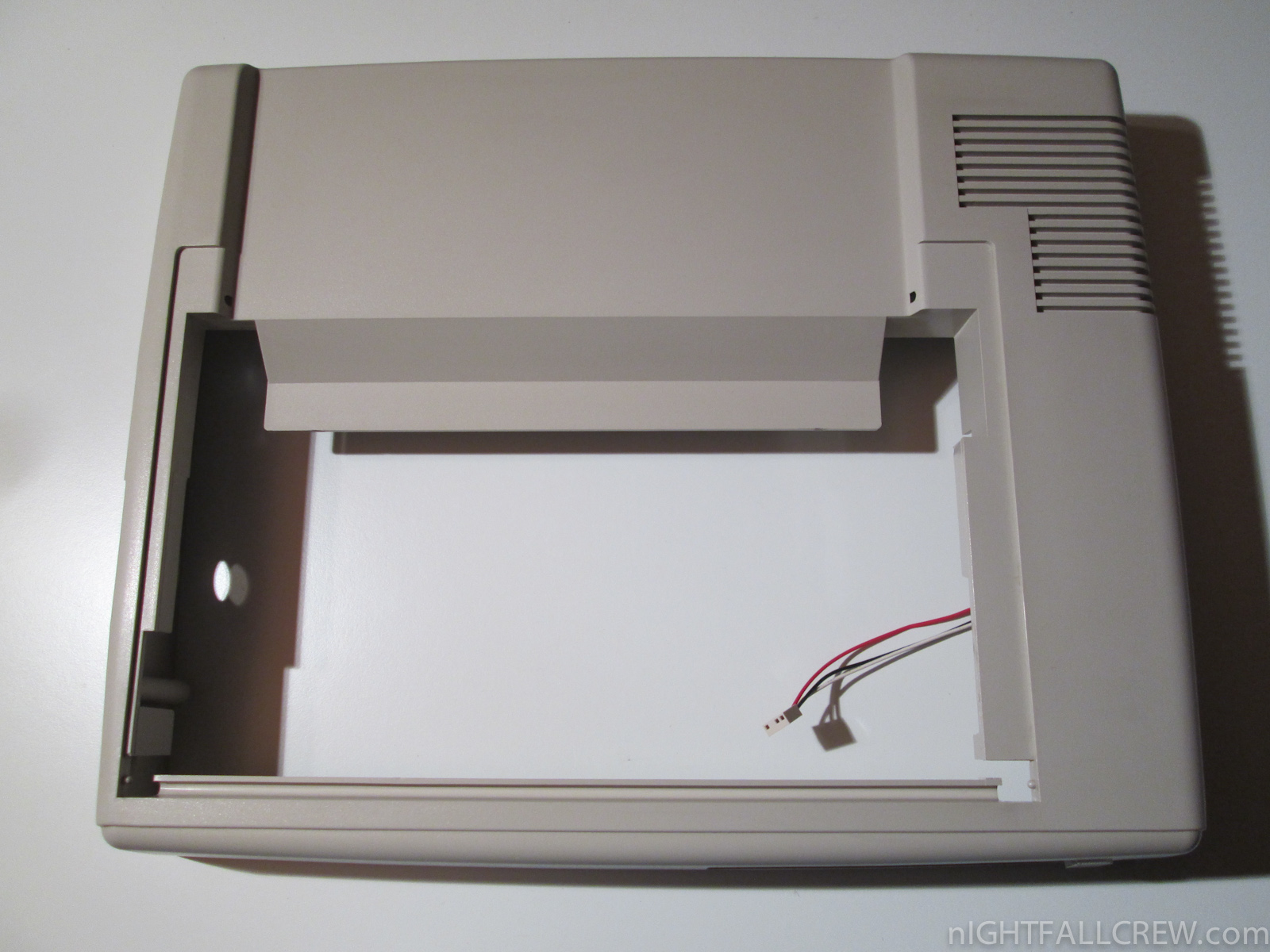

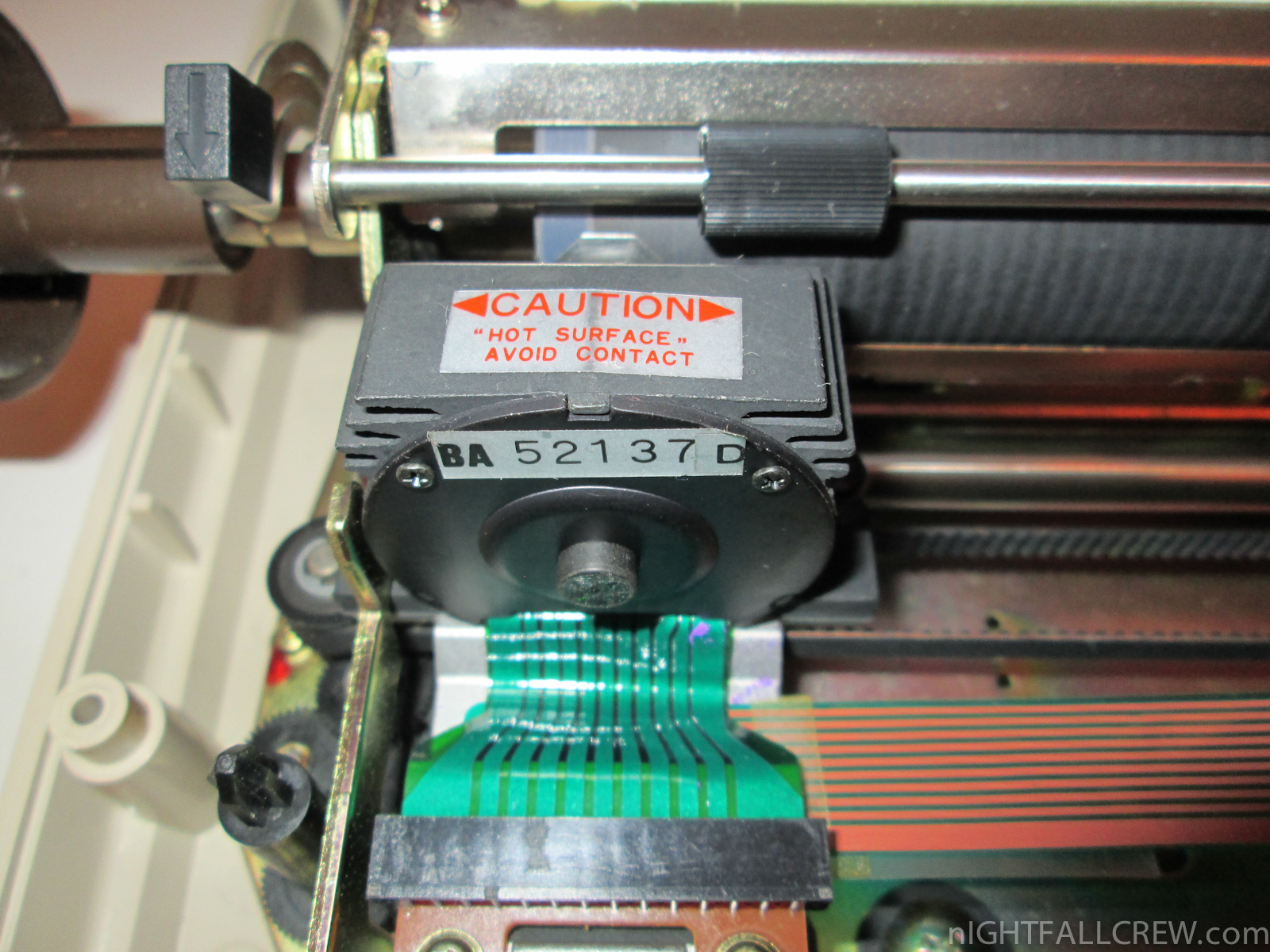

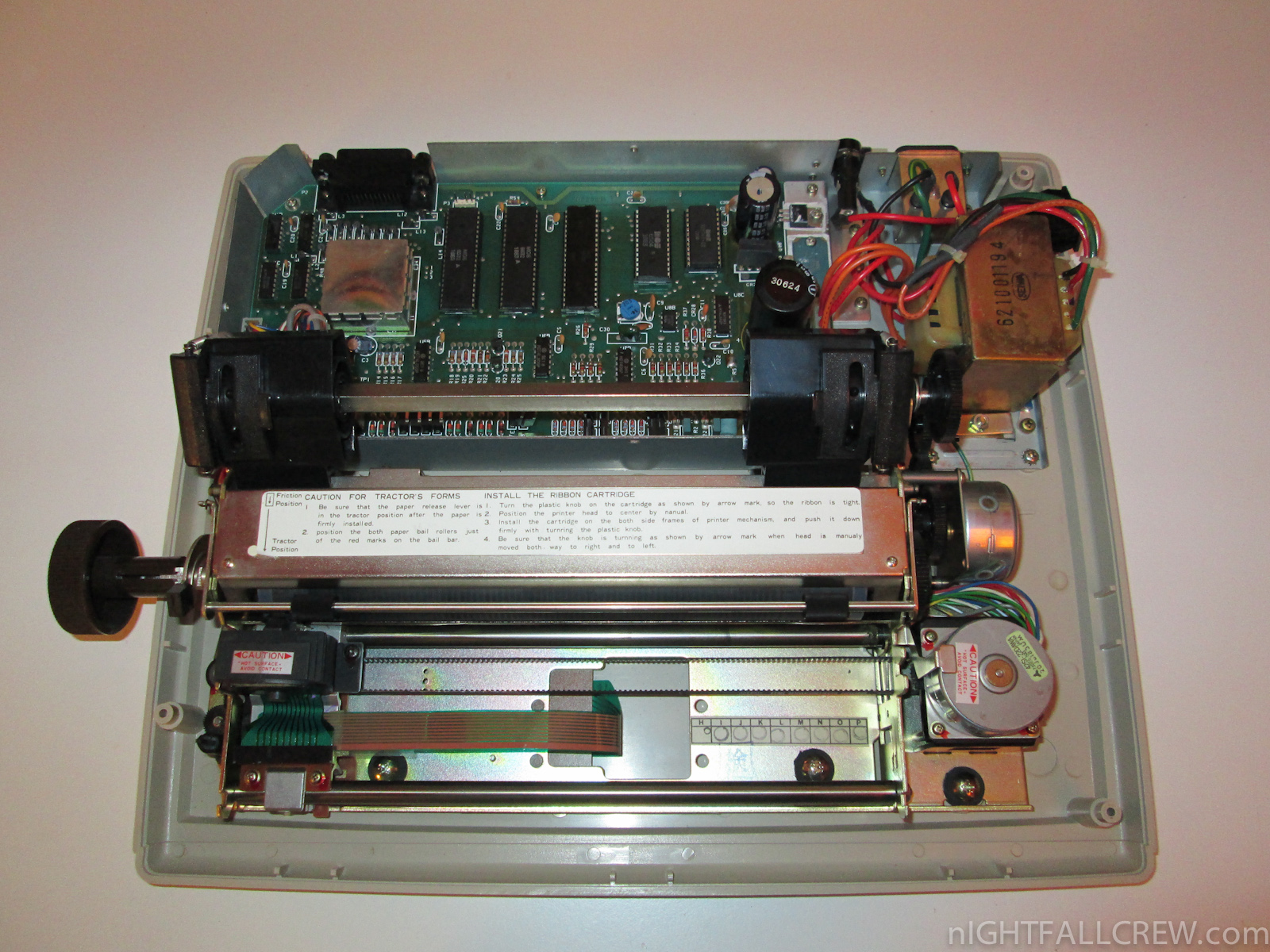

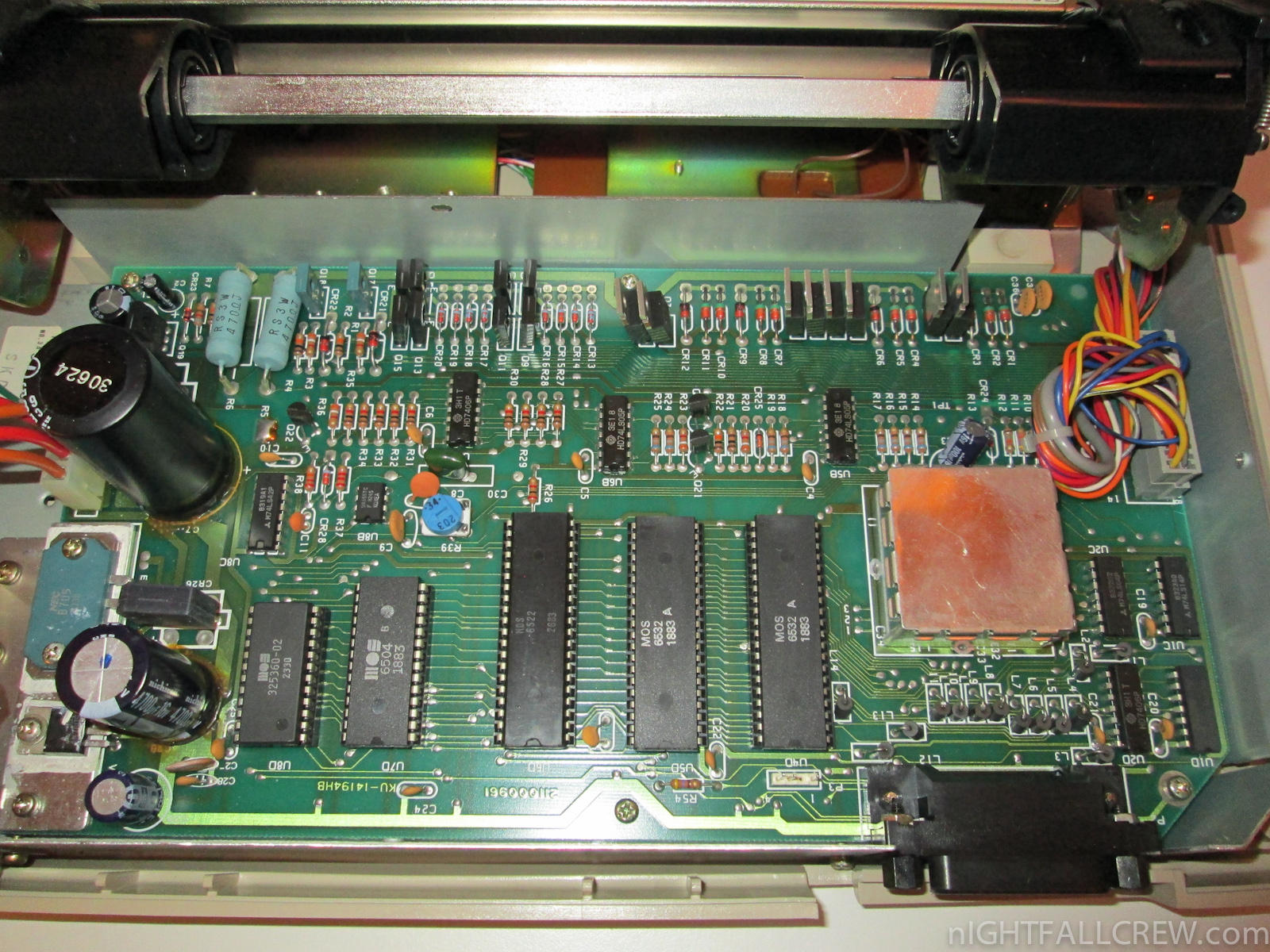

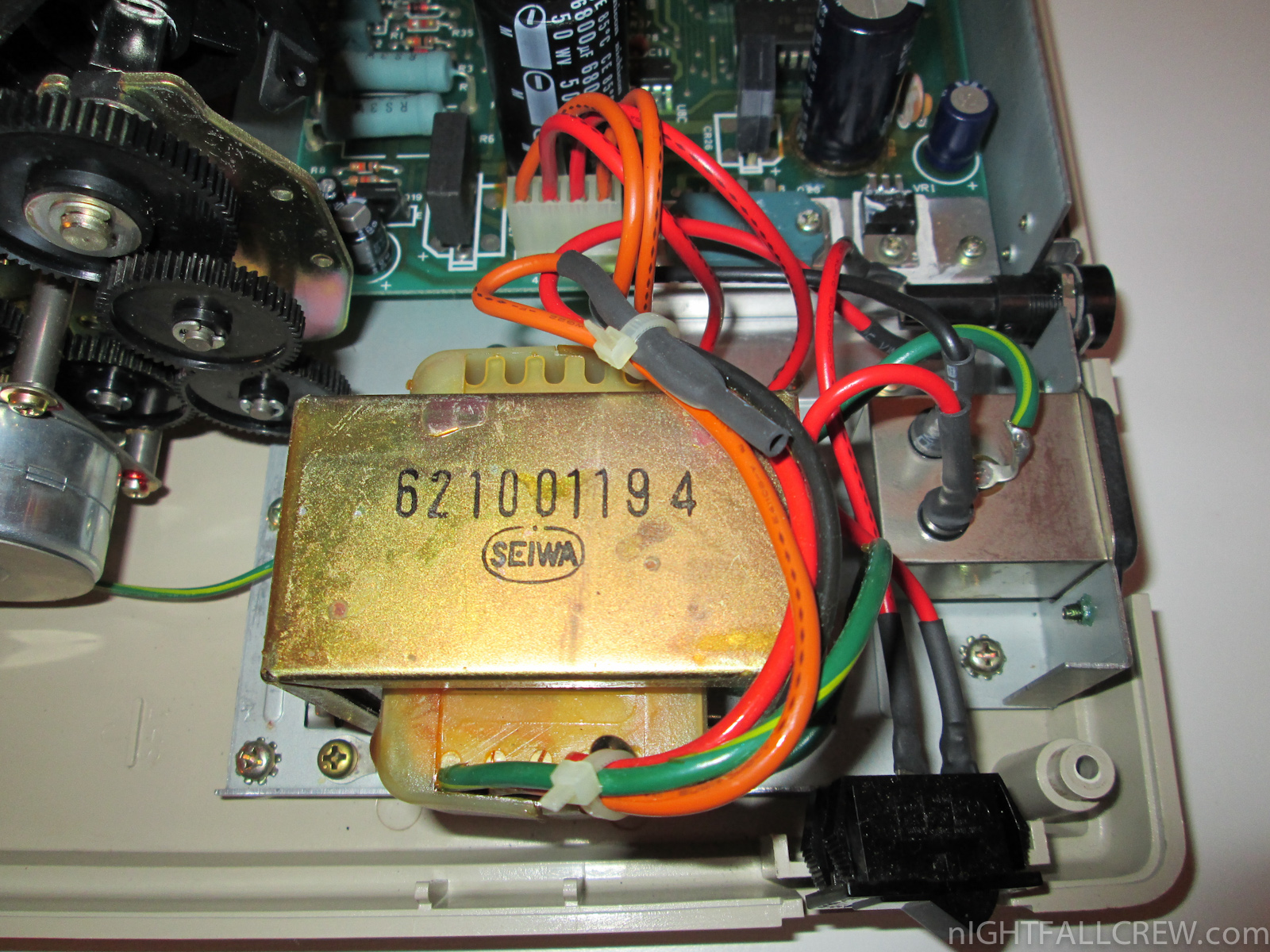

Autopsy:

La stampante Commodore 4023 è una stampante con Bus IEEE-488, su questo BUS possono essere collegati in cascata altri dispositivi IEEE-488. Questa stampante è pienamente compatibile con tutti i computer della serie Commodore PET / CBM.

Specifiche della stampante Commodore 4023:

  • Printing Method: Serisal Impact Dot Matrix.
  • Print Rate: 45 LMP with 80 columns printed. 78 LPM with 40 columns printed. 124 LMP with 20 columns printed.
  • Print direction: Bi-directional.
  • Column Capacity: 80
  • Character Font: 8 x 8
  • Line Spacing: Programmable.
  • Character Size: 0.094″ high, 0.08″ wide
  • Copies: 3, including original.
  • Ribbon Type: Cartridge.
  • Ribbon Life: 1.2 x 10(6) characters.
  • Ribbon Cartridge: Commodore P/N 613160550
  • Paper Width: 10″ computer folded paper.
  • Forms: 7.5 + (0.5 x 2 sprocket margins) Pin-to-pin distance .5″ longitudinally, 9.5″ laterally, 5/32″ diameter.

Commodore Printer 4023 self test:
